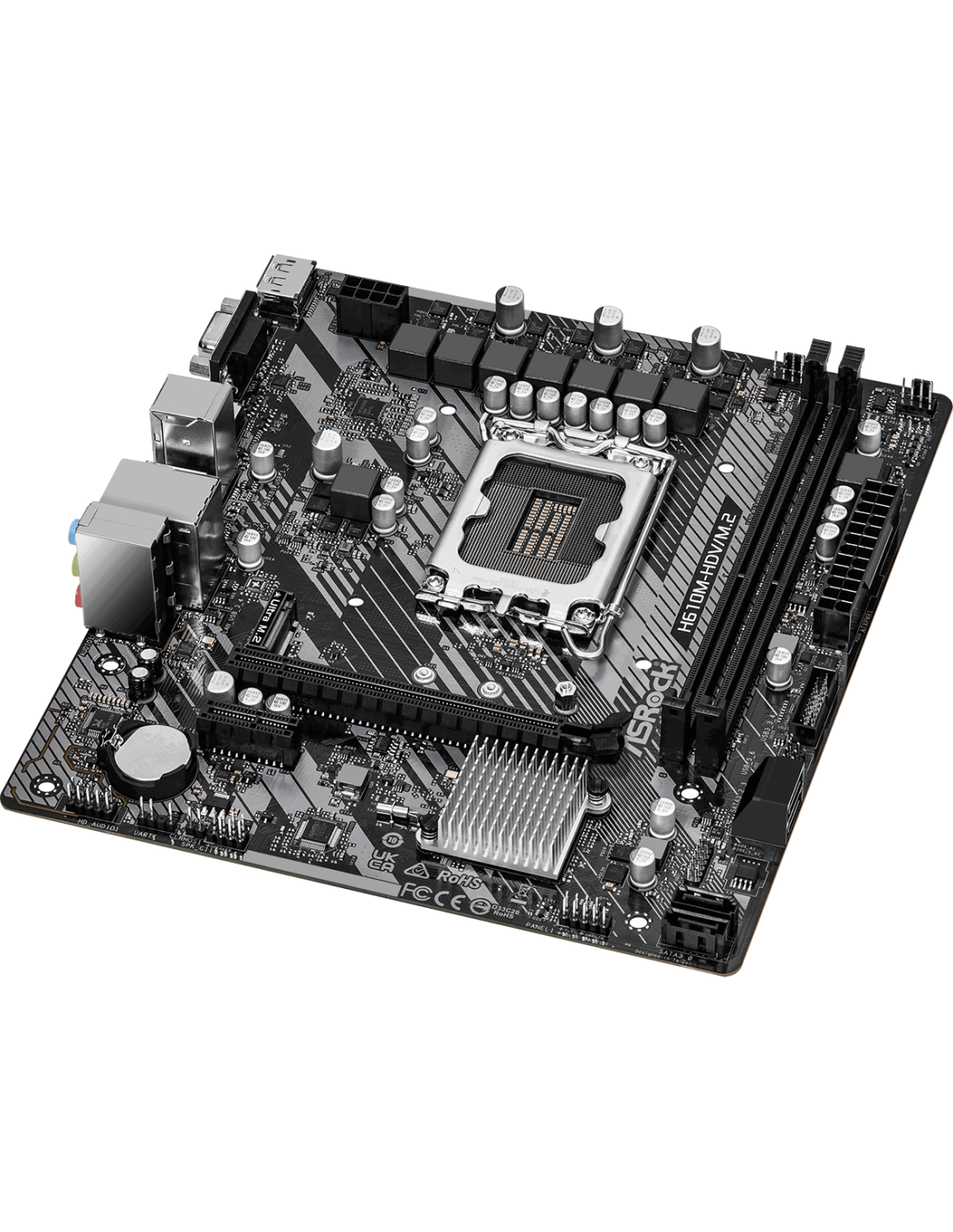

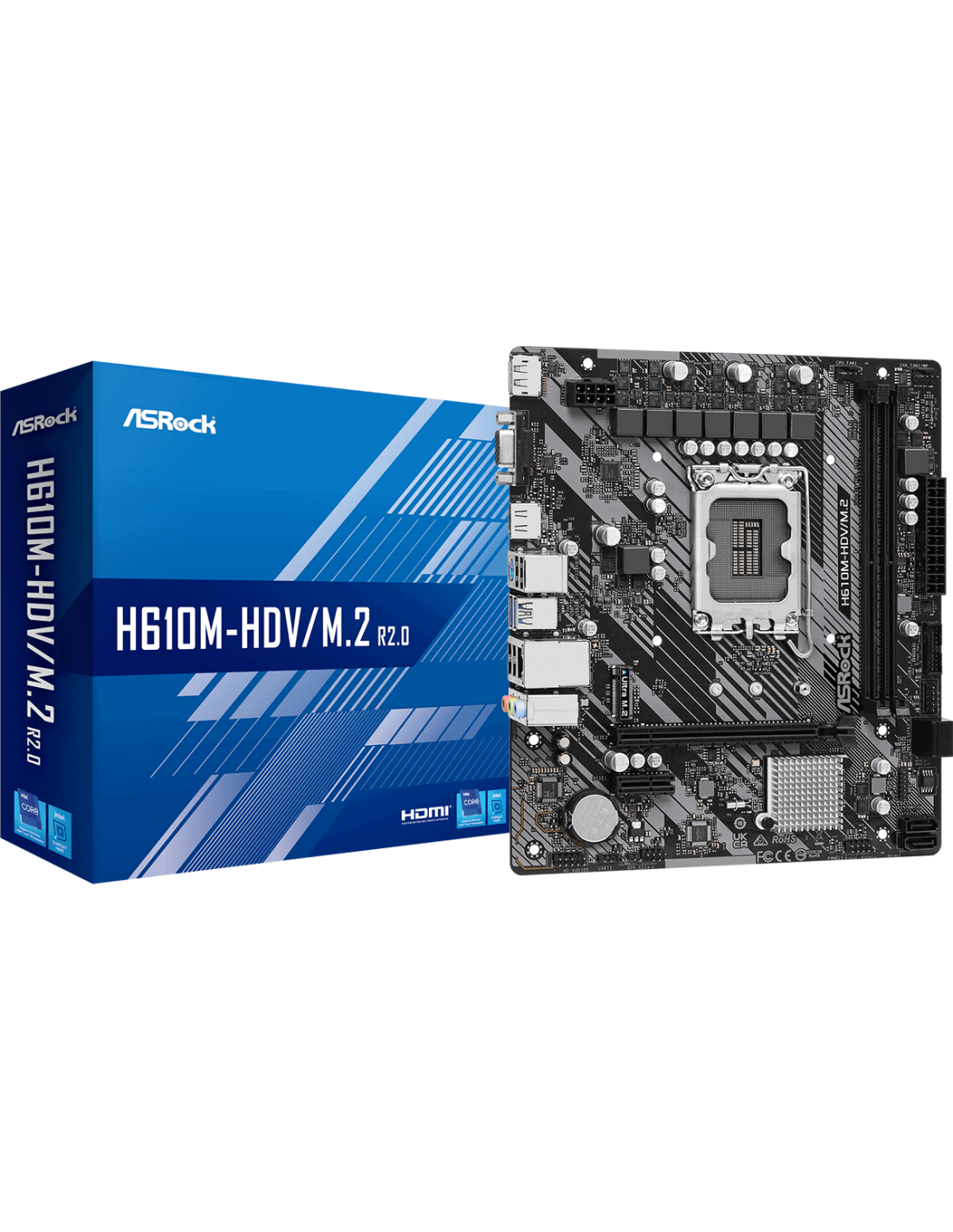

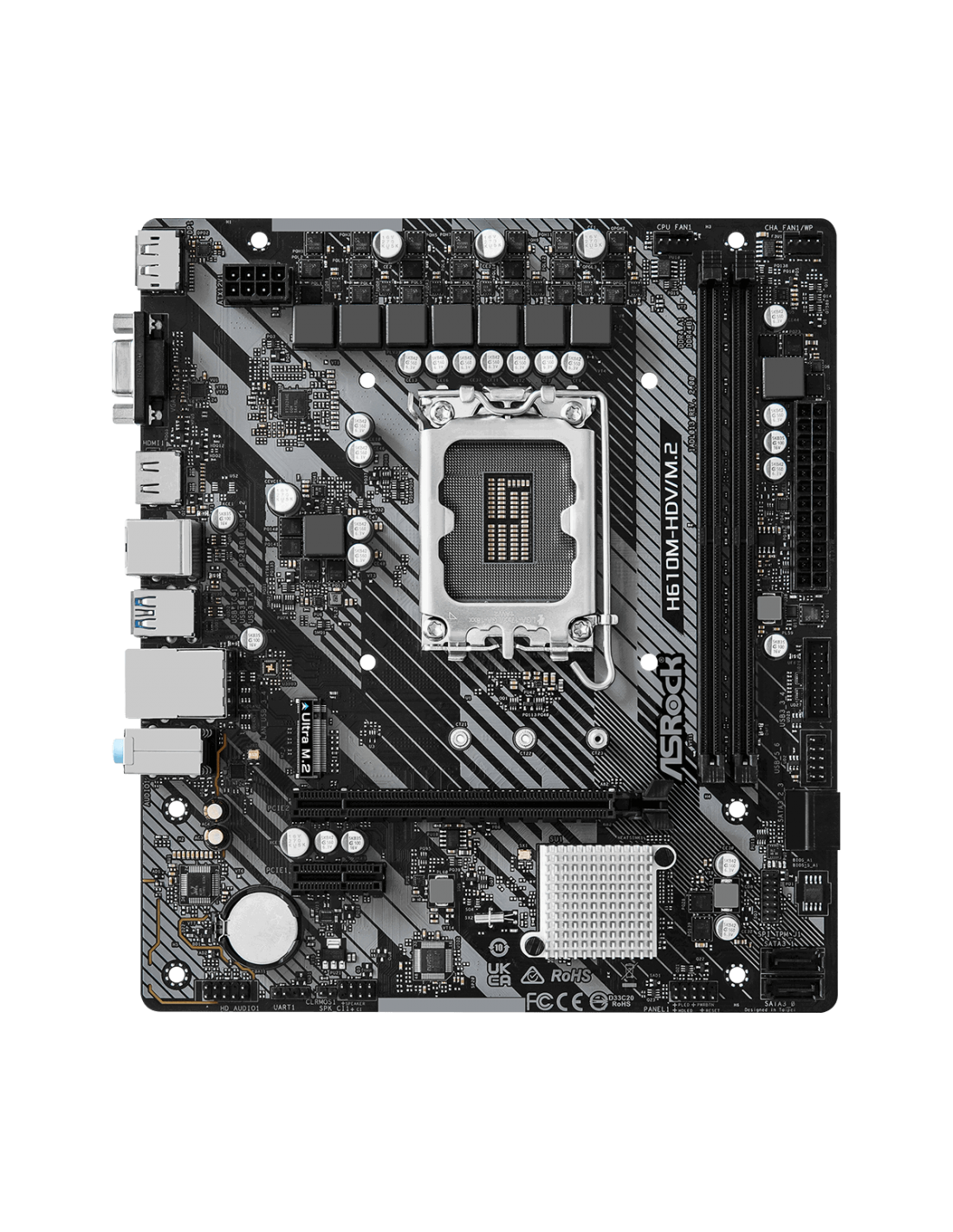

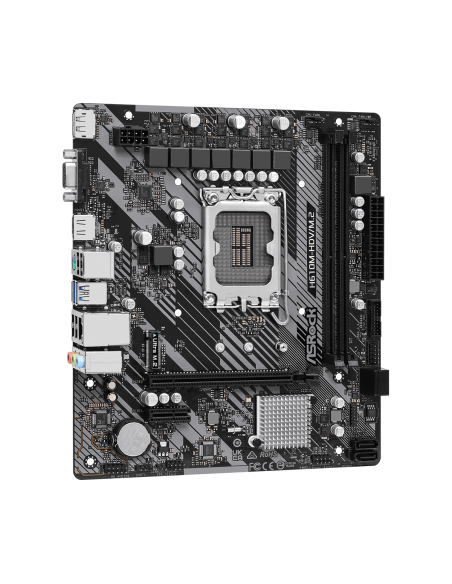

ASROCK H610M-HDV/M.2 R2.0/DDR4

Референция H610M-HDV/M.2 R2.0

На склад

55,41 €

С вкл. данък 108.37 лв.

H610M-HDV/M.2 R2.0_MO

ASROCK H610 2xDDR4 4xSATA3 HDMI DP VGA 1xM2 GLAN 1xPCIEx16 1xPCIEx1_MO

Storage: Chipset: - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*; - 4 x SATA3 6.0 Gb/s Connectors
LAN: PCIE x1 Gigabit LAN 10/100/1000 Mb/s; 1 x Realtek RTL8111H; Supports Wake-On-LAN; Supports Lightning/ESD Protection; Supports Energy Efficient Ethernet 802.3az; Supports PXE
Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec); Supports Surge Protection
Memory type: Dual Channel DDR4 Memory Technology; 2 x DDR4 DIMM Slots; Supports DDR4 non-ECC, un-buffered memory up to 3200; Supports ECC UDIMM memory modules (operate in non-ECC mode); Max. capacity of system memory: 64GB*; Supports Intel® Extreme Memory Profile (XMP
Vendor_url: https://www.asrock.com/mb/Intel/H610M-HDVM.2%20R2.0/index.asp#Specification
Graphics: Intel® Xe Graphics Architecture (Gen 12); Three graphics output options: D-Sub, HDMI and DisplayPort 1.4; Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz; Supports DisplayPort 1.4 with DSC (compressed) max. resoluti
Expansion Slots: CPU: - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x16 mode*` Chipset: - 1 x PCIe 3.0 x1 Slot (PCIE1)
BIOS: 128Mb AMI UEFI Legal BIOS with multilingual GUI support; ACPI 6.0 Compliant wake up events; SMBIOS 2.7 Support; PU Core/Cache, CPU Core/Cache Load-Line, CPU GT, CPU GT Load-Line, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, +1.8V PROC, +1.05V PROC Voltage Mul
Connectors: 1 x SPI TPM Header; 1 x Chassis Intrusion and Speaker Header; 1 x CPU Fan Connector (4-pin)*; 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**; 1 x 24 pin ATX Power Connector; 1 x 8 pin 12V Power Connector; 1 x Front Panel Audio Co
Form Factor: Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm; Solid Capacitor design
OS: - Microsoft® Windows® 10 64-bit / 11 64-bit
Warranty: 36 Months

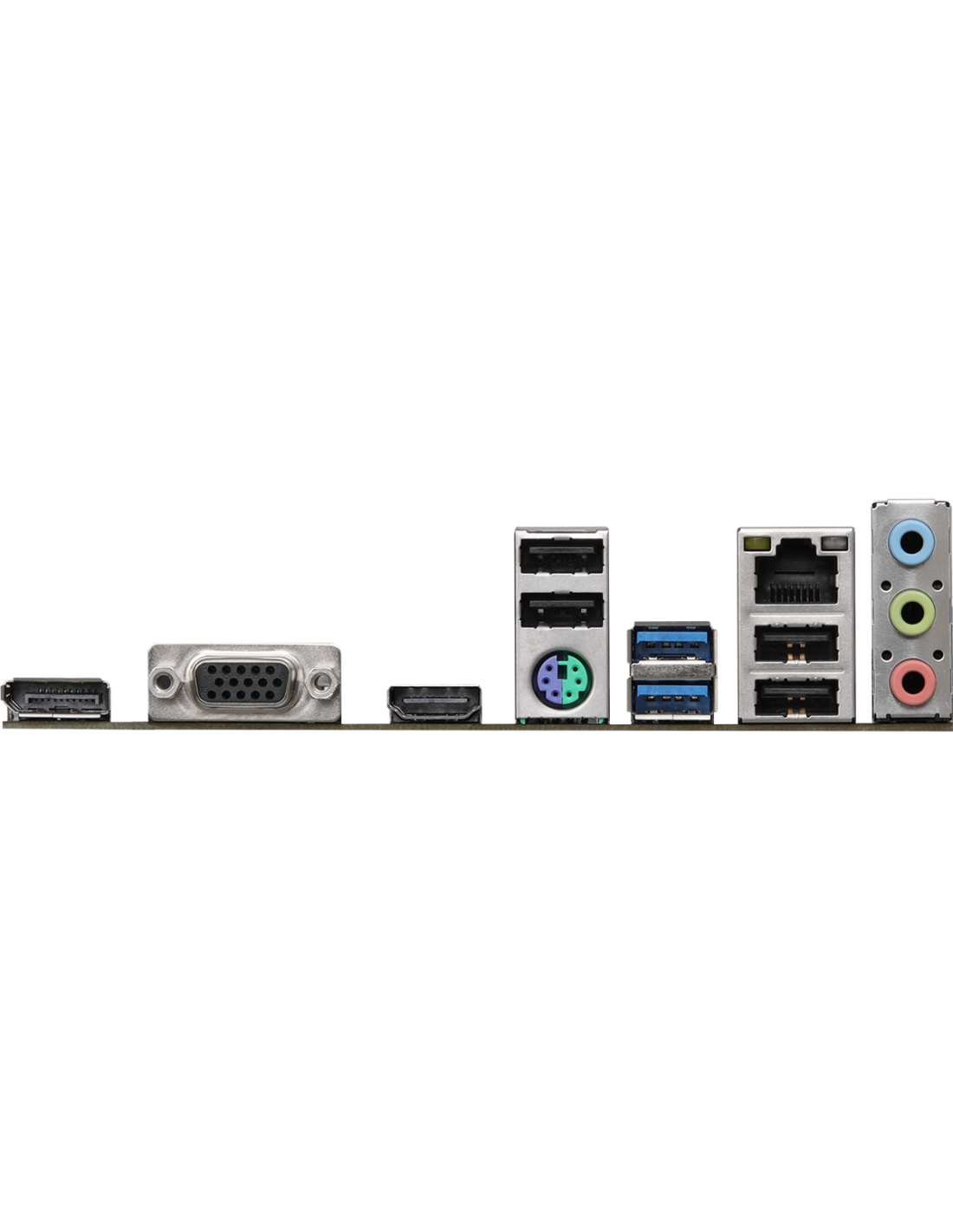

Rear panel I/O: 1 x PS/2 Mouse/Keyboard Port; 1 x D-Sub Port; 1 x HDMI Port; 1 x DisplayPort 1.4; 2 x USB 3.2 Gen1 Ports (Supports ESD Protection); 4 x USB 2.0 Ports (Supports ESD Protection); 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED); HD Audio Jacks: Line
Chipset: - Intel® H610
Дънна платка - чипсет: INTEL H610
Дънна платка - поддържан тип памет: DDR4
Дънна платка - брой слотове за памет: 2 бр
Дънна платка - честота на паметта: 3200 MHz
Дънна платка - интерфейси: M.2 (NVMe) конектор
SATA 3.0
Дънна платка - портове: Display Port
HDMI
USB 2.0
USB 3.2
VGA
Дънна платка - форм фактор: Micro ATX
