Склад София

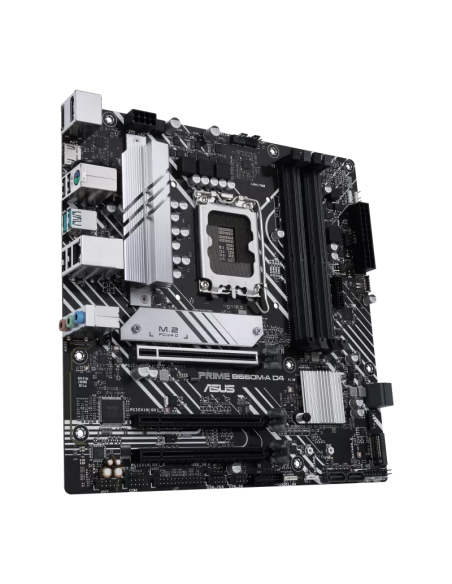

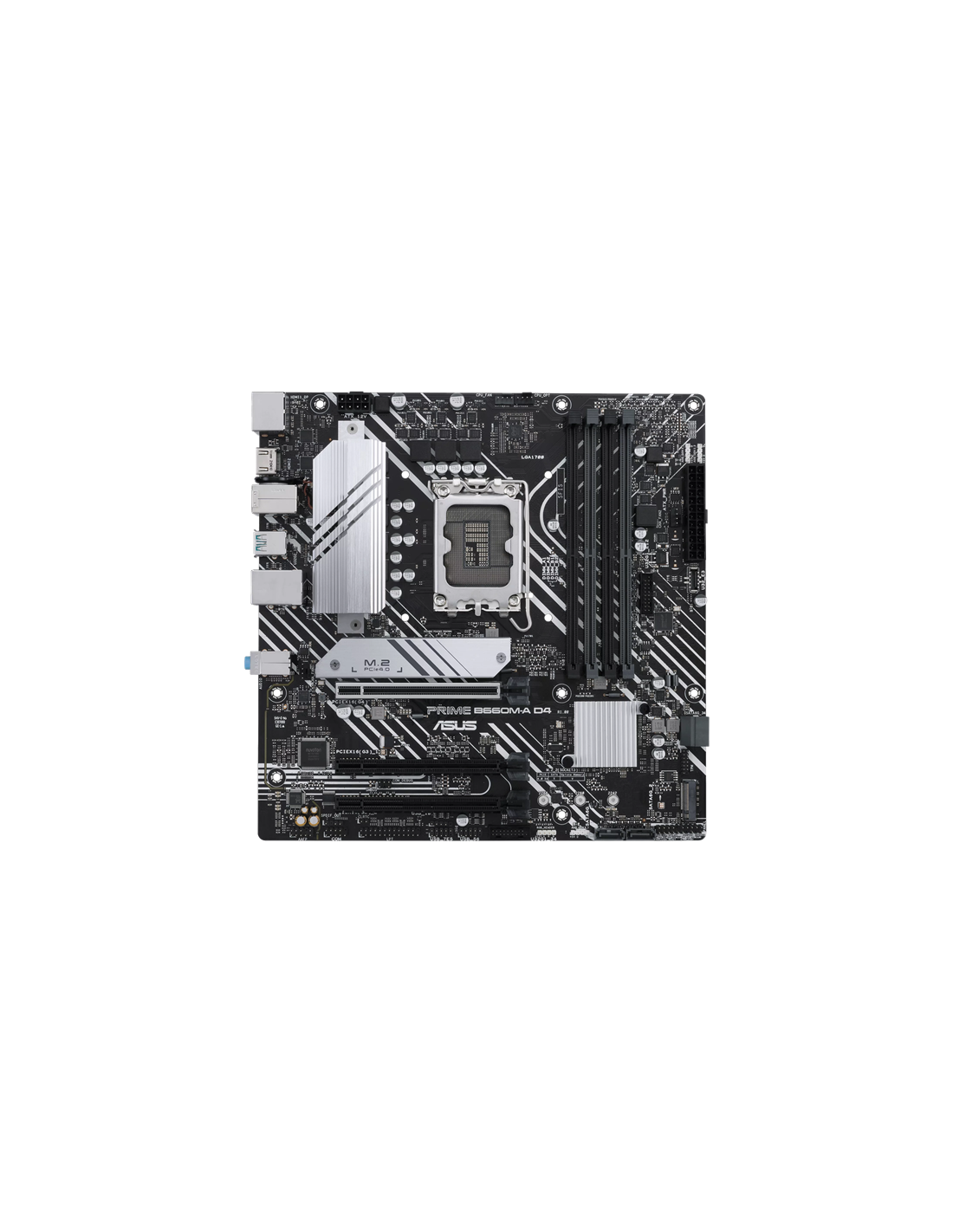

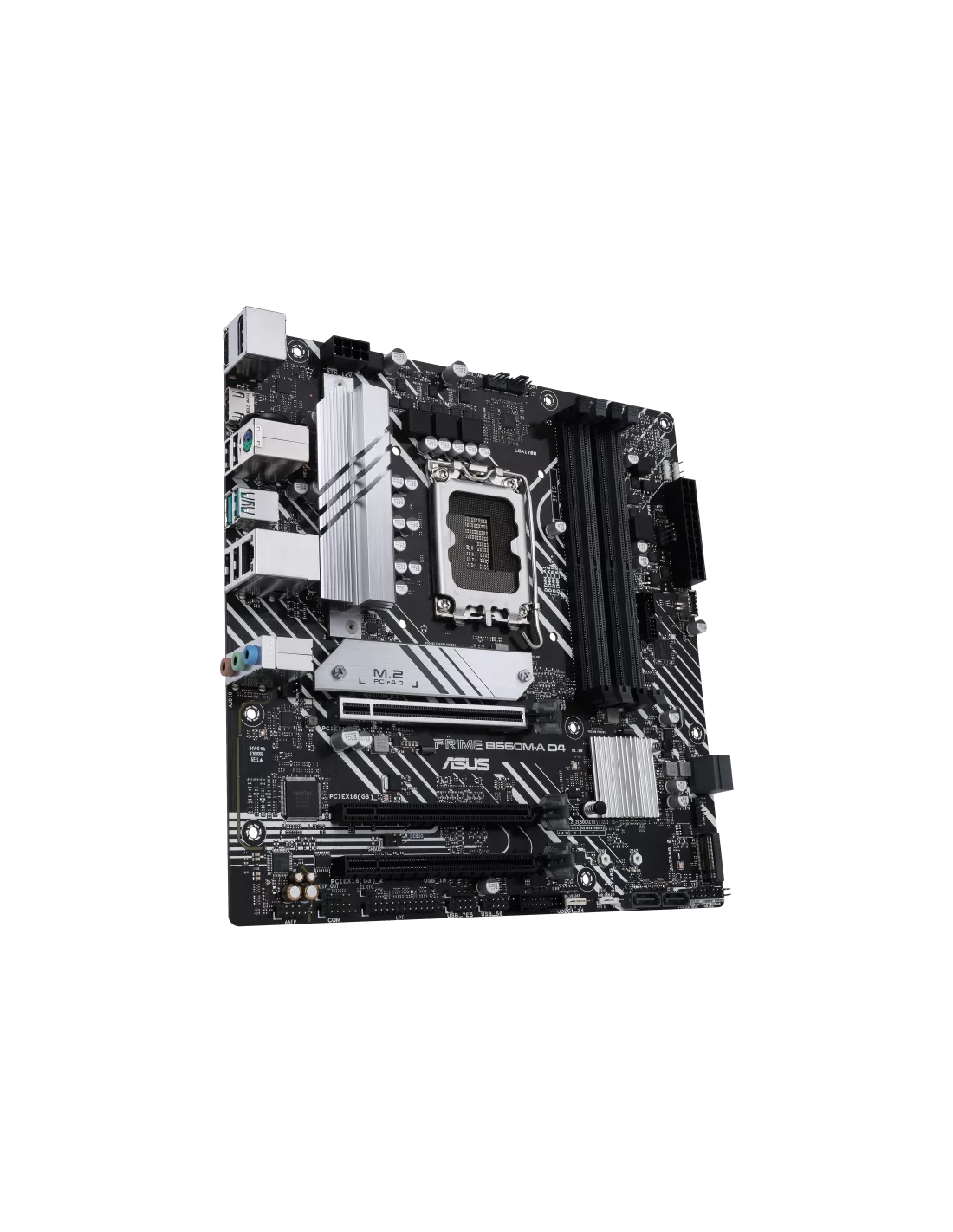

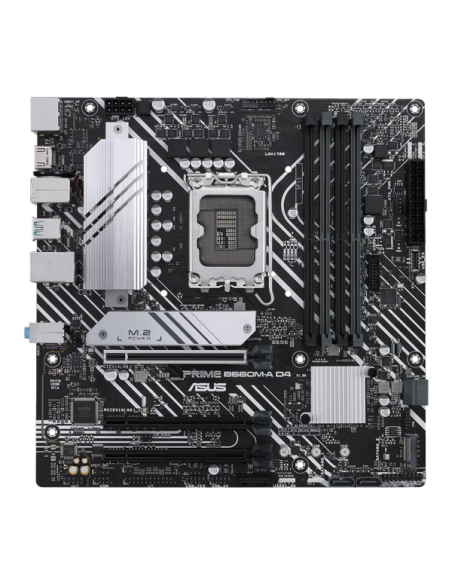

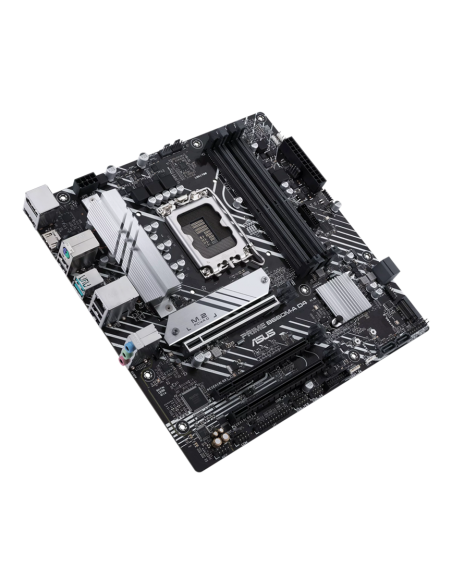

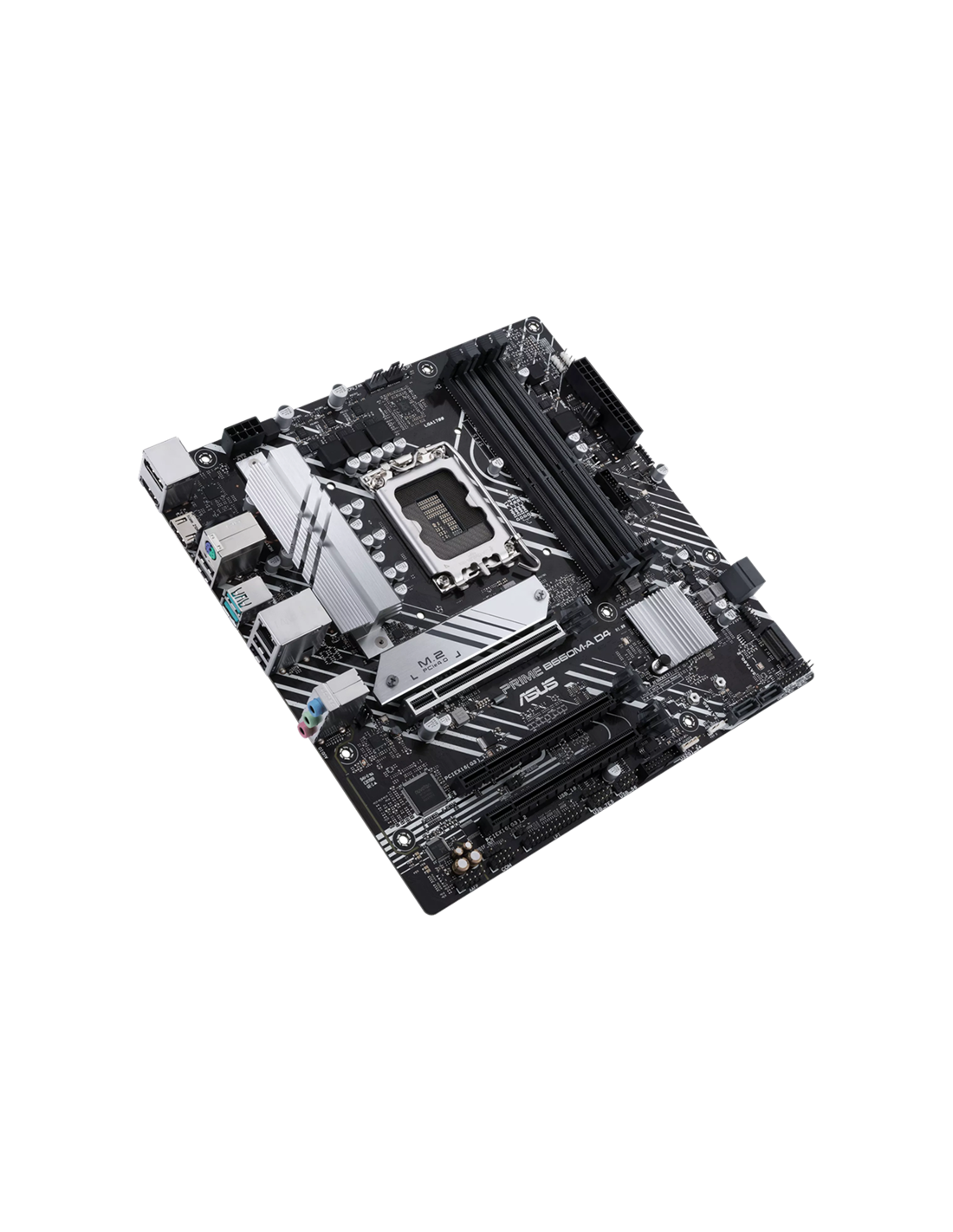

ASUS PRIME B660M-A D4-CSM
90MB19K0-M1EAYC
На склад
171,52 €
С вкл. данък
335.46 лв.
90MB19K0-M1EAYC_MO
|
|
12 x 16.37 евро |
Купи на изплащане със стоков кредит от Банка ДСК
• Улеснена процедура за електронно подписване
• Атрактивни условия по кредита
• Параметри изцяло по Ваш избор
• Одобрение до няколко минути изцяло онлайн
Размер на кредита /евро/
Месечна вноска /евро/
Обща дължима сума /евро/
ГПР /%/
Изчисленията са направени при допускането за първа падежна дата след 30 дни и са с насочваща цел. Избери най-подходящата месечна вноска.
_MO
- Chipset
- Intel® B660 Chipset;
Intel® B660 Chipset - Manufacturer
- ASUS
- Storage
- Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports*;
Intel® 12th Gen Processors;
M.2_1 slot (Key M), type 2242/2260/2280;
- Intel® 12th Gen processors support PCIe 4.0 x4 mode.;
Intel® B660 Chipset**;
M.2_2 slot (Key M), type 2242/2260/2280 (supports PC - Form Factor
- mATX Form Factor
- Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC;
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;
- Supports up to 24-Bit/192 kHz playback;
Audio Features;
- Audio Shielding;
- Premium audio capacitors;
- Dedicated audio PCB - Dimensions
- 24.4 cm x 24.4 cm
- Model
- PRIME B660M-A D4-CSM
- CPU's supported
- Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors;
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**;

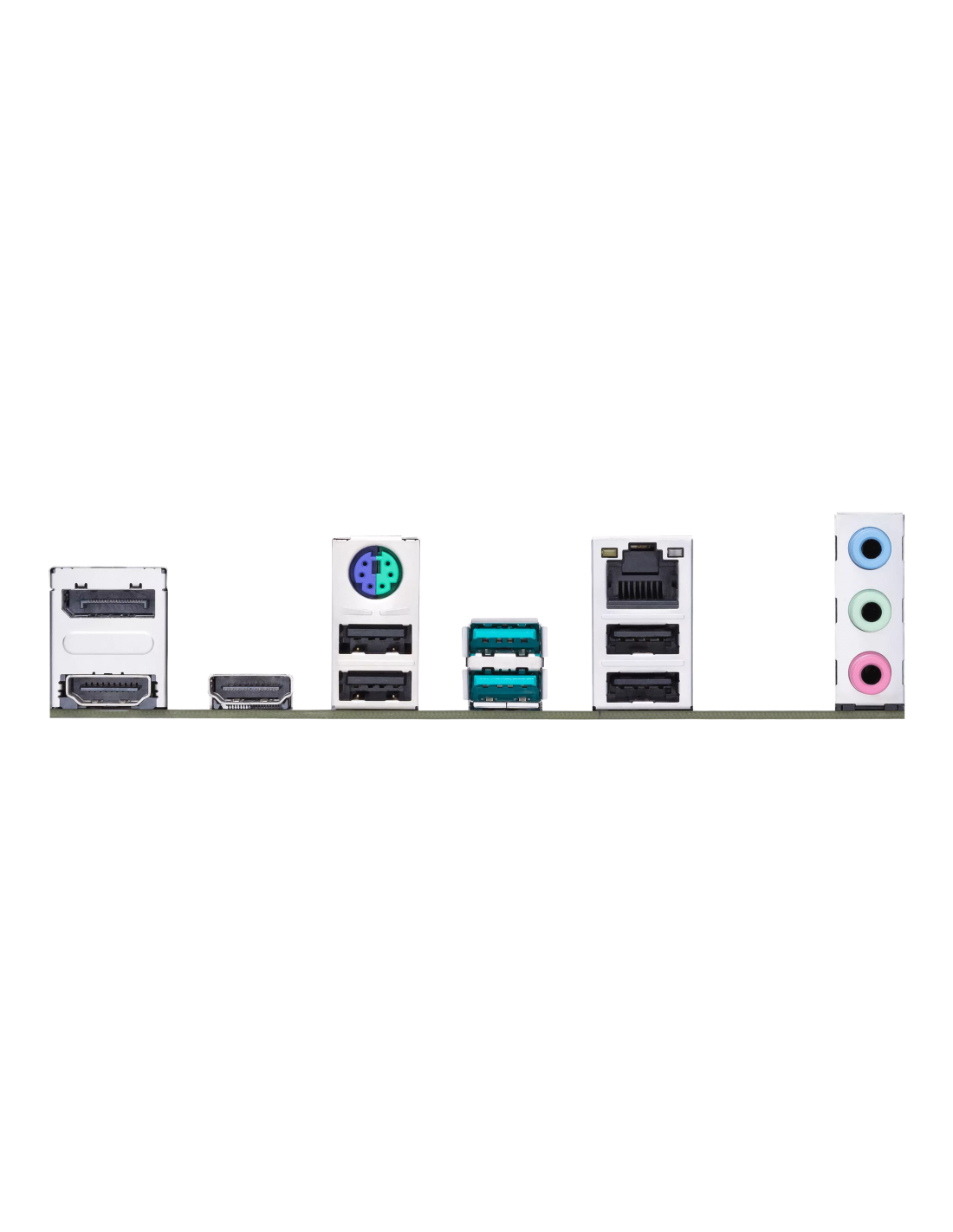

* Refer to www.asus.com for CPU suppor - Rear panel I/O
- 2 x USB 3.2 Gen 2 ports (2 x Type-A );
4 x USB 2.0 ports (4 x Type-A);
1 x DisplayPort;
2 x HDMITM ports;
1 x Intel® 1Gb Ethernet port;
3 x Audio jacks;
1 x PS/2 Keyboard/Mouse combo port;
2 x USB 3.2 Gen 2 ports (2 x Type-A );
4 x USB 2.0 ports (4 x Ty - BIOS
- 128 Mb Flash ROM, UEFI AMI BIOS
- Expansion Slots
- Intel® 12th Gen Processors;
1 x PCIe 4.0/3.0 x16 slot;
Intel® B660 Chipset;
1 x PCIe 3.0 x16 slot (supports x4 mode);
1 x PCIe 3.0 x16 slot (supports x1 mode);
*Supports Intel® Optane Memory H Series on PCH-attached PCIe slot;
1 x PCle 4.0 x16+1 x PCle 3. - LAN
- 1 x Intel® 1Gb Ethernet
- Connectors
- Fan and Cooling related;
1 x 4-pin CPU Fan header;
1 x 4-pin CPU OPT Fan header;
2 x 4-pin Chassis Fan headers;
Power related;
1 x 24-pin Main Power connector;
1 x 8-pin +12V Power connector;
Storage related;
2 x M.2 slots (Key M);
4 x SATA 6Gb/s ports;
U - Memory type
- 4 x DIMM, Max. 128GB, DDR4
5333(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory* ;
Dual Channel Memory Architecture;
Su - OS
- Windows® 11 64-bit, Windows® 10 64-bit
- Graphics
- 1 x DisplayPort **;
2 x HDMITM ports***;
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.;
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.;
***Supports 4K@60Hz as specified in HDMI 2.1.;
1 x D - Vendor_url
- https://www.asus.com/motherboards-components/motherboards/prime/prime-b660m-a-d4-csm/
- USB
- Rear USB (Total 6 ports);
2 x USB 3.2 Gen 2 ports (2 x Type-A );
4 x USB 2.0 ports (4 x Type-A) ;
Front USB (Total 10 ports);
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports;
1 x USB 3.2 Gen 1 connector (supports USB Type-C®);
2 x USB 2 - Дънна платка - сокет
- LGA1700
- Дънна платка - чипсет
- INTEL B660
- Дънна платка - поддържан тип памет
- DDR4
- Дънна платка - честота на паметта
- 2133 MHz
2400 MHz
2666 MHz
2800 MHz
2933 MHz
3000 MHz
3200 MHz
3333 MHz
3400 MHz
3466 MHz
3600 MHz
3733 MHz
4000 MHz
4266 MHz
4400 MHz
4600 MHz
4800 MHz
5000 MHz
5333 MHz - Дънна платка - интерфейси
- M.2 (NVMe) конектор
M.2 (SATA) конектор
SATA 3.0 - Дънна платка - портове
- Display Port
USB 2.0
USB 3.2 - Дънна платка - форм фактор
- Micro ATX
