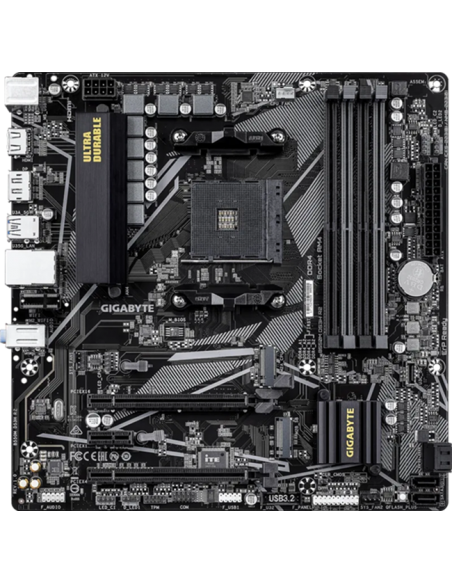

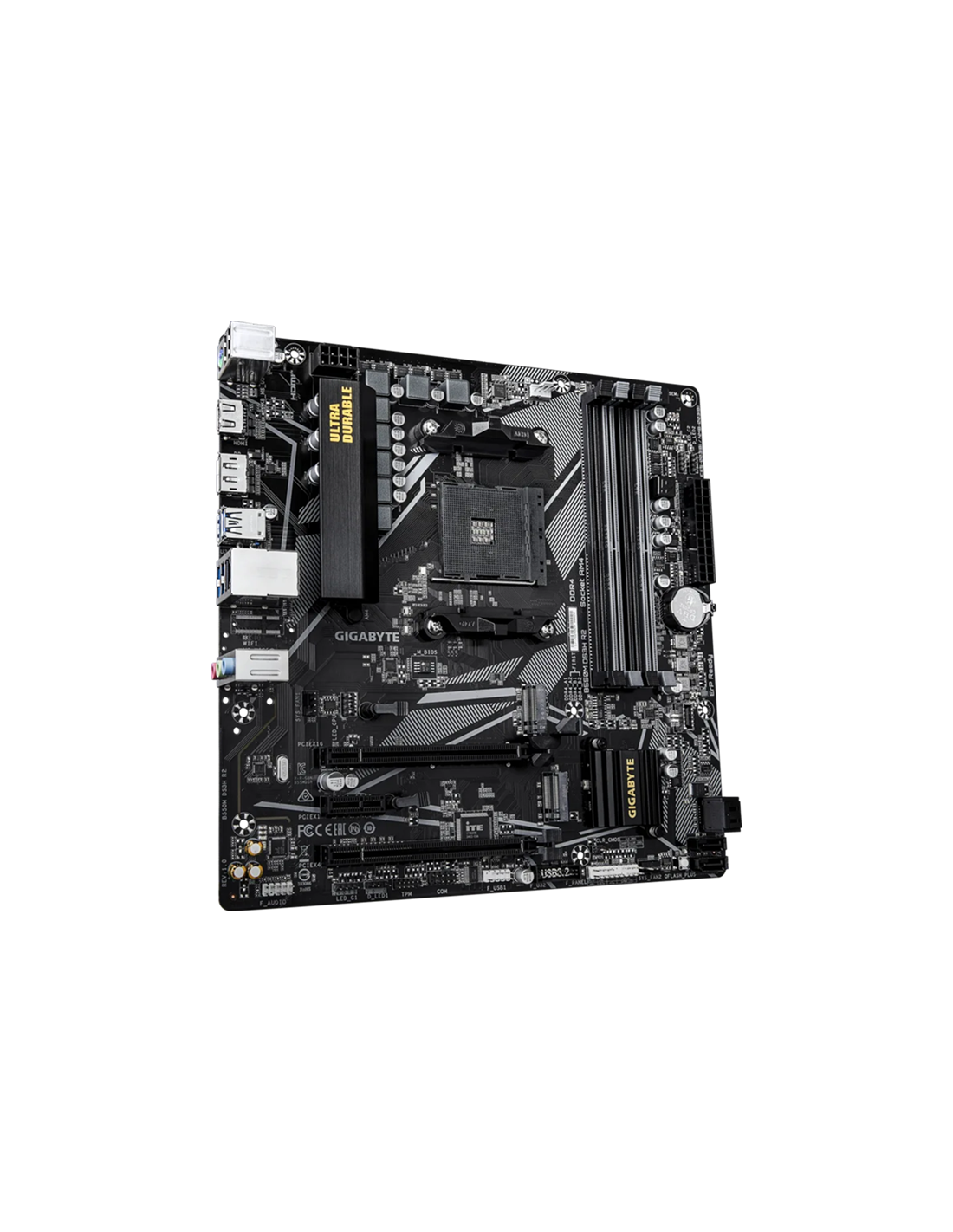

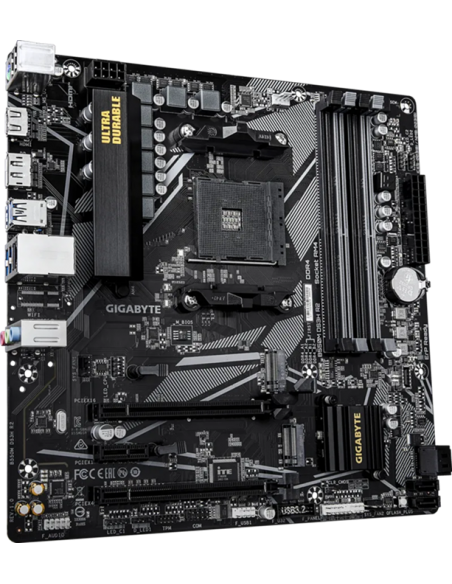

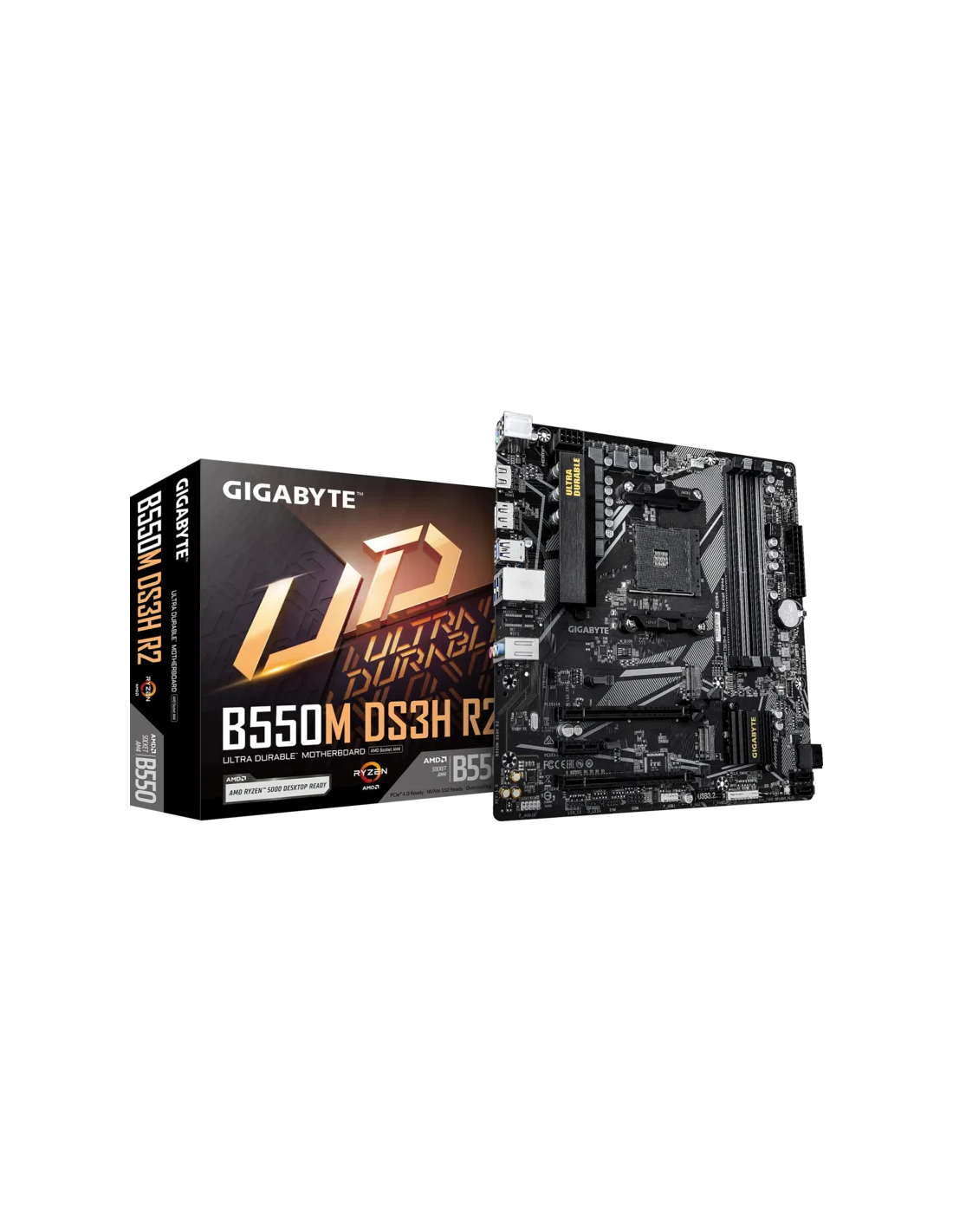

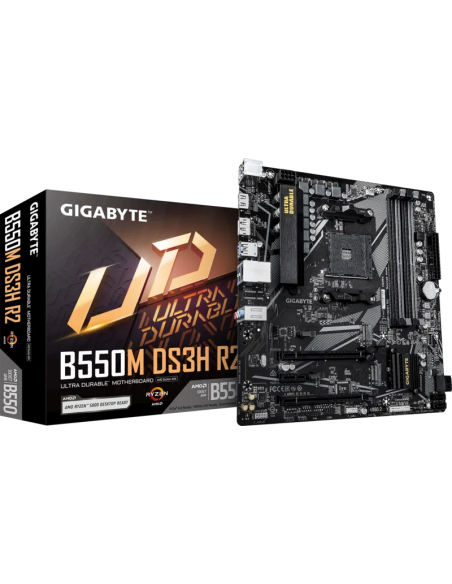

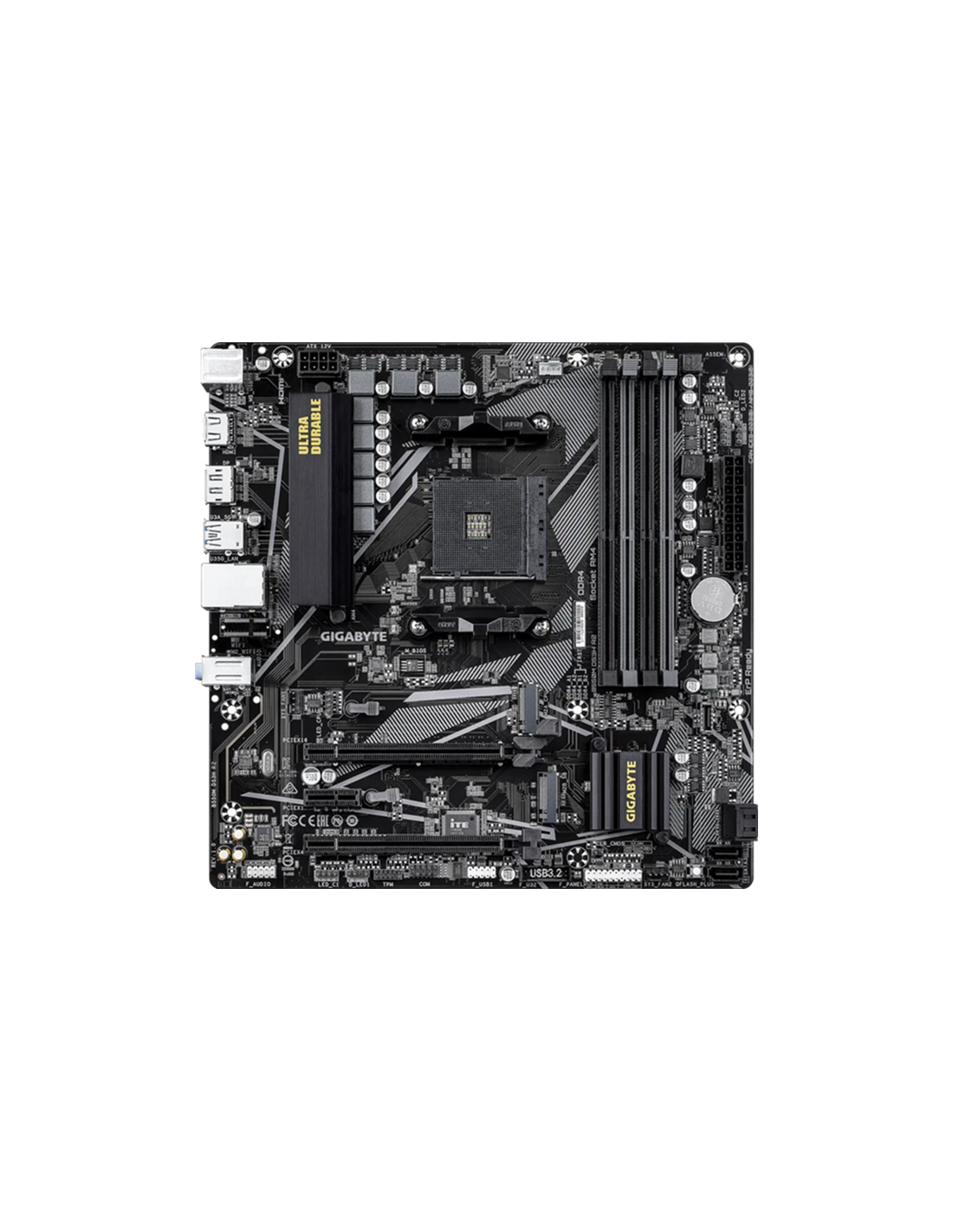

GB B550M DS3H R2 / AM4
B550M DS3H R2
На склад
89,53 €
С вкл. данък
175.11 лв.
B550M DS3H R2_MO
|
|
12 x 8.54 евро |
Купи на изплащане със стоков кредит от Банка ДСК
• Улеснена процедура за електронно подписване
• Атрактивни условия по кредита
• Параметри изцяло по Ваш избор
• Одобрение до няколко минути изцяло онлайн
Размер на кредита /евро/
Месечна вноска /евро/
Обща дължима сума /евро/
ГПР /%/
Изчисленията са направени при допускането за първа падежна дата след 30 дни и са с насочваща цел. Избери най-подходящата месечна вноска.
_MO
- Vendor_url
- https://www.gigabyte.com/Motherboard/B550M-DS3H-R2
- CPU's supported
- AMD Socket AM4, support for:;
AMD Ryzen™ 5000 G-Series Processors/;
AMD Ryzen™ 5000 Series Processors/;
AMD Ryzen™ 4000 G-Series Processors/;
AMD Ryzen™ 3000 G-Series Processors/;
AMD Ryzen™ 3000 Series Processors - RAID
- RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices;
RAID 0, RAID 1, and RAID 10 support for SATA storage devices - Expansion Slots
- 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:;
- AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode;
- AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode;
* The PCIEX16 slot can only support a graphics ca - Manufacturer
- GIGABYTE
- Connectors
- Internal I/O Connectors;
1 x 24-pin ATX main power connector;
1 x 8-pin ATX 12V power connector;
1 x CPU fan header;
2 x system fan headers;
2 x addressable LED strip headers;
2 x RGB LED strip headers;
1 x CPU cooler LED strip/RGB LED strip header;
2 x M - Form Factor
- Micro ATX Form Factor; 24.4cm x 24.4cm
- OS
- Support for Windows 11 64-bit;
Support for Windows 10 64-bit - Graphics
- Integrated Graphics Processor with AMD Radeon™ Graphics support:;
- 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz;
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.;

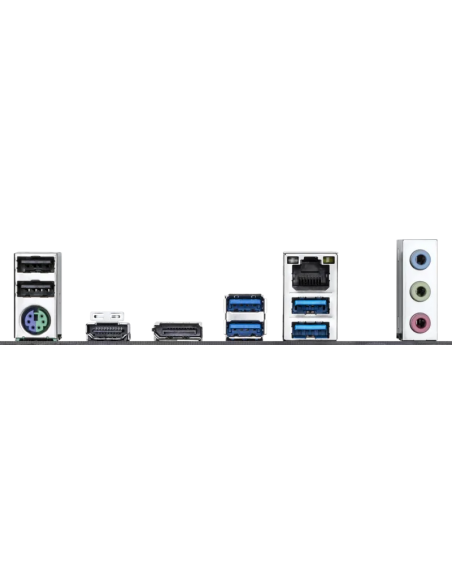

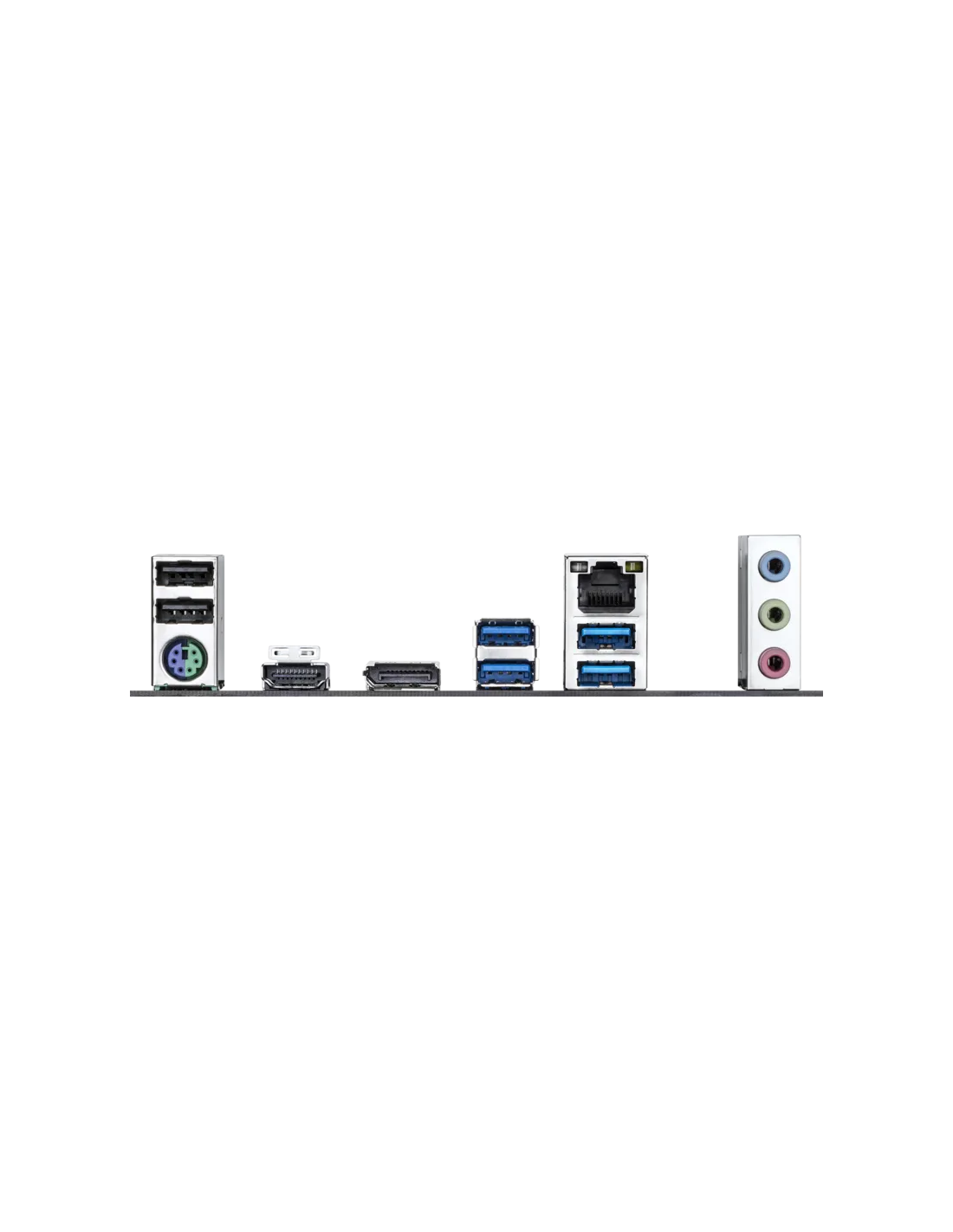

- 1 x HDMI port, supporting a maximum resolution of 4096x21 - Rear panel I/O
- iTE® I/O Controller Chip
- USB
- CPU:;
- 4 x USB 3.2 Gen 1 ports on the back panel;
Chipset:;
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header;
- 2 x USB 3.2 Gen 1 ports available through the internal USB header;
- 4 x USB 2.0/1.1 ports (2 port - Chipset
- AMD B550
- BIOS
- 1 x 128 Mbit flash;
Use of licensed AMI UEFI BIOS;
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 - Storage
- x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:;
- AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs;
- AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x - LAN
- Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
- Audio
- Realtek® ALC1220 CODEC;
* The back panel line out jack supports DSD audio.;
High Definition Audio;
2/4/5.1/7.1-channel;
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software - Memory type
- 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)of system memory;
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 - Дънна платка - сокет
- AM4
- Дънна платка - чипсет
- AMD B550
- Дънна платка - поддържан тип памет
- DDR4
- Дънна платка - честота на паметта
- 3200 MHz
3400 MHz
3466 MHz
3600 MHz
3733 MHz
3866 MHz
4000 MHz
4133 MHz
4266 MHz
4400 MHz
4600 MHz
4733 MHz - Дънна платка - интерфейси
- M.2 (NVMe) конектор
SATA 3.0 - Дънна платка - портове
- USB 2.0
USB 3.2 - Дънна платка - форм фактор
- Micro ATX
