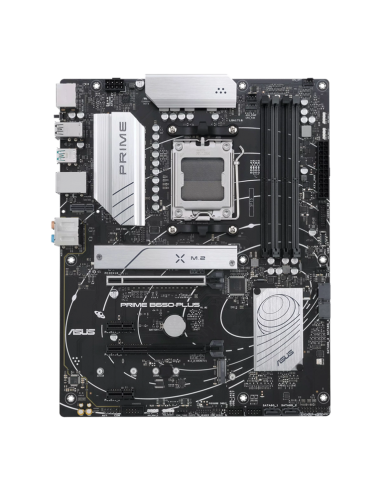

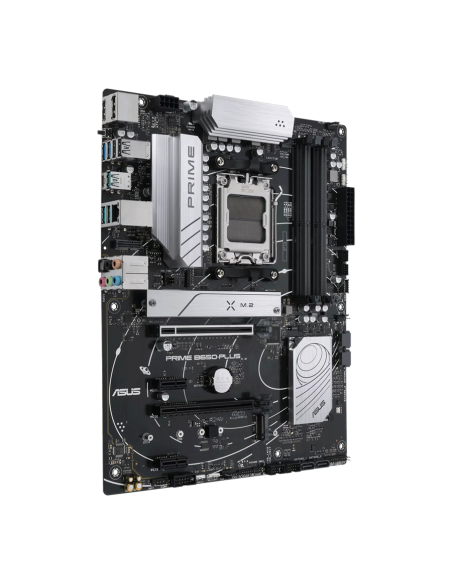

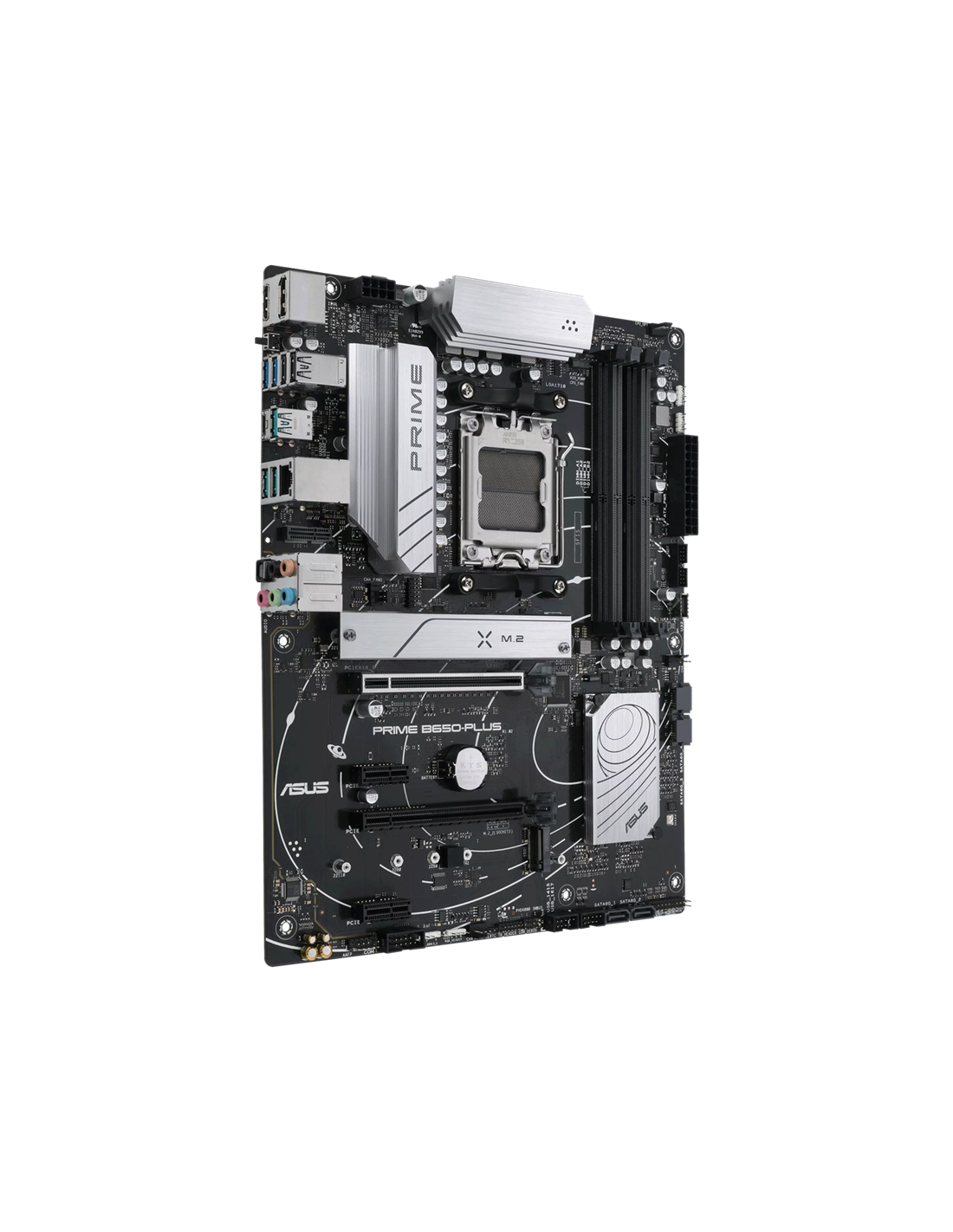

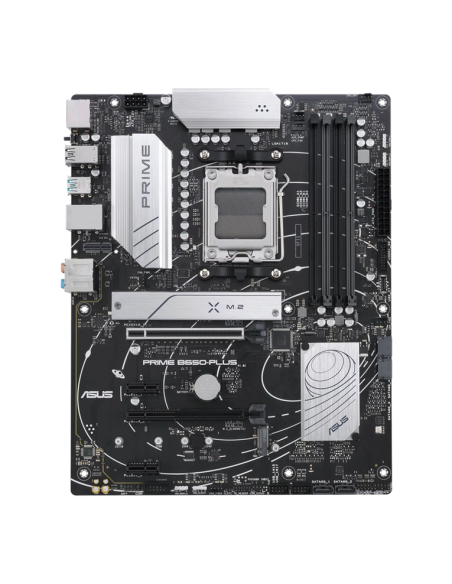

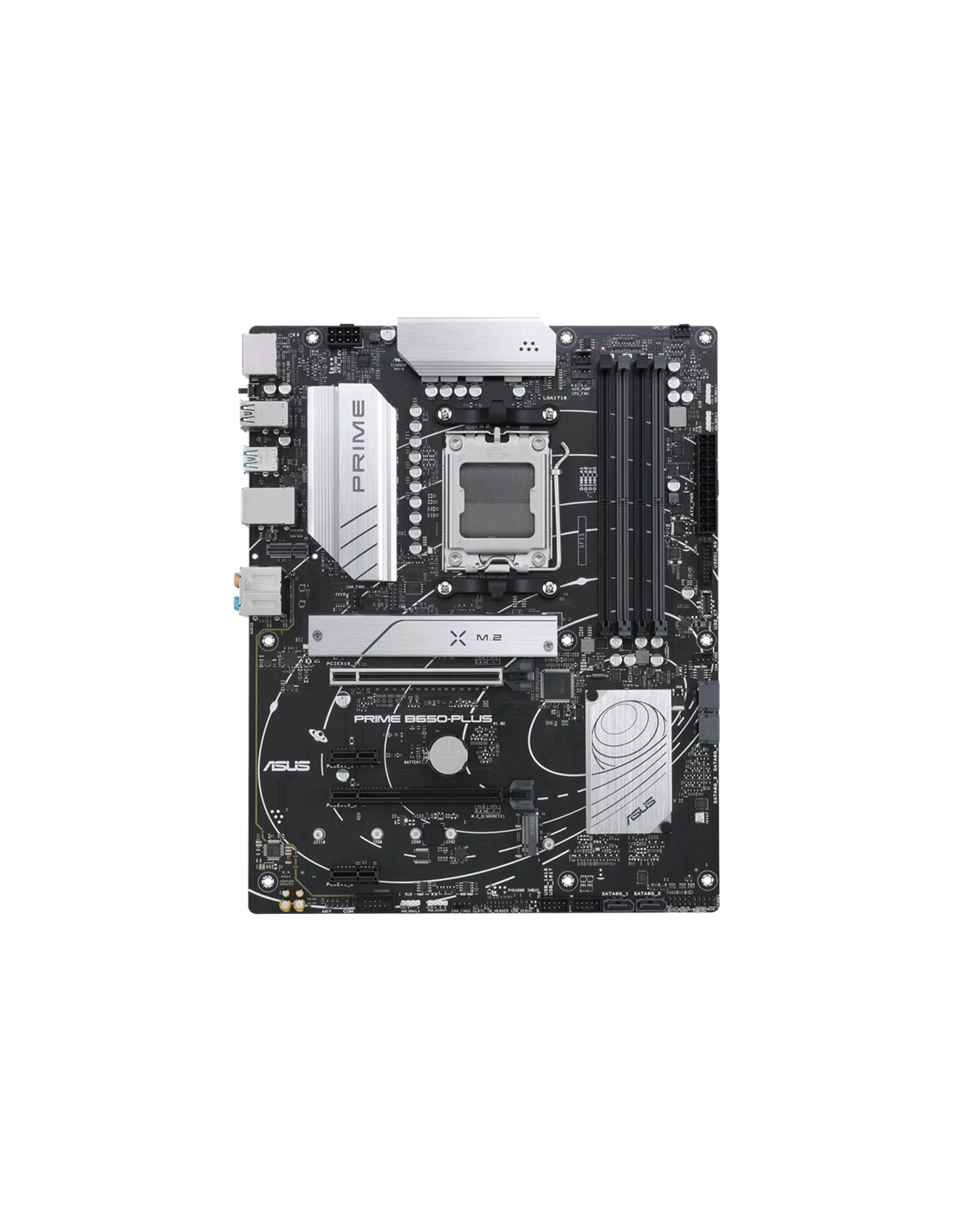

ASUS PRIME B650-PLUS-CSM /AM5

Референция 90MB1BS0-M0EAYC

На склад

125,21 €

С вкл. данък 244.89 лв.

90MB1BS0-M0EAYC_MO

ASUS B650 4xDDR5 4xSATA3 RAID HDMI DP 2xM2 GLAN 2xPCIEx16 2xPCIEx1 _MO

LAN: 1 x Realtek 2.5Gb Ethernet
Connectors: Fan and Cooling related;1 x 4-pin CPU Fan header;1 x 4-pin CPU OPT Fan header;1 x 4-pin AIO Pump header;3 x 4-pin Chassis Fan headers;Power related;1 x 24-pin Main Power connector;1 x 8-pin +12V Power connector;Storage related;2 x M.2 slots (Key M)4 x SAT
Memory type: 4 x DIMM, Max. 192GB, DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory;Dual Channel Memory Architecture;Supports AMD Extended Profiles
OS: Windows® 11, Windows® 10 64-bit
Graphics: 1 x DisplayPort;1 x HDMI® port
USB: Rear USB (Total 8 ports);4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®);2 x USB 3.2 Gen 1 ports (2 x Type-A);2 x USB 2.0 ports (2 x Type-A);Front USB (Total 7 ports);1 x USB 3.2 Gen 1 connector (supports USB Type-C®);1 x USB 3.2 Gen 1 header suppo
Vendor_url: https://www.asus.com/motherboards-components/motherboards/csm/prime-b650-plus-csm/
Chipset: AMD B650 Chipset
Manufacturer: ASUS
Storage: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports;AMD Ryzen™ 9000 & 7000 Series Desktop Processors;M.2_1 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 5.0 x4 mode);M.2_2 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 4.0 x4 mod
Form Factor: ATX Form Factor, 30.5 cm x 24.4 cm
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB layer
Warranty: 36 Months
Wireless: Vertical M.2 slot only (Key E, PCIe)
CPU's supported: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

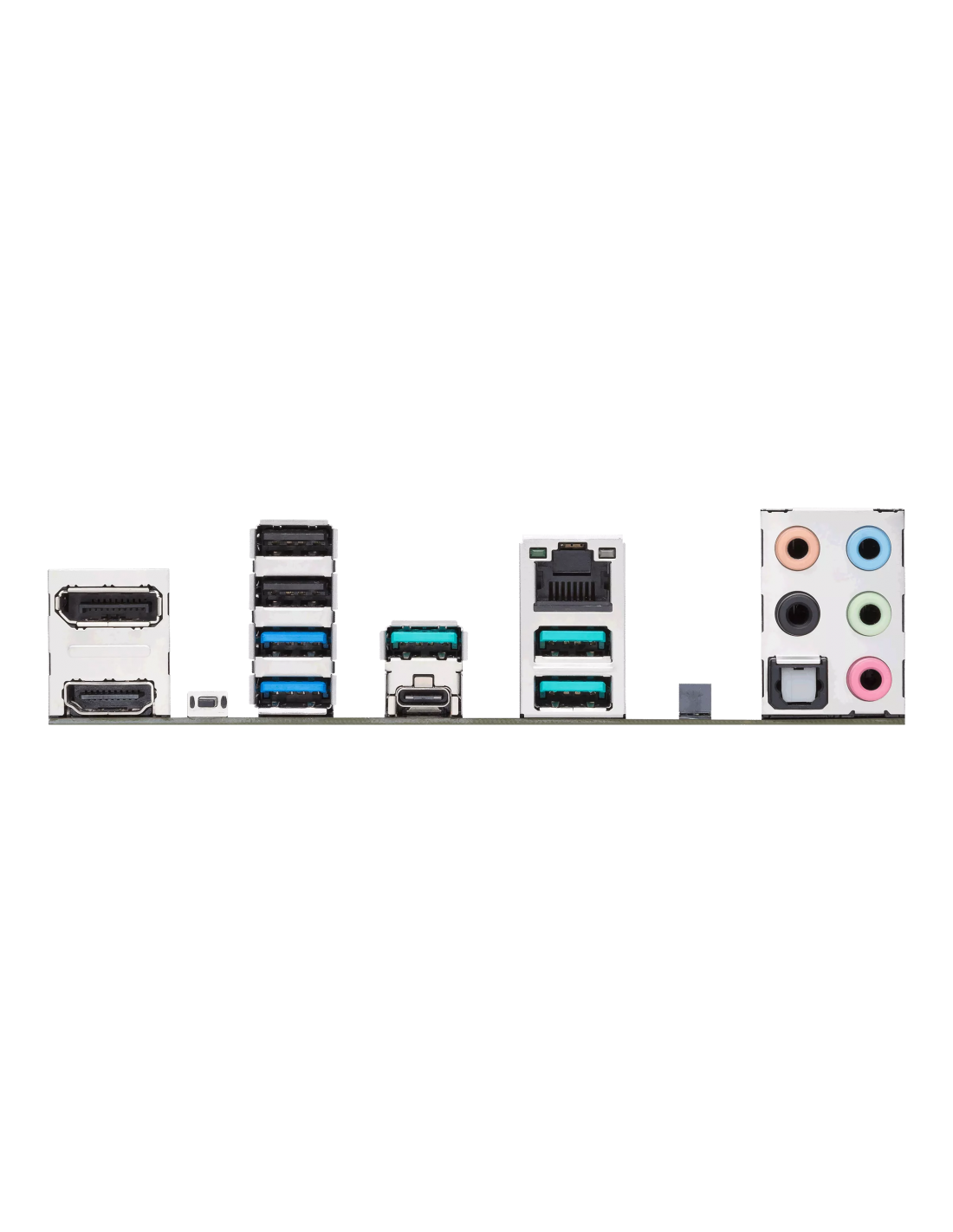

Rear panel I/O: 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®);2 x USB 3.2 Gen 1 ports (2 x Type-A);2 x USB 2.0 ports (2 x Type-A);1 x DisplayPort;1 x HDMI® port;1 x Vertical M.2 slot (Key E);1 x Realtek 2.5Gb Ethernet port;5 x Audio jacks;1 x Optical S/PDIF out
Expansion Slots: AMD Ryzen™ 9000 & 7000 Series Desktop Processors;1 x PCIe 4.0 x16 slot (supports x16 mode);AMD Ryzen™ 8000 Series Desktop Processors;1 x PCIe 4.0 x16 slot (supports x8/x4 mode);AMD B650 Chipset;1 x PCIe 4.0 x16 slot (supports x4 mode);2 x PCIe 4.0 x1 slot
Дънна платка - сокет: AM5
Дънна платка - чипсет: AMD B650
Дънна платка - поддържан тип памет: DDR5
Дънна платка - честота на паметта: 4800 MHz
5000 MHz
5200 MHz
5400 MHz
5600 MHz
5800 MHz
6000 MHz
6200 MHz
6400 MHz
6600 MHz
6800 MHz
7000 MHz
7200 MHz
7600 MHz
Дънна платка - интерфейси: M.2 (NVMe) конектор
M.2 (SATA) конектор
SATA 3.0
Дънна платка - портове: Display Port
HDMI
USB 2.0
USB 3.2
Дънна платка - форм фактор: ATX
