ASUS PRIME B660M-A D4-CSM

Референция 90MB19K0-M1EAYC

На склад

166,11 €

С вкл. данък 324.88 лв.

90MB19K0-M1EAYC_MO

_MO

Graphics: 1 x DisplayPort **;
2 x HDMITM ports***;
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.;
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.;
***Supports 4K@60Hz as specified in HDMI 2.1.;

1 x D
USB: Rear USB (Total 6 ports);
2 x USB 3.2 Gen 2 ports (2 x Type-A );
4 x USB 2.0 ports (4 x Type-A) ;
Front USB (Total 10 ports);
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports;
1 x USB 3.2 Gen 1 connector (supports USB Type-C®);
2 x USB 2
Vendor_url: https://www.asus.com/motherboards-components/motherboards/prime/prime-b660m-a-d4-csm/
Chipset: Intel® B660 Chipset;
Intel® B660 Chipset
Manufacturer: ASUS
Storage: Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports*;
Intel® 12th Gen Processors;
M.2_1 slot (Key M), type 2242/2260/2280;
- Intel® 12th Gen processors support PCIe 4.0 x4 mode.;
Intel® B660 Chipset**;
M.2_2 slot (Key M), type 2242/2260/2280 (supports PC
Form Factor: mATX Form Factor
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC;
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;
- Supports up to 24-Bit/192 kHz playback;
Audio Features;
- Audio Shielding;
- Premium audio capacitors;
- Dedicated audio PCB
Dimensions: 24.4 cm x 24.4 cm
Model: PRIME B660M-A D4-CSM
CPU's supported: Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors;
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**;
* Refer to www.asus.com for CPU suppor
BIOS: 128 Mb Flash ROM, UEFI AMI BIOS

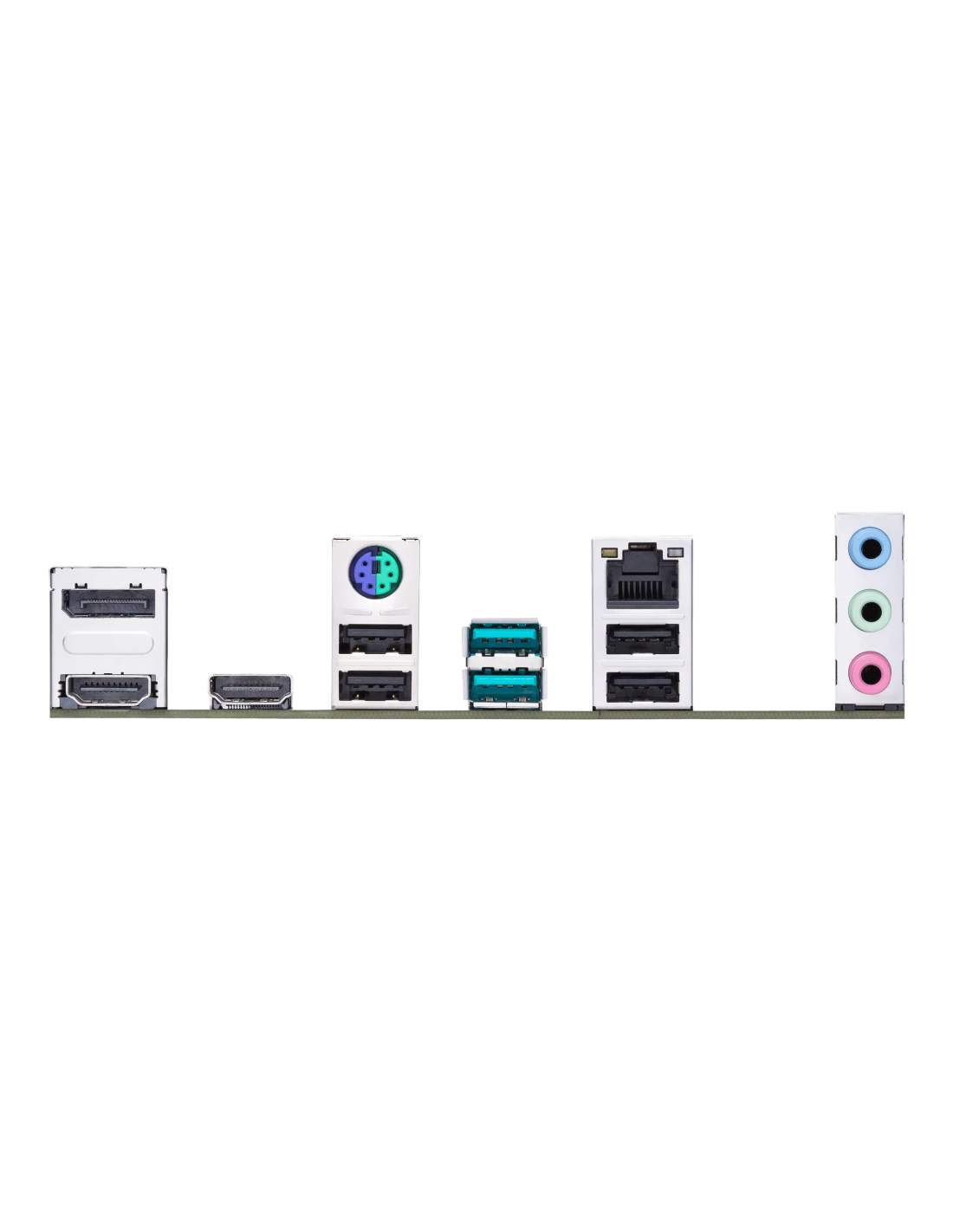

Rear panel I/O: 2 x USB 3.2 Gen 2 ports (2 x Type-A );
4 x USB 2.0 ports (4 x Type-A);
1 x DisplayPort;
2 x HDMITM ports;
1 x Intel® 1Gb Ethernet port;
3 x Audio jacks;
1 x PS/2 Keyboard/Mouse combo port;

2 x USB 3.2 Gen 2 ports (2 x Type-A );
4 x USB 2.0 ports (4 x Ty
Expansion Slots: Intel® 12th Gen Processors;
1 x PCIe 4.0/3.0 x16 slot;
Intel® B660 Chipset;
1 x PCIe 3.0 x16 slot (supports x4 mode);
1 x PCIe 3.0 x16 slot (supports x1 mode);
*Supports Intel® Optane Memory H Series on PCH-attached PCIe slot;
1 x PCle 4.0 x16+1 x PCle 3.
LAN: 1 x Intel® 1Gb Ethernet
Connectors: Fan and Cooling related;
1 x 4-pin CPU Fan header;
1 x 4-pin CPU OPT Fan header;
2 x 4-pin Chassis Fan headers;
Power related;
1 x 24-pin Main Power connector;
1 x 8-pin +12V Power connector;
Storage related;
2 x M.2 slots (Key M);
4 x SATA 6Gb/s ports;
U
Memory type: 4 x DIMM, Max. 128GB, DDR4
5333(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory* ;
Dual Channel Memory Architecture;
Su
OS: Windows® 11 64-bit, Windows® 10 64-bit
Дънна платка - сокет: LGA1700
Дънна платка - чипсет: INTEL B660
Дънна платка - поддържан тип памет: DDR4
Дънна платка - честота на паметта: 2133 MHz
2400 MHz
2666 MHz
2800 MHz
2933 MHz
3000 MHz
3200 MHz
3333 MHz
3400 MHz
3466 MHz
3600 MHz
3733 MHz
4000 MHz
4266 MHz
4400 MHz
4600 MHz
4800 MHz
5000 MHz
5333 MHz
Дънна платка - интерфейси: M.2 (NVMe) конектор
M.2 (SATA) конектор
SATA 3.0
Дънна платка - портове: Display Port
USB 2.0
USB 3.2
Дънна платка - форм фактор: Micro ATX
