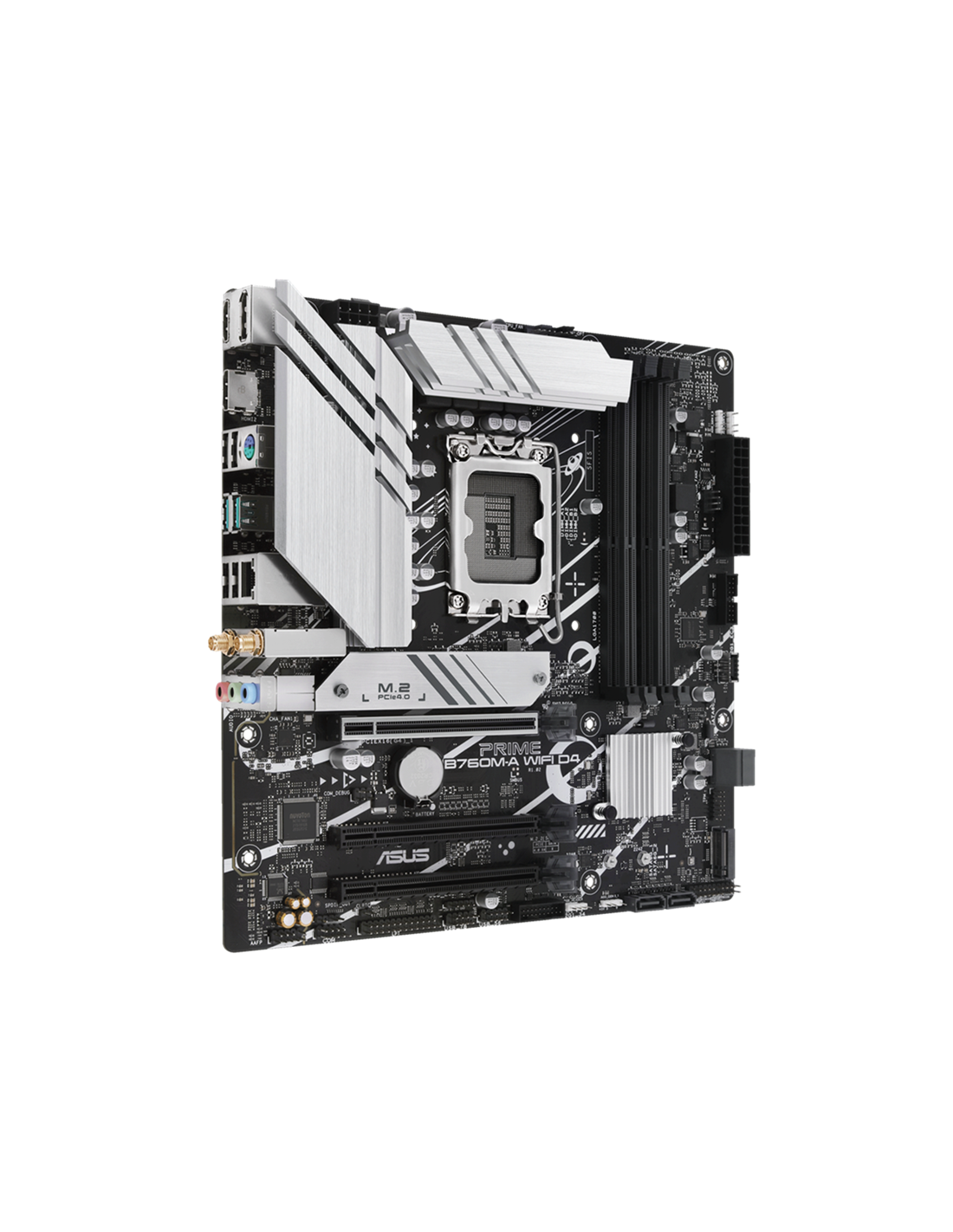

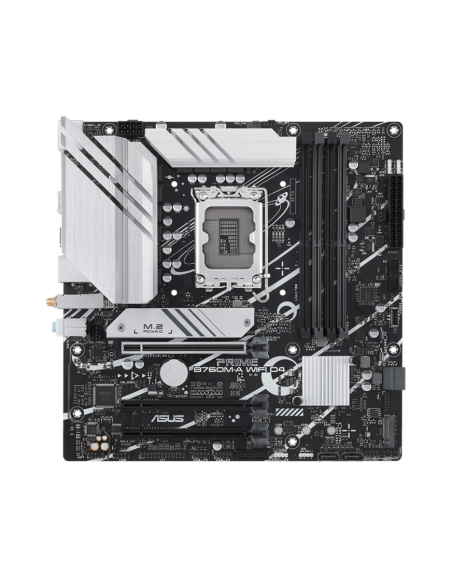

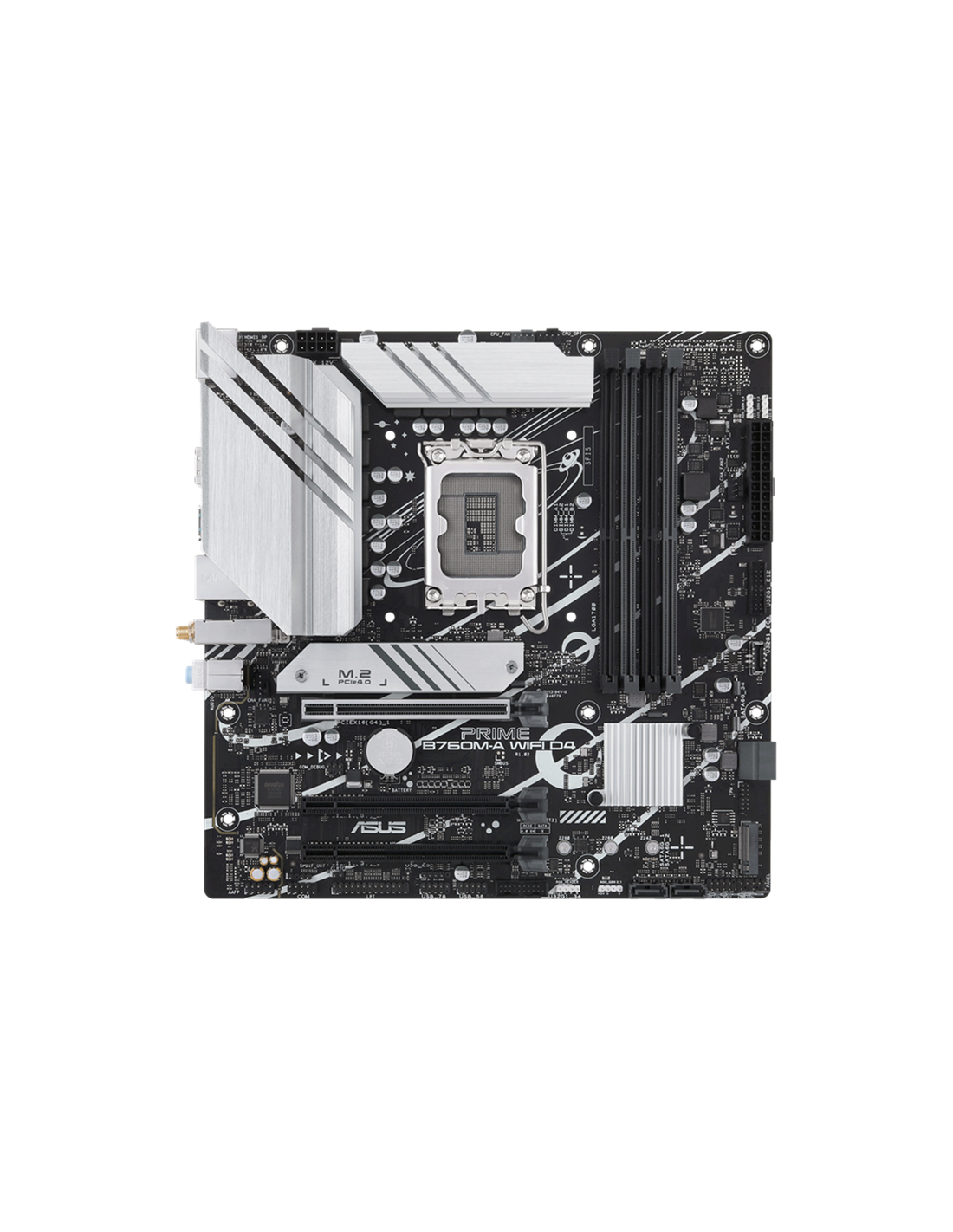

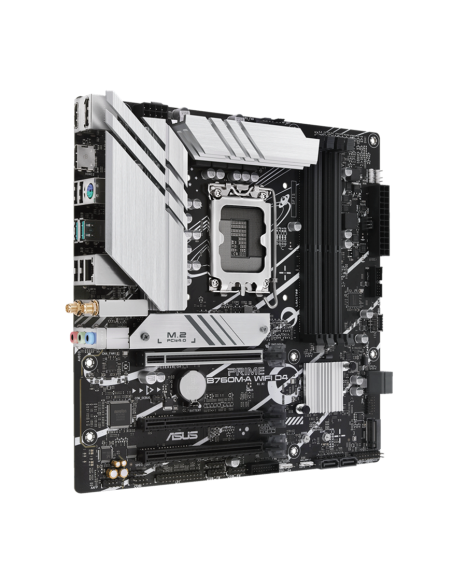

ASUS PRIME B760M-A WIFI D4

Референция 90MB1CX0-M1EAY0

На склад

122,74 €

С вкл. данък

90MB1CX0-M1EAY0_MO

ASUS B760 4xDDR4 4xSATA3 RAID 2xHDMI DP 2xM2 GLAN 3xPCIEx16 WiFi_MO

Expansion Slots: Intel® CoreTM Processors (14th & 13th & 12th Gen); 1 x PCIe 4.0 x16 slot; Intel® B760 Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode); 1 x PCIe 4.0 x16 slot (supports x1 mode)
LAN: 1 x Realtek 2.5Gb Ethernet
Connectors: Fan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 2 x 4-pin Chassis Fan headers; Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; Storage related; 2 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; U
Memory type: 4 x DIMM, Max. 128GB, DDR4 5333(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory; Dual Channel Memory Architec
OS: Windows® 11, Windows® 10 64-bit
Graphics: 1 x DisplayPort; 2 x HDMI® ports
Bluetooth: 5.2
Vendor_url: https://www.asus.com/motherboards-components/motherboards/prime/prime-b760m-a-wifi-d4/
Chipset: Intel® B760 Chipset
Manufacturer: ASUS
Storage: Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports; Intel® CoreTM Processors (14th & 13th & 12th Gen); M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); Intel® B760 Chipset; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x
Form Factor: mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC; Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; Supports up to 24-Bit/192 kHz playback; Audio Features; Audio Shielding; Premium audio capacitors; Dedicated audio PCB layers
Warranty: 36 Months
Wireless: Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band
CPU's supported: Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron®
BIOS: 128 Mb Flash ROM, UEFI AMI BIOS

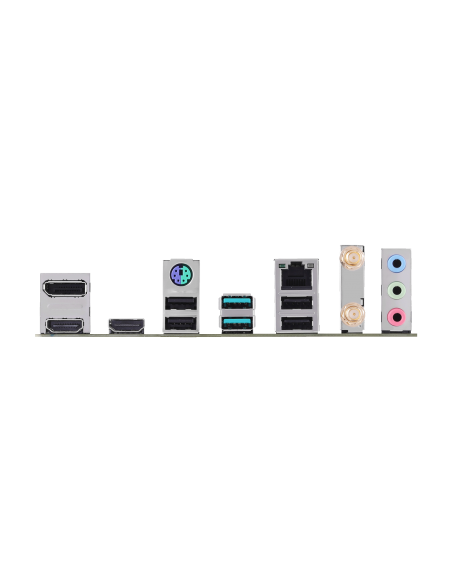

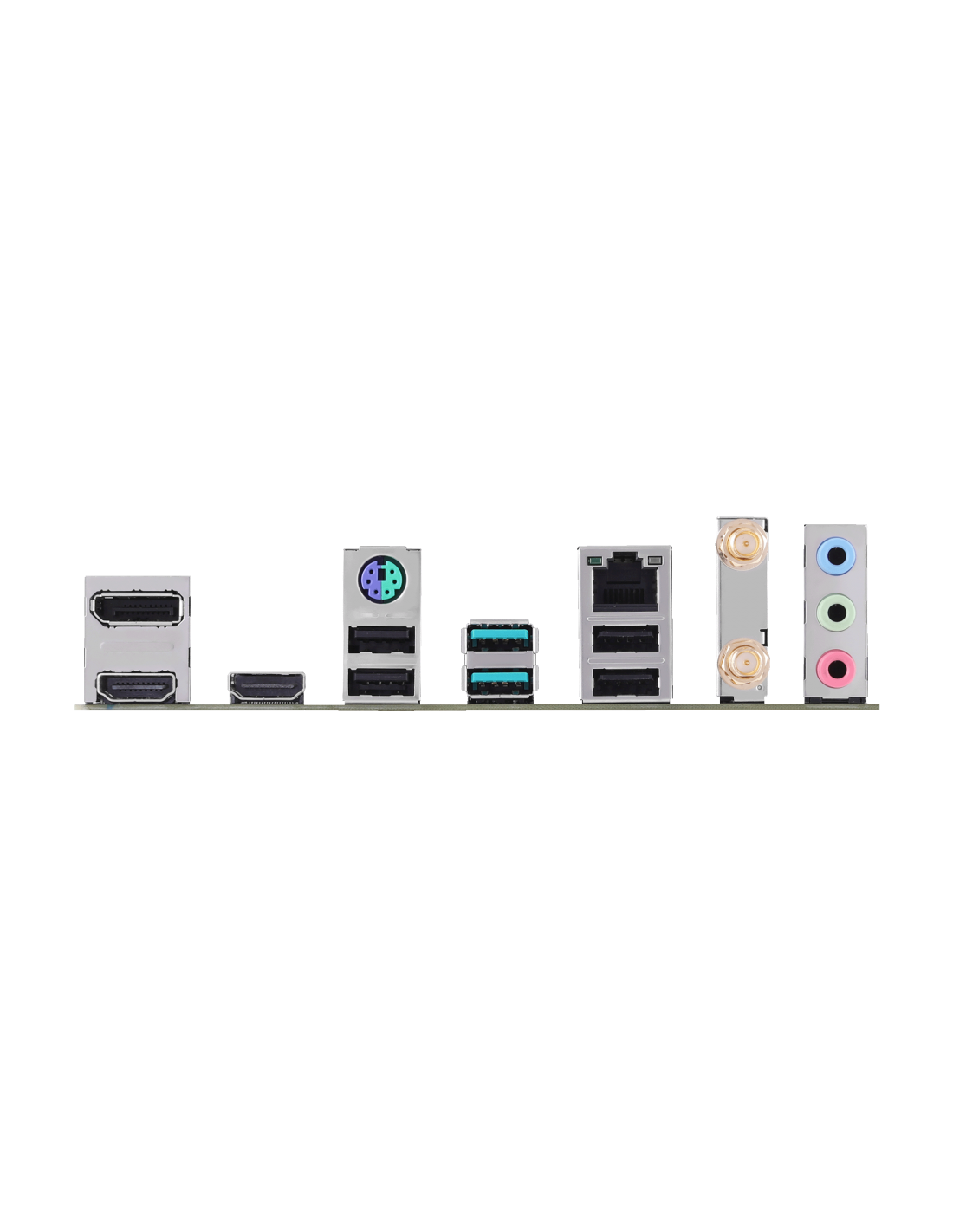

Rear panel I/O: Back Panel I/O Ports; 2 x USB 3.2 Gen 2 ports (2 x Type-A ); 4 x USB 2.0 ports (4 x Type-A); 1 x DisplayPort; 2 x HDMI® ports; 1 x Wi-Fi Module; 1 x Realtek 2.5Gb Ethernet port; 3 x Audio jacks; 1 x PS/2 Keyboard/Mouse combo port
Дънна платка - сокет: LGA1700
Дънна платка - чипсет: INTEL B760
Дънна платка - поддържан тип памет: DDR4
Дънна платка - честота на паметта: 2133 MHz
2400 MHz
2666 MHz
2800 MHz
2933 MHz
3000 MHz
3200 MHz
3333 MHz
3400 MHz
3466 MHz
3600 MHz
3733 MHz
4000 MHz
4266 MHz
4400 MHz
4600 MHz
4800 MHz
5000 MHz
5066 MHz
5333 MHz
Дънна платка - интерфейси: M.2 (NVMe) конектор
M.2 (SATA) конектор
SATA 3.0
Дънна платка - портове: Display Port
HDMI
USB 2.0
USB 3.2
Дънна платка - форм фактор: Micro ATX

No reviews

С доставка 24 часа
