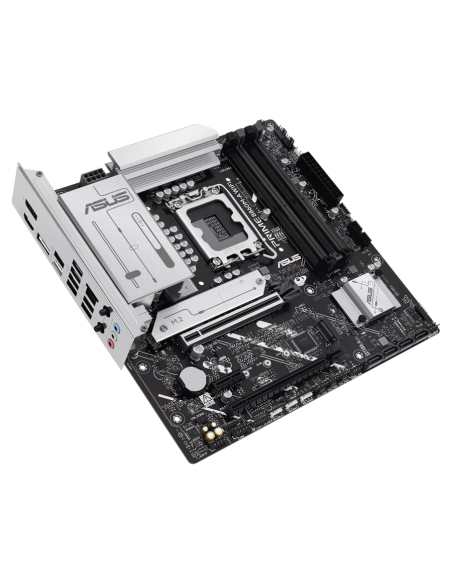

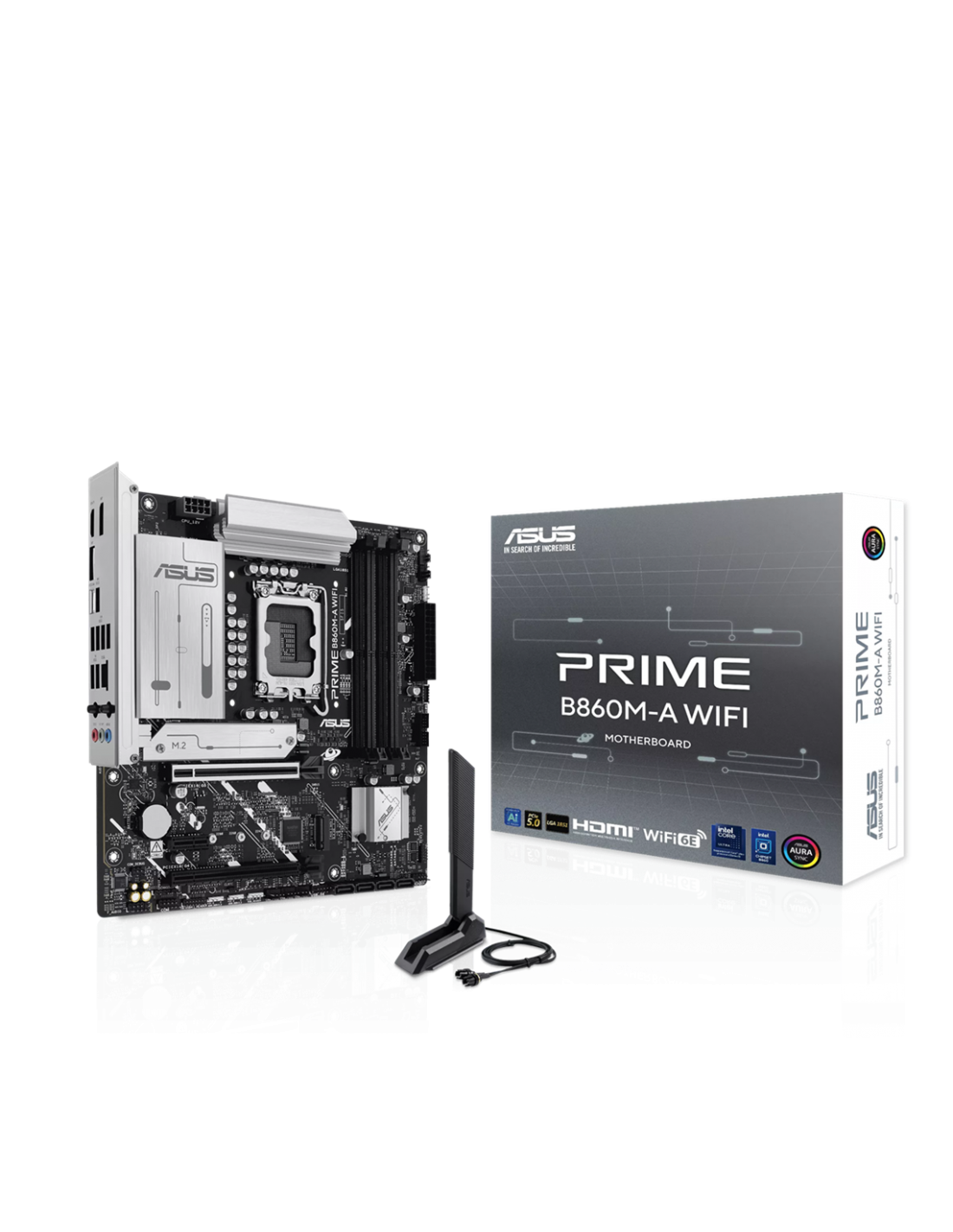

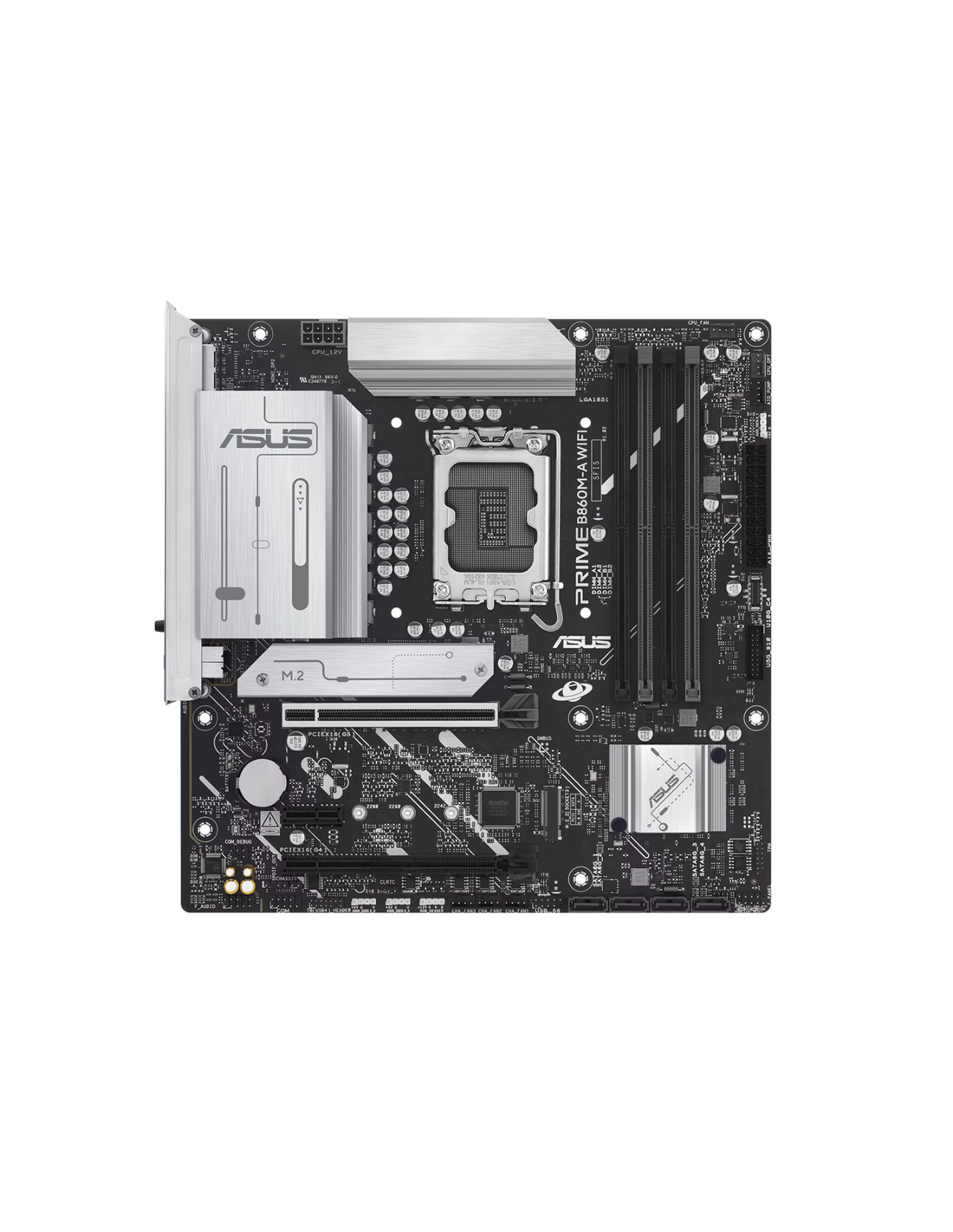

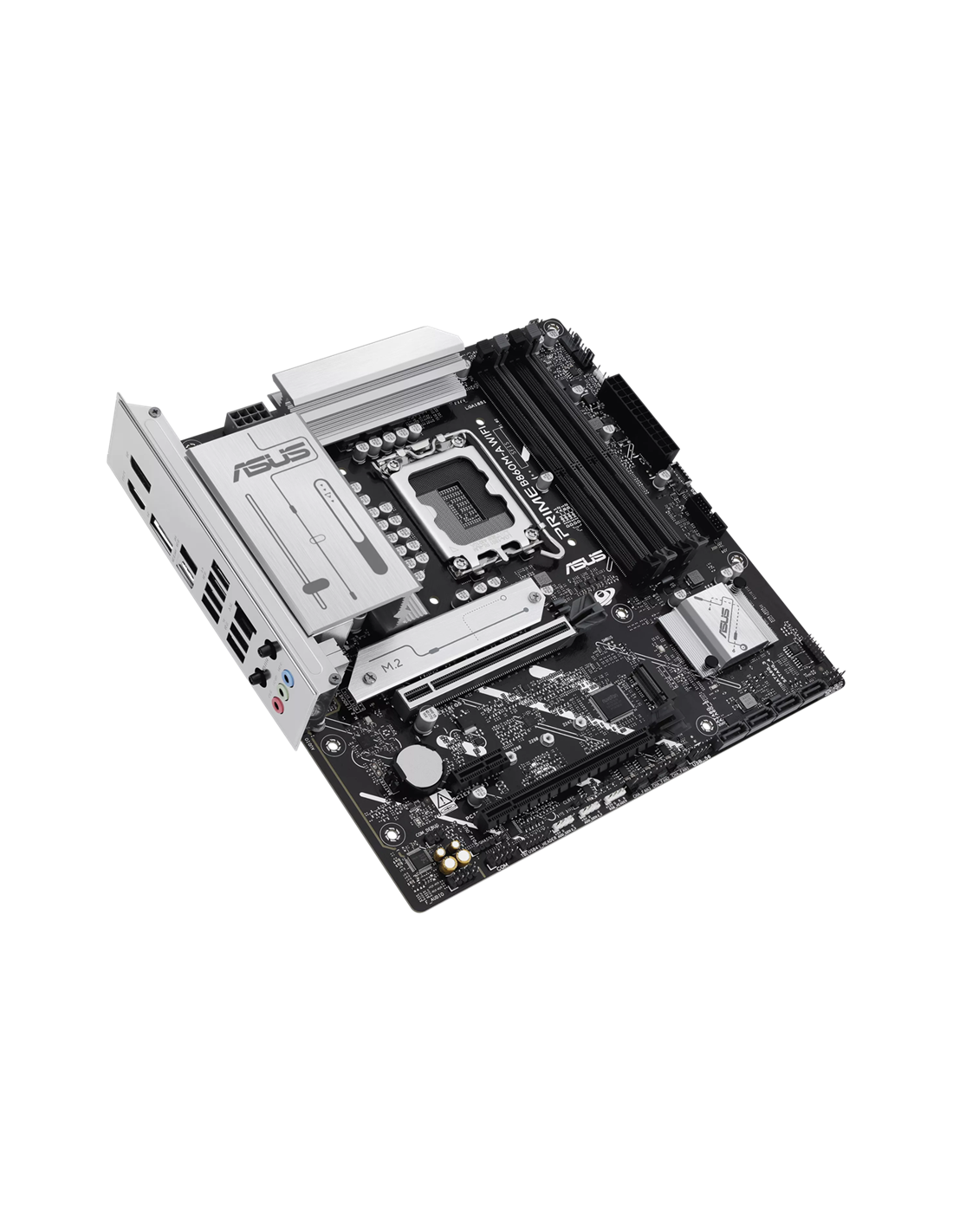

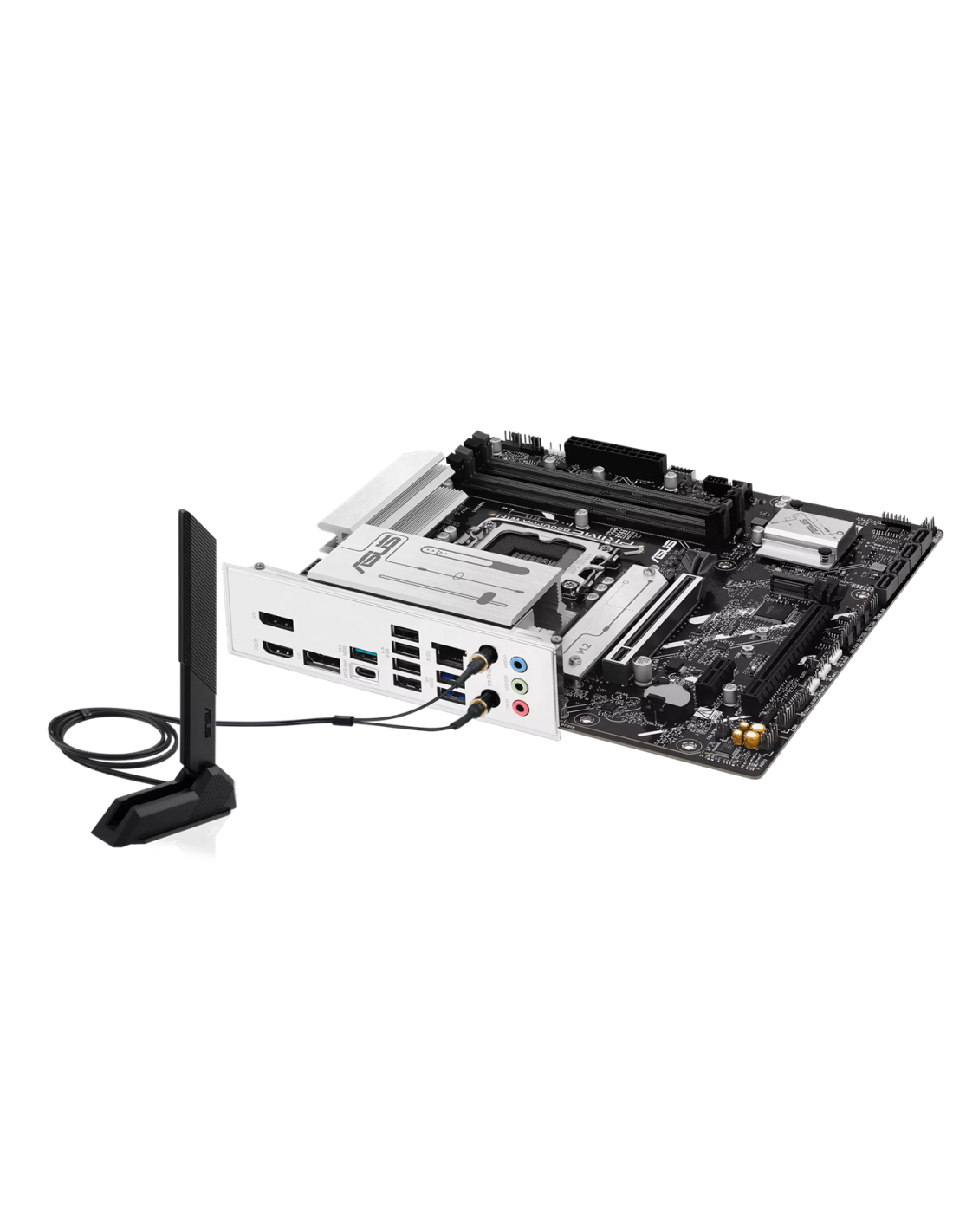

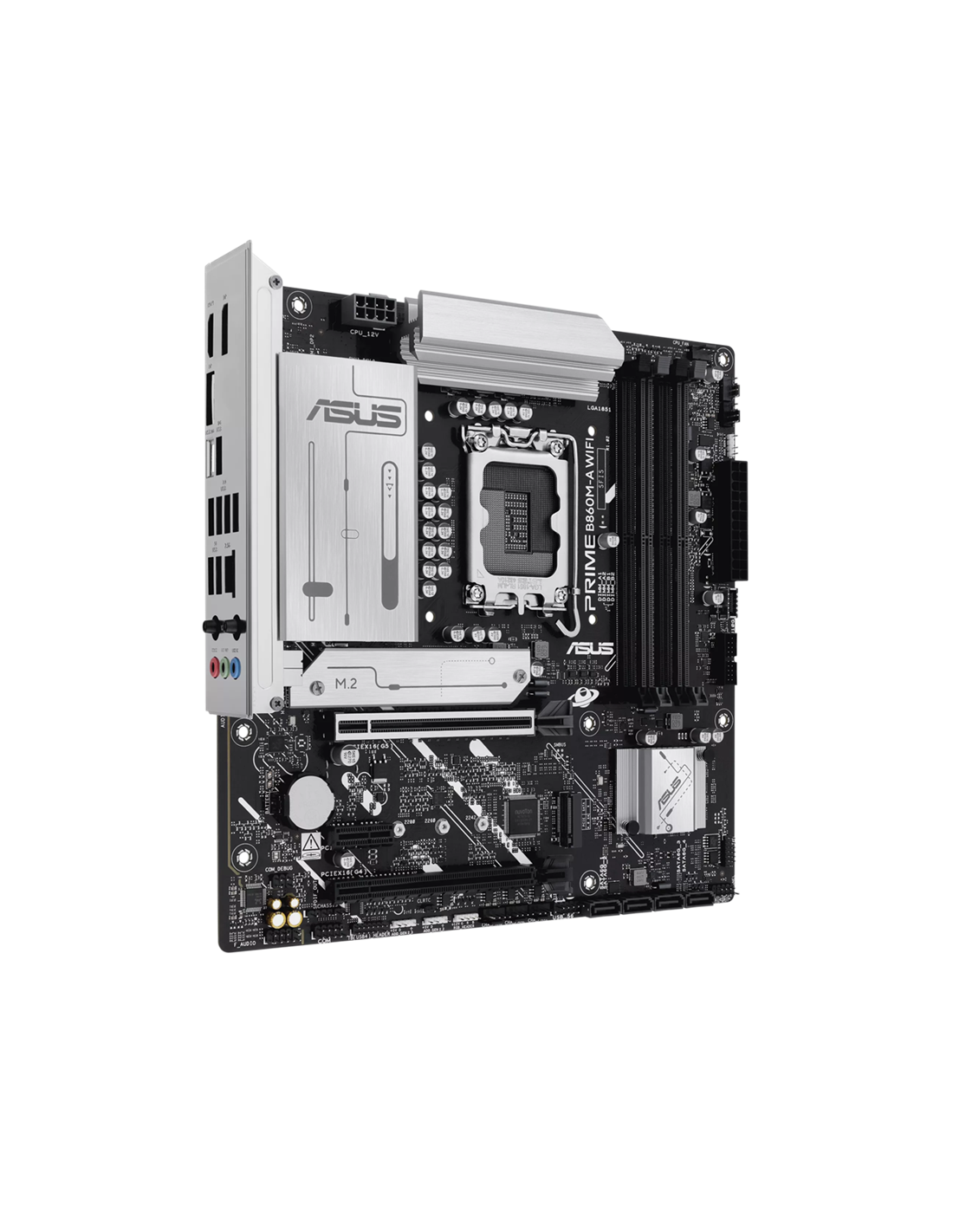

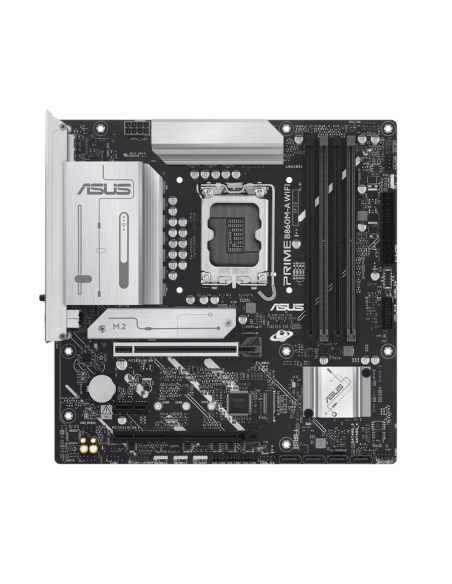

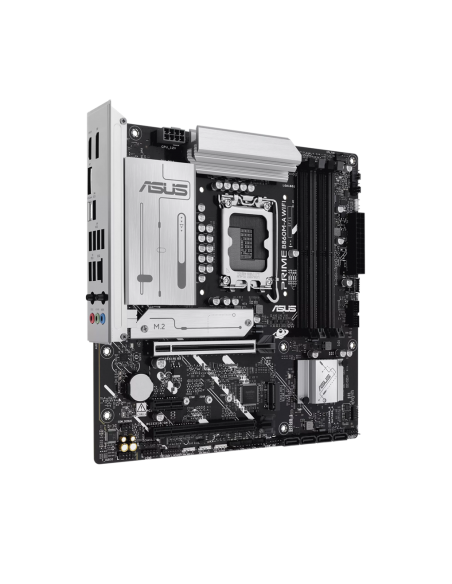

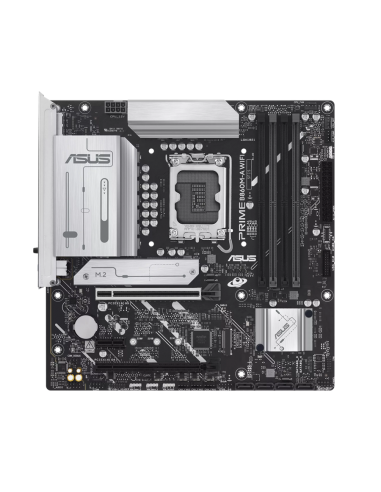

ASUS PRIME B860M-A WIFI
90MB1JY0-M0EAY0
На склад
190,52 €
С вкл. данък
372.62 лв.
90MB1JY0-M0EAY0_MO
ASUS B860 4xDDR5 4xSATA3 RAID HDMI DP 2xM2 GLAN 2xPCIEx16 1xPCIEx1 WiFi_MO
- Wireless
- Wi-Fi 6E 2x2 Wi-Fi 6E (802.11ax);Supports 2.4/5/6GHz frequency band;Bluetooth® v5.3
- Bluetooth
- 5.3
- CPU's supported
- Support Intel® Core™ Ultra Processors (Series 2) , LGA1851;Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
- BIOS
- 256 (128+128) Mb Flash ROM, UEFI AMI BIOS

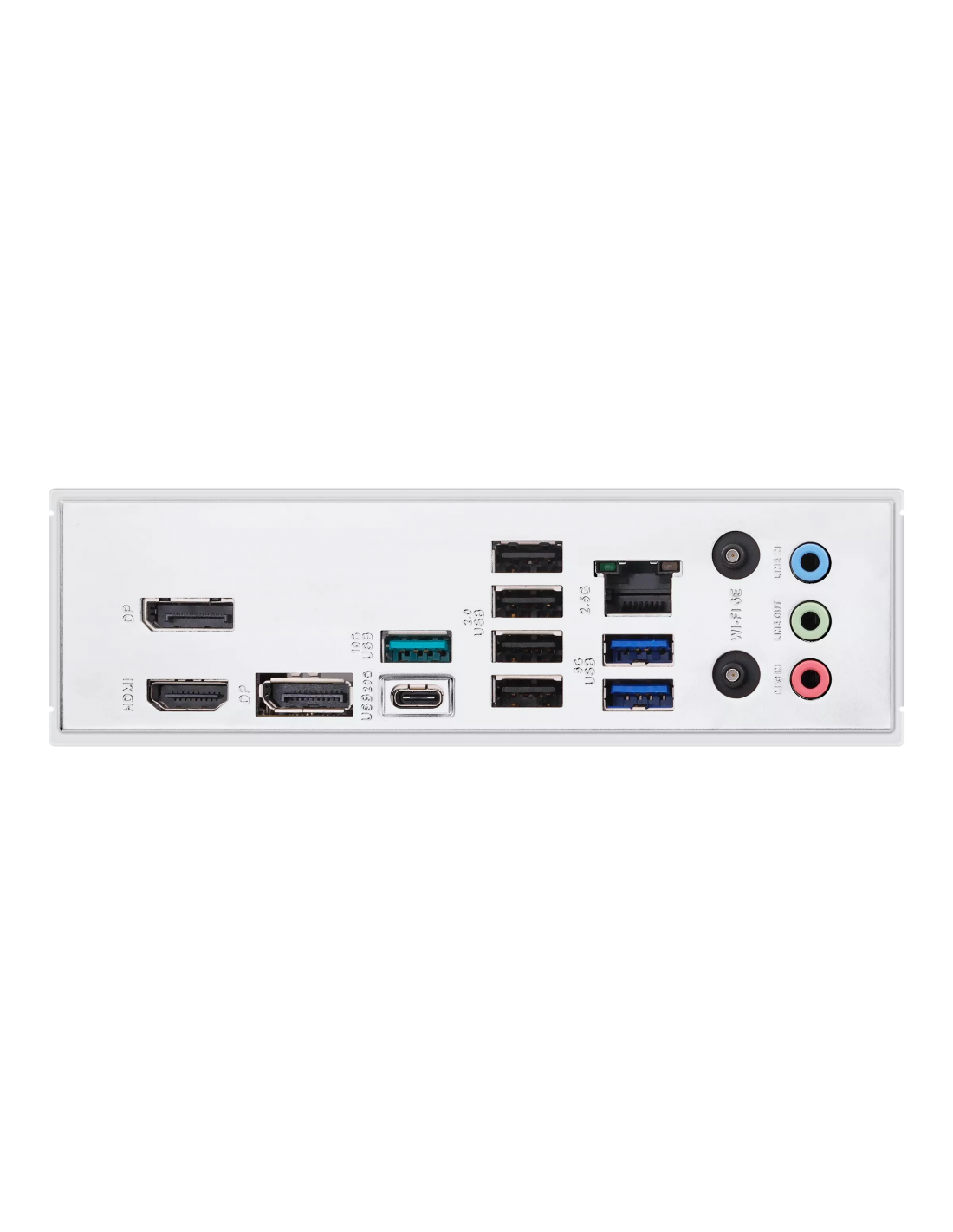

- Rear panel I/O
- 1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode);1 x USB 10Gbps port (1 x Type-A);2 x USB 5Gbps ports (2 x Type-A);4 x USB 2.0 ports (4 x Type-A );2 x DisplayPort;1 x HDMI™ port;1 x Wi-Fi module;1 x Realtek 2.5Gb Ethernet port;3 x Audio jacks
- Expansion Slots
- Intel® Core™ Ultra Processors(Series 2);1 x PCIe 5.0 x16 slot;Intel® B860 Chipset;1 x PCIe 4.0 x16 slot (supports x4 mode);1 x PCIe 4.0 x1 slot
- LAN
- 1 x Realtek 2.5Gb Ethernet, ASUS LANGuard
- Connectors
- Fan and Cooling Related;1 x 4-pin CPU Fan header;1 x 4-pin CPU OPT Fan header;1 x 4-pin AIO Pump header;3 x 4-pin Chassis Fan headers;Power Related;1 x 24-pin Main Power connector;1 x 8-pin +12V CPU Power connector;Storage Related;2 x M.2 slots (Key M);4
- Memory type
- 4 x DIMM slots, max. 256GB, DDR5;Supports up to 8666+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM);Dual channel memory architecture;DIMM Fit;Supports Intel® Extreme Memory Profile (XMP) memory module;ASUS Enhanced Memory Profile III(AEM
- OS
- Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later)
- Graphics
- 2 x DisplayPort;1 x HDMI™ port;1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output
- USB
- Rear USB (Total 8 ports);1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode);1 x USB 10Gbps port (1 x Type-A );2 x USB 5Gbps ports (2 x Type-A);4 x USB 2.0 ports (4 x Type-A);Front USB (Total 5 ports);1 x USB 10Gbps connector (supports USB Type-C® );1
- Vendor_url
- https://www.asus.com/motherboards-components/motherboards/prime/prime-b860m-a-wifi/
- Chipset
- Intel® B860 Chipset
- Manufacturer
- ASUS
- Storage
- Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports;Intel® Core™ Ultra Processors (Series 2);M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode);Intel®B860 Chipset;M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes);4 x
- Form Factor
- micro-ATX Form Factor, 24.4 cm x 24.4 cm
- Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB layer
- Warranty
- 36 Months
- Дънна платка - сокет
- LGA1851
- Дънна платка - чипсет
- INTEL B860
- Дънна платка - поддържан тип памет
- DDR5
- Дънна платка - брой слотове за памет
- 4 бр
- Дънна платка - честота на паметта
- 8666 MHz
- Дънна платка - интерфейси
- M.2 (NVMe) конектор
M.2 (SATA) конектор
SATA 3.0 - Дънна платка - портове
- Display Port
HDMI
USB 2.0
USB 3.2 - Дънна платка - форм фактор
- Micro ATX
