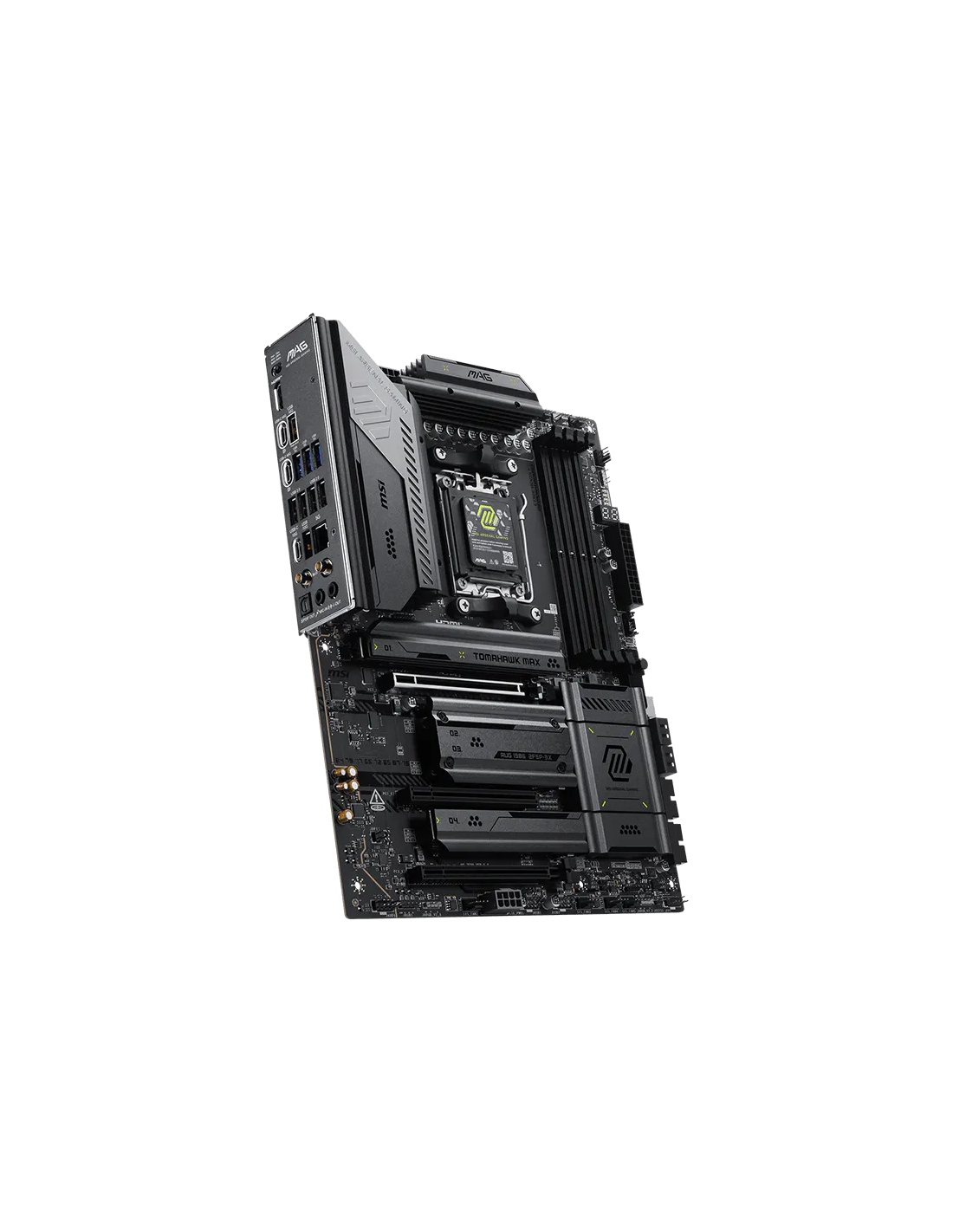

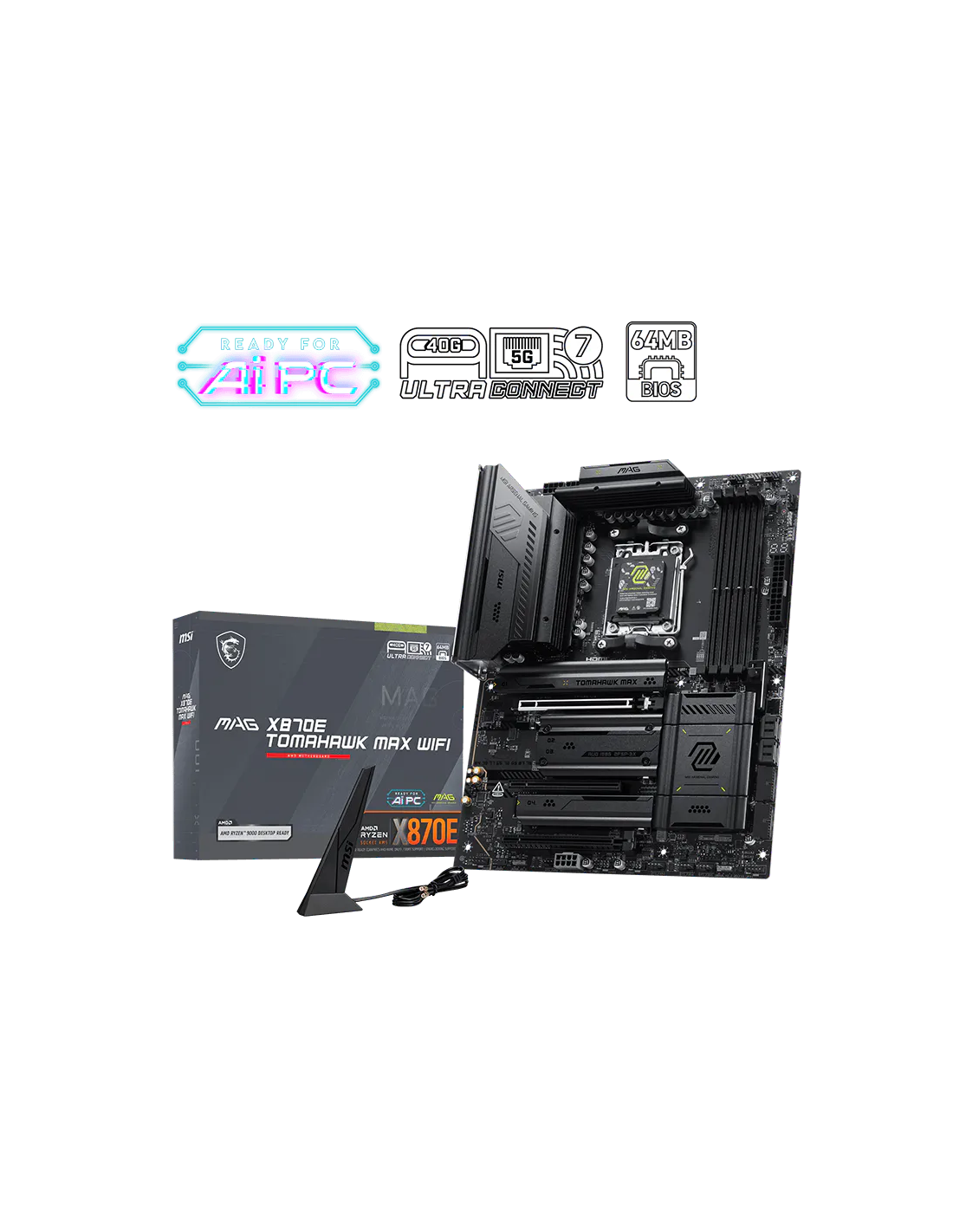

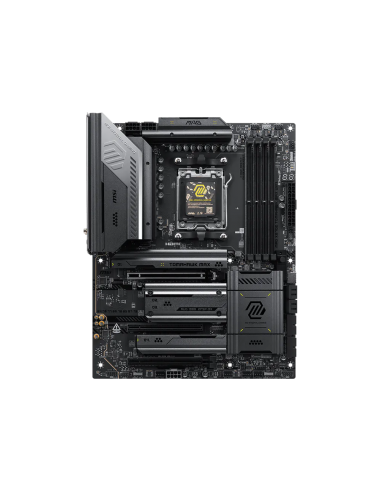

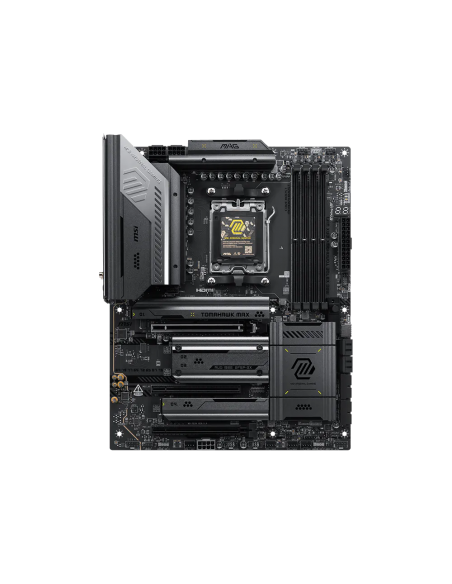

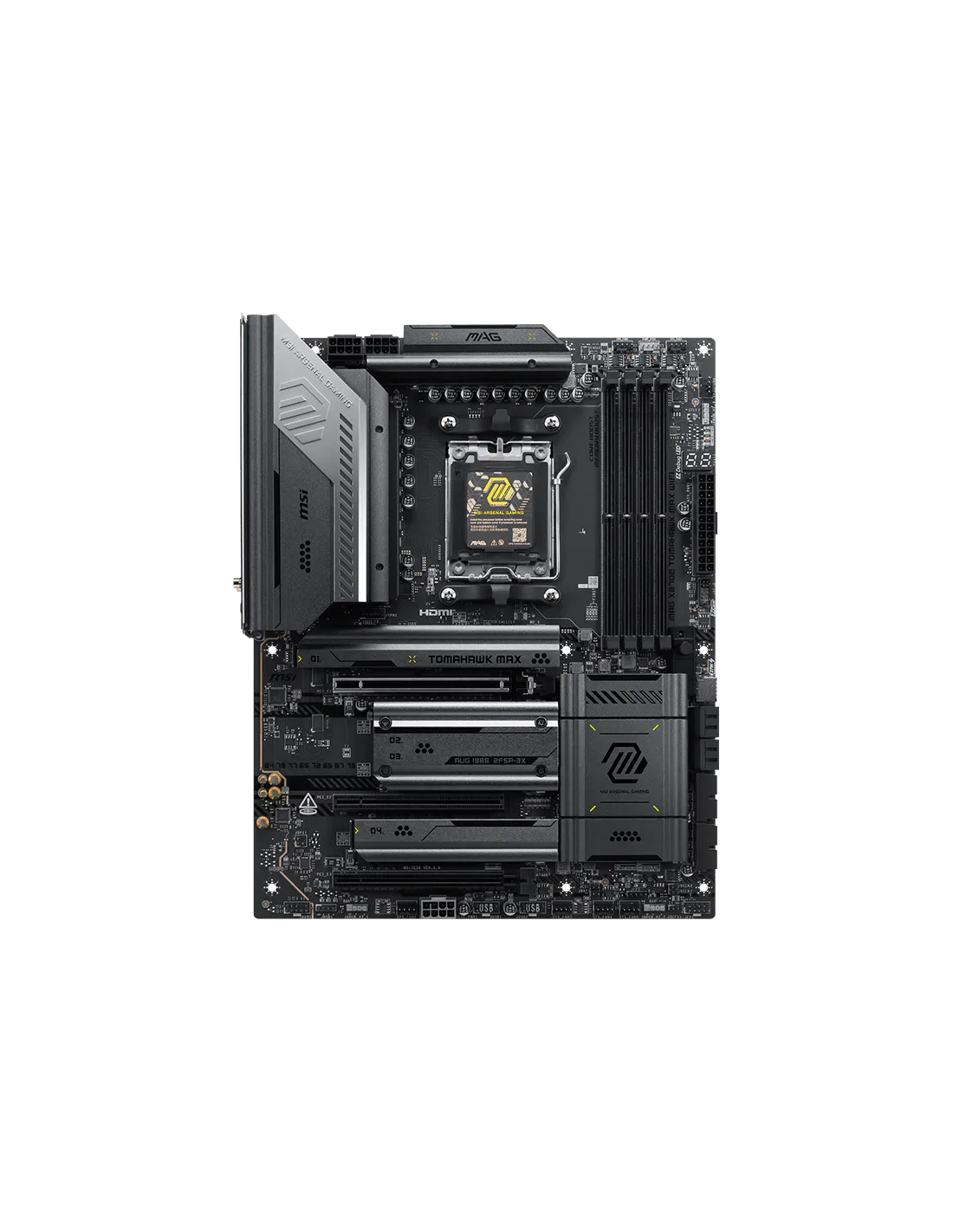

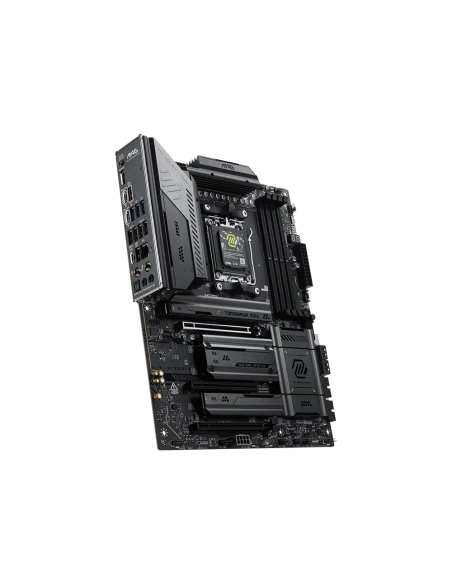

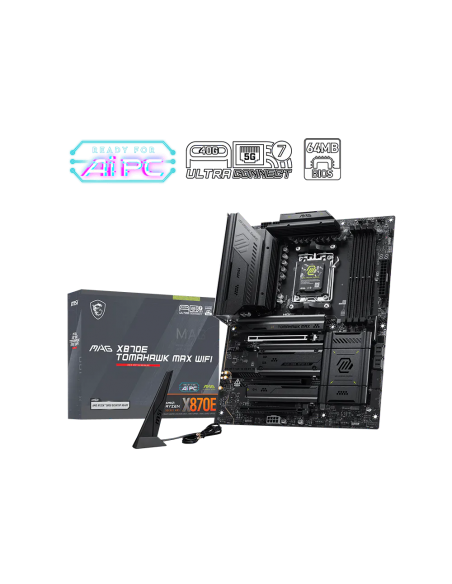

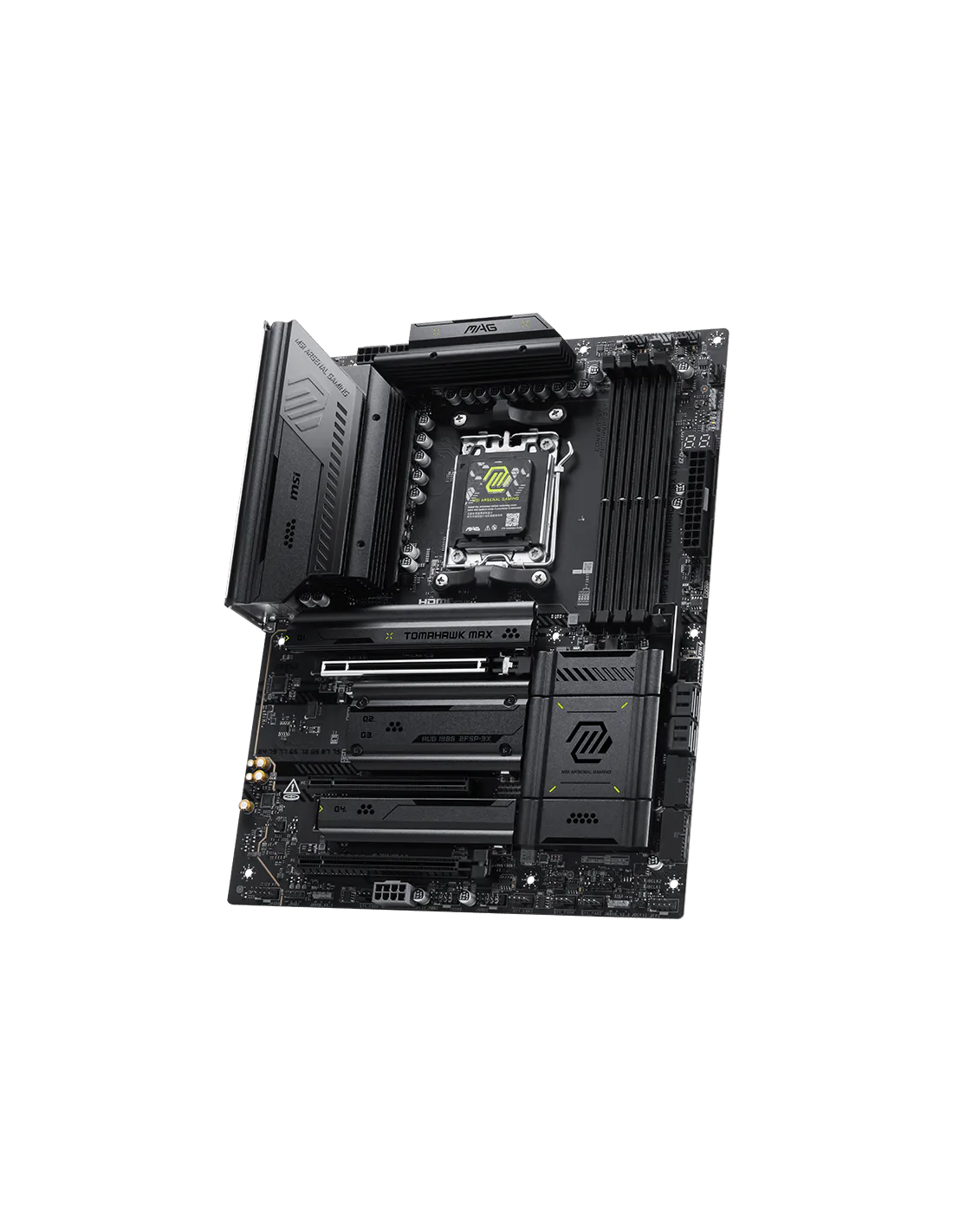

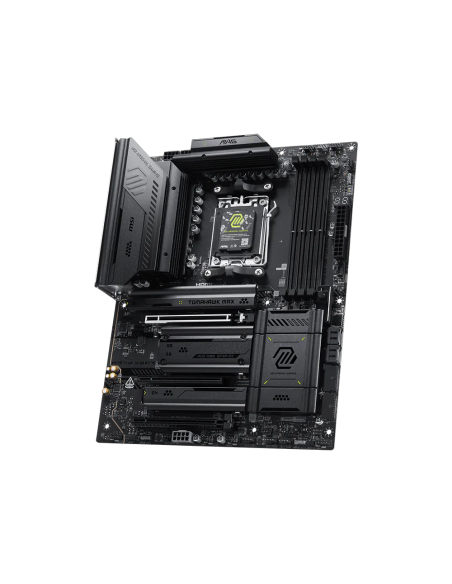

MSI MAG X870E TOMAHAWK MAX WF

Референция 911-7E59-018

На склад

343,22 €

С вкл. данък

911-7E59-018_MO

_MO

Memory type: 4x DDR5 UDIMM, Maximum Memory Capacity 256GB;
Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s;
Ryzen™ 9000 Series Processors max. overclocking frequency:;
• 1DPC 1R Max speed up to 8400+ MT/s;
• 1DPC 2R Max speed up to 6400+ MT/s;
• 2
Audio: Realtek® ALC4080 Codec;
7.1-Channel USB High Performance Audio;
Supports up to 32-bit/384kHz playback on front panel;
Supports S/PDIF output
Socket: Socket AM5
Bluetooth: Supports Bluetooth® 5.4**, MLO, 4KQAM
Other: 4x EZ Debug LED;
1x EZ Digit Debug LED;
1x EZ Memory Detection LED
CPU's supported: Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
RAID: •Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices;
•Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices;

*RAID 5 configuration is only supported by Ryzen™ 9000 series processors.;
*RAID 10 for M.2 NVMe storage devices is
Vendor_url: https://www.msi.com/Motherboard/MAG-X870E-TOMAHAWK-MAX-WIFI
Expansion Slots: 3x PCI-E x16 slot;
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU);
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset);
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset);

PCI_E1 slot;
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processor
LAN: 1x Realtek® 8126 5G LAN
Connectors: 1x Power Connector(ATX_PWR);
2x Power Connector(CPU_PWR);
1x Power Connector(PCIE_PWR 8pin);
1x CPU Fan;
1x Combo Fan (Pump_Sys Fan);
6x System Fan;
1x EZ Conn-header (JAF_2);
2x Front Panel (JFP);
1x Chassis Intrusion (JCI);
1x Front Audio (JAUD);
3x Add
Dimensions: ATX 243.84mmx304.8mm
OS: Support for Windows® 11 64-bit
Graphics: 1x HDMI™;
Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz*;
2x Type-C DisplayPort;
USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz*;
*Available only on processors featuring integrated graphics;
**Graphi
USB: 4x USB 2.0 (Rear);
4x USB 2.0 (Front);
3x USB 5Gbps Type A (Rear);
4x USB 5Gbps Type A (Front);
2x USB 10Gbps Type A (Rear);
1x USB 10Gbps Type C (Rear);
1x USB 20Gbps Type C (Front);
2x USB 40Gbps Type C (Rear)
Wireless: Wi-Fi 7;
The Wireless module is pre-installed in the M.2 (Key-E) slot;
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps;
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be;

Supports Bluetooth® 5.4**, MLO, 4KQAM;

* 6GHz band support may depend on e
Chipset: AMD X870E
Manufacturer: MSI

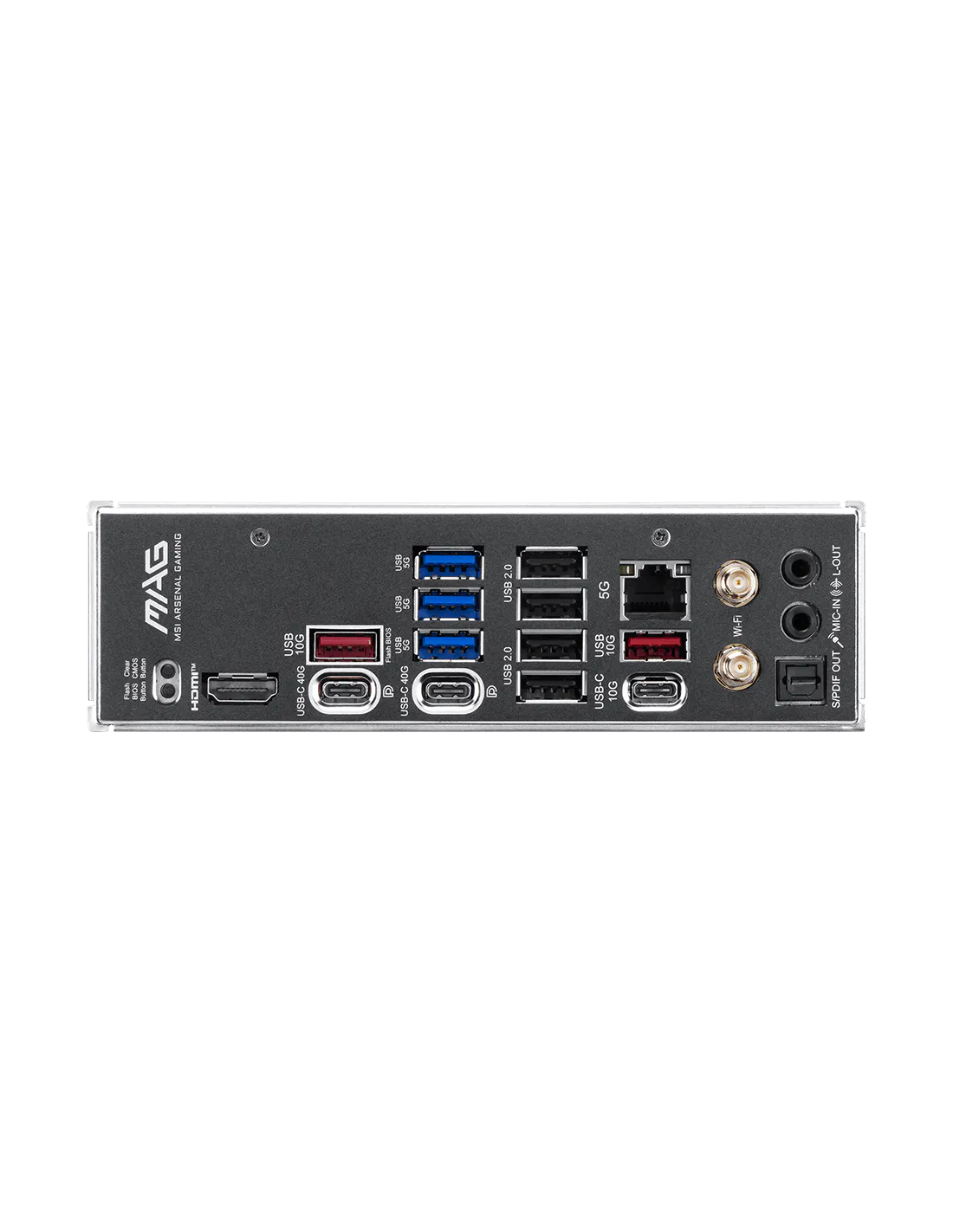

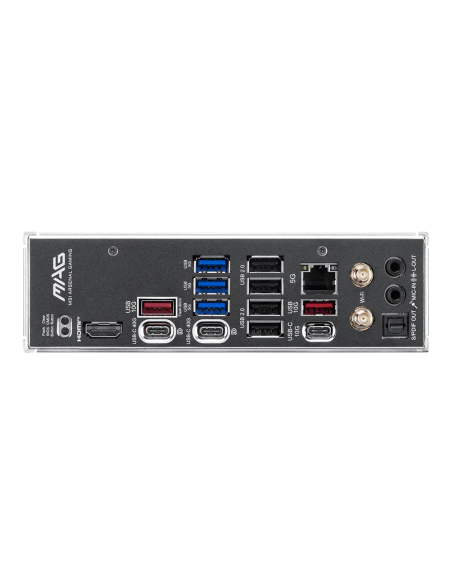

Rear panel I/O: Clear CMOS Button;
USB 10Gbps Type-A;
USB 5Gbps Type-A;
USB 2.0;
5G LAN;
Wi-Fi / Bluetooth;
Audio connectors;
Flash BIOS Button;
HDMI™;
USB 40Gbps Type-C;
USB 10Gbps Type-C;
USB 10Gbps Type-A;
Optical S/PDIF-OUT
Storage: 4x M.2;
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices;
M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices;
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices;
Дънна платка - чипсет: AMD X870E
Дънна платка - поддържан тип памет: DDR5
Дънна платка - честота на паметта: 4800 MHz
5600 MHz
6400 MHz
8400 MHz
9000 MHz
Дънна платка - интерфейси: M.2 (NVMe) конектор
SATA 3.0
Дънна платка - портове: HDMI
USB 2.0
USB 3.2
