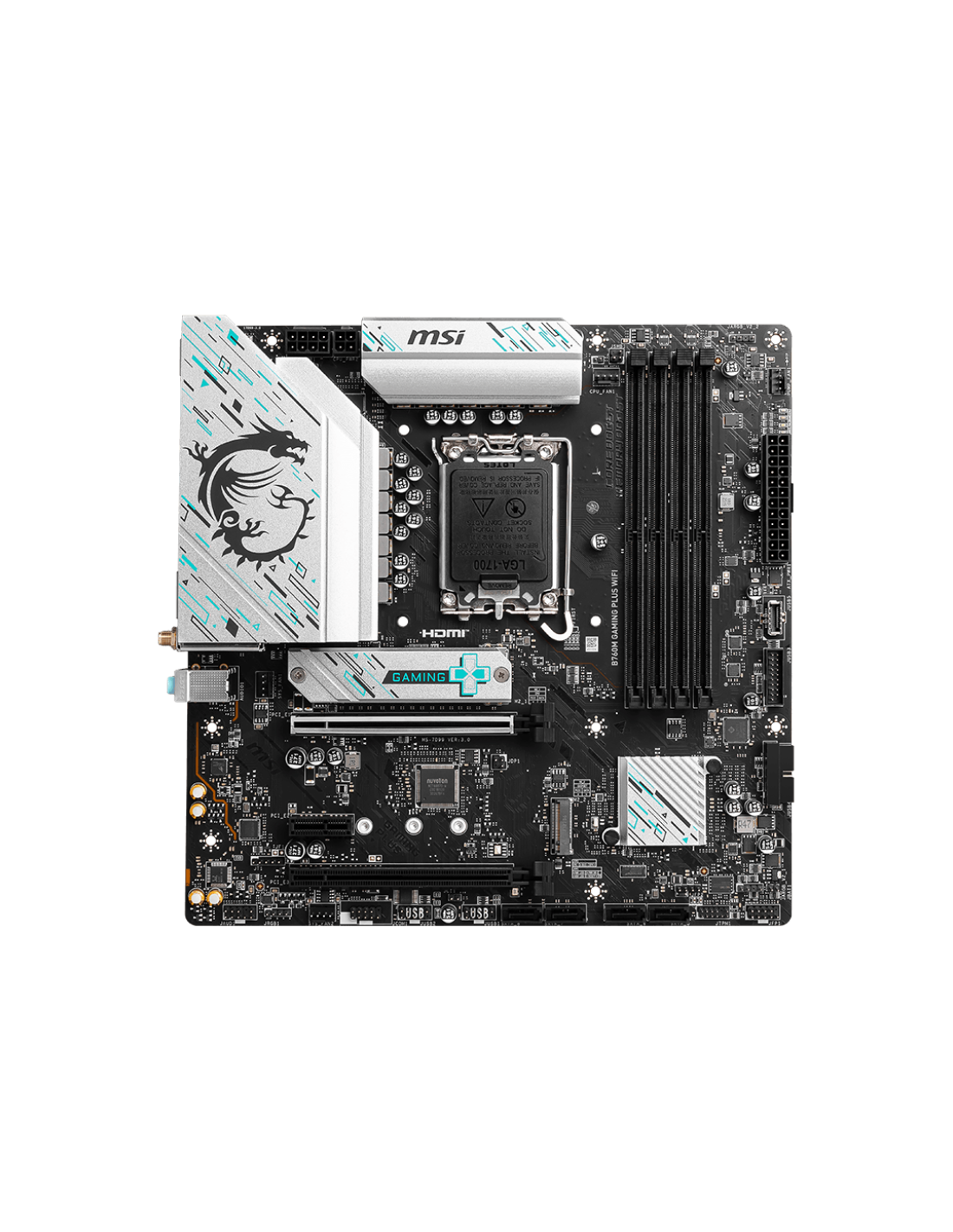

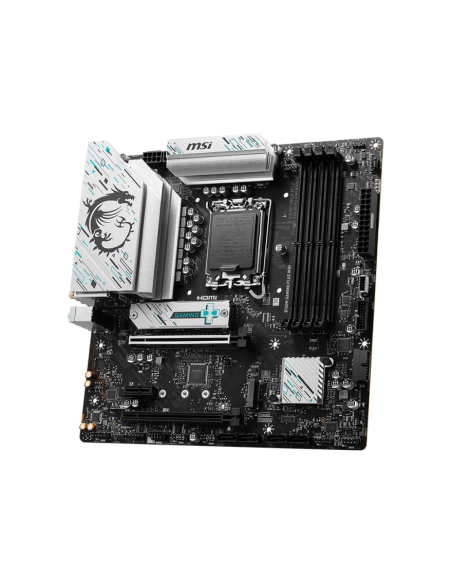

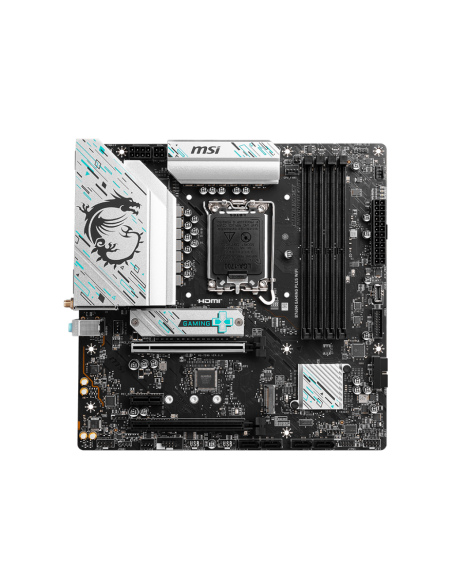

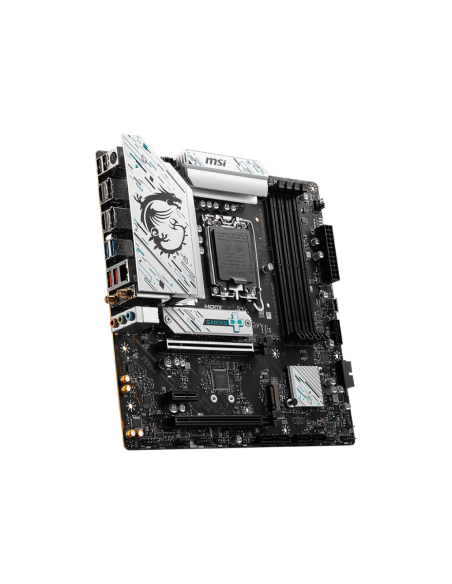

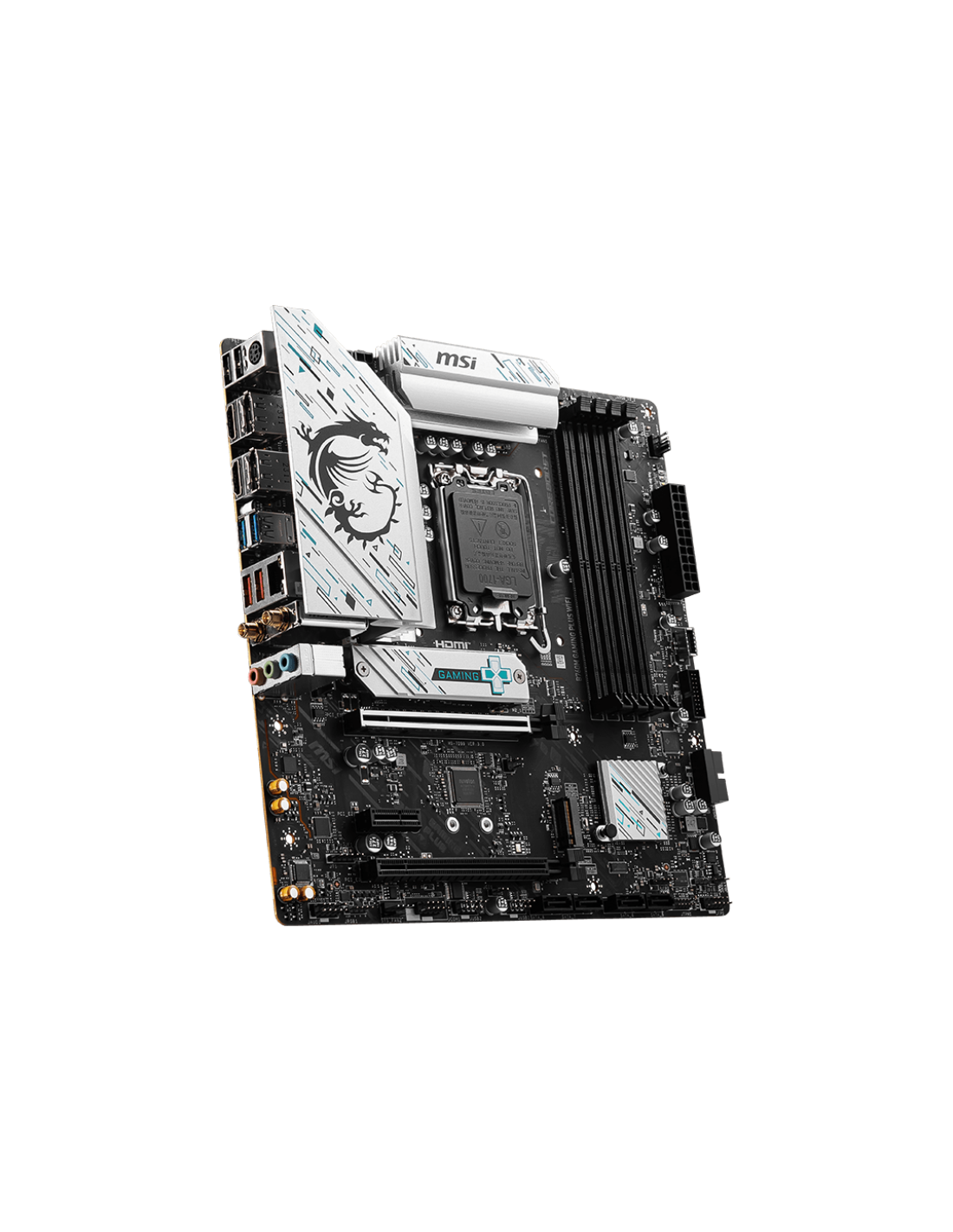

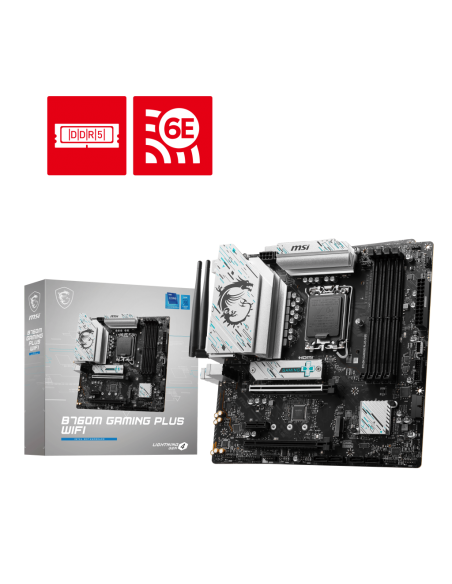

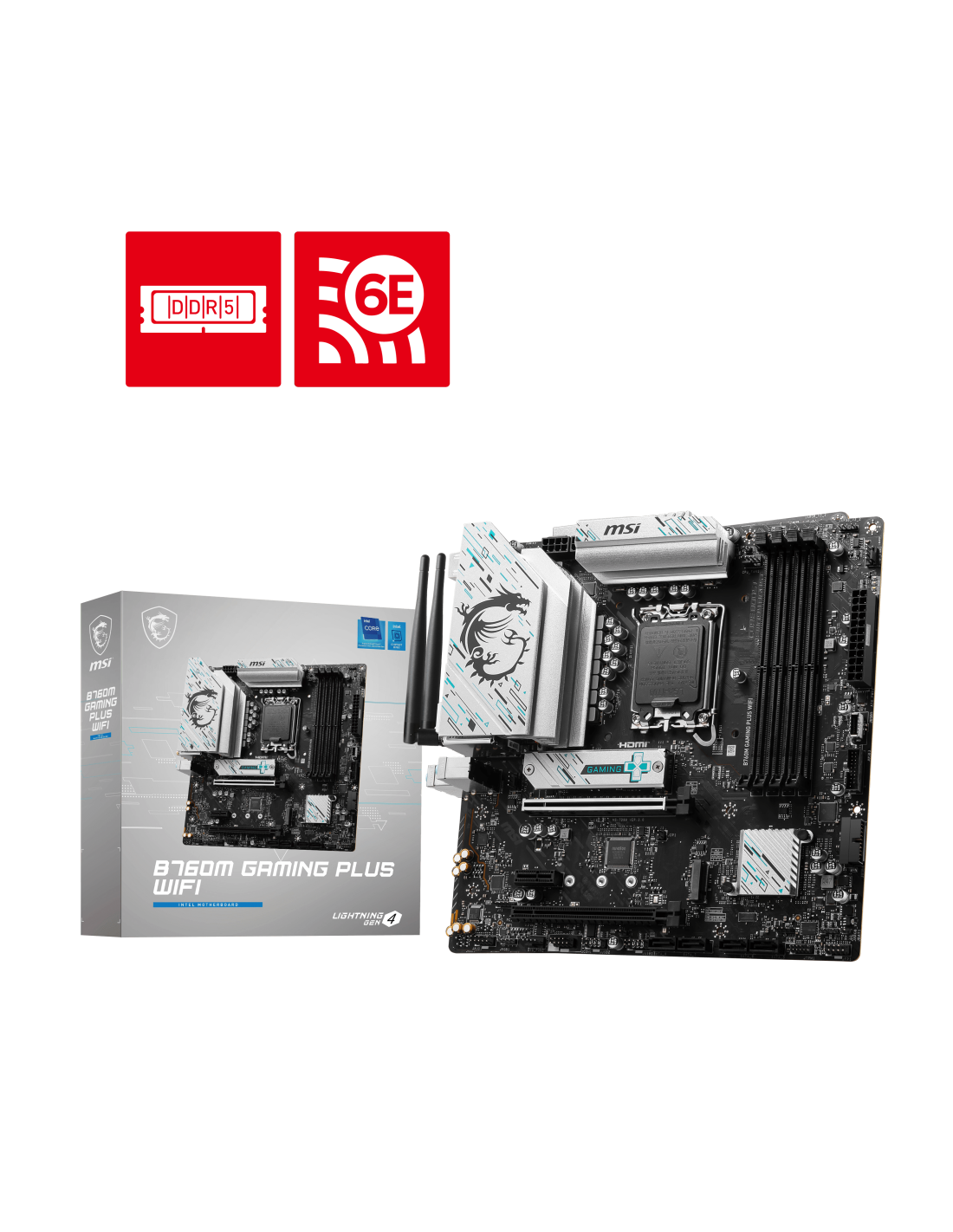

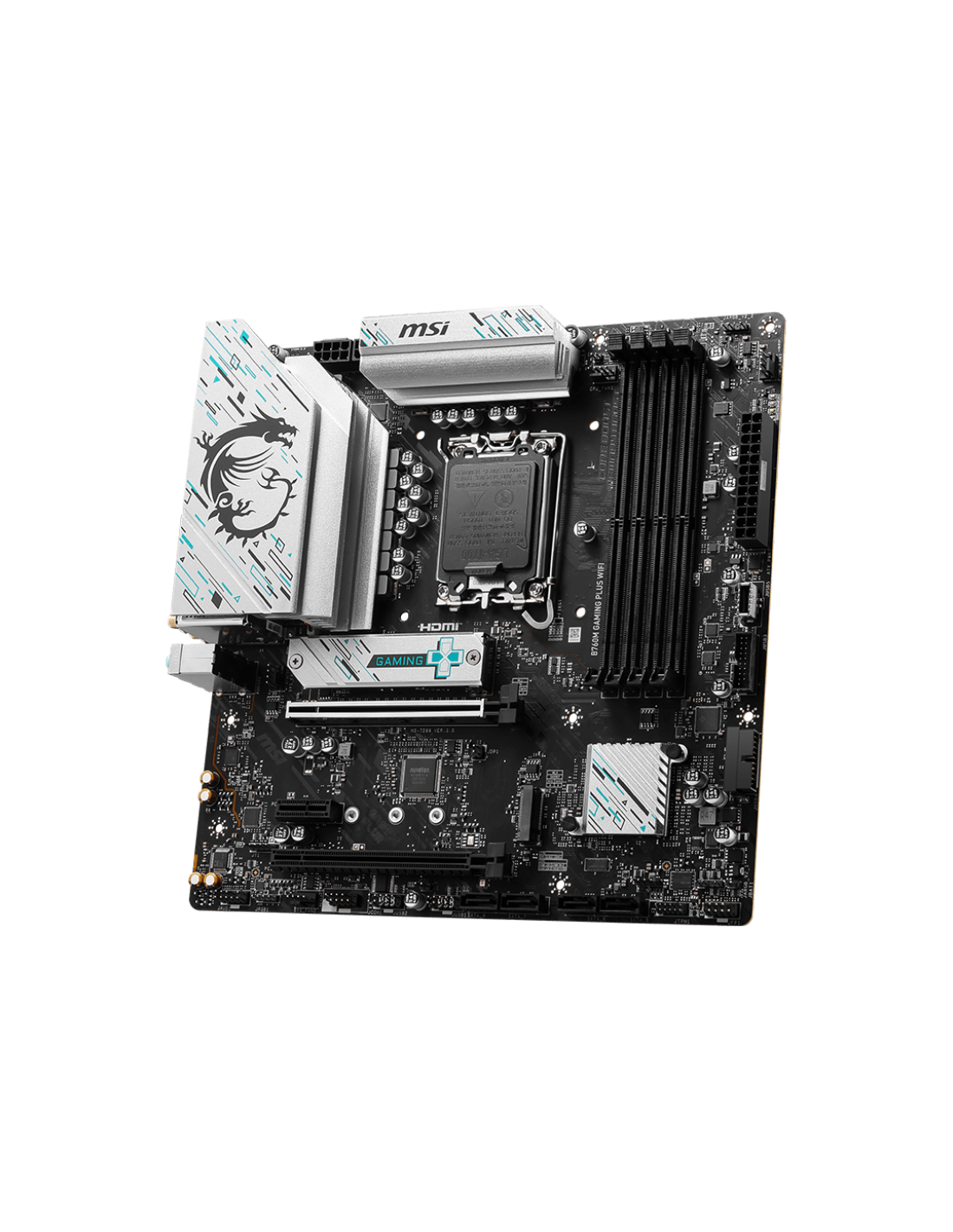

MSI B760M GAMING PLUS WIFI

Референция 911-7D99-060

На склад

143,12 €

С вкл. данък

911-7D99-060_MO

MSI B760 4xDDR5 4xSATA3 RAID 2xHDMI 2xDP 2xM2 GLAN 2xPCIEx16 1xPCIEx1 WiFi_MO

Warranty: 36 Months
Vendor_url: https://www.msi.com/Motherboard/B760M-GAMING-PLUS-WIFI/Specification
Chipset: INTEL B760
Storage: 2x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices; 4x SATA 6G
LAN: Realtek® RTL8125BG 2.5G LAN
Audio: Realtek® ALC897 Codec; 7.1-Channel High Definition Audio
Memory type: 4x DDR5, Maximum Memory Capacity 192GB; Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz;
Other: Intel® Wi-Fi 6E; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax; Supports Bluetooth® 5.3, FIPS, FISMA
Graphics: 2x HDMI™; Support HDMI™ 2.1, maximum resolution of 4K 60Hz*; 2x DisplayPort; Support DP 1.4, maximum resolution of 4K 60Hz*

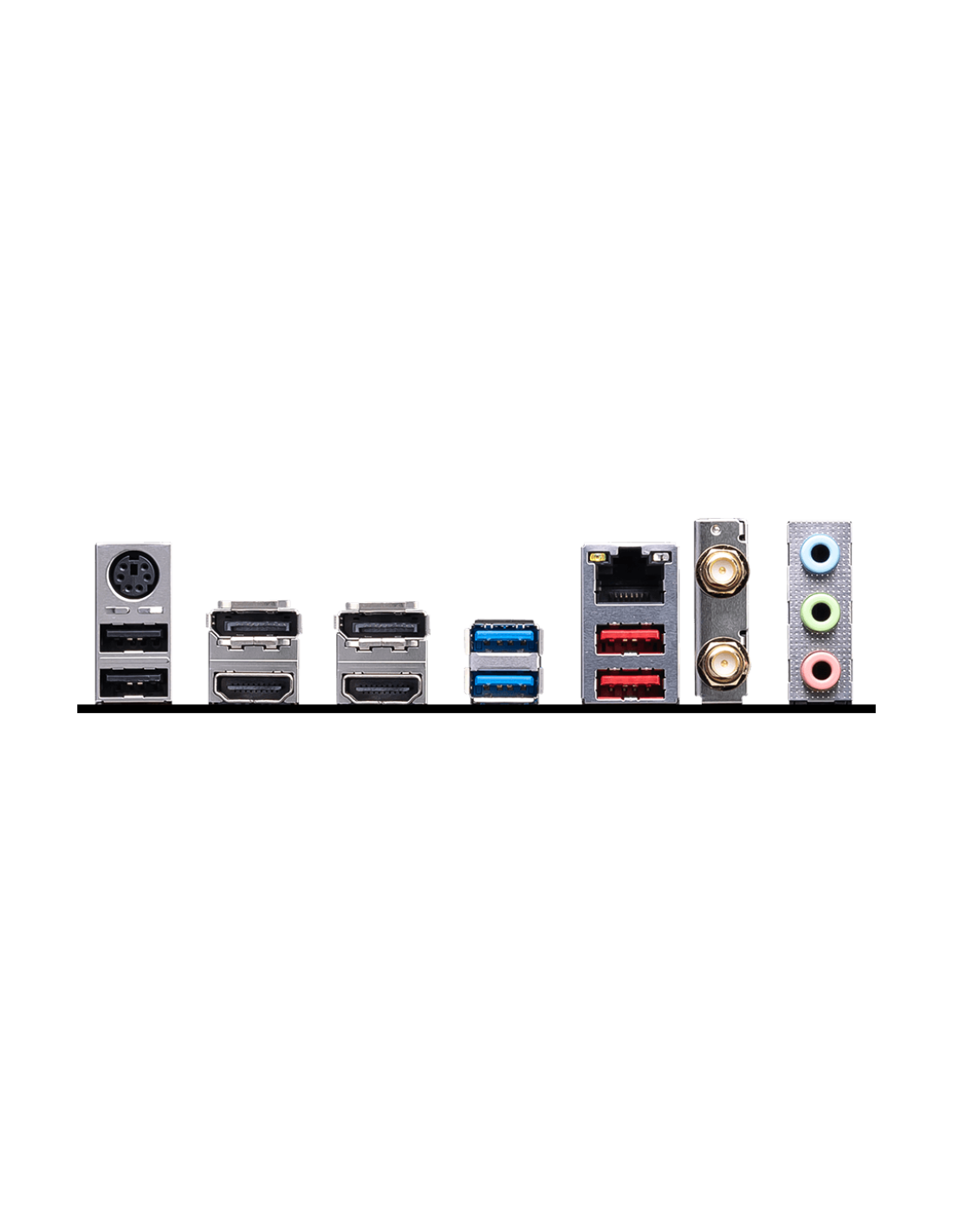

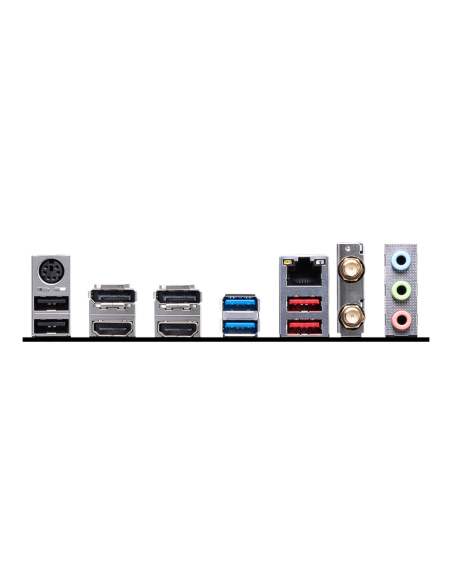

Rear panel I/O: Keyboard / Mouse; DisplayPort; USB 3.2 Gen 1 5Gbps (Type-A); 2.5G LAN; Wi-Fi / Bluetooth; USB 2.0; HDMI™; USB 3.2 Gen 2 10Gbps (Type-A); Audio Connectors
Expansion Slots: 2x PCI-E x16 slot; 1x PCI-E x1 slot; PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Connectors: 1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x CPU Fan; 1x Pump Fan; 2x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Com Port (JCOM); 2x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED conne
Form Factor: mATX,243.84mmx243.84mm
OS: Support for Windows® 11 64-bit, Windows® 10 64-bit
Дънна платка - чипсет: INTEL B760
Дънна платка - поддържан тип памет: DDR5
Дънна платка - честота на паметта: 4800 MHz
5000 MHz
5200 MHz
5400 MHz
5600 MHz
5800 MHz
6000 MHz
6200 MHz
6400 MHz
6600 MHz
6800 MHz
Дънна платка - интерфейси: M.2 (NVMe) конектор
SATA 3.0
Дънна платка - портове: Display Port
HDMI
USB 2.0
USB 3.2
Дънна платка - форм фактор: Micro ATX
