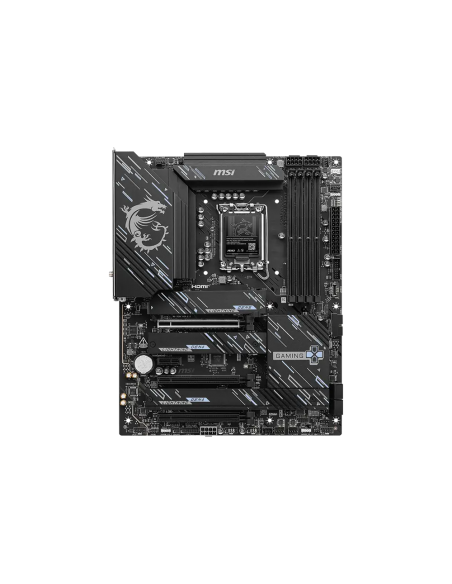

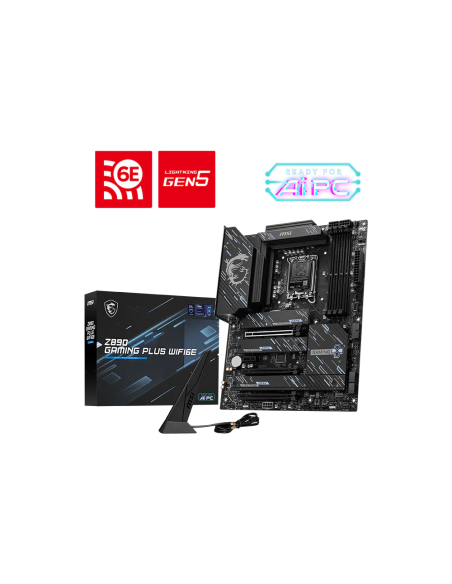

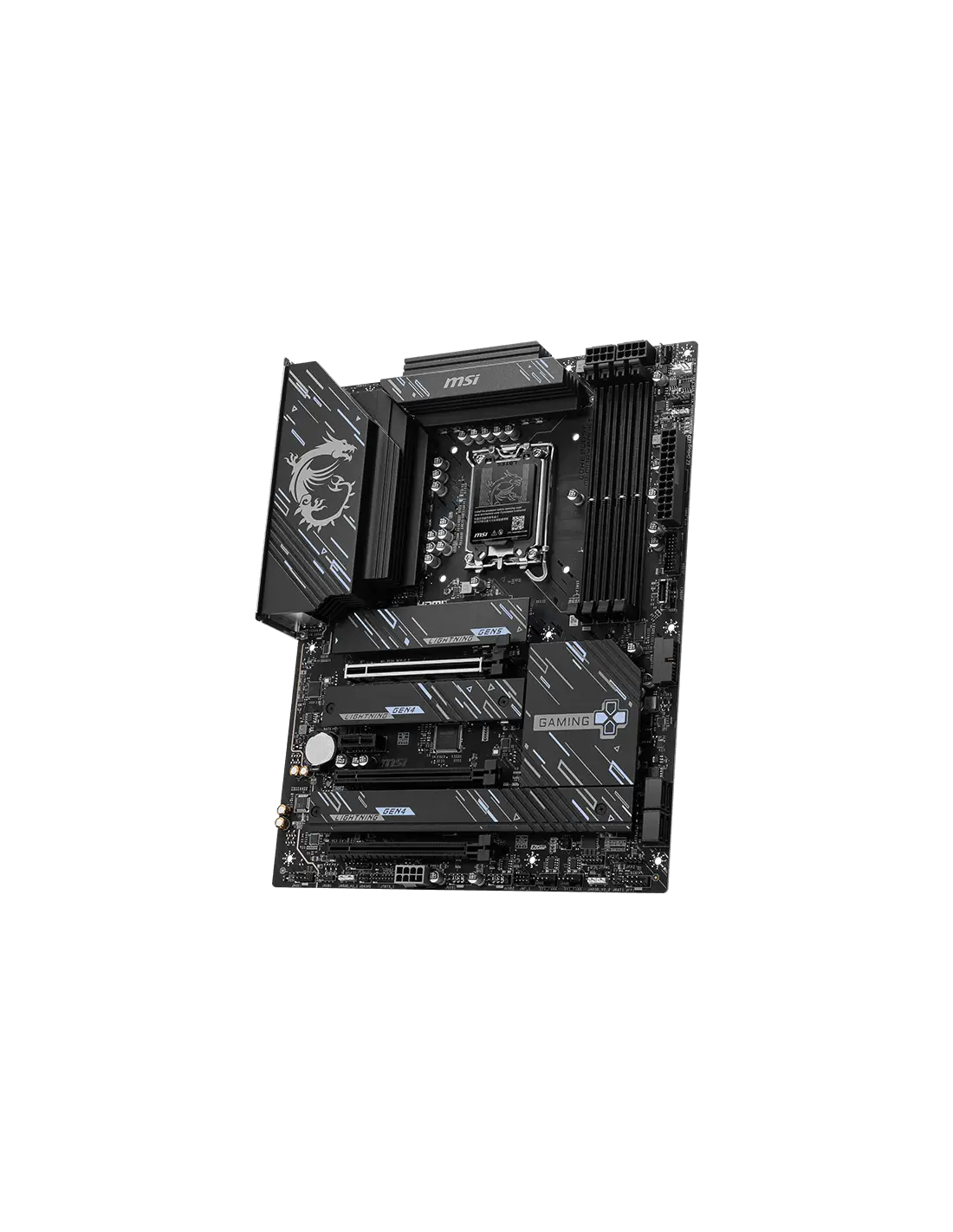

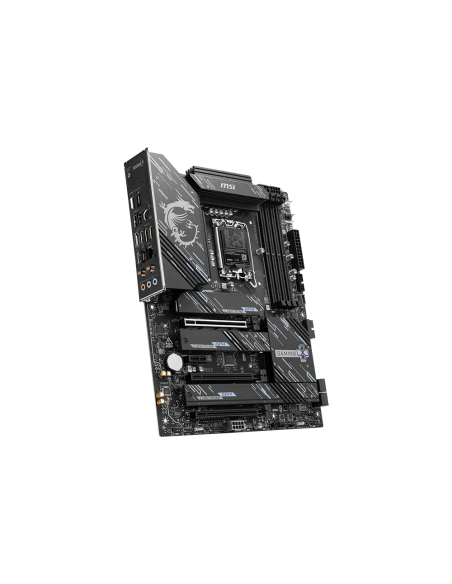

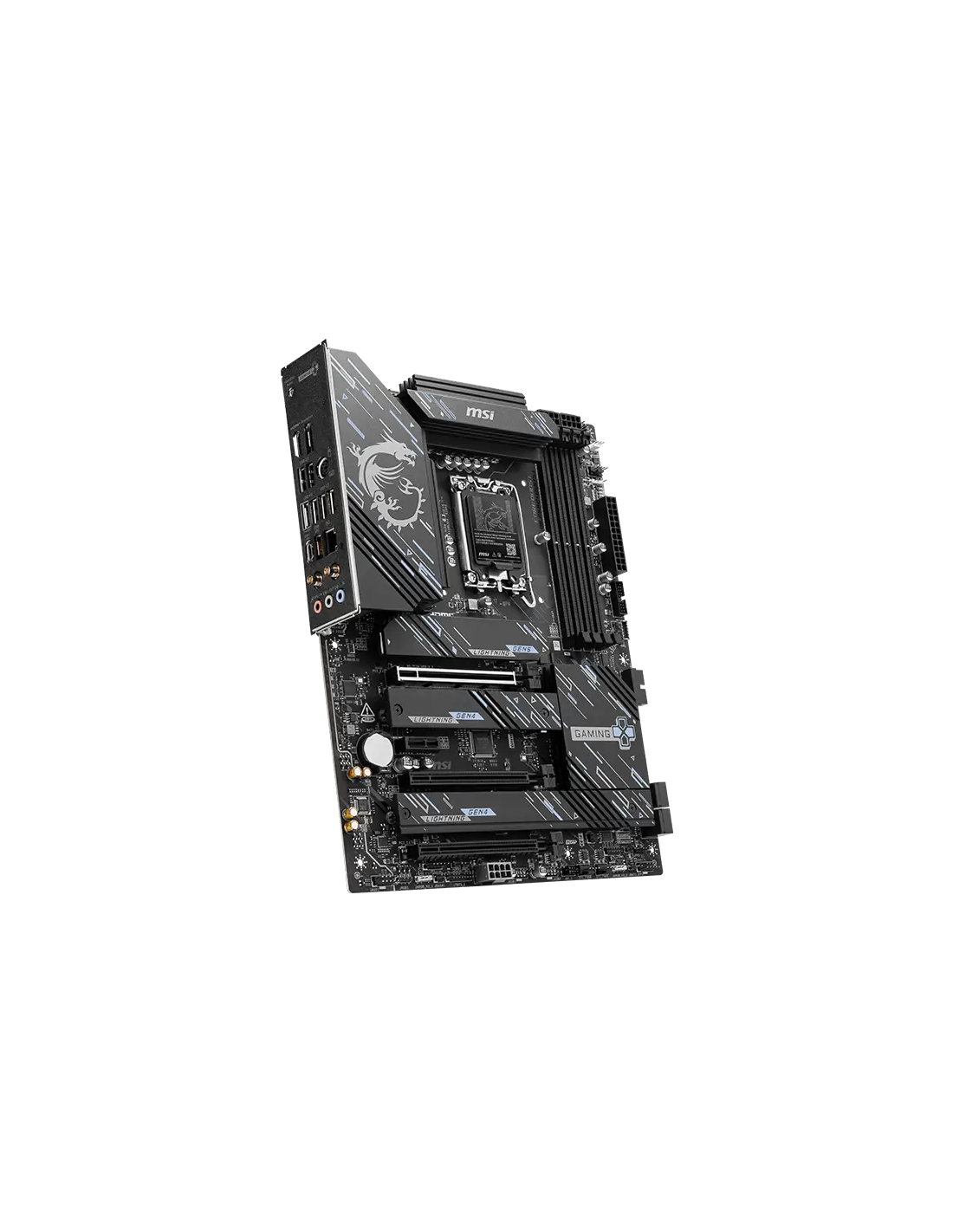

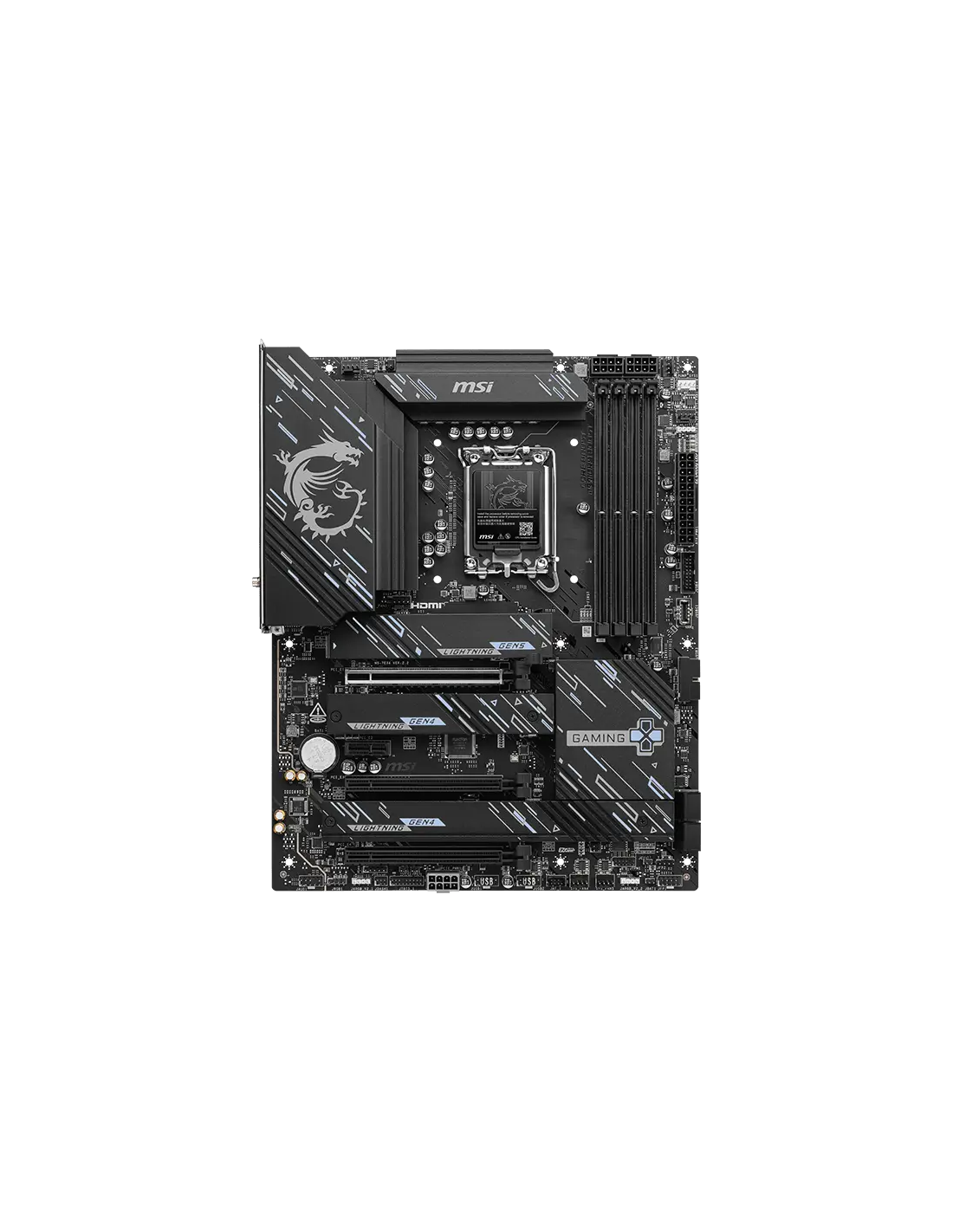

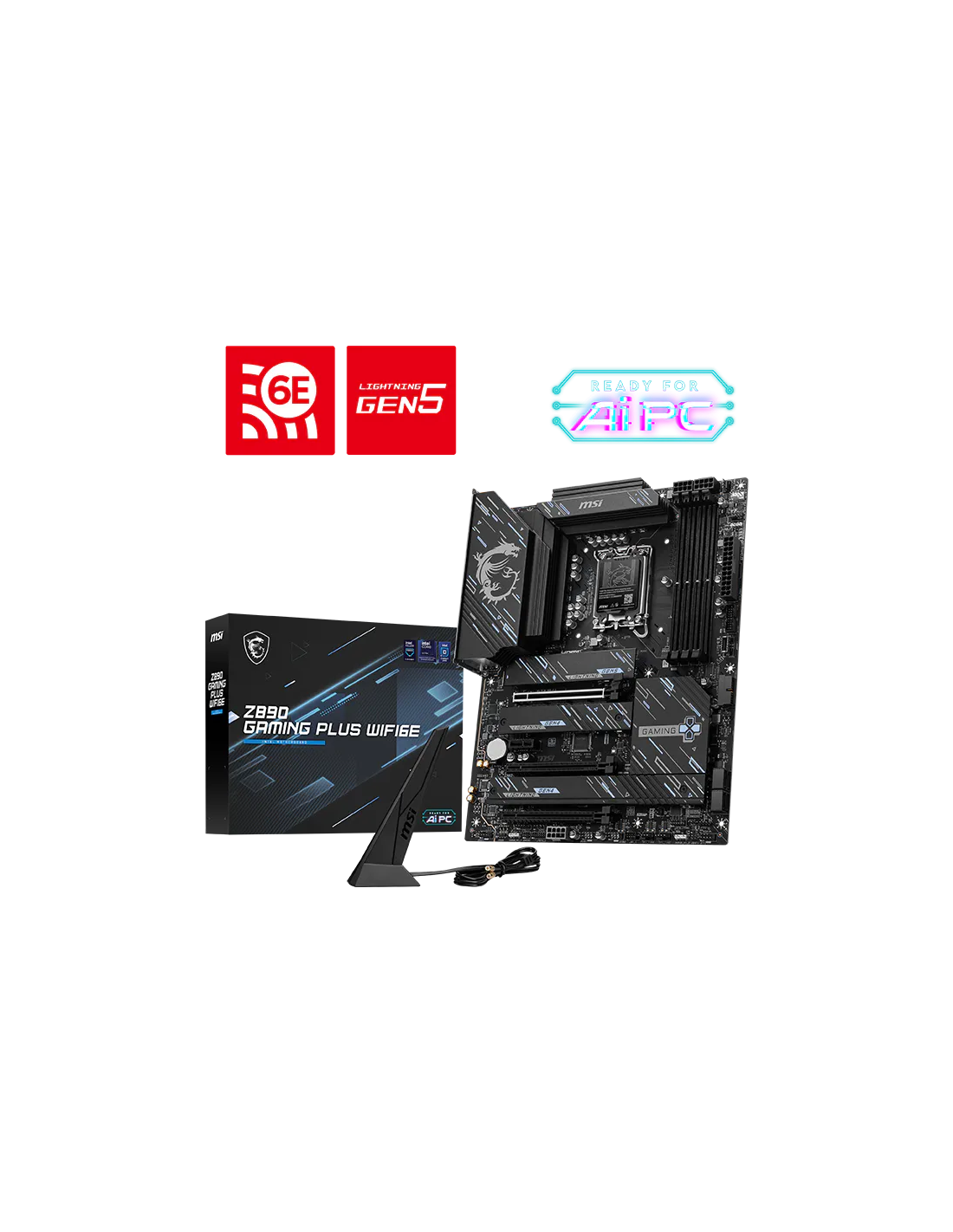

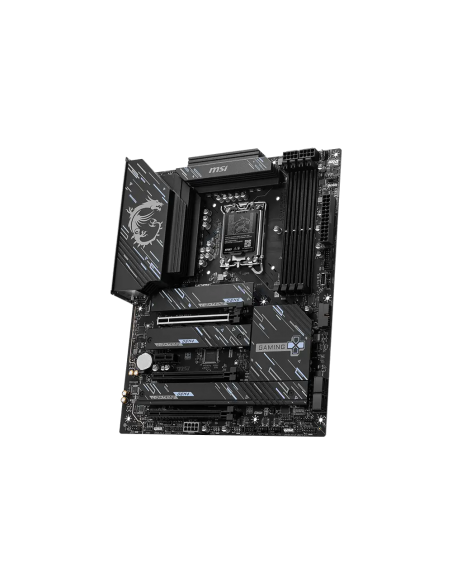

MSI Z890 GAMING PLUS WIFI6E

Референция 911-7E34-020

На склад

252,41 €

С вкл. данък 493.67 лв.

911-7E34-020_MO

_MO

RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices;
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Expansion Slots: 3x PCI-E x16 slot;
1x PCI-E x1 slot;
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU);
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset);
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset);
PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
LAN: Intel® Killer™ E5000 5Gbps LAN
Audio: Realtek® ALC897 Codec;
7.1-Channel High Definition Audio
Dimensions: ATX
243.84mmx304.8mm
Wireless: Wi-Fi 6E module;
The Wireless module is pre-installed in the M.2 (Key-E) slot;
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps;
Supports 802.11 a/ b/ g/ n/ ac/ ax
Graphics: 1x HDMI™;
Support HDMI™ 2.1, maximum resolution of 4K 60Hz;
1x DisplayPort;
Support DisplayPort 1.4, maximum resolution of 4K 60Hz
USB: 4x USB 2.0 (Rear);
4x USB 2.0 (Front);
2x USB 5Gbps Type A (Rear);
4x USB 5Gbps Type A (Front);
1x USB 10Gbps Type A (Rear);
1x USB 10Gbps Type C (Rear);
1x USB 20Gbps Type C (Front)

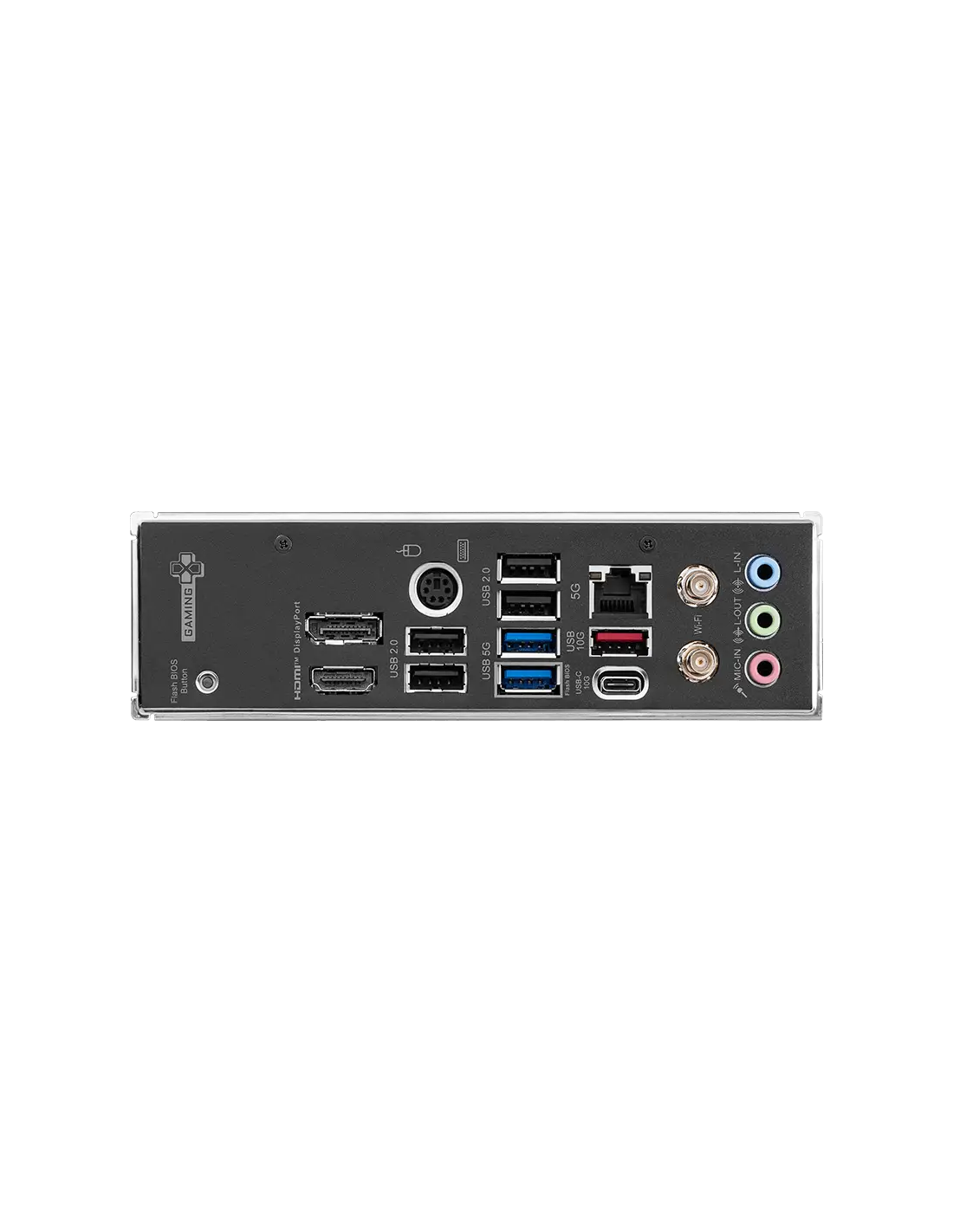

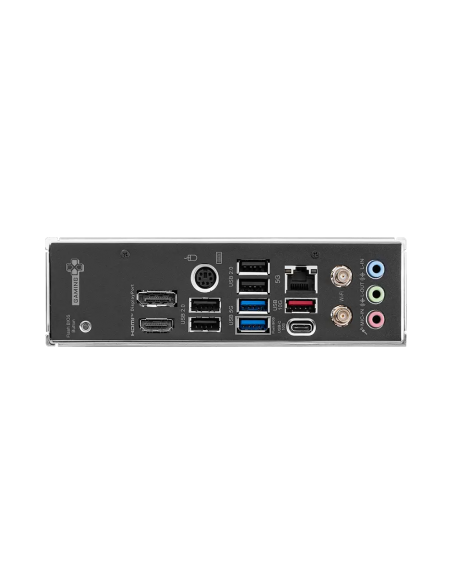

Rear panel I/O: 1x Power Connector(ATX_PWR);
2x Power Connector(CPU_PWR);
1x Power Connector(PCIE_PWR 8pin);
1x CPU Fan;
1x Combo Fan (Pump_Sys Fan);
5x System Fan;
1x EZ Conn-header (JAF_1);
2x Front Panel (JFP);
1x Chassis Intrusion (JCI);
1x Front Audio (JAUD);
1x Tun
Chipset: INTEL Z890
Manufacturer: MSI
Storage: 4x M.2;
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices;
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices;
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260
Memory type: 4x DDR5 UDIMM, Maximum Memory Capacity 256GB;
Memory Support DDR5 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s;
Max. overclocking frequency:;
• 1DPC 1R Max speed up to 9200+ MT/s;
• 1DPC 2R Max speed up to 7200+ MT/s;
• 2DPC 1R Max speed up to 6400+ M
OS: Support for Windows® 11 64-bit
Socket: LGA 1851
Vendor_url: https://www.msi.com/Motherboard/Z890-GAMING-PLUS-WIFI6E
CPU's supported: Supports Intel® Core™ Ultra Processors (Series 2)
Дънна платка - чипсет: INTEL Z890
Дънна платка - поддържан тип памет: DDR5
Дънна платка - честота на паметта: 4800 MHz
6400 MHz
7200 MHz
9200 MHz
Дънна платка - интерфейси: M.2 (NVMe) конектор
SATA 3.0
Дънна платка - портове: USB 2.0
USB 3.2
