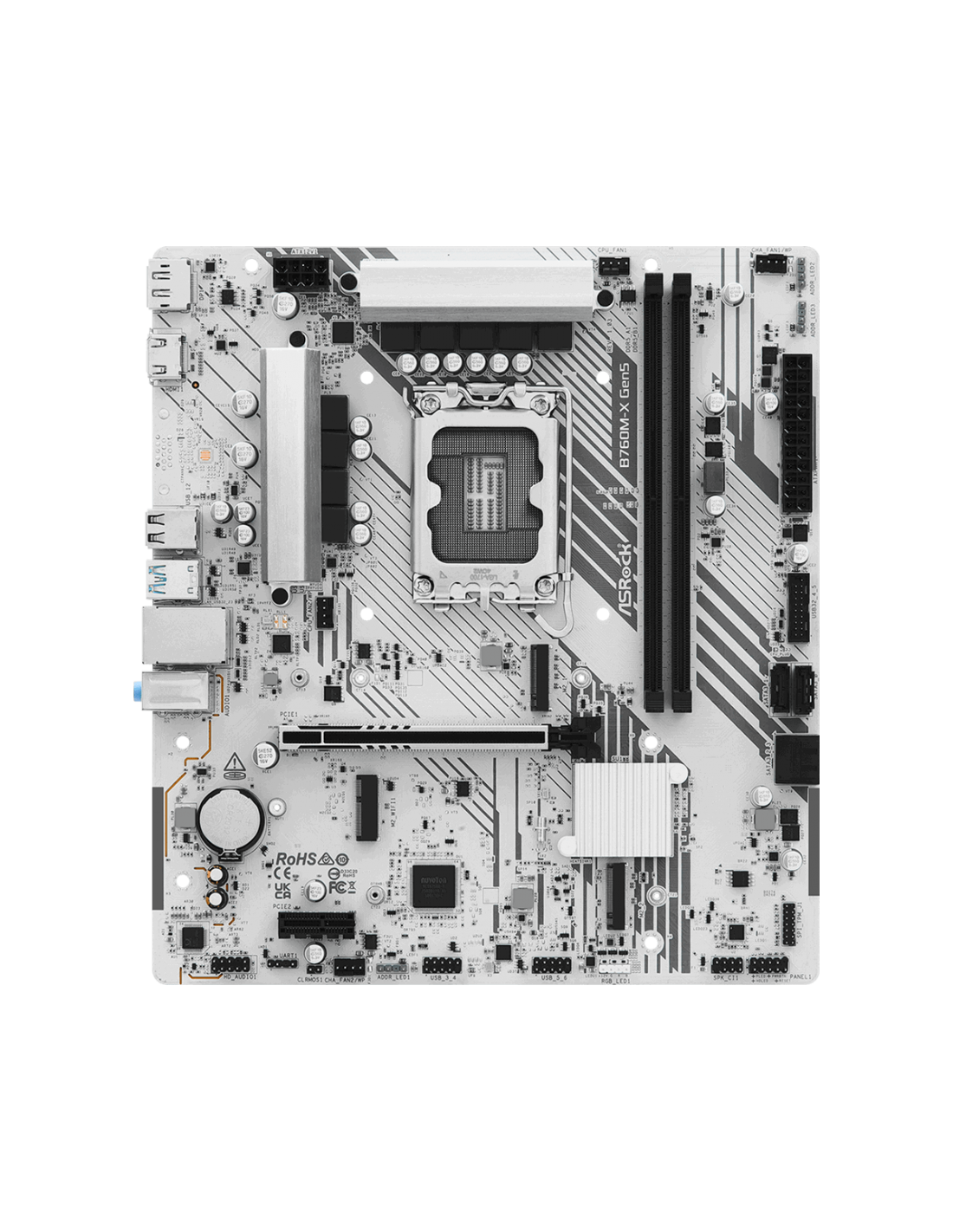

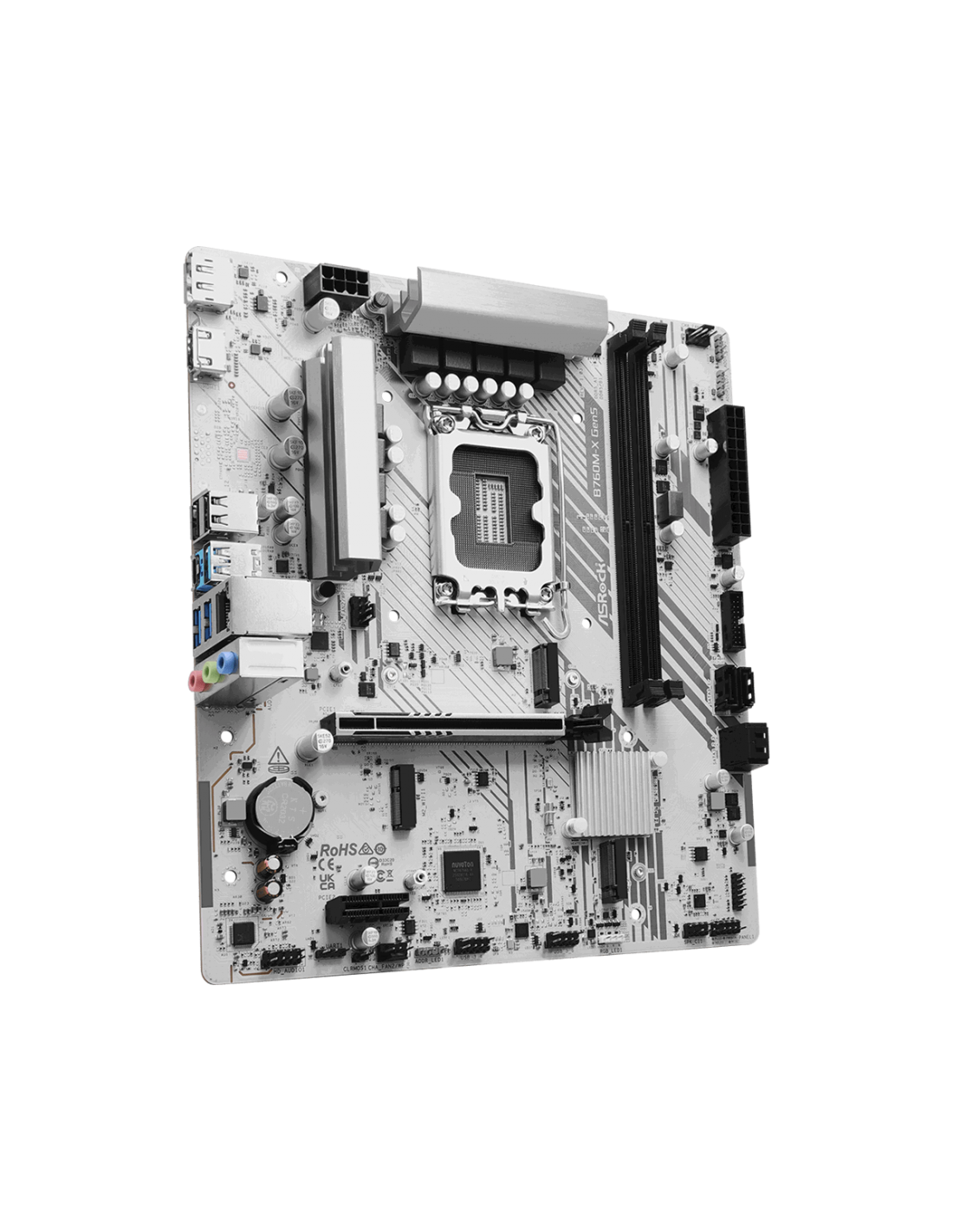

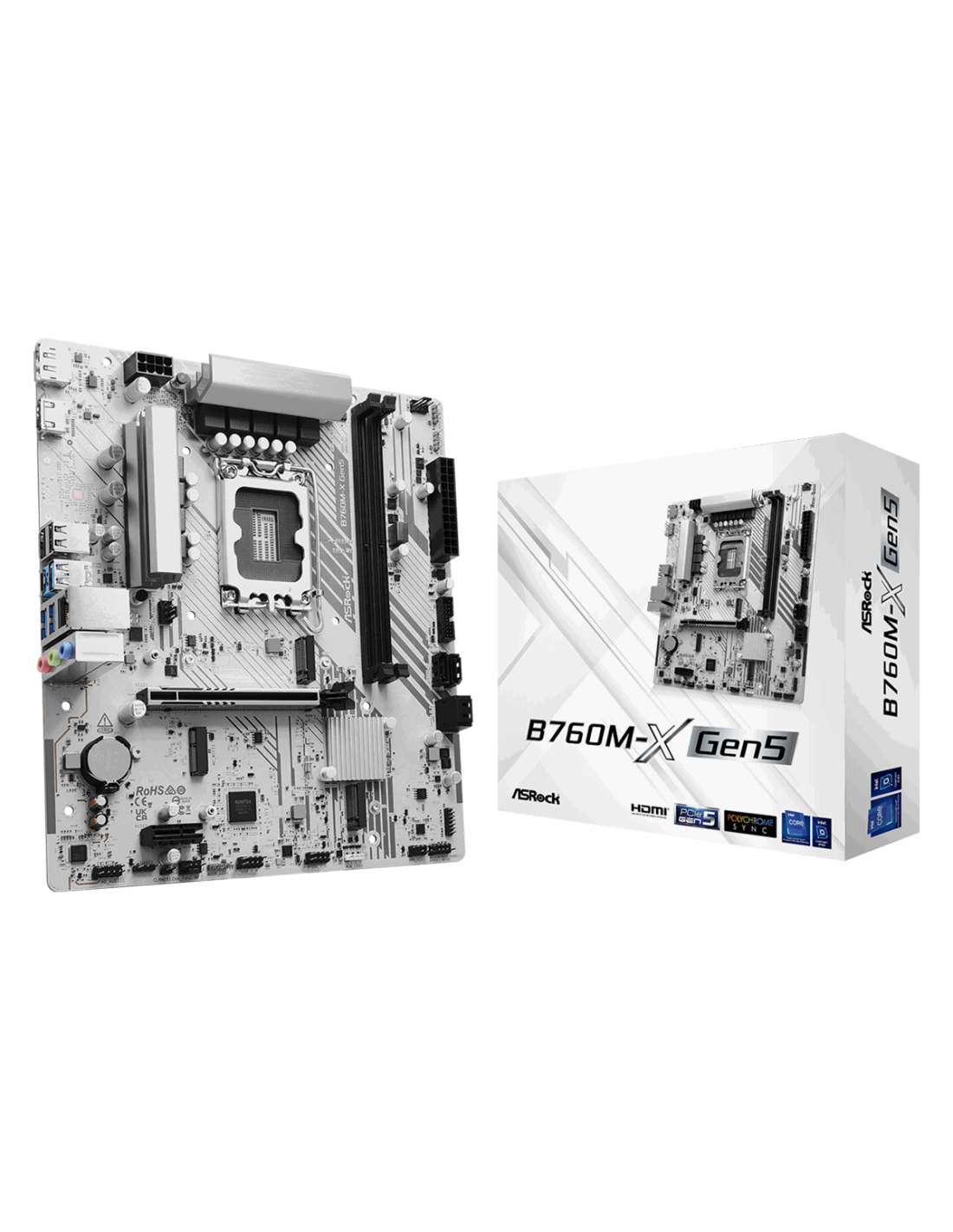

ASROCK B760M-X GEN5

Референция B760M-X GEN5

На склад

90,28 €

С вкл. данък 176.57 лв.

B760M-X GEN5_MO

ASROCK B760 2xDDR5 4xSATA3 RAID HDMI DP 2xM2 GLAN 1xPCIEx16 1xPCIEx1_MO

OS: Microsoft Windows® 10 64-bit / 11 64-bit
Warranty: 36 Months

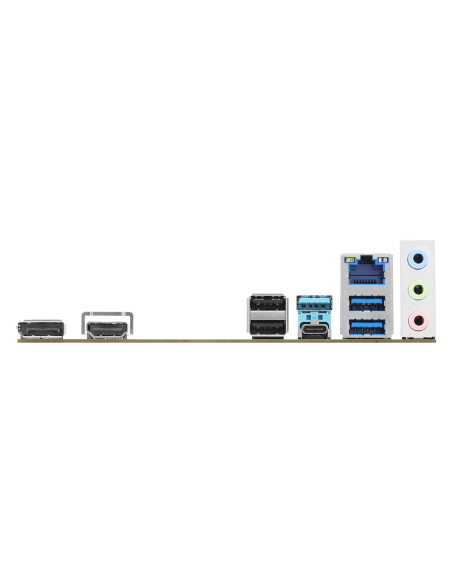

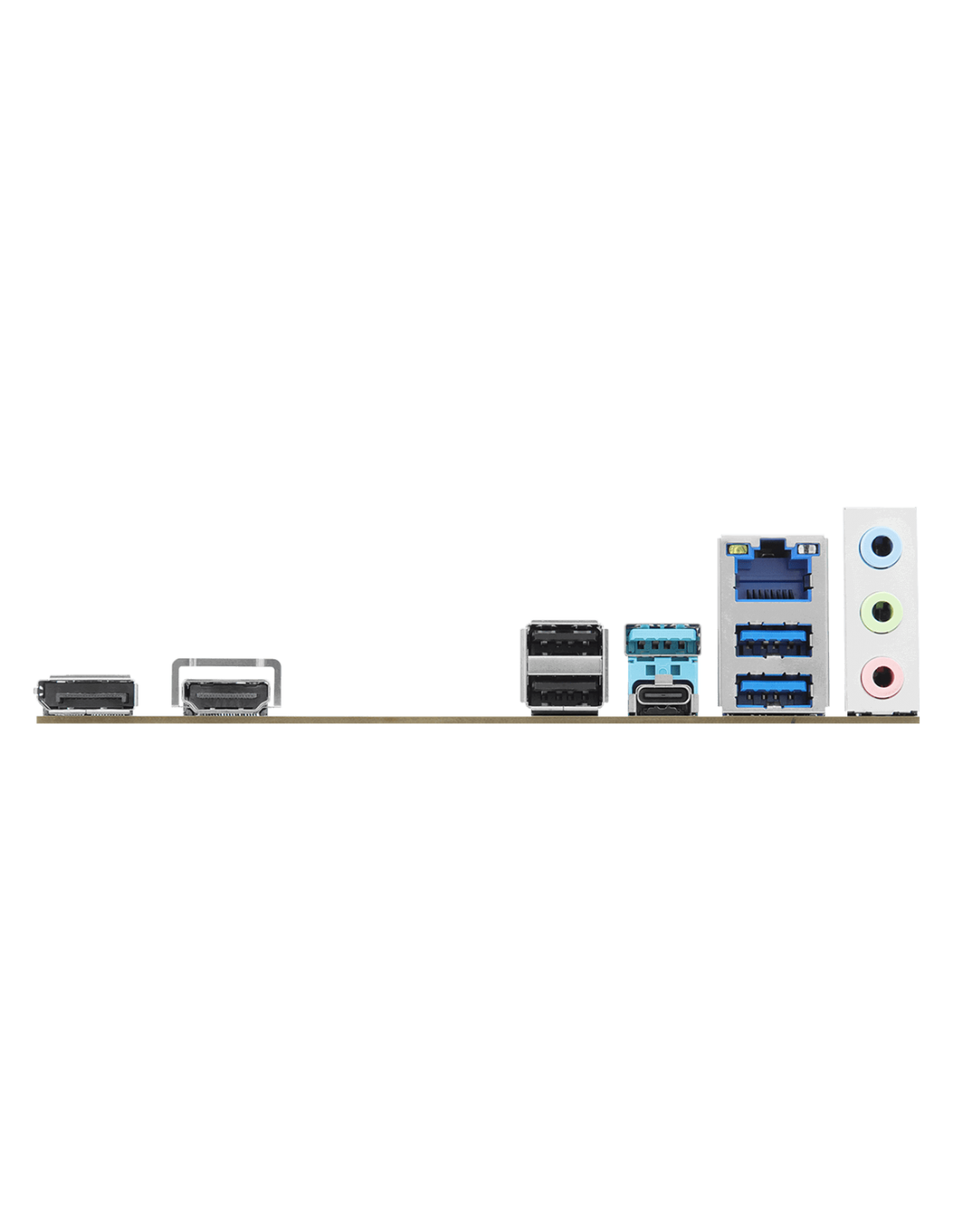

Rear panel I/O: 2 x Antenna Mounting Points;1 x HDMI Port;1 x DisplayPort 1.4;1 x USB 3.2 Gen1 Type-C Port;3 x USB 3.2 Gen1 Type-A Ports;2 x USB 2.0 Ports;1 x RJ-45 LAN Port;HD Audio Jacks: Line in / Front Speaker / Microphone
Chipset: Intel® B760
USB: Chipset:;- 1 x USB 3.2 Gen1 Type-C (Rear);- 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front);- 6 x USB 2.0 (2 Rear, 4 Front)
Storage: Chipset:;- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode;- 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) modes;- 4 x SATA3 6.0 Gb/s Connectors;Supports RAID 0, RAID 1, RAID 5 and RAID
Manufacturer: ASROCK
Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Form Factor: Micro ATX Form Factor: 9.6-in x 8.7-in, 24.4 cm x 22.1 cm
Vendor_url: https://www.asrock.com/MB/Intel/B760M-X%20Gen5/index.asp
Graphics: Intel® Xe Graphics Architecture (Gen 12);1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz;1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Expansion Slots: CPU:;- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode;Chipset:;- 1 x PCIe 3.0 x1 Slots (PCIE2);- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
BIOS: 128Mb AMI UEFI Legal BIOS with GUI support
Connectors: 1 x SPI TPM Header;1 x Chassis Intrusion and Speaker Header;1 x RGB LED Header;3 x Addressable LED Headers;1 x CPU Fan Connector (4-pin);1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control;2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart
LAN: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s;Dragon RTL8125BG;Supports Dragon 2.5G LAN Software;Smart Auto Adjust Bandwidth Control;Visual User Friendly UI;Visual Network Usage Statistics;Optimized Default Setting for Game, Browser, and Streaming Modes;User Cust
Дънна платка - чипсет: INTEL B760
Дънна платка - интерфейси: M.2 (NVMe) конектор
SATA 3.0
Дънна платка - портове: Display Port
HDMI
USB 2.0
USB 3.2
Дънна платка - форм фактор: Micro ATX

No reviews
