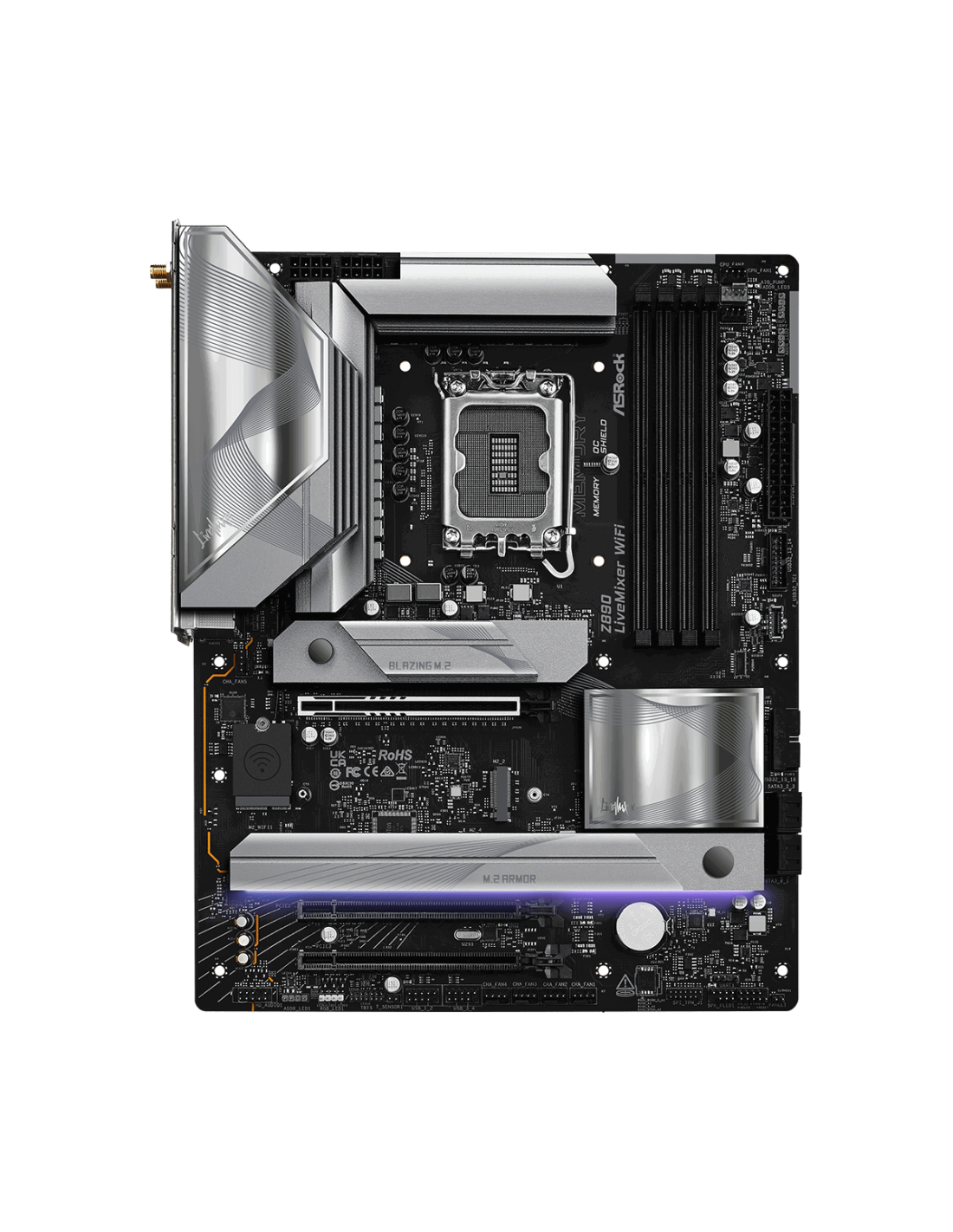

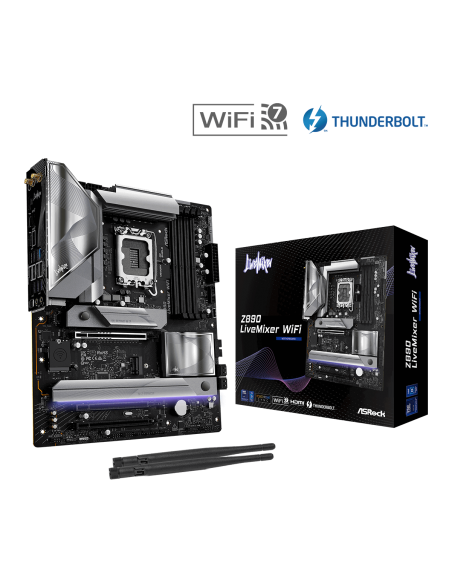

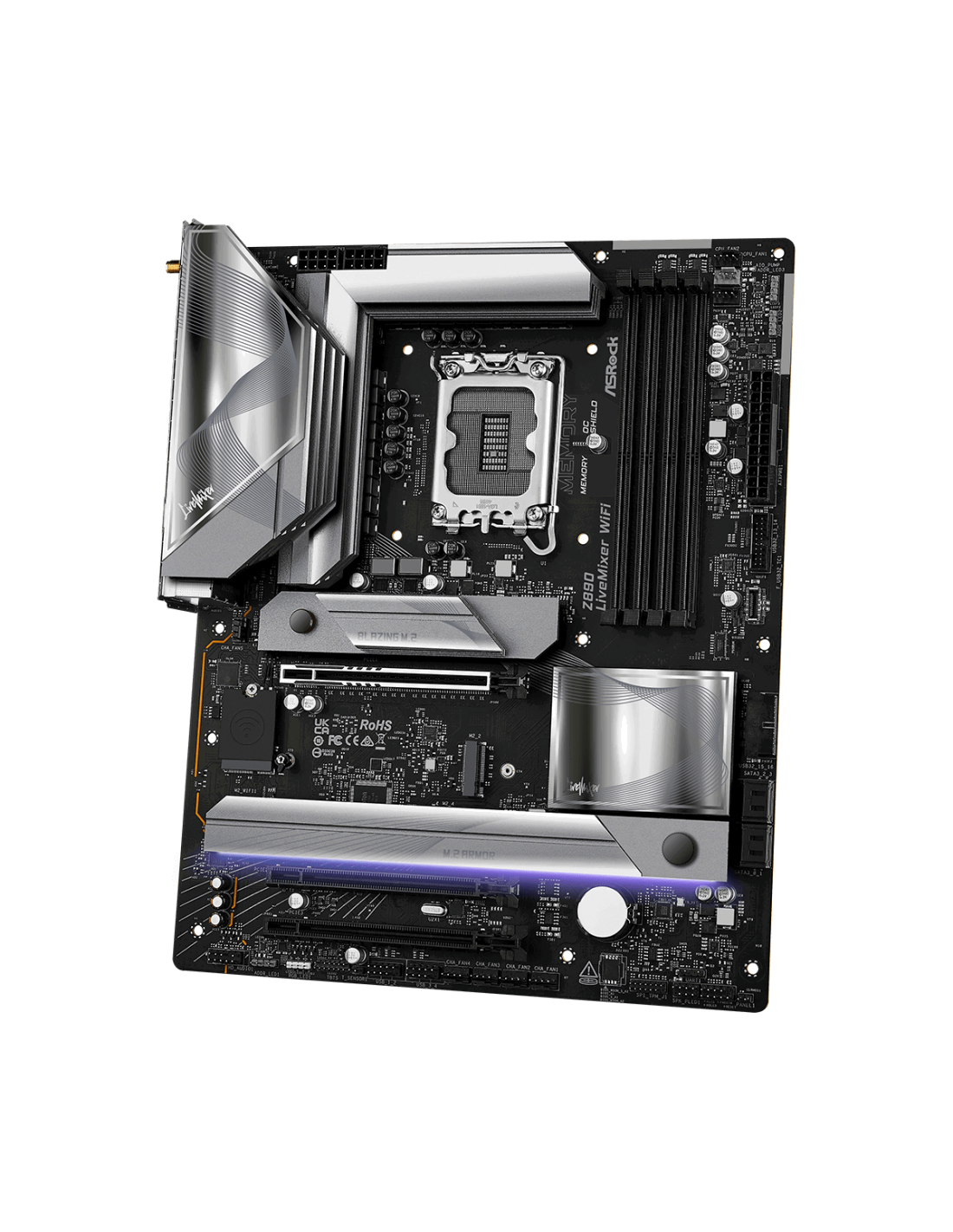

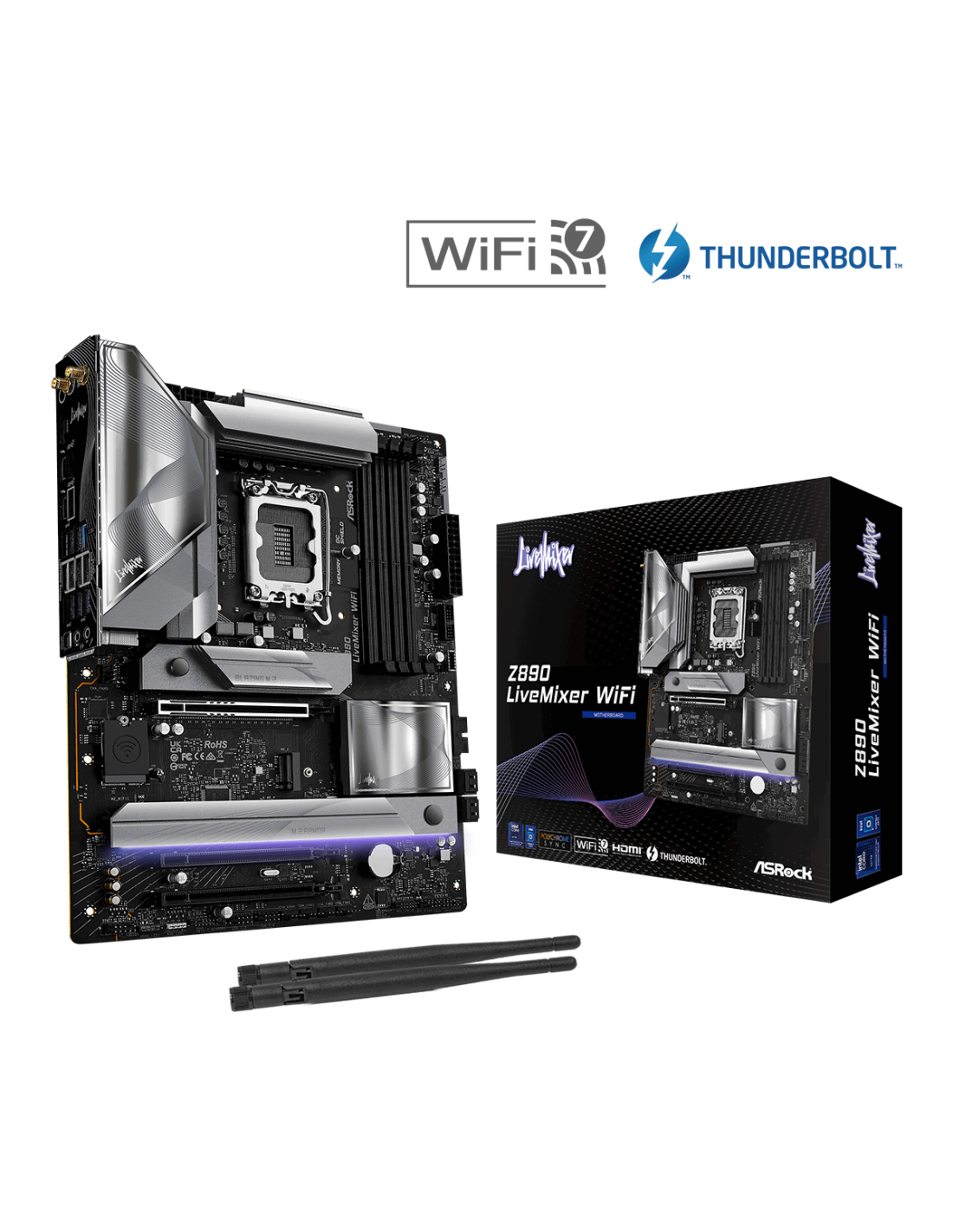

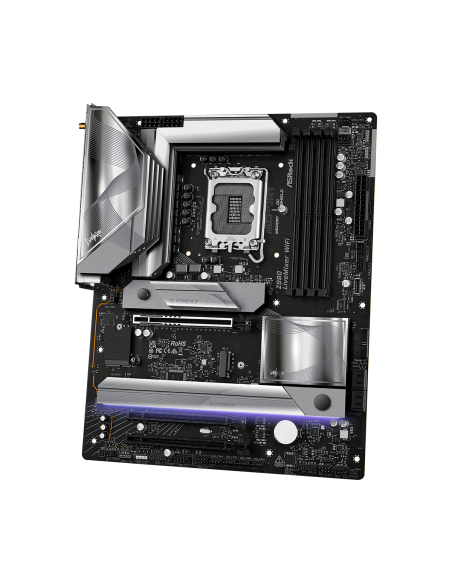

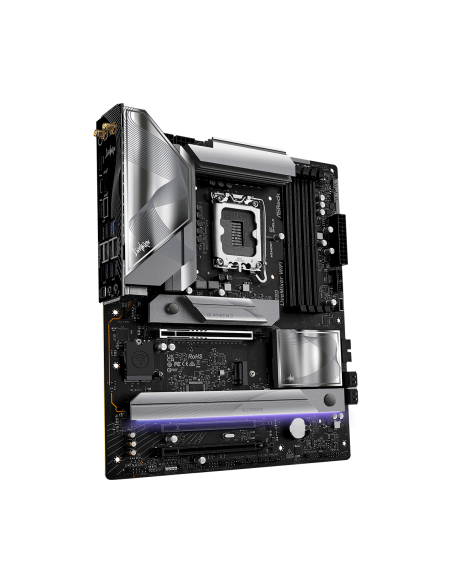

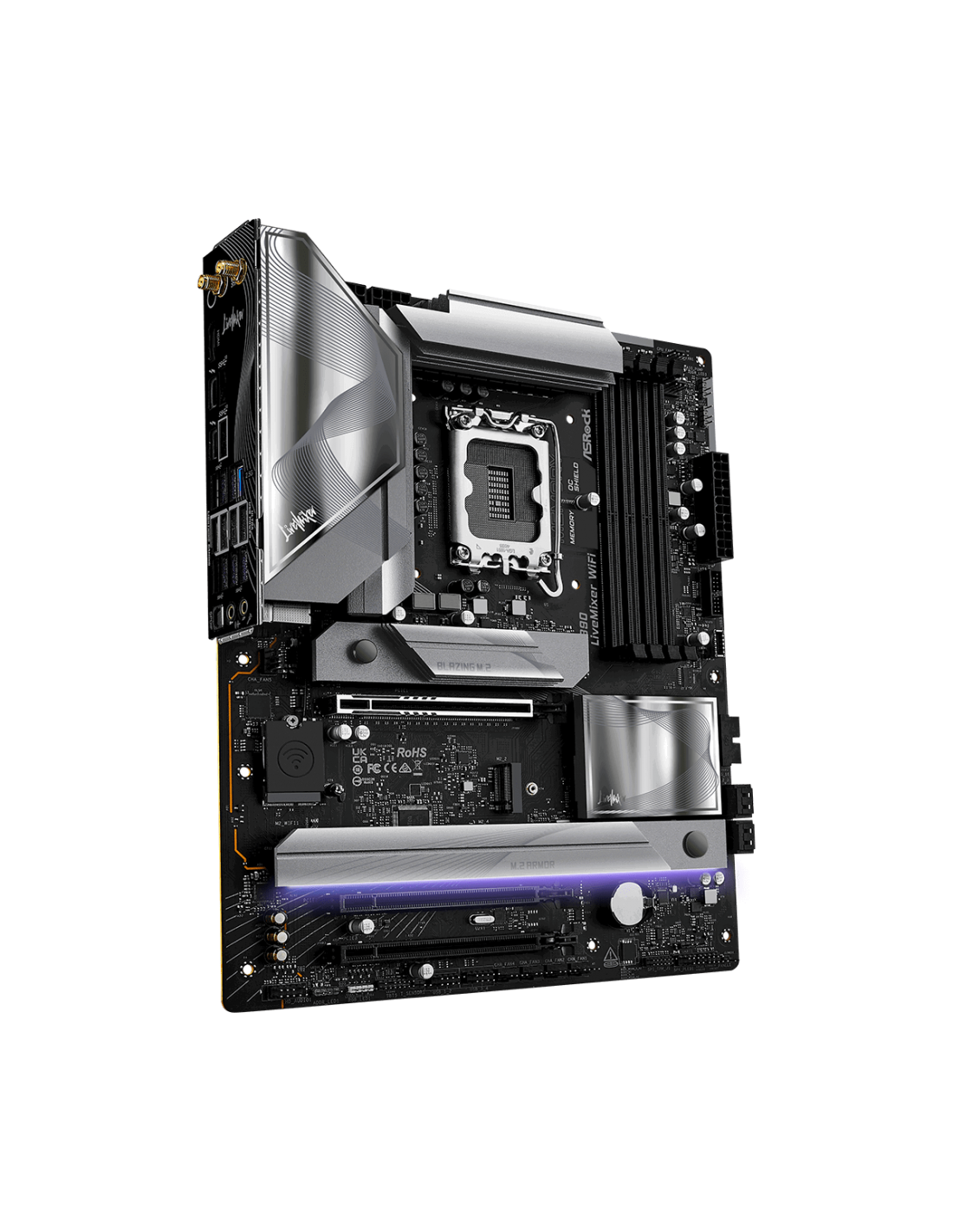

ASROCK Z890 LIVEMIXER WIFI

Референция Z890 LIVEMIXER WIFI

На склад

235,51 €

С вкл. данък 460.62 лв.

Z890 LIVEMIXER WIFI_MO

_MO

Chipset: Intel® Z890
BIOS: 256Mb AMI UEFI Legal BIOS with GUI support
Storage: CPU:;
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode;
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode;
Chipset:;
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260
LAN: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s;
Dragon RTL8125BG;
Supports Dragon 2.5G LAN Software;
Smart Auto Adjust Bandwidth Control;
Visual User Friendly UI;
Visual Network Usage Statistics;
Optimized Default Setting for Game, Browser, and Streaming Modes;
Us
Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec);
Impedance Sensing on Rear Out port;
Individual PCB Layers for R/L Audio Channel;
Nahimic Audio
Memory type: Dual Channel DDR5 Memory Technology;
4 x DDR5 DIMM Slots;
Supports DDR5 non-ECC, un-buffered memory up to 9466MHz+(OC);
Supports Clocked Unbuffered DIMM (CUDIMM);
Max. capacity of system memory: 256GB;
Supports Intel® Extreme Memory Profile (XMP) 3.0x
Bluetooth: 5.4
Wireless: 802.11be 2x2 Wi-Fi 7 Module;
Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
Supports 2.4GHz/5GHz/6GHz* frequency band
Supports 320MHz channel bandwidth with 6GHz frequency band*
1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
Supports Bluet
CPU's supported: Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851RL-ILM);
Supports Intel® Hybrid Technology;
Supports Intel® Turbo Boost Max 3.0 Technology;
Supports Intel® Thermal Velocity Boost (TVB);
Supports Intel® Adaptive Boost Technology (ABT);
Integrated
RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices;
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

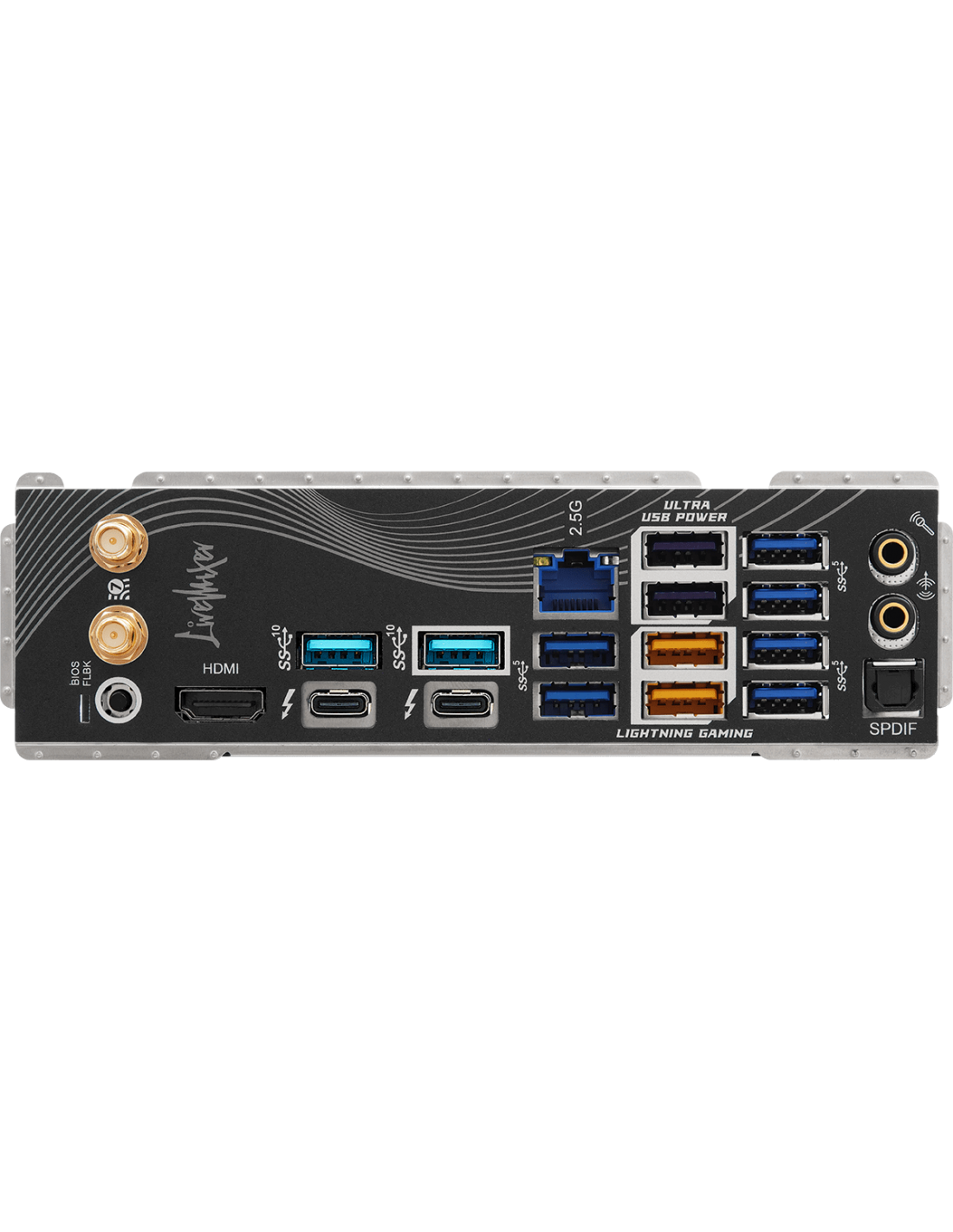

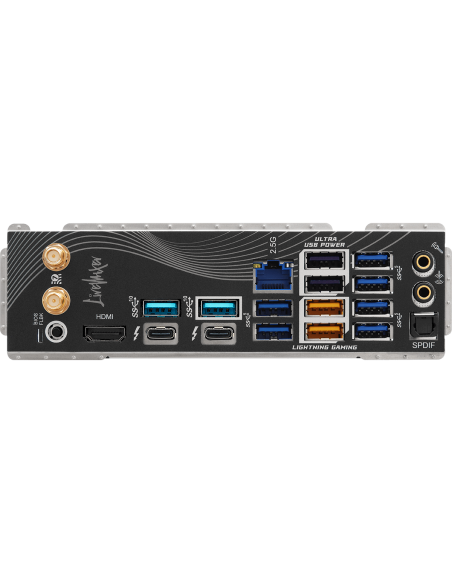

Rear panel I/O: 2 x Antenna Ports;
- 1 x HDMI Port;
- 1 x Optical SPDIF Out Port;
- 2 x Thunderbolt™ 4/USB4 Type-C Ports (40 Gb/s);
- 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s);
- 10 x USB 3.2 Gen1 Ports;
- 1 x RJ-45 LAN Port;
- 1 x BIOS Flashback Button;
- 1 x Line Out Jac
Expansion Slots: CPU:;
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode;
Chipset:;
- 2 x PCIe 4.0 x16 Slots (PCIE2 and PCIE3), support x4 mode;
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
Manufacturer: ASROCK
Connectors: 1 x Thermistor Cable Header;
1 x SPI TPM Header;
1 x Power LED and Speaker Header;
1 x RGB LED Header;
3 x Addressable LED Headers;
2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control);
5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control);
1 x
Form Factor: ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm;
2oz Copper PCB
OS: Microsoft Windows® 11 64-bit
Graphics: Intel® Xe LPG Graphics Architecture;
1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz;
2 x Intel® Thunderbolt™ 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz*
USB: CPU:;
- 2 x Thunderbolt™ 4/USB4 Type-C (Rear);
Chipset:;
- 1 x USB 3.2 Gen2x2 Type-C (Front);
- 2 x USB 3.2 Gen2 Type-A (Rear);
- 14 x USB 3.2 Gen1 (10 Rear, 4 Front);
- 4 x USB 2.0 (Front)
Vendor_url: https://www.asrock.com/mb/Intel/Z890%20LiveMixer%20WiFi/index.asp
Дънна платка - чипсет: INTEL Z890
Дънна платка - поддържан тип памет: DDR5
Дънна платка - брой слотове за памет: 4 бр
Дънна платка - честота на паметта: 9466 MHz
Дънна платка - интерфейси: M.2 (NVMe) конектор
SATA 3.0
Дънна платка - портове: HDMI
USB 2.0
USB 3.2
USB 4.0
Дънна платка - форм фактор: ATX
