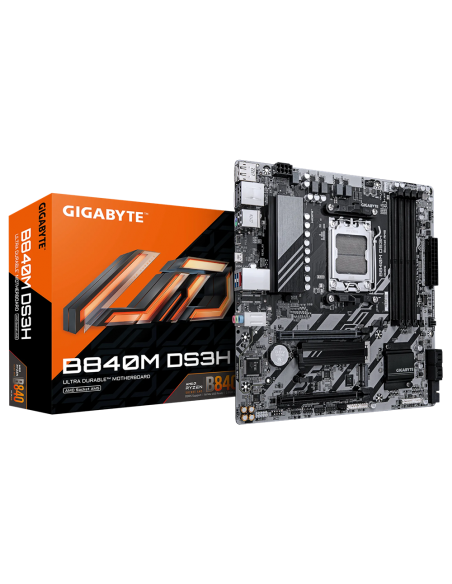

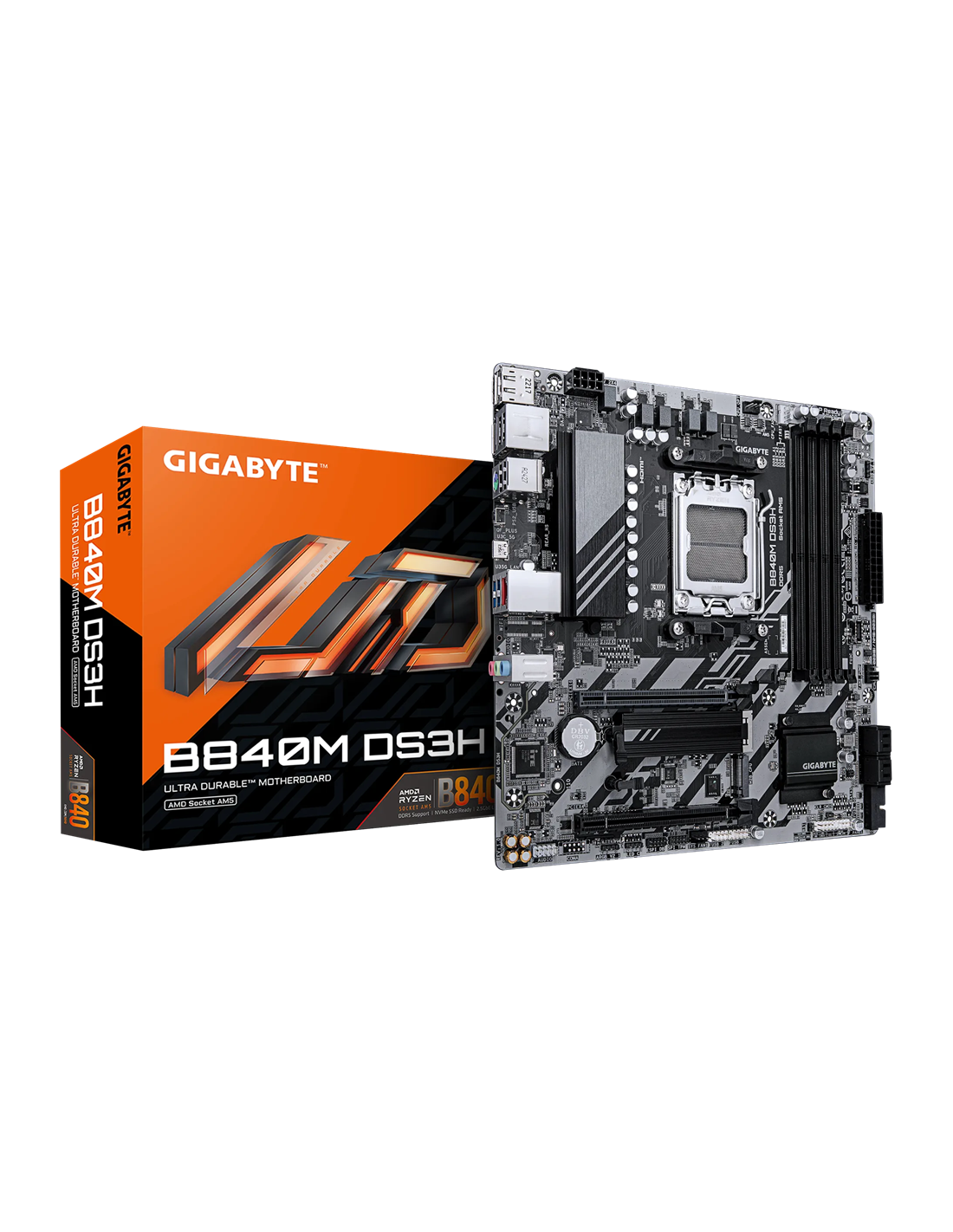

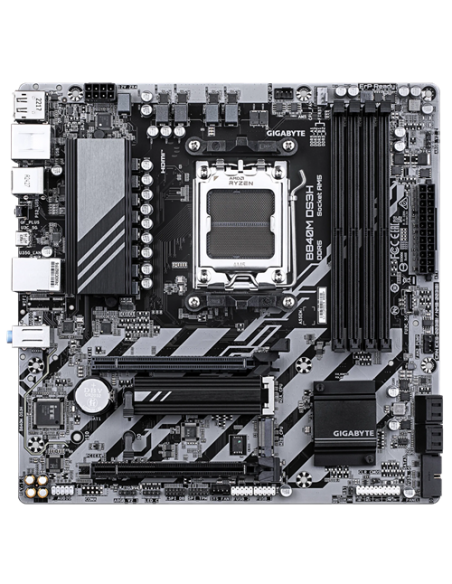

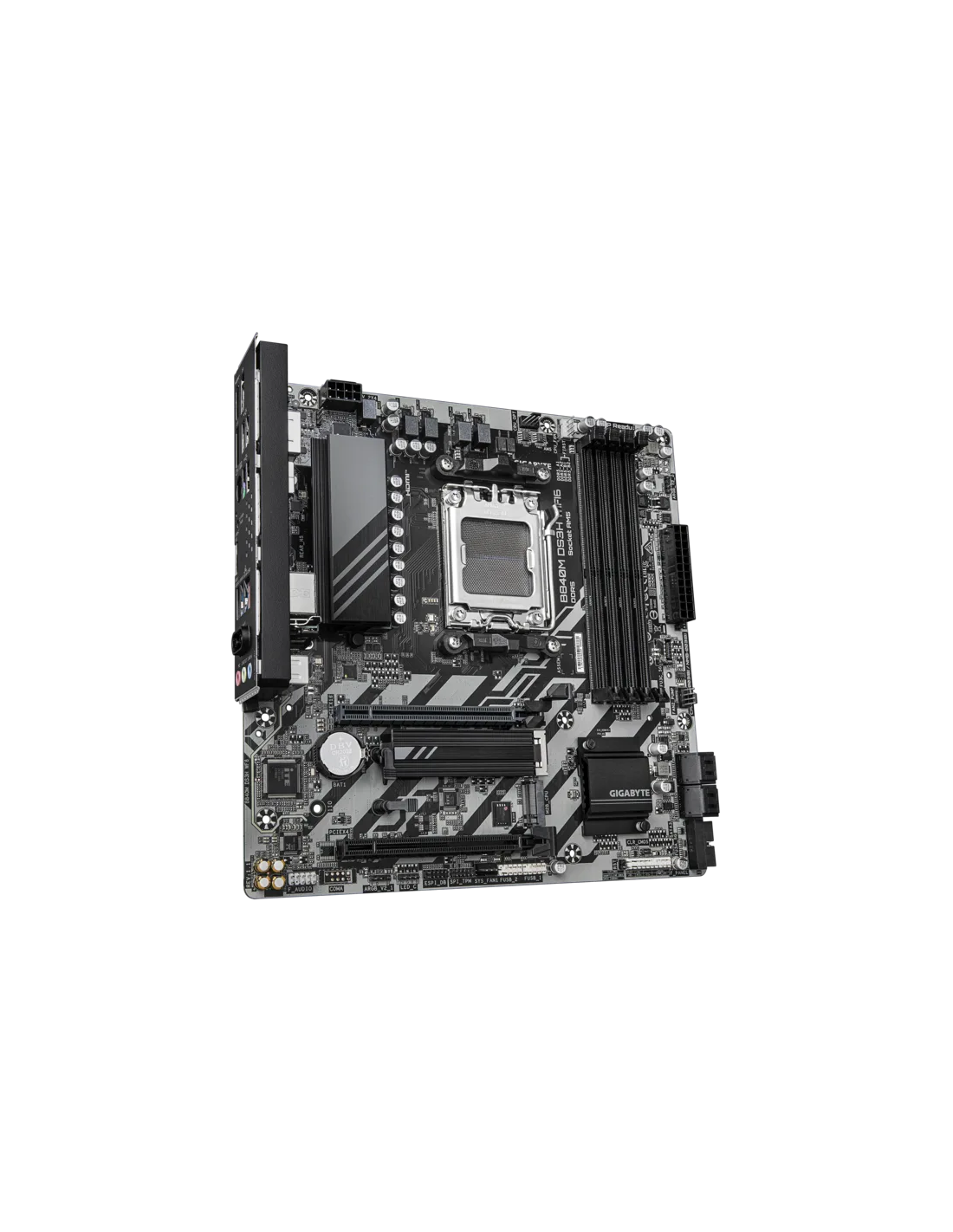

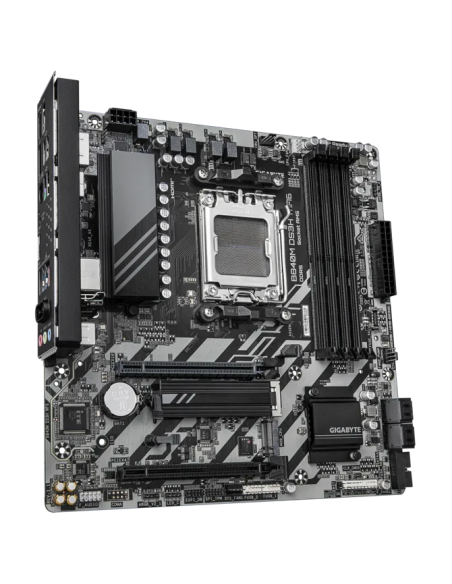

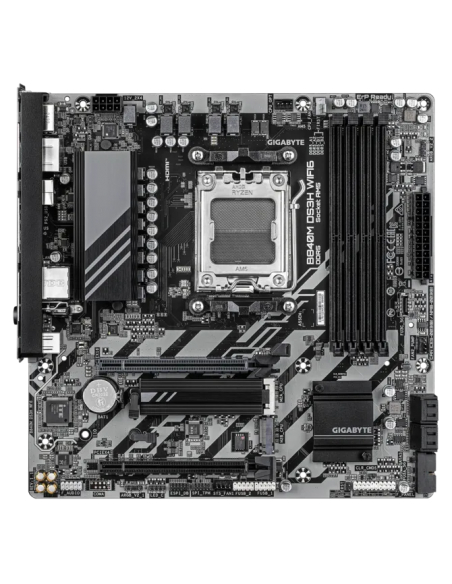

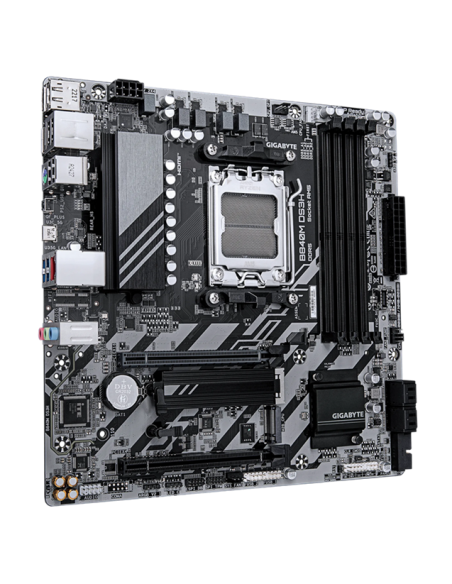

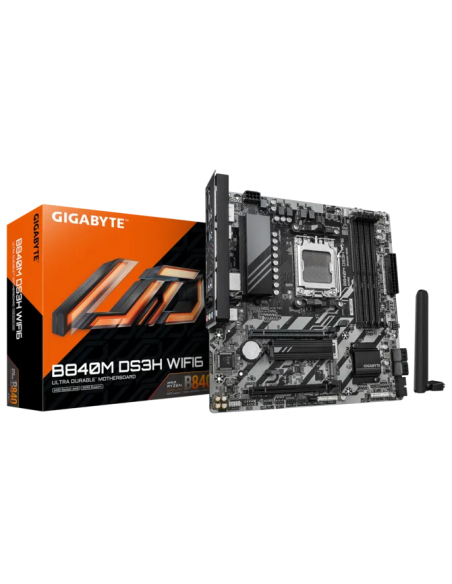

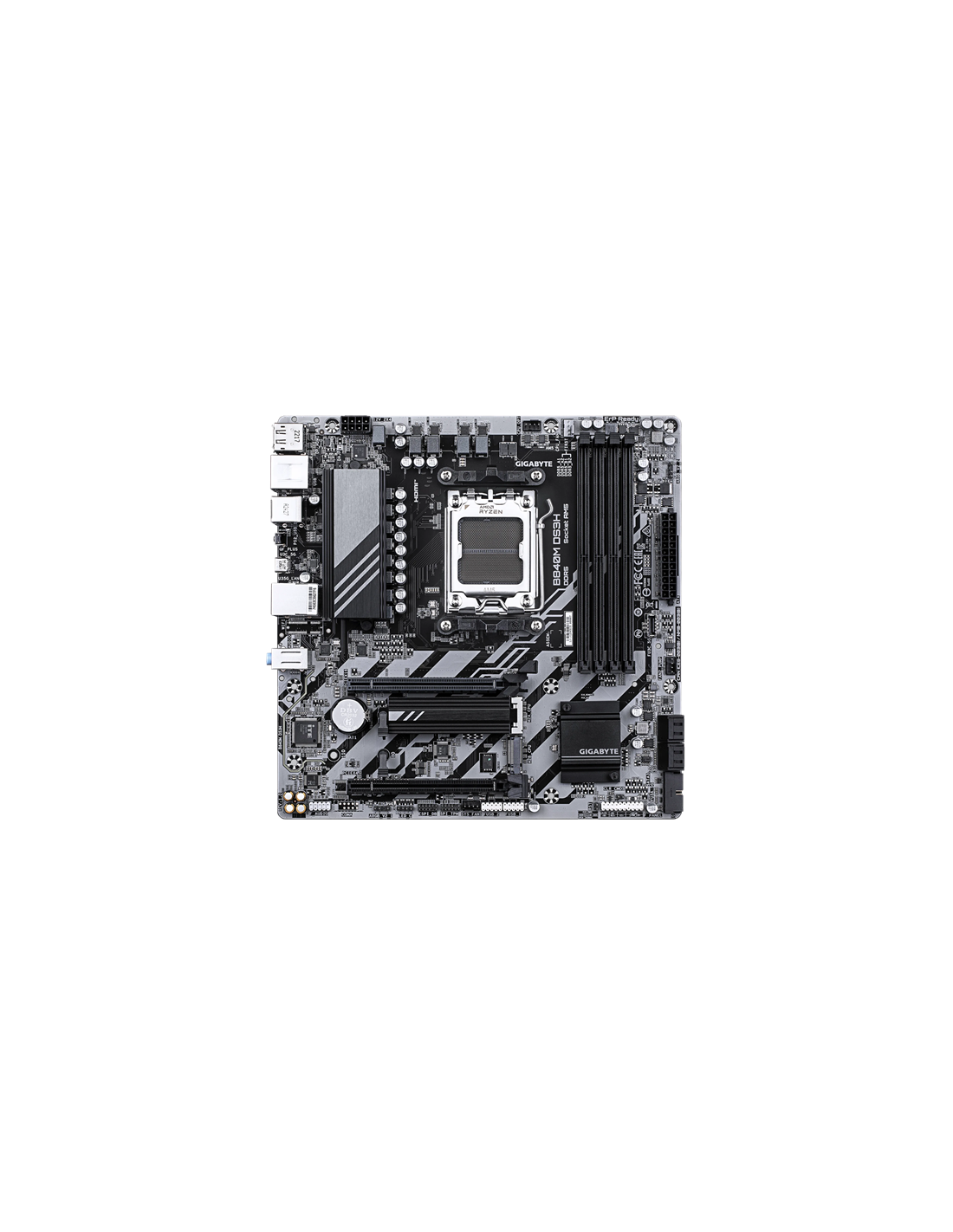

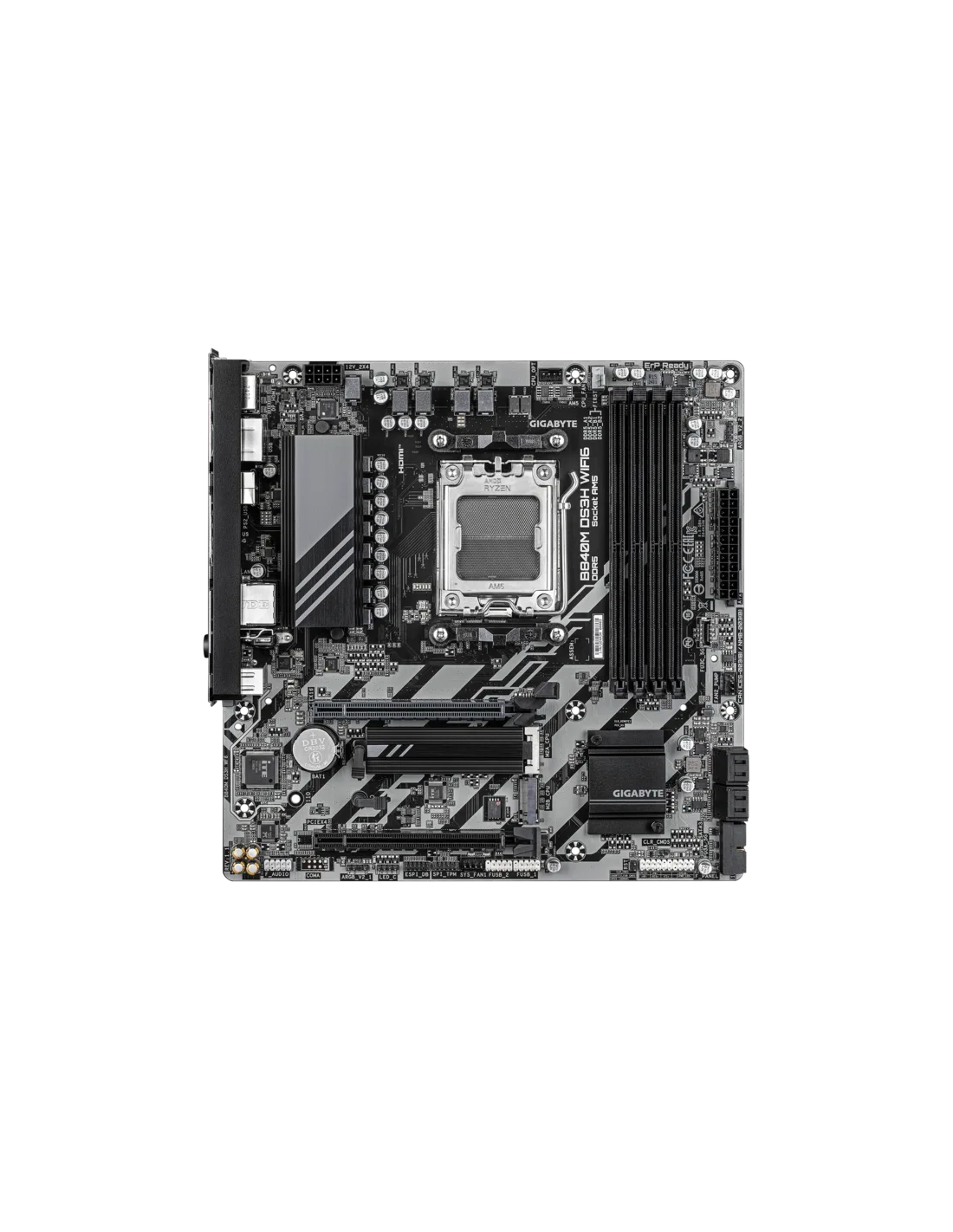

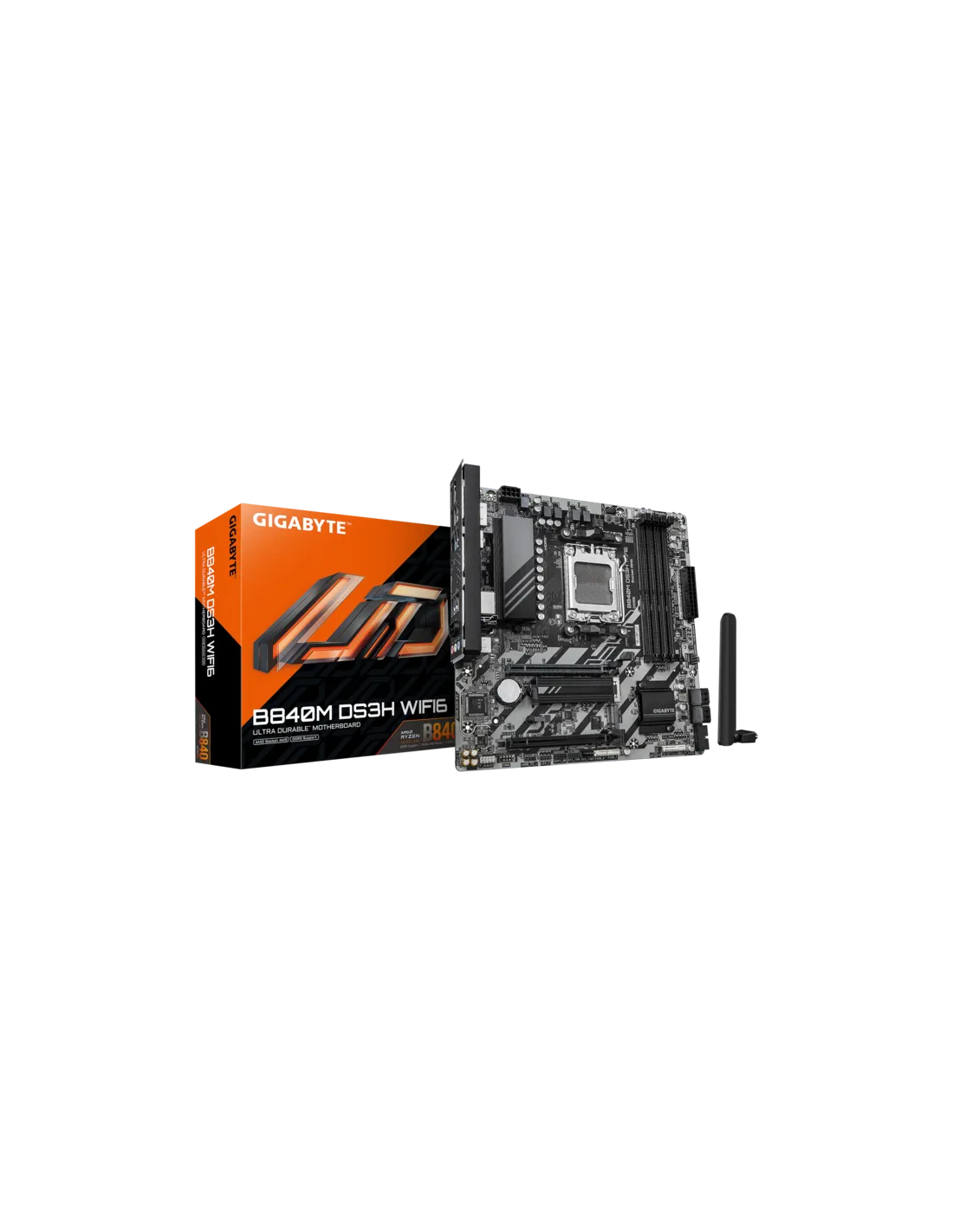

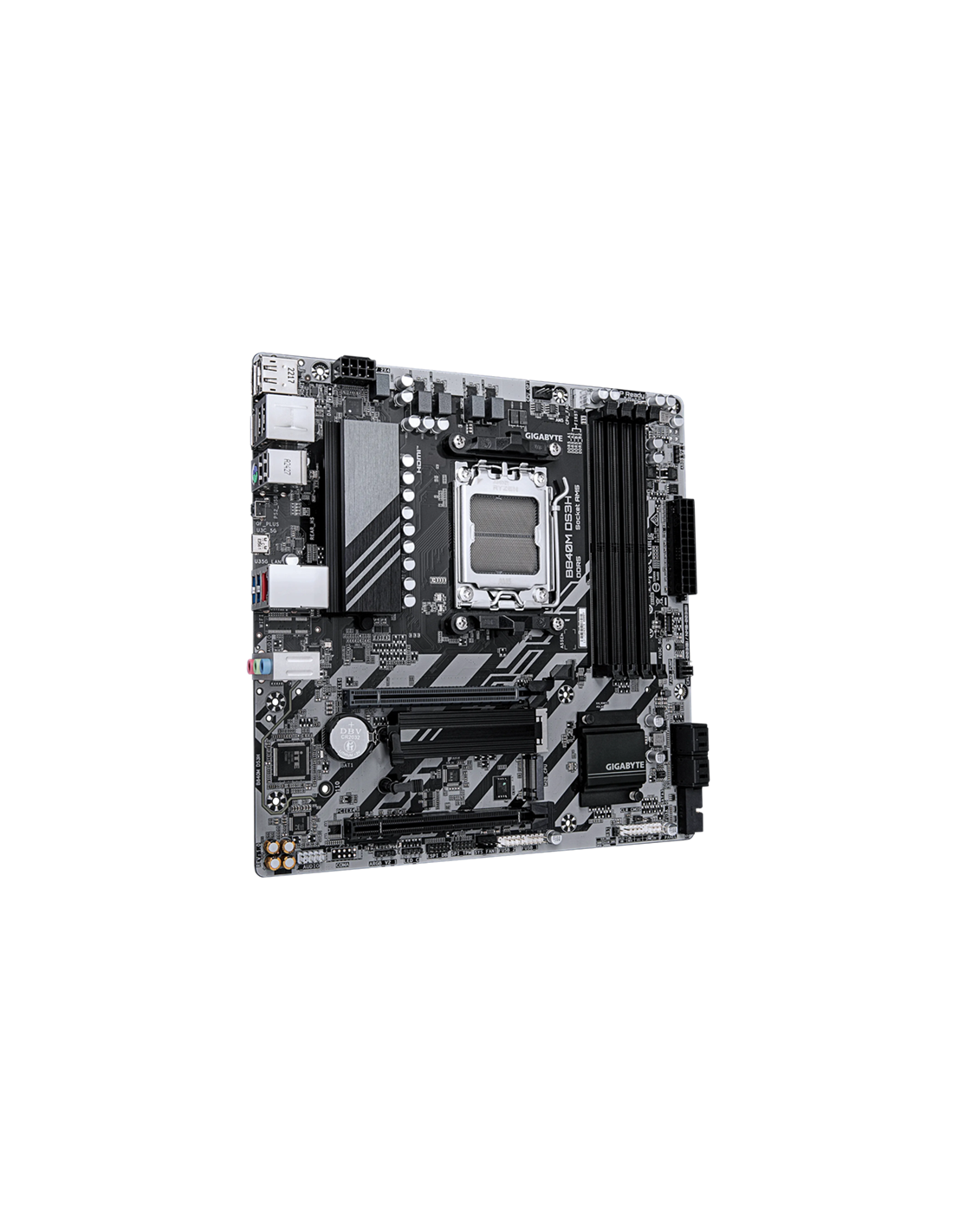

GB B840M DS3H WF6 / AM5

Референция B840M DS3H WF6 1.1

На склад

134,19 €

С вкл. данък 262.45 лв.

B840M DS3H WF6 1.1_MO

GB B840 4xDDR5 4xSATA3 RAID HDMI 2xDP 2xM2 GLAN 2xPCIEx16 WiFi_MO

Bluetooth: 5,3
Wireless: Realtek® Wi-Fi 6 RTL8851BE;- WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands;- BLUETOOTH 5.3;- Support for 11ax 80MHz wireless;(Actual data rate may vary depending on environment and equipment.)
CPU's supported: AMD Socket AM5, support for:;AMD Ryzen™ 9000 Series Processors/;AMD Ryzen™ 8000 Series Processors/;AMD Ryzen™ 7000 Series Processors
BIOS: 1 x 256 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

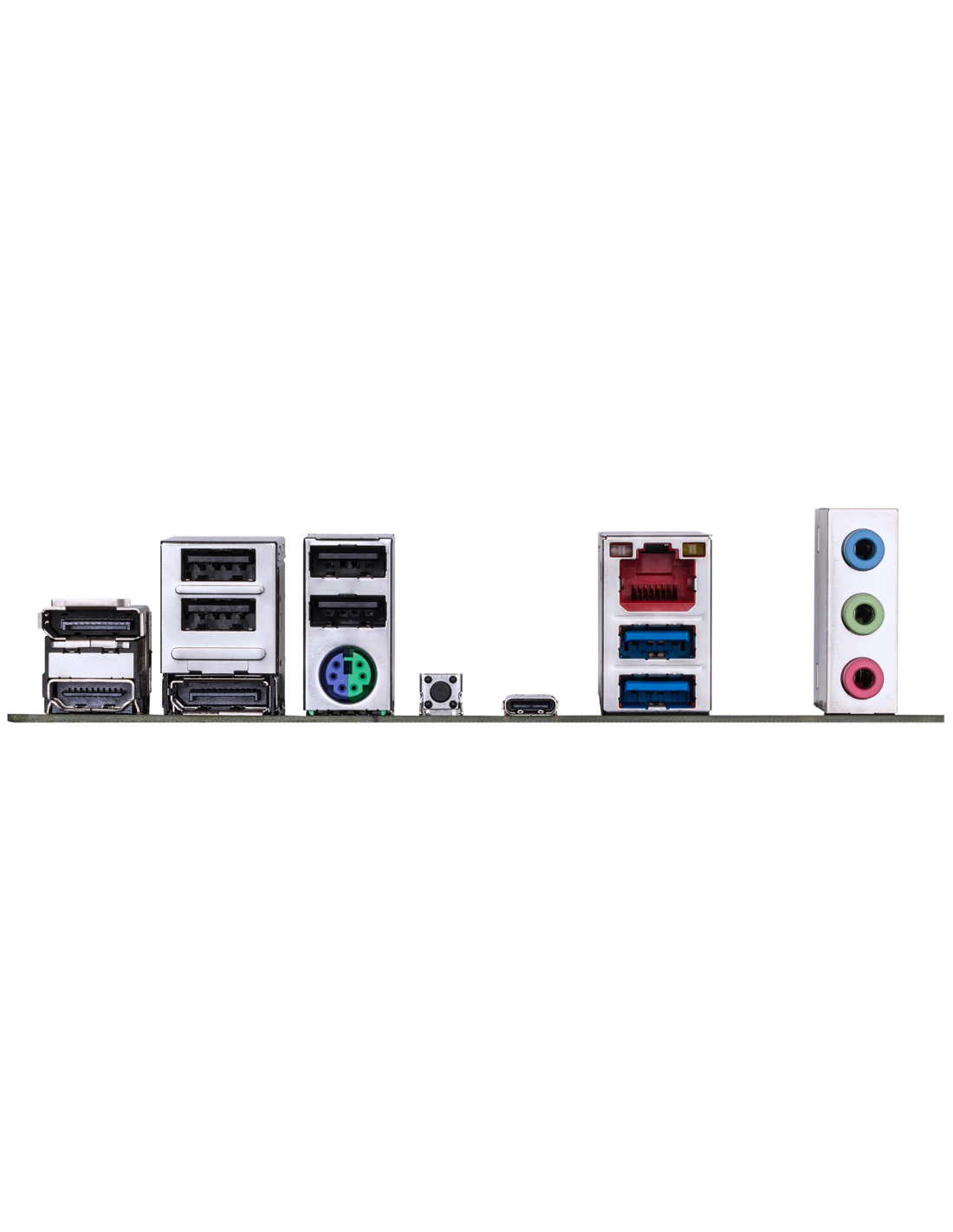

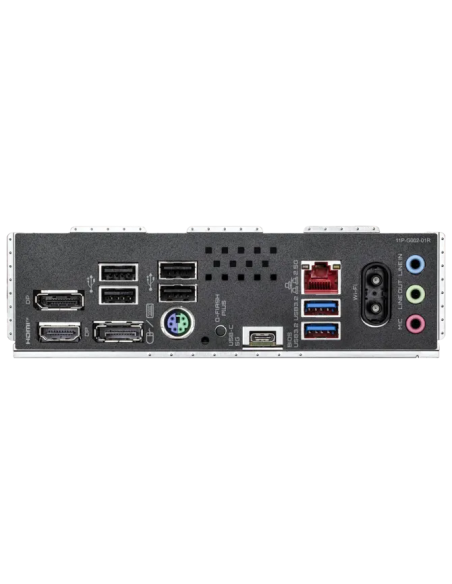

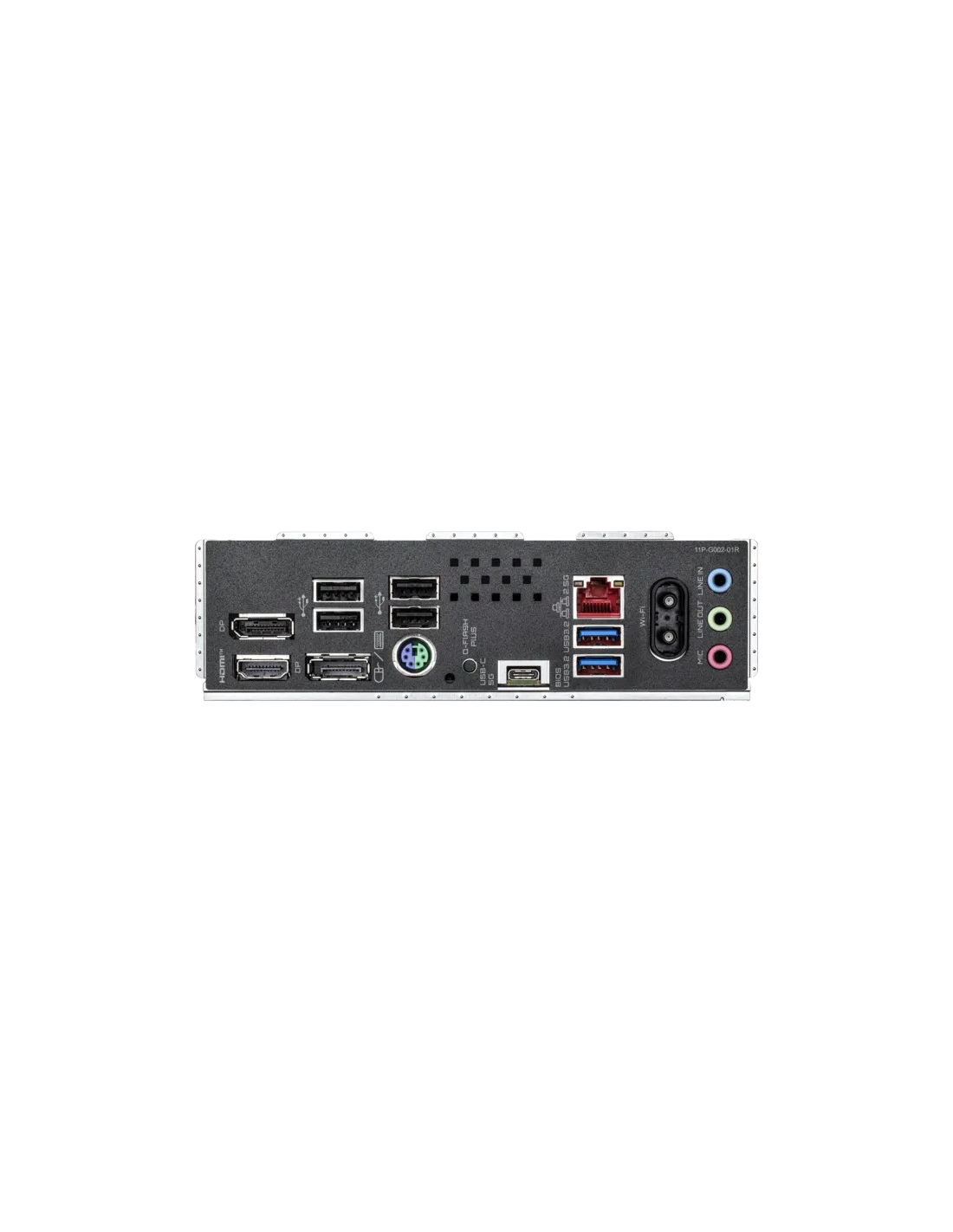

Rear panel I/O: iTE® I/O Controller Chip
Expansion Slots: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:;AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x16 mode;AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode;AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x
LAN: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Connectors: 1 x 24-pin ATX main power connector;1 x 8-pin ATX 12V power connector;1 x CPU fan header;1 x CPU fan/water cooling pump header;1 x system fan header;1 x system fan/water cooling pump header;2 x addressable RGB Gen2 LED strip headers;1 x RGB LED strip head
Memory type: Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules;4 x DDR5 DIMM sockets sup
OS: Support for Windows 11 64-bit;Support for Windows 10 64-bit
Graphics: Integrated Graphics Processor with AMD Radeon™ Graphics support:;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Support for HDMI 2.1 version, HDCP 2.3, and HDR.;** Support for native HDMI 2.1 TMDS compatible ports.;- 2 x DisplayPort
USB: CPU:;- 1 x USB Type-C® port, with USB 3.2 Gen 1 support on the back panel;- 1 x USB 3.2 Gen 1 port on the back panel;CPU+USB 2.0 Hub:;- 4 x USB 2.0/1.1 ports on the back panel;Chipset:;- 1 x USB Type-C® port, with USB 3.2 Gen 1 support, available through
Vendor_url: https://www.gigabyte.com/bg/Motherboard/B840M-DS3H-WIFI6-rev-11
Chipset: AMD B840
Manufacturer: GIGABYTE
Storage: 1 x M.2 connector (M2A_CPU), , integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:;AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs;AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs;AMD Ryzen™ 80
Form Factor: Micro ATX Form Factor; 24.4cm x 24.4cm
Audio: Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel
Warranty: 36 Months
Дънна платка - сокет: AM5
Дънна платка - чипсет: AMD B840
Дънна платка - поддържан тип памет: DDR5
Дънна платка - честота на паметта: 4400 MHz
4800 MHz
5200 MHz
5600 MHz
6000 MHz
6200 MHz
6400 MHz
6600 MHz
6666 MHz
6800 MHz
7000 MHz
7200 MHz
7400 MHz
7600 MHz
7800 MHz
7900 MHz
7950 MHz
8000 MHz
8200 MHz
Дънна платка - интерфейси: M.2 (NVMe) конектор
Дънна платка - портове: USB 2.0
USB 3.2
Дънна платка - форм фактор: Micro ATX
