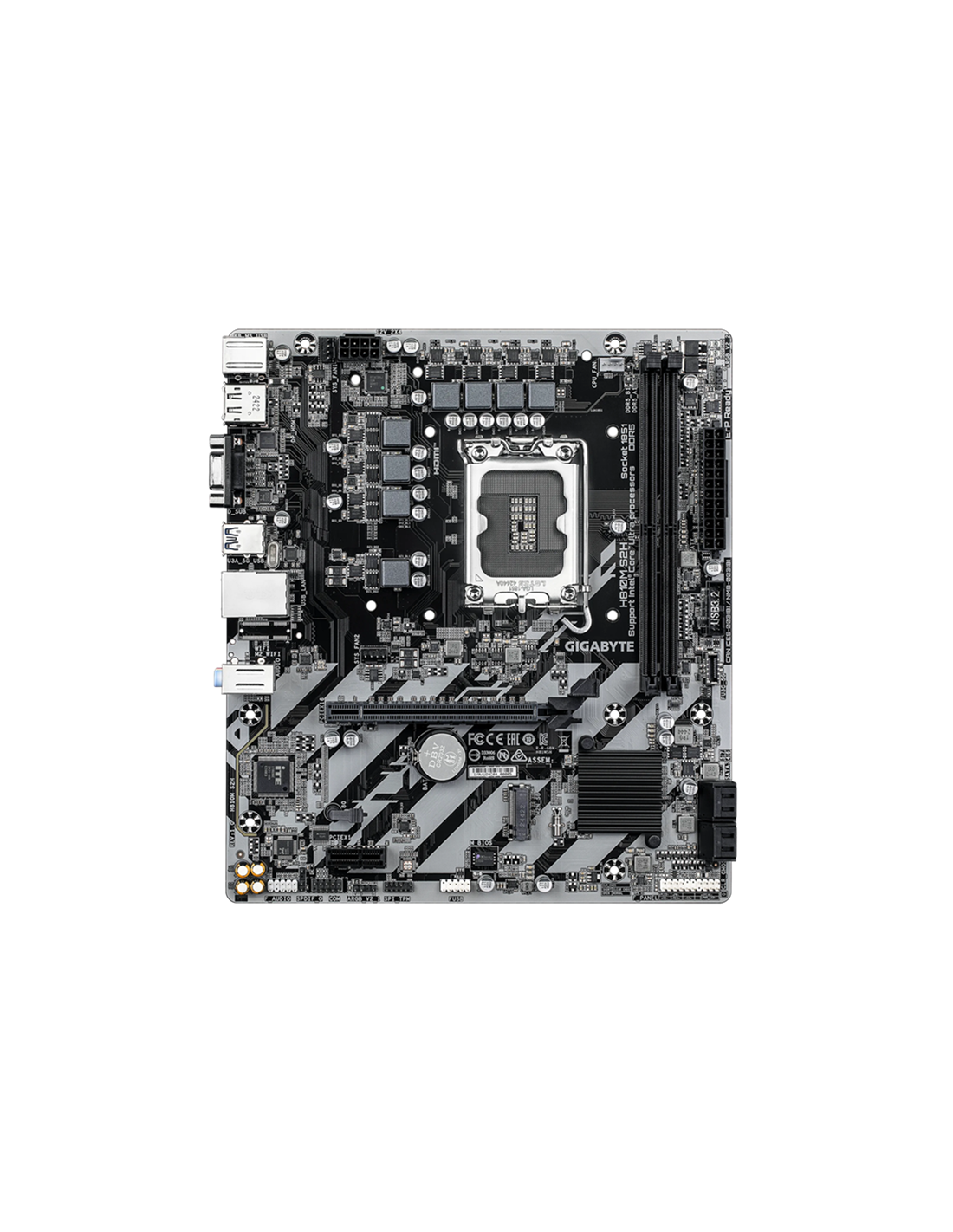

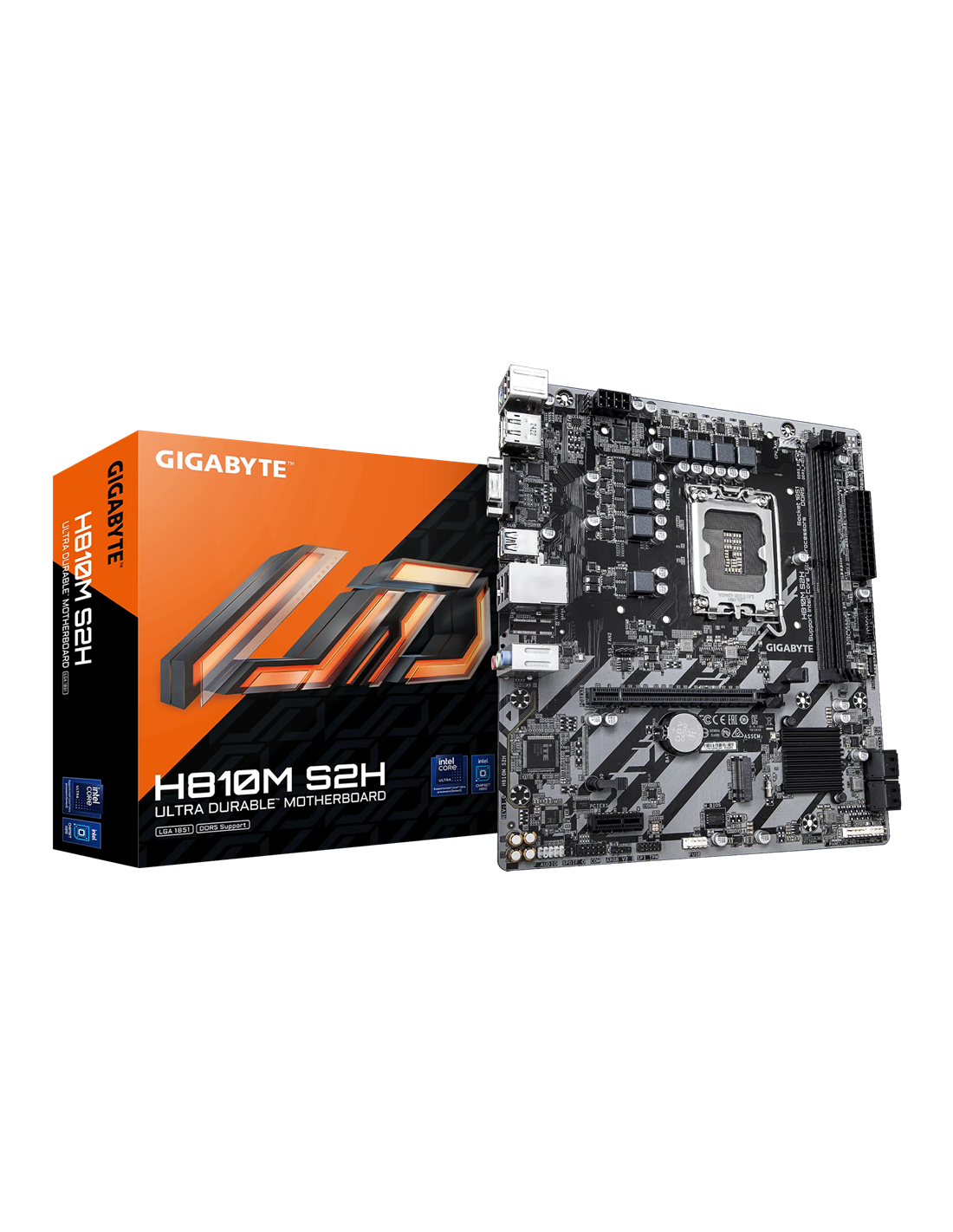

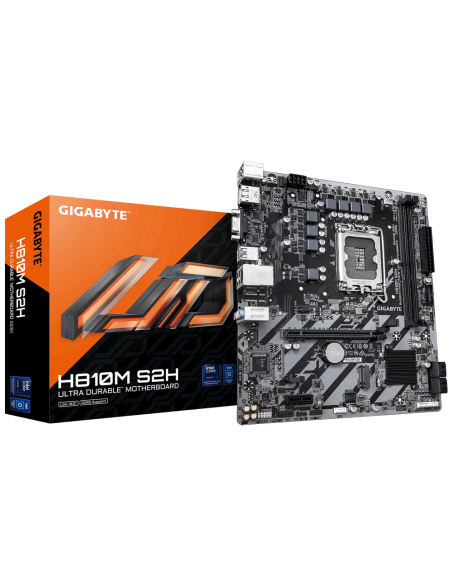

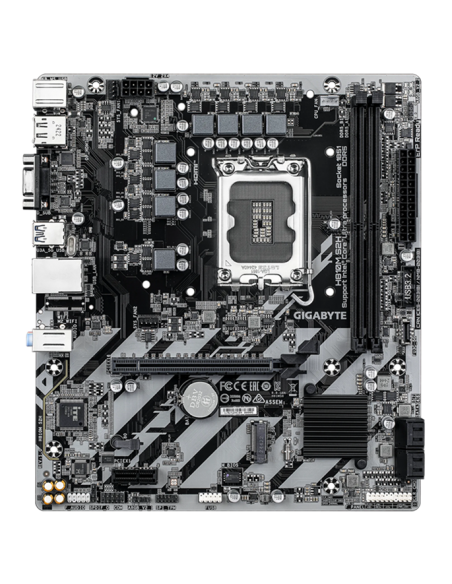

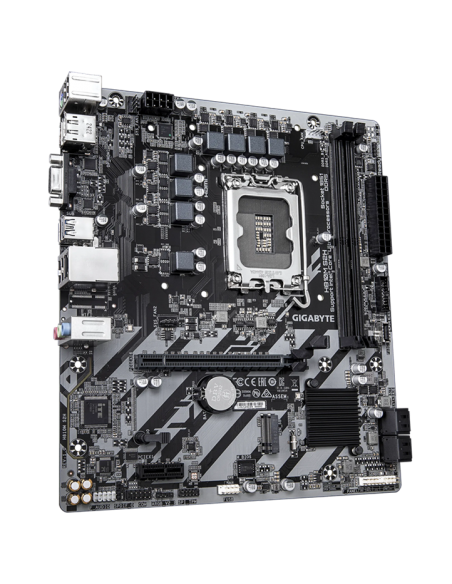

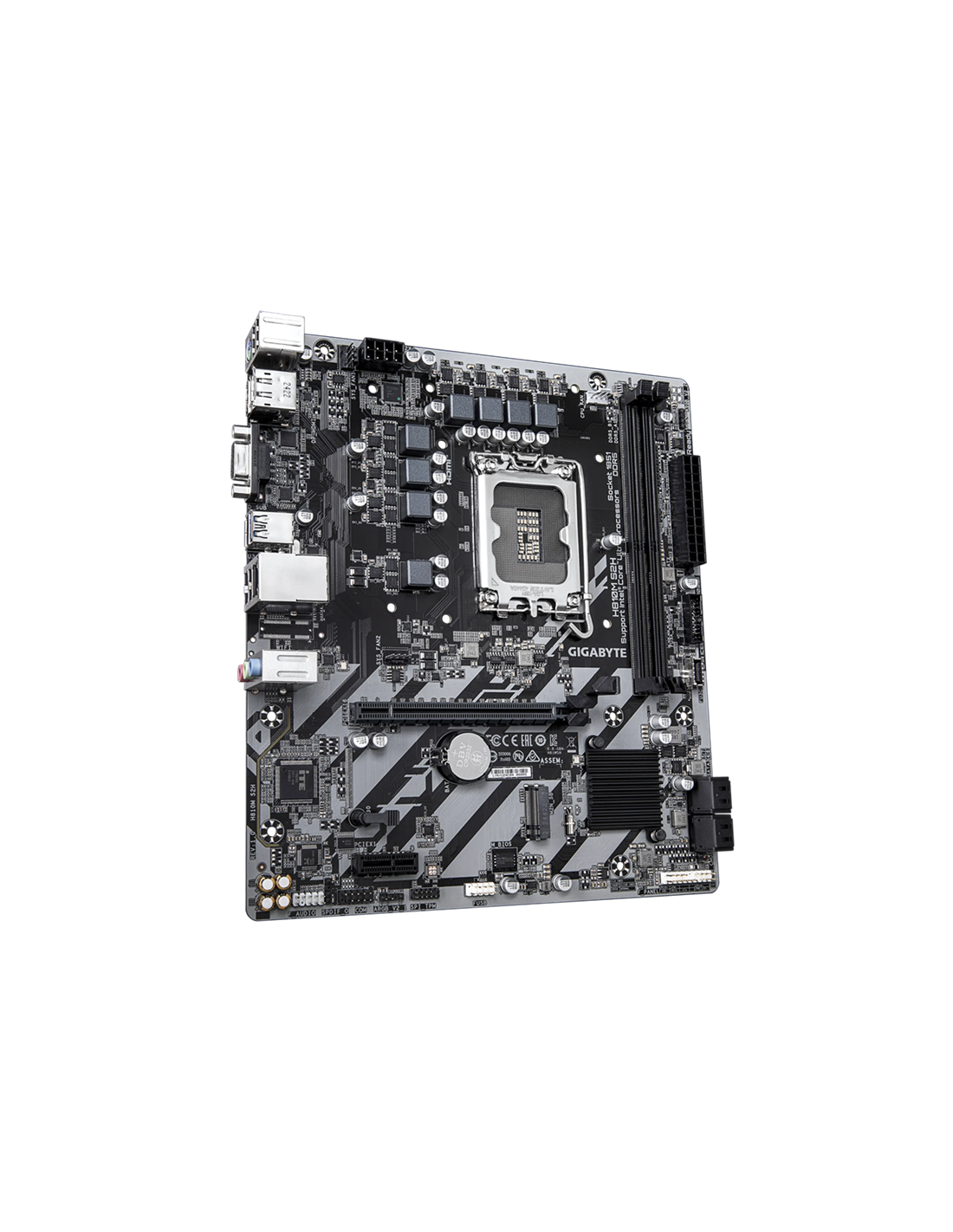

GB H810M S2H /LGA1851

Референция H810M S2H 1.0

На склад

97,52 €

С вкл. данък 190.73 лв.

H810M S2H 1.0_MO

GB H810 2xDDR5 4xSATA3 HDMI DP VGA 1xM2 GLAN 1xPCIEx16 1xPCIEx1_MO

Chipset: Intel® H810 Express Chipset
Connectors: 1 x 24-pin ATX main power connector;1 x 8-pin ATX 12V power connector;1 x CPU fan header;2 x system fan headers;2 x addressable RGB Gen2 LED strip headers;1 x M.2 Socket 3 connector;4 x SATA 6Gb/s connectors;1 x front panel header;1 x front panel audio he
BIOS: 1 x 256 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
OS: Support for Windows 11 64-bit;Support for Windows 10 64-bit;Norton® Internet Security (OEM version);LAN bandwidth management software
Form Factor: Micro ATX Form Factor; 24.4cm x 21.5cm

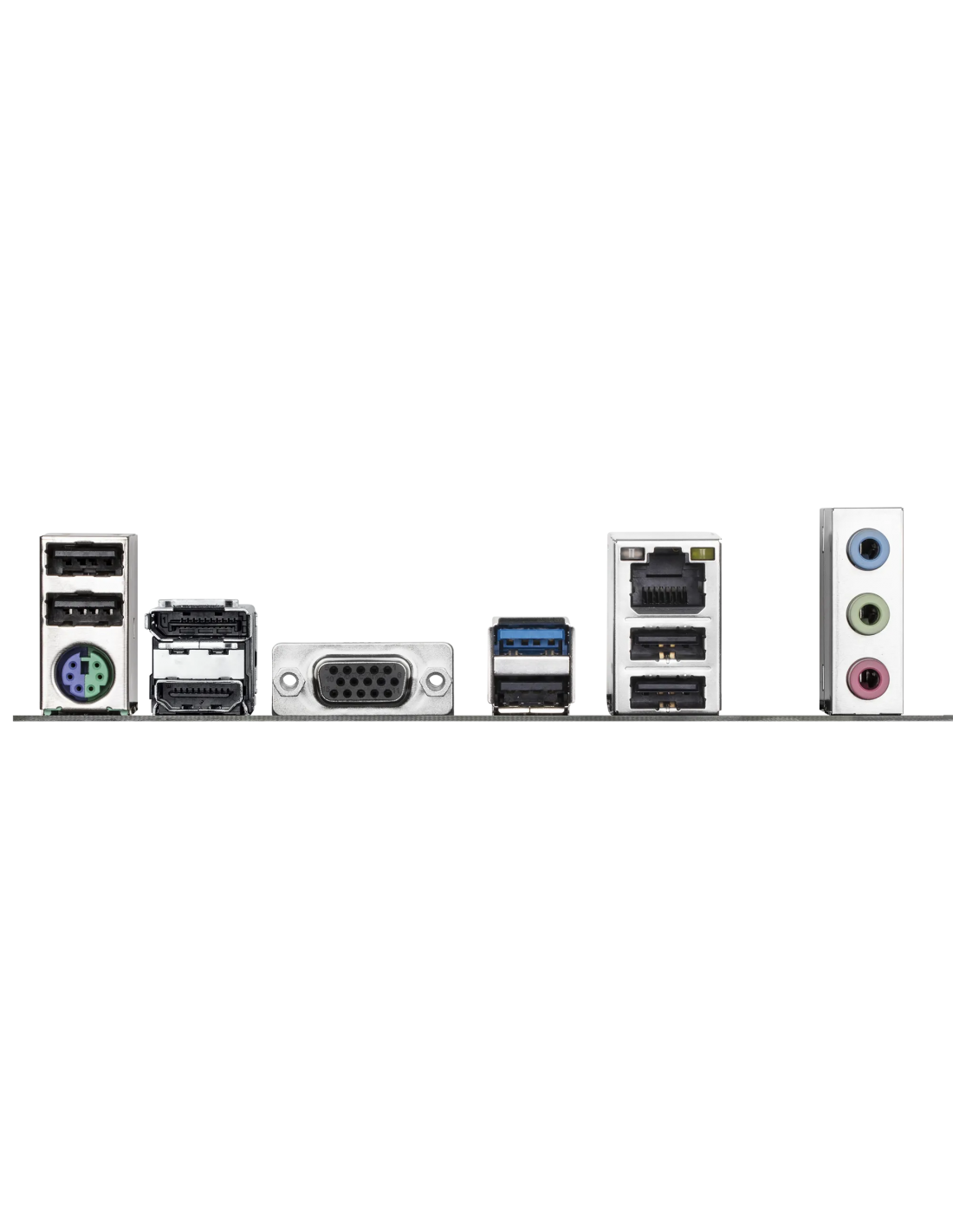

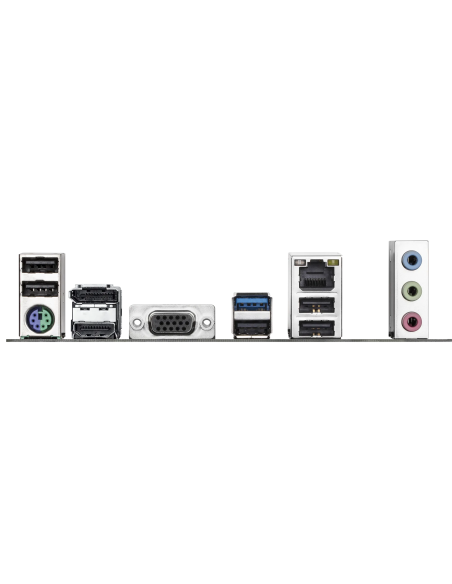

Rear panel I/O: iTE® I/O Controller Chip
Graphics: Integrated Graphics Processor-Intel® HD Graphics support:;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Support for HDMI 2.1 version and HDCP 2.3.;- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@60 Hz;* Support for
Expansion Slots: CPU:;- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16);* The PCIEX16 slot can only support a graphics card or an NVMe SSD.;Chipset:;- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
USB: Chipset:;- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header;- 3 x USB 3.2 Gen 1 ports (1 ports on the back panel, 2 ports available through the internal USB header;- 3 x USB 2.0/1.1 ports (1 ports on the back pane
Audio: Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel;* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.;Support for S/PDIF Out
LAN: Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Vendor_url: https://www.gigabyte.com/Motherboard/H810M-S2H#kf
Memory type: Support for DDR5 6400/5600 MT/s memory modules;2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory;Dual channel memory architecture;Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Дънна платка - чипсет: INTEL H810
Дънна платка - поддържан тип памет: DDR5
Дънна платка - честота на паметта: 5600 MHz
6400 MHz
Дънна платка - портове: USB 2.0
USB 3.2
Дънна платка - форм фактор: Micro ATX
