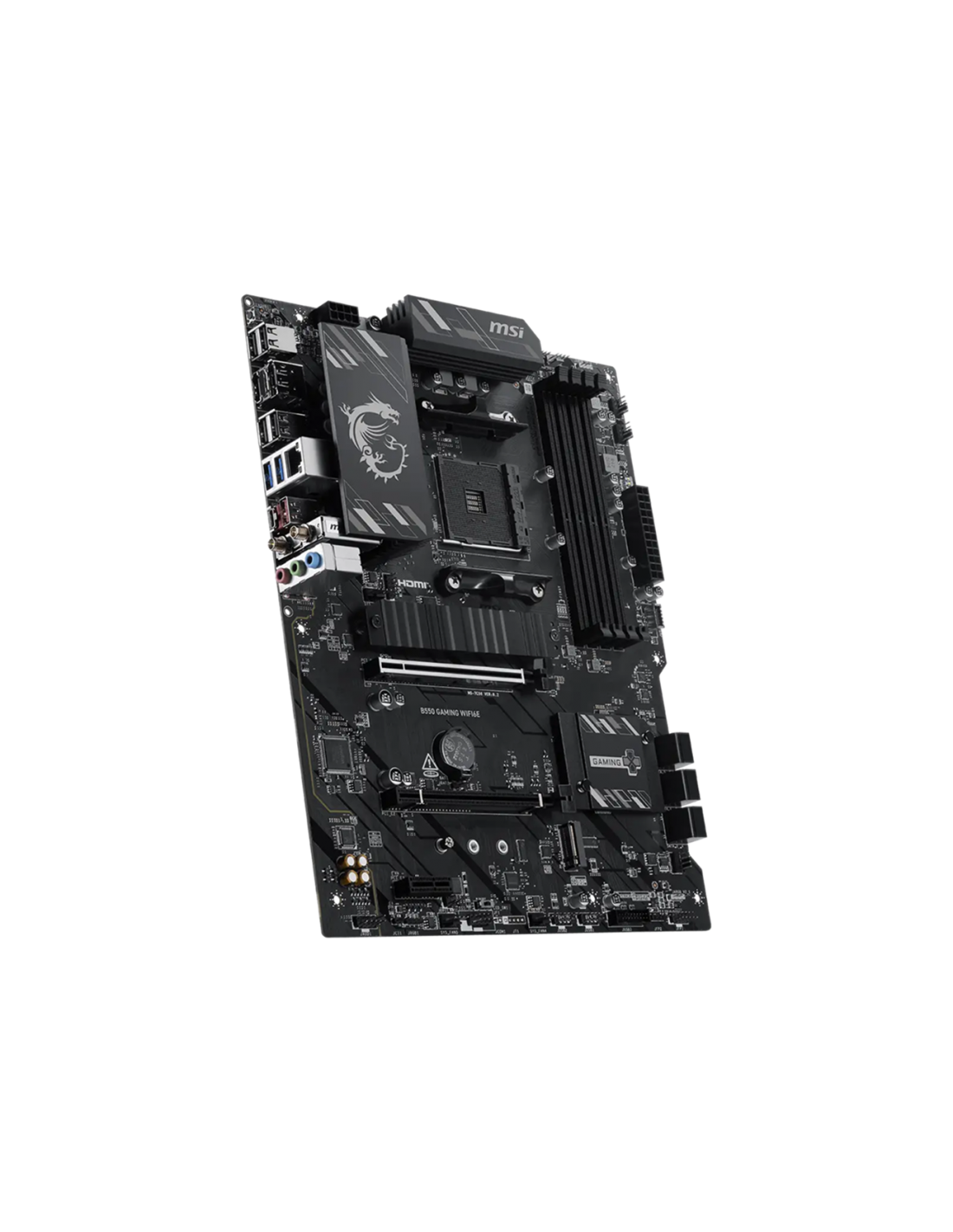

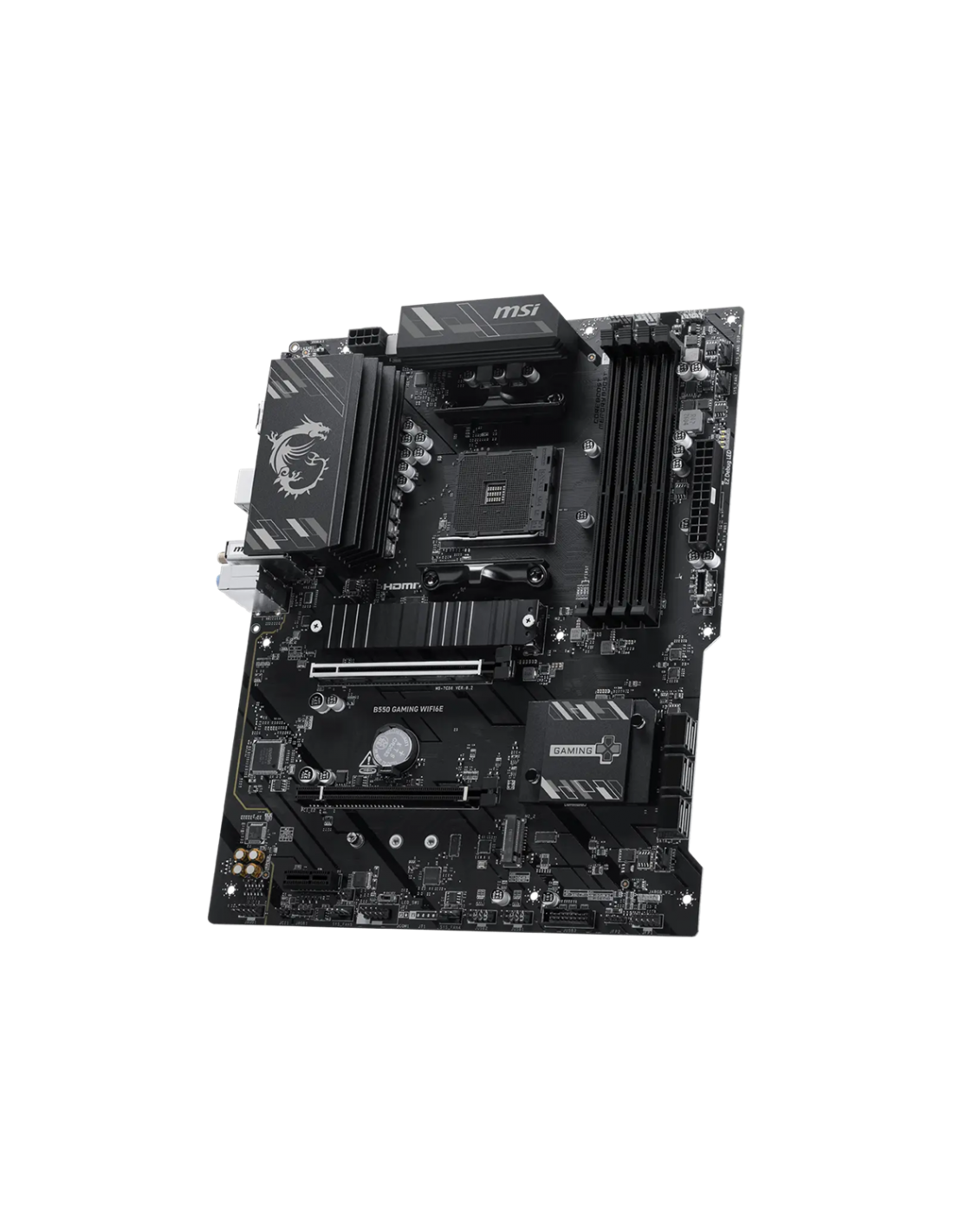

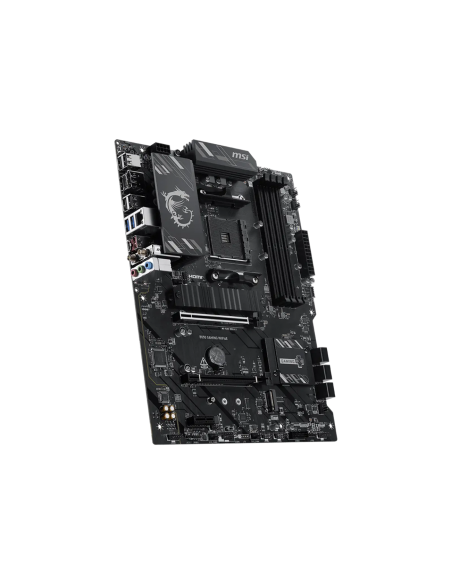

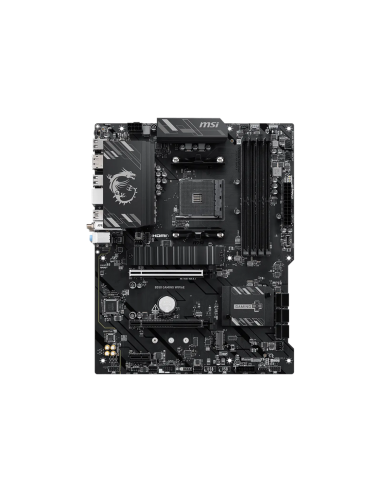

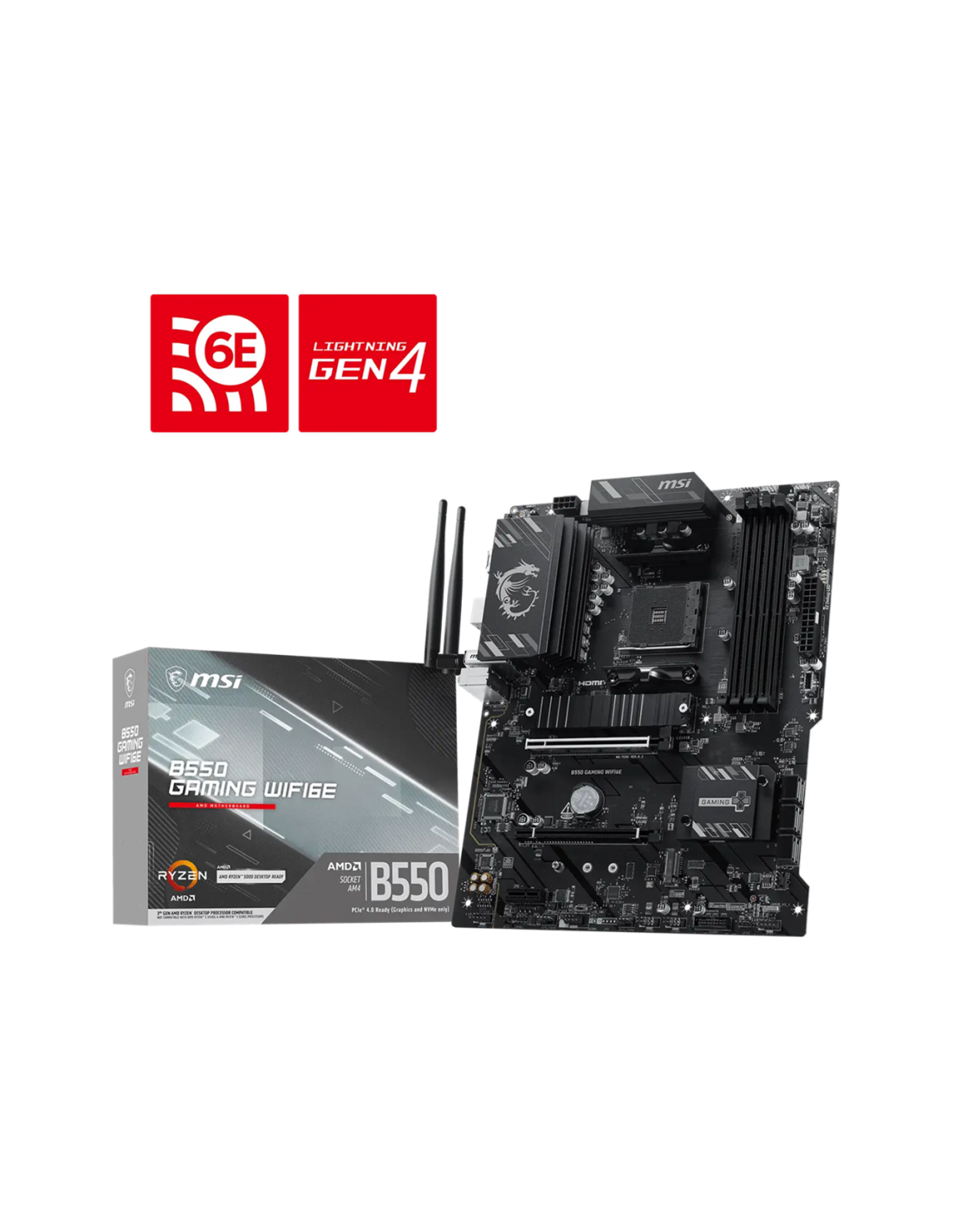

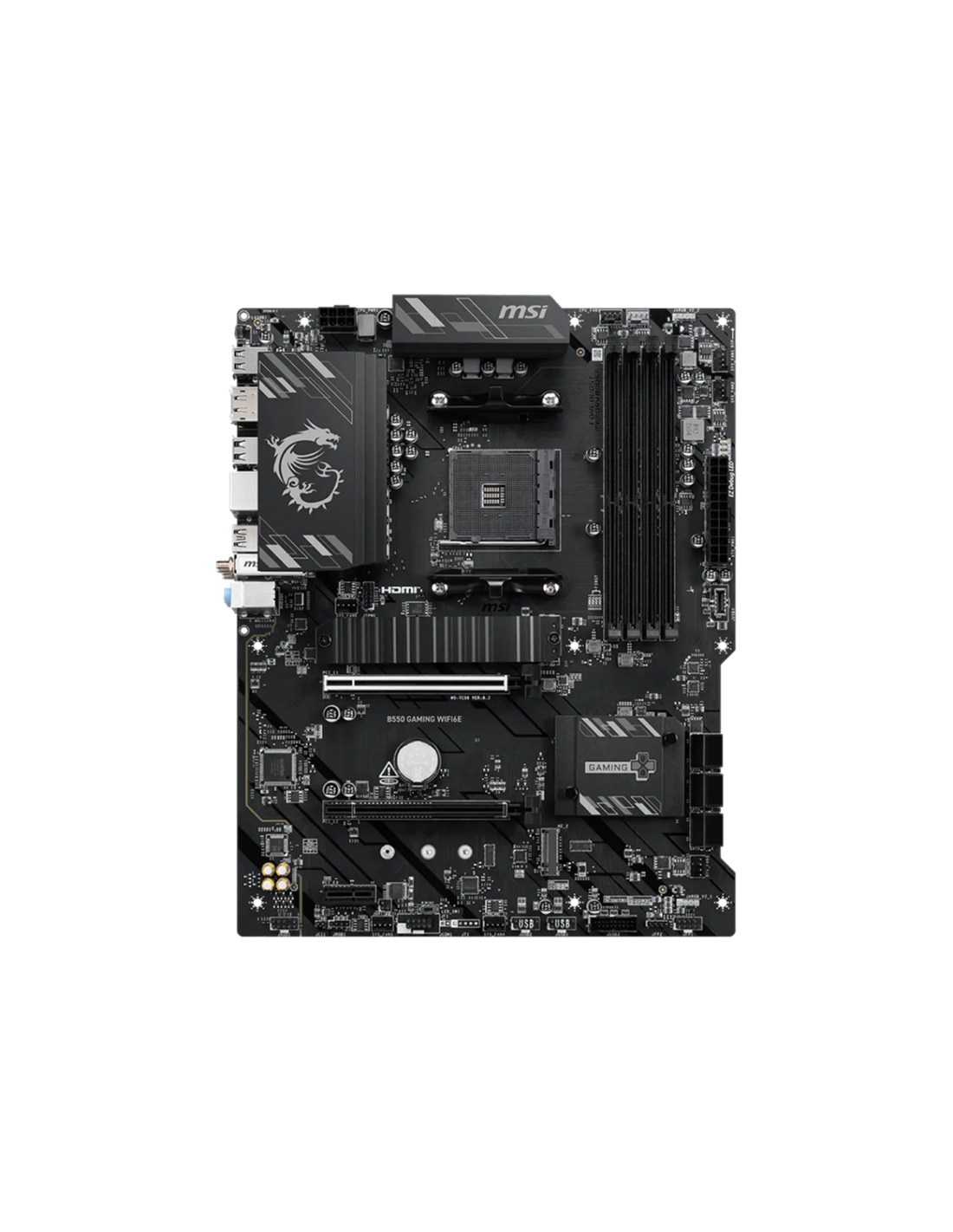

MSI B550 GAMING WIFI6E

Референция 911-7C56-095

На склад

131,13 €

С вкл. данък

911-7C56-095_MO

Подробности за продукта
Reviews

Socket: Socket AM4
Wireless: Wi-Fi 6E Solution;
The Wireless module is pre-installed in the M.2 (Key-E) slot;
Dual-band 1T1R mode;
Supports MU-MIMO RX;
Supports 2.4GHz/ 5GHz/ 6GHz* frequency band;
Supports 802.11 a/ b/ g/ n/ ac/ ax;

Supports Bluetooth® 5.3**;

* The usage of Wi-Fi 6
CPU's supported: Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors

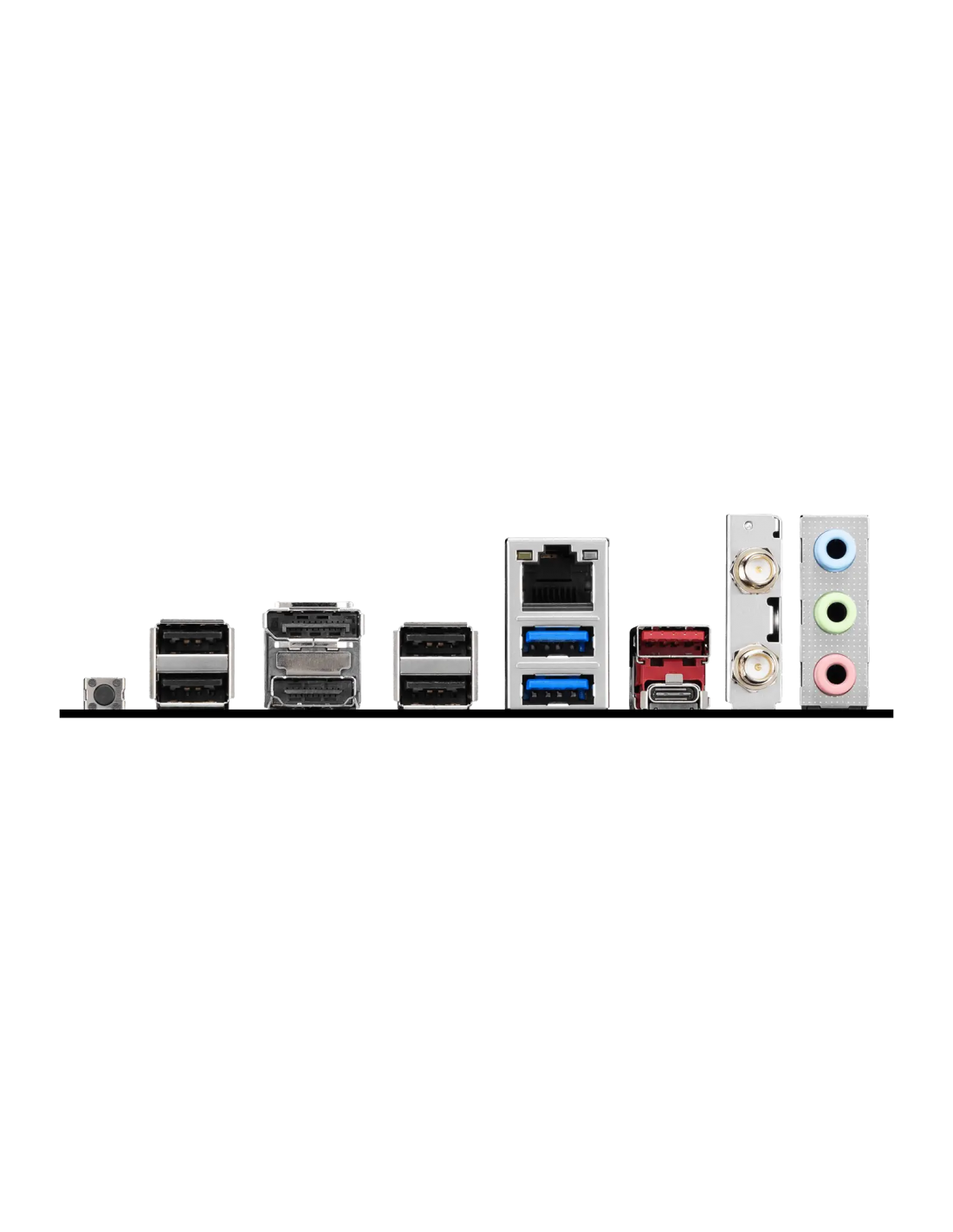

Rear panel I/O: USB 2.0;
DisplayPort 1.2;
1G LAN;
USB 10Gbps (Type-A);
Wi-Fi / Bluetooth;
Audio Connectors;
Flash BIOS Button;
HDMI™;
USB 2.0;
USB 5Gbps (Type-A);
USB 10Gbps (Type-C)
USB: 4x USB 2.0 (Rear);
4x USB 2.0 (Front);
2x USB 5Gbps Type A (Rear);
2x USB 5Gbps Type A (Front);
1x USB 5Gbps Type C (Front);
1x USB 10Gbps Type A (Rear);
1x USB 10Gbps Type C (Rear)
Expansion Slots: 2x PCI-E x16 slot;
1x PCI-E x1 slot;
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU);
PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset);
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset);
*The supported specification depends on installed processor
LAN: Realtek® 8111H 1G LAN
Connectors: 1x Power Connector(ATX_PWR);
1x Power Connector(CPU_PWR);
1x CPU Fan;
1x Combo Fan (Pump_Sys Fan);
6x System Fan;
2x Front Panel (JFP);
1x Chassis Intrusion (JCI);
1x Front Audio (JAUD);
1x Com Port (JCOM);
2x Addressable V2 RGB LED connector (JARGB_V2);
Memory type: 4x DDR4, Maximum Memory Capacity 128GB;
Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866+ MHz by A-XMP OC MODE;
Max. overclocking frequency:;
• 1DPC 1R Max speed up to 480
OS: Support for Windows® 11 64-bit
Graphics: 1x HDMI™;
Support HDMI™ 1.4, maximum resolution of 4K 30Hz;
1x DisplayPort;
Support DisplayPort 1.2, maximum resolution of 4K 60Hz
Vendor_url: https://www.msi.com/Motherboard/B550-GAMING-WIFI6E
Chipset: AMD B550
Manufacturer: MSI
Storage: 2x M.2;
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260/2242 devices;
M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices;
6x SATA 6G
Form Factor: ATX 243.84mmx304.8mm
Audio: Realtek® ALC897;
7.1-Channel High Definition Audio
Дънна платка - чипсет: AMD B550
Дънна платка - поддържан тип памет: DDR4
Дънна платка - честота на паметта: 2667 MHz
2800 MHz
2933 MHz
3000 MHz
3066 MHz
3200 MHz
3466 MHz
3600 MHz
3733 MHz
3866 MHz
4000 MHz
4133 MHz
4266 MHz
4400 MHz
4533 MHz
4600 MHz
4733 MHz
4800 MHz
4866 MHz
Дънна платка - интерфейси: M.2 (NVMe) конектор
SATA 3.0
Дънна платка - портове: Display Port
HDMI
USB 2.0
USB 3.2
Дънна платка - форм фактор: ATX
