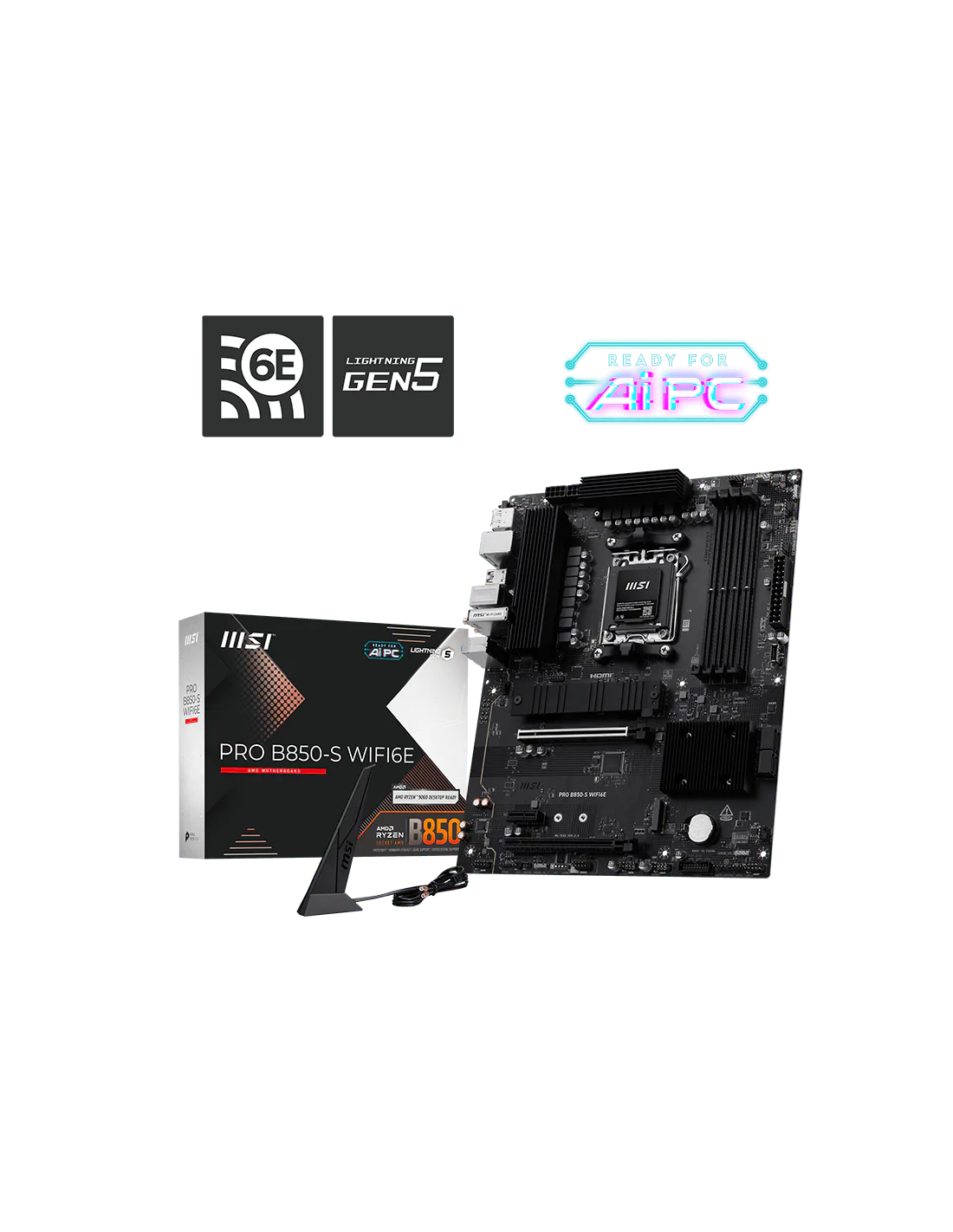

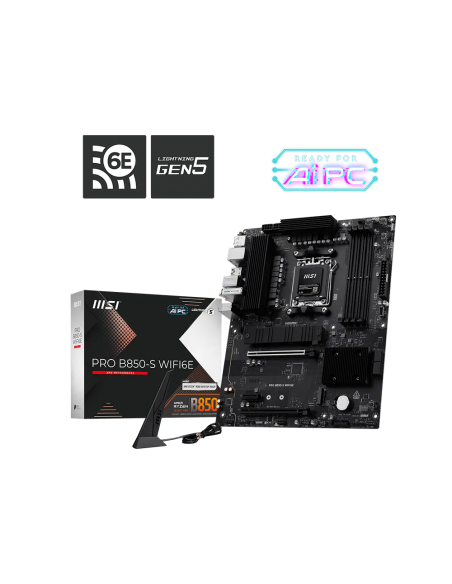

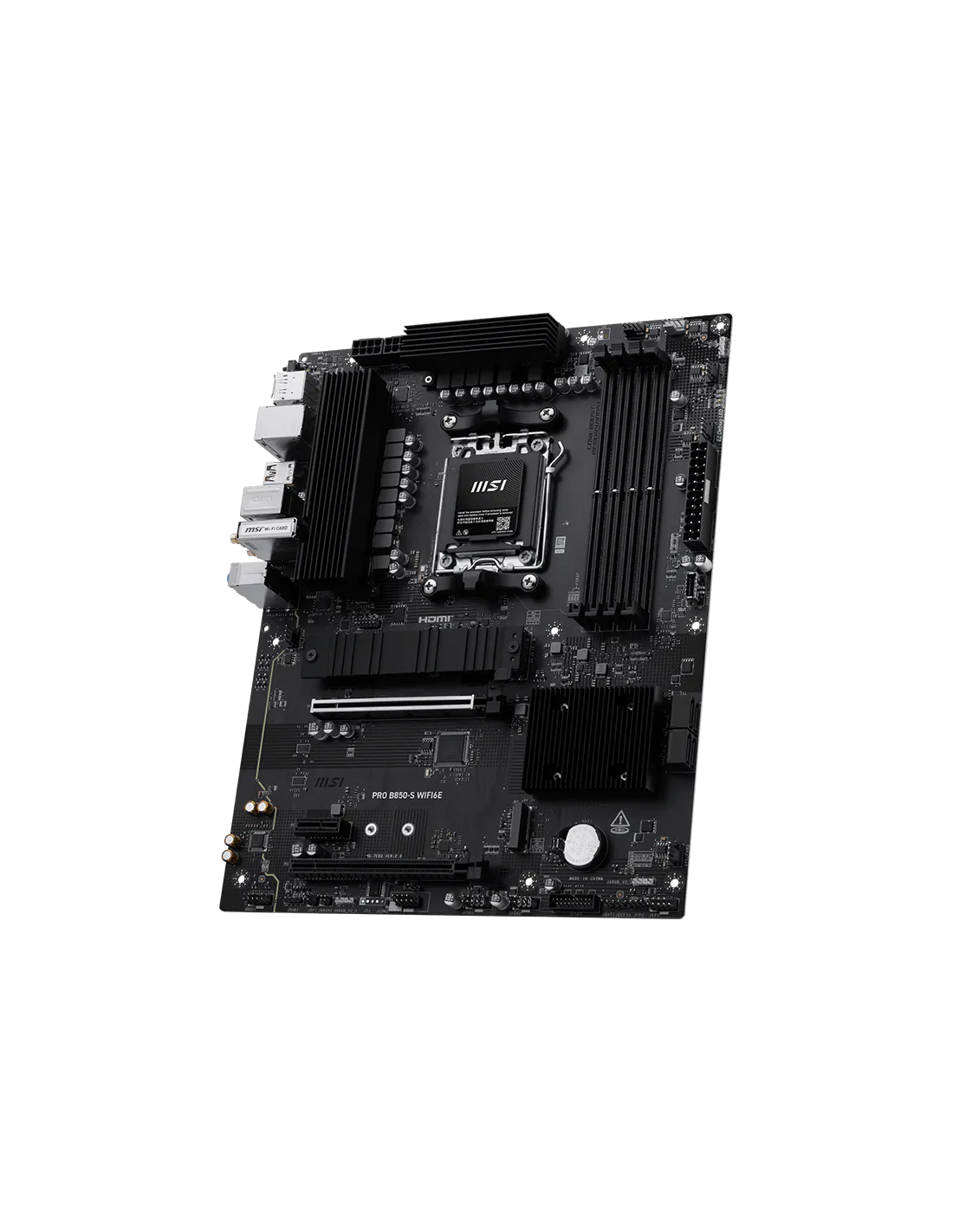

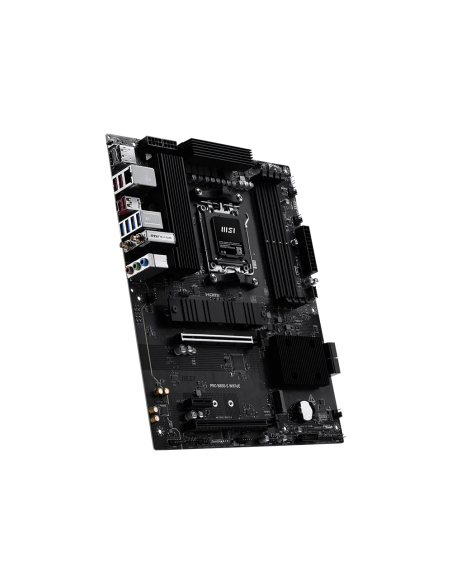

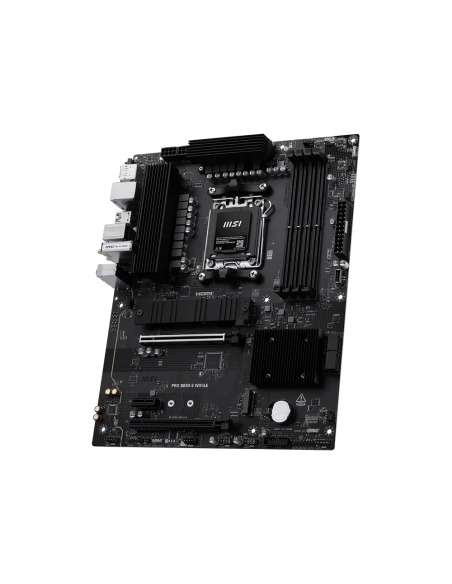

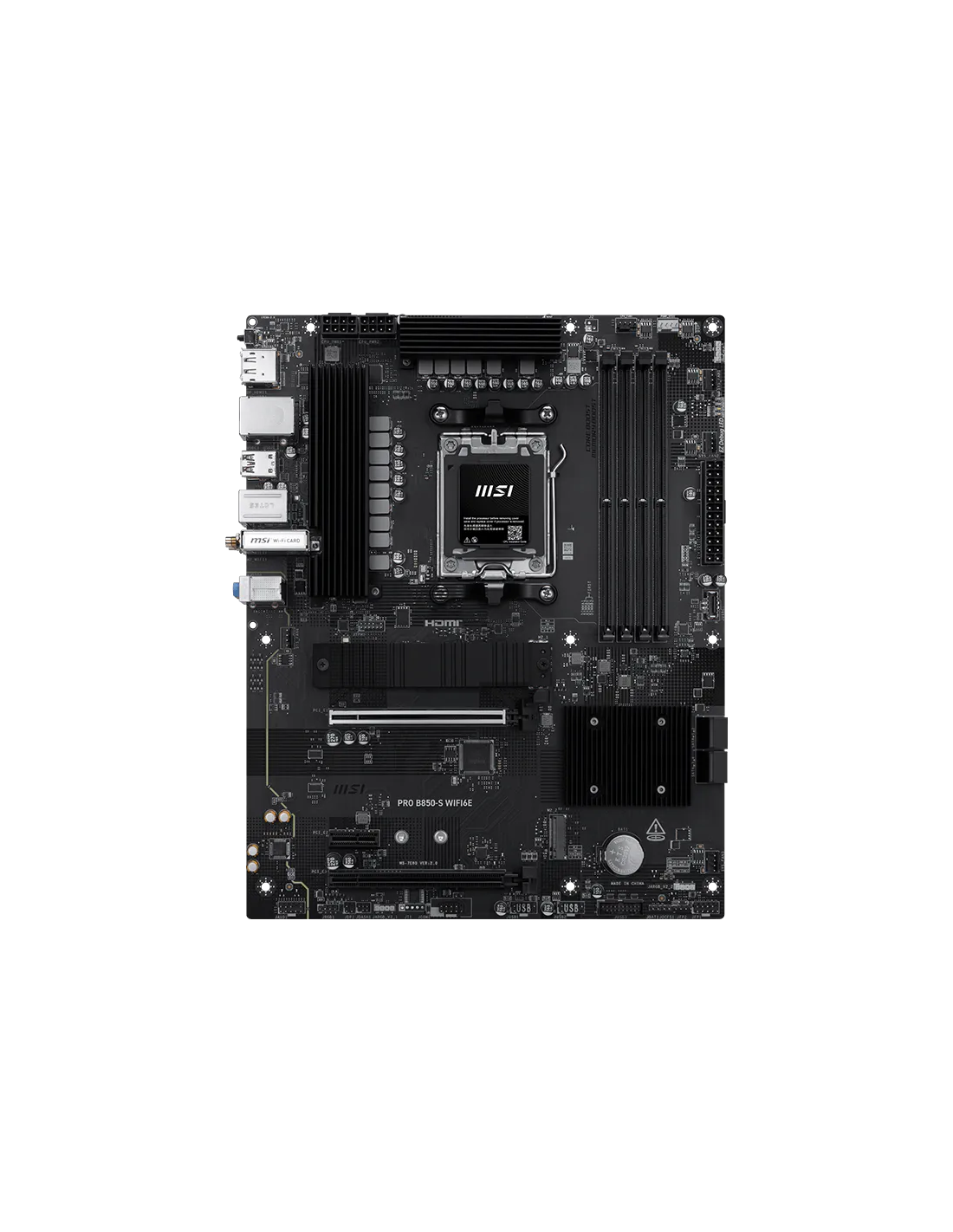

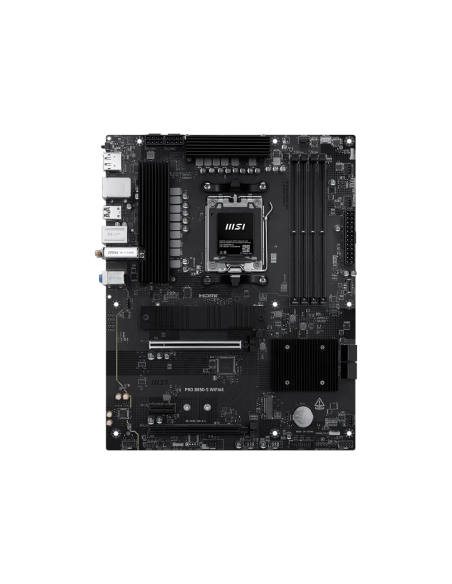

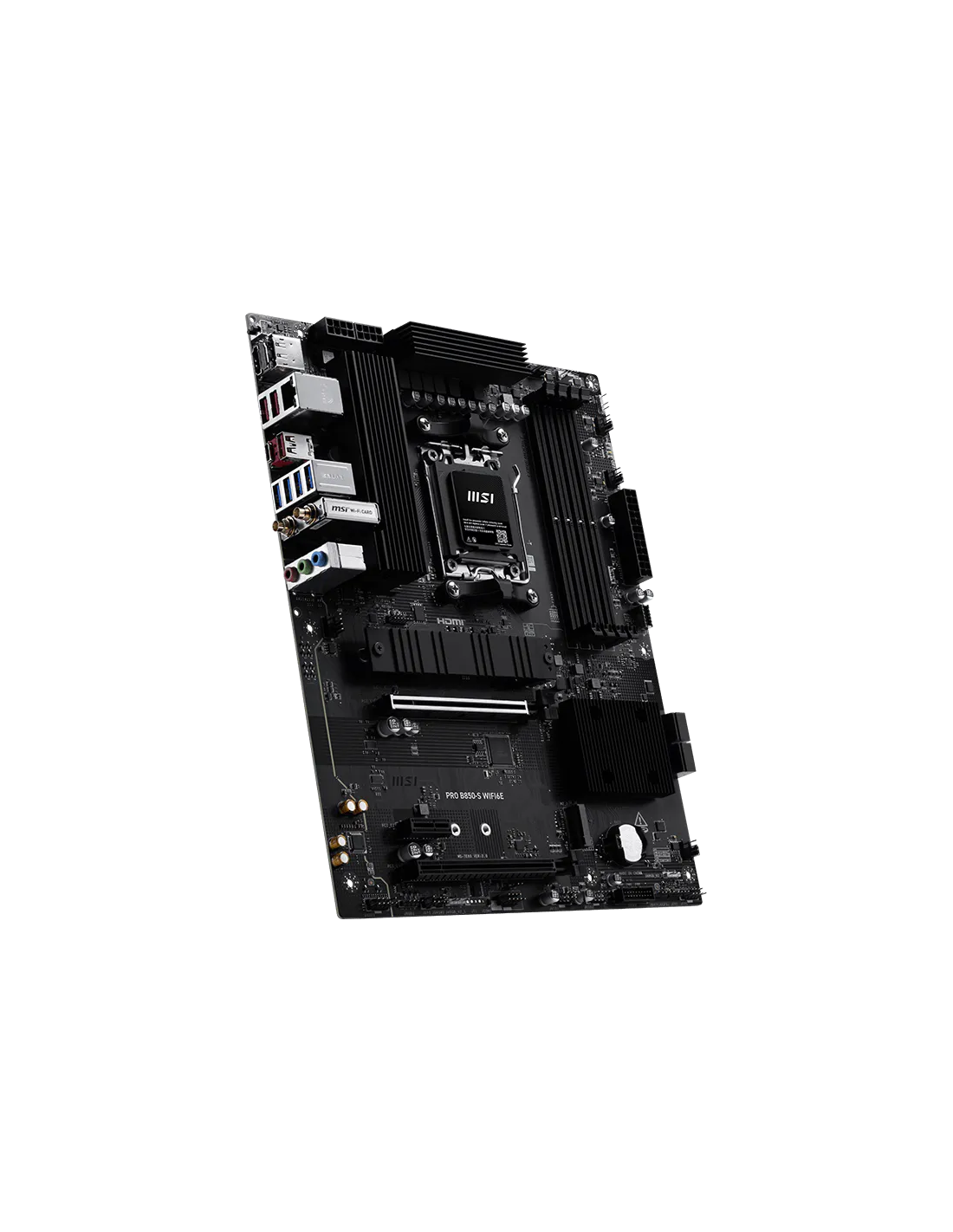

MSI PRO B850-S WIFI6E

Референция 911-7E80-002

На склад

140,51 €

С вкл. данък

911-7E80-002_MO

Подробности за продукта
Reviews

Connectors: 1x Power Connector(ATX_PWR);
2x Power Connector(CPU_PWR);
1x CPU Fan;
1x Combo Fan (Pump_Sys Fan);
4x System Fan;
2x Front Panel (JFP);
1x Chassis Intrusion (JCI);
1x Front Audio (JAUD);
1x Com Port (JCOM);
1x Tuning Controller connector(JDASH);
3x Addres
Dimensions: ATX
243.84mmx304.8mm
OS: Support for Windows® 11 64-bit
Graphics: 1x HDMI™;
Support HDMITM 2.1, maximum resolution of 4K 60Hz;
1x DisplayPort;
Support DisplayPort 1.4, maximum resolution of 4K 60Hz
USB: 4x USB 2.0 (Front);
4x USB 5Gbps Type A (Rear);
2x USB 5Gbps Type A (Front);
3x USB 10Gbps Type A (Rear);
1x USB 10Gbps Type C (Rear);
1x USB 10Gbps Type C (Front)
Wireless: Wi-Fi 6E;
The Wireless module is pre-installed in the M.2 (Key-E) slot;
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.4Gbps;
Supports 802.11 a/ b/ g/ n/ ac/ ax;

Supports Bluetooth® 5.3**, FIPS, FISMA;

* 6GHz band support may depend on eve
Chipset: AMD B850
Manufacturer: MSI

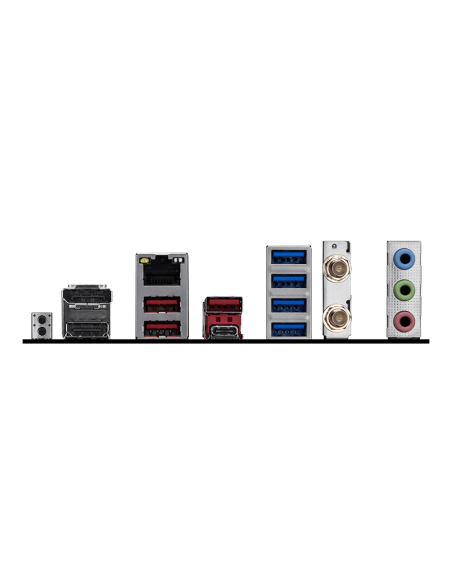

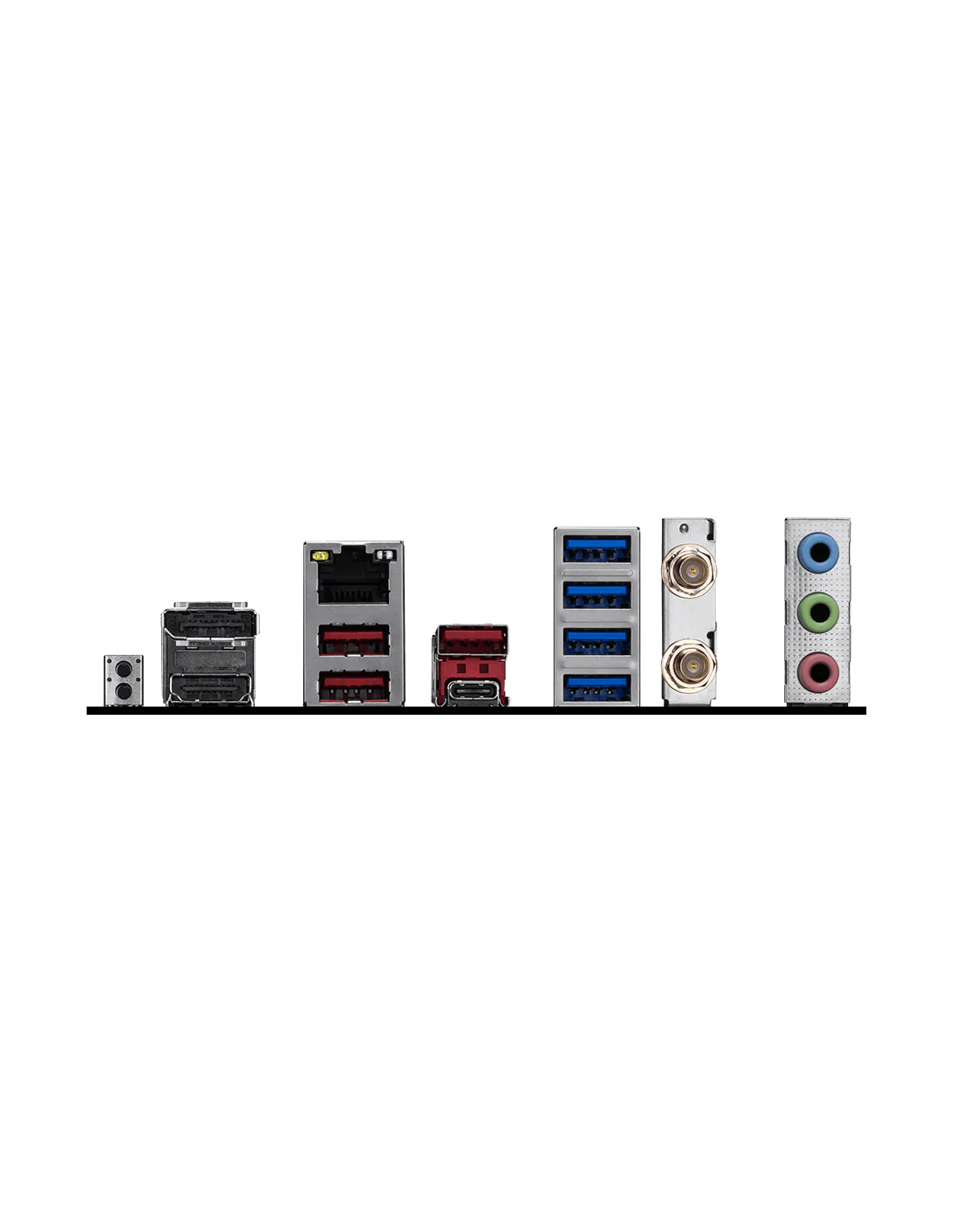

Rear panel I/O: Clear CMOS Button;
DisplayPort;
2.5G LAN;
USB 10Gbps Type-A;
USB 5Gbps Type-A;
Wi-Fi / Bluetooth;
Audio Connectors;
Flash BIOS Button;
HDMI™;
USB 10Gbps Type-A;
USB 10Gbps Type-C
Storage: 2x M.2;
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices;
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices;
4x SATA 6G;

M2_1 slot;
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series p
Memory type: 4x DDR5 UDIMM, Maximum Memory Capacity 256GB;
Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s;
Ryzen™ 9000 Series Processors max. overclocking frequency:;
• 1DPC 1R Max speed up to 8200+ MT/s;
• 1DPC 2R Max speed up to 6400+ MT/s;
• 2
Audio: Realtek® ALC897;
7.1-Channel High Definition Audio
Socket: Socket AM5
Bluetooth: Supports Bluetooth® 5.3**, FIPS, FISMA
Other: 4x EZ Debug LED;
1x EZ Memory Detection LED
CPU's supported: Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
RAID: Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices;
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Vendor_url: https://www.msi.com/Motherboard/PRO-B850-S-WIFI6E
Expansion Slots: 2x PCI-E x16 slot;
1x PCI-E x1 slot;
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU);
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset);
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset);

PCI_E1 slot;
• Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 700
LAN: Realtek® 8125 2.5G LAN
Дънна платка - чипсет: AMD B850
Дънна платка - поддържан тип памет: DDR5
Дънна платка - честота на паметта: 4800 MHz
5600 MHz
6400 MHz
8200 MHz
9000 MHz
Дънна платка - интерфейси: M.2 (NVMe) конектор
SATA 3.0
Дънна платка - портове: Display Port
HDMI
USB 2.0
USB 3.2
