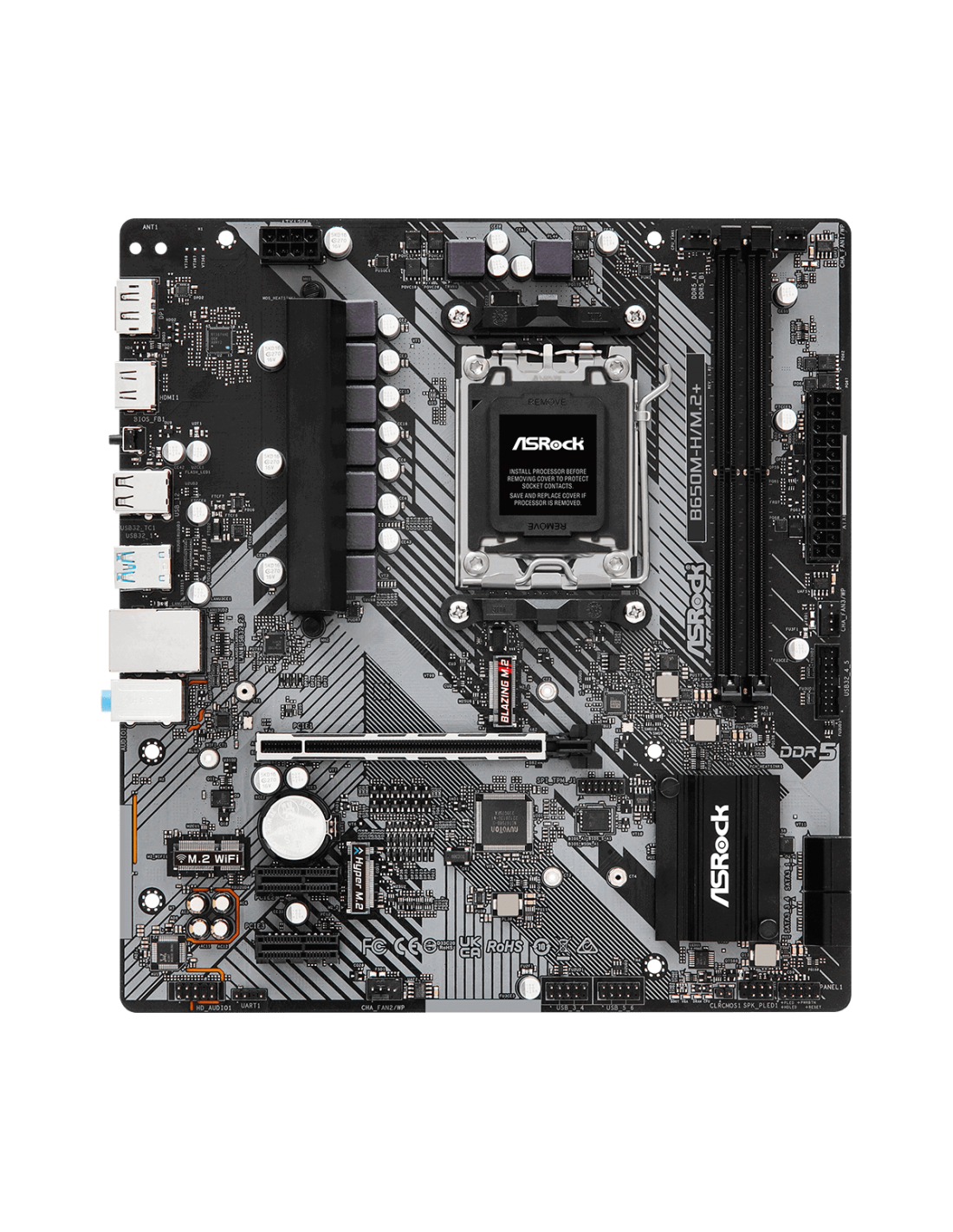

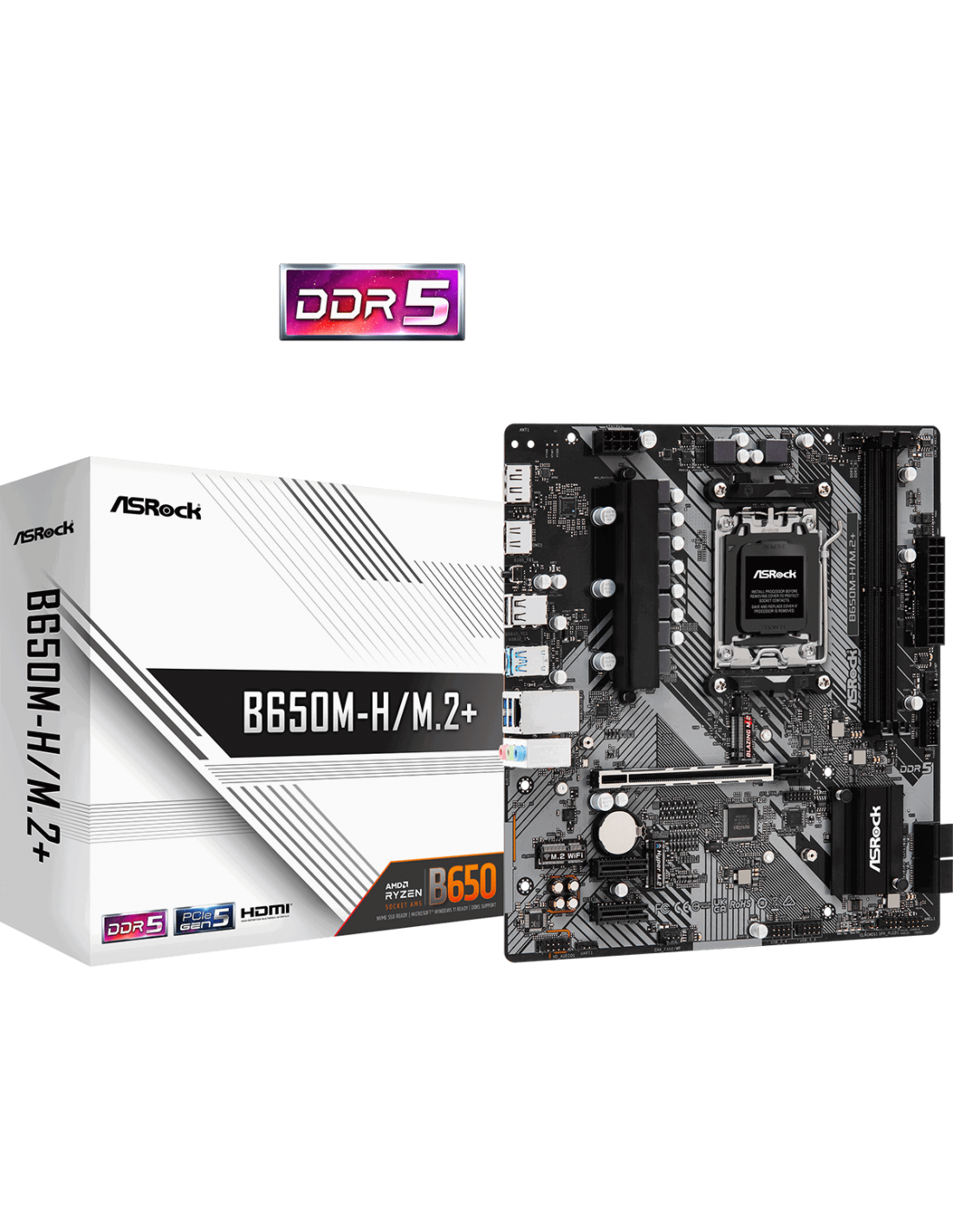

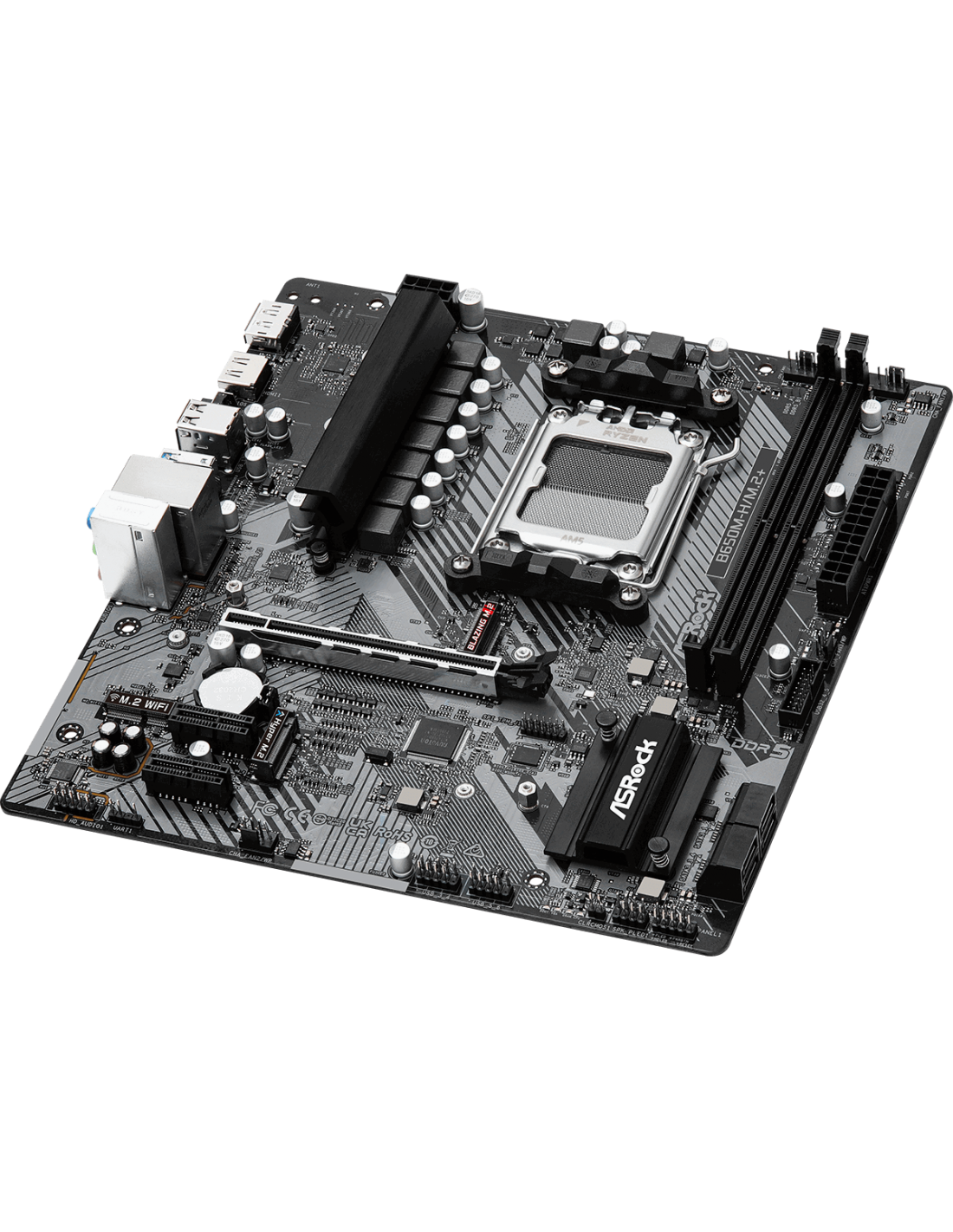

ASROCK B650M-H/M.2+ /AM5

Референция B650M-H/M.2+

На склад

87,13 €

С вкл. данък

B650M-H/M.2+_MO

ASROCK B650 2xDDR5 4xSATA3 RAID HDMI DP 2xM2 GLAN 1xPCIEx16 2xPCIEx1_MO

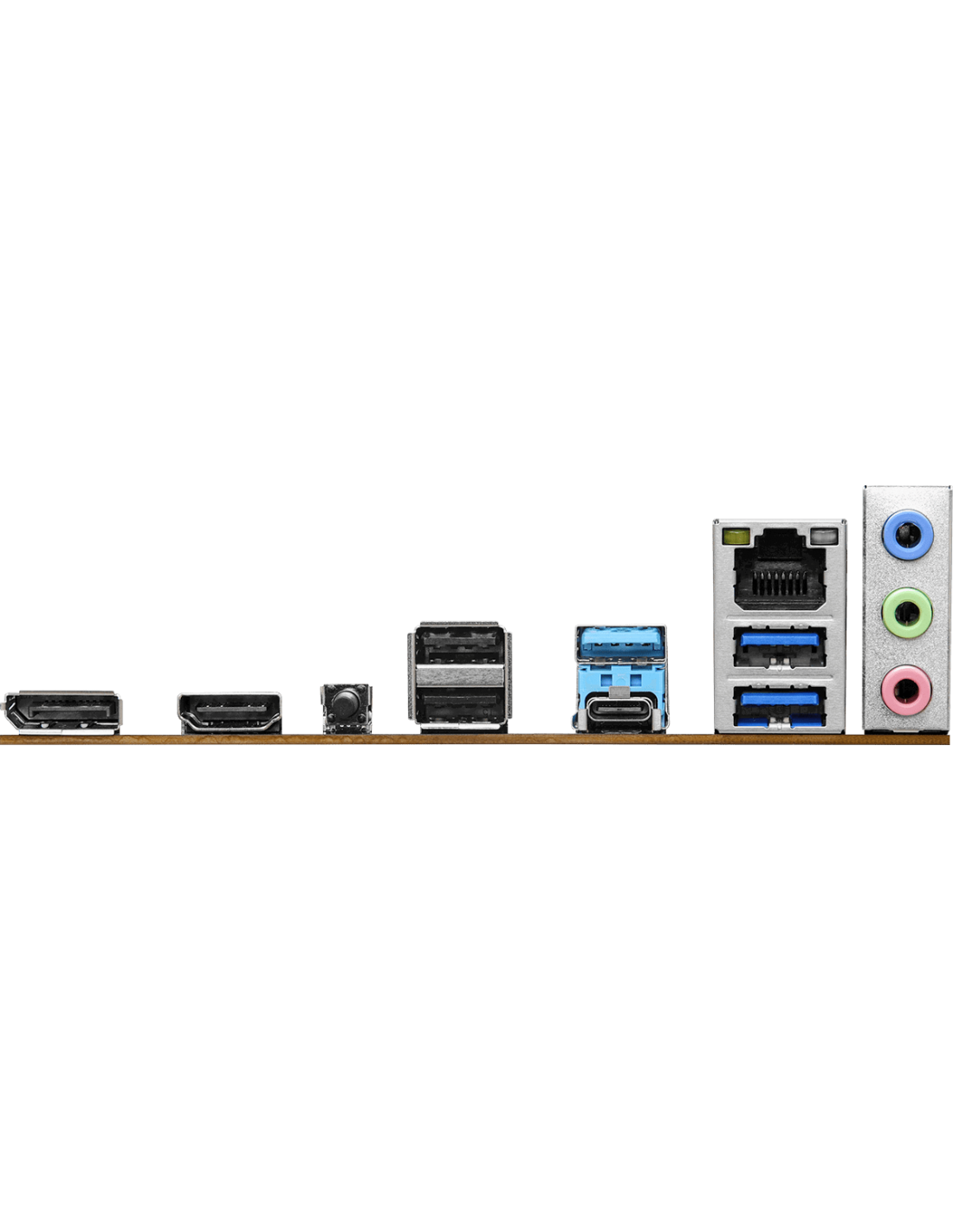

Rear panel I/O: - 2 x Antenna Mounting Points; - 1 x HDMI Port; - 1 x DisplayPort 1.4; - 1 x USB 3.2 Gen1 Type-C Port; - 3 x USB 3.2 Gen1 Type-A Ports; - 2 x USB 2.0 Ports; - 1 x RJ-45 LAN Port; - 1 x BIOS Flashback Button; - HD Audio Jacks: Line in / Front Speaker / Mic
Chipset: - AMD B650
Storage: CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*; - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*; Chipset: - 4 x SATA3 6.0 Gb/s Connectors
LAN: - Gigabit LAN 10/100/1000 Mb/s; - Realtek RTL8111H
Audio: - 7.1 CH HD Audio (Realtek ALC897 Audio Codec); - Nahimic Audio
Memory type: - Dual Channel DDR5 Memory Technology; - 2 x DDR5 DIMM Slots; - Supports DDR5 ECC/non-ECC, un-buffered memory up to 6400+(OC)*; - Max. capacity of system memory: 96GB; - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) m
Vendor_url: https://www.asrock.com/MB/AMD/B650M-HM.2+/index.asp#Specification
Graphics: Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU); - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz; - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K
Expansion Slots: CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*; Chipset: - 2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE3)*; - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module*; - 15? Gold Contact in VGA PCIe Slot (PCIE1)
BIOS: - 256Mb AMI UEFI Legal BIOS with GUI support
Connectors: - 1 x SPI TPM Header; - 1 x Power LED and Speaker Header; - 1 x CPU Fan Connector (4-pin)*; - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**; - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector; - 1 x Front Panel A
Form Factor: - Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm
OS: - Microsoft® Windows® 10 64-bit / 11 64-bit
Warranty: 36 Months
Дънна платка - чипсет: AMD B650
Дънна платка - поддържан тип памет: DDR5
Дънна платка - брой слотове за памет: 2 бр
Дънна платка - честота на паметта: 6400 MHz
Дънна платка - интерфейси: M.2 (NVMe) конектор
SATA 3.0
Дънна платка - портове: Display Port
HDMI
USB 2.0
USB 3.2
Дънна платка - форм фактор: Micro ATX
