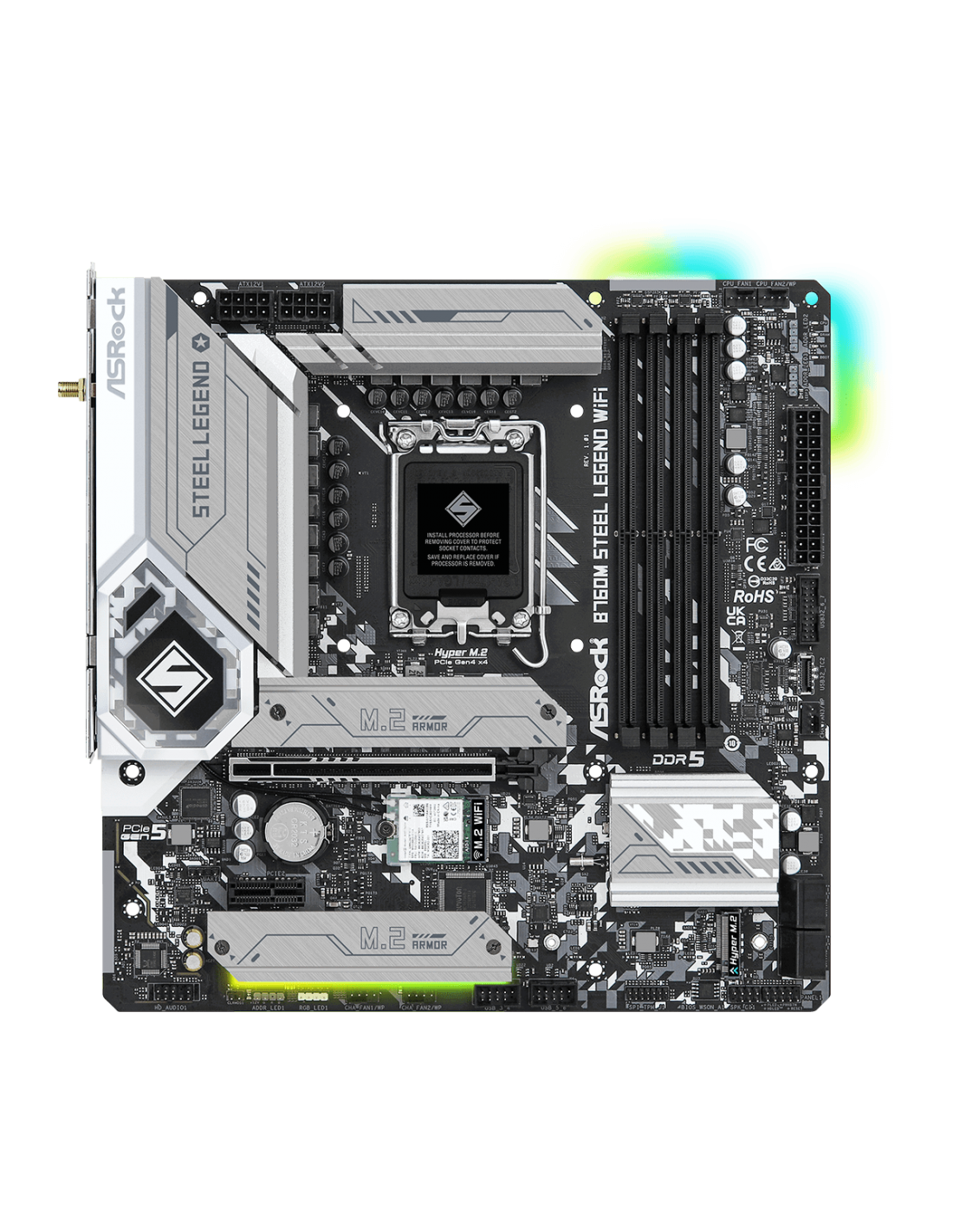

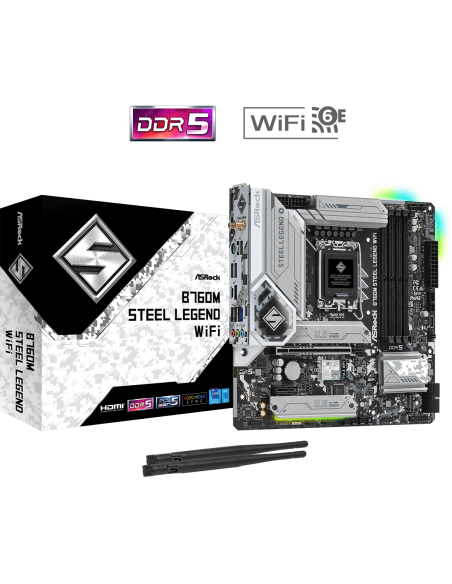

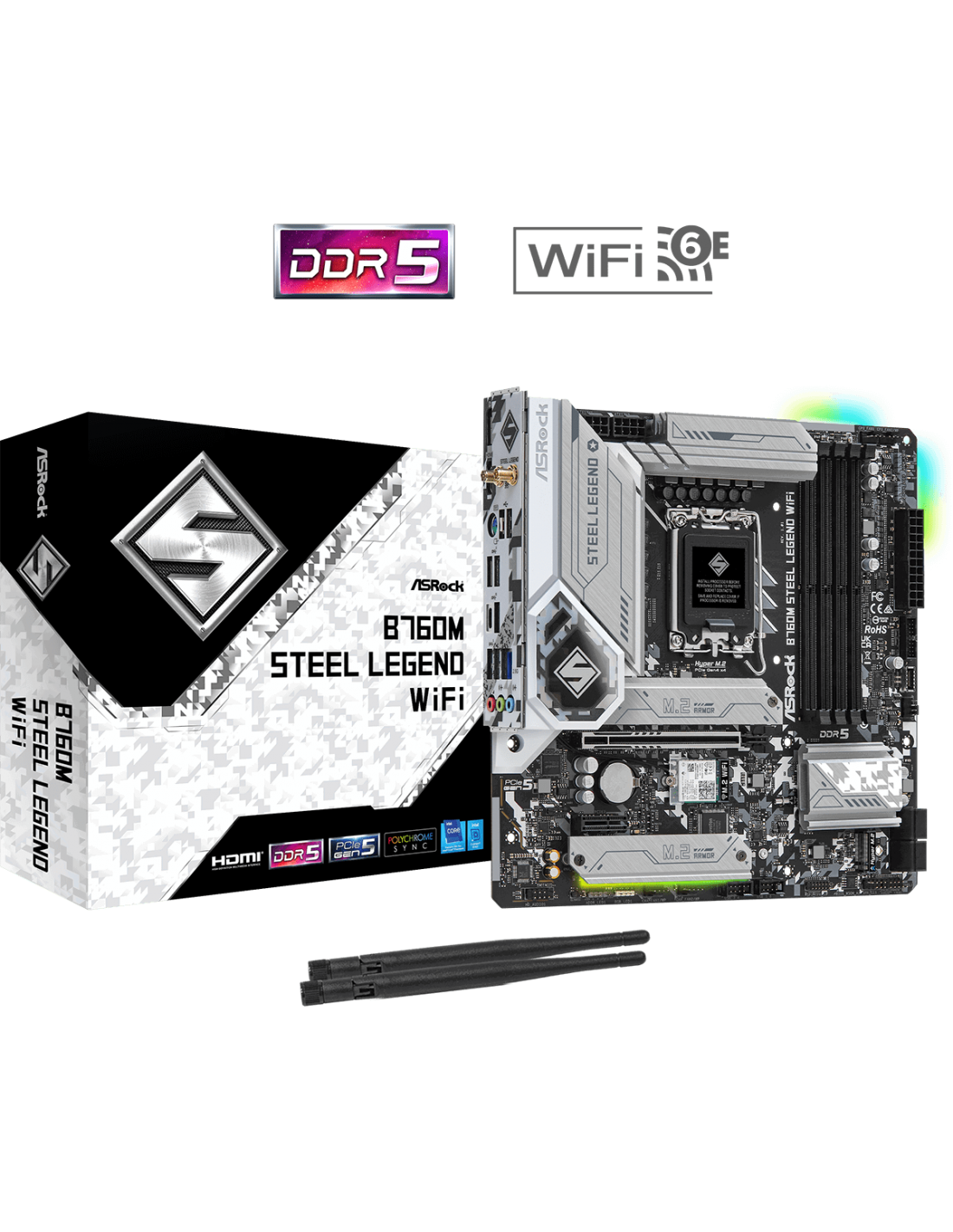

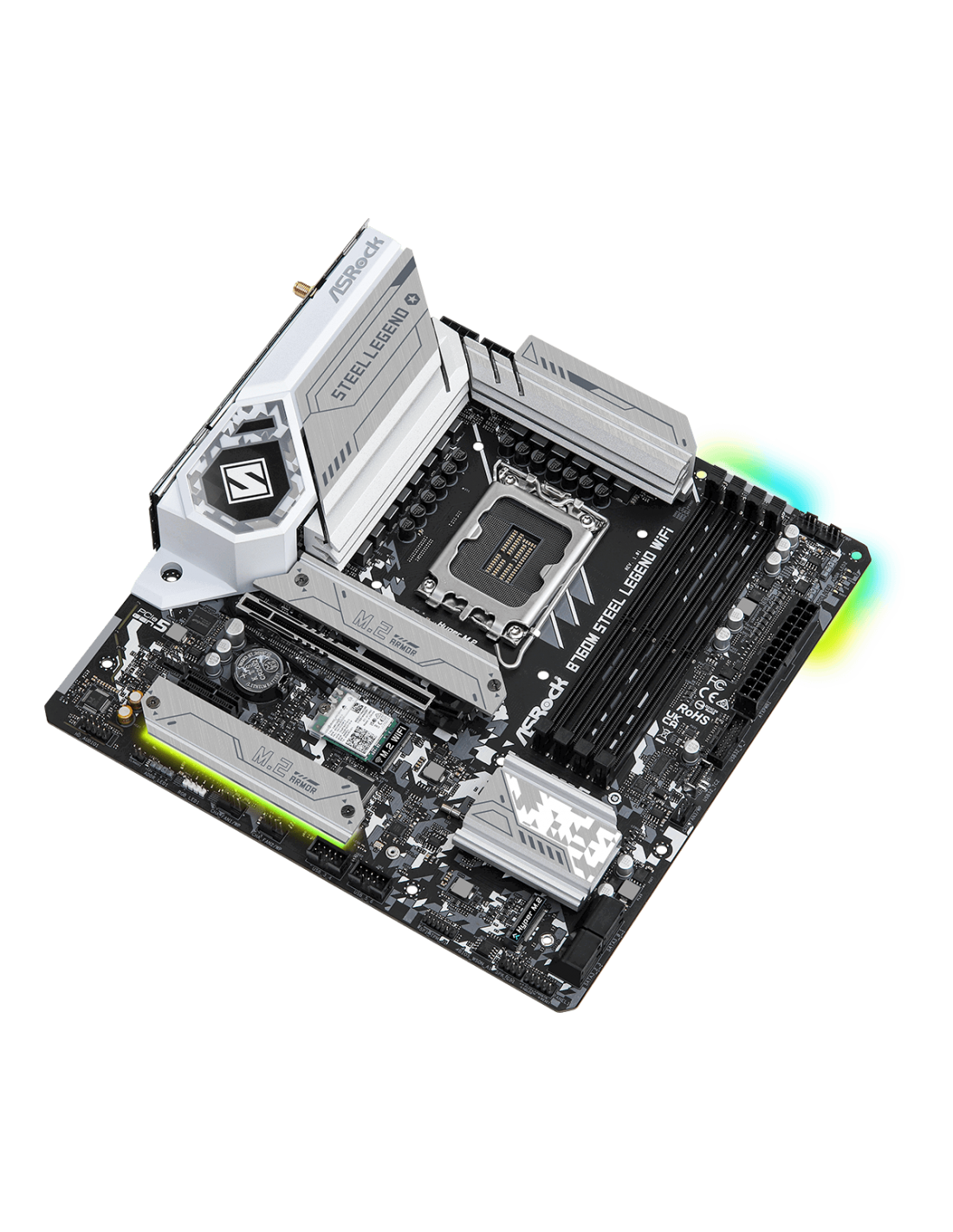

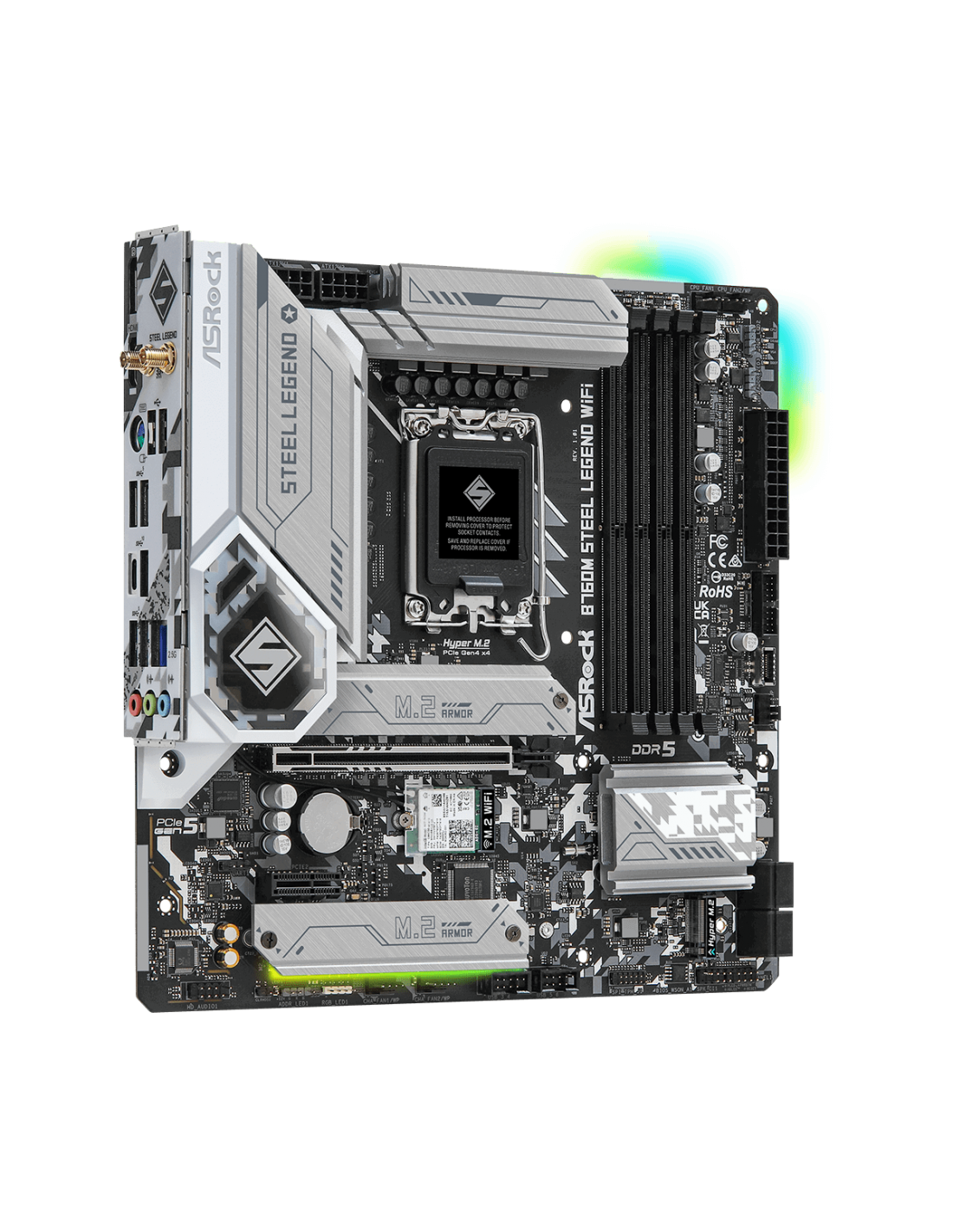

ASROCK B760M STEEL LEGEND WIFI

Референция B760M STEEL LEGEND WIFI

На склад

155,21 €

С вкл. данък

B760M STEEL LEGEND WIFI_MO

ASROCK B760 4xDDR5 4xSATA3 RAID HDMI DP 3xM2 GLAN 2xPCIEx16 WiFi _MO

OS: - Microsoft® Windows® 10 64-bit / 11 64-bit
Warranty: 36 Months
Vendor_url: https://www.asrock.com/mb/Intel/B760M%20Steel%20Legend%20WiFi/index.asp#Specification
Chipset: - Intel® B760
Storage: CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*; Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*; - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/22
LAN: - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s; - Dragon RTL8125BG; - Supports Dragon 2.5G LAN Software; - Smart Auto Adjust Bandwidth Control; - Visual User Friendly UI; - Visual Network Usage Statistics; - Optimized Default Setting for Game, Browser, and Strea
Audio: - 7.1 CH HD Audio (Realtek ALC897 Audio Codec); - Nahimic Audio
Memory type: - Dual Channel DDR5 Memory Technology; - 4 x DDR5 DIMM Slots; - Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*; - Max. capacity of system memory: 128GB; - Supports Intel® Extreme Memory Profile (XMP) 3.0
Other: - 802.11ax Wi-Fi 6E Module; - Supports IEEE 802.11a/b/g/n/ac/ax; - Supports Dual-Band 2x2 with extended 6GHz band support*; - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology; - Supports Bluetooth 5.3 + High speed class II; - Supports
Graphics: - Intel® Xe Graphics Architecture (Gen 12); - 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz; - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz; - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and

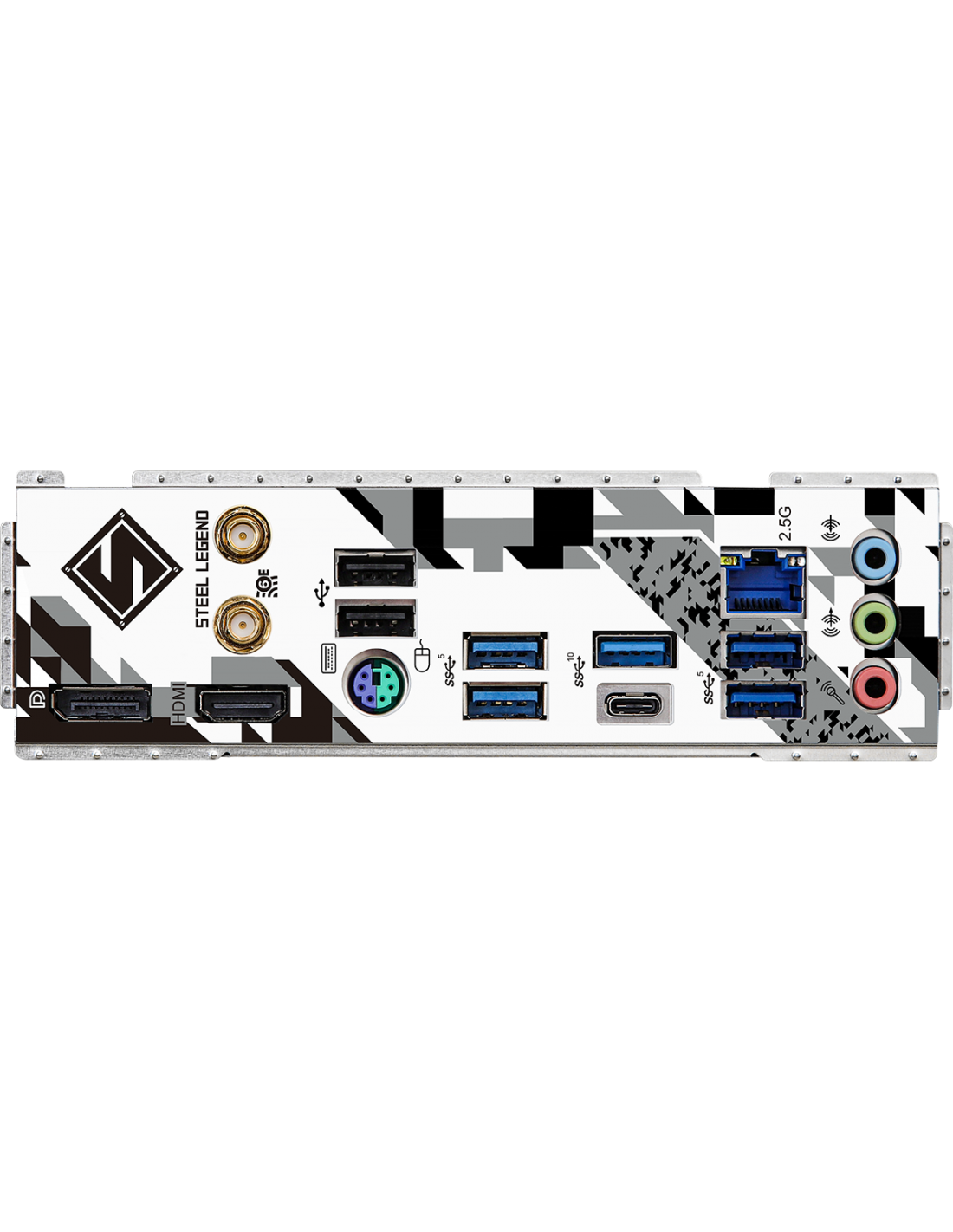

Rear panel I/O: - 2 x Antenna Ports; - 1 x PS/2 Mouse/Keyboard Port; - 1 x HDMI Port; - 1 x DisplayPort 1.4; - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s); - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s); - 4 x USB 3.2 Gen1 Ports; - 2 x USB 2.0 Ports; - 1 x RJ-45 LAN Port; - HD Audi
Expansion Slots: CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*; Chipset: - 1 x PCIe 4.0 x1 Slot (PCIE2)*; - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT); - 15? Gold Contact in VGA PCIe Slot (PC
BIOS: - 128Mb AMI UEFI Legal BIOS with GUI support
Connectors: - 1 x eDP Signal Connector; - 1 x SPI TPM Header; - 1 x Chassis Intrusion and Speaker Header; - 1 x RGB LED Header*; - 3 x Addressable LED Headers**; - 1 x CPU Fan Connector (4-pin)***; - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*
Form Factor: - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm; - 2oz Copper PCB
Дънна платка - чипсет: INTEL B760
Дънна платка - поддържан тип памет: DDR5
Дънна платка - брой слотове за памет: 4 бр
Дънна платка - честота на паметта: 7200 MHz
Дънна платка - интерфейси: M.2 (NVMe) конектор
Дънна платка - портове: Display Port
HDMI
USB 2.0
USB 3.2
Дънна платка - форм фактор: Micro ATX

No reviews

С доставка 24 часа
