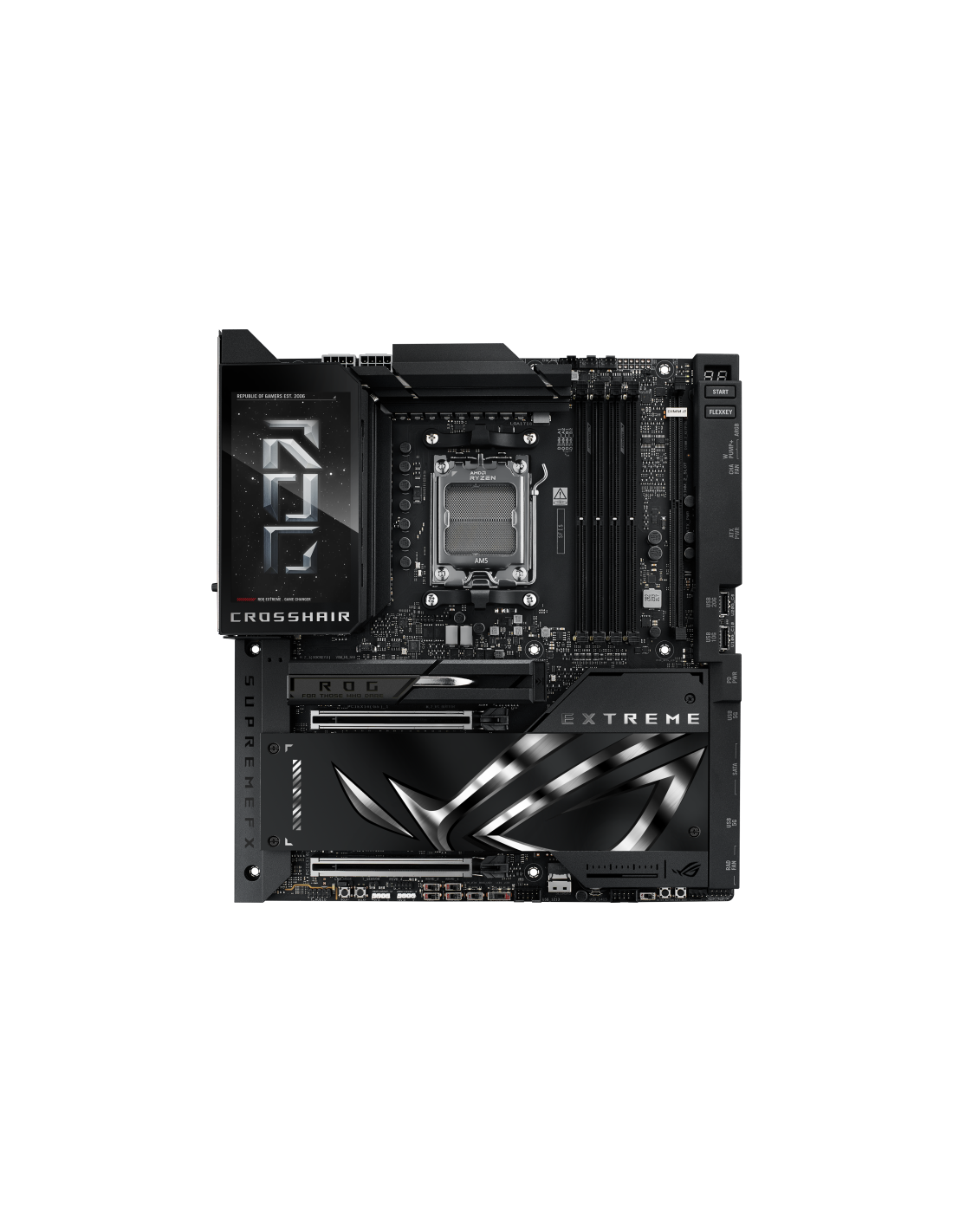

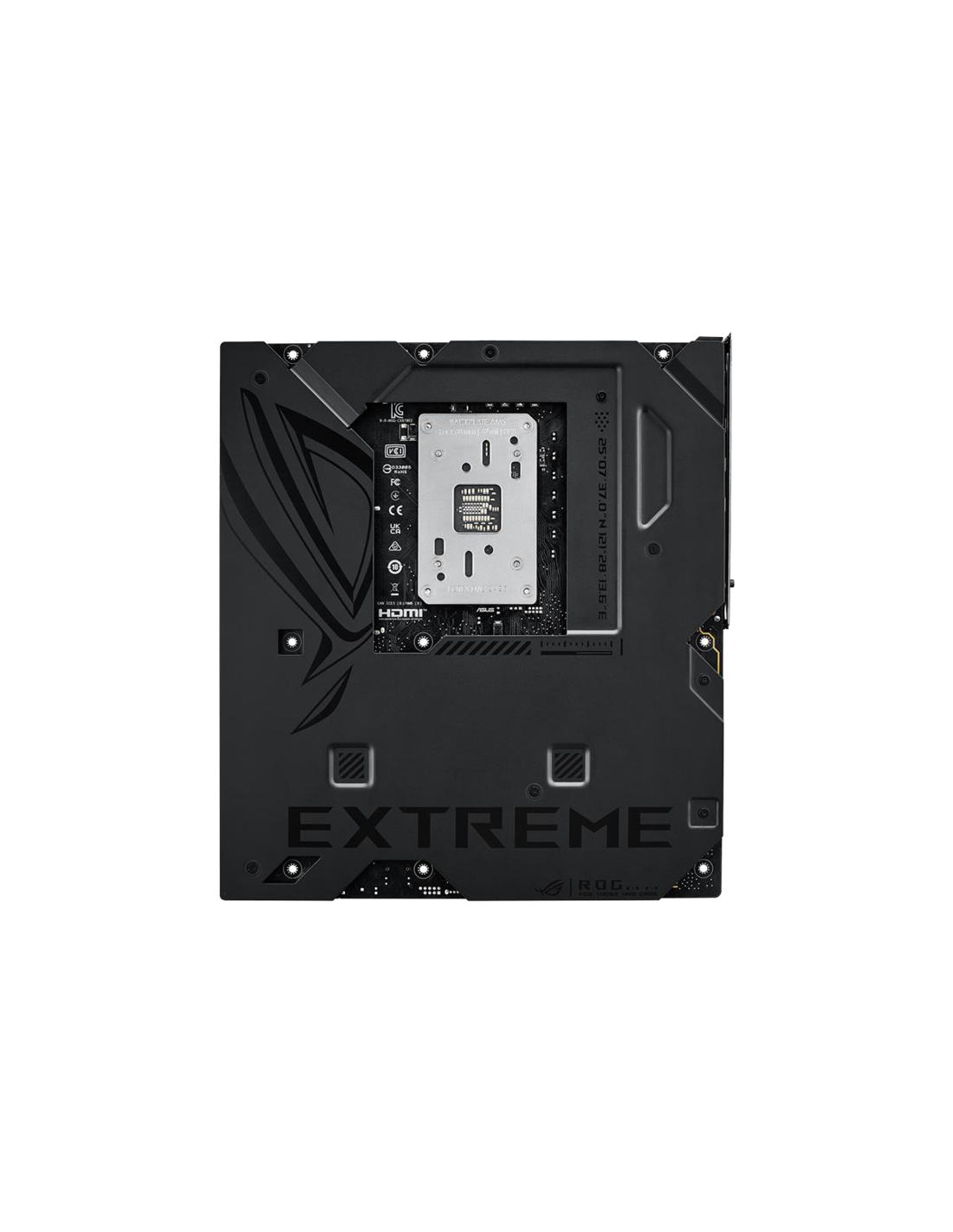

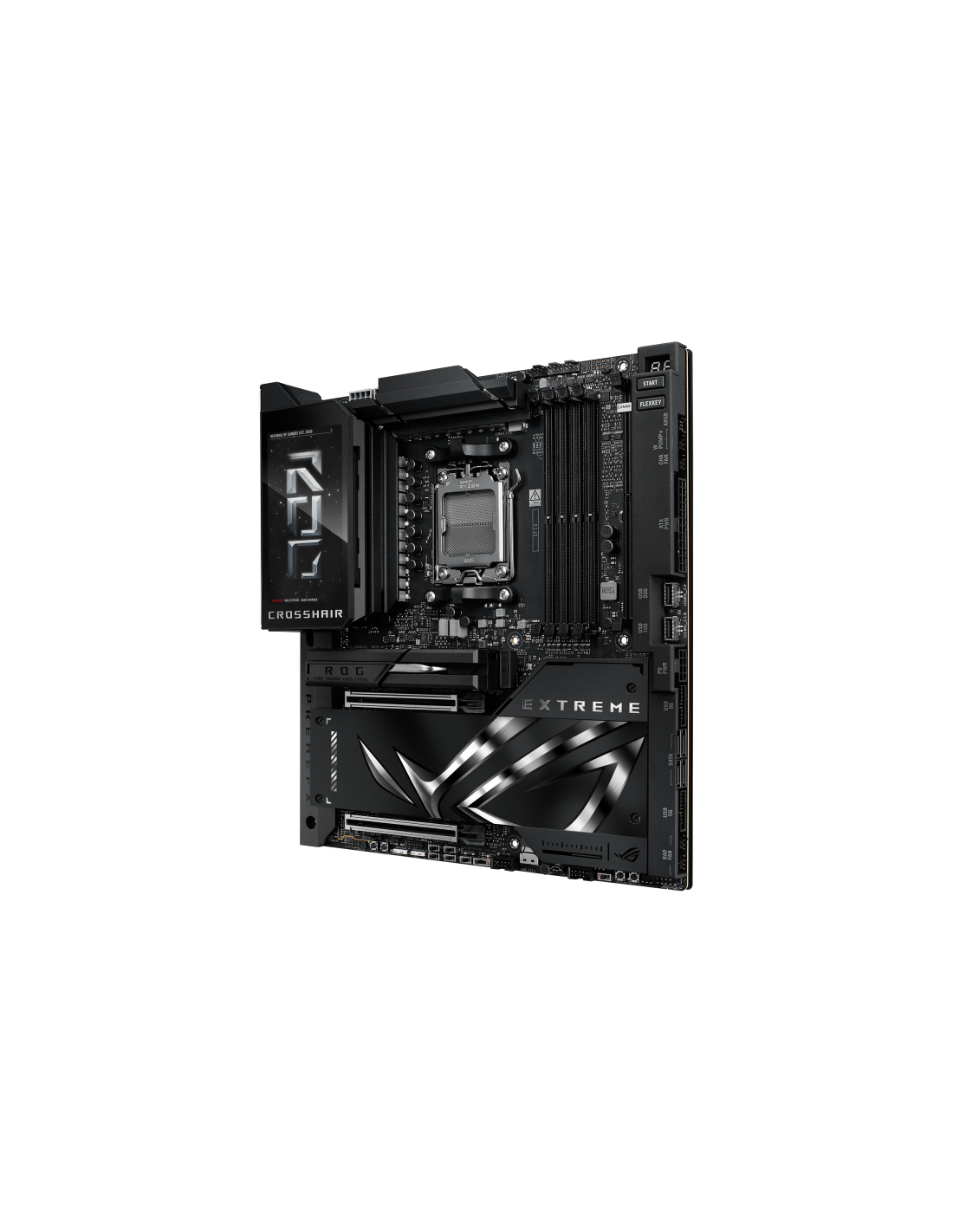

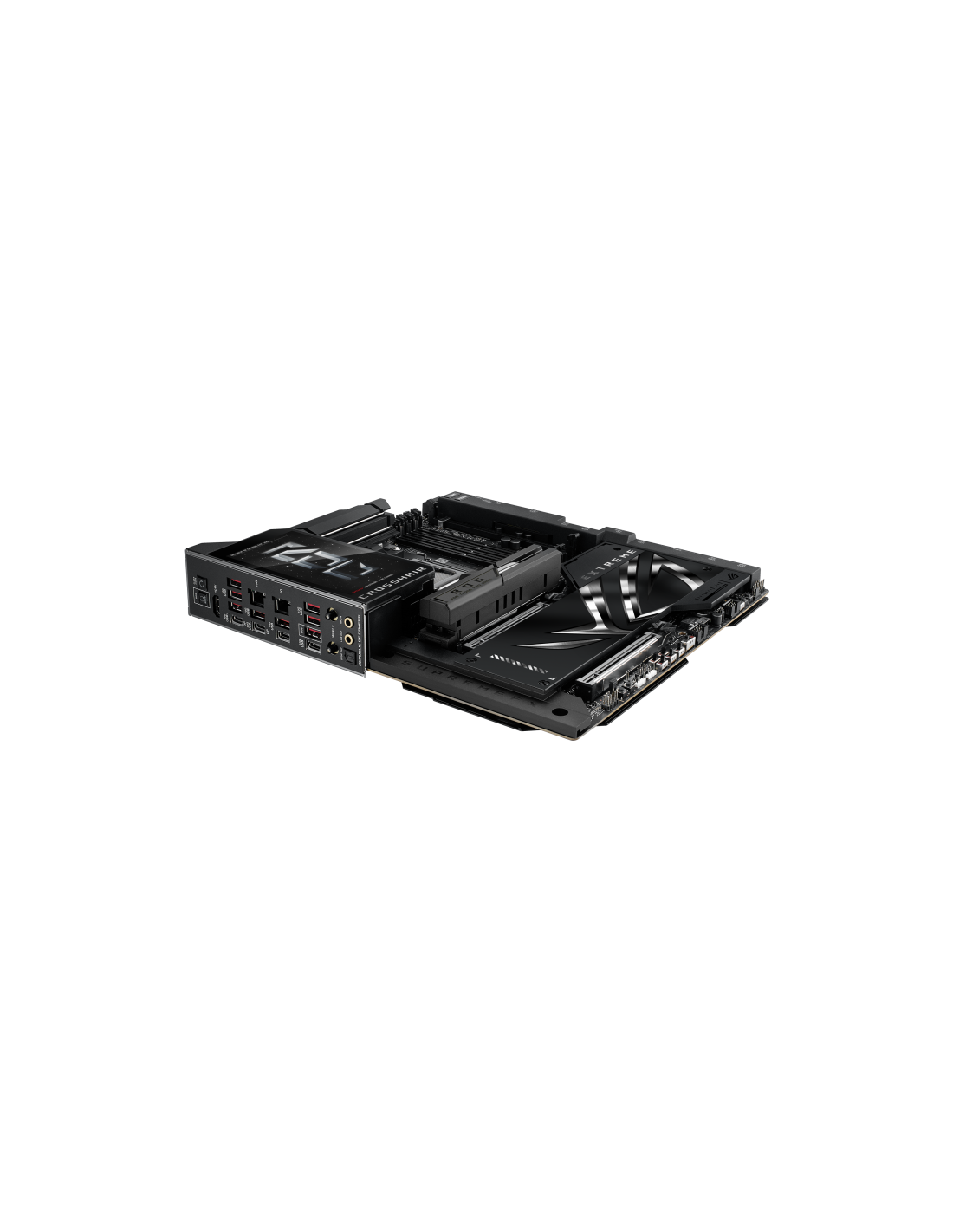

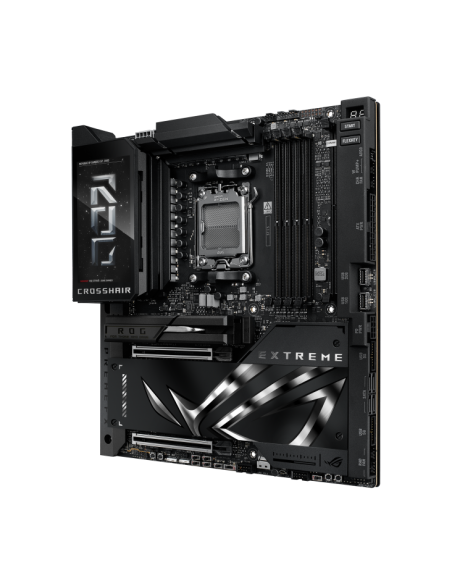

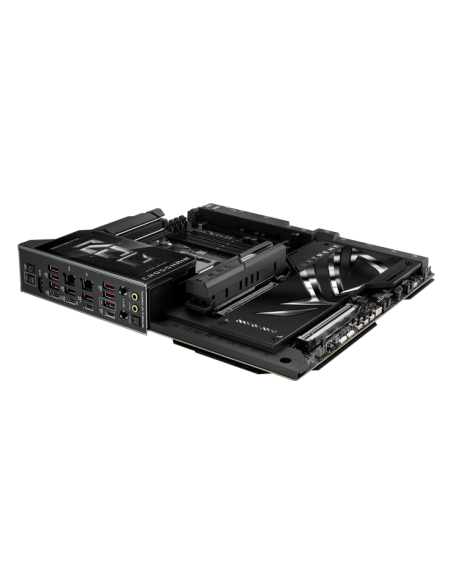

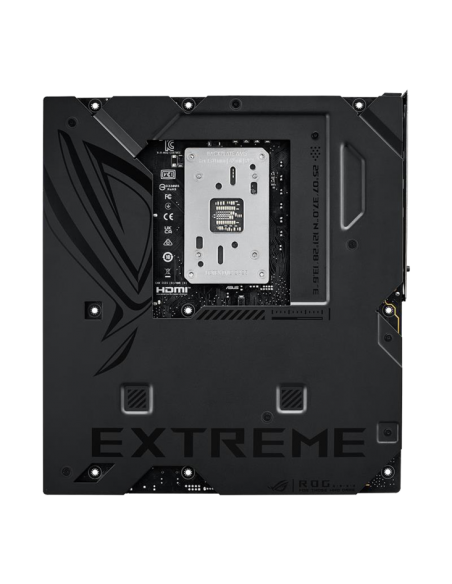

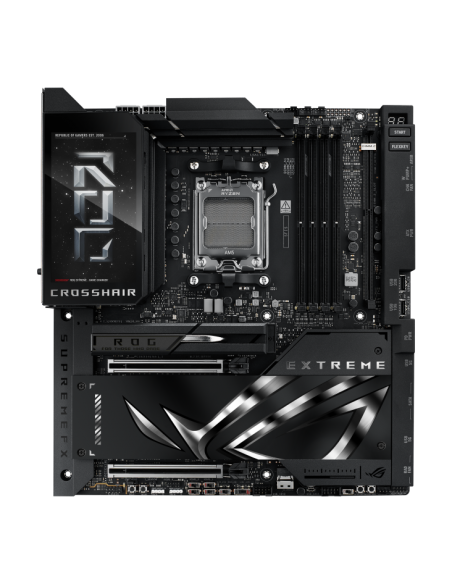

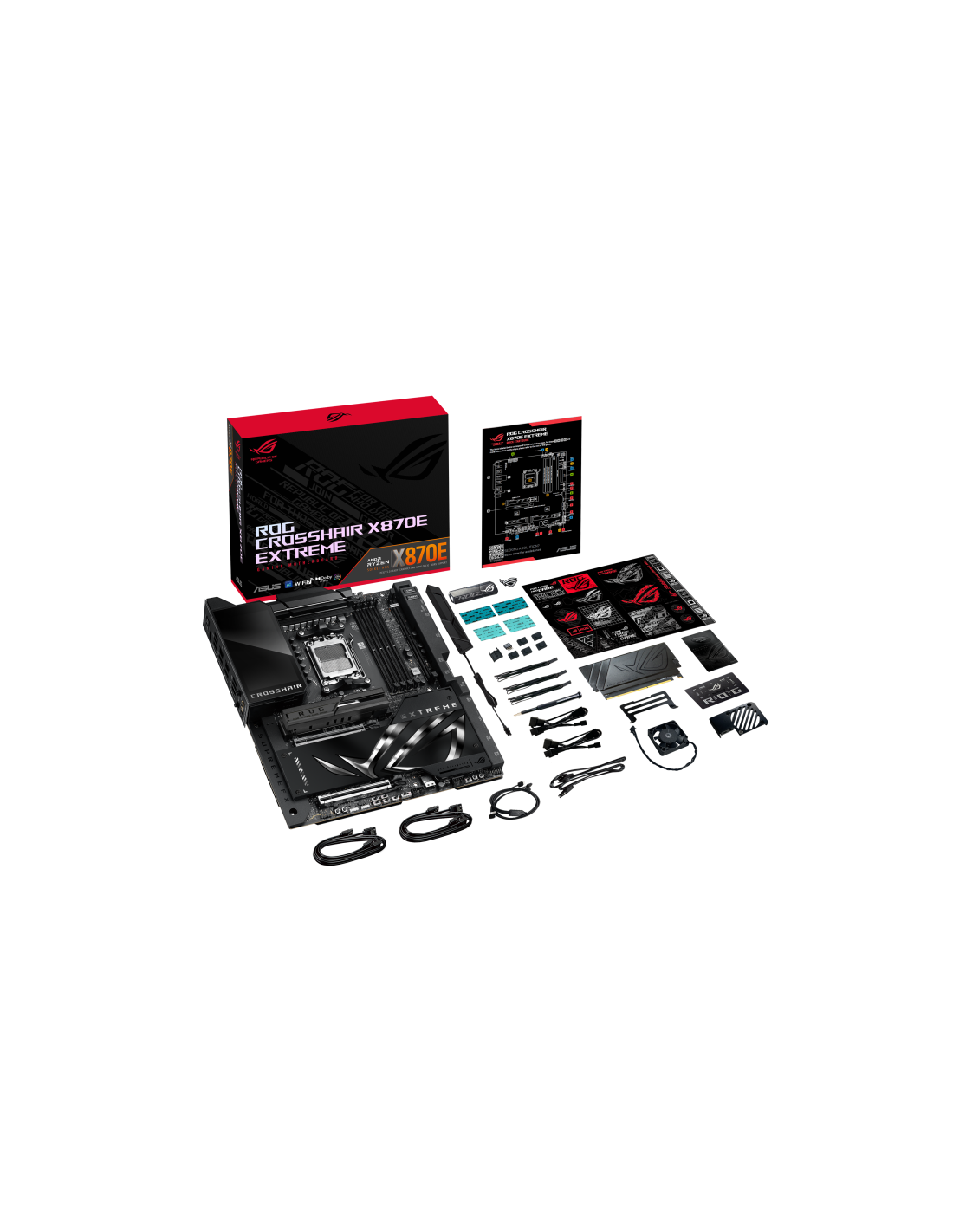

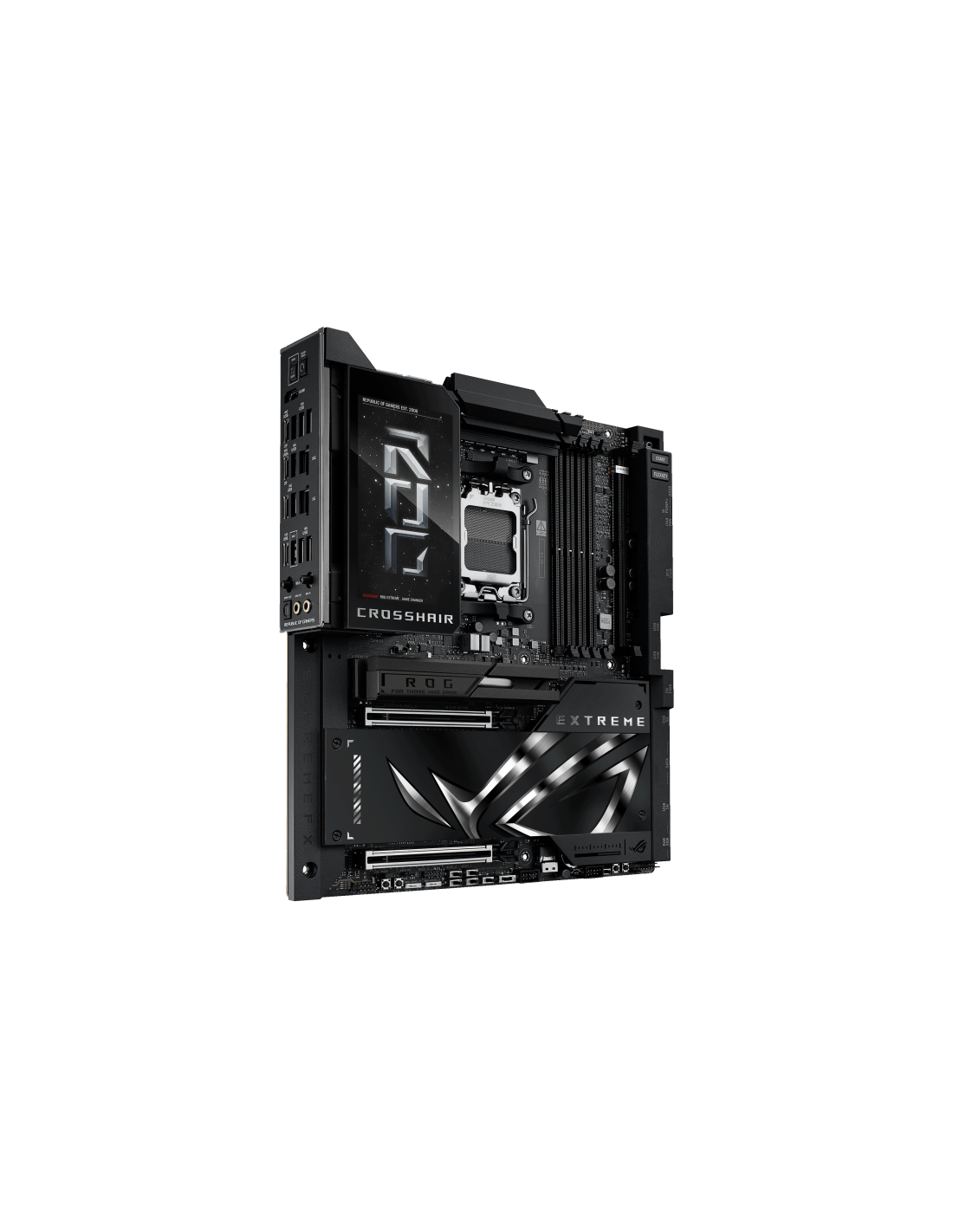

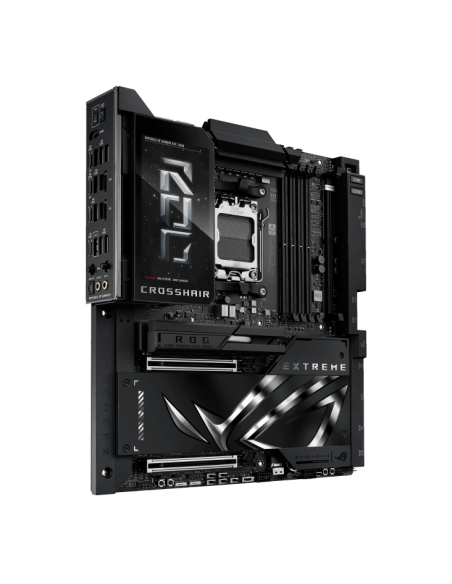

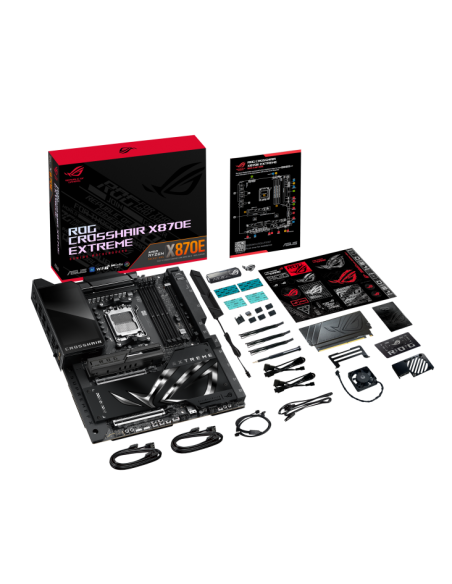

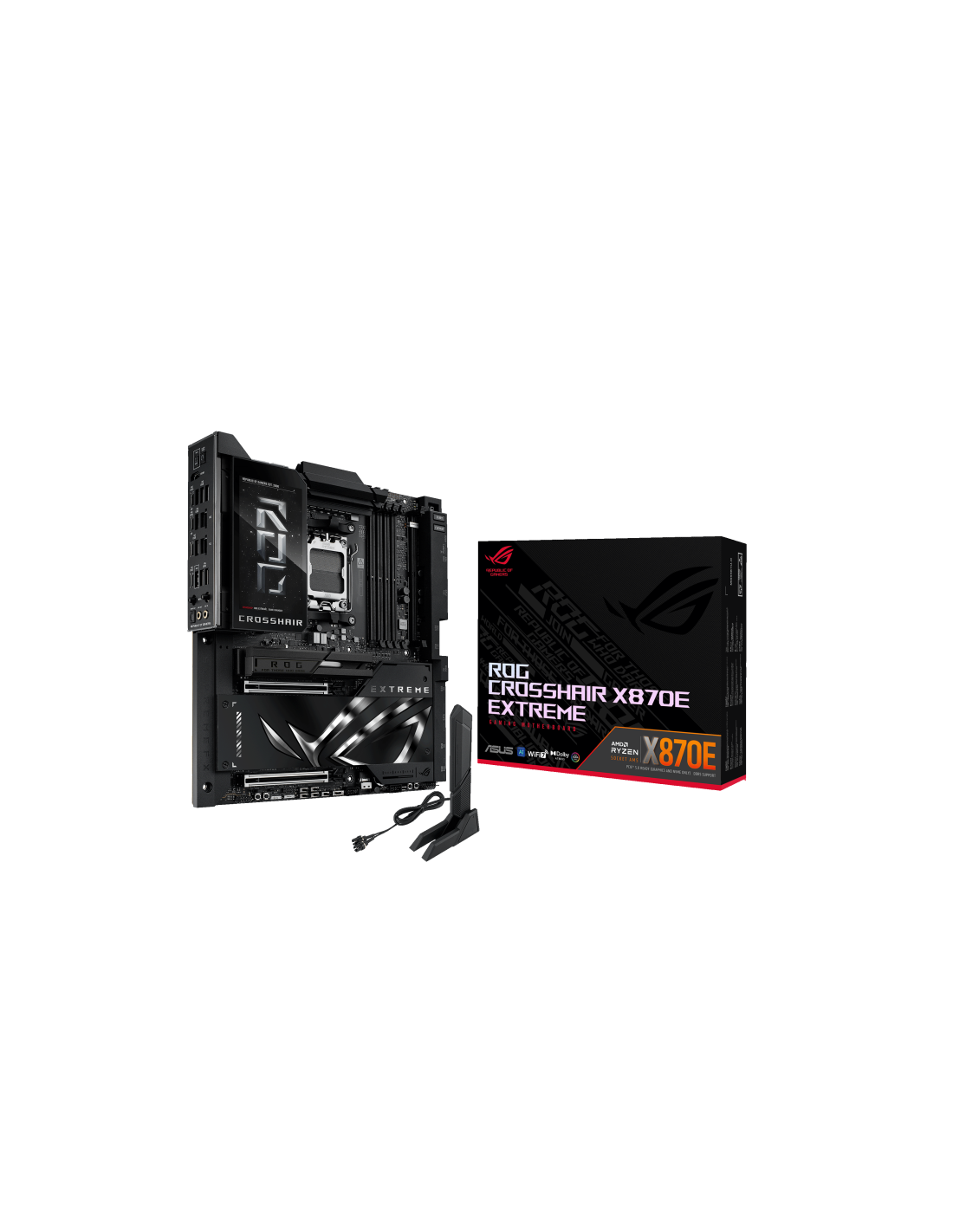

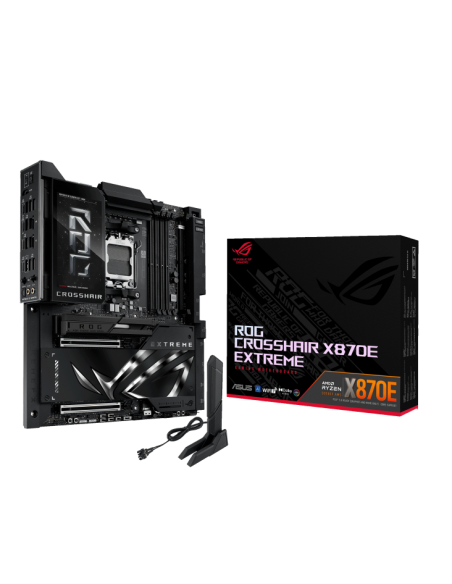

ASUS ROG CROSSHAIR X870E EXTRE
90MB1LB0-M0EAY0
На склад
1 152,54 €
С вкл. данък
90MB1LB0-M0EAY0_MO
- Connectors
- Fan and Cooling related;
1 x 4-pin CPU Fan header;
1 x 4-pin CPU OPT Fan header;
2 x 4-pin Chassis Fan headers;
2 x 4-pin Radiator Fan headers;
2 x W_PUMP+ headers;
1 x VRM Heatsink Fan header;
Power related;
1 x 24-pin Main Power connector;
2 x 8-pin +12 - Memory type
- 4 x DIMM slots, max. 256GB, DDR5;
Supports up to;
8200+MT/s(OC) with Ryzen™ 9000 Series Processors,;
9000+MT/s(OC) with Ryzen™ 8000 Series Processors,;
8000+MT/s(OC) with Ryzen™ 7000 Series Processors,;
ECC and Non-ECC, Un-buffered DIMM;
Dual Channel - OS
- Windows® 11
- Graphics
- 1 x HDMITM port;
2 x USB4® (40Gbps) ports support USB Type-C® display outputs - RAID
- AMD RAIDXpert2 Technology;
Ryzen™ 9000 Series Processors: RAID 0/1/5/10;
Ryzen™ 8000 Series Processors: RAID 0/1;
Ryzen™ 7000 Series Processors: RAID 0/1/10 - Vendor_url
- https://rog.asus.com/motherboards/rog-crosshair/rog-crosshair-x870e-extreme/
- Chipset
- AMD X870E
- Manufacturer
- ASUS
- Storage
- Supports up to 5 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports;
AMD Ryzen™ 9000 & 7000 Series Desktop Processors;
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode);
M.2_2 slot (Key M), type 2242/2260/2280 (supports - Form Factor
- E-ATX Form Factor;
30.5 cm x 27.7 cm - Audio
- ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*;
- Impedance sense for front and rear headphone outputs;
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking;
- High quality 120 dB SNR stereo playback output - Socket
- Socket AM5
- USB
- Rear USB (Total 12 ports);
2 x USB4® (40Gbps) ports (2 x USB Type-C®);
10 x USB 10Gbps ports (8 x Type-A + 2 x USB Type-C®);
Front USB (Total 10 ports);
1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)*;
1 x USB 10Gbps connector (sup - Wireless
- Wi-Fi 7*;
2x2 Wi-Fi 7 (802.11be);
Supports 2.4/5/6GHz frequency band**;
Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate.;
Bluetooth® v5.4***;
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require - CPU's supported
- AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
- BIOS
- 2 x 256 Mb Flash ROM, UEFI AMI BIOS

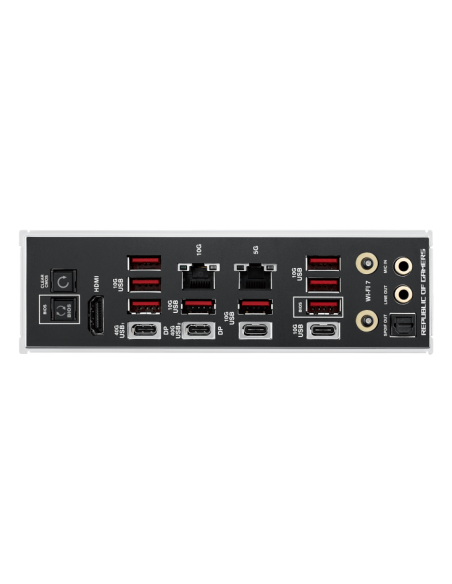

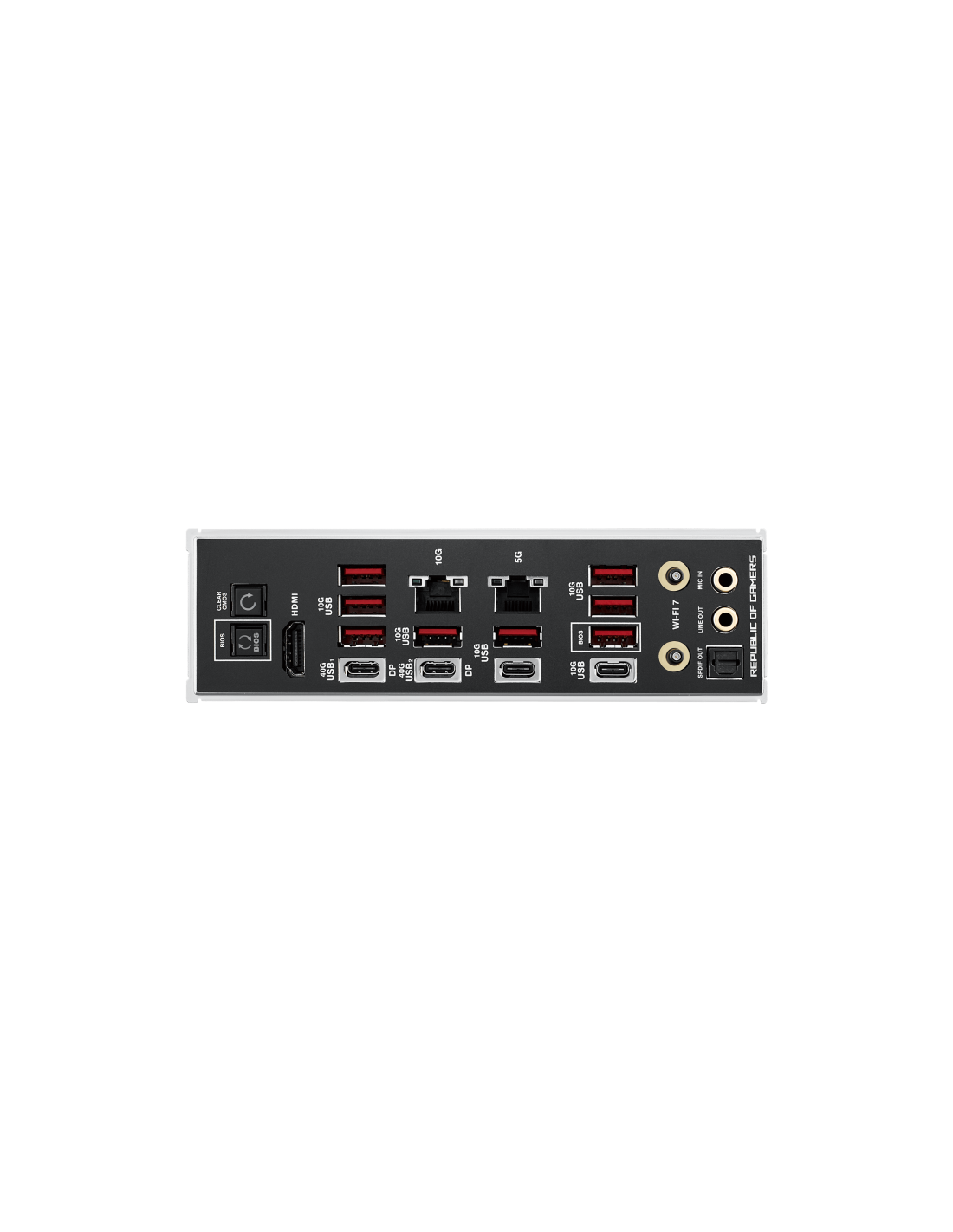

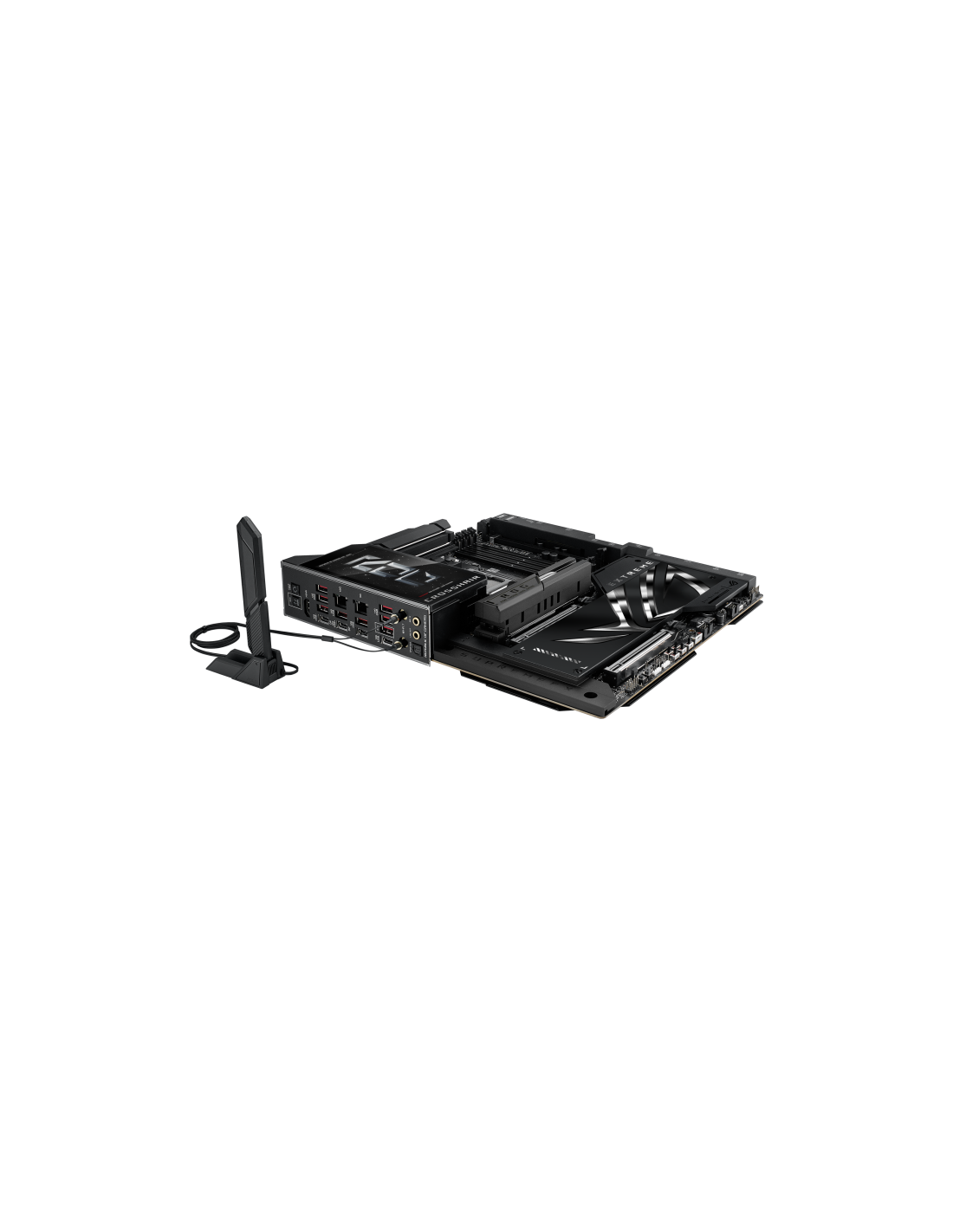

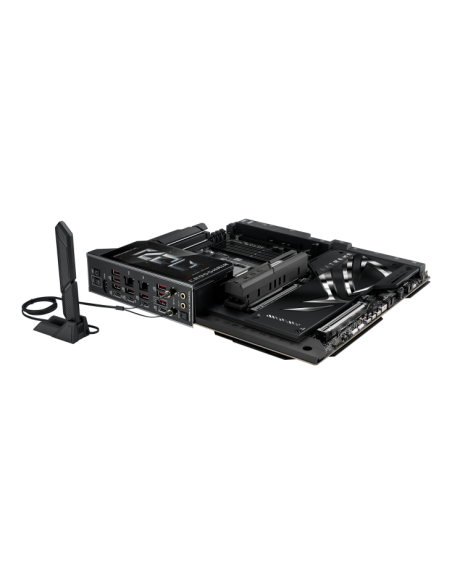

- Rear panel I/O
- 2 x USB4® (40Gbps) ports (2 x USB Type-C®);
10 x USB 10Gbps ports (8 x Type-A + 2 x USB Type-C®);
1 x HDMITM port;
1 x Wi-Fi Module;
1 x Realtek 5Gb Ethernet port;
1 x Marvell® AQtion 10Gb Ethernet port;
2 x LED-illuminated audio jacks;
1 x Optical S/PDIF - Expansion Slots
- AMD Ryzen™ 9000 & 7000 Series Desktop Processors;
2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes);
AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors;
2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PC - LAN
- 1 x Realtek 5Gb Ethernet;
1 x Marvell® AQtion 10Gb Ethernet;
ASUS LANGuard - Дънна платка - сокет
- AM5
- Дънна платка - чипсет
- AMD X870E
- Дънна платка - поддържан тип памет
- DDR5
- Дънна платка - брой слотове за памет
- 4 бр
- Дънна платка - честота на паметта
- 7000 MHz
8000 MHz
8200 MHz
9000 MHz - Дънна платка - интерфейси
- M.2 (NVMe) конектор
M.2 (SATA) конектор
SATA 3.0 - Дънна платка - портове
- USB 3.2
USB 4.0 - Дънна платка - форм фактор
- Extended-ATX
