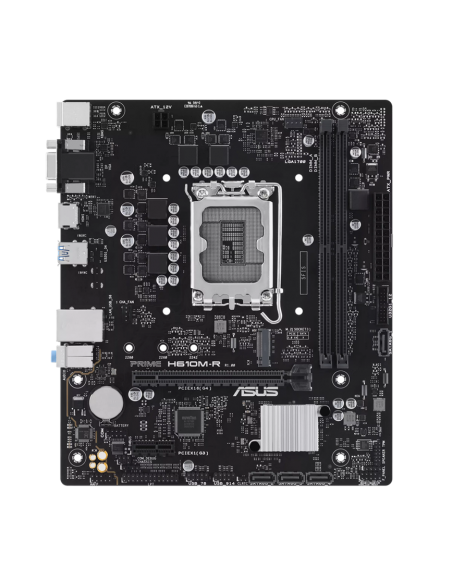

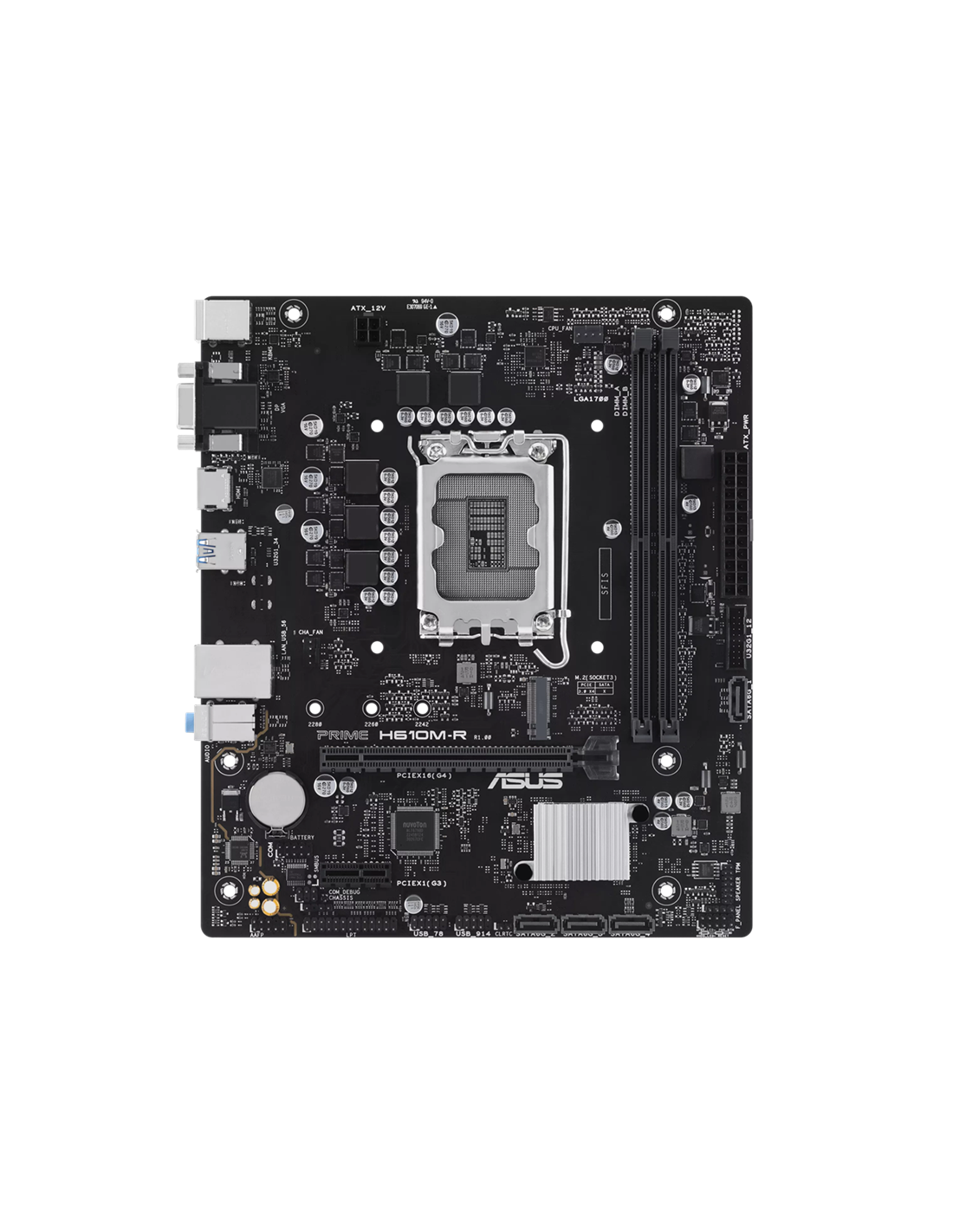

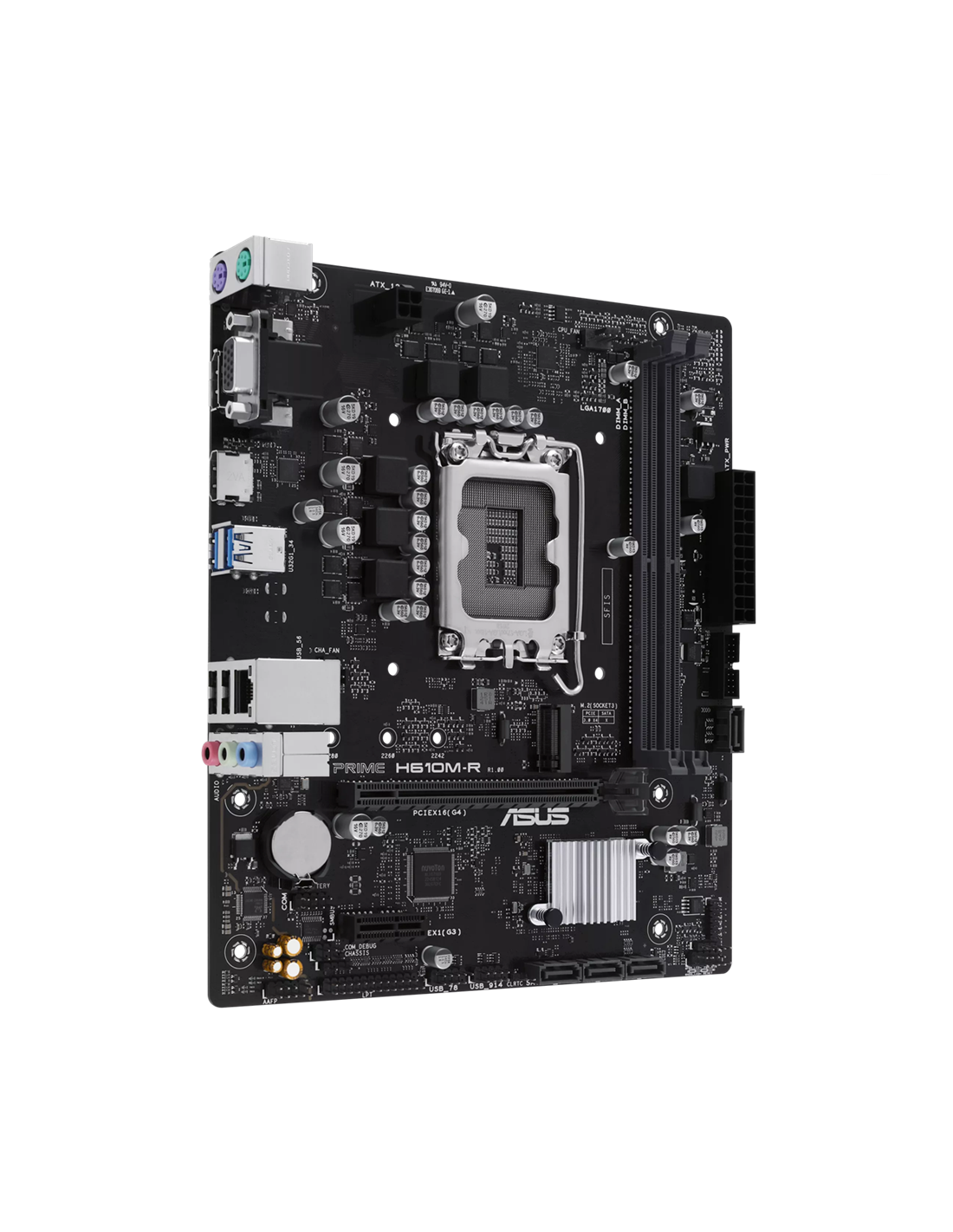

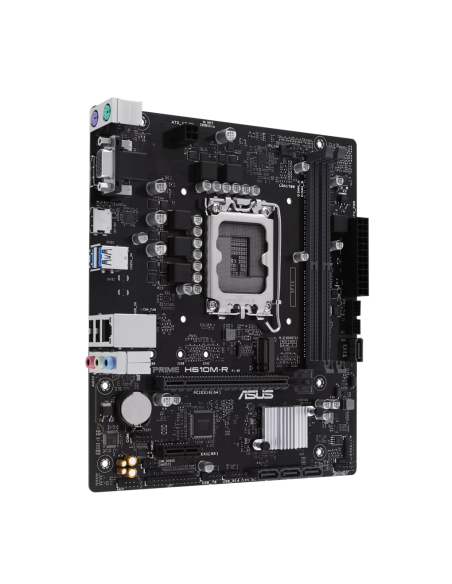

ASUS PRIME H610M-R-SI

Референция 90MB1GL0-M0ECY0

На склад

50,90 €

С вкл. данък

90MB1GL0-M0ECY0_MO

ASUS H610 2xDDR5 4xSATA3 RAID HDMI DP VGA 1xM2 GLAN 1xPCIEx16 1xPCIEx1

Vendor_url: https://www.asus.com/motherboards-components/motherboards/prime/prime-h610m-r/
CPU's supported: Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors;Supports up to Intel® 65W CPU;Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
Expansion Slots: Intel® Core™ Processors (14th & 13th & 12th Gen): 1 x PCIe 4.0 x16 slot;Intel® H610 Chipset: 1 x PCIe 3.0 x1 slot
LAN: 1 x Realtek 1Gb Ethernet
Connectors: Fan and Cooling related;1 x 4-pin CPU Fan header;1 x 4-pin Chassis Fan header;Power related;1 x 24-pin Main Power connector;1 x 4-pin +12V Power connector;Storage related;1 x M.2 slot (Key M);4 x SATA 6Gb/s ports;USB;1 x USB 3.2 Gen 1(5G) header supports
Memory type: 2 x DIMM, Max. 96GB, DDR5 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory;Dual Channel Memory Architecture;Supports Intel® Extreme Memory Profile (XMP)
OS: Windows® 11 64-bit, Windows® 10 64-bit
Graphics: 1 x DisplayPort;1 x VGA port;1 x HDMITM port
USB: Rear USB (Total 4 ports);2 x USB 3.2 Gen 1(5G) ports (2 x Type-A);2 x USB 2.0 ports (2 x Type-A);Front USB (Total 6 ports);1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports;2 x USB 2.0 headers support additional 4 USB 2.0 ports

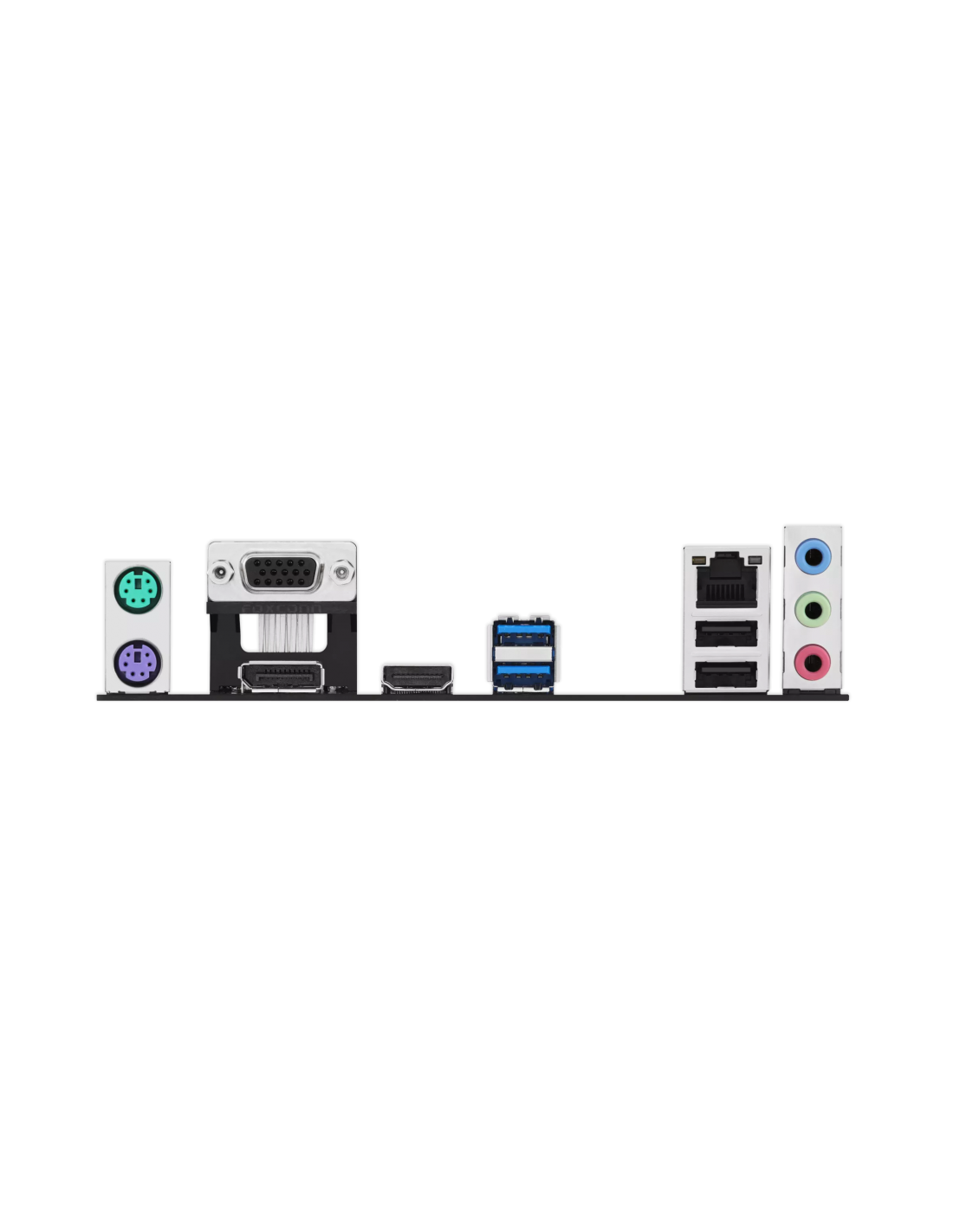

Rear panel I/O: 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A);2 x USB 2.0 ports (2 x Type-A);1 x DisplayPort;1 x VGA port;1 x HDMITM port;1 x Realtek 1Gb Ethernet port;3 x Audio jacks;1 x PS/2 Keyboard (purple) port;1 x PS/2 Mouse (green) port
Chipset: Intel® H610 Chipset
Manufacturer: ASUS
Storage: Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports;Intel® H610 Chipset;M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode);4 x SATA 6Gb/s ports
Form Factor: mATX Form Factor, 22.6 cm x 19.5 cm
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB layer
Warranty: 36 Months
Дънна платка - сокет: LGA1700
Дънна платка - чипсет: INTEL H610
Дънна платка - поддържан тип памет: DDR5
Дънна платка - честота на паметта: 4800 MHz
5000 MHz
5200 MHz
5400 MHz
5600 MHz
Дънна платка - интерфейси: M.2 (NVMe) конектор
M.2 (SATA) конектор
SATA 3.0
Дънна платка - портове: Display Port
USB 2.0
USB 3.2
VGA
Дънна платка - форм фактор: Micro ATX
