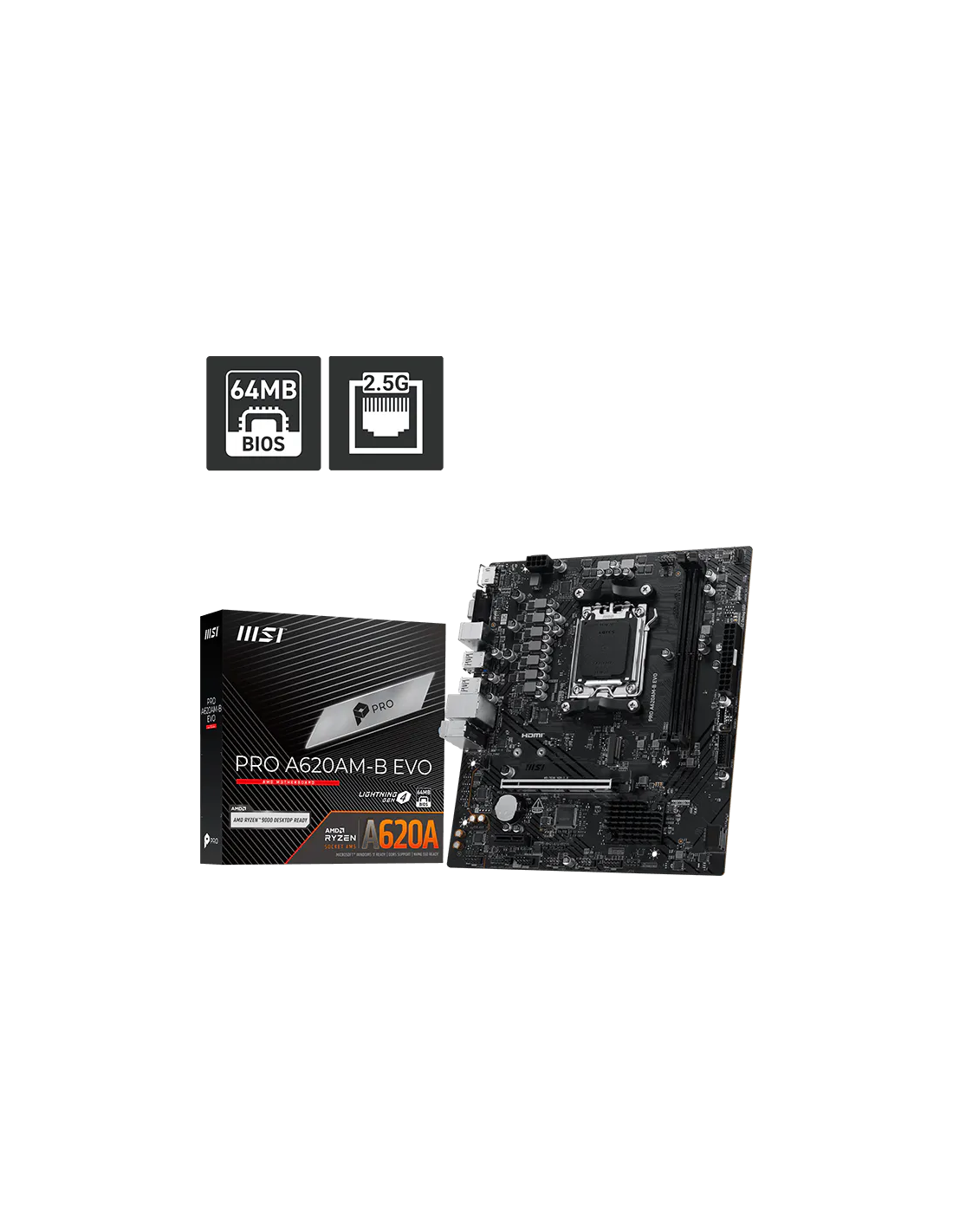

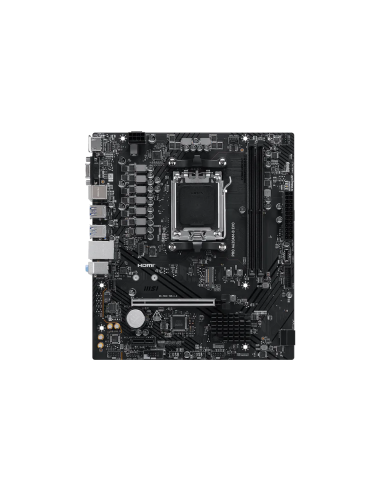

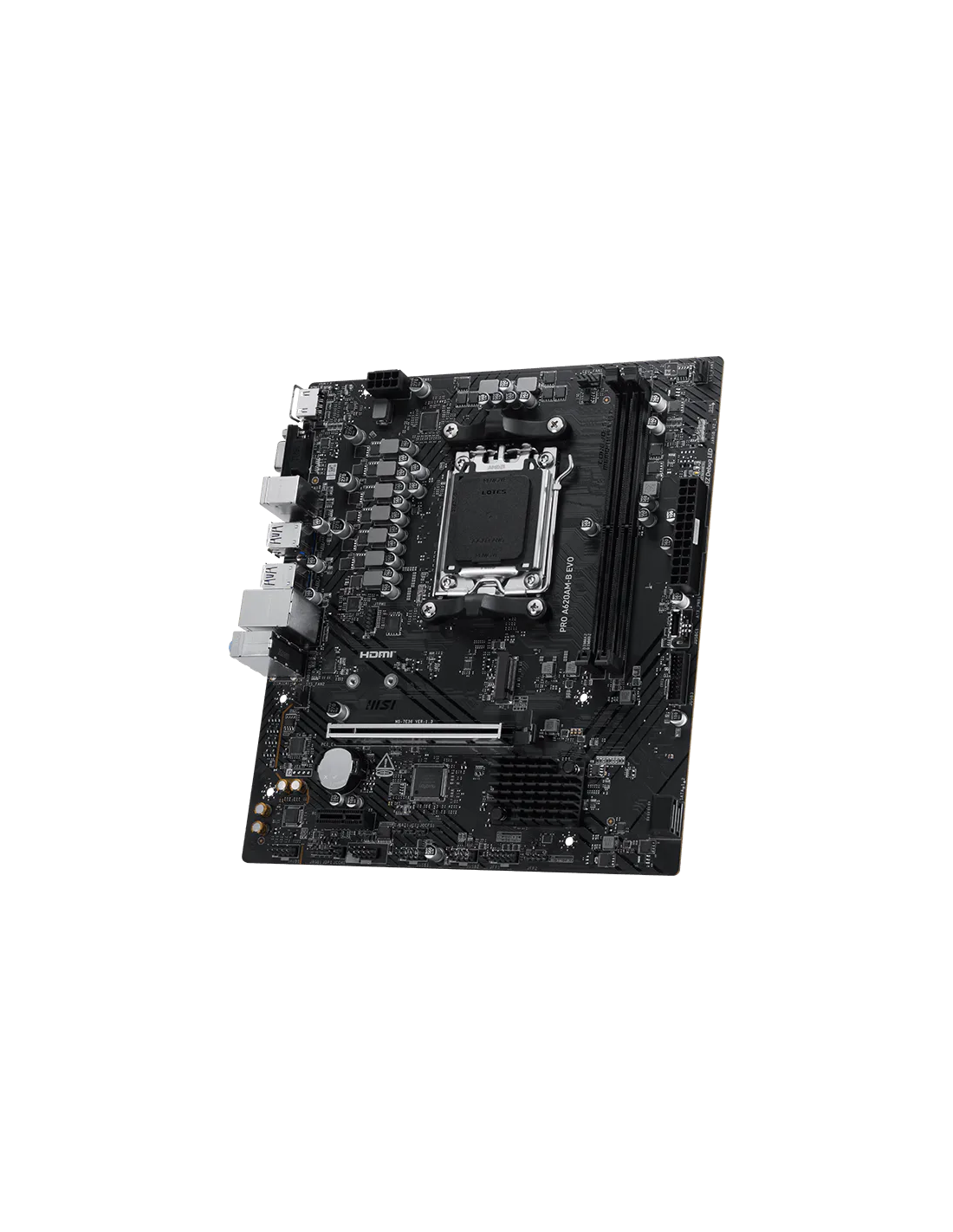

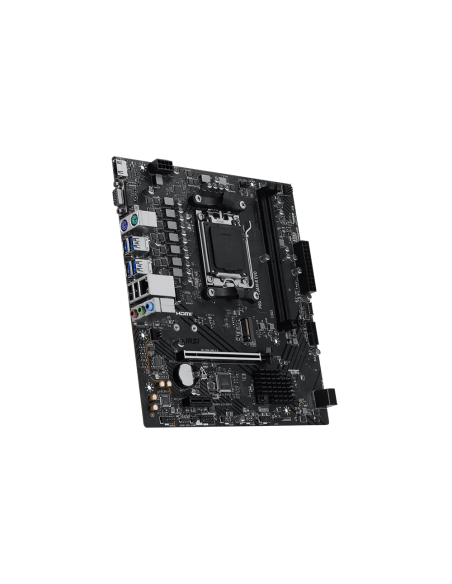

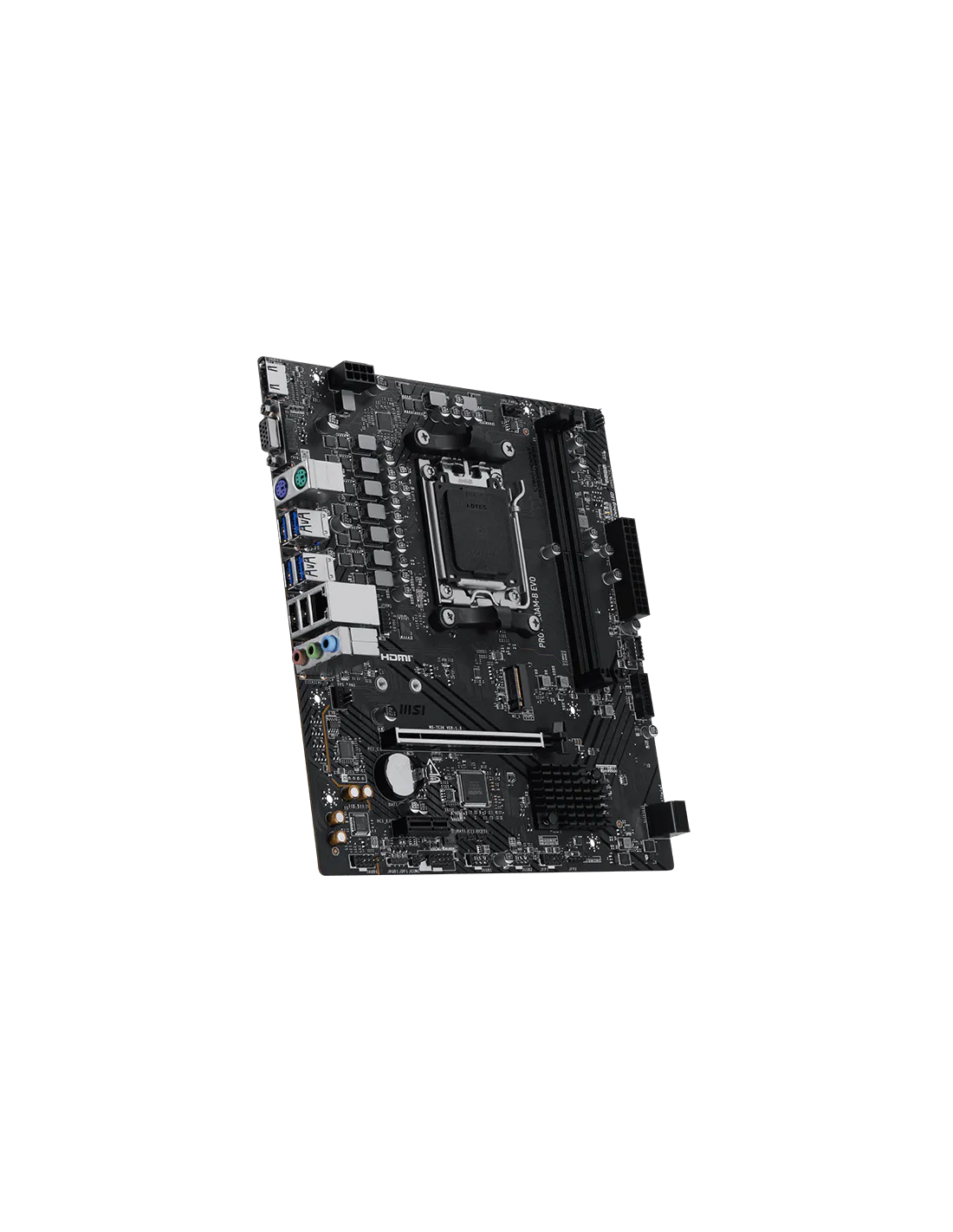

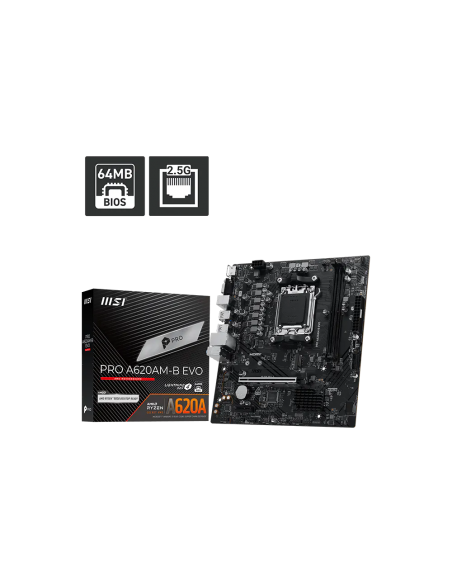

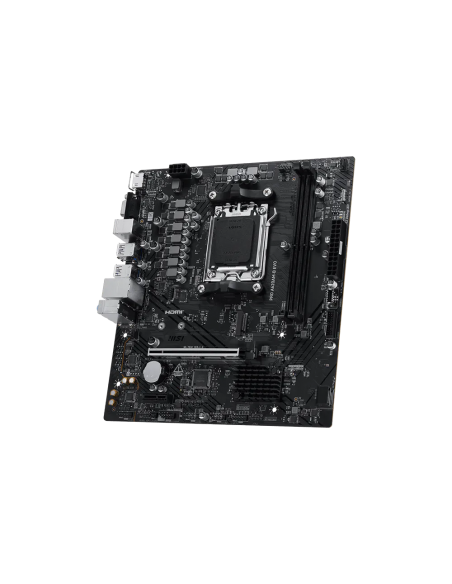

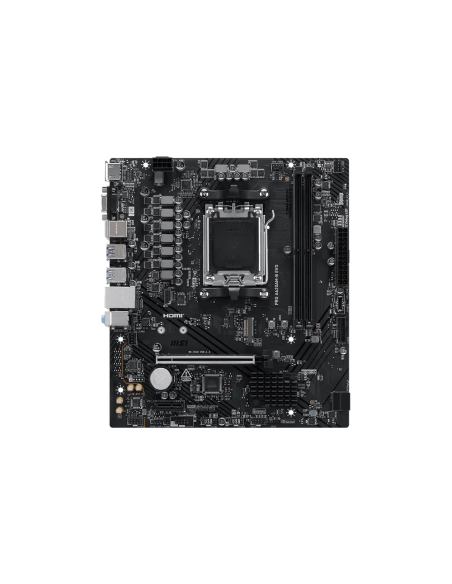

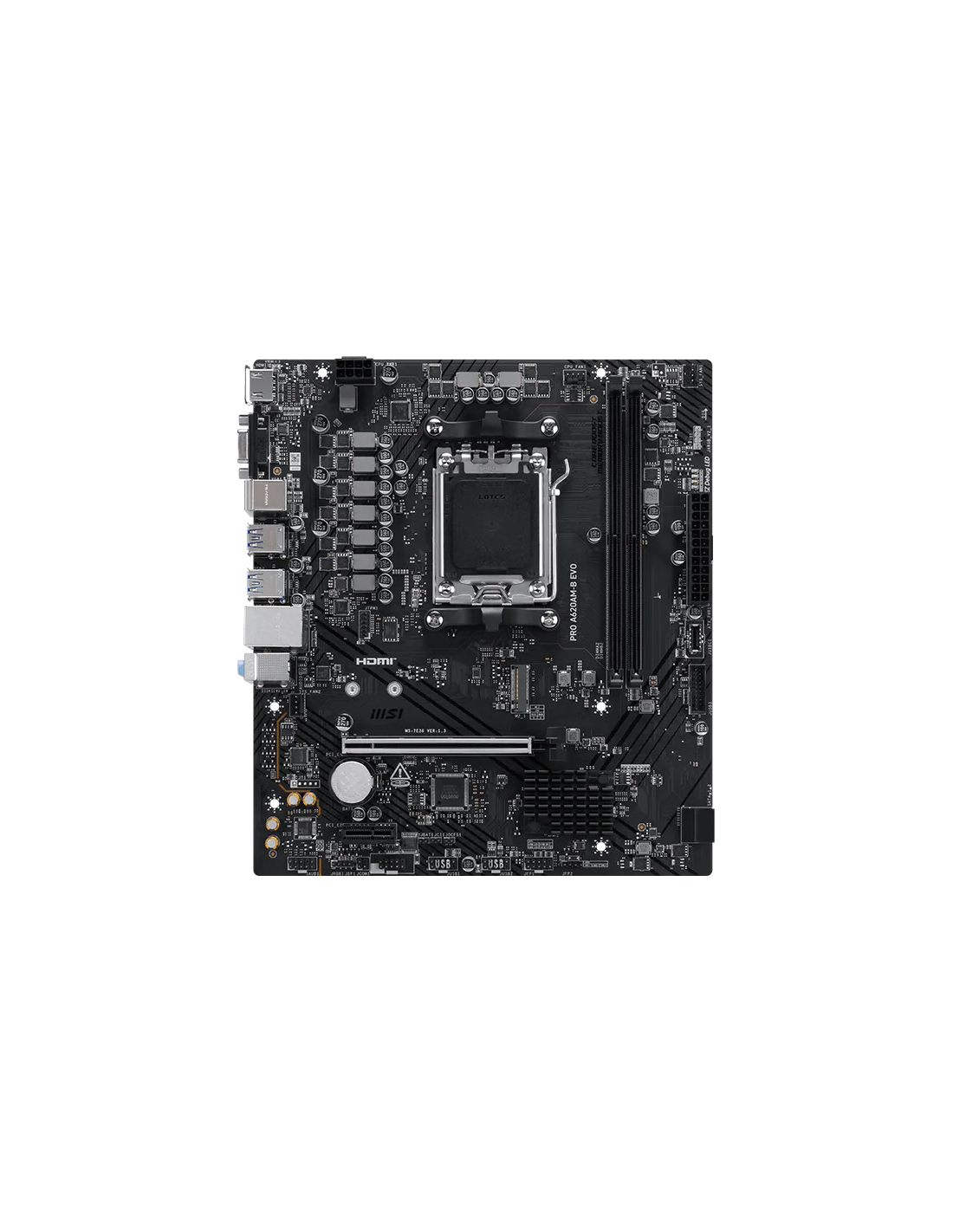

MSI PRO A620AM-B EVO

Референция 911-7E36-001

На склад

76,61 €

С вкл. данък

911-7E36-001_MO

_MO

Audio: Realtek® ALC897 Codec;
7.1-Channel High Definition Audio
Socket: Socket AM5
USB: 2x USB 2.0 (Rear);
4x USB 2.0 (Front);
4x USB 5Gbps Type A (Rear);
2x USB 5Gbps Type A (Front);
1x USB 5Gbps Type C (Front)
Other: 4x EZ Debug LED;
1x EZ Memory Detection LED
CPU's supported: Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Manufacturer: MSI
Vendor_url: https://www.msi.com/Motherboard/PRO-A620AM-B-EVO/Specification
Expansion Slots: 1x PCI-E x16 slot;
• Supports x16 (For Ryzen™ 9000 and 7000 Series processors);
• Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors);
• Supports x4 (For Ryzen™ 8500/ 8300 Series processors);
1x PCI-E x1 slot;
PCI_E1 Gen PCIe 4.0 supports up to x1
Memory type: 2x DDR5, Maximum Memory Capacity 128GB;
Memory Support DDR5 6800 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s;
Max. overclocking frequency:;
• 1DPC 1R Max speed up to 6800+ MT/s;
• 1DPC 2R Max speed up to 6000+ MT/s;

Supports AMD POR Speed and JEDEC Speed
Connectors: 1x Power Connector(ATX_PWR);
1x Power Connector(CPU_PWR);
1x CPU Fan;
2x System Fan;
2x Front Panel (JFP);
1x Chassis Intrusion (JCI);
1x Front Audio (JAUD);
1x Com Port (JCOM);
1x Addressable V2 RGB LED connector (JARGB_V2);
1x RGB LED connector(JRGB);
1
Warranty: 36 Months
OS: Support for Windows® 11 64-bit, Windows® 10 64-bit
Graphics: 1x HDMI™;
Support HDMITM 2.1, maximum resolution of 4K 60Hz;
1x VGA;
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
RAID: Supports RAID 0 and RAID 1 for SATA storage devices
Model: PRO A620AM-B EVO
Chipset: AMD A620A
LAN: Realtek® RTL8125 2.5G LAN

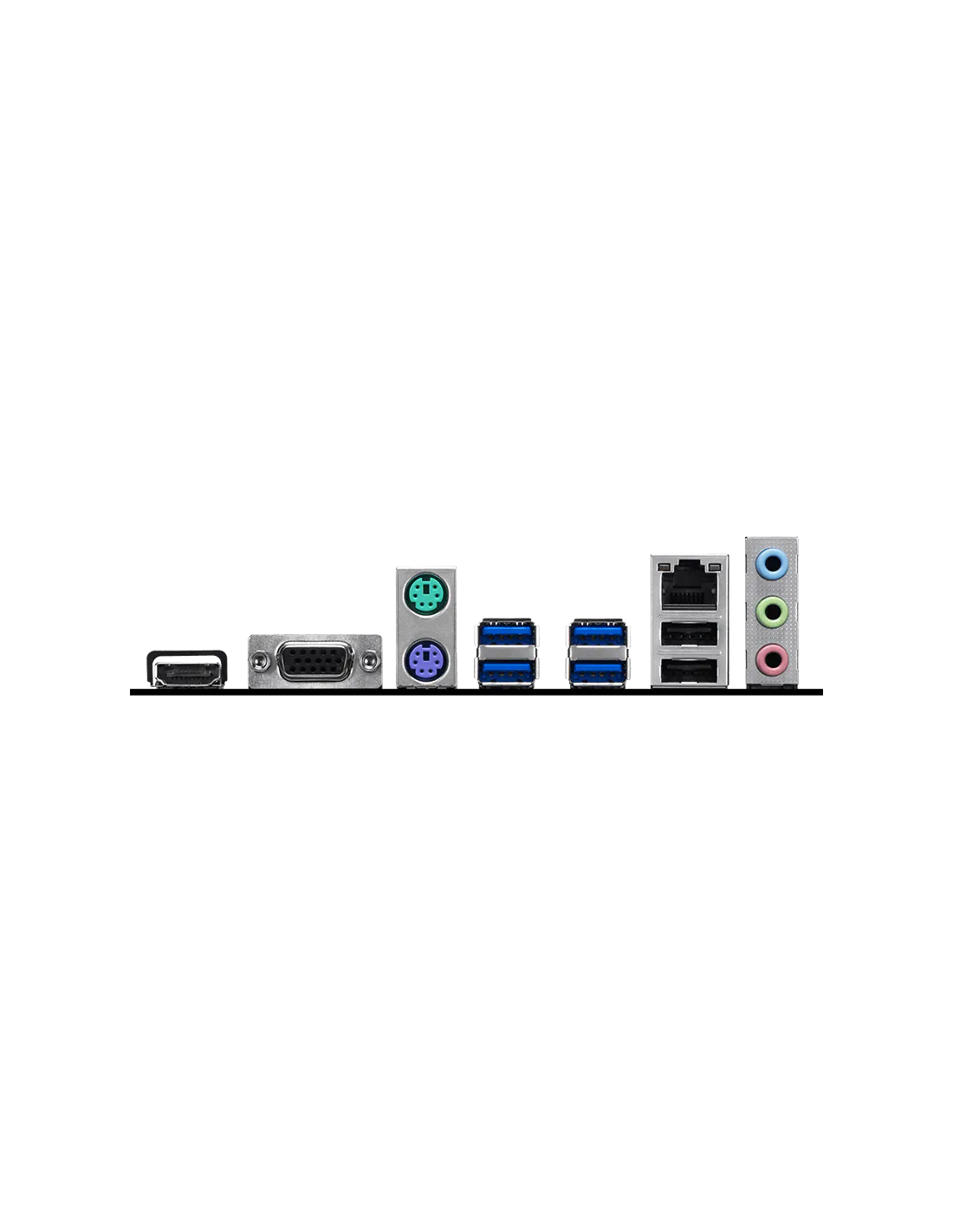

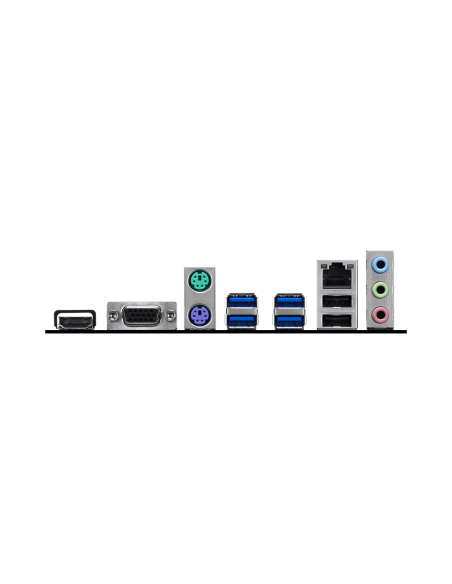

Rear panel I/O: HDMI™;
VGA;
Keyboard/Mouse;
USB 5Gbps Type-A;
LAN port;
Audio connectors;
USB 2.0
Storage: 1x M.2;
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices;
2x SATA 6G;

M2_1 slot;
• Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors);
• Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300
Dimensions: mATX
218mmx243.84mm
Дънна платка - чипсет: AMD A620A
Дънна платка - поддържан тип памет: DDR5
Дънна платка - честота на паметта: 4800 MHz
5600 MHz
6000 MHz
6800 MHz
Дънна платка - интерфейси: M.2 (NVMe) конектор
SATA 3.0
Дънна платка - портове: HDMI
USB 2.0
USB 3.2
VGA
