2x M.2;
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices;
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices;
4x SATA 6G;
M2_2 slot;
• Supports up to PCIe 4.0 x4;
• Supports up to PCIe 4.0 x2 (F
Dimensions
mATX
226mmx243.84mm
OS
Support for Windows® 11 64-bit
Socket
Socket AM5
USB
2x USB 2.0 (Rear);
4x USB 2.0 (Front);
4x USB 5Gbps Type A (Rear);
2x USB 5Gbps Type A (Front);
1x USB 5Gbps Type C (Front)

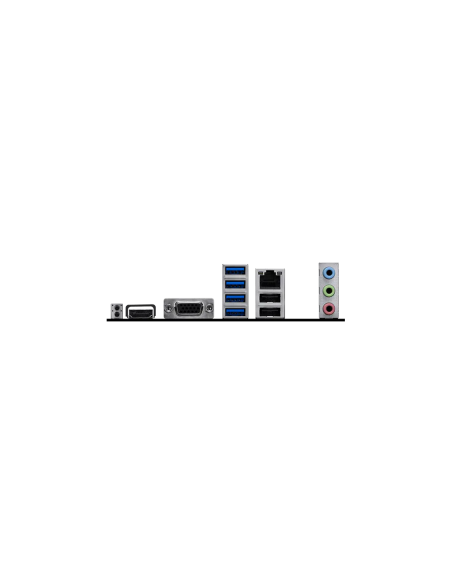

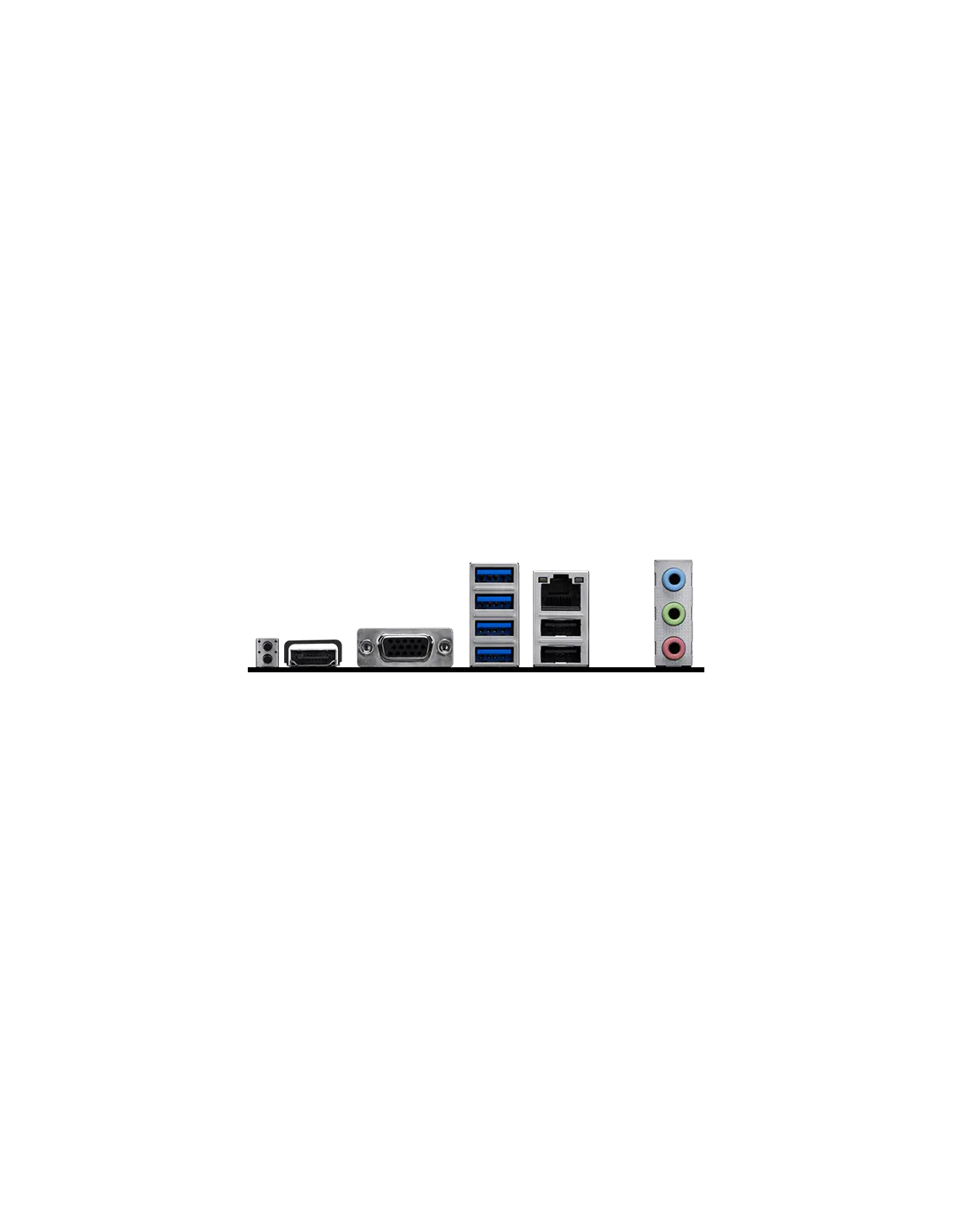

Rear panel I/O
1x Power Connector(ATX_PWR);
1x Power Connector(CPU_PWR);
1x CPU Fan;
2x System Fan;
2x Front Panel (JFP);
1x Chassis Intrusion (JCI);
1x Front Audio (JAUD);
1x Com Port (JCOM);
3x Addressable V2 RGB LED connector (JARGB_V2);
1x RGB LED connector(JRGB);
1
CPU's supported
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Manufacturer
MSI
Expansion Slots
1x PCI-E x16 slot;
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU);
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset);
