MSI MAG B860 TOMAHAWK WIFI

Референция 911-7E39-001

На склад

232,00 €

С вкл. данък

911-7E39-001_MO

MSI B860 4xDDR5 4xSATA3 RAID HDMI DP 3xM2 GLAN 2xPCIEx16 1xPCIEx1 WiFi

Form Factor: ATX, 243.84mmx304.8mm
Wireless: Intel® Killer™ BE1750x Wi-Fi 7;The Wireless module is pre-installed in the M.2 (Key-E) slot;Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps;Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Graphics: 1x HDMI™;Support HDMI™ 2.1 with FRL, maximum resolution of 8K 60Hz;1x DisplayPort;Support DisplayPort 1.4, maximum resolution of 4K 60Hz;1x Type-C DisplayPort;Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum res

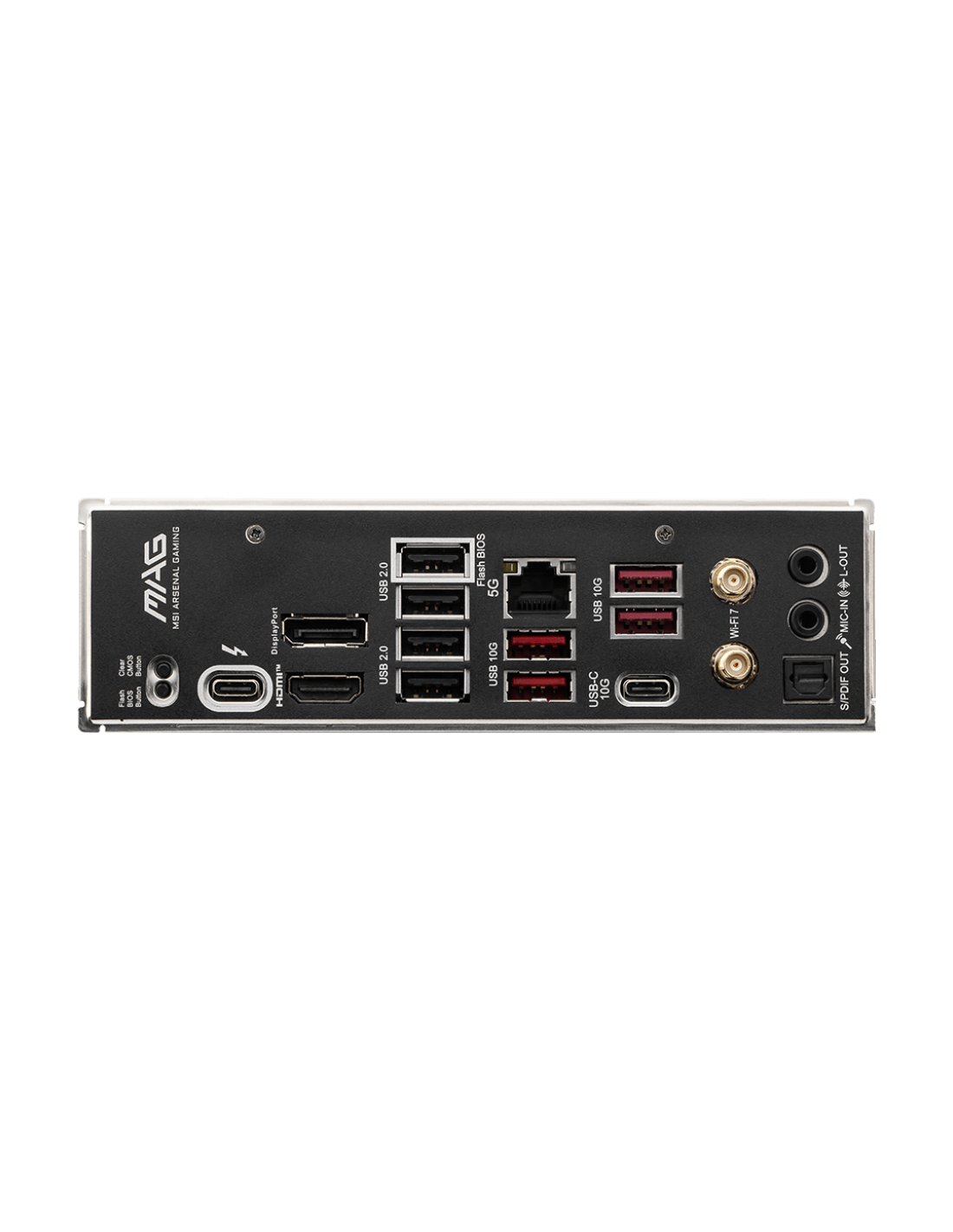

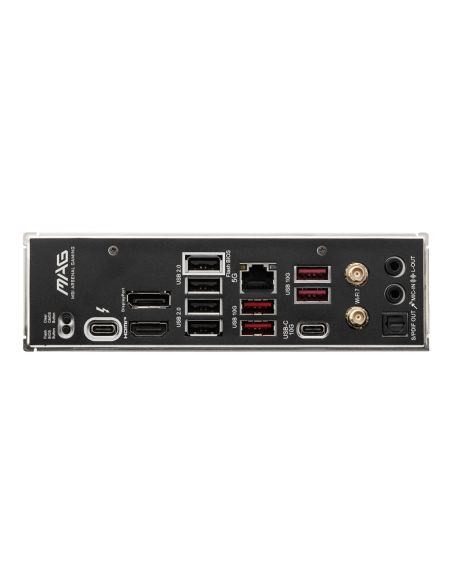

Rear panel I/O: Thunderbolt Resource CPU;1x Thunderbolt4 ports (Rear);Supports up to 40Gbps transfer rate with Thunderbolt devices;Supports up to 20Gbps transfer rate with USB4 devices;Supports up to 10Gbps transfer rate with USB 3.2 devices;Supports up to 5V/3A,15W powe
Expansion Slots: 2x PCI-E x16 slot;1x PCI-E x1 slot;PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU);PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset);PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Connectors: 1x Thunderbolt5 card connector(JTBT5, support RTD3);1x Power Connector(ATX_PWR);2x Power Connector(CPU_PWR);1x Power Connector(PCIE_PWR 8pin);1x CPU Fan;1x Combo Fan (Pump_Sys Fan);5x System Fan;1x EZ Conn-header (JAF_1);2x Front Panel (JFP);1x Chassis In
LAN: Intel® Killer™ E5000 5Gbps LAN
OS: Support for Windows® 11 64-bit
Memory type: 4x DDR5 UDIMM, Maximum Memory Capacity 256GB;Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s;Max. overclocking frequency:;• 1DPC 1R Max speed up to 9200+ MT/s;• 1DPC 2R Max speed up to 7200+ MT/s;• 2DPC 1R Max speed up to 6400+ MT/s;• 2DPC
Vendor_url: https://www.msi.com/Motherboard/MAG-B860-TOMAHAWK-WIFI/Overview
Chipset: INTEL B860
Storage: 3x M.2;M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices;M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260 devices;M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supp
Bluetooth: Supports Bluetooth® 5.4**, MLO, 4KQAM
Audio: Realtek® ALC897 Codec;7.1-Channel High Definition Audio;Supports S/PDIF output
Дънна платка - чипсет: INTEL B860
Дънна платка - поддържан тип памет: DDR5
Дънна платка - честота на паметта: 4800 MHz
6400 MHz
7200 MHz
9200 MHz
Дънна платка - интерфейси: M.2 (NVMe) конектор
SATA 3.0
Дънна платка - портове: USB 3.2
USB 4.0
Дънна платка - форм фактор: ATX
