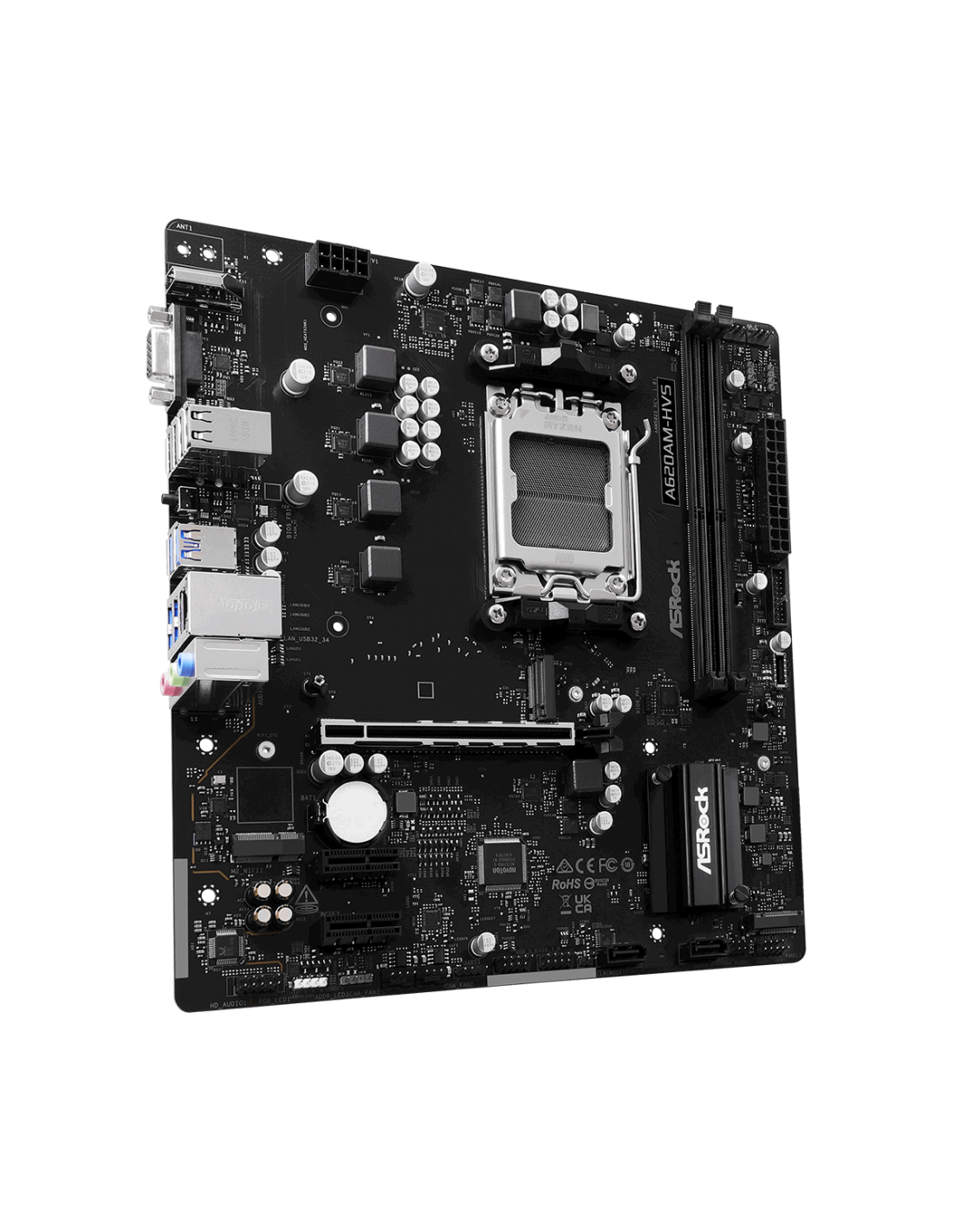

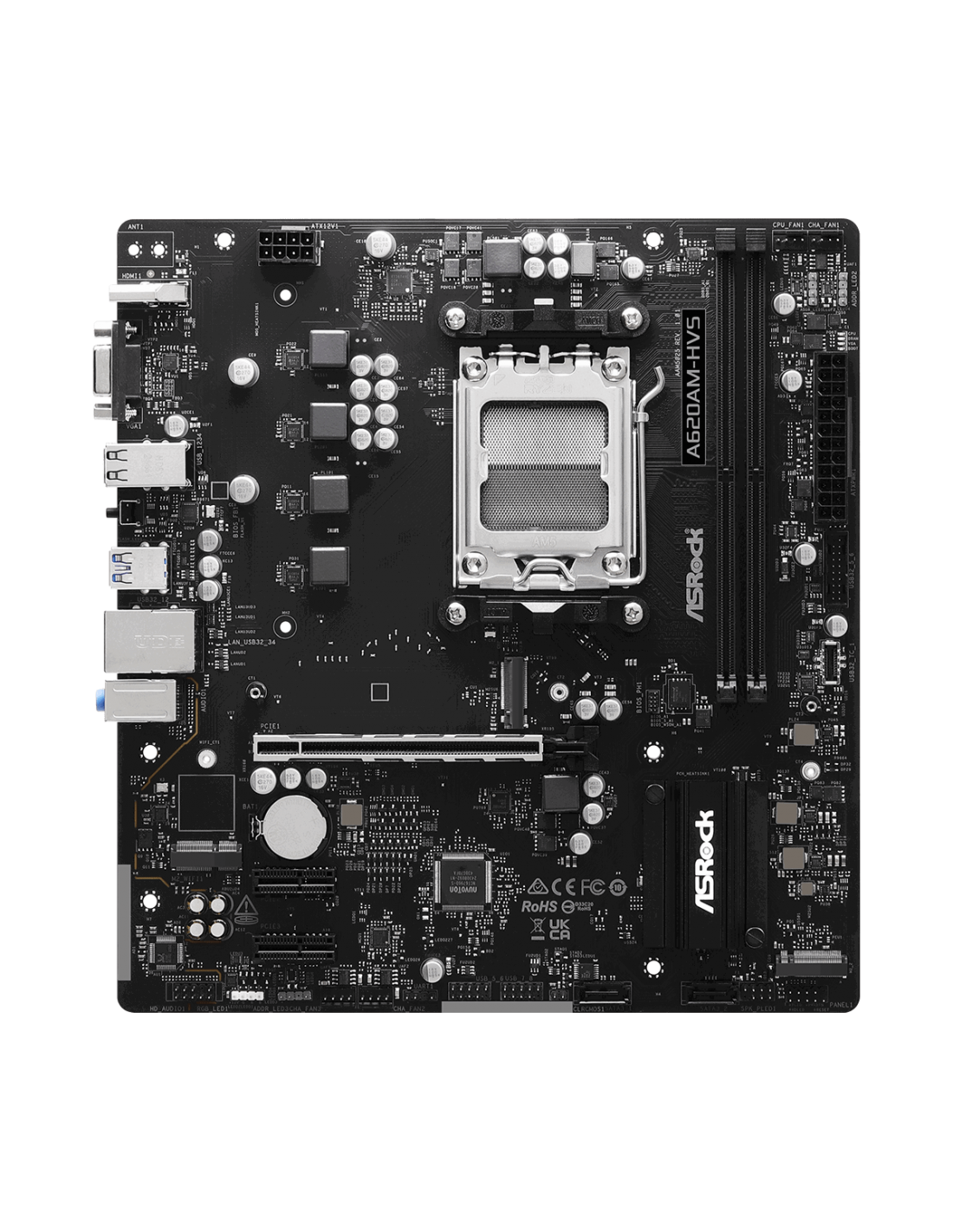

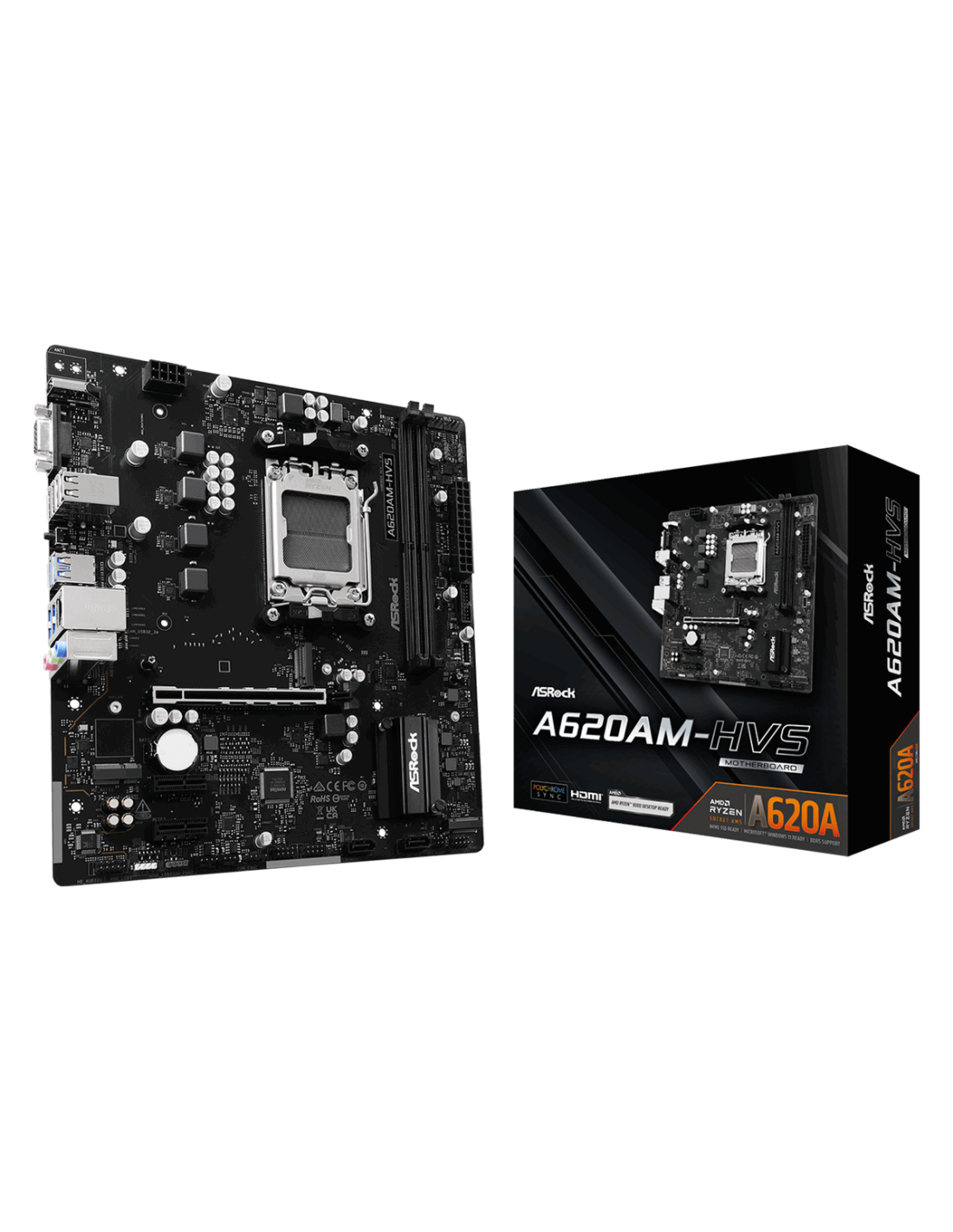

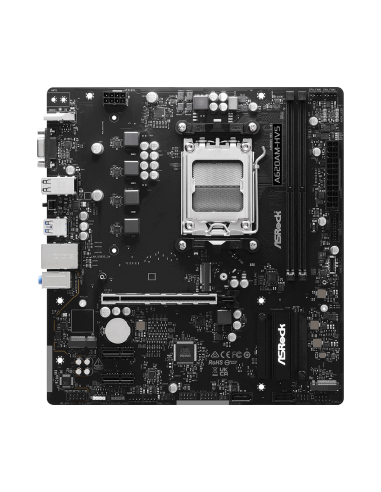

ASROCK A620AM-HVS

Референция A620AM-HVS

На склад

68,60 €

С вкл. данък

A620AM-HVS_MO

ASROCK A620 2xDDR5 4xSATA3 RAID HDMI VGA 1xM2 GLAN 1xPCIEx16 1xPCIEx1

Chipset: AMD A620A
Manufacturer: ASROCK
Storage: CPU:;- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode;Chipset:;- 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes;- 2 x SATA3 6.0 Gb/s Connectors;Supports RAID 0 an
Form Factor: Micro ATX Form Factor: 9.6-in x 9.0-in, 24.4 cm x 22.9 cm;2oz Copper PCB
Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Warranty: 36 Months
Vendor_url: https://www.asrock.com/mb/AMD/A620AM-HVS/index.asp
CPU's supported: Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
BIOS: 256Mb AMI UEFI Legal BIOS with GUI support
Expansion Slots: CPU:;- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode;Chipset:;- 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3);- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module;- 15μ Gold Contact in VGA PCIe Slot (PCIE1)
LAN: Gigabit LAN 10/100/1000 Mb/s;Realtek RTL8111H
Connectors: 1 x Power LED and Speaker Header;1 x RGB LED Header;3 x Addressable LED Headers;1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control);3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control);1 x 24 pin ATX Power Connector;1 x 8 pin 12V Po
Memory type: Dual Channel DDR5 Memory Technology;2 x DDR5 DIMM Slots;Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC);Max. capacity of system memory: 128GB;Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
OS: Microsoft Windows® 10 64-bit / 11 64-bit
Graphics: Integrated AMD RDNA™ graphics (Actual support may vary by CPU);- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz;- 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz
USB: CPU:;- 3 x USB 3.2 Gen1 Type-A (Rear (USB32_2 and USB32_34));Chipset:;- 1 x USB 3.2 Gen1 Type-C (Front);- 3 x USB 3.2 Gen1 Type-A (1 Rear (USB32_1), 2 Front);- 8 x USB 2.0 (4 Rear, 4 Front)

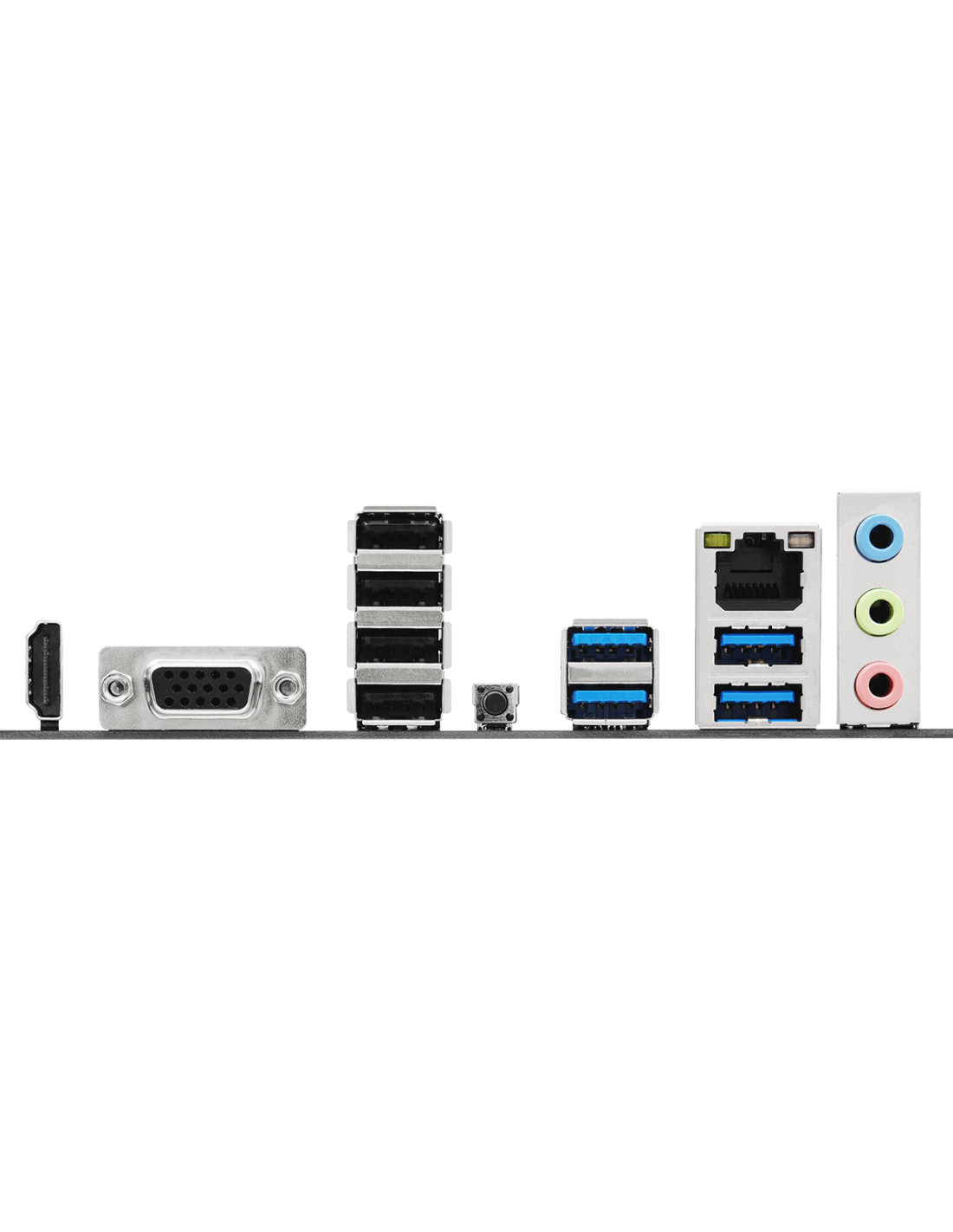

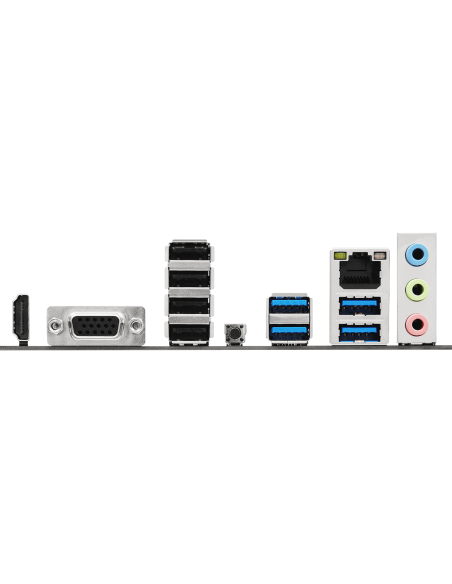

Rear panel I/O: 2 x Antenna Mounting Points;1 x D-Sub Port;1 x HDMI Port;4 x USB 3.2 Gen1 Type-A Ports;4 x USB 2.0 Ports;1 x RJ-45 LAN Port;1 x BIOS Flashback Button;HD Audio Jacks: Line in / Front Speaker / Microphone
Дънна платка - сокет: AM5
Дънна платка - чипсет: AMD A620A
Дънна платка - поддържан тип памет: DDR5
Дънна платка - брой слотове за памет: 2 бр
Дънна платка - честота на паметта: 6800 MHz
Дънна платка - интерфейси: M.2 (NVMe) конектор
SATA 3.0
Дънна платка - портове: HDMI
USB 2.0
USB 3.2
VGA
Дънна платка - форм фактор: Micro ATX

No reviews
