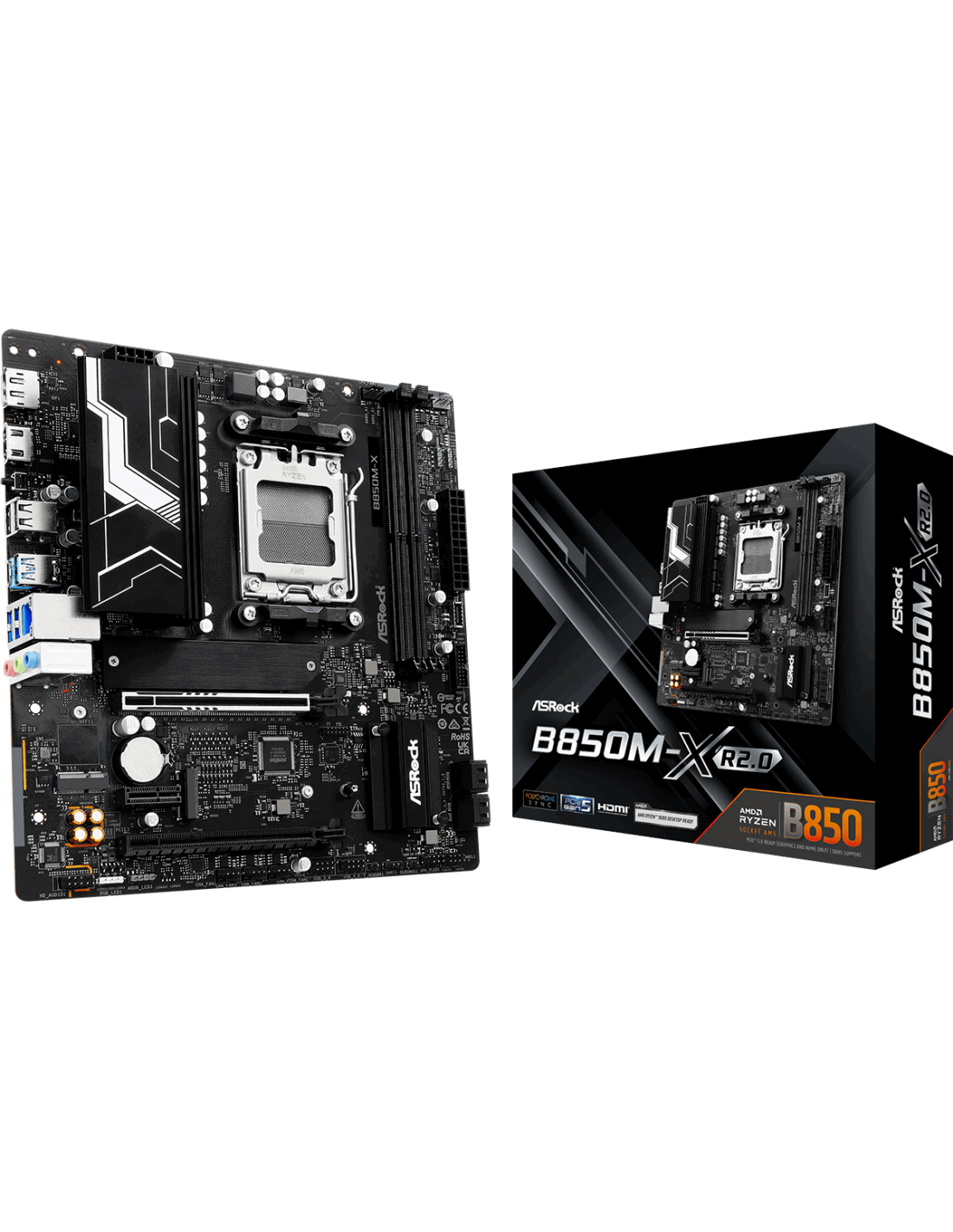

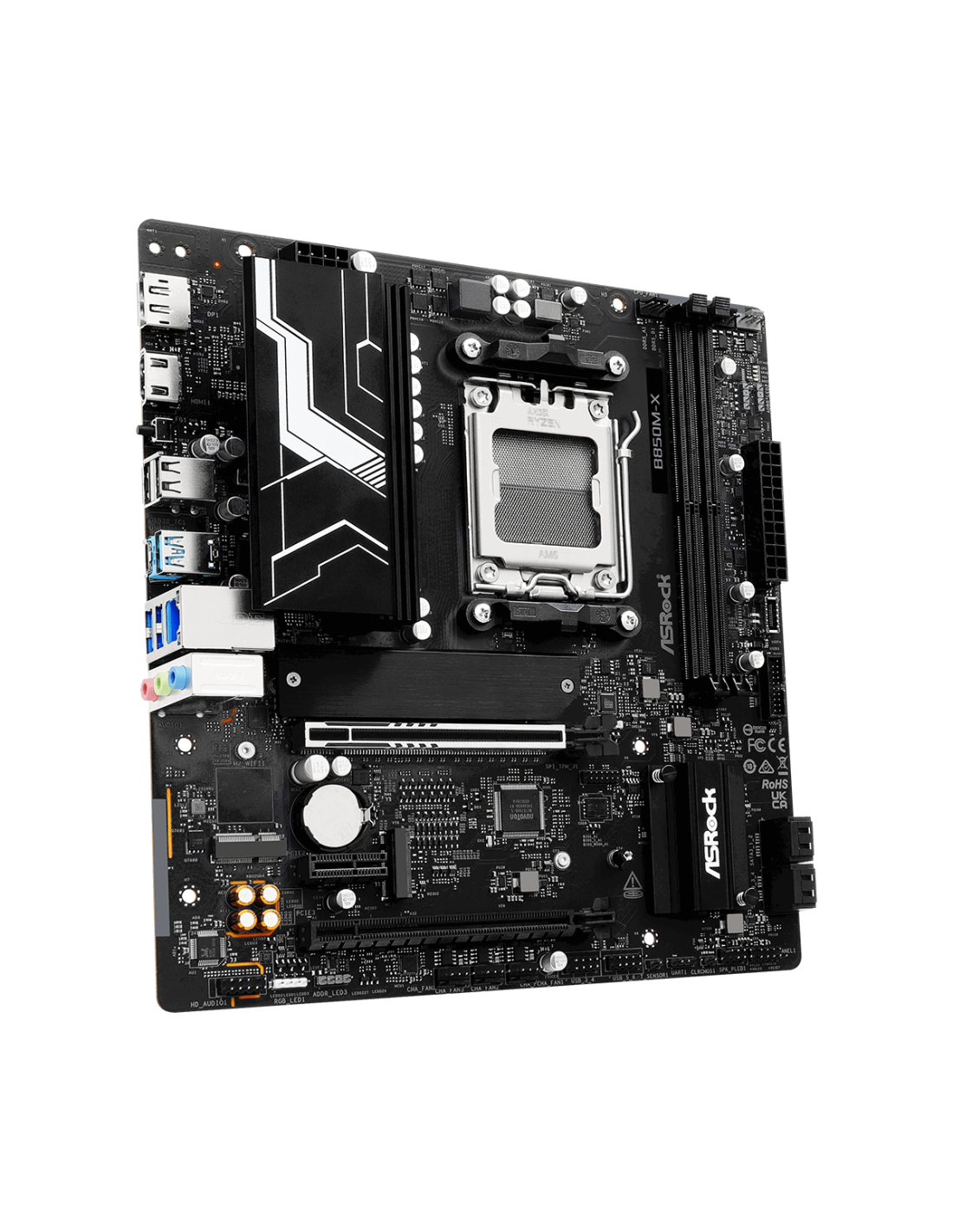

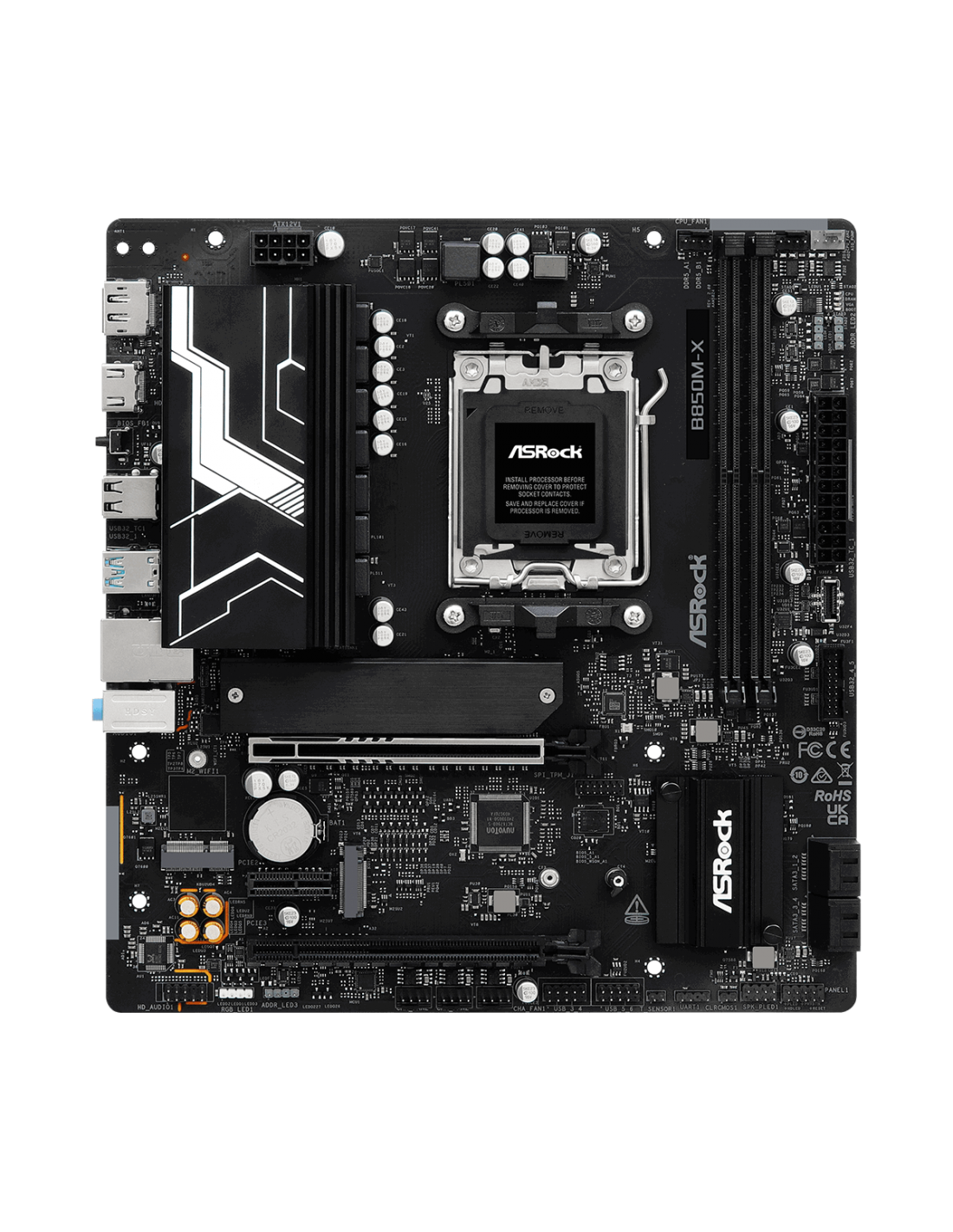

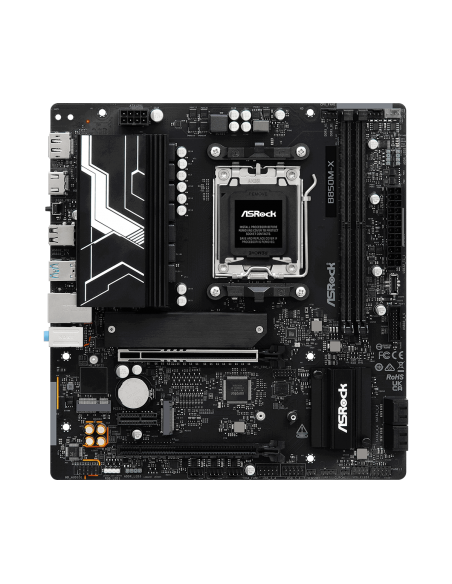

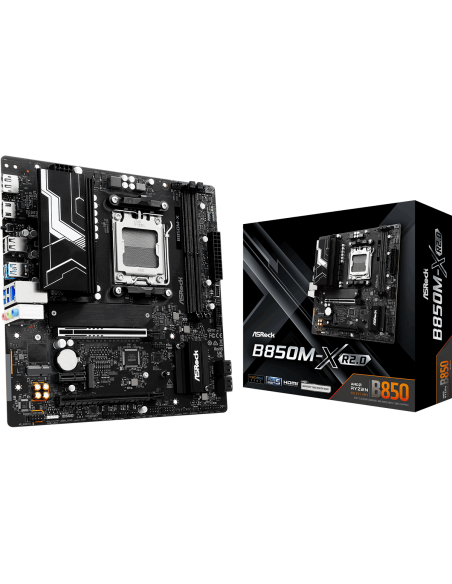

ASROCK B850M-X R2.0

Референция B850M-X R2.0

На склад

104,49 €

С вкл. данък

B850M-X R2.0_MO

ASROCK B850 2xDDR5 4xSATA3 RAID HDMI DP 2xM2 GLAN 2xPCIEx16 1xPCIEx1

Warranty: 36 Months
Other: Software;- ASRock Motherboard Utility (A-Tuning);- ASRock Dragon 2.5G LAN Software;- ASRock Polychrome SYNC;UEFI;- ASRock EZ Mode;- ASRock Full HD UEFI;- ASRock Auto Driver Installer;- ASRock Instant Flash
CPU's supported: Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
BIOS: 256Mb AMI UEFI Legal BIOS with GUI support

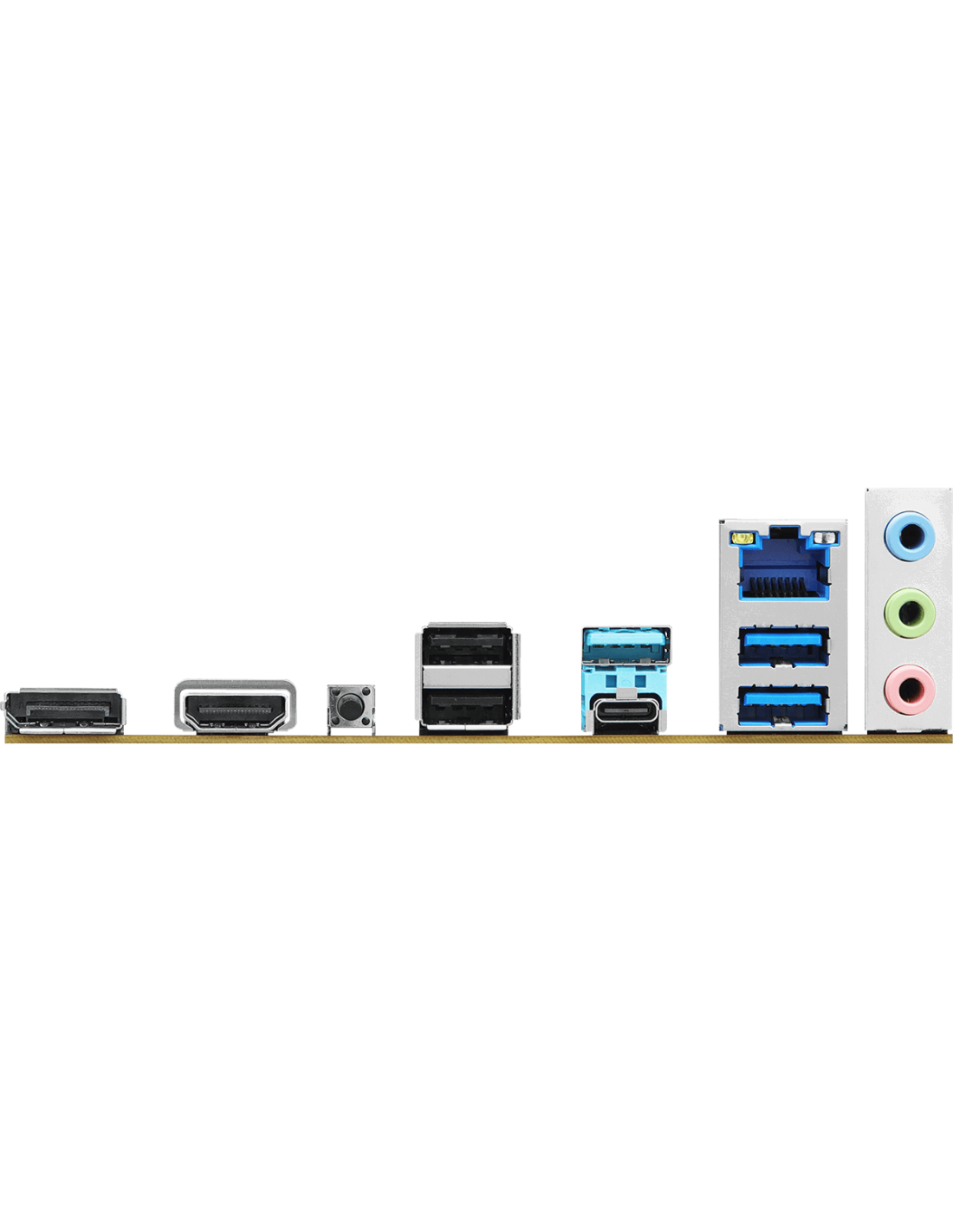

Rear panel I/O: 2 x Antenna Mounting Points;1 x HDMI Port;1 x DisplayPort 1.4;1 x USB 3.2 Gen1 Type-C Port;3 x USB 3.2 Gen1 Type-A Ports;2 x USB 2.0 Ports;1 x RJ-45 LAN Port;1 x BIOS Flashback Button;HD Audio Jacks: Line in / Front Speaker / Microphone
Expansion Slots: CPU:;- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode;Chipset:;- 1 x PCIe 4.0 x1 Slot (PCIE2);- 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode;- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
LAN: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s;Dragon RTL8125BG;Supports Dragon 2.5G LAN Software;Smart Auto Adjust Bandwidth Control;Visual User Friendly UI;Visual Network Usage Statistics;Optimized Default Setting for Game, Browser, and Streaming Modes;User Cust
Connectors: 1 x Thermistor Cable Header;1 x SPI TPM Header;1 x Power LED and Speaker Header;1 x RGB LED Header;3 x Addressable LED Headers;2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control);3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
Memory type: Dual Channel DDR5 Memory Technology;2 x DDR5 DIMM Slots;Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC);Max. capacity of system memory: 128GB;Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
OS: Microsoft Windows® 10 64-bit / 11 64-bit
Graphics: Integrated AMD RDNA™ graphics (Actual support may vary by CPU);- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz;- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120
USB: CPU:;- 3 x USB 3.2 Gen1 Type-A (Rear);- 1 x USB 2.0 (Rear (USB_2));Chipset:;- 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front);- 2 x USB 3.2 Gen1 Type-A (Front);- 5 x USB 2.0 (1 Rear (USB_1), 4 Front)
Vendor_url: https://www.asrock.com/MB/AMD/B850M-X%20R2.0/index.asp
Chipset: AMD B850
Manufacturer: ASROCK
Storage: CPU:;- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode;- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode;Chipset:;- 4 x SATA3 6.0 Gb/s Connectors;Supports RAID 0, RAID 1 and RAID
Form Factor: Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm
Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec);Nahimic Audio
Дънна платка - сокет: AM5
Дънна платка - чипсет: AMD B850
Дънна платка - поддържан тип памет: DDR5
Дънна платка - брой слотове за памет: 2 бр
Дънна платка - честота на паметта: 8200 MHz
Дънна платка - интерфейси: M.2 (NVMe) конектор
SATA 3.0
Дънна платка - портове: Display Port
HDMI
USB 2.0
USB 3.2
Дънна платка - форм фактор: Micro ATX

No reviews

С доставка 24 часа
