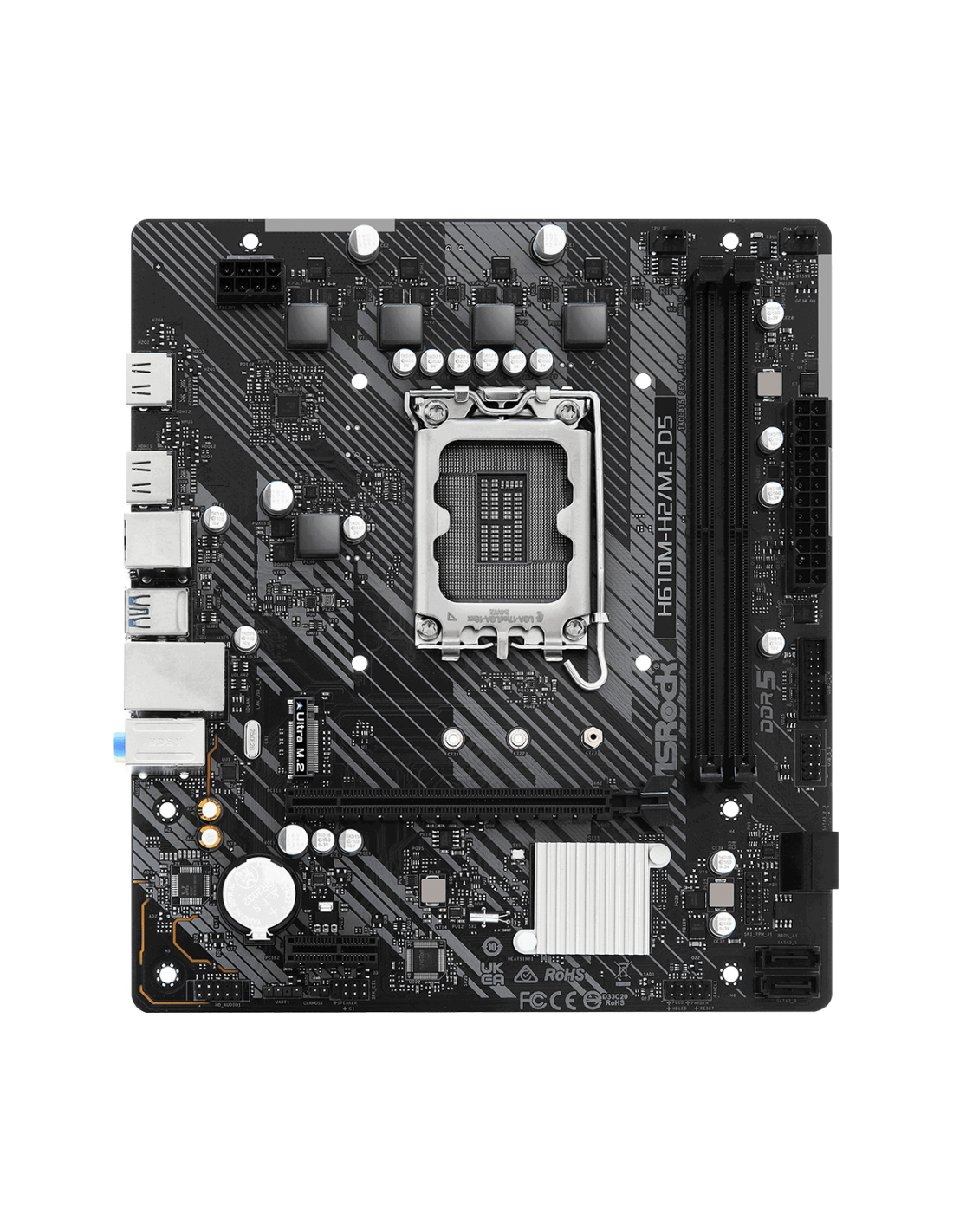

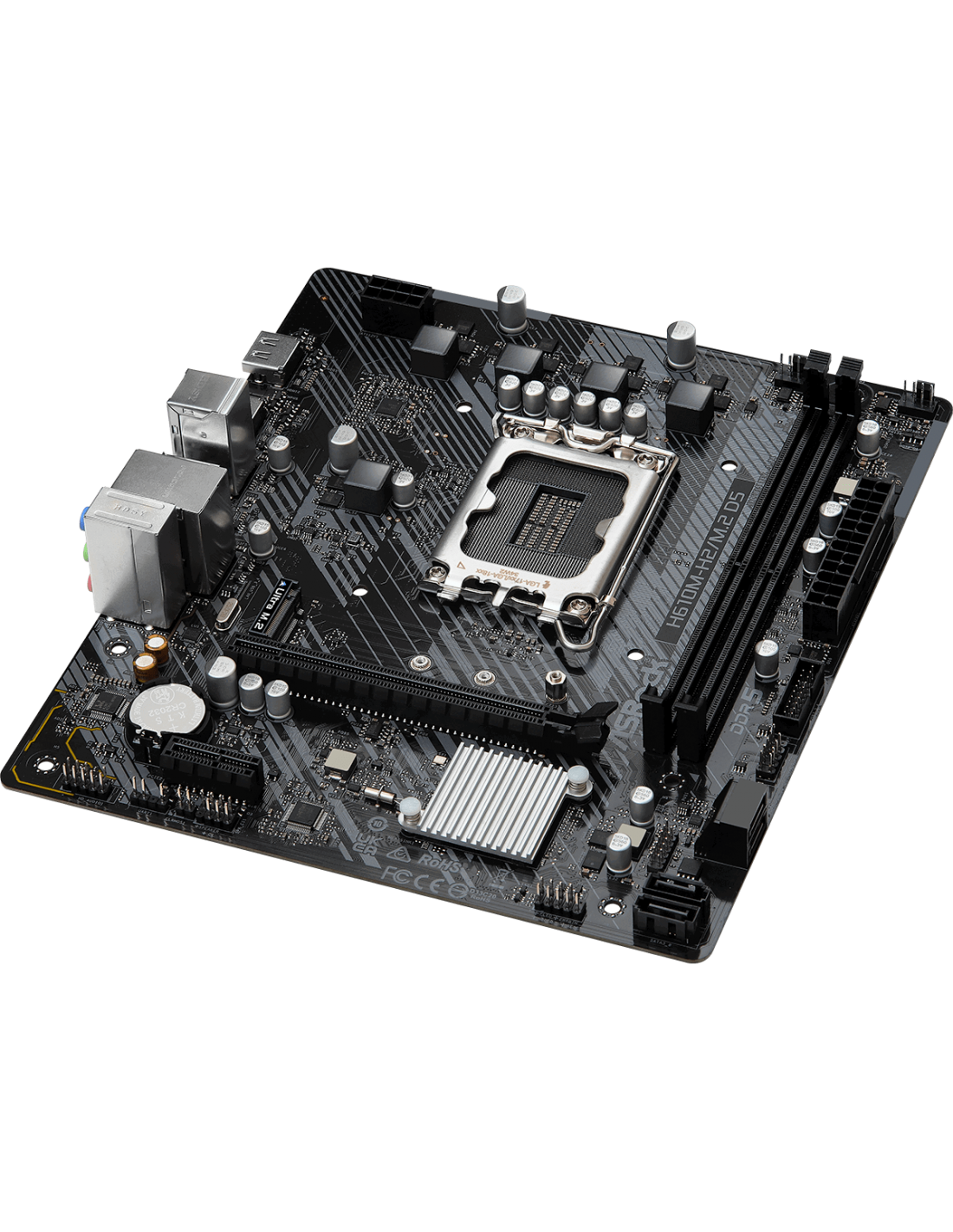

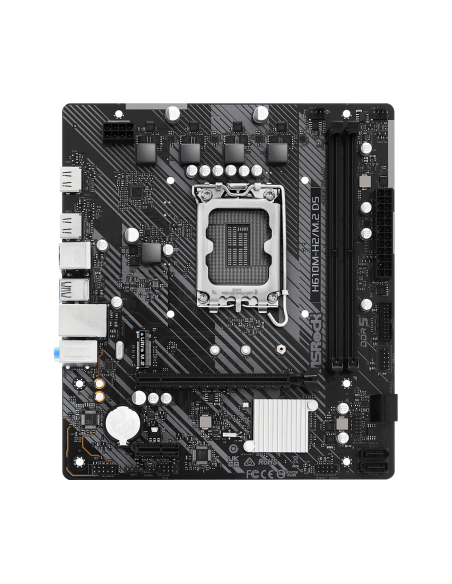

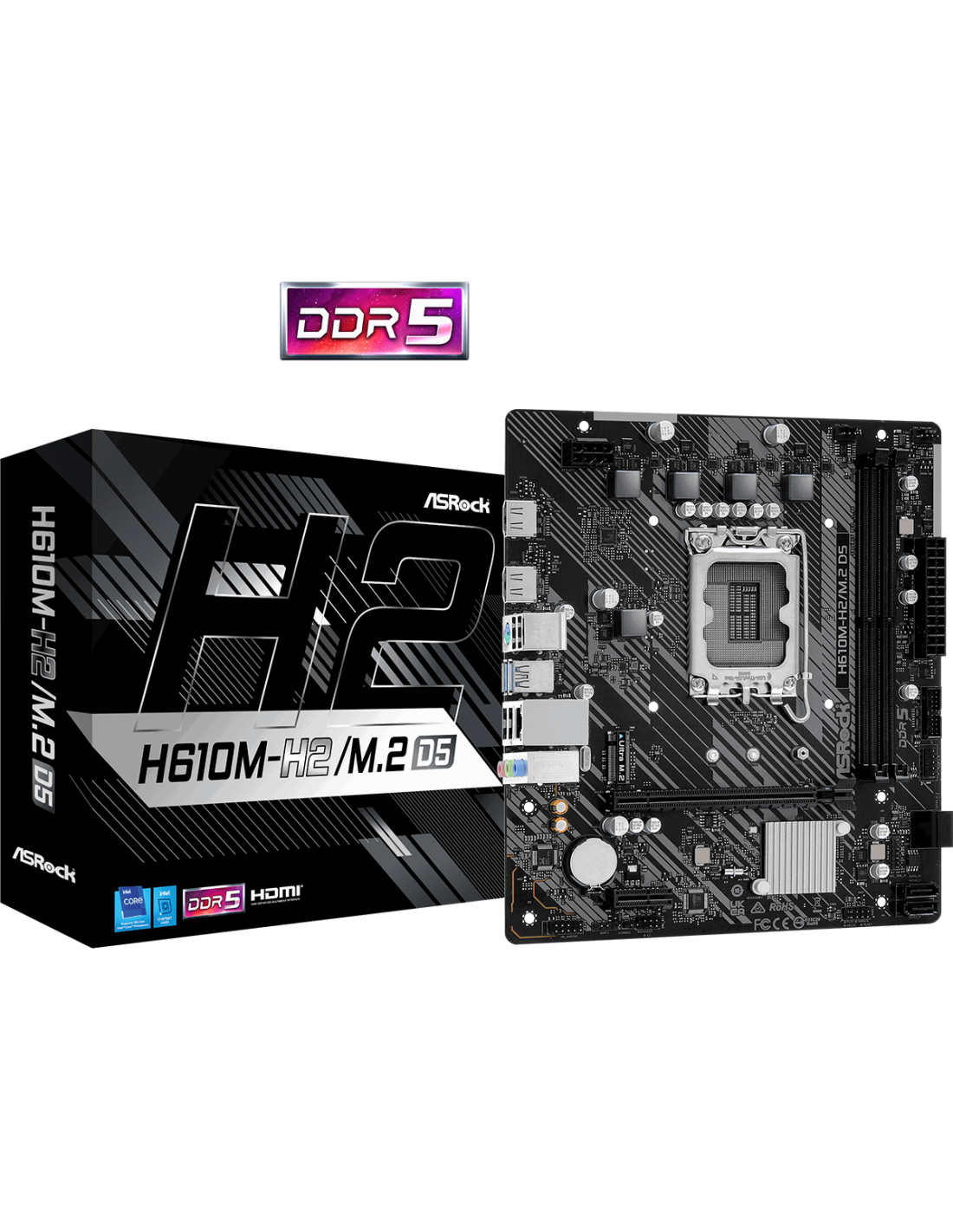

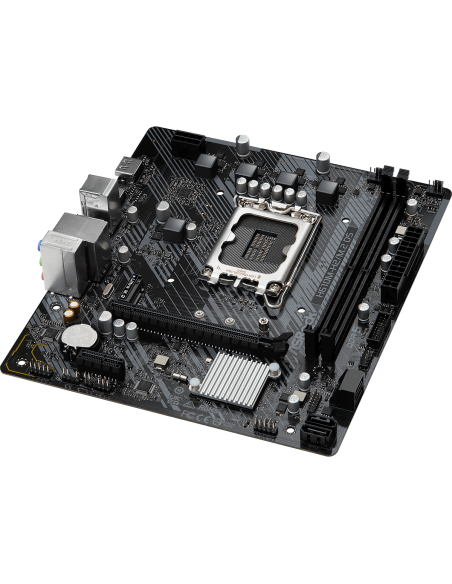

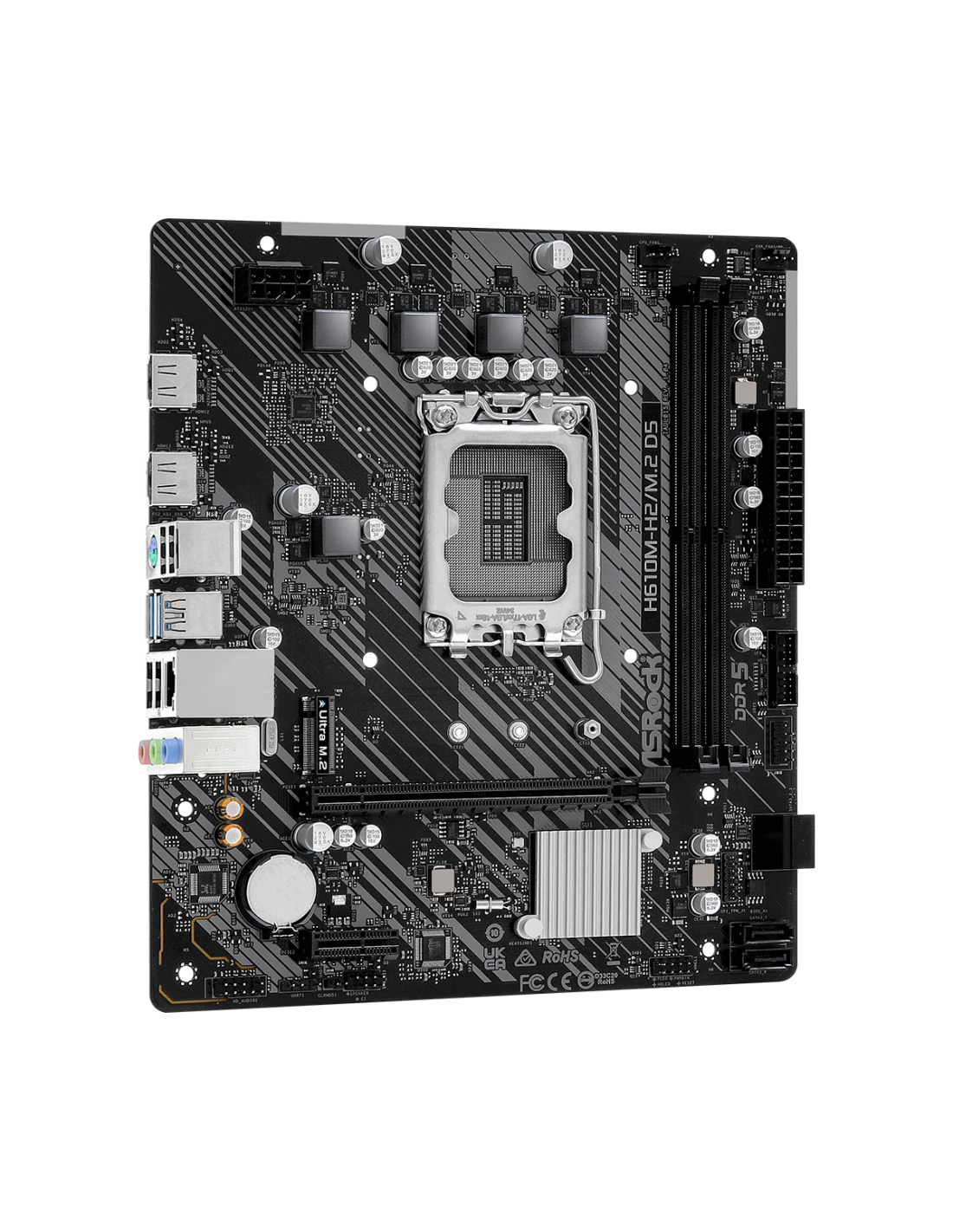

ASROCK H610M-H2/M.2 D5

Референция H610M-H2/M.2 D5

На склад

62,79 €

С вкл. данък

H610M-H2/M.2 D5_MO

ASROCK H610 2xDDR5 4xSATA3 2xHDMI 1xM2 GLAN 1xPCIEx16 1xPCIEx1

LAN: - Gigabit LAN 10/100/1000 Mb/s; - Realtek 8111H
Audio: - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Memory type: - Dual Channel DDR5 Memory Technology; - 2 x DDR5 DIMM Slots; - 13th Gen Intel® Core™ Processors support DDR5 non-ECC, un-buffered memory up to 5600*; - 12th Gen Intel® Core™ Processors support DDR5 non-ECC, un-buffered memory up to 4800*; - Max. capacity
Vendor_url: https://www.asrock.com/MB/Intel/H610M-H2M.2%20D5/index.asp#Specification
Graphics: - Intel® Xe Graphics Architecture (Gen 12); - 2 x HDMI 2.1 TMDS Compatible, support HDCP 2.3 and max. resolution up to 4K 60Hz
Expansion Slots: CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*; Chipset: - 1 x PCIe 3.0 x1 Slot (PCIE2)*
BIOS: - 128Mb AMI UEFI Legal BIOS with GUI support
Connectors: - 1 x SPI TPM Header; - 1 x Chassis Intrusion and Speaker Header; - 1 x CPU Fan Connector (4-pin)*; - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**; - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector; - 1 x Front
Form Factor: - Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm
OS: - Microsoft Windows® 10 64-bit / 11 64-bit
Warranty: 36 Months

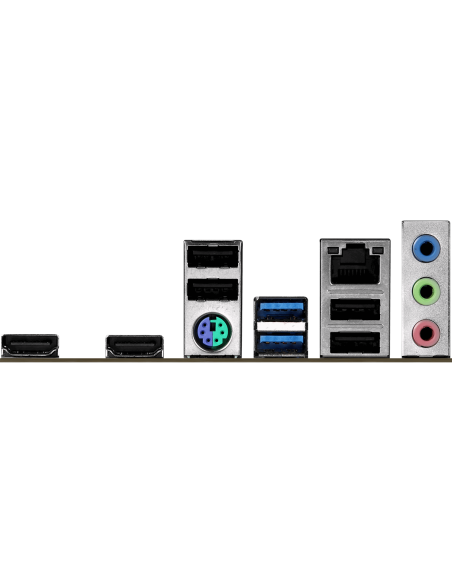

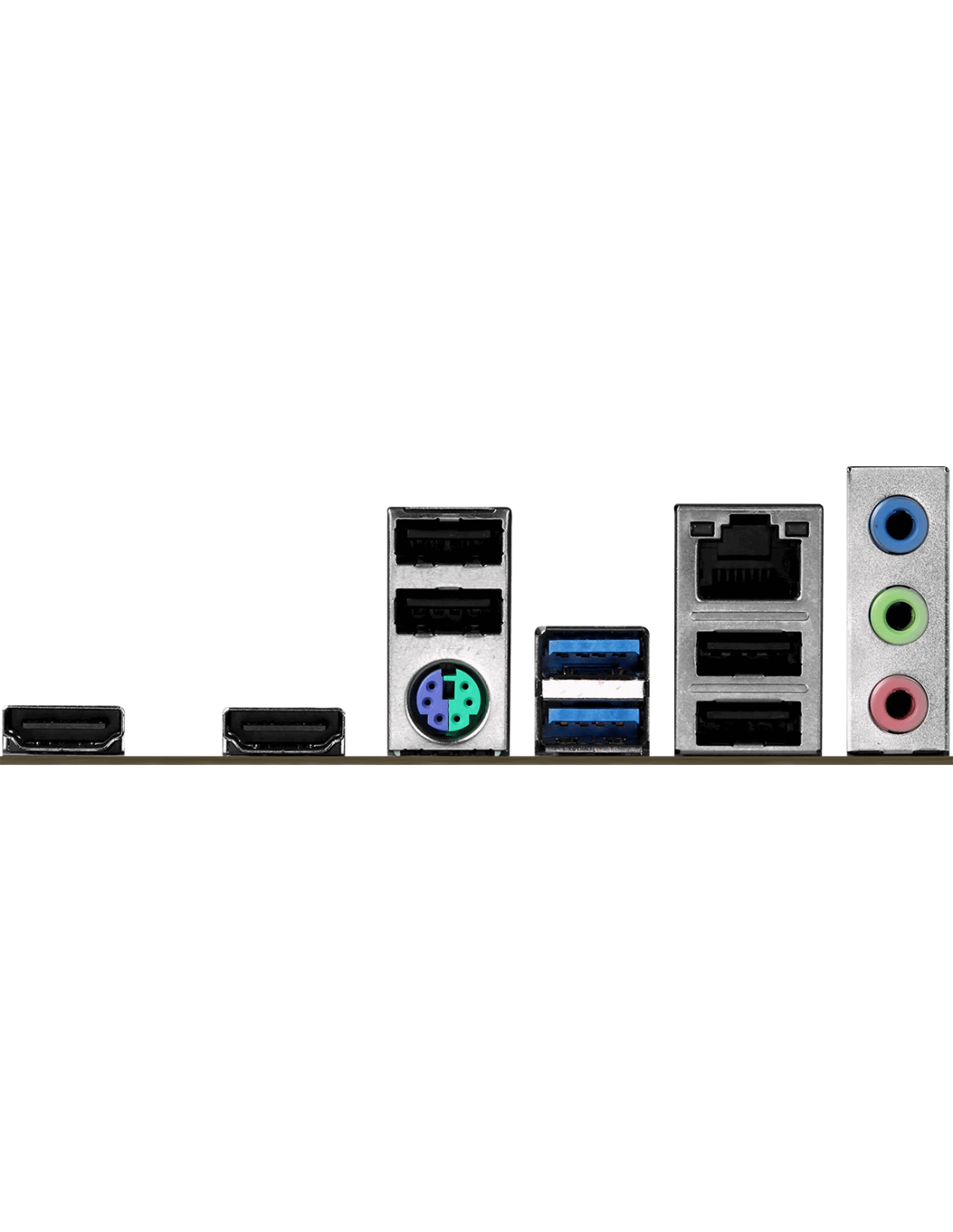

Rear panel I/O: - 1 x PS/2 Mouse/Keyboard Port; - 2 x HDMI Ports; - 2 x USB 3.2 Gen1 Type-A Ports; - 4 x USB 2.0 Ports; - 1 x RJ-45 LAN Port; - HD Audio Jacks: Line in / Front Speaker / Microphone
Chipset: - Intel® H610
Storage: Chipset: - 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*; - 4 x SATA3 6.0 Gb/s Connectors
Дънна платка - чипсет: INTEL H610
Дънна платка - поддържан тип памет: DDR5
Дънна платка - брой слотове за памет: 2 бр
Дънна платка - честота на паметта: 4800 MHz
5600 MHz
Дънна платка - интерфейси: M.2 (NVMe) конектор
SATA 3.0
Дънна платка - портове: HDMI
USB 2.0
USB 3.2
Дънна платка - форм фактор: Micro ATX
