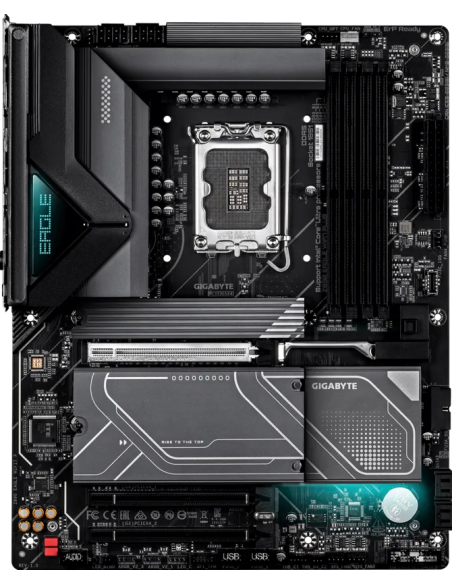

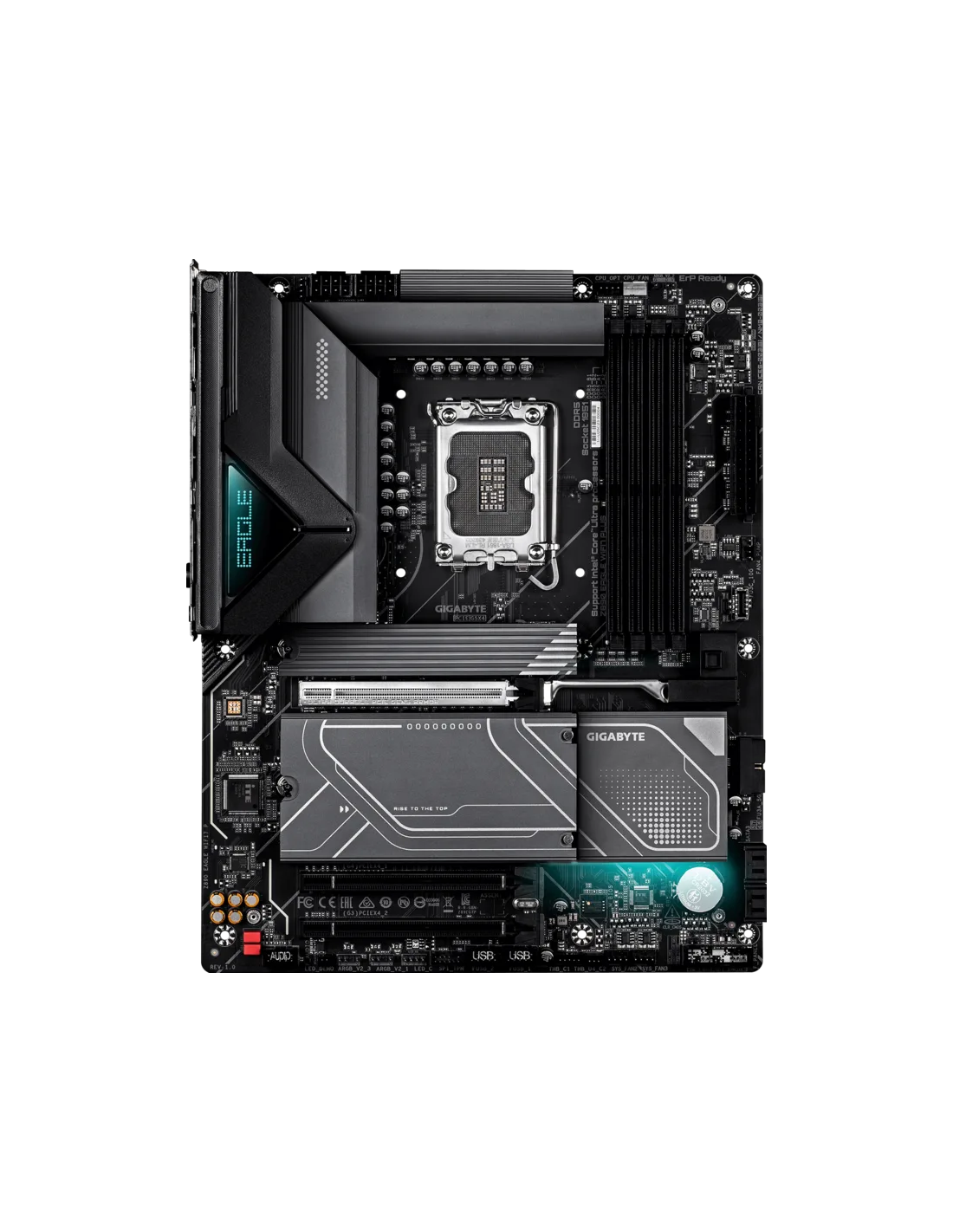

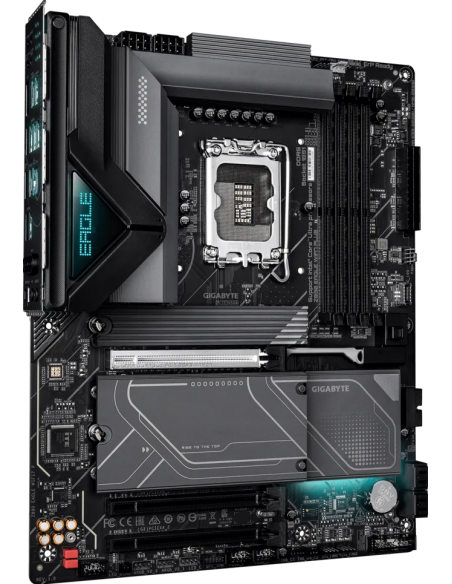

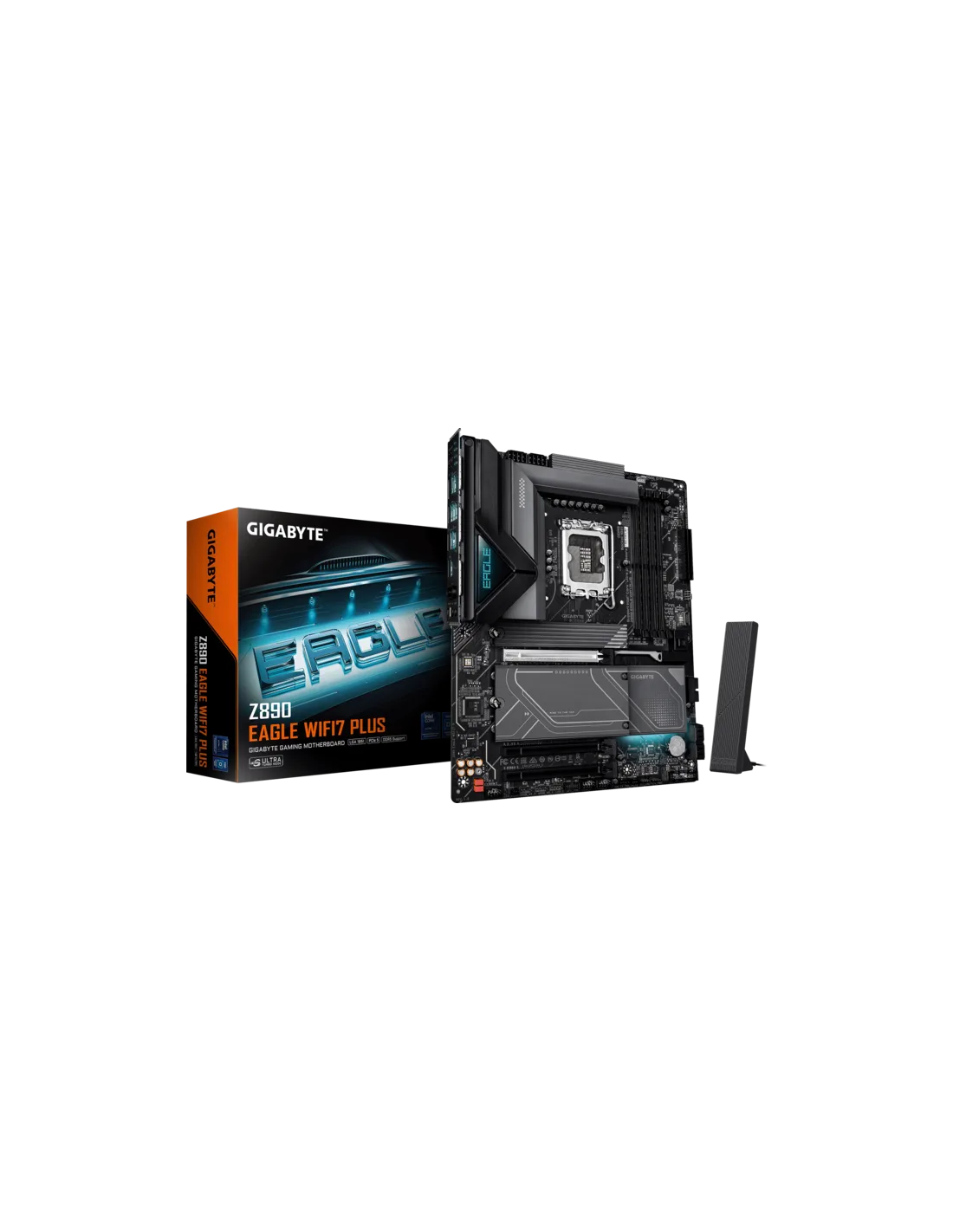

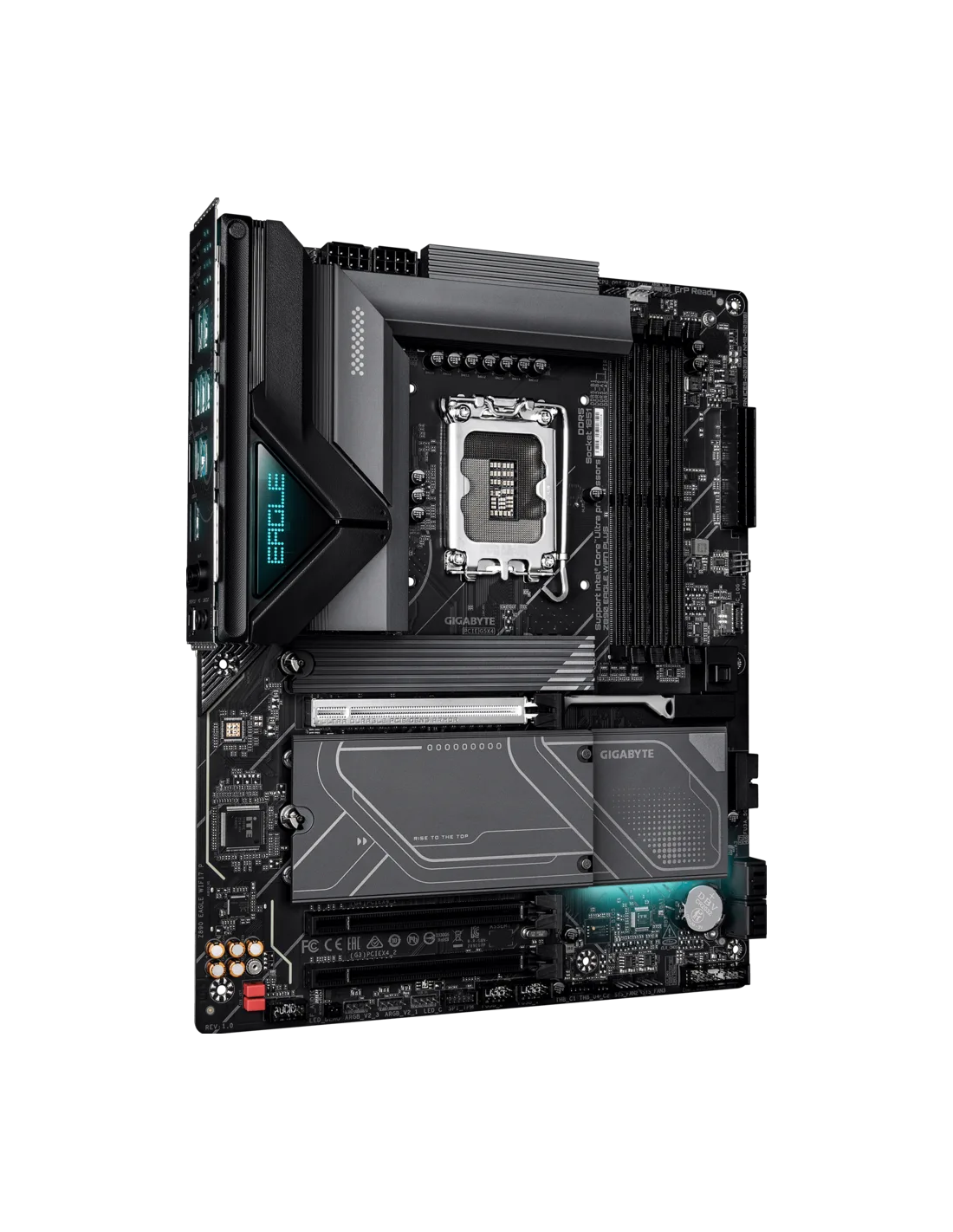

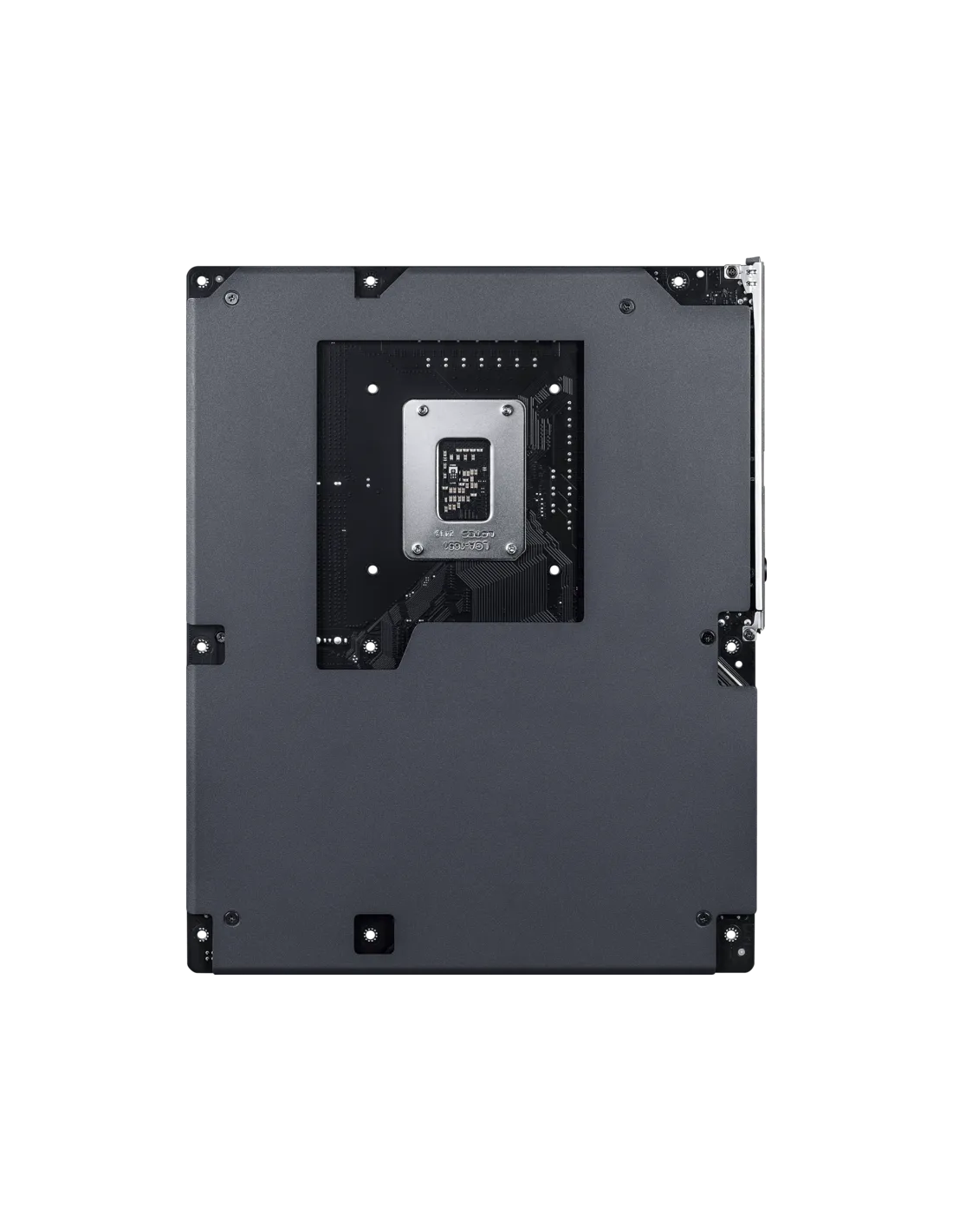

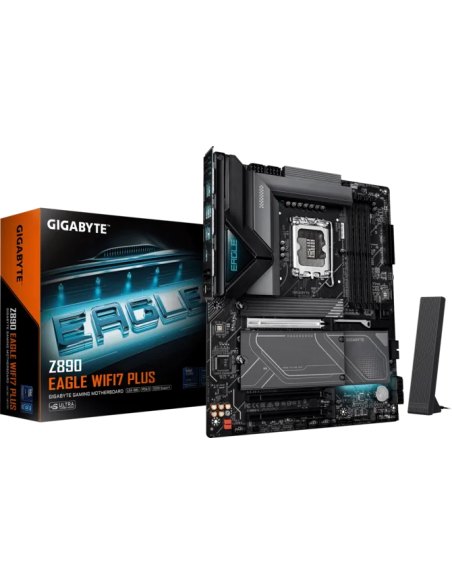

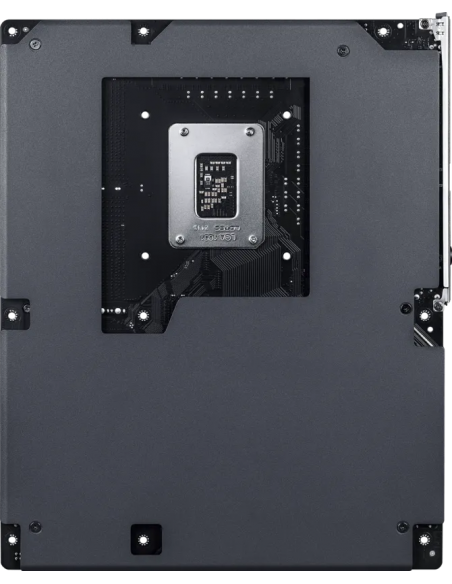

GB Z890 EAGLE WIFI7 PLUS
Z890 EAGLE WIFI7 P
На склад
254,99 €
С вкл. данък
Z890 EAGLE WIFI7 P_MO
- Chipset
- Intel® Z890 Express Chipset

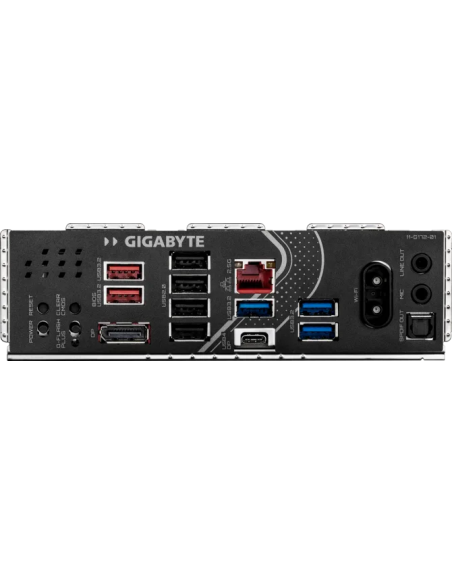

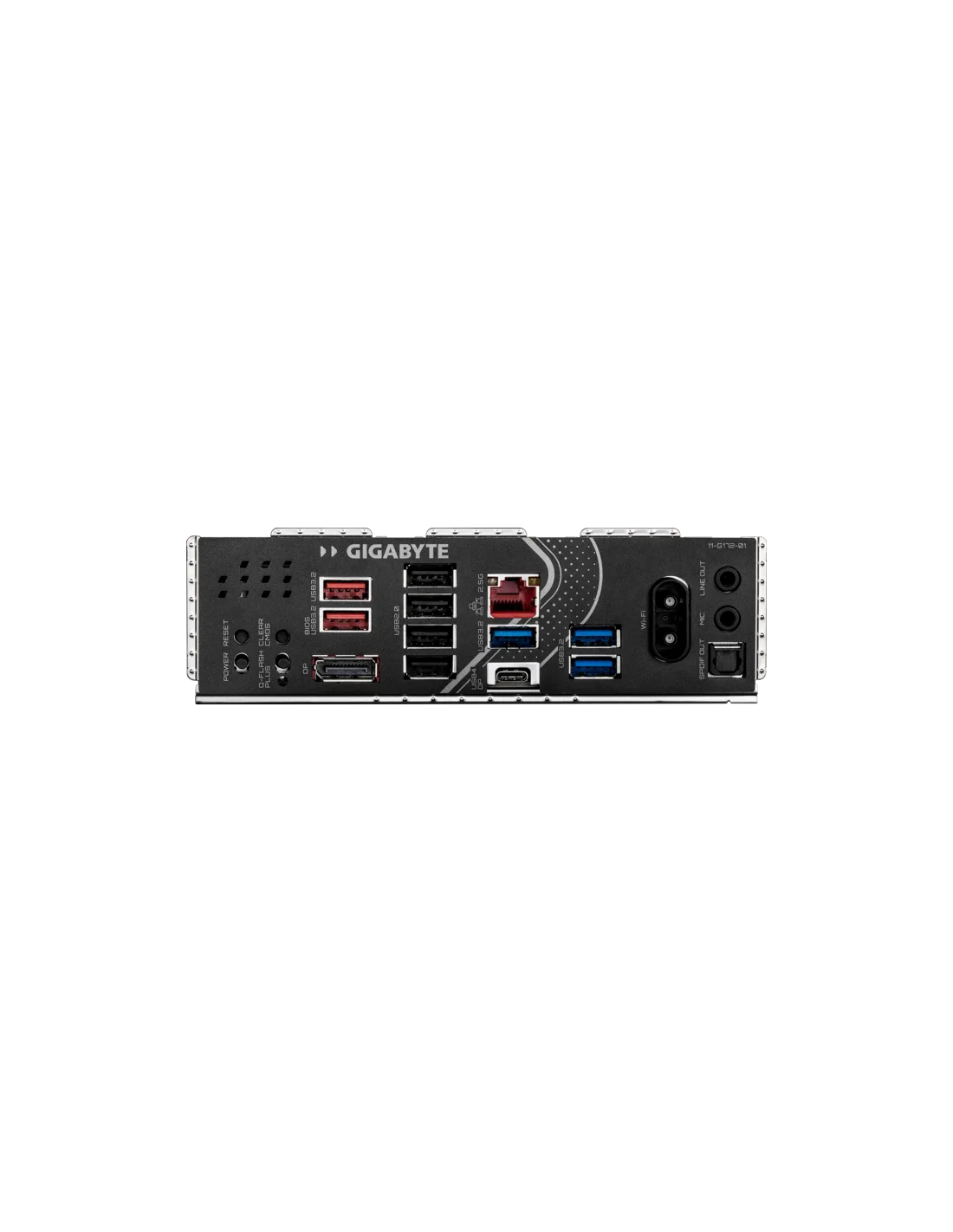

- Rear panel I/O
- iTE® I/O Controller Chip
- BIOS
- 1 x 512 Mbit flash;
Use of licensed AMI UEFI BIOS;
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 - Storage
- CPU:;
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU);
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU);
Chipset:;
- 1 x M.2 connector (Socket 3, M key, type - LAN
- Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
- Audio
- Realtek® ALC1220 CODEC;
* The back panel line out jack supports DSD audio.;
High Definition Audio;
2/4/5.1/7.1-channel;
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio softwar - Memory type
- Support up to DDR5 9466+MT/s (OC);
4 x DDR5 DIMM slots, Dual Channel;
Max. Capacity 256 GB;
Support Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM);
Supports Intel® Extreme Memory Profile (XMP) memory module - Model
- Z890 EAGLE WIFI7 P
- CPU's supported
- LGA1851 socket: Support for Intel® Core™ Ultra Processors;
(Go to GIGABYTE's website for the latest CPU support list.);
L3 cache varies with CPU - Vendor_url
- https://www.gigabyte.com/Motherboard/Z890-EAGLE-WIFI7-PLUS
- RAID
- RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices;
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices - Expansion Slots
- CPU:;
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16);
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.;
Chipset:;
- - Manufacturer
- GIGABYTE
- Connectors
- 1 x 24-pin ATX main power connector;
2 x 8-pin ATX 12V power connectors;
1 x CPU fan header;
1 x CPU fan/water cooling pump header;
3 x system fan headers;
1 x system fan/water cooling pump header;
3 x addressable RGB Gen2 LED strip headers;
1 x RGB LED s - Form Factor
- ATX Form Factor; 30.5cm x 24.4cm
- OS
- Support for Windows 11 64-bit
- Graphics
- Integrated Graphics Processor-Intel® HD Graphics support:;
- 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz;
* Support for DisplayPort 2.1 version;
- 1 x DisplayPort, supporting a ma - Wireless
- Intel® Wi-Fi 7 BE202 (BE200NGW M);
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands;
- BLUETOOTH 5.4;
- Support for 11be 160MHz wireless standard; - USB
- CPU:;
- 1 x USB4® USB Type-C® port on the back panel;
Chipset:;
- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header;
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel;
- 5 x USB 3.2 Gen 1 ports (3 ports on t - Дънна платка - сокет
- LGA1851
- Дънна платка - чипсет
- INTEL Z890
- Дънна платка - поддържан тип памет
- DDR5
- Дънна платка - брой слотове за памет
- 4 бр
- Дънна платка - честота на паметта
- 9466 MHz
- Дънна платка - интерфейси
- M.2 (NVMe) конектор
SATA 3.0 - Дънна платка - портове
- USB 3.2
USB 4.0 - Дънна платка - форм фактор
- ATX
