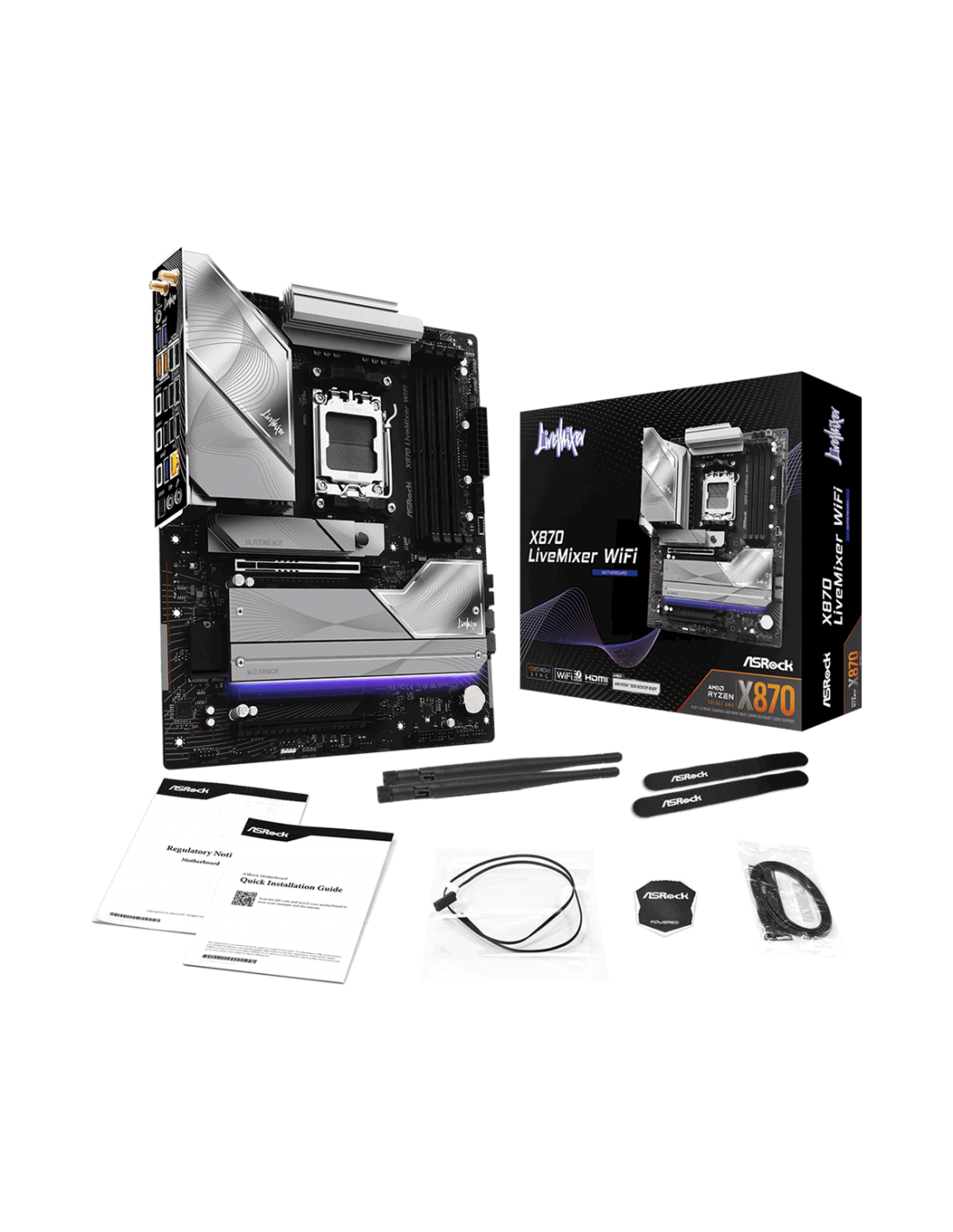

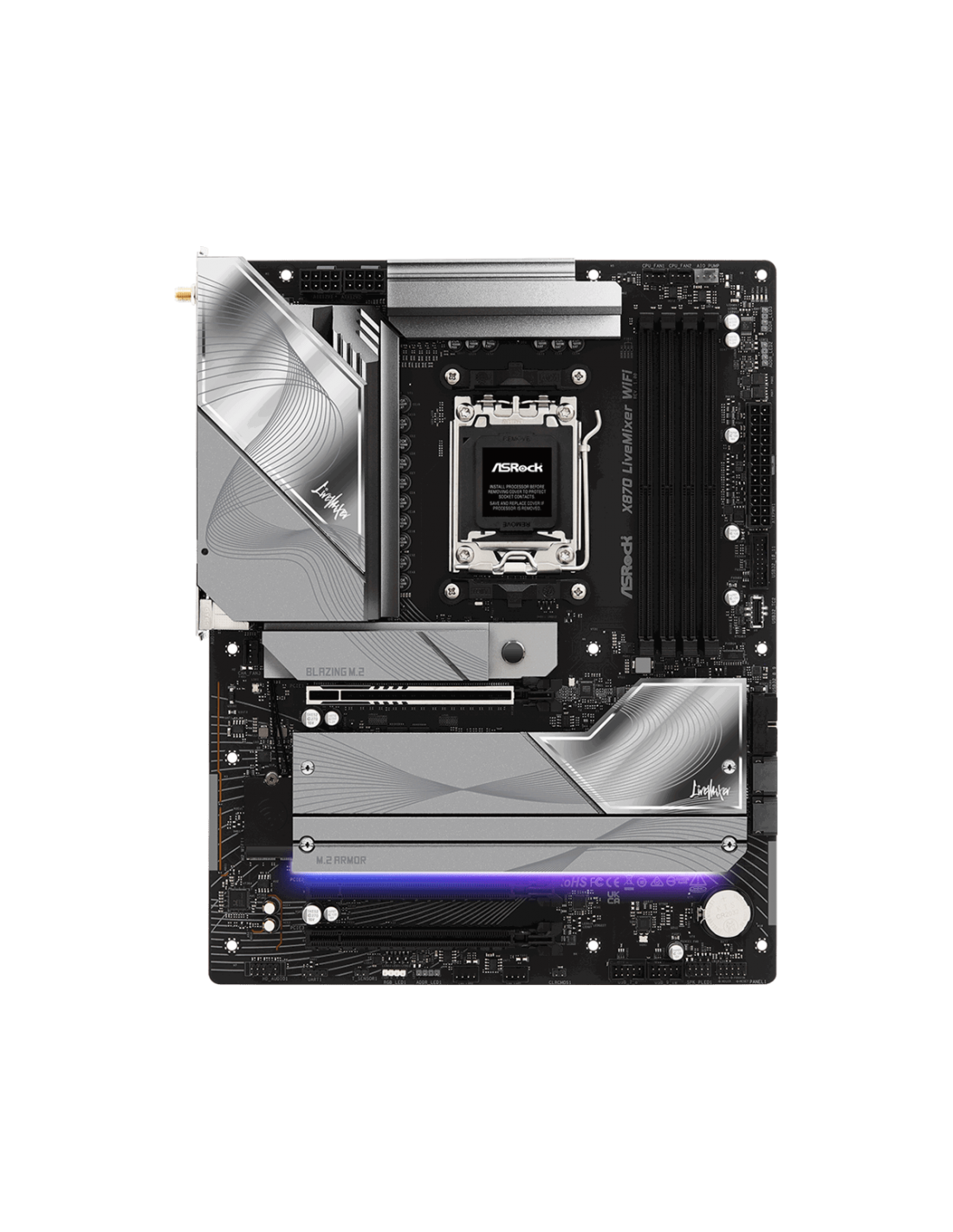

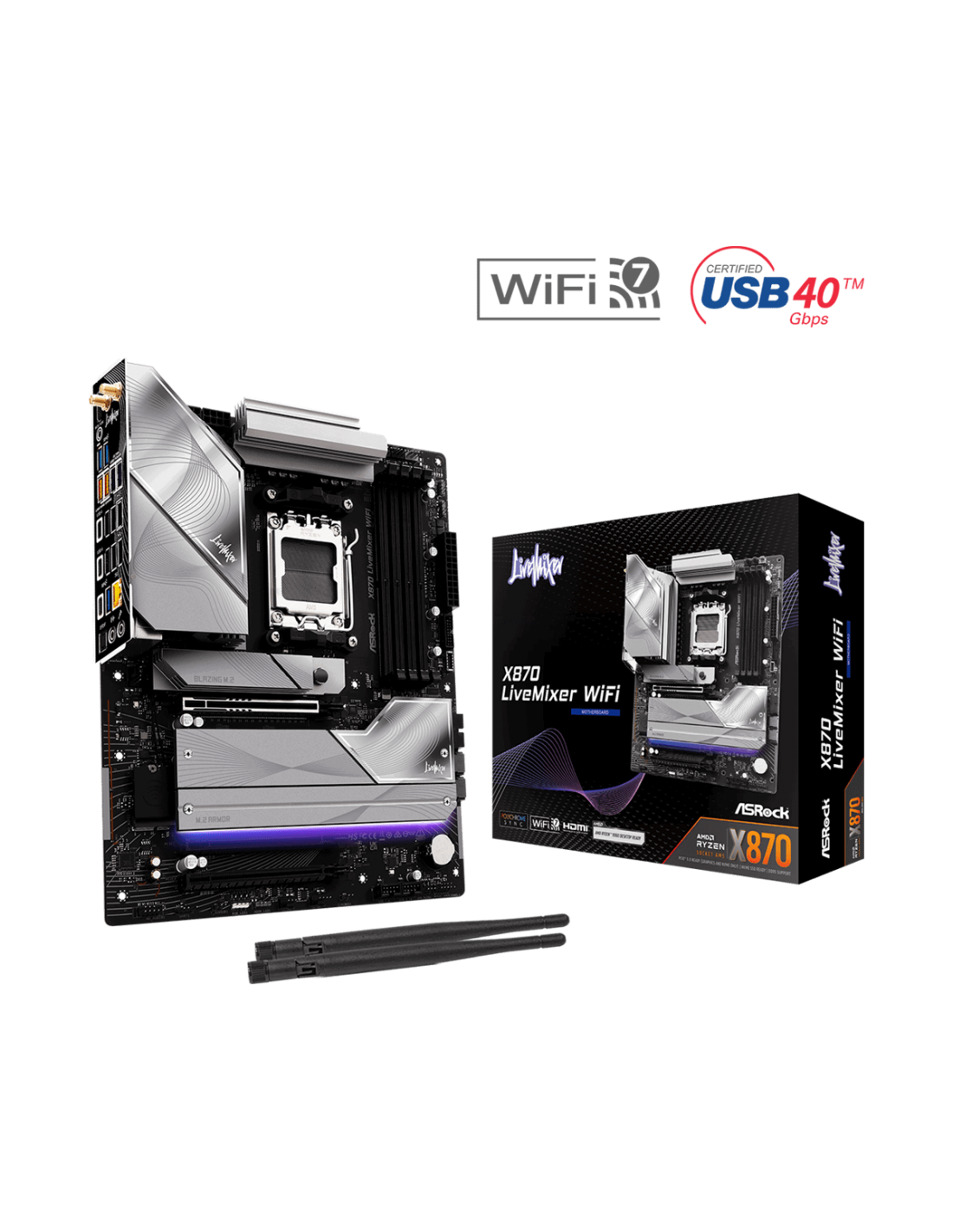

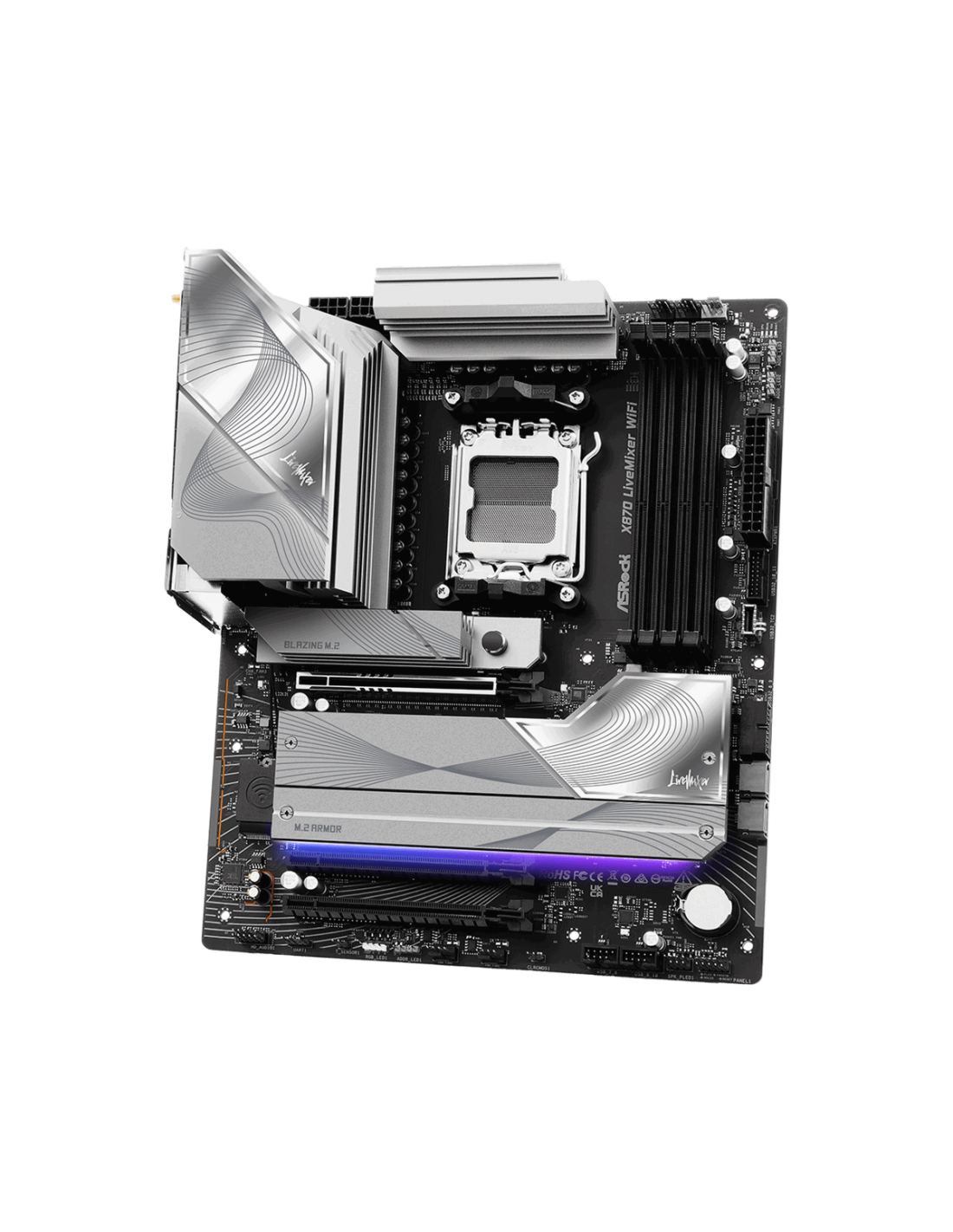

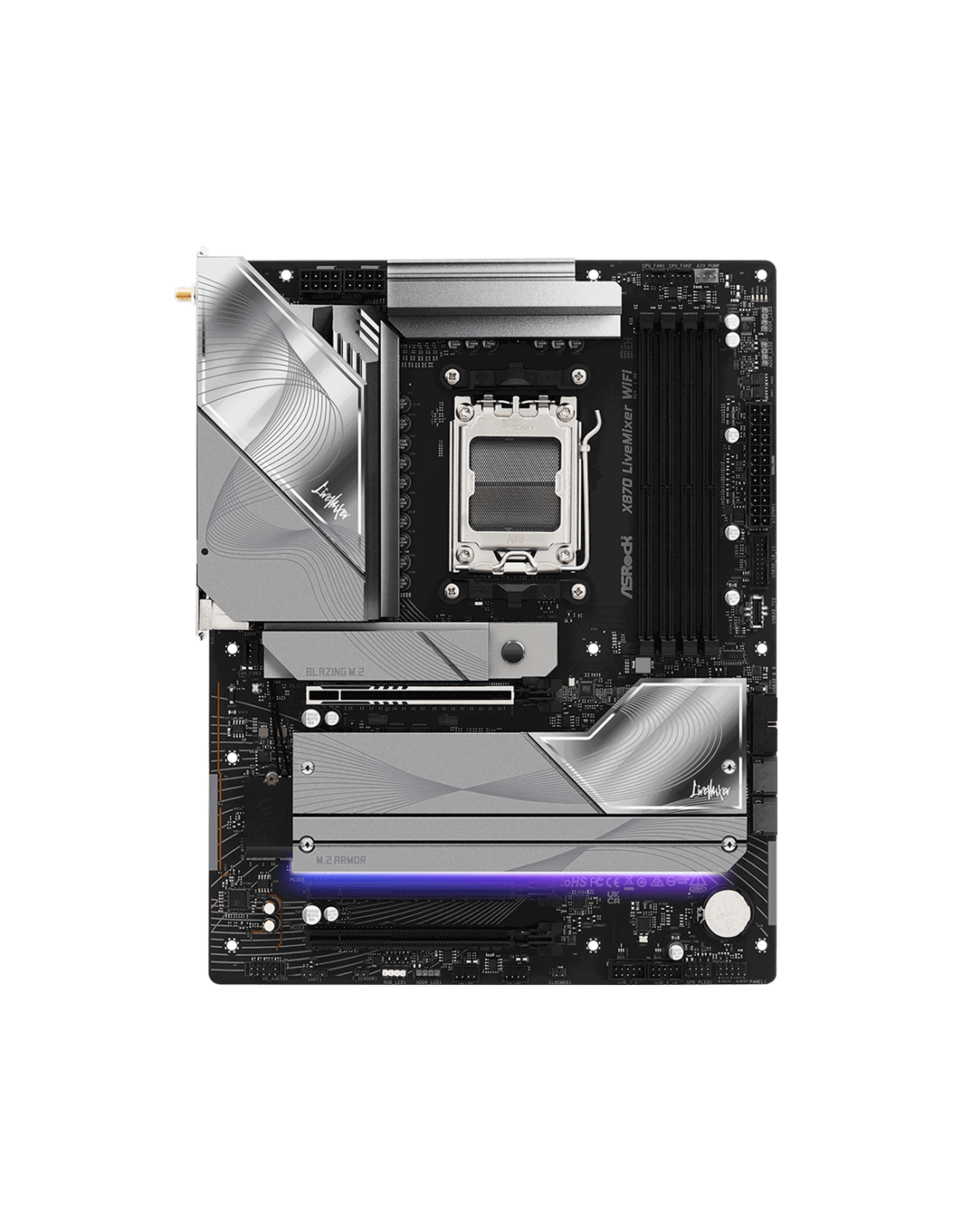

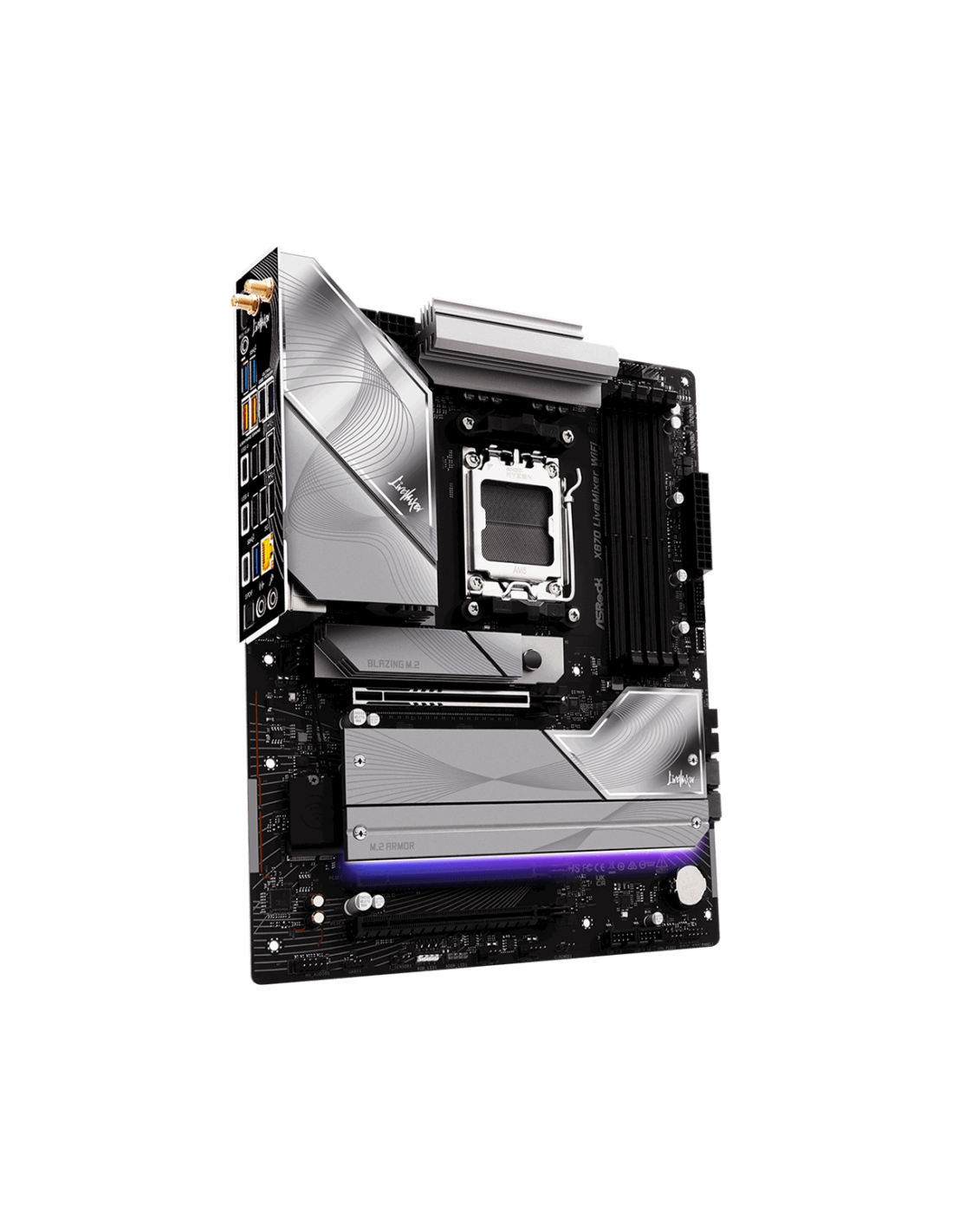

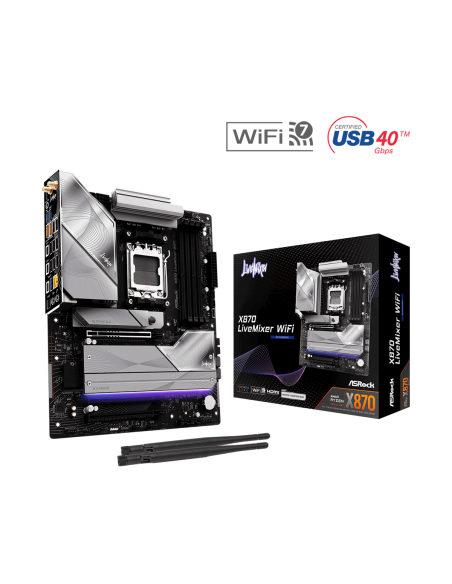

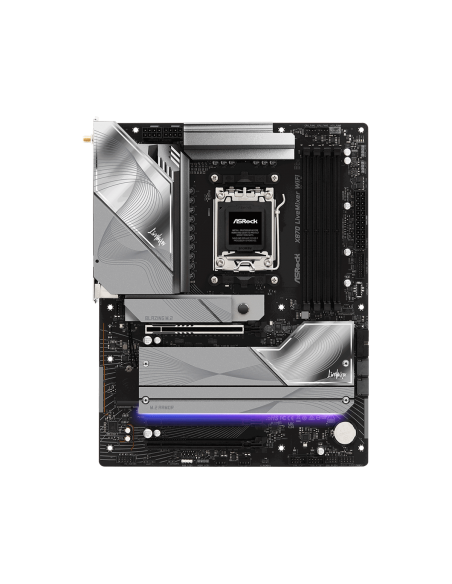

ASROCK X870 LIVEMIXER WIFI
X870 LIVEMIXER WIFI
На склад
239,36 €
С вкл. данък
X870 LIVEMIXER WIFI_MO
- Storage
- CPU:;
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*;
- 1 x Blazing M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*;
Chipset:;
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe - LAN
- 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s;
Realtek RTL8126 - Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec);
Individual PCB Layers for R/L Audio Channel;
Nahimic Audio - Memory type
- Dual Channel DDR5 Memory Technology;
4 x DDR5 DIMM Slots;
Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)*;
Max. capacity of system memory: 256GB;
Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory mod - Bluetooth
- 5.4
- Model
- X870 LIVEMIXER WIFI
- CPU's supported
- Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors*;
* The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details. - RAID
- Supports RAID 0 and RAID 1 for SATA storage devices;
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices - Vendor_url
- https://www.asrock.com/mb/AMD/X870%20LiveMixer%20WiFi/index.asp
- Expansion Slots
- CPU:;
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*;
Chipset:;
- 2 x PCIe 3.0 x16 Slots (PCIE2 and PCIE3), support x4 mode*;
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module;
- 15μ Gold Contact in VGA PCIe Slot (PCIE1);
* PCIE1 - Manufacturer
- ASROCK
- Connectors
- 1 x SPI TPM Header;
1 x Thermistor Cable Header;
1 x Power LED and Speaker Header;
1 x RGB LED Header*;
3 x Addressable LED Headers**;
2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***;
3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control - Form Factor
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm;
8 Layer PCB - OS
- Microsoft Windows® 10 64-bit / 11 64-bit
- Graphics
- Integrated AMD RDNA™ graphics (Actual support may vary by CPU);
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz;
- 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz** Only the CPU's embedded grap - USB
- CPU:;
- 2 x USB4 Type-C (Rear);
- 2 x USB 3.2 Gen1 Type-A (Rear (USB32_1 and USB32_4));
Chipset:;
- 1 x USB 3.2 Gen2x2 Type-C (Front);
- 9 x USB 3.2 Gen1 Type-A (5 Rear (USB32_2, USB32_356, USB32_7), 4 Front));
- 1 x USB 3.2 Gen1 Type-C (Rear);
- 10 x USB - Wireless
- 802.11be 2x2 Wi-Fi 7 Module;
Supports IEEE 802.11a/b/g/n/ac/ax/be;
Supports 2.4GHz/5GHz/6GHz* frequency band;
Supports 160MHz channel bandwidth with 6GHz* frequency band;
1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology;
Supports Bluet - Chipset
- AMD X870
- BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support

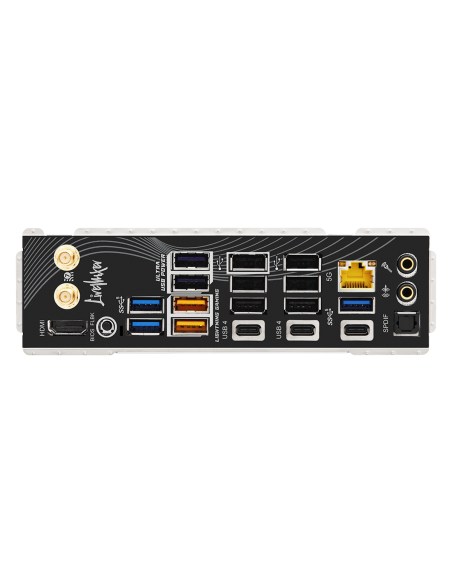

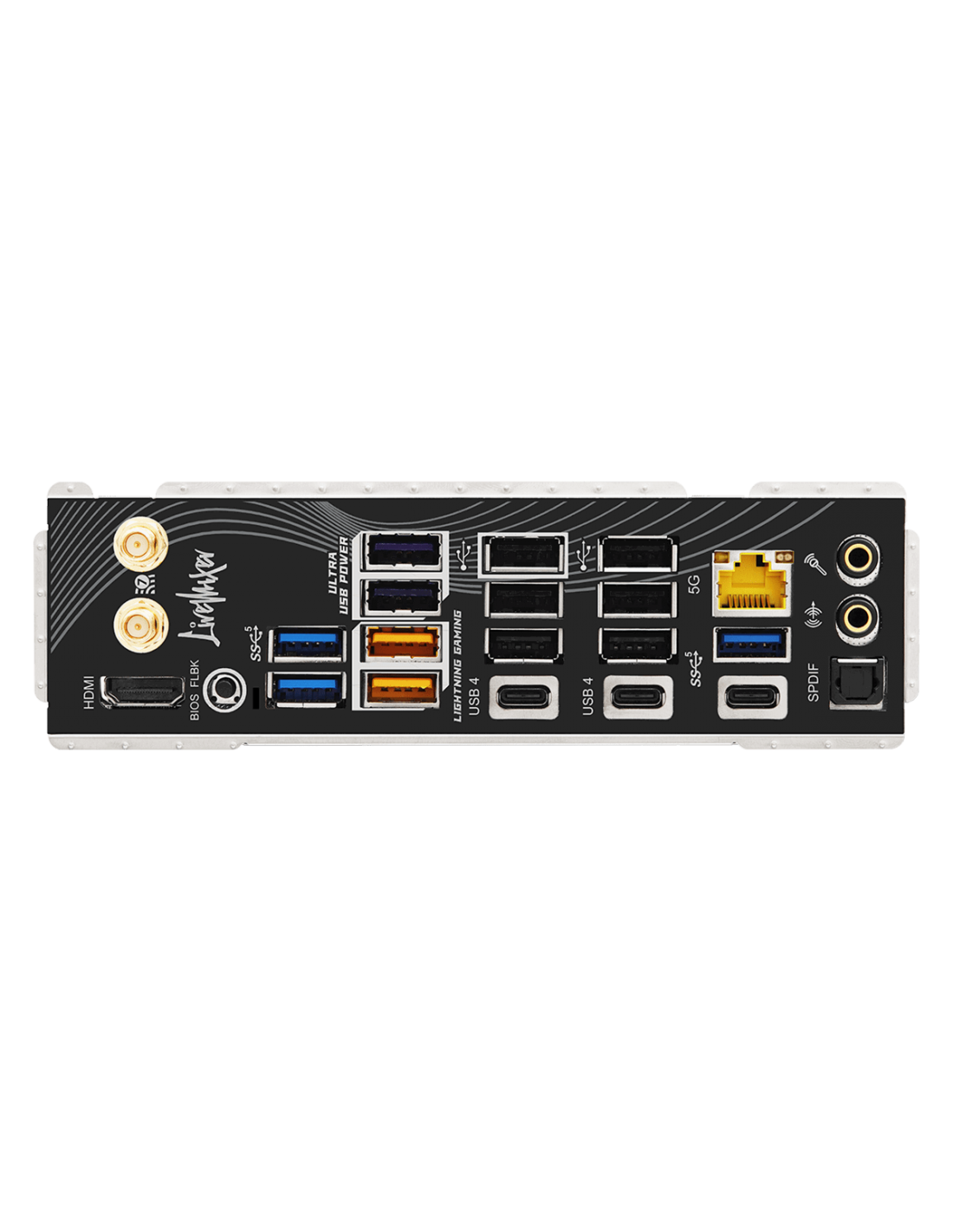

- Rear panel I/O
- 2 x Antenna Ports;
1 x HDMI Port;
1 x Optical SPDIF Out Port;
2 x USB4 Type-C Ports (40 Gb/s)*;
1 x USB 3.2 Gen1 Type-C Port;
7 x USB 3.2 Gen1 Type-A Ports (USB32_34 are Lightning Gaming Ports. USB32_56 support Ultra USB Power.)**;
6 x USB 2.0 Ports;
1 x - Дънна платка - сокет
- AM5
- Дънна платка - чипсет
- AMD X870
- Дънна платка - поддържан тип памет
- DDR5
- Дънна платка - брой слотове за памет
- 4 бр
- Дънна платка - честота на паметта
- 8000 MHz
- Дънна платка - интерфейси
- M.2 (NVMe) конектор
SATA 3.0 - Дънна платка - портове
- HDMI
USB 2.0
USB 3.2
USB 4.0 - Дънна платка - форм фактор
- ATX
