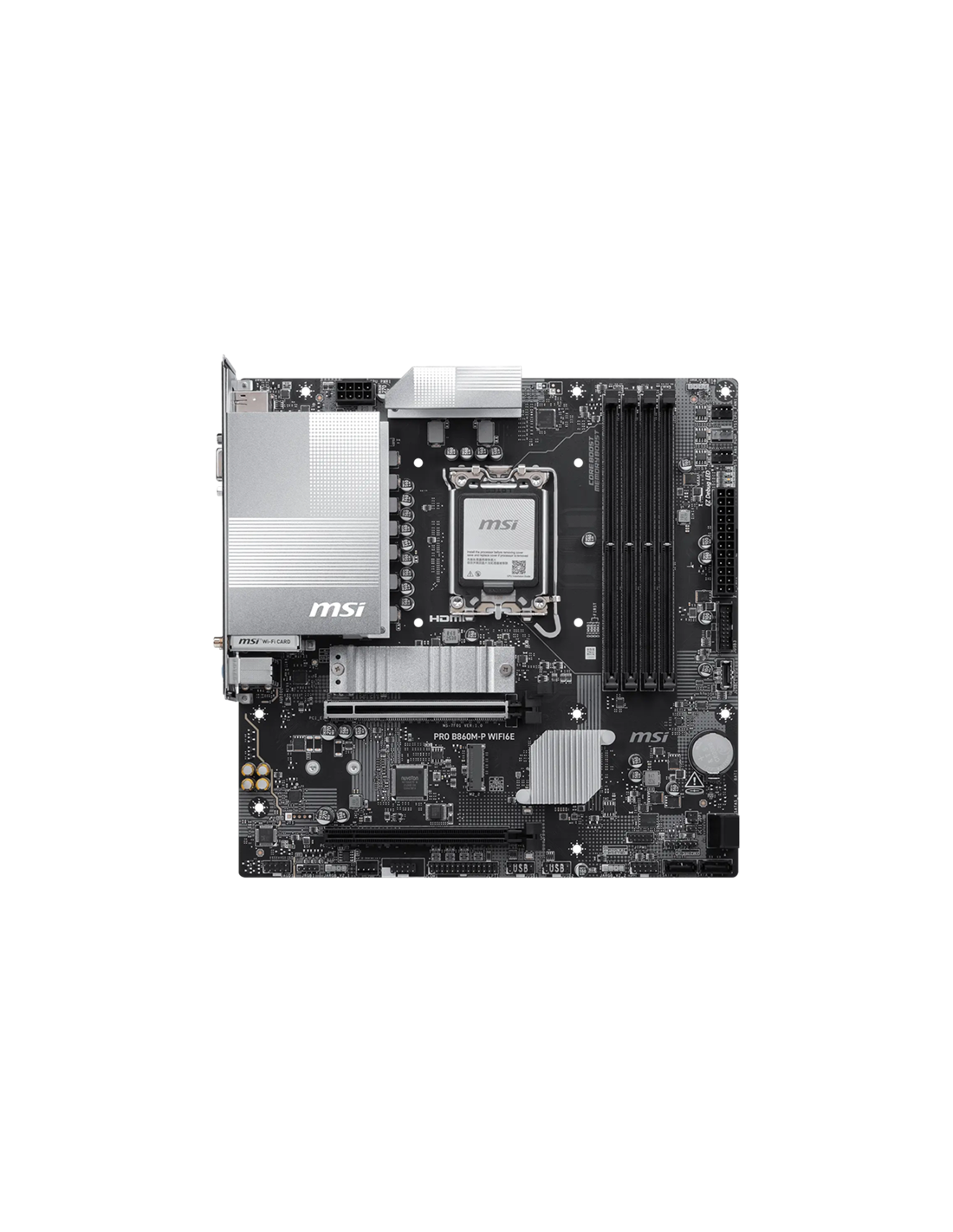

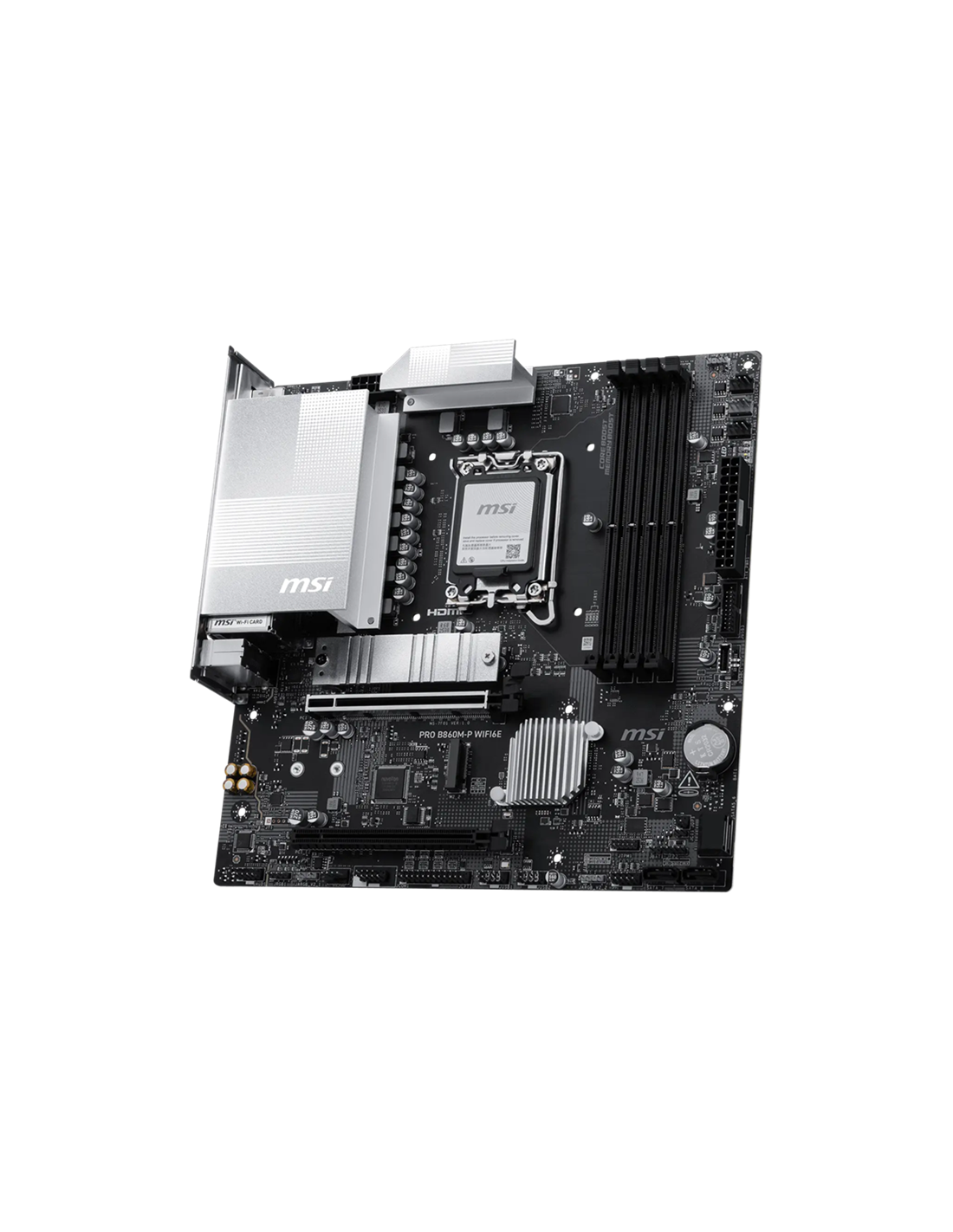

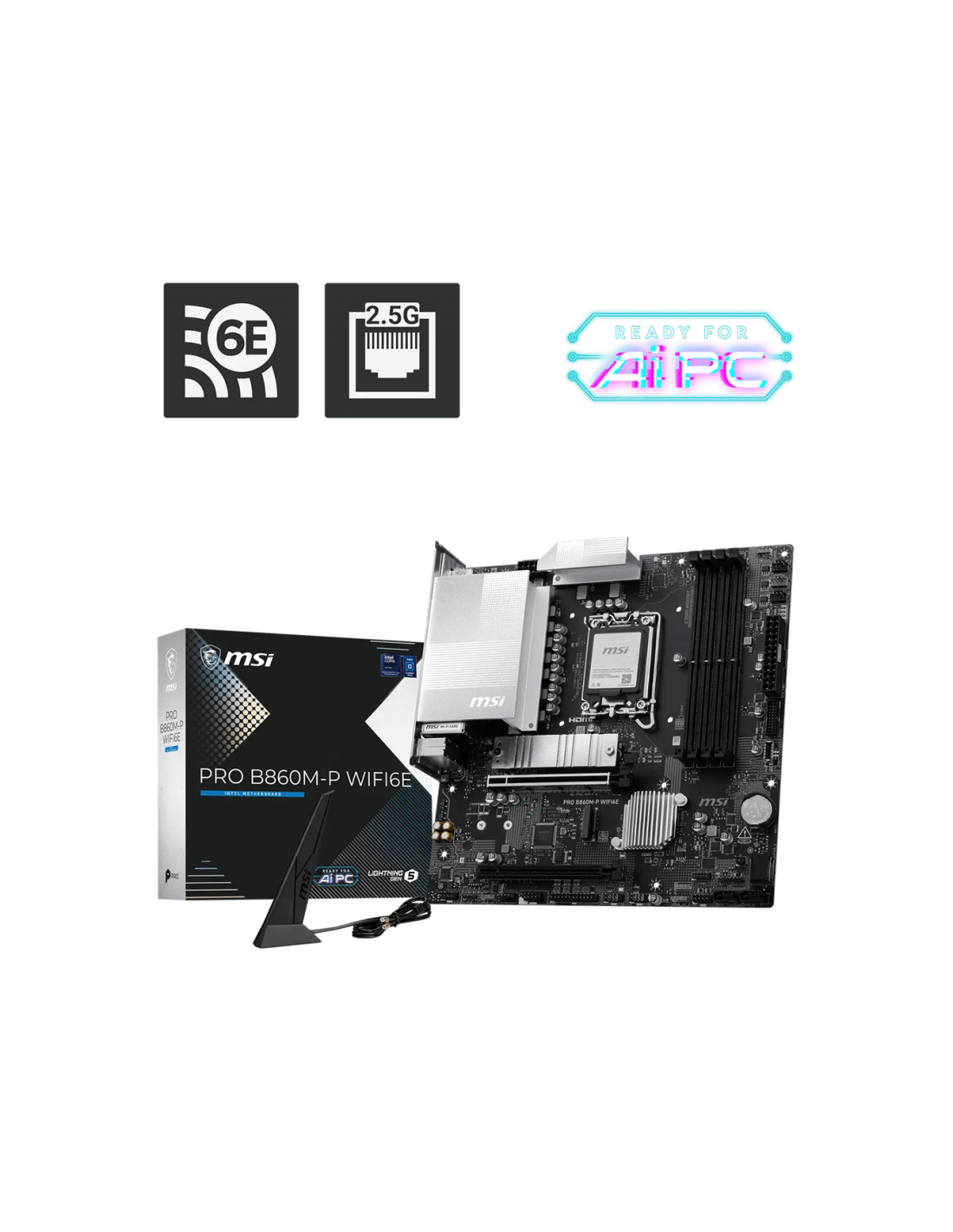

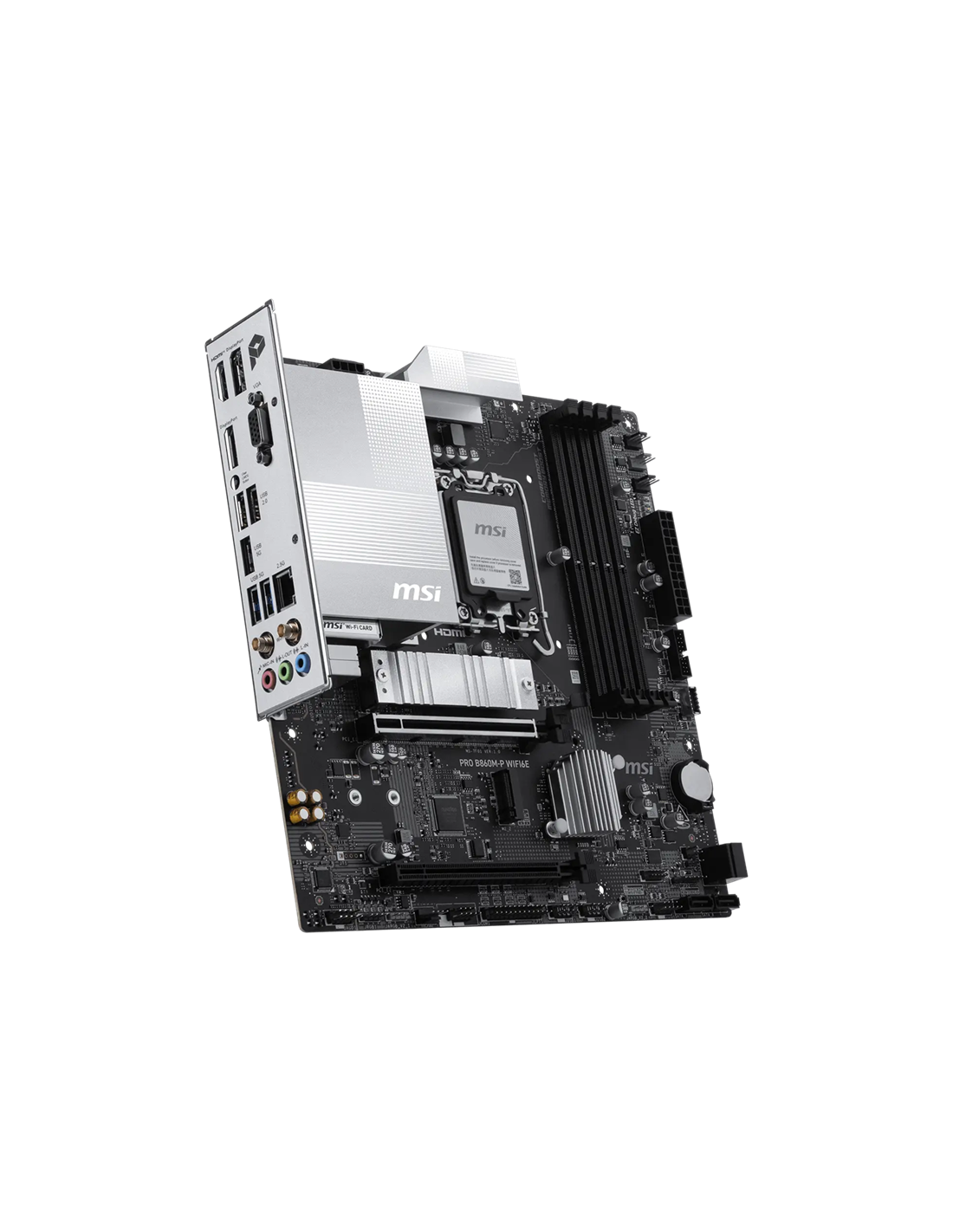

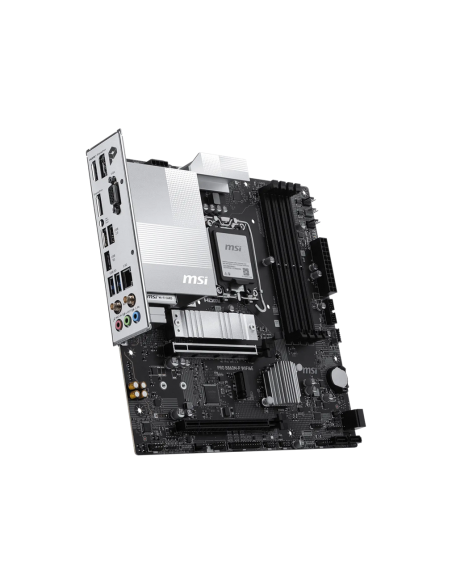

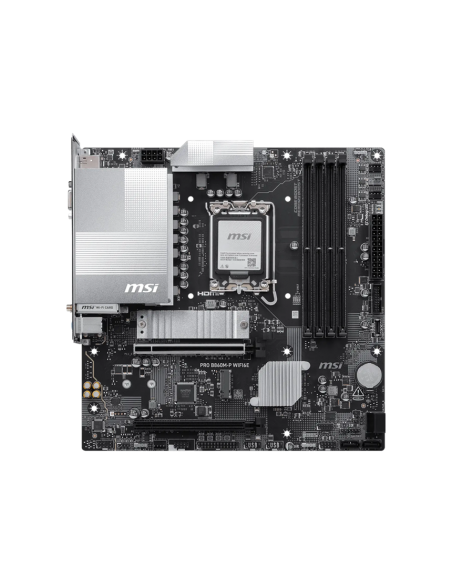

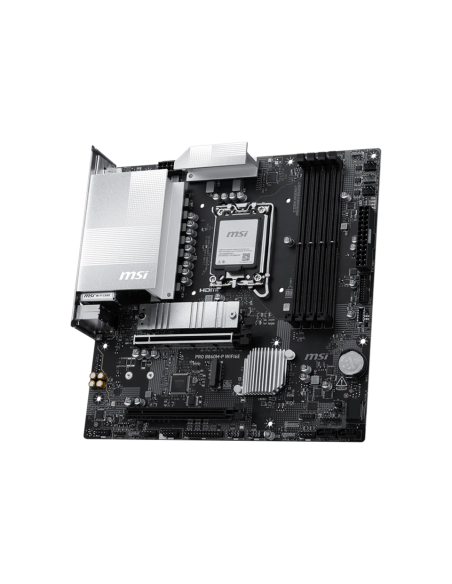

MSI PRO B860M-P WIFI6E

Референция 911-7F01-004

На склад

146,31 €

С вкл. данък

911-7F01-004_MO

_MO

Socket: LGA 1851
Bluetooth: Supports Bluetooth® 5.3**, FIPS, FISMA
Other: 4x EZ Debug LED;
1x EZ Memory Detection LED
CPU's supported: Supports Intel® Core™ Ultra Processors (Series 2)
RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Wireless: Wi-Fi 6E;
The Wireless module is pre-installed in the M.2 (Key-E) slot;
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps;
Supports 802.11 a/ b/ g/ n/ ac/ ax
Expansion Slots: 2x PCI-E x16 slot;
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU);
PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
LAN: Realtek® 8125 2.5Gbps LAN

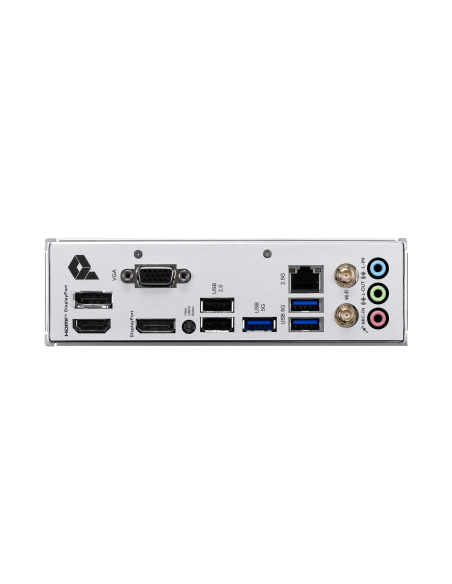

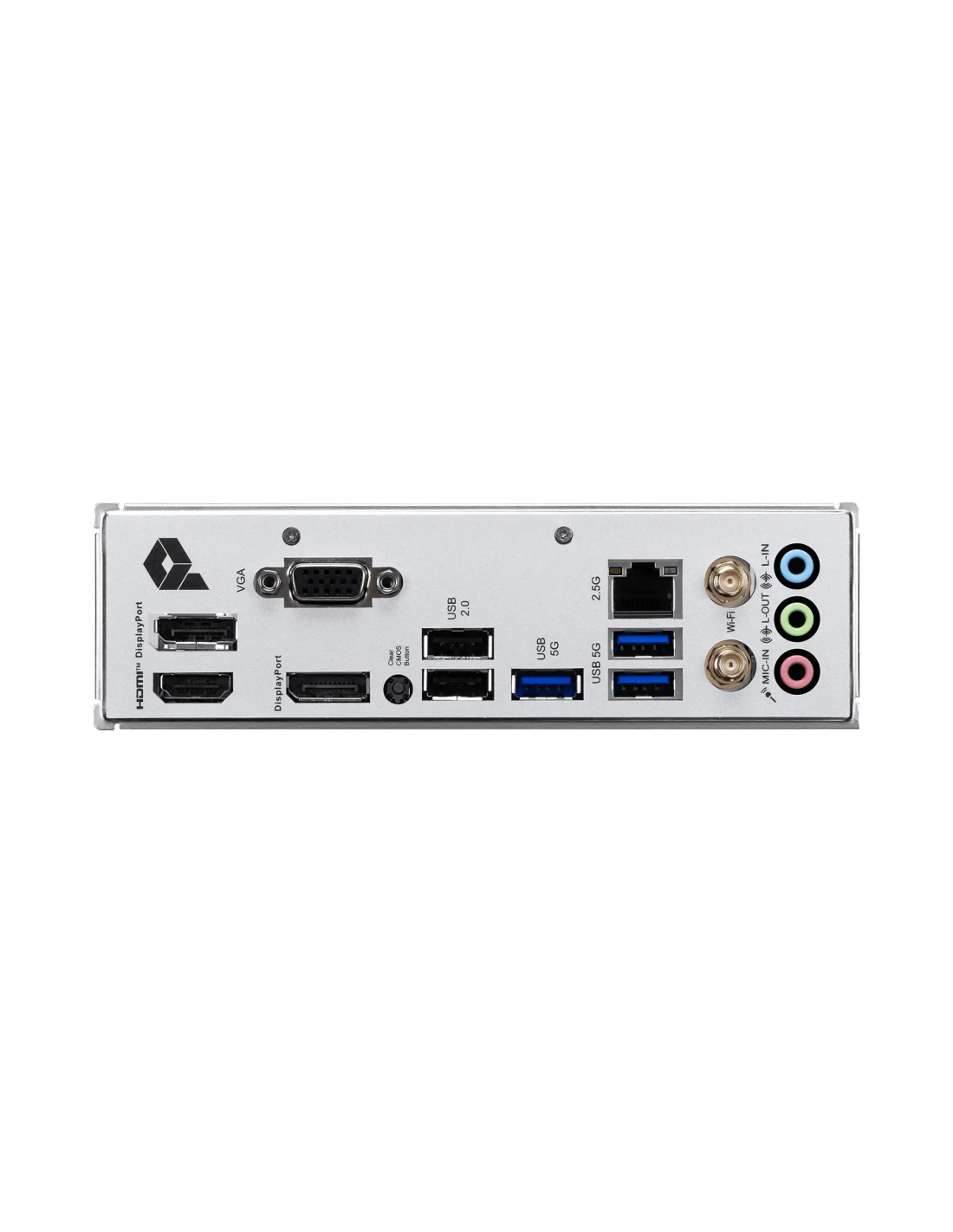

Rear panel I/O: DisplayPort;
VGA;
USB 2.0;
USB 5Gbps Type-A;
2.5G LAN;
Wi-Fi / Bluetooth;
Audio Connectors;
HDMI™;
DisplayPort;
Clear CMOS Button;
USB 5Gbps Type-A
Connectors: 1x Power Connector(ATX_PWR);
1x Power Connector(CPU_PWR);
1x CPU Fan;
1x Combo Fan (Pump_Sys Fan);
2x System Fan;
2x Front Panel (JFP);
1x Chassis Intrusion (JCI);
1x Front Audio (JAUD);
1x Printer Port (JLPT);
1x Com Port (JCOM);
3x Addressable V2 RGB LE
Memory type: 4x DDR5 UDIMM, Maximum Memory Capacity 256GB;
Memory Support DDR5 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s;
Max. overclocking:;
• 1DPC 1R Max speed up to 8800+ MT/s;
• 1DPC 2R Max speed up to 7200+ MT/s;
• 2DPC 1R Max speed up to 6400+ MT/s;
• 2DP
OS: Support for Windows® 11 64-bit
Graphics: 1x HDMI™;
Support HDMI™ 2.1 port with TMDS, maximum resolution of 4K 60Hz*;
2x DisplayPort;
Support DisplayPort 1.4 port with HBR2, maximum resolution of 4K 60Hz*;
1x VGA;
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
USB: 2x USB 2.0 (Rear);
4x USB 2.0 (Front);
3x USB 5Gbps Type A (Rear);
2x USB 5Gbps Type A (Front);
1x USB 5Gbps Type C (Front)
Model: PRO B860M-P WIFI6E
Chipset: INTEL B860
Manufacturer: MSI
Vendor_url: https://www.msi.com/Motherboard/PRO-B860M-P-WIFI6E
Storage: 2x M.2;
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices;
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices;
4x SATA 6G;

*Please refer to the manual for M.2 SSD heatsink restrictions.
Form Factor: mATX, 243.84mmx243.84mm
Audio: Realtek® ALC897 Codec;
7.1-Channel High Definition Audio
Дънна платка - чипсет: INTEL B860
Дънна платка - поддържан тип памет: DDR5
Дънна платка - честота на паметта: 4800 MHz
6400 MHz
7200 MHz
8800 MHz
Дънна платка - интерфейси: M.2 (NVMe) конектор
SATA 3.0
Дънна платка - портове: Display Port
HDMI
USB 2.0
USB 3.2
VGA
Дънна платка - форм фактор: Micro ATX
