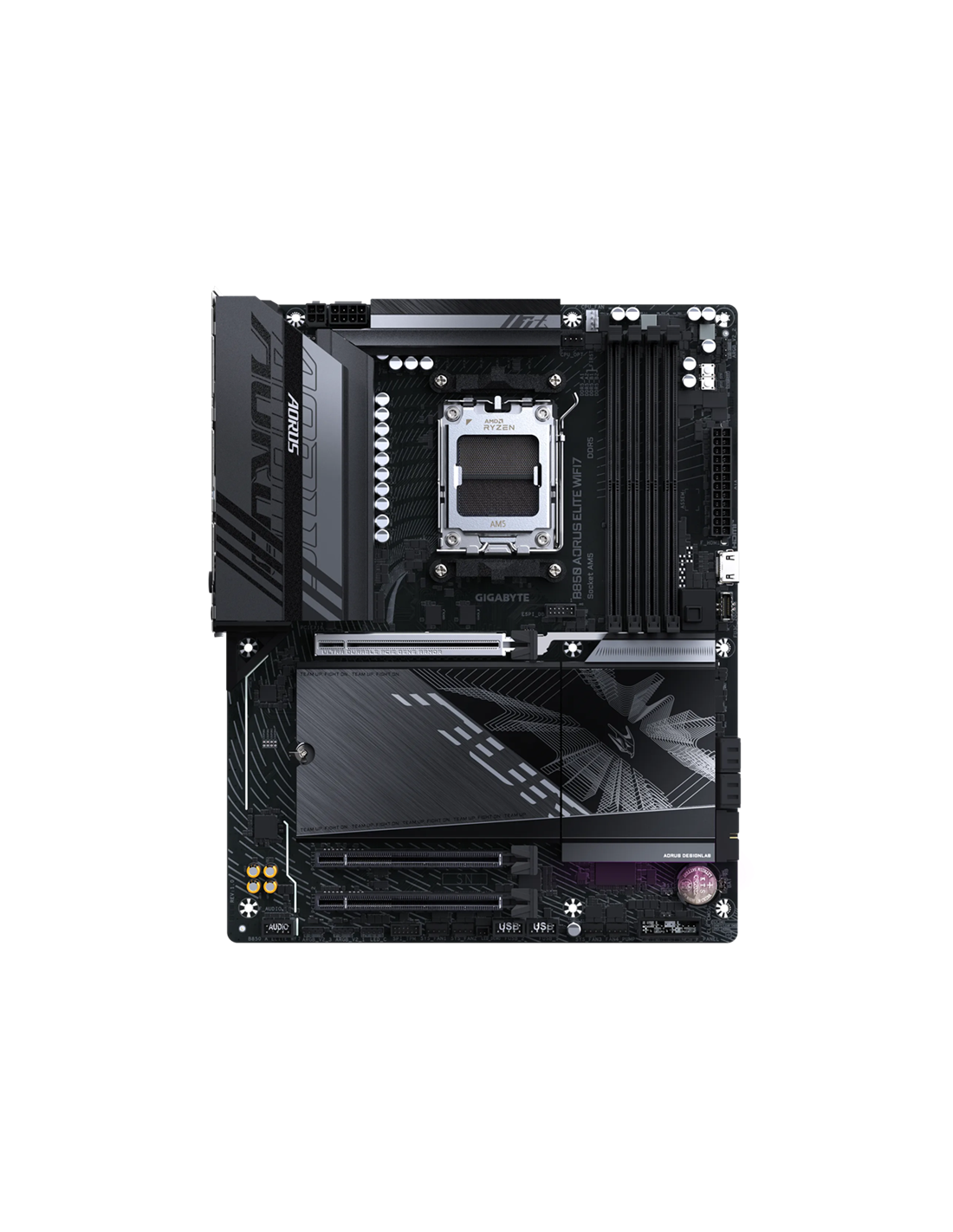

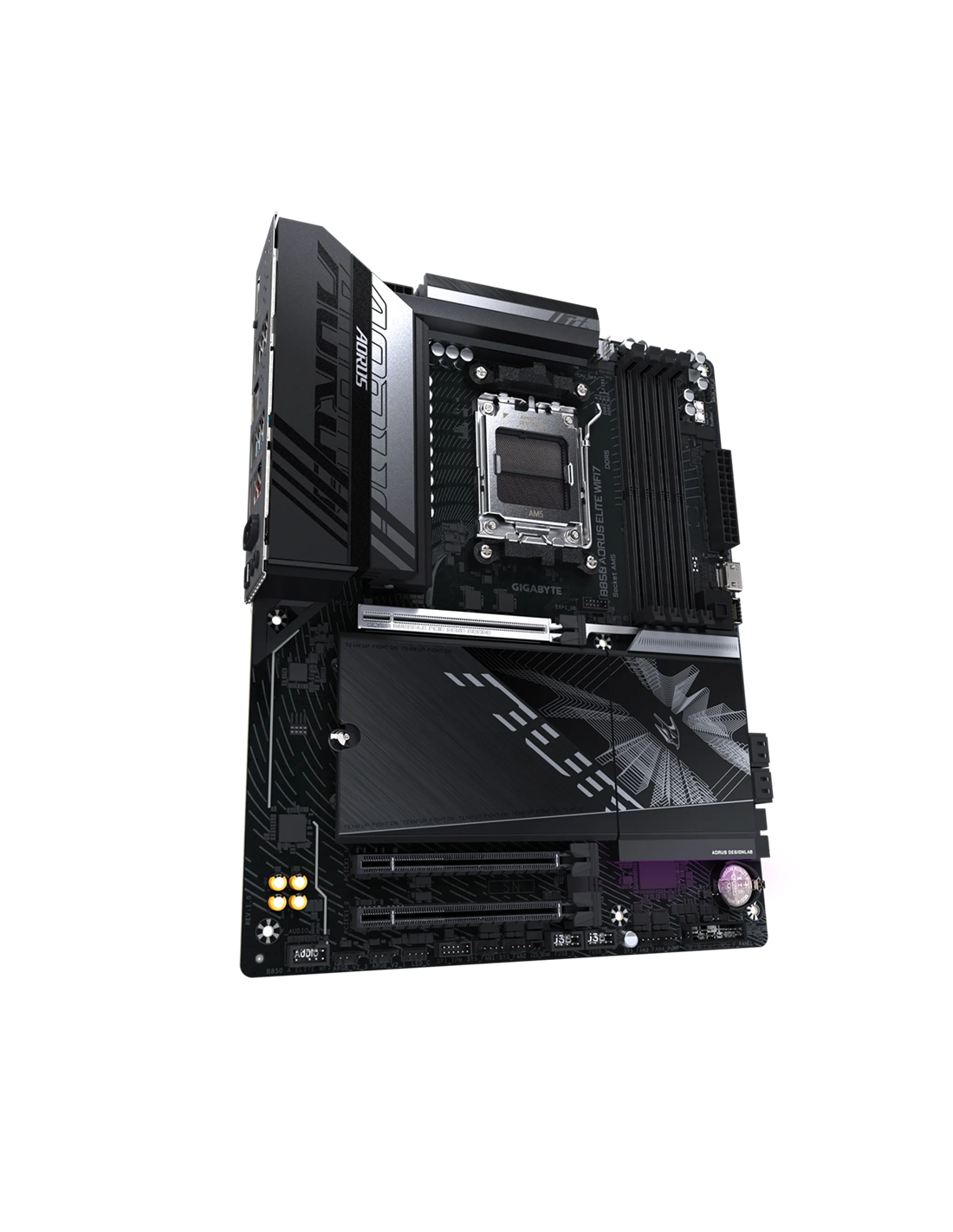

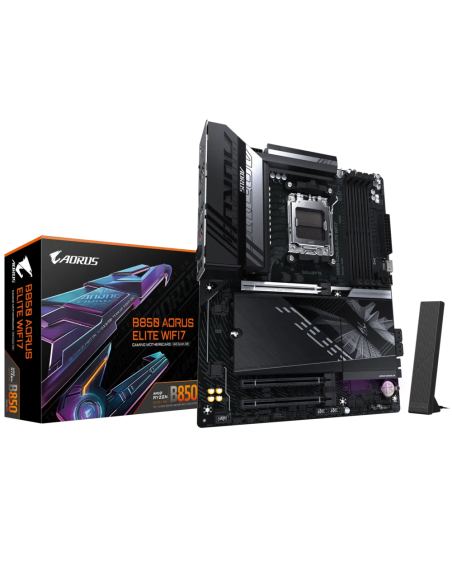

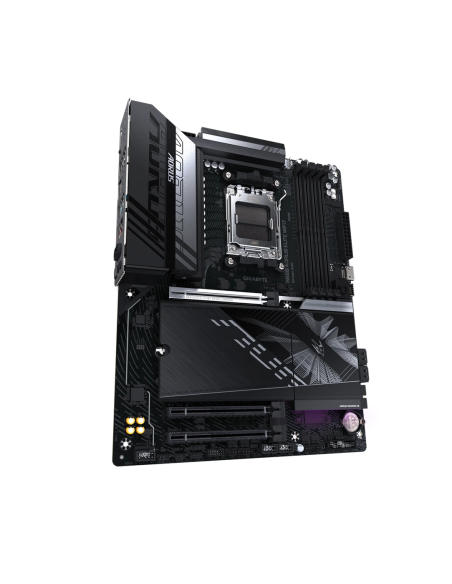

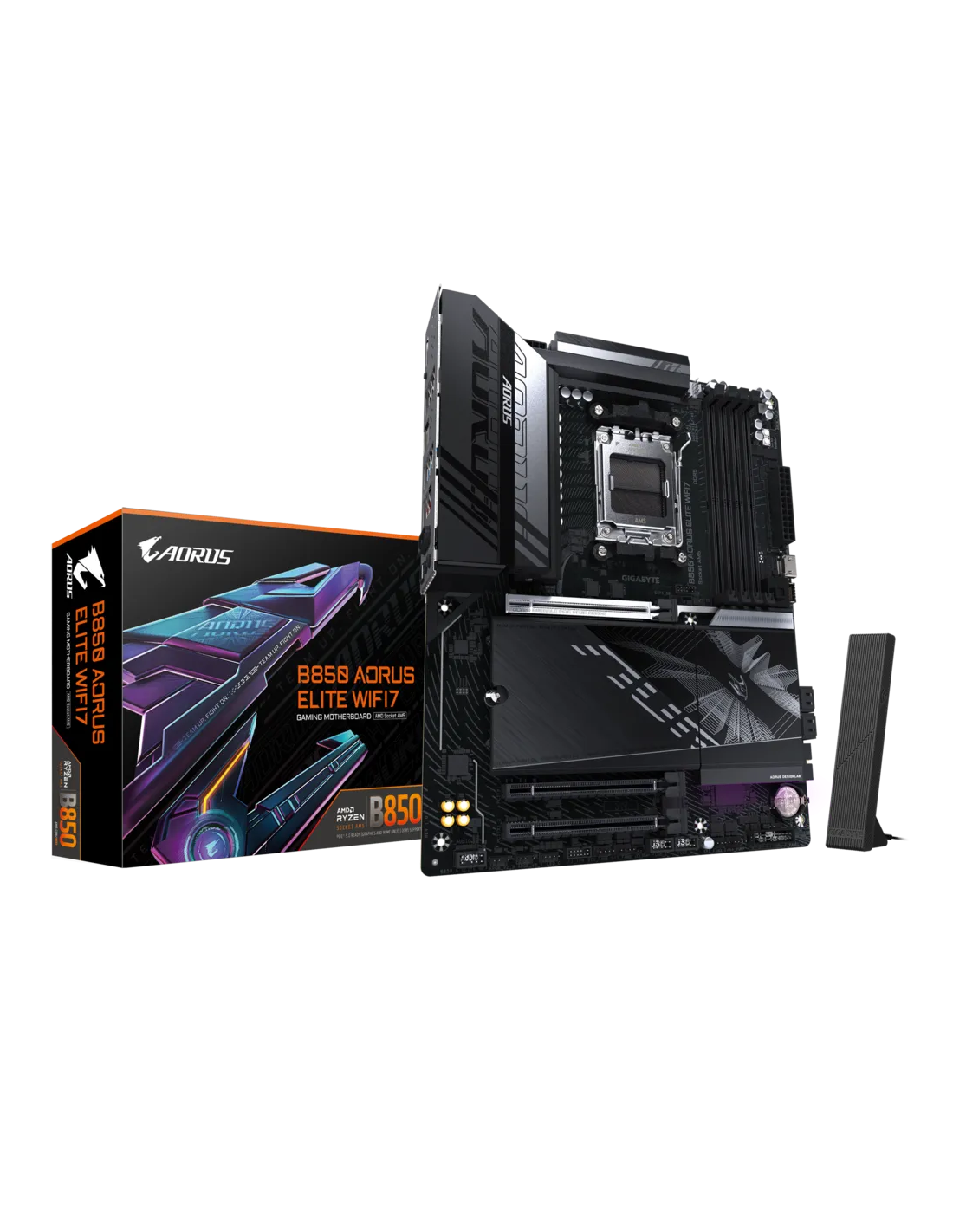

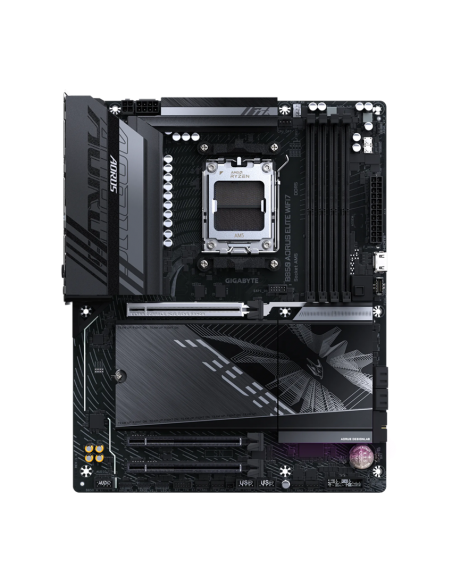

GB B850 AORUS ELITE WF7 /AM5

Референция B850 AORUS ELITE WF7 1.0

На склад

238,01 €

С вкл. данък

B850 AORUS ELITE WF7 1.0_MO

GB B850 4xDDR5 4xSATA3 RAID DP 3xM2 GLAN 3xPCIEx16 WiFi

LAN: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
OS: Support for Windows 11 64-bit;Software: Norton® Internet Security (OEM version);LAN bandwidth management software
Memory type: Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.;
Vendor_url: https://www.gigabyte.com/Motherboard/B850-AORUS-ELITE-WIFI7#kf
Chipset: AMD B850
Bluetooth: 5.4
Storage: 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:;AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs;AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs;AMD
BIOS: 1 x 256 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Audio: Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel;* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.;Support for S/PDIF Out
Form Factor: ATX Form Factor; 30.5cm x 24.4cm
Wireless: Realtek® Wi-Fi 7 RTL8922AE;- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands;- BLUETOOTH 5.4;- Support for 11be 160MHz wireless standard(Actual data rate may vary depending on environment and equipment.);* Wi-Fi 7 features req
Graphics: Integrated Graphics Processor with AMD Radeon™ Graphics support:;- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz;* Support for DisplayPort 1.4 version and HDR.;- 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 H

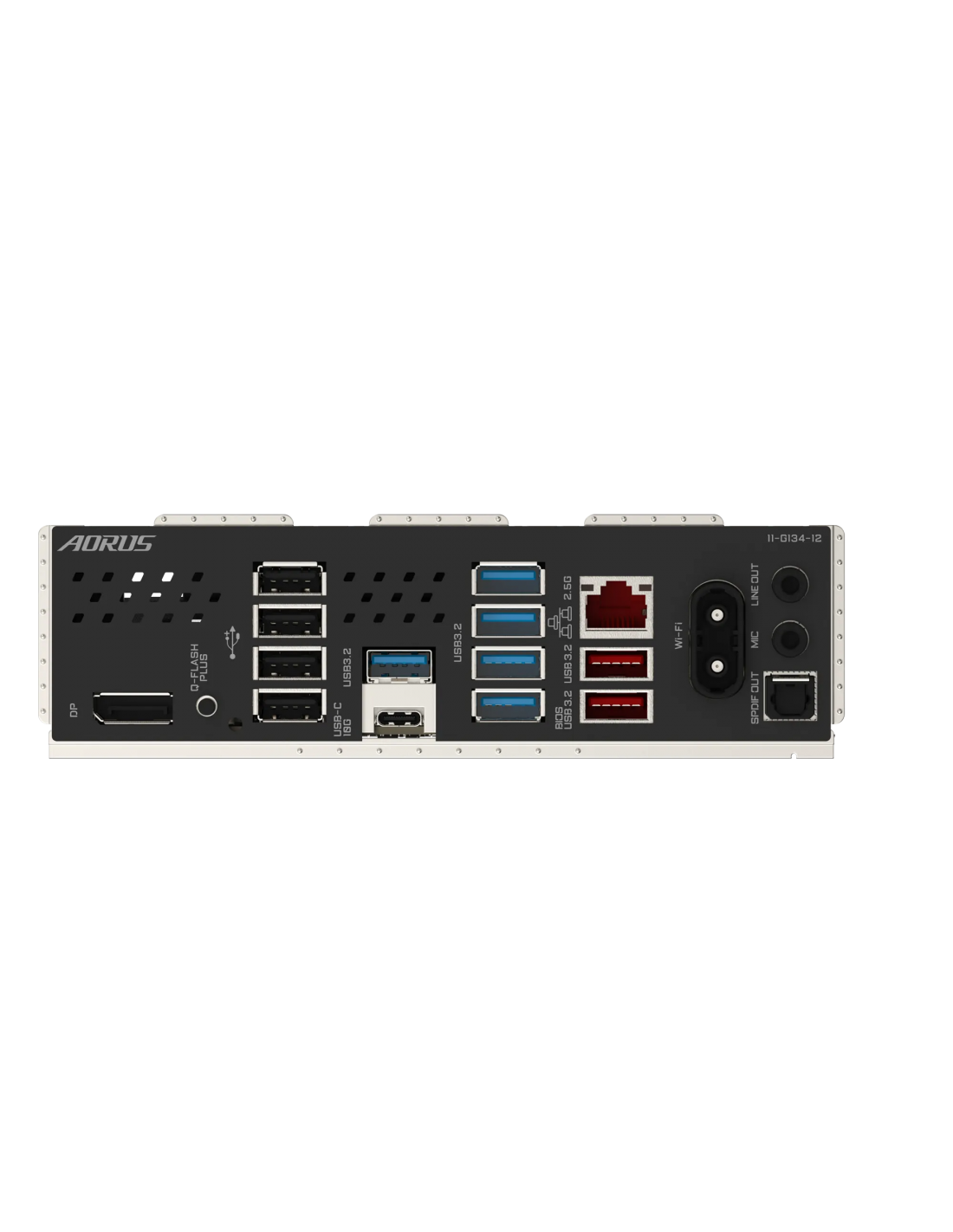

Rear panel I/O: iTE® I/O Controller Chip
Expansion Slots: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:;AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode;AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode;AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x
USB: CPU:;- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support;- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel;CPU+USB 2.0 Hub:;- 4 x USB 2.0/1.1 ports on the back panel;Chipset:;- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, ava
Connectors: 1 x 24-pin ATX main power connector;1 x 8-pin ATX 12V power connector;1 x 4-pin ATX 12V power connector;1 x CPU fan header;1 x CPU fan/water cooling pump header;3 x system fan headers;1 x system fan/water cooling pump header;3 x addressable RGB Gen2 LED s
Дънна платка - чипсет: AMD B850
Дънна платка - поддържан тип памет: DDR5
Дънна платка - честота на паметта: 4400 MHz
4800 MHz
5200 MHz
5600 MHz
5800 MHz
6000 MHz
6200 MHz
6400 MHz
6600 MHz
6800 MHz
7000 MHz
7200 MHz
7400 MHz
7600 MHz
7800 MHz
7900 MHz
7950 MHz
8000 MHz
8200 MHz
Дънна платка - интерфейси: M.2 (NVMe) конектор
Дънна платка - портове: USB 2.0
USB 3.2
Дънна платка - форм фактор: ATX

No reviews

С доставка 24 часа
