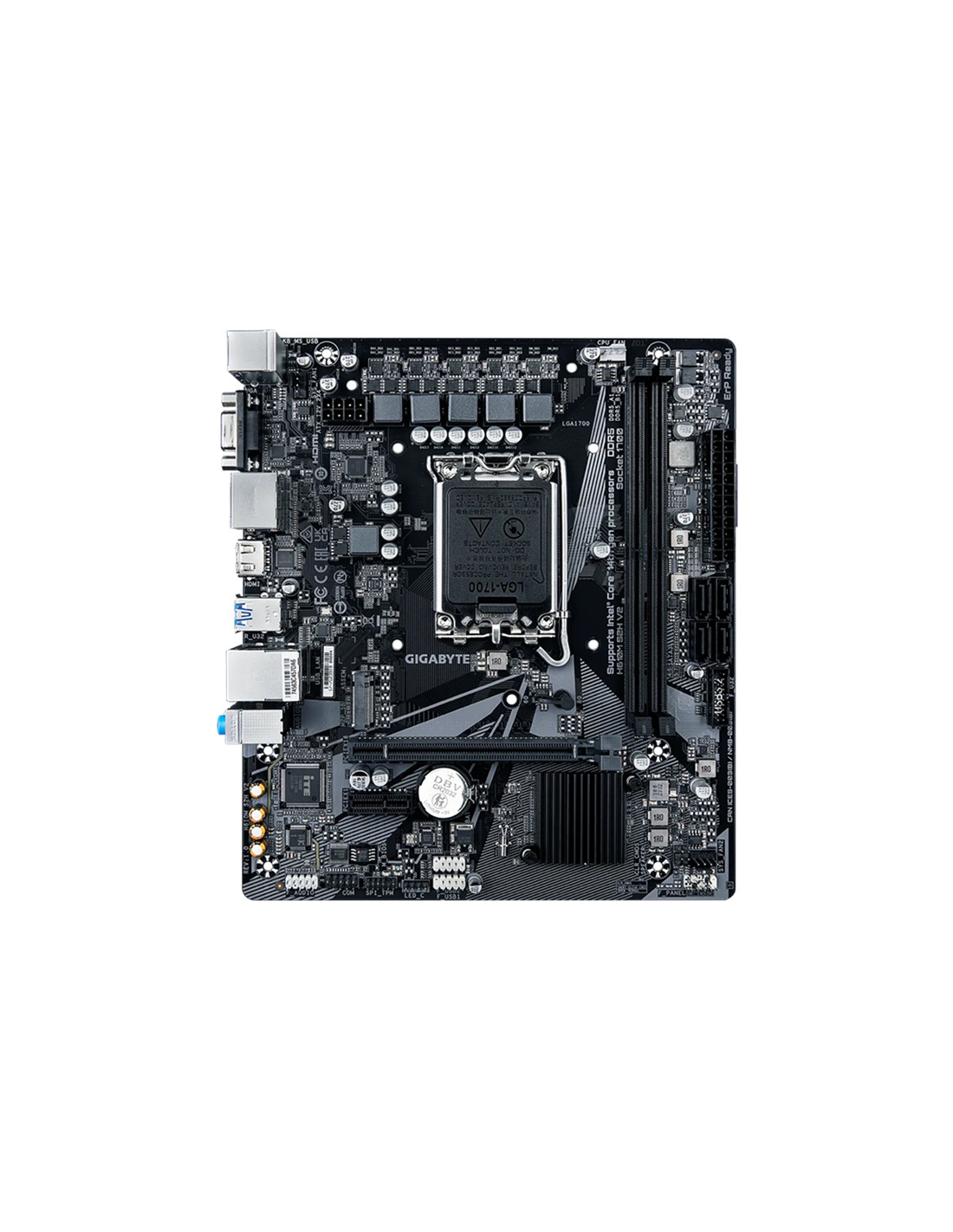

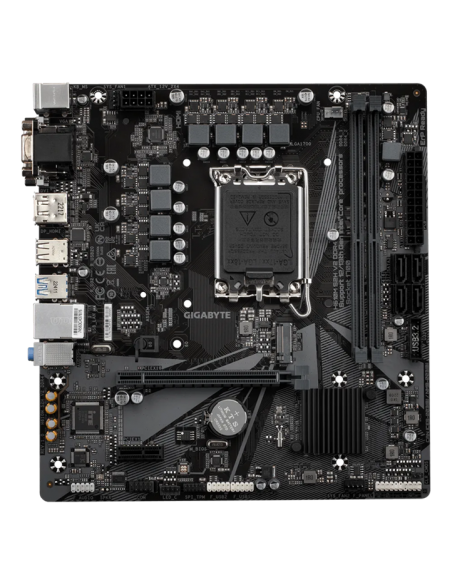

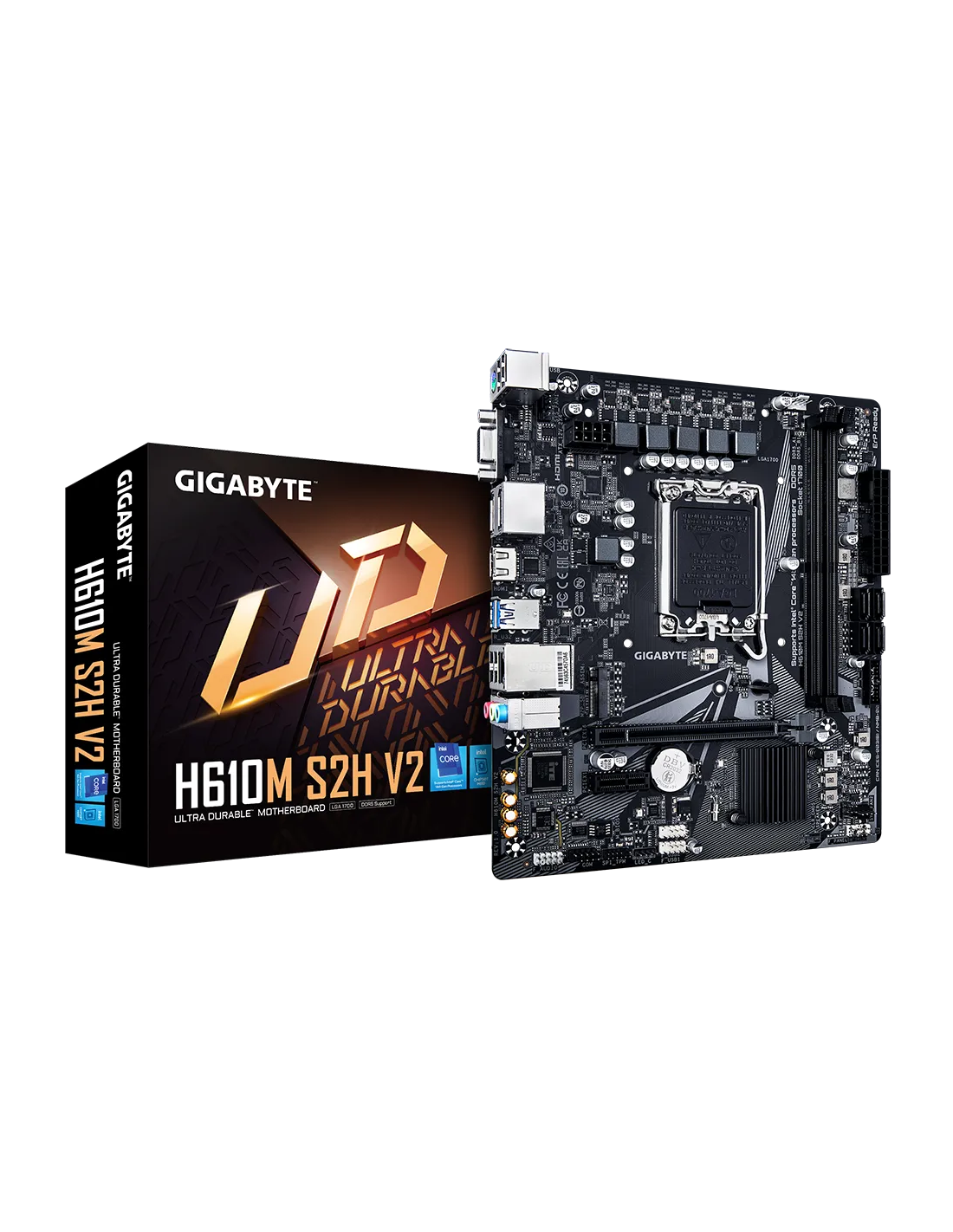

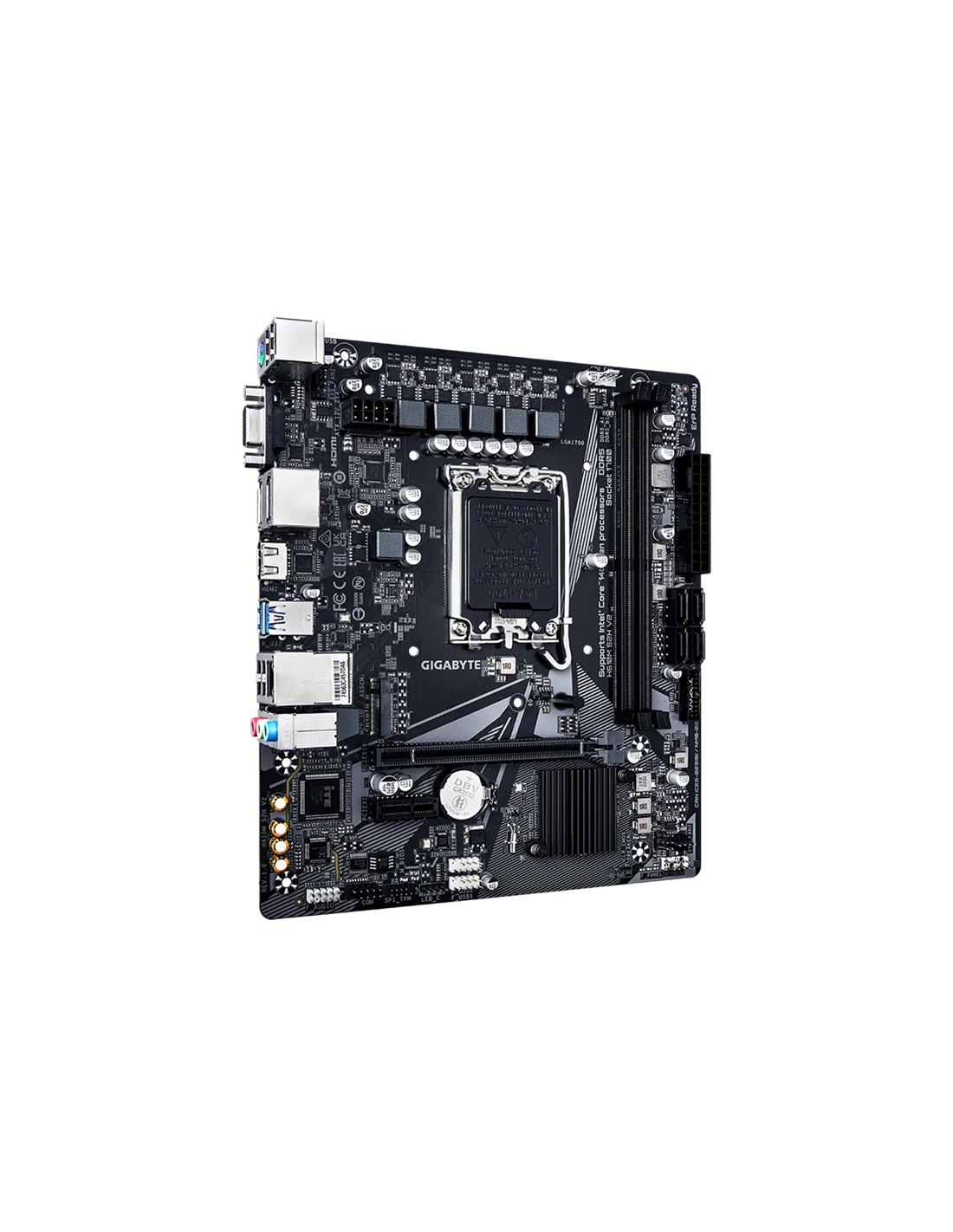

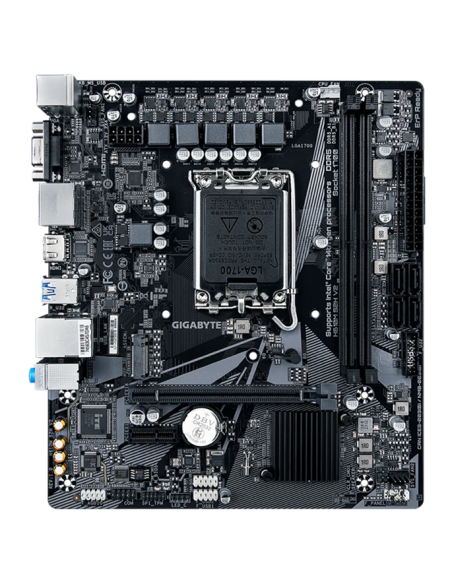

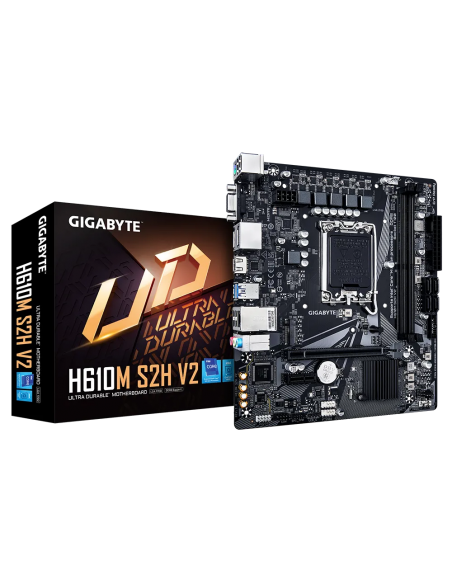

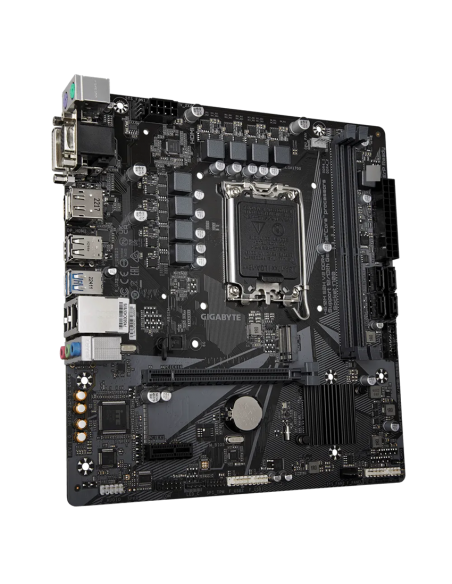

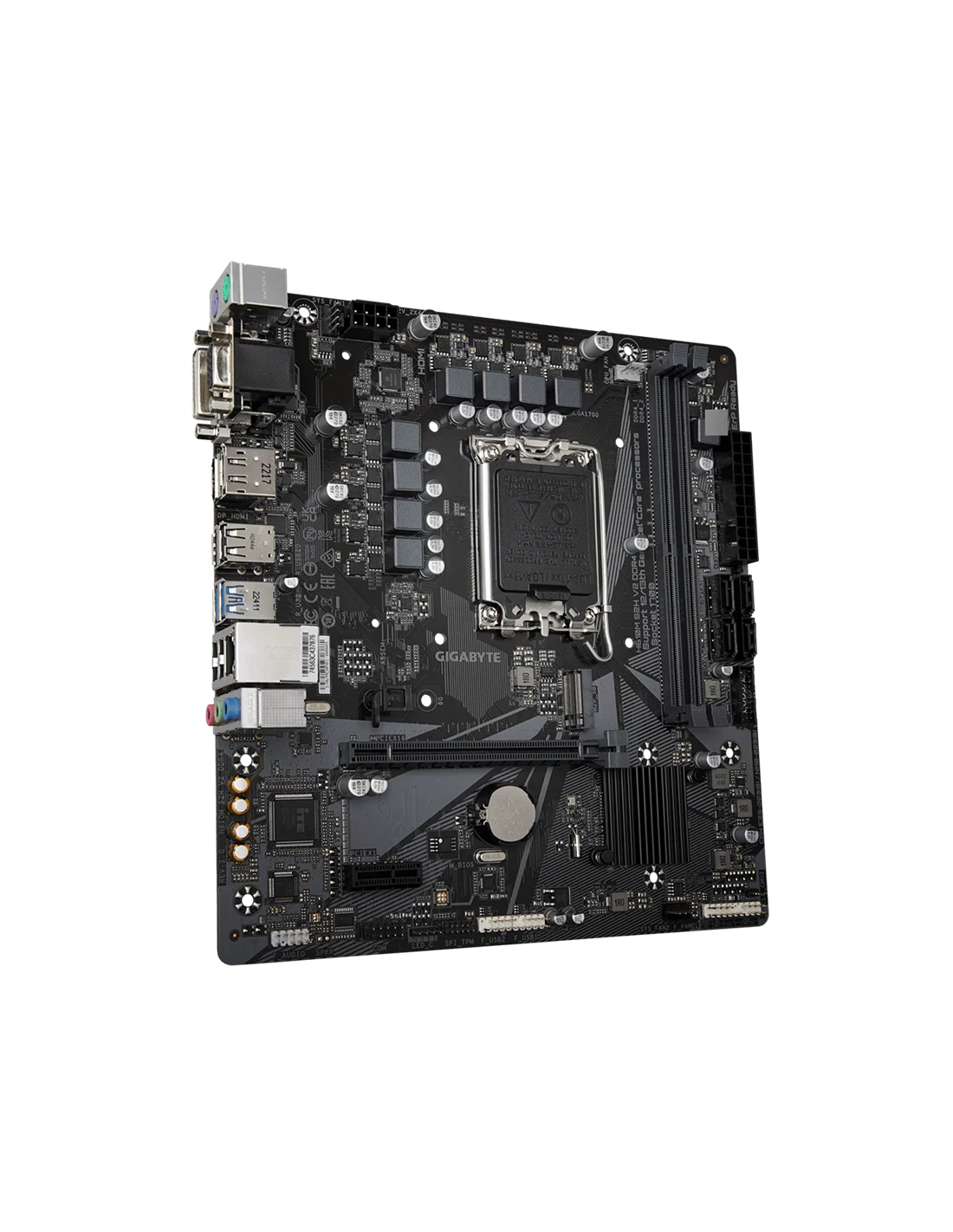

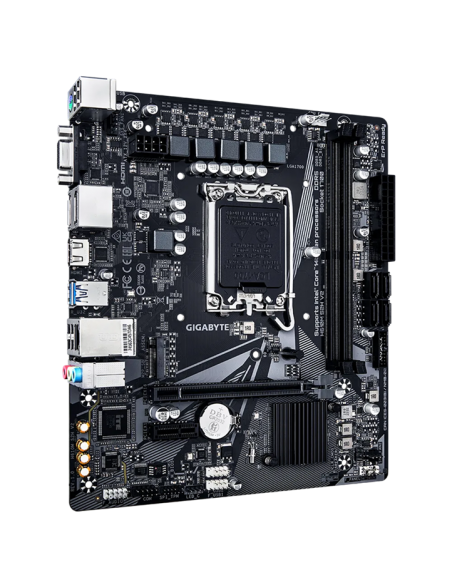

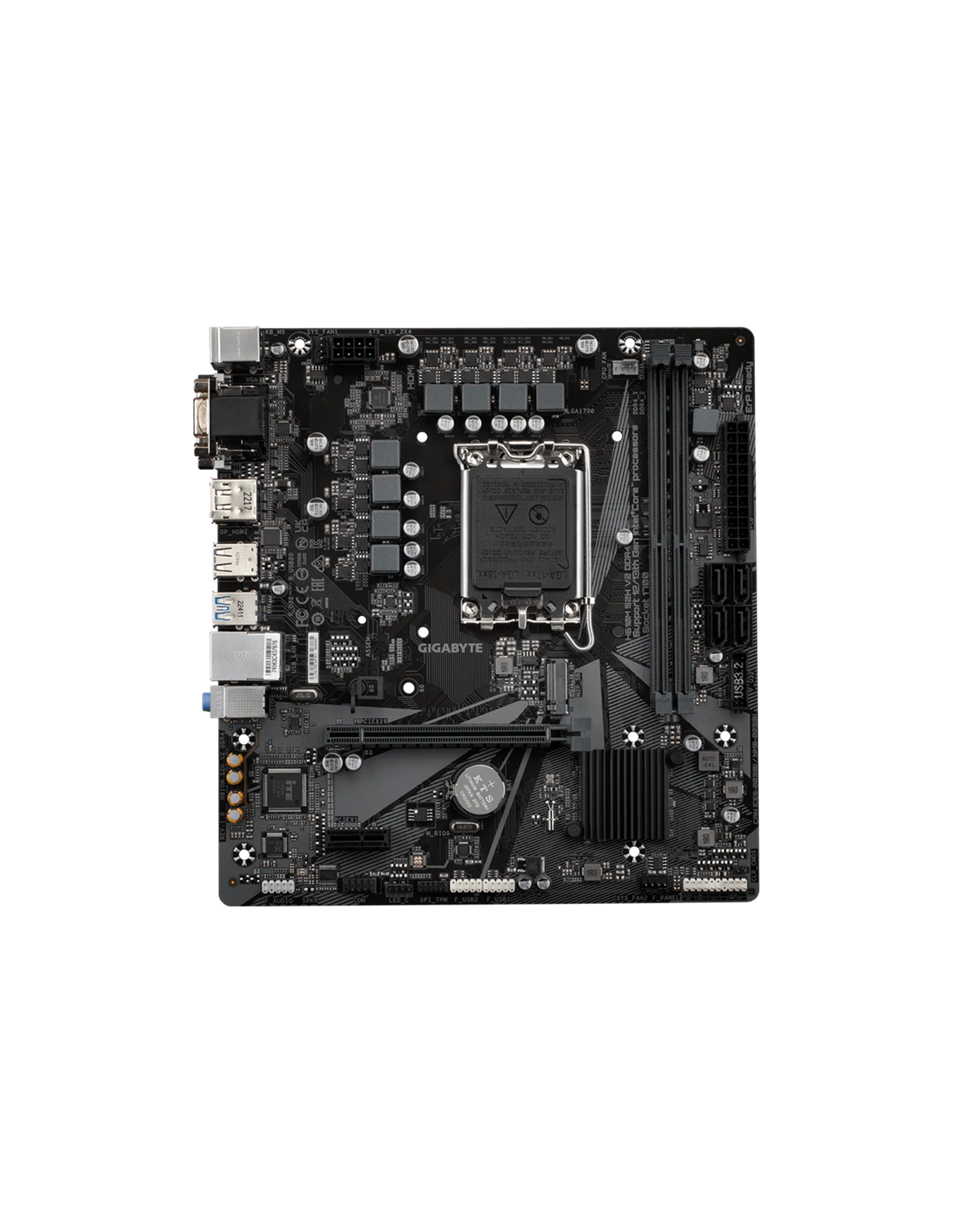

GB H610M S2H V2 /DDR5 /LGA1700
H610M S2H V2 1.0
На склад
76,41 €
С вкл. данък
H610M S2H V2 1.0_MO
GB H610 2xDDR5 4xSATA3 HDMI 2DP VGA 1xM2 GLAN 1xPCIEx16 1xPCIEx1
- Storage
- Chipset;- 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support);- 4 x SATA 6Gb/s connectors
- Form Factor
- Micro ATX Form Factor; 22.3cm x 19.6cm
- Audio
- Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel
- Warranty
- 36 Months
- Vendor_url
- https://www.gigabyte.com/Motherboard/H610M-S2H-V2-rev-10#kf
- CPU's supported
- LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors;L3 cache varies with CPU
- BIOS
- 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Expansion Slots
- CPU;- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16;Chipset;- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
- LAN
- Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
- Connectors
- iTE® I/O Controller Chip;1 x 24-pin ATX main power connector;1 x 8-pin ATX 12V power connector;1 x CPU fan header;2 x system fan headers;1 x M.2 Socket 3 connector4 x SATA 6Gb/s connectors;1 x RGB LED strip header;1 x front panel header;1 x front panel au
- Memory type
- 14th and 13th Generation Intel® Core™ i9/i7 Pocessors;- Support for DDR5 5600/ 5200/ 4800/ 4400 MT/s memory modules;13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors;- Support for DDR5 4800/4400 MT/
- OS
- Support for Windows 11 64-bit;Support for Windows 10 64-bit
- Graphics
- Integrated Graphics Processor-Intel® HD Graphics support;- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hzjk;* Support for HDMI 2.1 version and HDCP 2.3.;** Support nat

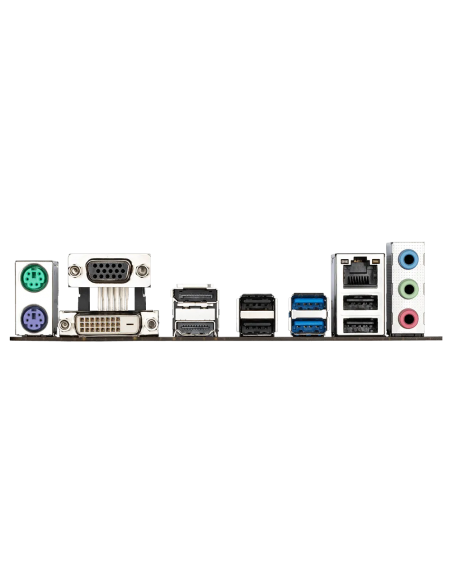

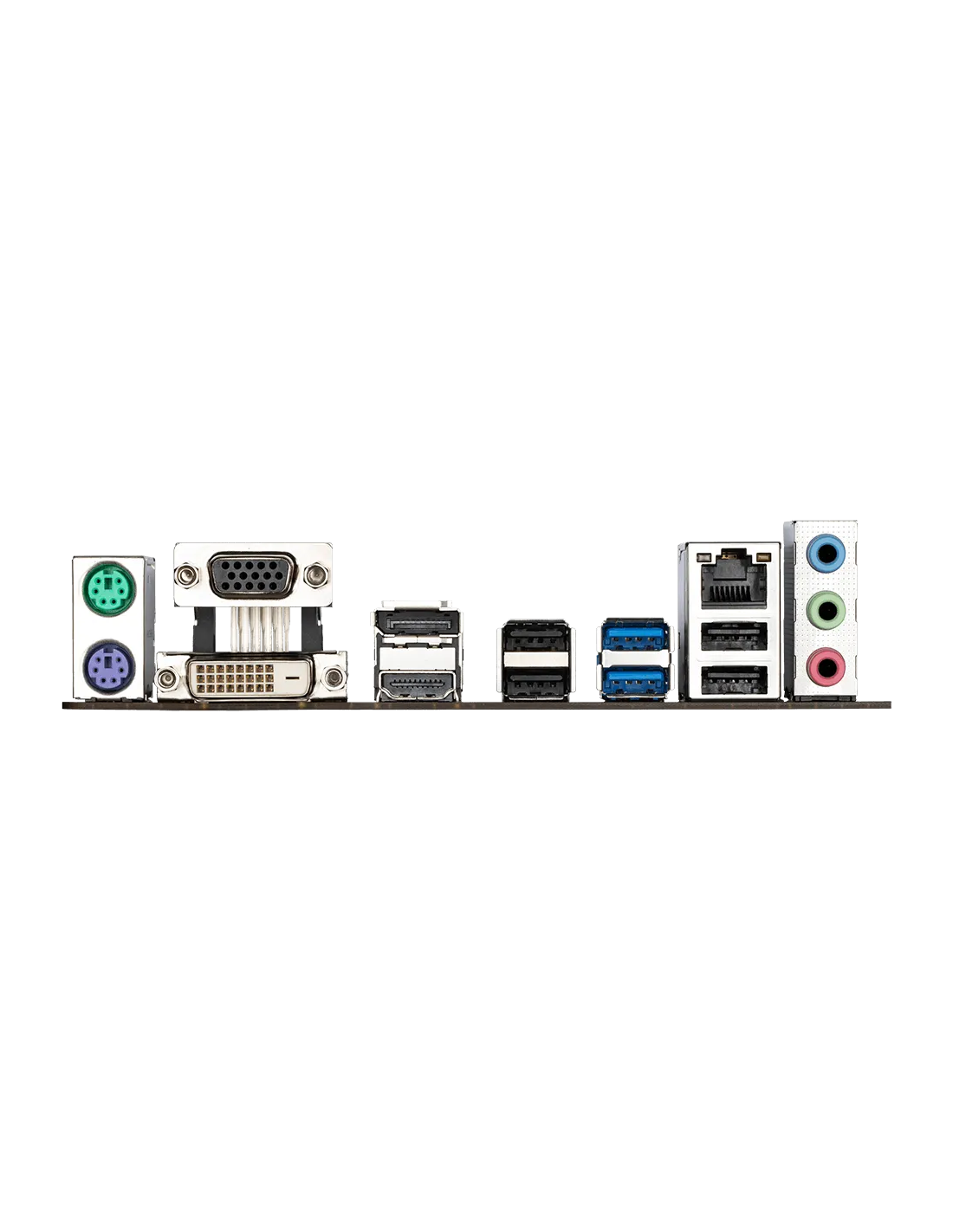

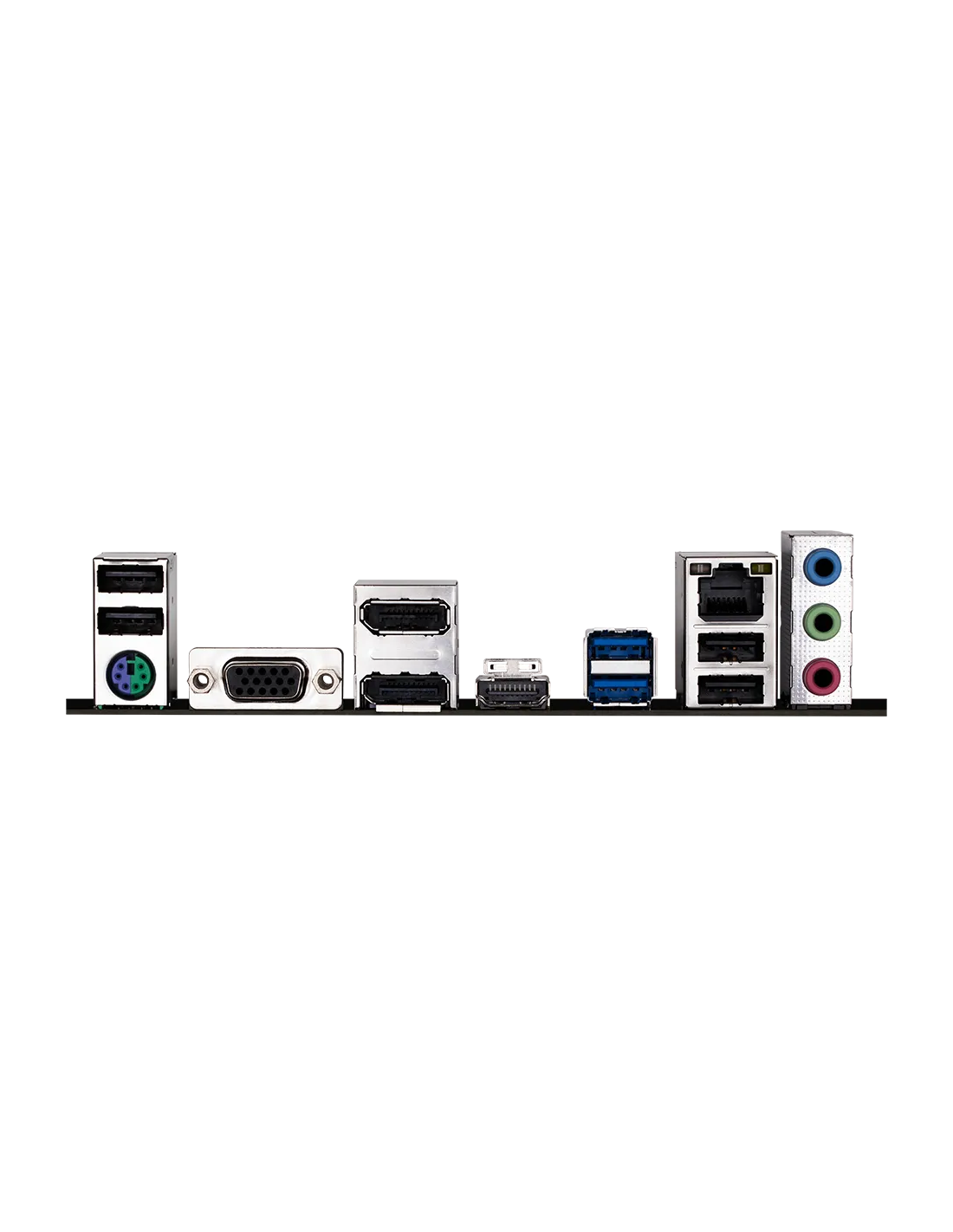

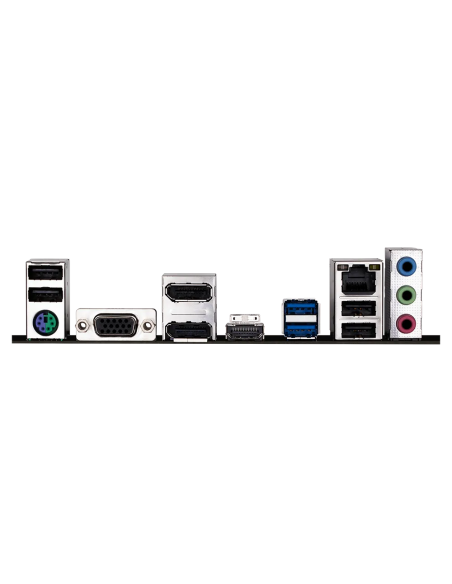

- Rear panel I/O
- Chipset;- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header);- 4 x USB 2.0/1.1 ports on the back panel;Chipset+USB 2.0 Hub;- 4 x USB 2.0/1.1 ports available through the internal USB headers
- Chipset
- Intel® H610 Express Chipset
- Manufacturer
- GIGABYTE
- Дънна платка - сокет
- LGA1700
- Дънна платка - чипсет
- INTEL H610
- Дънна платка - поддържан тип памет
- DDR5
- Дънна платка - честота на паметта
- 4400 MHz
4800 MHz
5200 MHz
5600 MHz - Дънна платка - интерфейси
- M.2 (NVMe) конектор
SATA 3.0 - Дънна платка - портове
- USB 2.0
USB 3.2 - Дънна платка - форм фактор
- Micro ATX
