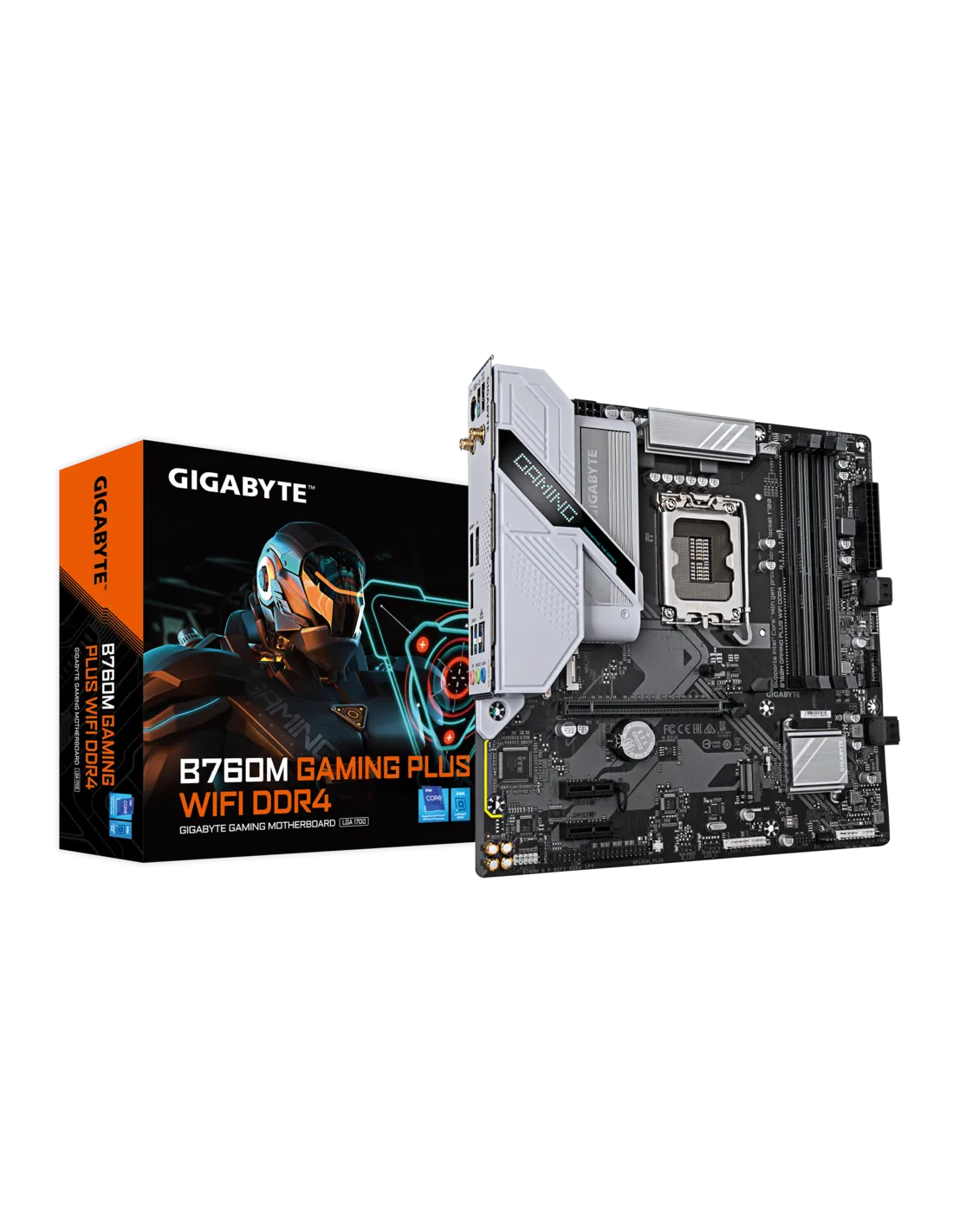

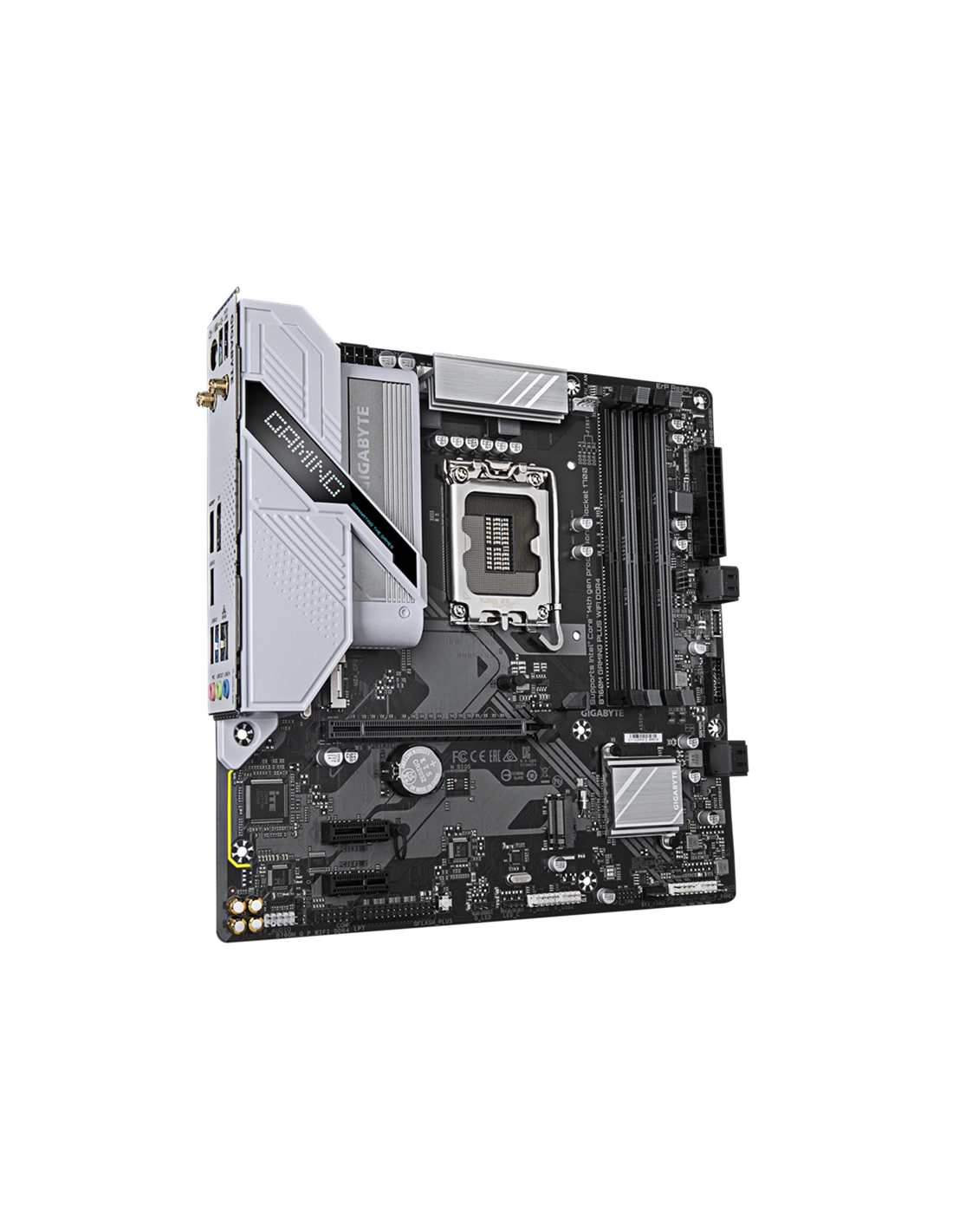

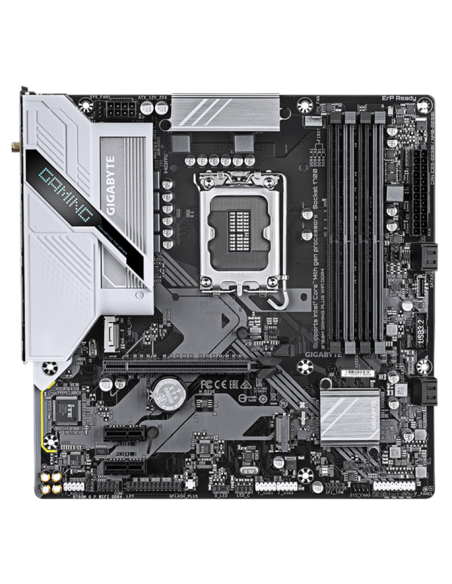

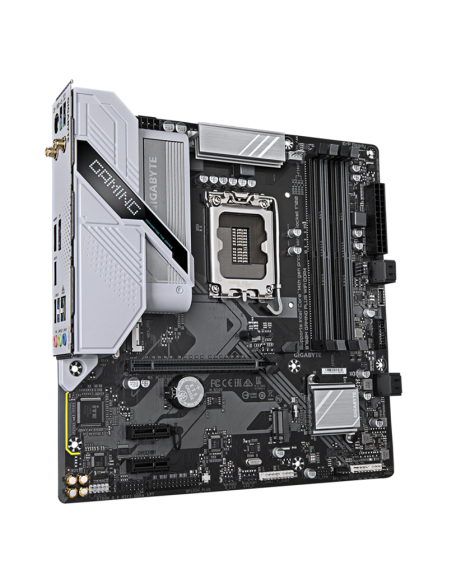

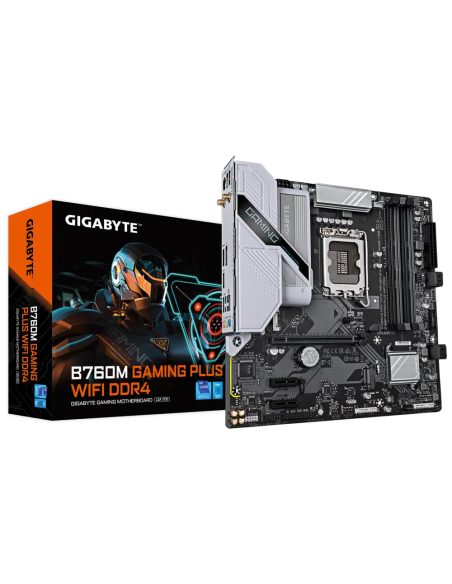

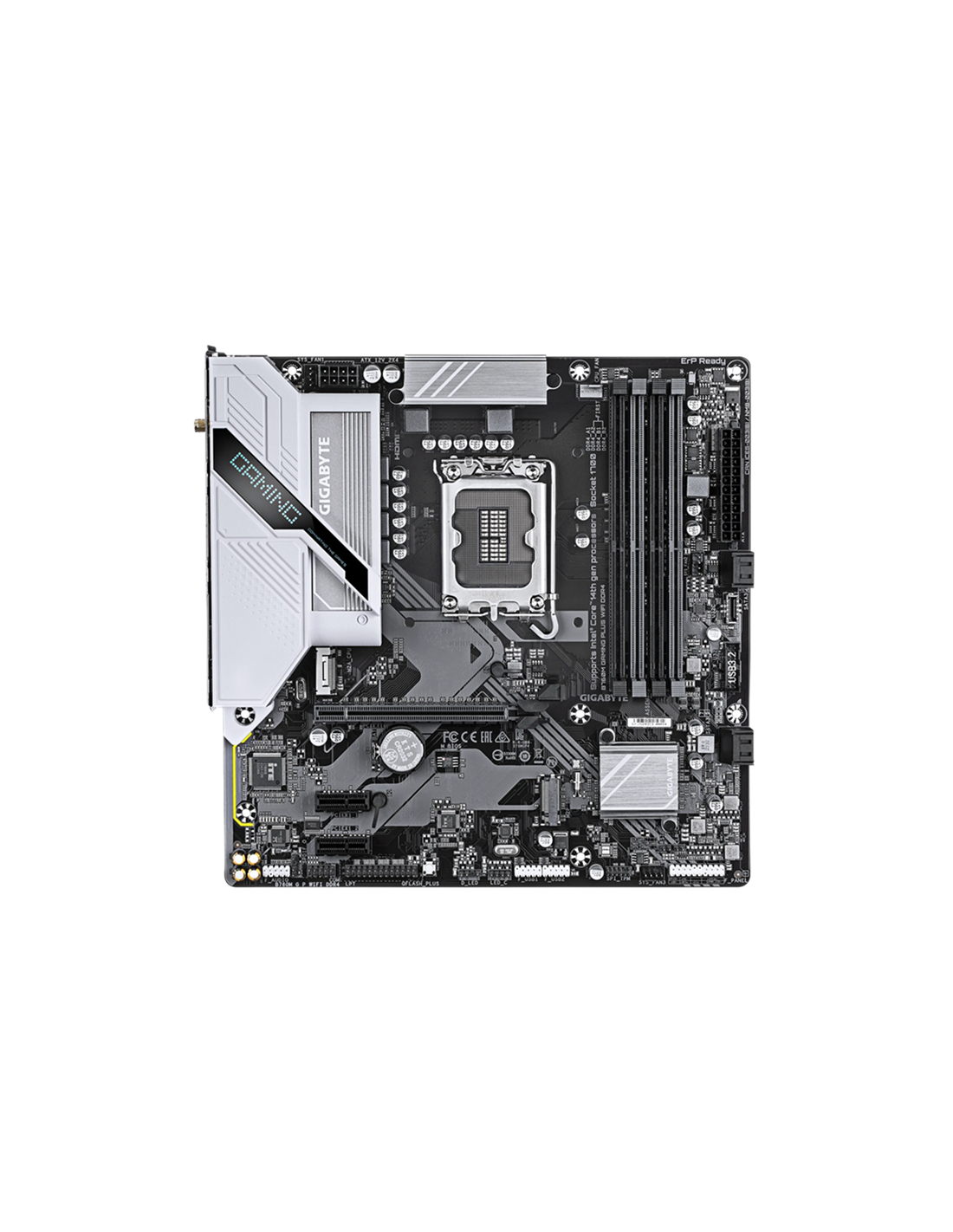

GB B760M GAMING PLUS WIFI DDR4

Референция B760M GAMING PLUS WIFI DDR4 1.

На склад

123,29 €

С вкл. данък

B760M GAMING PLUS WIFI DDR4 1._MO

GB B760 4xDDR4 4xSATA3 RAID HDMI DP 2xM2 GLAN 1xPCIEx16 2xPCIEx1 WiFi

CPU's supported: LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors;L3 cache varies with CPU

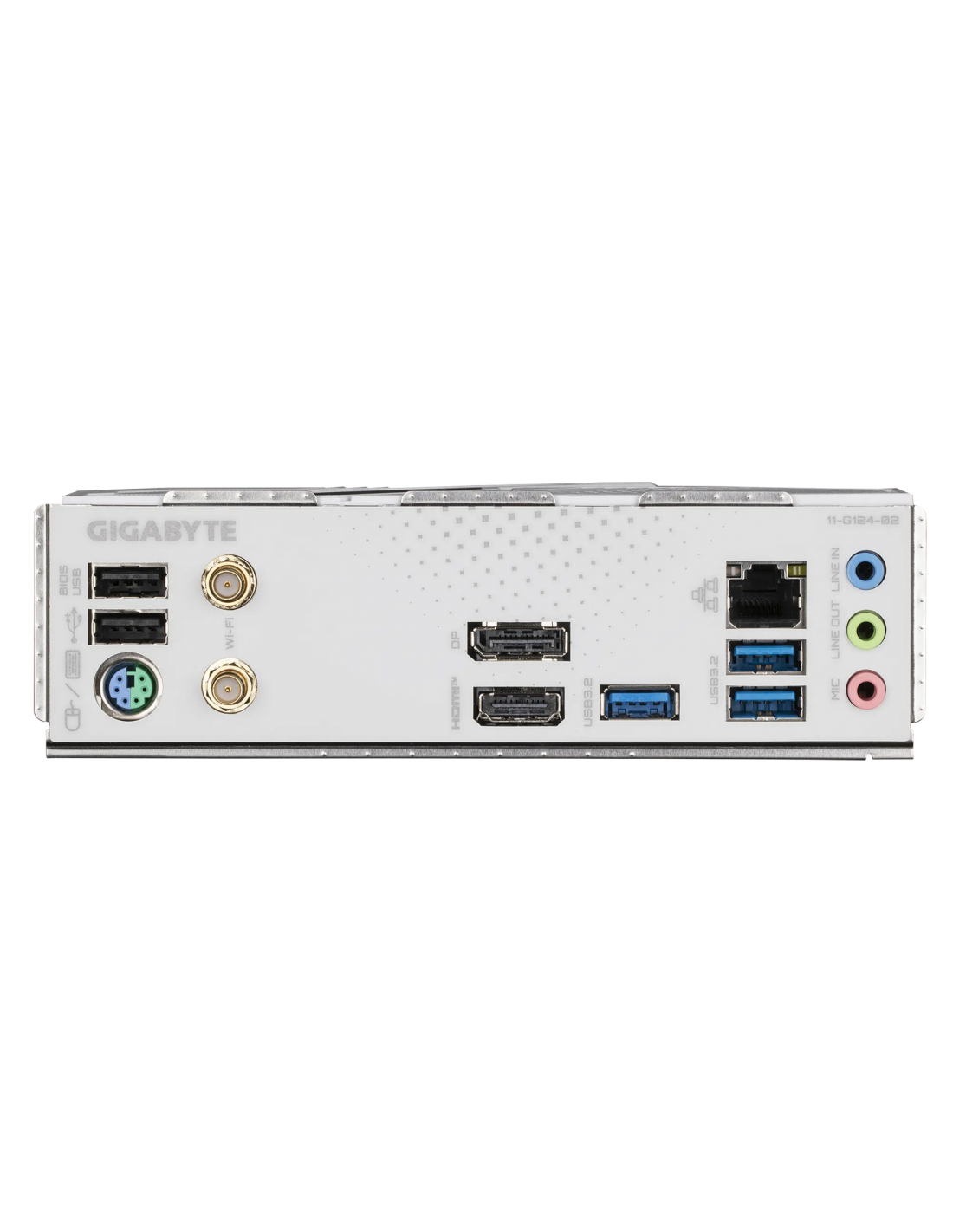

Rear panel I/O: iTE® I/O Controller Chip
BIOS: 1 x 128 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Expansion Slots: CPU:;- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16;* The PCIEX16 slot can only support a graphics card or an NVMe SSD.;Chipset:;- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
LAN: Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Connectors: Internal I/O Connectors;1 x 24-pin ATX main power connector;1 x 8-pin ATX 12V power connector;1 x CPU fan header;3 x system fan headers;1 x addressable LED strip header;1 x RGB LED strip header;2 x M.2 Socket 3 connectors;4 x SATA 6Gb/s connectors;1 x fro
Memory type: Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)
OS: Support for Windows 11 64-bit;Support for Windows 10 64-bit
Graphics: Integrated Graphics Processor-Intel® HD Graphics support:;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Support for HDMI 2.1 version and HDCP 2.3;** Support for native HDMI 2.1 TMDS compatible ports.;- 1 x DisplayPort, supporting a
Vendor_url: https://www.gigabyte.com/Motherboard/B760M-GAMING-PLUS-WIFI-DDR4
USB: Chipset:;- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header;- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header);- 2 x USB 2.0/1.1 ports on the back panel;Chipse
Chipset: Intel® B760 Express Chipset
Manufacturer: GIGABYTE
Storage: CPU:;- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU);Chipset:;- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB);- 4 x SATA 6Gb/s connectors;RAID 0, RAID 1, RAID 5, and RAID 10 suppor
Form Factor: Micro ATX Form Factor; 24.4cm x 24.4cm
Audio: Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel;Support for S/PDIF Out
Warranty: 36 Months
Wireless: Realtek® Wi-Fi 6 RTL8851BE;- WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands;- BLUETOOTH 5.3;- Support for 11ax 160MHz wireless standard
Bluetooth: 5.3
Дънна платка - сокет: LGA1700
Дънна платка - чипсет: INTEL B760
Дънна платка - поддържан тип памет: DDR4
Дънна платка - честота на паметта: 3400 MHz
3466 MHz
3600 MHz
3666 MHz
3733 MHz
3800 MHz
3866 MHz
4000 MHz
4133 MHz
4266 MHz
4300 MHz
4400 MHz
4500 MHz
4600 MHz
4700 MHz
4800 MHz
4933 MHz
5000 MHz
5133 MHz
5333 MHz
Дънна платка - интерфейси: M.2 (NVMe) конектор
SATA 3.0
Дънна платка - портове: USB 2.0
USB 3.2
Дънна платка - форм фактор: Micro ATX
