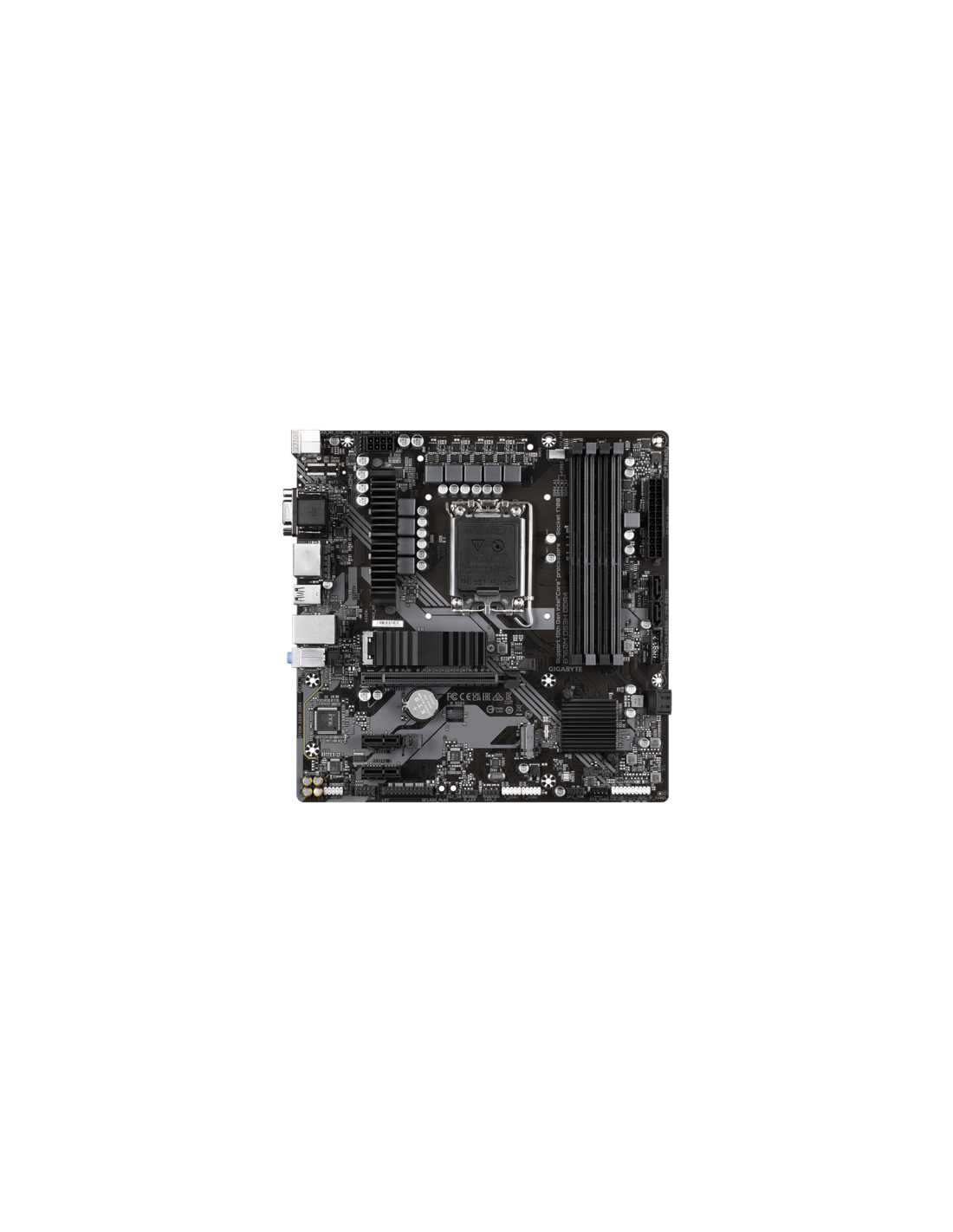

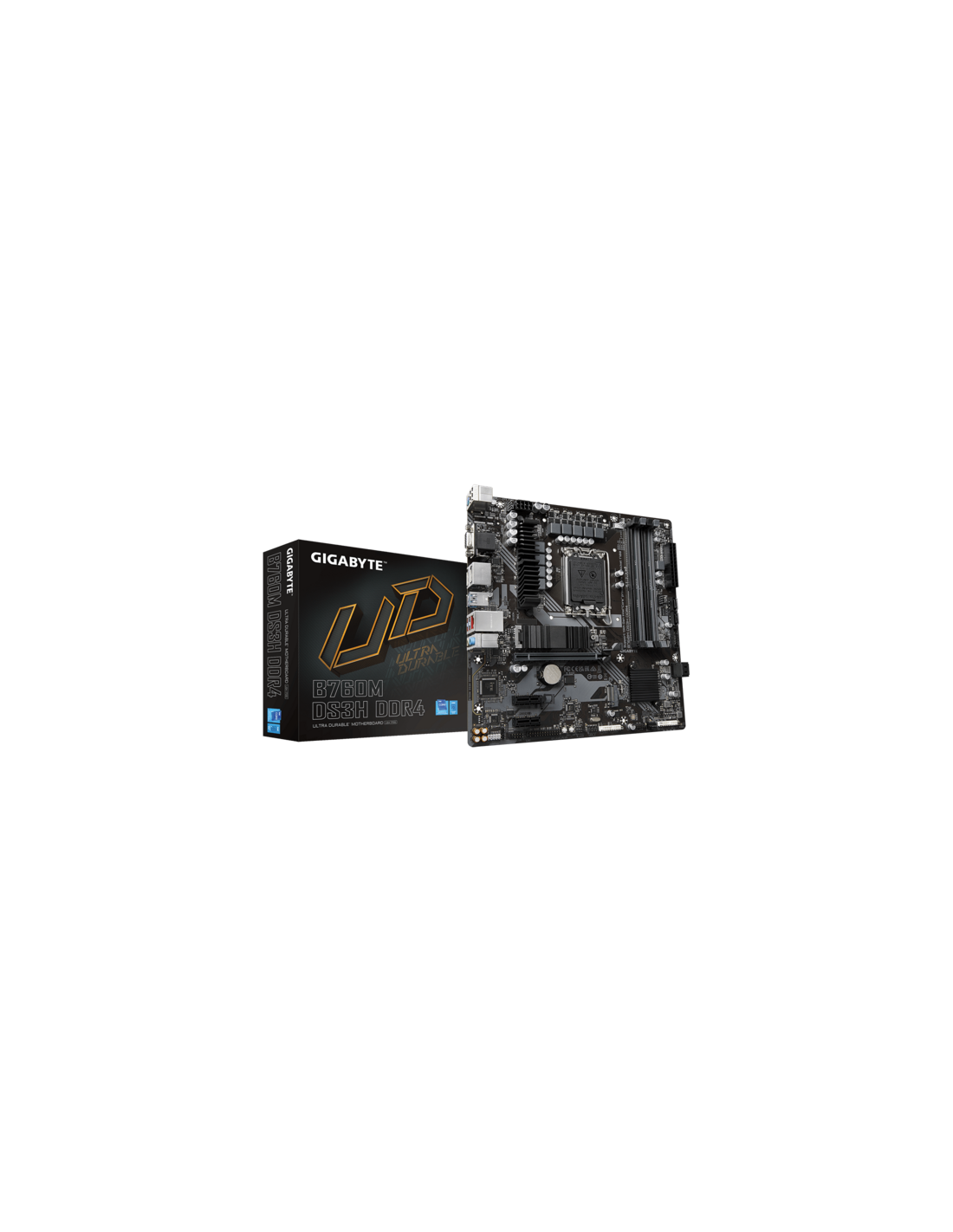

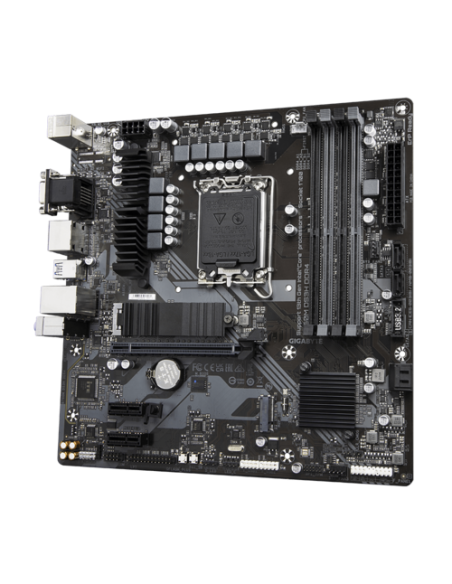

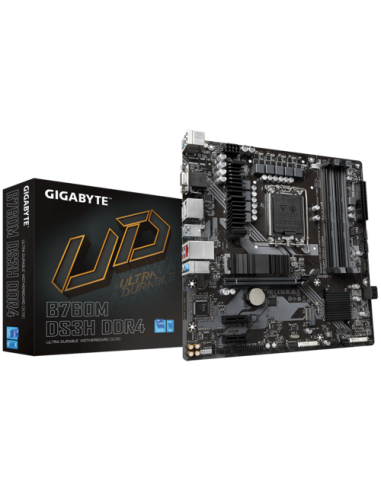

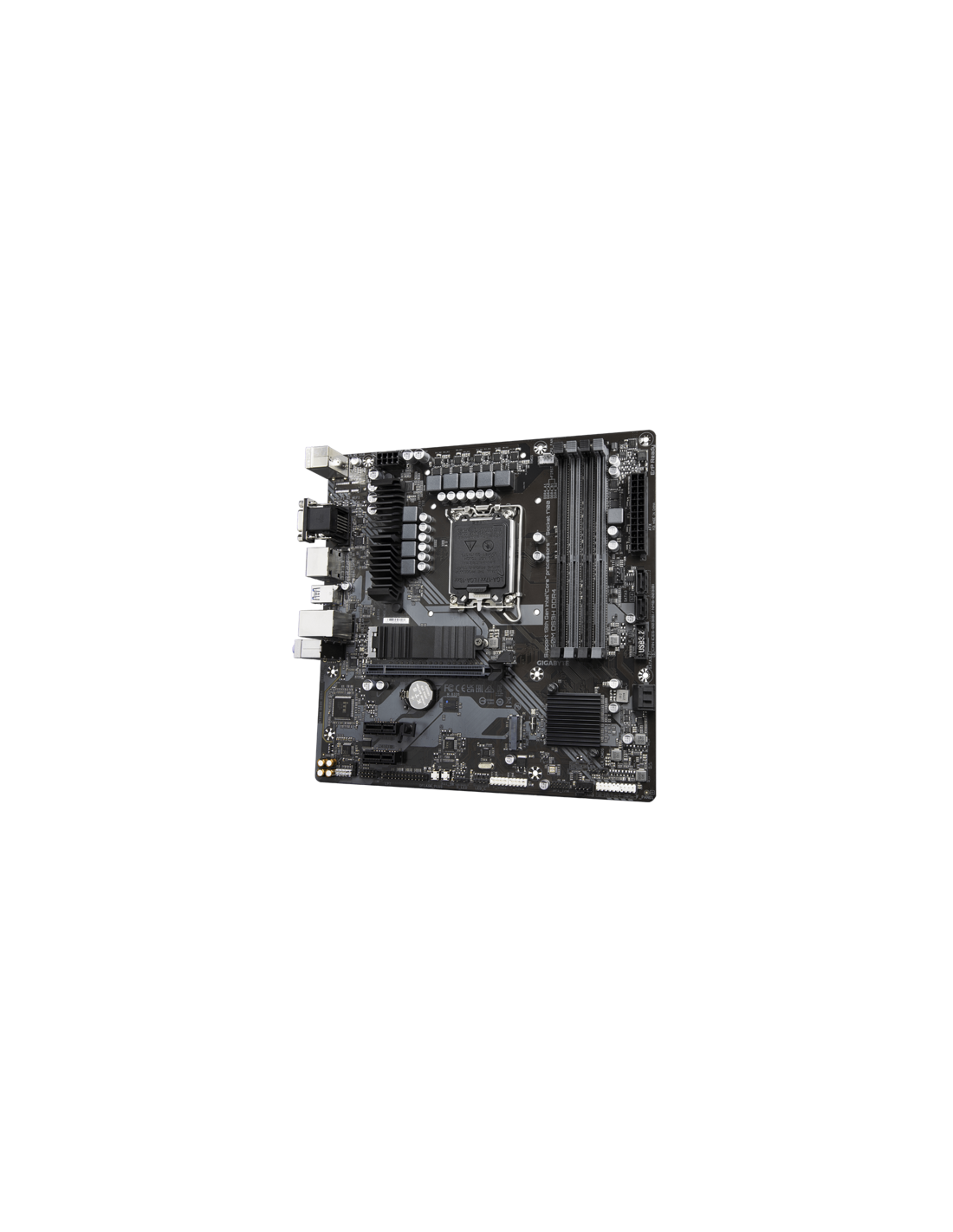

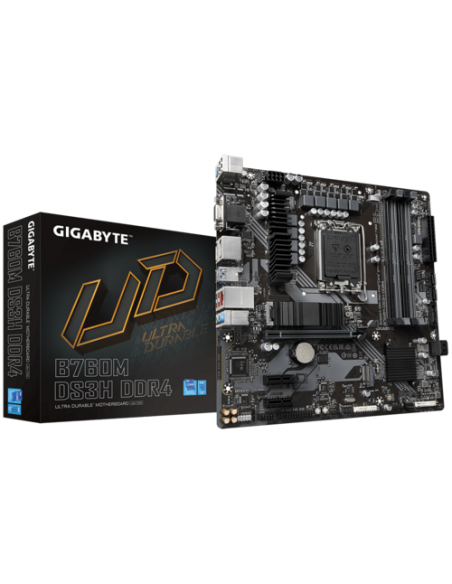

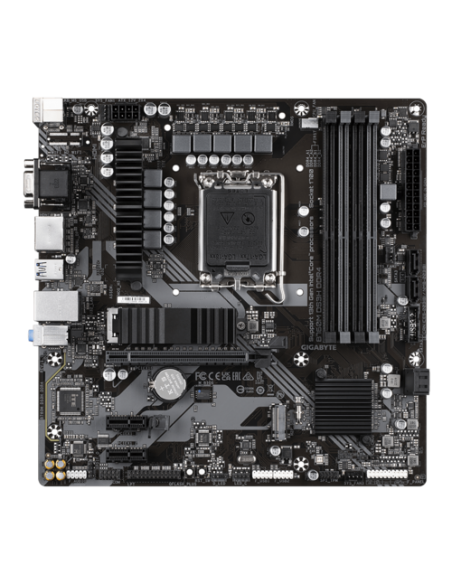

GB B760M DS3H DDR4 /LGA1700

Референция B760M DS3H DDR4 1.0

На склад

108,00 €

С вкл. данък

B760M DS3H DDR4 1.0_MO

GB B760 4xDDR4 4xSATA3 RAID HDMI 2DP VGA 2xM2 GLAN 1xPCIEx16 2xPCIEx1

OS: Support for Windows 11 64-bit; Support for Windows 10 64-bit
Warranty: 36 Months
Rear panel I/O: 2 x USB 2.0/1.1 ports; 1 x PS/2 keyboard/mouse port; 1 x D-Sub port; 1 x HDMI port; 2 x DisplayPorts; 3 x USB 3.2 Gen 1 ports; 1 x USB Type-C® port, with USB 3.2 Gen 2 support; 1 x RJ-45 port; 3 x audio jacks
Chipset: Intel® B760 Express Chipset
Storage: CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU); Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB); 4 x SATA 6Gb/s connectors; RAID 0, RAID 1, RAID 5, and RAID 10 support f
LAN: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Audio: Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.; Support for S/PDIF Out
Memory type: Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)
Vendor_url: https://www.gigabyte.com/Motherboard/B760M-DS3H-DDR4-rev-10/sp#sp
Graphics: Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz; 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort,
Expansion Slots: CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16; Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
BIOS: 1 x 128 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Connectors: 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 3 x system fan headers; 1 x addressable LED strip header; 1 x RGB LED strip header; 2 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header;
Form Factor: Micro ATX Form Factor; 24.4cm x 24.4cm
Дънна платка - чипсет: INTEL B760
Дънна платка - поддържан тип памет: DDR4
Дънна платка - честота на паметта: 3400 MHz
3466 MHz
3600 MHz
3666 MHz
3733 MHz
3800 MHz
3866 MHz
4000 MHz
4133 MHz
4266 MHz
4300 MHz
4400 MHz
4500 MHz
4600 MHz
4700 MHz
4800 MHz
4933 MHz
5000 MHz
5133 MHz
5333 MHz
Дънна платка - интерфейси: M.2 (NVMe) конектор
SATA 3.0
Дънна платка - портове: HDMI
USB 2.0
USB 3.2
VGA
Дънна платка - форм фактор: Micro ATX

No reviews

С доставка 24 часа
