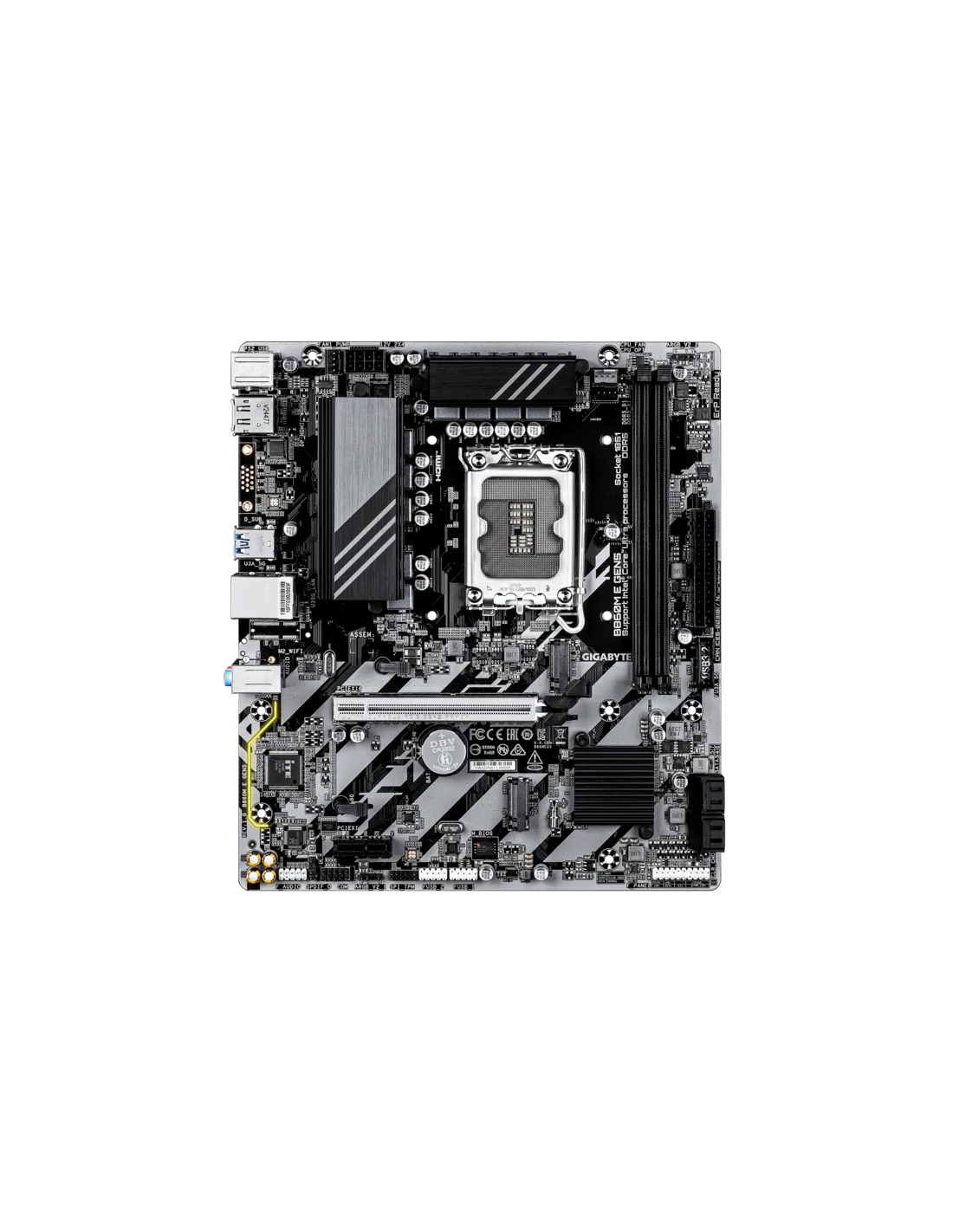

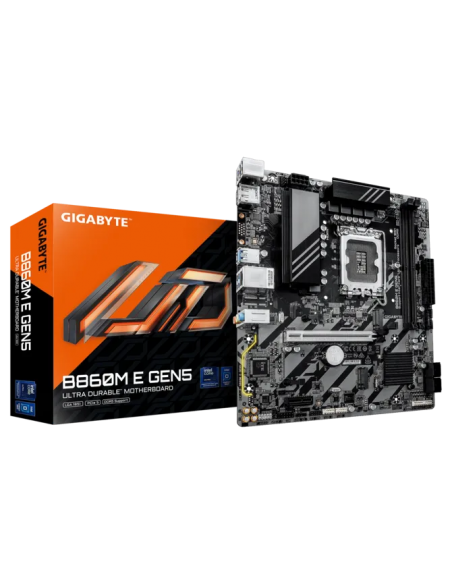

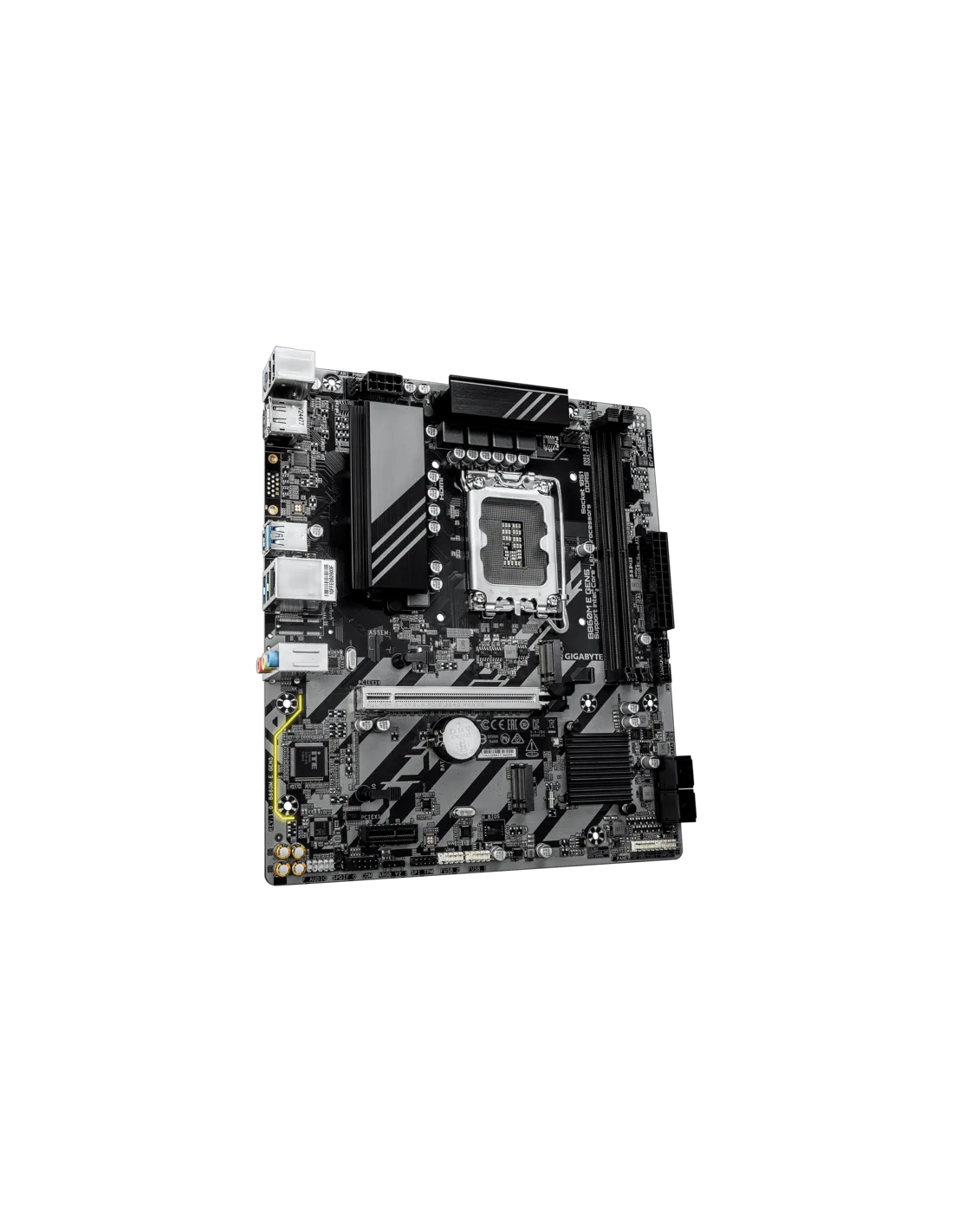

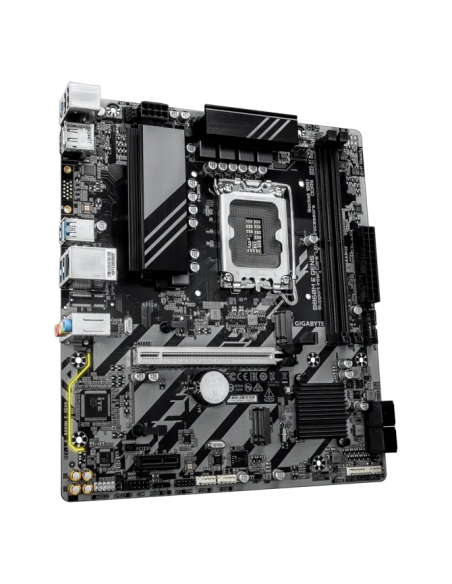

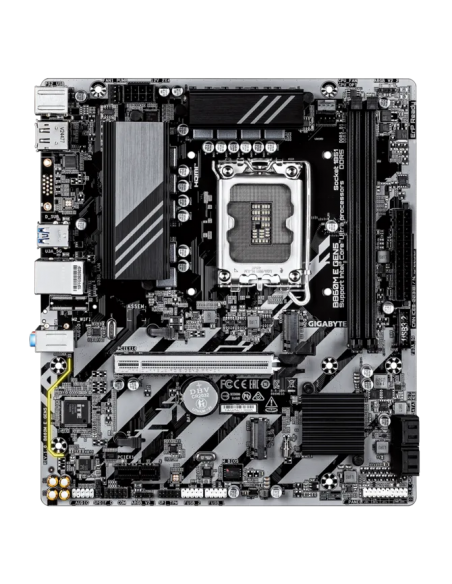

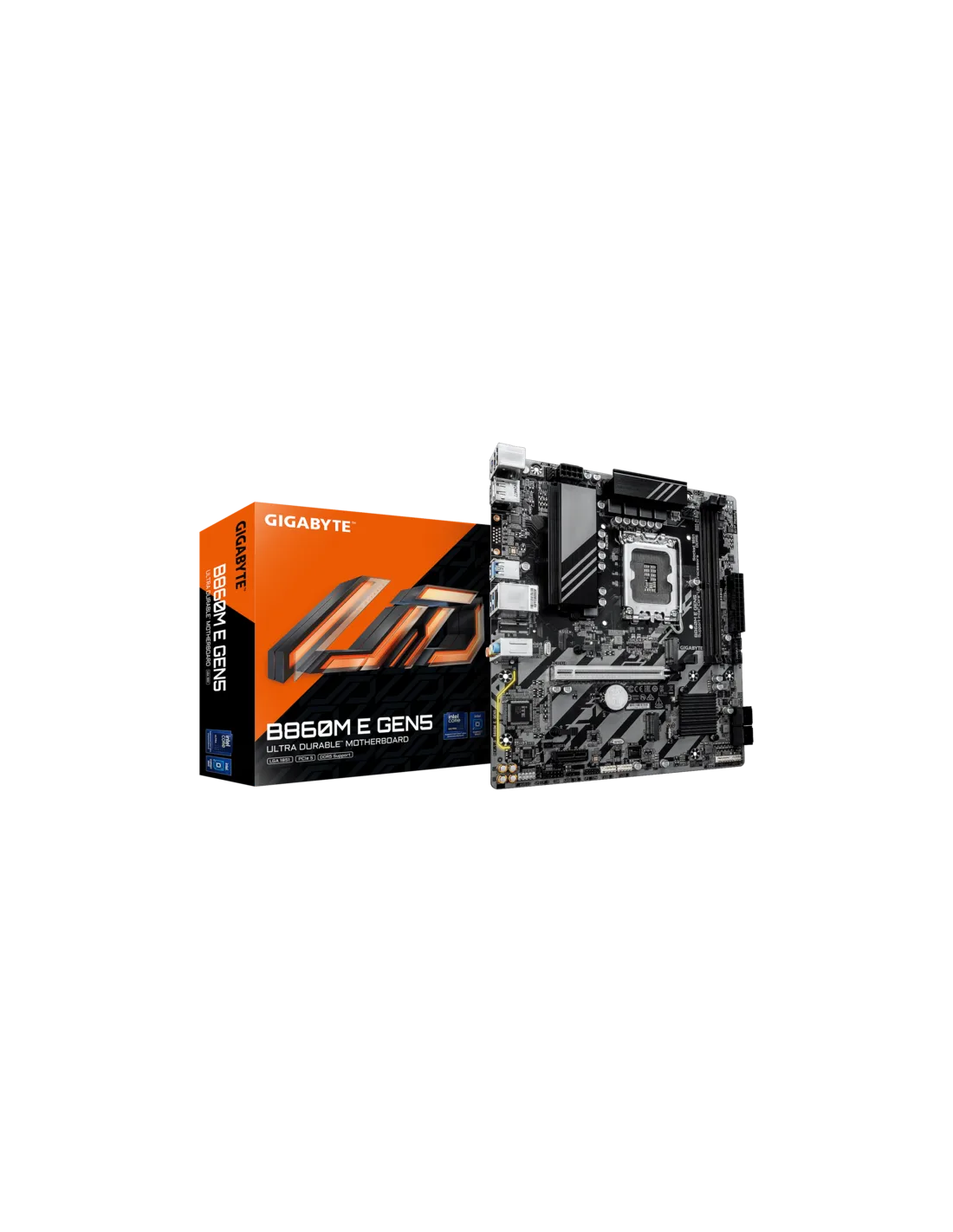

GB B860M E GEN5 / LGA1851
B860M E GEN5
На склад
111,56 €
С вкл. данък
B860M E GEN5_MO
- Manufacturer
- GIGABYTE
- Audio
- Realtek® Audio CODEC;
High Definition Audio;
2/4/5.1/7.1-channel;
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.;
Support for S/PDIF Out - Memory type
- Support for DDR5 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600 MT/s;

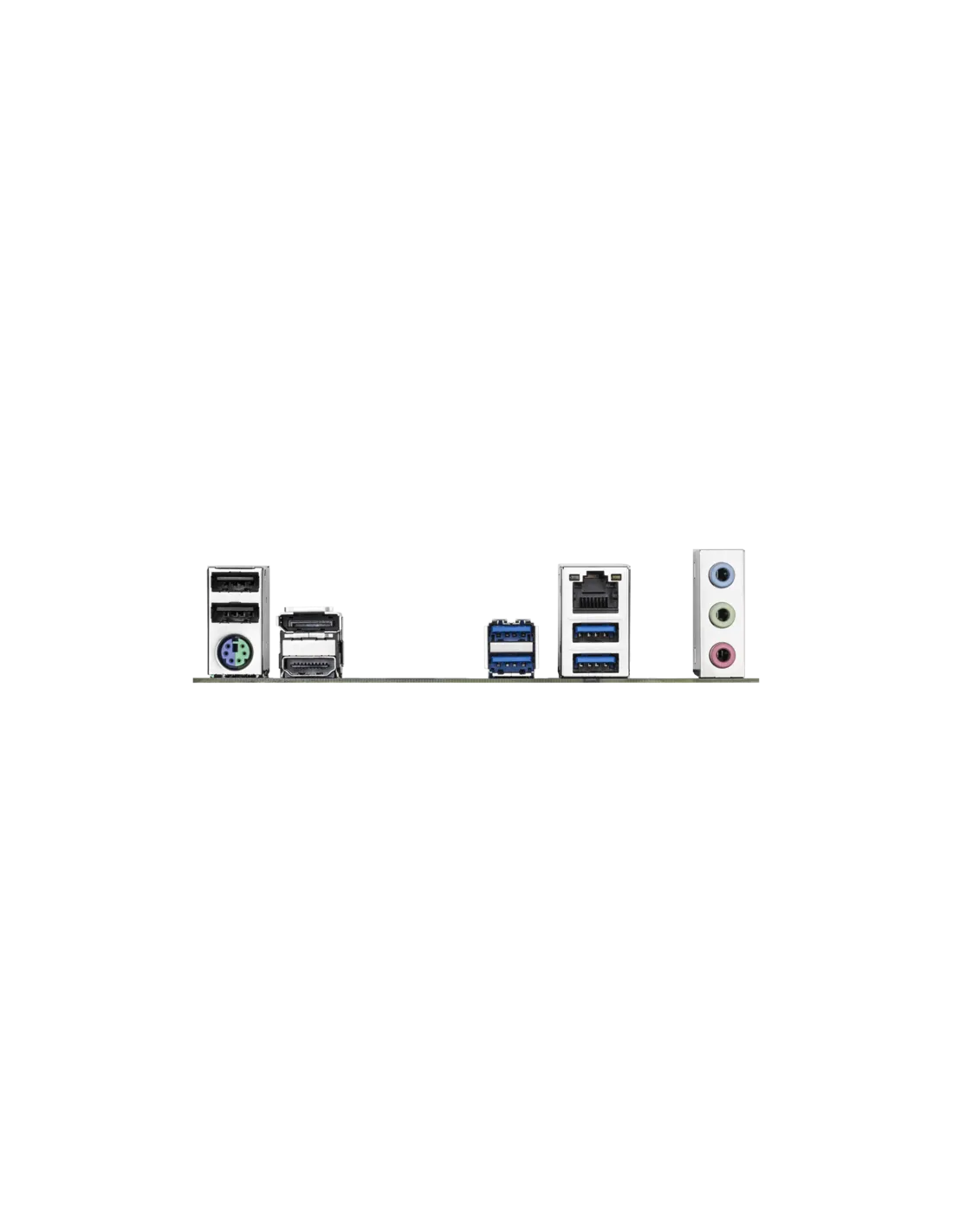

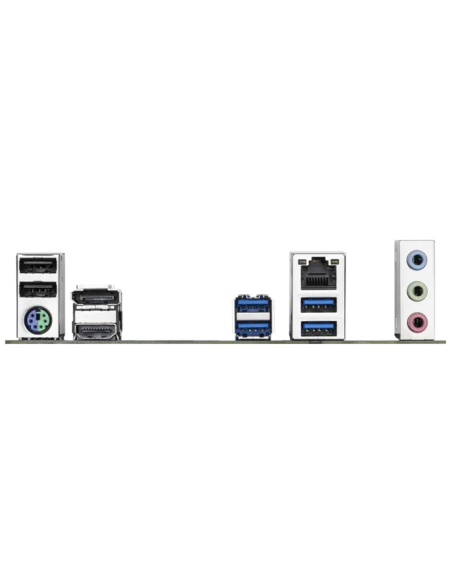

2 x DDR5 DIMM - Rear panel I/O
- iTE®I/O Controller Chip
- CPU's supported
- LGA1851 socket: Support for Intel® Core™ Ultra Processors;
(Go to GIGABYTE's website for the latest CPU support list.);
L3 cache varies with CPU - USB
- Chipset:;
- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header);
- 2 x USB 2.0/1.1 ports on the back panel;
Chipset+USB 2.0 Hub:;
- 4 x USB 2.0/1.1 ports available through the internal USB headers - Expansion Slots
- CPU:;
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16);
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.;
Chipset:;
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) - BIOS
- 1 x 256 Mbit flash;
Use of licensed AMI UEFI BIOS;
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 - Connectors
- Internal I/O Connectors;
1 x 24-pin ATX main power connector;
1 x 8-pin ATX 12V power connector;
1 x CPU fan header;
1 x CPU fan/water cooling pump header;
1 x system fan/water cooling pump header;
2 x addressable RGB Gen2 LED strip headers;
2 x M.2 Socke - LAN
- Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
- Vendor_url
- https://www.gigabyte.com/bg/Motherboard/B860M-E-GEN5
- Graphics
- Integrated Graphics Processor-Intel® HD Graphics support:;
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;
* Support for HDMI 2.1 version and HDCP 2.3.;
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz;
* Support - Chipset
- Intel® B860 Express Chipset
- RAID
- RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
- Storage
- Chipset:;
- 2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support);
- 4 x SATA 6Gb/s connectors - Дънна платка - сокет
- LGA1851
- Дънна платка - чипсет
- INTEL B860
- Дънна платка - поддържан тип памет
- DDR5
- Дънна платка - честота на паметта
- 5600 MHz
5800 MHz
6000 MHz
6200 MHz
6400 MHz
6600 MHz
6800 MHz
7000 MHz
7200 MHz
7400 MHz
7600 MHz
7800 MHz
7900 MHz
7950 MHz
8000 MHz
8200 MHz
8266 MHz
8400 MHz
8600 MHz
8800 MHz - Дънна платка - интерфейси
- M.2 (NVMe) конектор
SATA 3.0 - Дънна платка - портове
- USB 2.0
USB 3.2
