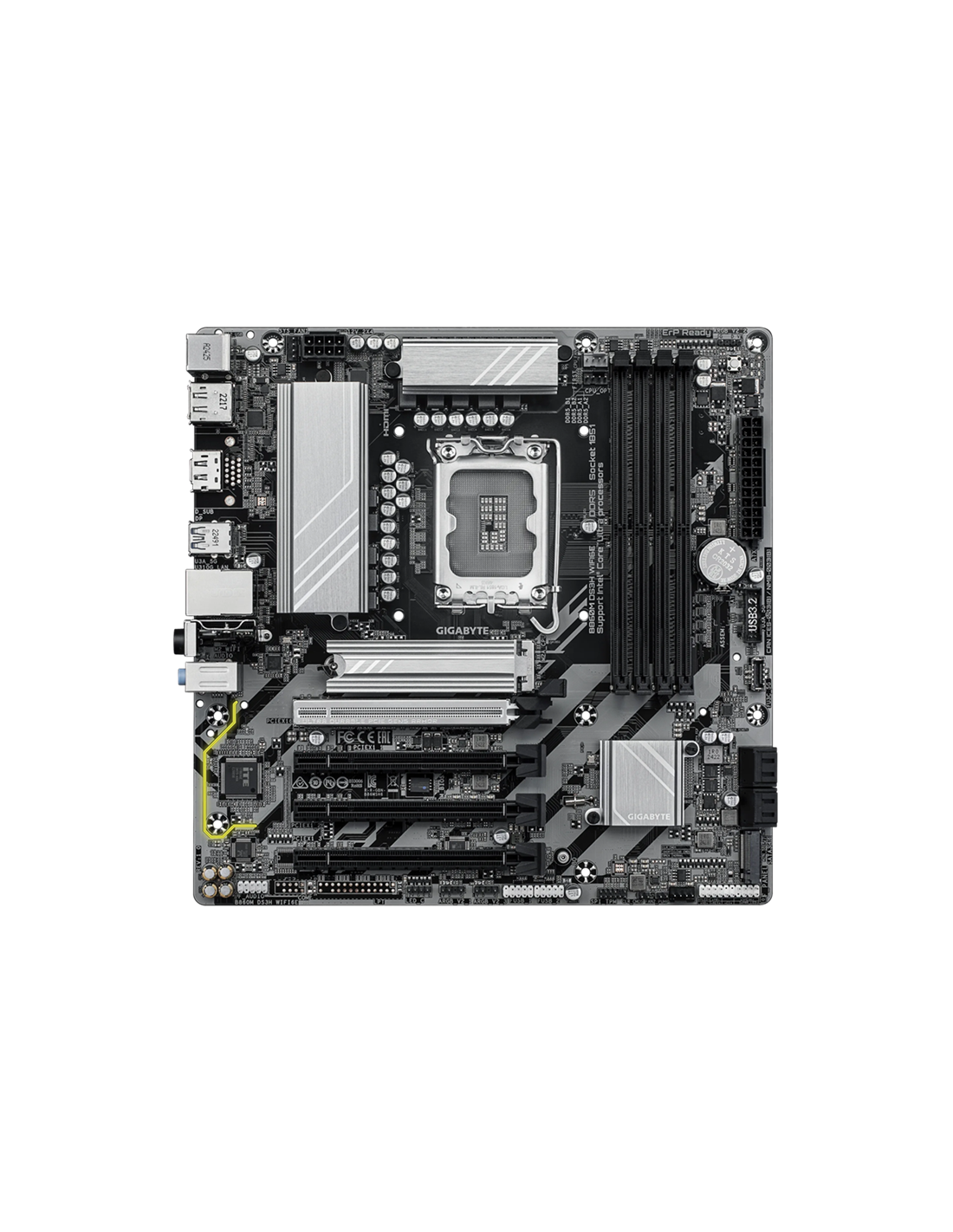

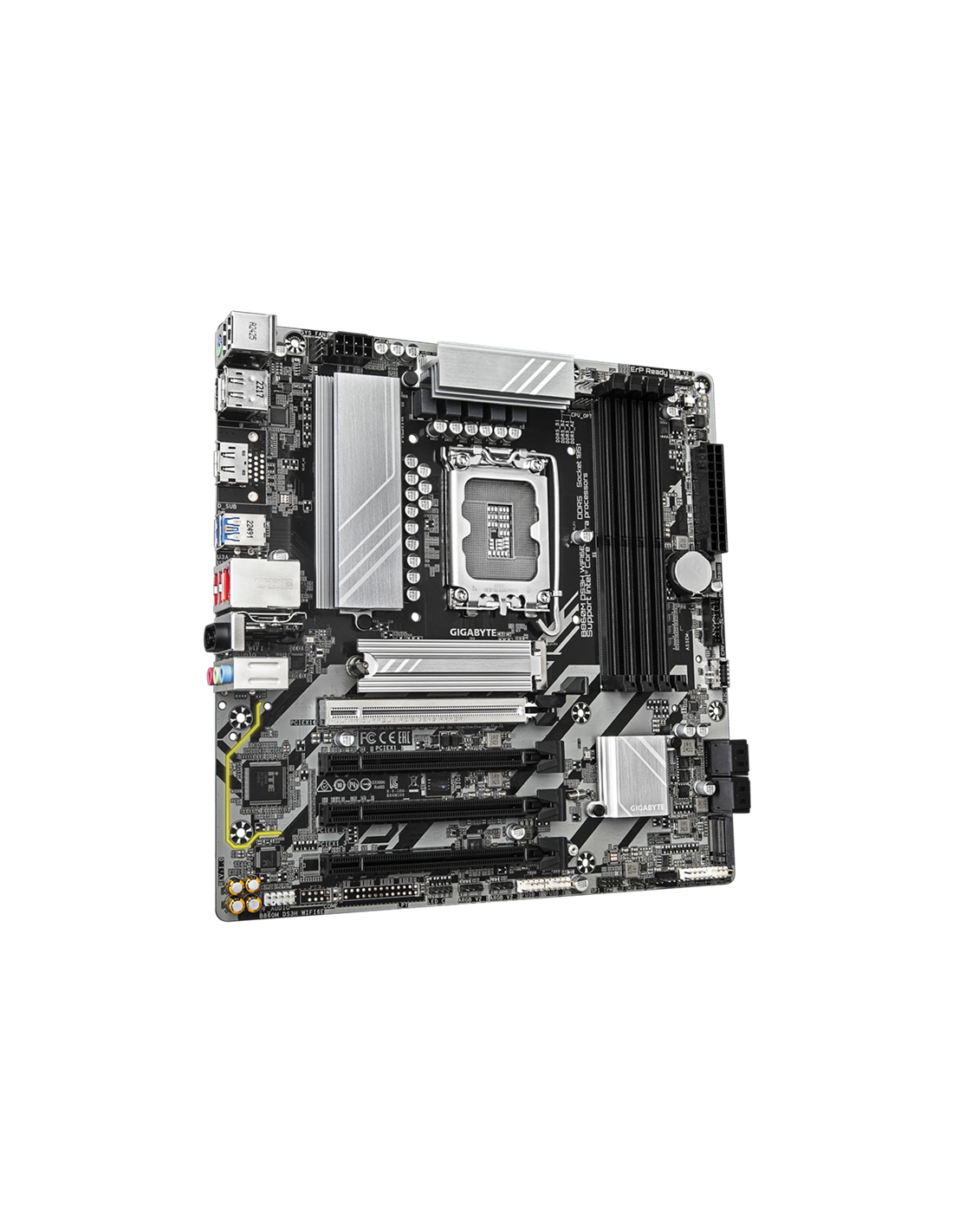

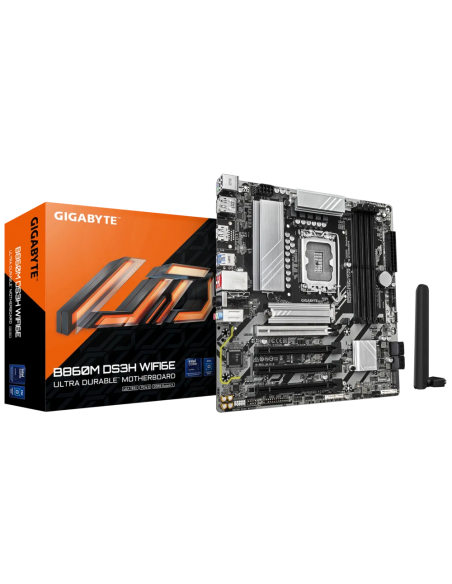

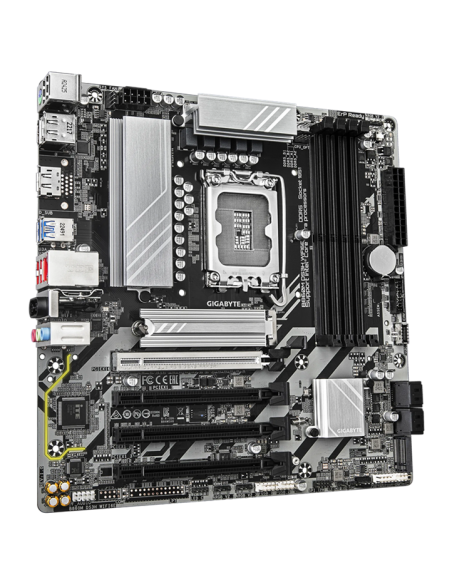

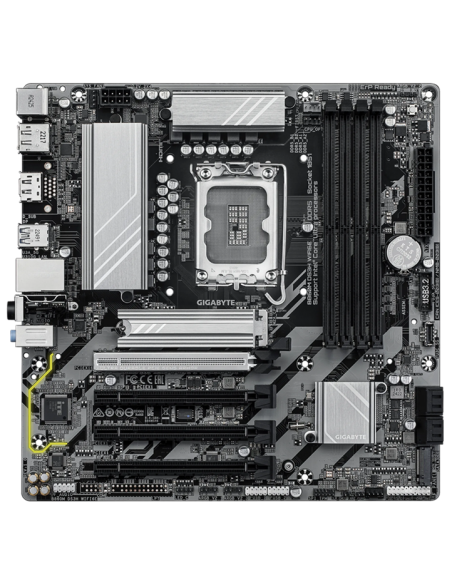

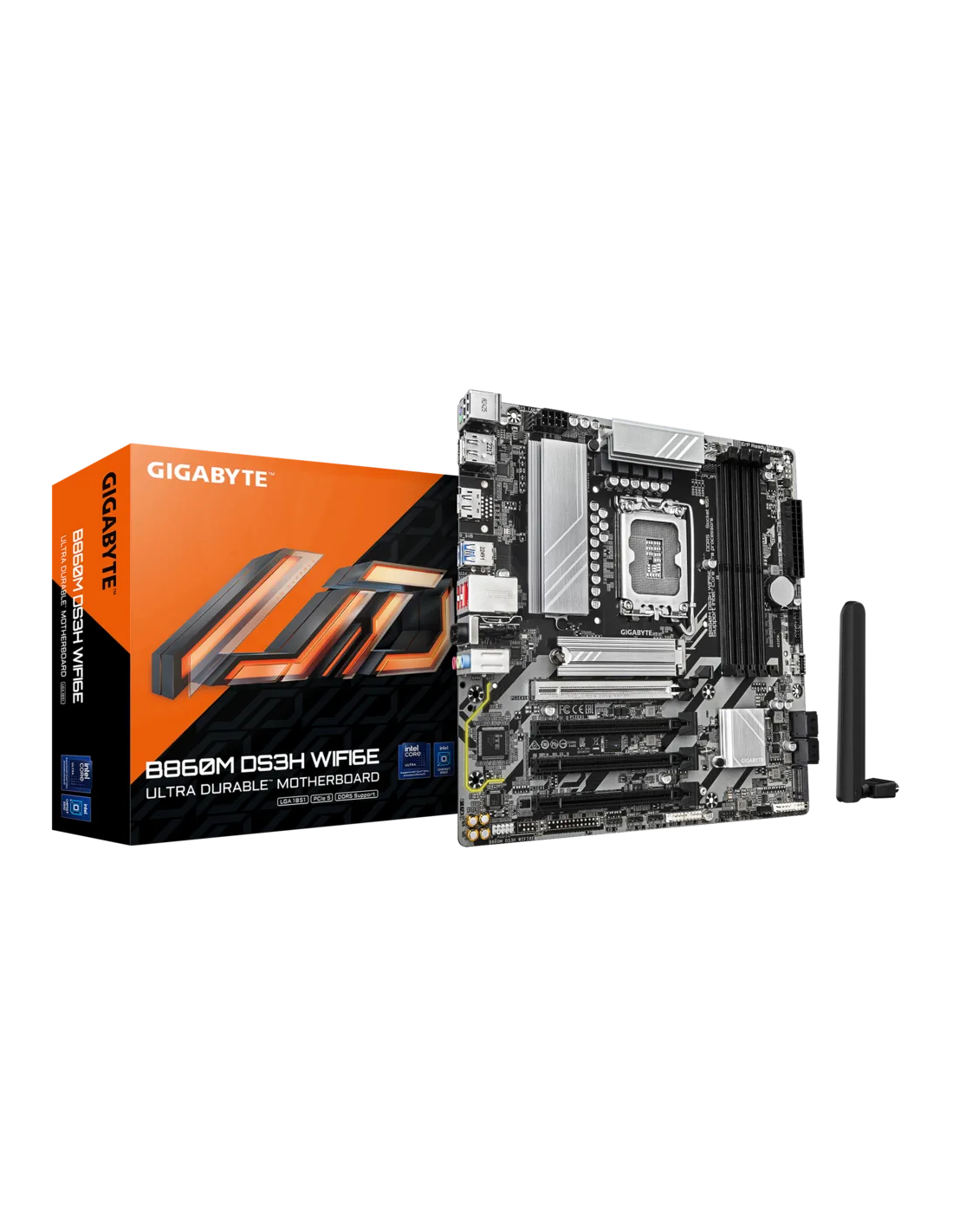

GB B860M DS3H WIFI6E

Референция B860M DS3H WIFI6E

На склад

164,55 €

С вкл. данък

B860M DS3H WIFI6E_MO

GB B860 4xDDR5 4xSATA3 RAID HDMI 2DP 2xM2 GLAN 4xPCIEx16

Vendor_url: https://www.gigabyte.com/Motherboard/B860M-DS3H-WIFI6E-rev-10
Chipset: Intel® B860 Express Chipset
Bluetooth: 5.3
Storage: CPU:;- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU);Chipset:;- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2N_SB);- 4 x SATA 6Gb/s connectors;RAID 0, RAID 1, RAID 5, and RAID 10 suppor
BIOS: 1 x 256 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Audio: Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel
Form Factor: Micro ATX Form Factor; 24.4cm x 24.4cm
Wireless: Intel® Wi-Fi 6E AX211 (PCB rev. 1.0);- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands;- BLUETOOTH 5.3;- Support for 11ax 160MHz wireless standard;Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1);- WIFI a, b, g, n, ac, ax, supporting 2.4
Graphics: Integrated Graphics Processor-Intel® HD Graphics support:;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Support for HDMI 2.1 version and HDCP 2.3.;- 2 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz;* Support for

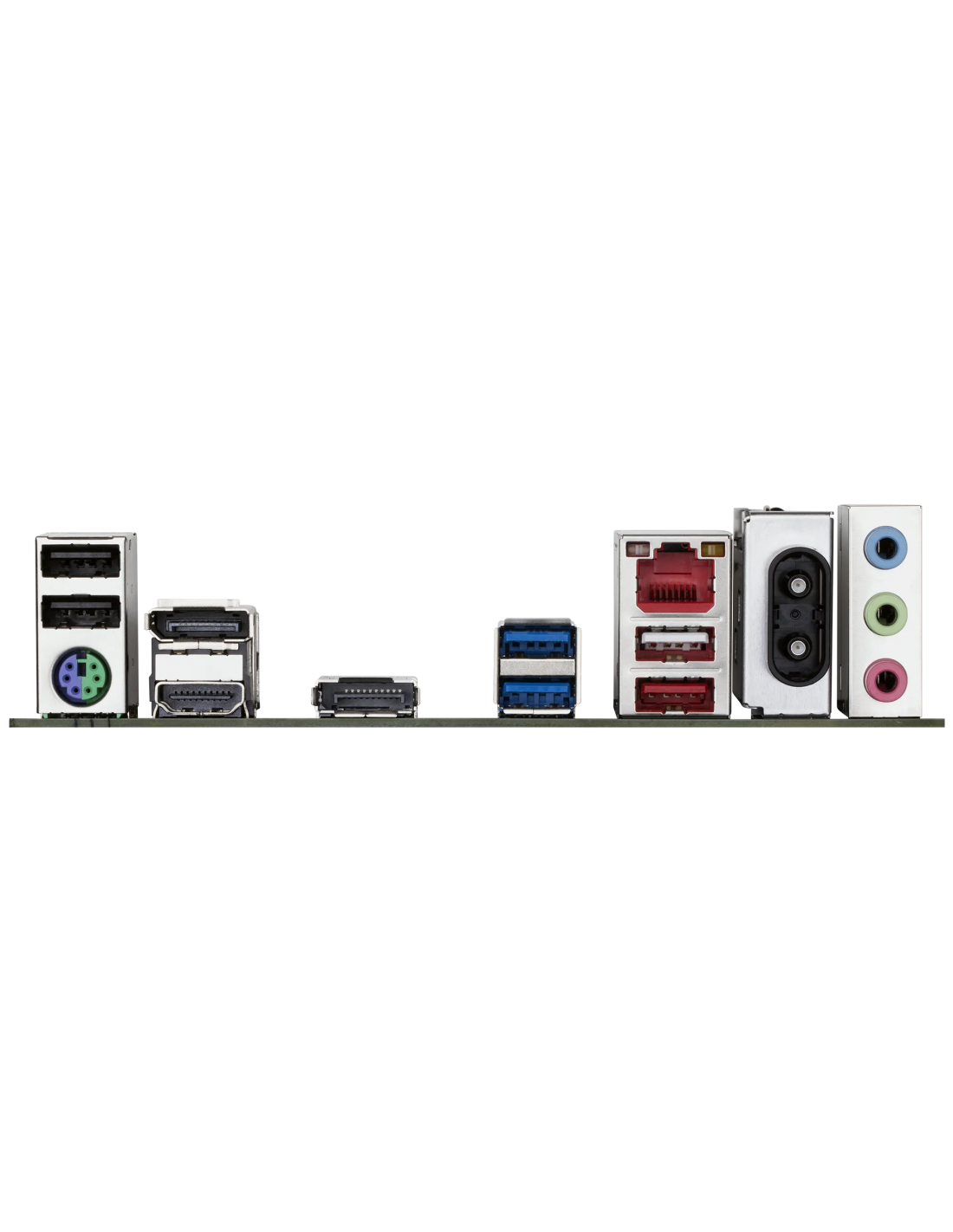

Rear panel I/O: iTE® I/O Controller Chip
Expansion Slots: CPU:;- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16);* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot;Chipset:;- 3 x PC
USB: Chipset:;- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header;- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel;- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB
Connectors: 1 x 24-pin ATX main power connector;1 x 8-pin ATX 12V power connector;1 x CPU fan header;1 x CPU fan/water cooling pump header;1 x system fan header;1 x system fan/water cooling pump header;3 x addressable RGB Gen2 LED strip headers;1 x RGB LED strip head
LAN: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
OS: Support for Windows 11 64-bit;Support for Windows 10 64-bit;* The Intel® NPU driver is only supported on Windows 11;Norton® Internet Security (OEM version);LAN bandwidth management software
Memory type: Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules;4 x DDR5 DIMM s
Дънна платка - чипсет: INTEL B860
Дънна платка - поддържан тип памет: DDR5
Дънна платка - честота на паметта: 5600 MHz
6400 MHz
6600 MHz
6800 MHz
7000 MHz
7200 MHz
7400 MHz
7600 MHz
7800 MHz
7900 MHz
7950 MHz
8000 MHz
8200 MHz
8266 MHz
8400 MHz
8600 MHz
8800 MHz
9066 MHz
Дънна платка - интерфейси: M.2 (NVMe) конектор
SATA 3.0
Дънна платка - портове: USB 3.2
Дънна платка - форм фактор: Micro ATX
