GB Z890 GAMING X WIFI7
Z890 GAMING X WIFI7
На склад
250,54 €
С вкл. данък
Z890 GAMING X WIFI7_MO
GB Z890 4xDDR5 4xSATA3 RAID DP 4xM2 GLAN 3xPCIEx16 WiFI _MO
- Graphics
- Integrated Graphics Processor-Intel® HD Graphics support:;
- 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz;
* Support for DisplayPort 2.1 version;
- 1 x DisplayPort, supporting a max - Vendor_url
- https://www.gigabyte.com/Motherboard/Z890-GAMING-X-WIFI7
- BIOS
- 1 x 256 Mbit flash;
Use of licensed AMI UEFI BIOS;
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 - Chipset
- Intel® Z890 Express Chipset
- LAN
- Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
- Storage
- CPU:;
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU);
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU);
Chipset:;
- 1 x M.2 connector (Socket 3, M key, type - Memory type
- Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 600
- Audio
- Realtek® Audio CODEC;
High Definition Audio;
2/4/5.1/7.1-channel;
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.;
Support for S/PDIF Out - Bluetooth
- 5.4
- Socket
- LGA1851
- Wireless
- MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0);
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands;
- BLUETOOTH 5.4;
- Support for 11be 160MHz wireless standard;
Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1);
- 802.11a, b, g, n, ac, ax, be - RAID
- RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices;
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices - CPU's supported
- LGA1851 socket: Support for Intel® Core™ Ultra Processors;

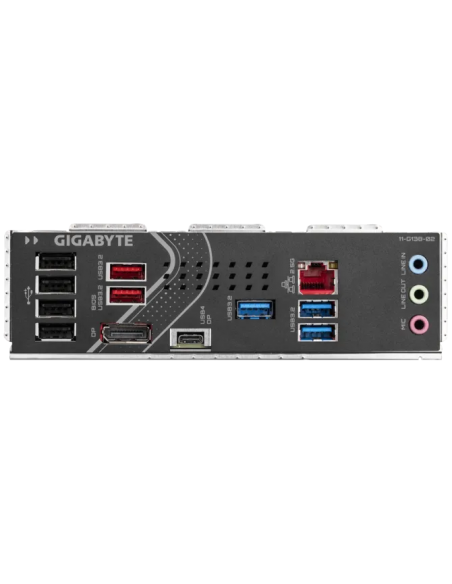

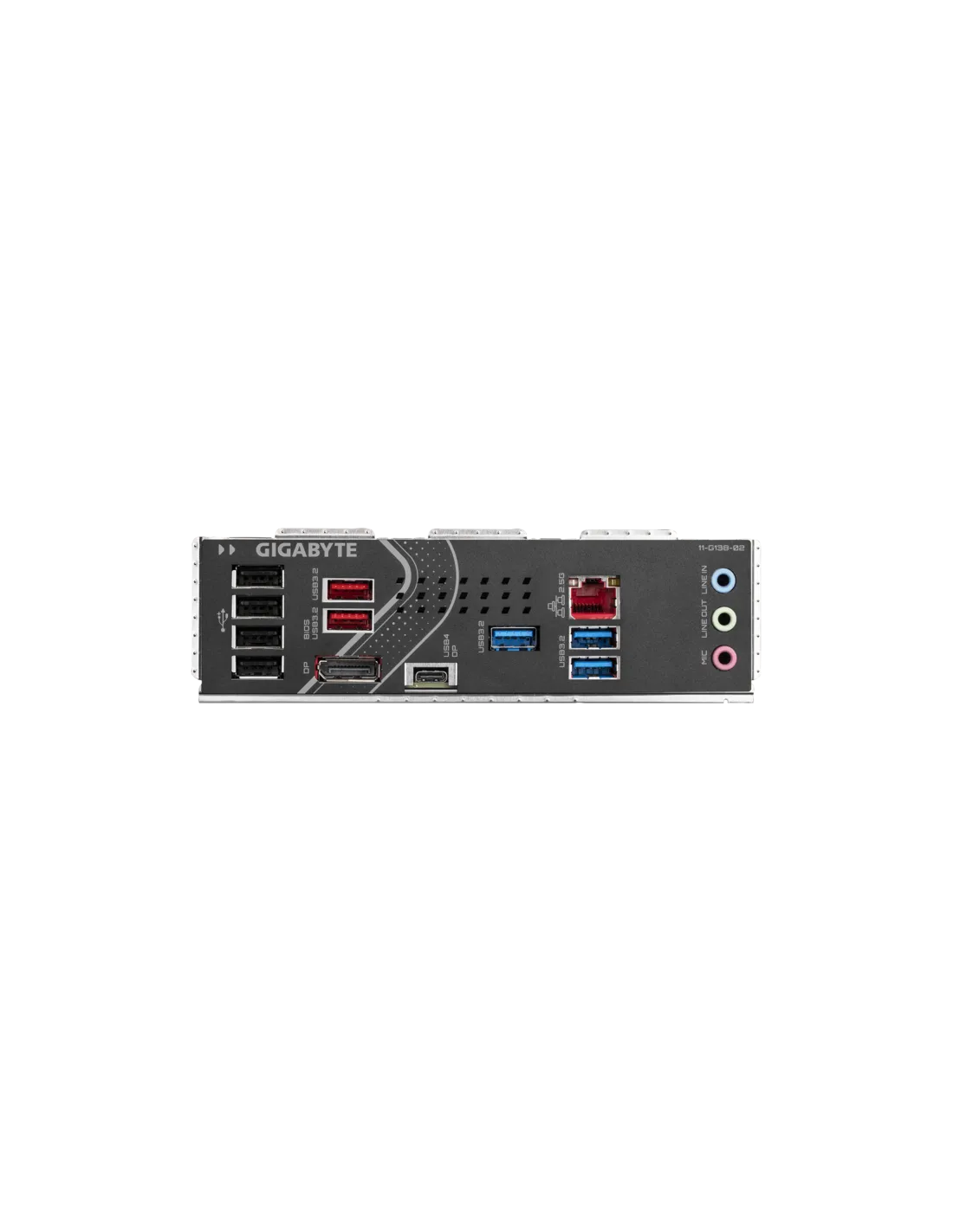

L3 cache varies with CPU - Rear panel I/O
- iTE® I/O Controller Chip
- Manufacturer
- GIGABYTE
- Expansion Slots
- CPU:;
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16);
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.;
Chipset:;
- 2 - Form Factor
- ATX Form Factor; 30.5cm x 24.4cm
- Connectors
- Internal I/O Connectors;
1 x 24-pin ATX main power connector;
2 x 8-pin ATX 12V power connectors;
1 x CPU fan header;
1 x CPU fan/water cooling pump header;
3 x system fan headers;
1 x system fan/water cooling pump header;
3 x addressable RGB Gen2 LED str - Warranty
- 36 Months
- OS
- Support for Windows 11 64-bit
- USB
- CPU:;
- 1 x USB4® USB Type-C® port on the back panel;
Chipset:;
- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header;
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel;
- 5 x USB 3.2 Gen 1 ports (3 ports on t - Дънна платка - сокет
- LGA1851
- Дънна платка - чипсет
- INTEL Z890
- Дънна платка - поддържан тип памет
- DDR5
- Дънна платка - честота на паметта
- 6200 MHz
6400 MHz
6600 MHz
6800 MHz
7000 MHz
7200 MHz
7400 MHz
7600 MHz
7800 MHz
7900 MHz
7950 MHz
8000 MHz
8200 MHz
8266 MHz
8400 MHz
8600 MHz
8800 MHz
8933 MHz
9066 MHz
9200 MHz - Дънна платка - интерфейси
- M.2 (NVMe) конектор
SATA 3.0 - Дънна платка - портове
- USB 3.2
USB 4.0 - Дънна платка - форм фактор
- ATX
