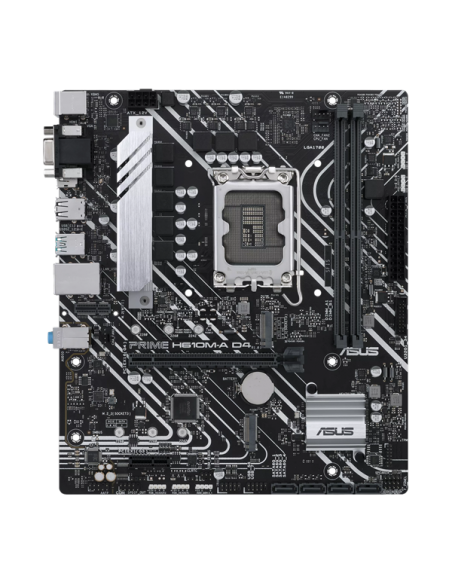

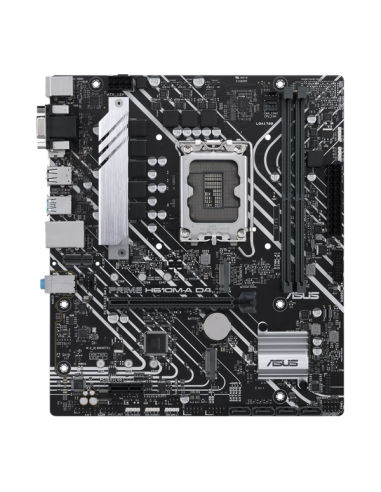

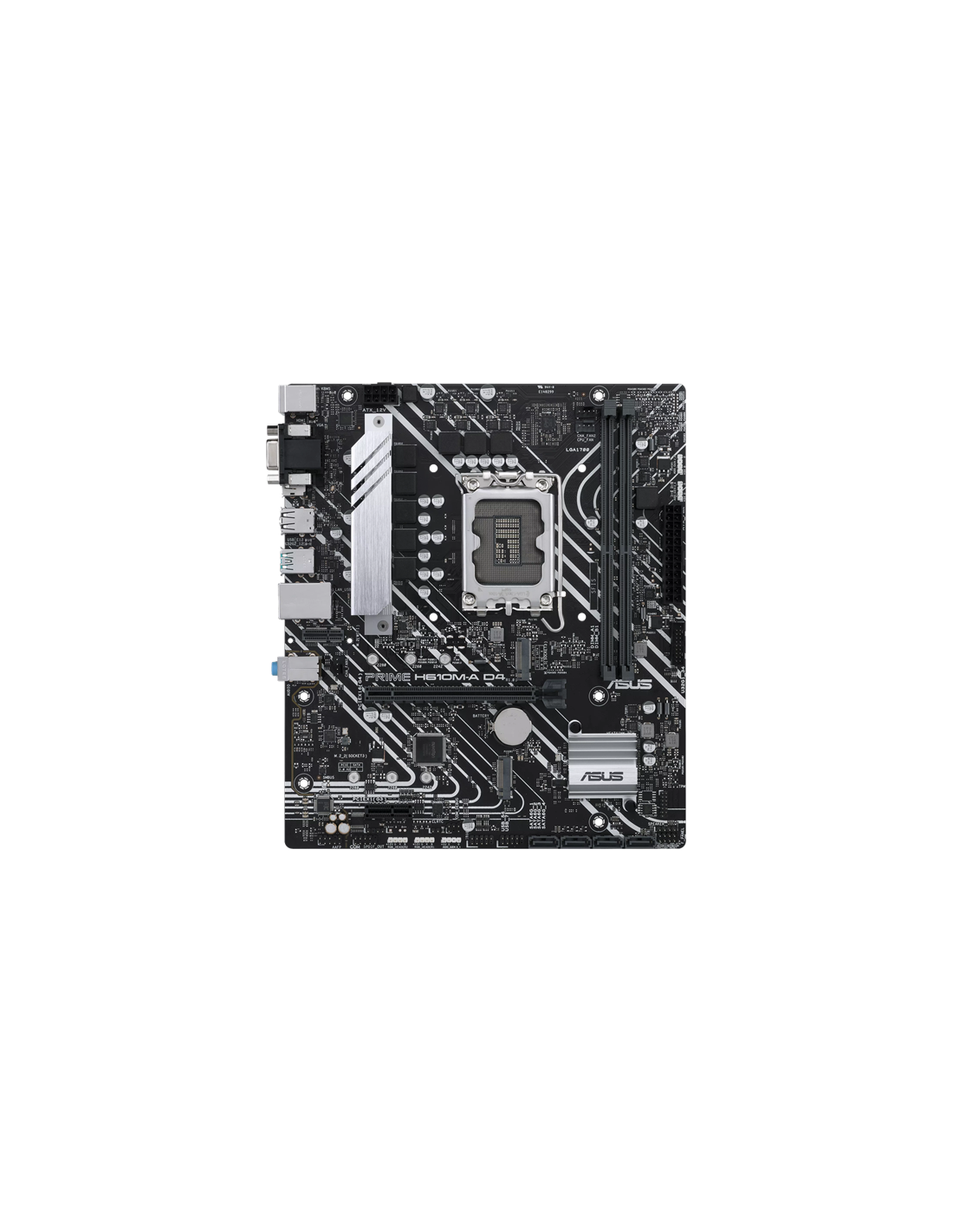

ASUS PRIME H610M-A D4-CSM

Референция PRIME H610M-A D4-CSM / 90MB19P0-M0EAY0

На склад

147,06 лв

С вкл. данък 75.19 €

PRIME H610M-A D4-CSM / 90MB19P0-M0EAY0_MO

_MO

Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC*;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB laye
I/O: 2 x USB 3.2 Gen 2 ports (2 x Type-A);4 x USB 2.0 ports (4 x Type-A);1 x DisplayPort;1 x HDMI® port;1 x D-Sub port;1 x V-M.2 slot (Key E);1 x Intel® 1Gb Ethernet port;3 x Audio jacks;1 x PS/2 Keyboard (purple) port;1 x PS/2 Mouse (green) port
Features: ASUS 5X PROTECTION III;- DIGI+ VRM;- LANGuard;- Overvoltage Protection;- SafeSlot Core;- Stainless-Steel Back I/O;ASUS Q-Design;- Q-DIMM;- Q-Slot;ASUS Thermal Solution;- VRM heatsink design;AURA Sync;- AURA RGB headers;- Addressable Gen 2 headers
CPU's supported: Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors;Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
Expansion Slots: Intel® Core™ Processors (14th & 13th & 12th Gen);1 x PCIe 4.0 x16 slot;Intel® H610 Chipset;1 x PCIe 3.0 x1 slot
LAN: 1 x Intel® 1Gb Ethernet
Connectors: Fan and Cooling related;1 x 4-pin CPU Fan header;2 x 4-pin Chassis Fan headers;Power related;1 x 24-pin Main Power connector;1 x 8-pin +12V Power connector;Storage related;2 x M.2 slots (Key M);4 x SATA 6Gb/s ports;USB;1 x USB 3.2 Gen 1 header supports ad
Memory type: 2 x DIMM, Max. 64GB, DDR4 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory;Dual Channel Memory Architecture;Supports Intel® Extreme Memory Profile (XMP)
OS: Windows® 11 64-bit, Windows® 10 64-bit
Graphics: 1 x DisplayPort;1 x D-Sub port;1 x HDMI® port
USB: Rear USB (Total 6 ports);2 x USB 3.2 Gen 2 ports (2 x Type-A);4 x USB 2.0 ports (4 x Type-A);Front USB (Total 5 ports);1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports;2 x USB 2.0 headers support additional 3 USB 2.0 ports
Wireless: V-M.2 slot only (Key E, CNVi & PCIe)
Chipset: Intel® H610 Chipset
Manufacturer: ASUS
Storage: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports;Intel® H610 Chipset;M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode);M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode);4 x SATA 6Gb/s ports
Form Factor: mATX Form Factor;24.4 cm x 21.1 cm

No reviews
