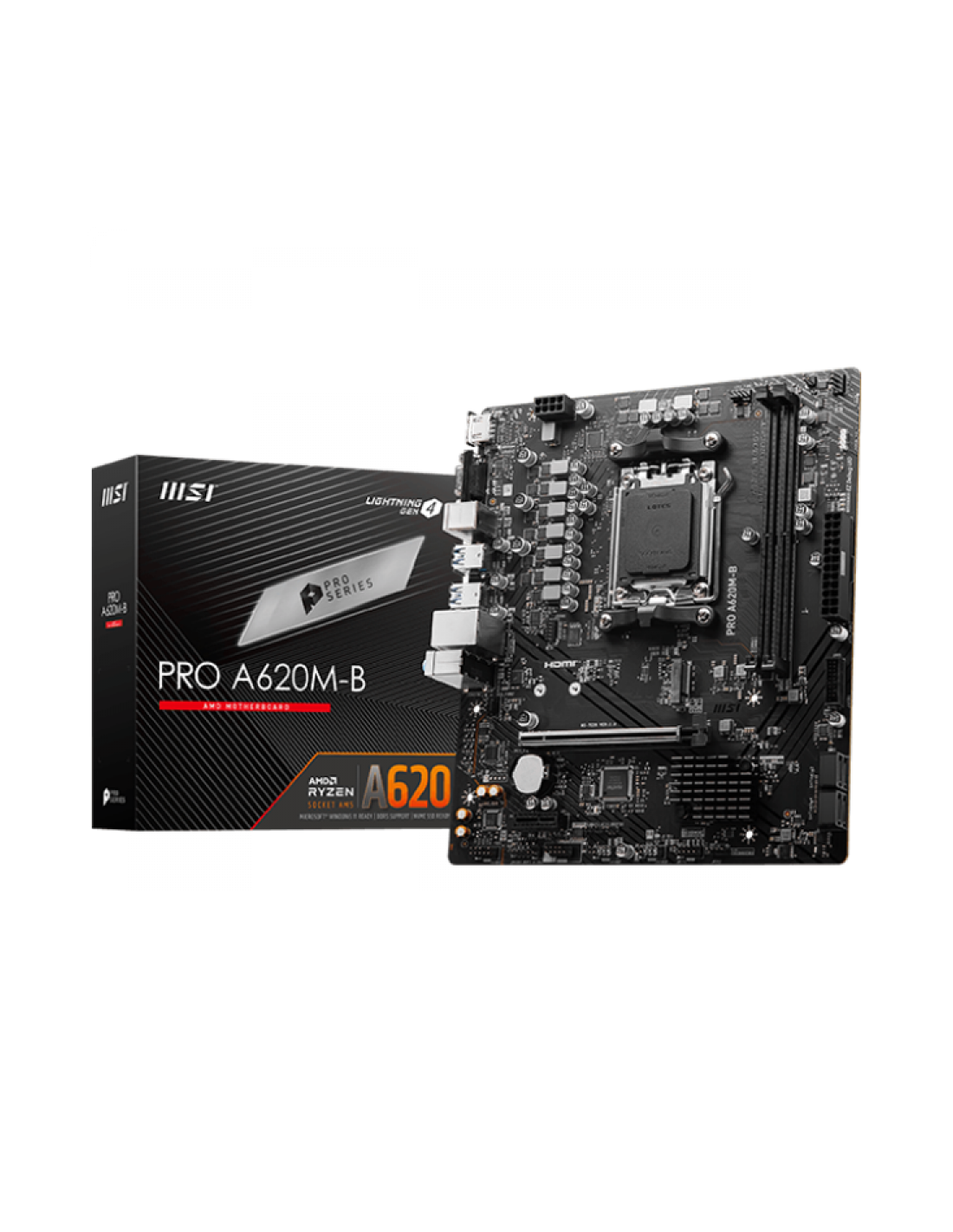

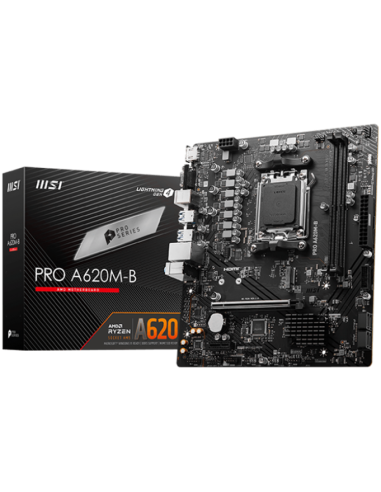

MSI A620M-B s.AM5

MSI PRO A620M-B
Product ID: 70814
Mnfr. Part#: PRO A620M-B

• USB: 2x USB 2.0 (Rear);4x USB 2.0 (Front);4x USB 5Gbps Type A (Rear);2x USB 5Gbps Type A (Front)

• Manufacturer: MSI

• Memory type: 2x DDR5, Maximum Memory Capacity 128GB;Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MT/s;Max. overclocking frequency:;• 1DPC 1R Max speed up to 6800+ MHz;• 1DPC 2R Max speed up to 6000+ MHz;Supports Dual-Channel mode;Supports non-ECC, un-buffered memory;Supports AMD EXPO

• Features: 4x EZ Debug LED

• CPU`s supported: Socket AM5, Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors

• Graphics: 1x HDMI™;Support HDMITM 2.1, maximum resolution of 4K 60Hz;1x VGA;Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

• Expansion Slots: 1x PCI-E x16 slot;• Supports x16 (For Ryzen™ 9000 and 7000 Series processors);• Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors);• Supports x4 (For Ryzen™ 8500/ 8300 Series processors);1x PCI-E x1 slot;PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU);PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

• Storage: 1x M.2;M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices;4x SATA 6G;лSupports RAID 0, RAID 1 and RAID 10 for SATA storage devices

• I/O: HDMI™;VGA;Keyboard/Mouse;USB 3.2 Gen 1 5Gbps (Type-A);LAN port;Audio connectors;USB 2.0

• Connectors: 1x Power Connector(ATX_PWR);1x Power Connector(CPU_PWR);1x CPU Fan2x System Fan;2x Front Panel (JFP);1x Chassis Intrusion (JCI);1x Front Audio (JAUD);1x Com Port (JCOM);1x Addressable V2 RGB LED connector (JARGB_V2);1x RGB LED connector(JRGB);1x TPM pin header(Support TPM 2.0);4x USB 2.0 ports;2x USB 5Gbps Type A ports

• Audio: Realtek® ALC897 Codec;7.1-Channel High Definition Audio

• LAN: Realtek® RTL8125BG 2.5G LAN

• Form Factor: mATX, 215mmx243.84mm

• OS: Support for Windows® 11 64-bit, Windows® 10 64-bit

• Warranty: 36 Months
