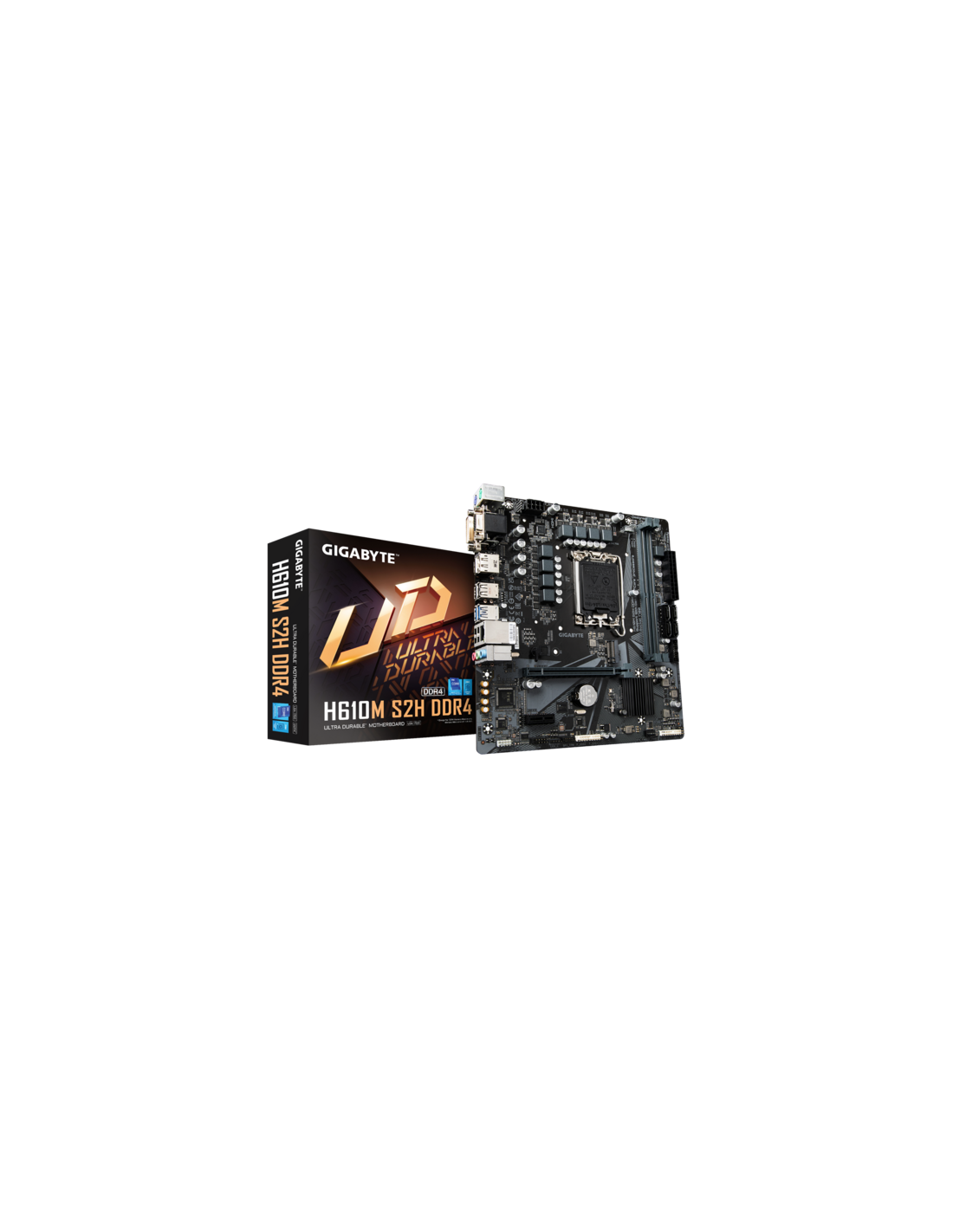

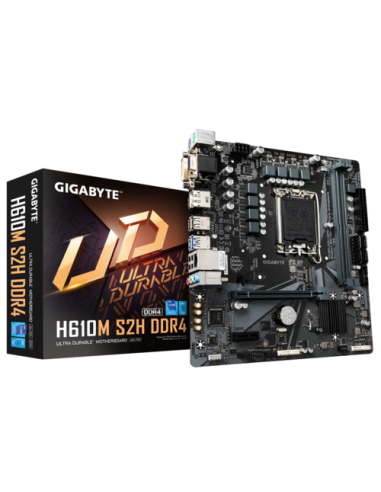

GB H610M S2H M2.GEN 3/4

GB H610M S2H DDR4 /LGA1700
Product ID: 66523
Mnfr. Part#: H610M S2H DDR4

• Graphics: Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz; 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz; * The DVI-D port does not support D-Sub connection by adapter.; 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version and HDCP 2.3.; ** Support native HDMI 2.1 TMDS compatible ports; 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz; * Support for DisplayPort 1.2 version and HDCP 2.3

• CPU`s supported: LGA1700 socket: Support for 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*; L3 cache varies with CPU

• Chipset: Intel® H610 Express Chipset

• Expansion Slots: 1 x PCI Express x16 slot, running at x16; * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.; (The PCI Express x16 slot conforms to PCI Express 4.0 standard.); 1 x PCI Express x1 slot; (The PCI Express x1 slot conforms to PCI Express 3.0 standard.)

• Storage: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support); 4 x SATA 6Gb/s connectors

• Memory type: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules; 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules

• I/O: 1 x PS/2 keyboard port; 1 x PS/2 mouse port; 1 x D-Sub port; 1 x DVI-D port; 1 x DisplayPort; 1 x HDMI 2.0 port; 2 x USB 3.2 Gen 1 ports; 4 x USB 2.0/1.1 ports; 1 x RJ-45 port; 3 x audio jacks

• Connectors: 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x M.2 Socket 3 connector; 4 x SATA 6Gb/s connectors; 1 x CPU fan header; 2 x system fan headers; 1 x RGB LED strip header; 1 x front panel header; 1 x front panel audio header; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only); 1 x serial port header; 1 x Clear CMOS jumper

• Audio: Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel

• LAN: Realtek® GbE LAN chip (1 Gbps/100 Mbps)

• BIOS: 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Form Factor: Micro ATX Form Factor; 23.0cm x 21.5cm

• OS: Support for Windows 11 64-bit; Support for Windows 10 64-bit
