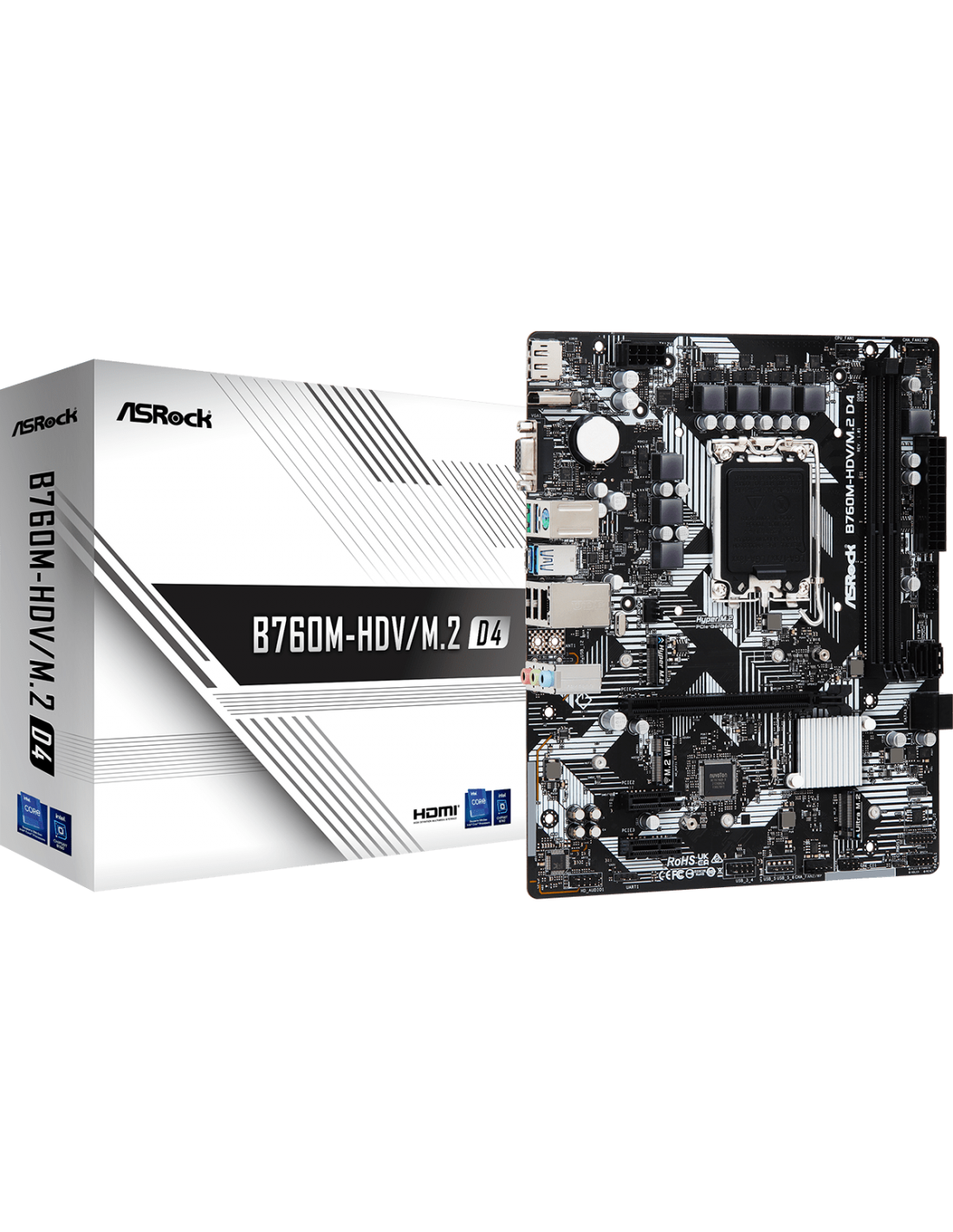

ASROCK B760M-HDV/M.2 D4
Product ID: 67758
Mnfr. Part#: B760M-HDV/M.2 D4

• Graphics: - Intel® Xe Graphics Architecture (Gen 12); - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz; - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz; - 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz

• CPU`s supported: - Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700); - Supports Intel® Hybrid Technology; - Supports Intel® Turbo Boost Max 3.0 Technology; - Supports Intel® Thermal Velocity Boost (TVB); - Supports Intel® Adaptive Boost Technology (ABT)

• Chipset: - Intel® B760

• Expansion Slots: CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*; Chipset: - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*; - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

• Storage: CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*; Chipset: - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*; - 4 x SATA3 6.0 Gb/s Connectors**

• Memory type: - Dual Channel DDR4 Memory Technology; - 2 x DDR4 DIMM Slots; - Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*; - Supports ECC UDIMM memory modules (operate in non-ECC mode); - Max. capacity of system memory: 64GB*; - Supports Intel® Extreme Memory Profile (XMP) 2.0

• I/O: - 2 x Antenna Mounting Points; - 1 x PS/2 Mouse/Keyboard Port; - 1 x D-Sub Port; - 1 x HDMI Port; - 1 x DisplayPort 1.4; - 1 x USB 3.2 Gen1 Type-C Port; - 3 x USB 3.2 Gen1 Type-A Ports; - 2 x USB 2.0 Ports; - 1 x RJ-45 LAN Port; - HD Audio Jacks: Line in / Front Speaker / Microphone

• Connectors: - 1 x SPI TPM Header; - 1 x Chassis Intrusion and Speaker Header; - 1 x CPU Fan Connector (4-pin)*; - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**; - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***; - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector; - 1 x Front Panel Audio Connector; - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports); - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

• Audio: - 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)

• LAN: - Gigabit LAN 10/100/1000 Mb/s; - Realtek 8111H

• BIOS: - 128Mb AMI UEFI Legal BIOS with GUI support

• Form Factor: - Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm

• OS: - Microsoft® Windows® 10 64-bit / 11 64-bit
