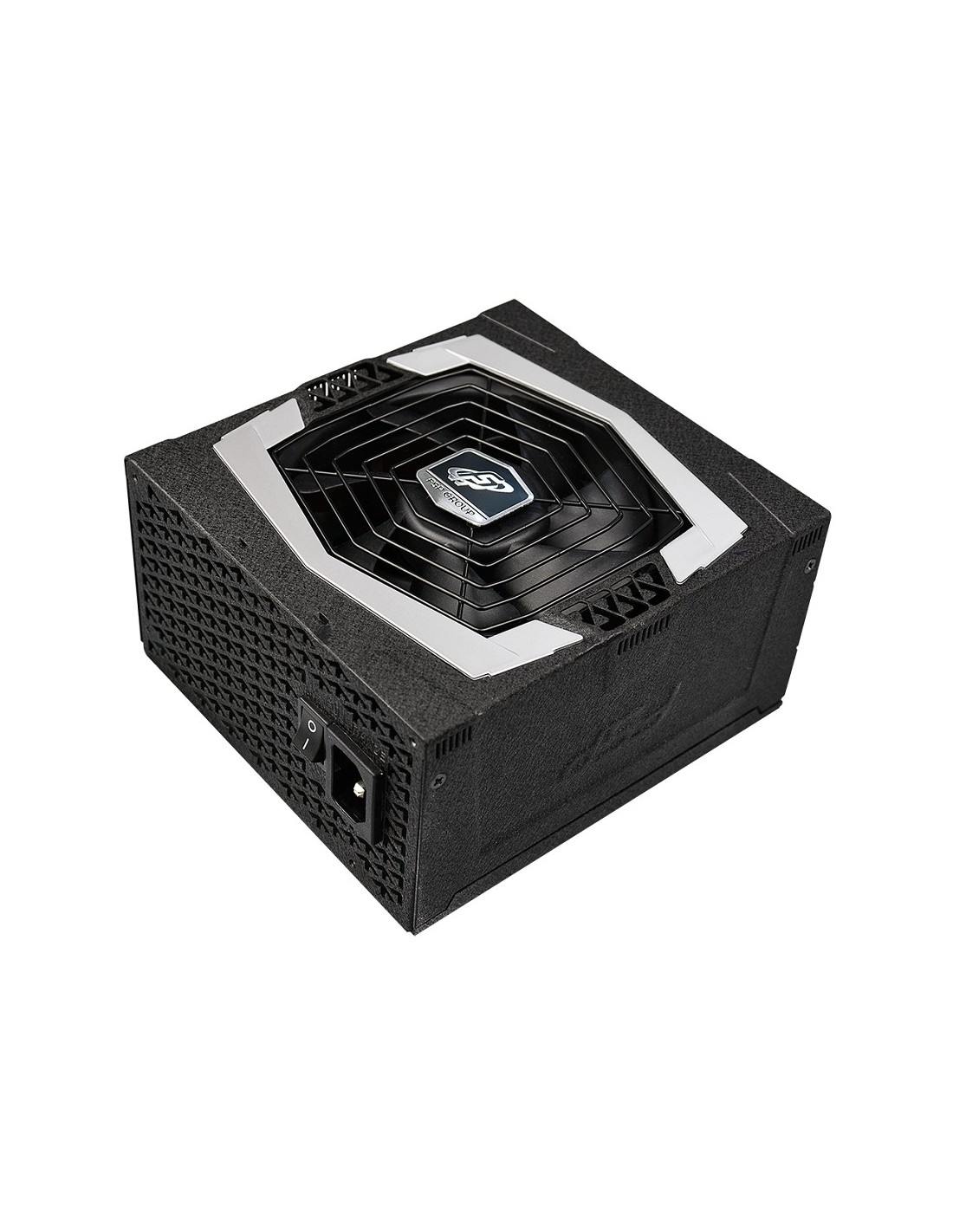

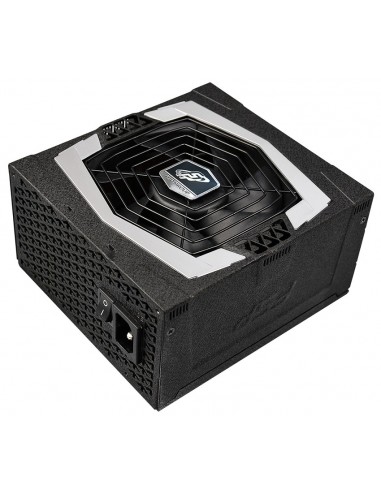

Захранване FORTRON 1200W

PSU FORTRON AURUM 92+ PT1200
Product ID: 56829
Mnfr. Part#: AURUM 92+ PT1200

• Manufacturer: FORTRON

• Mnfr Part #: PPA12A0600

• Model: PT1200

• Form Factor: ATX 12V V2.4 & EPS 12V V2.92

• AC Input: 100Vac ~ 15A 60Hz / 240Vac ~ 9A 50Hz

• DC Output: Total continuous power:1200 W; Rail/Maximum Power: +3.3 V/25 A/160 W; +5 V/25 A/160 W; +12 V/100 A/1200 W; -12 V/0.8 A/24.6 W; +5 VSB/3.0 A/24.6 W.

• Connectors: ATX12V 24 Pin x 1; ATX12V 20+4 Pin x 0; EPS12V 8 Pin x 0; CPU 8 Pin x 0; CPU 4+4 Pin x 2; CPU 4 Pin x 0; PCI-E 2.0 6+2(8) Pin x 8; PCI-E 2.0 6 Pin x 0; S-ATA x 13; Molex 4 Pin x 6; Floppy 4 Pin x 1; Fan 2 Pin x 1.

• PFC Type: Active PFC (0.99)

• Fan Information: Chassis Fan:135mm; Noise:< 21dBA.

• Cable Information: Full Modular with Soft Cables

• Features: Effeciency:>92%; Input Voltage:100 ~ 240Vac; Frequency:50 ~ 60Hz.

• Safety and Environmental: cUL, FCC, CE, TUV, CB

• Dimensions: 190 x 150 x 86 mm
