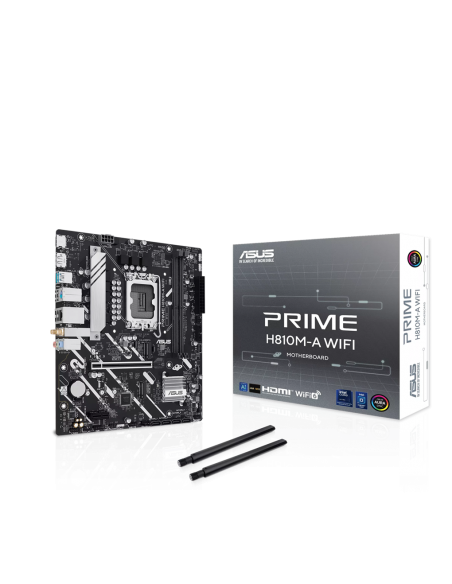

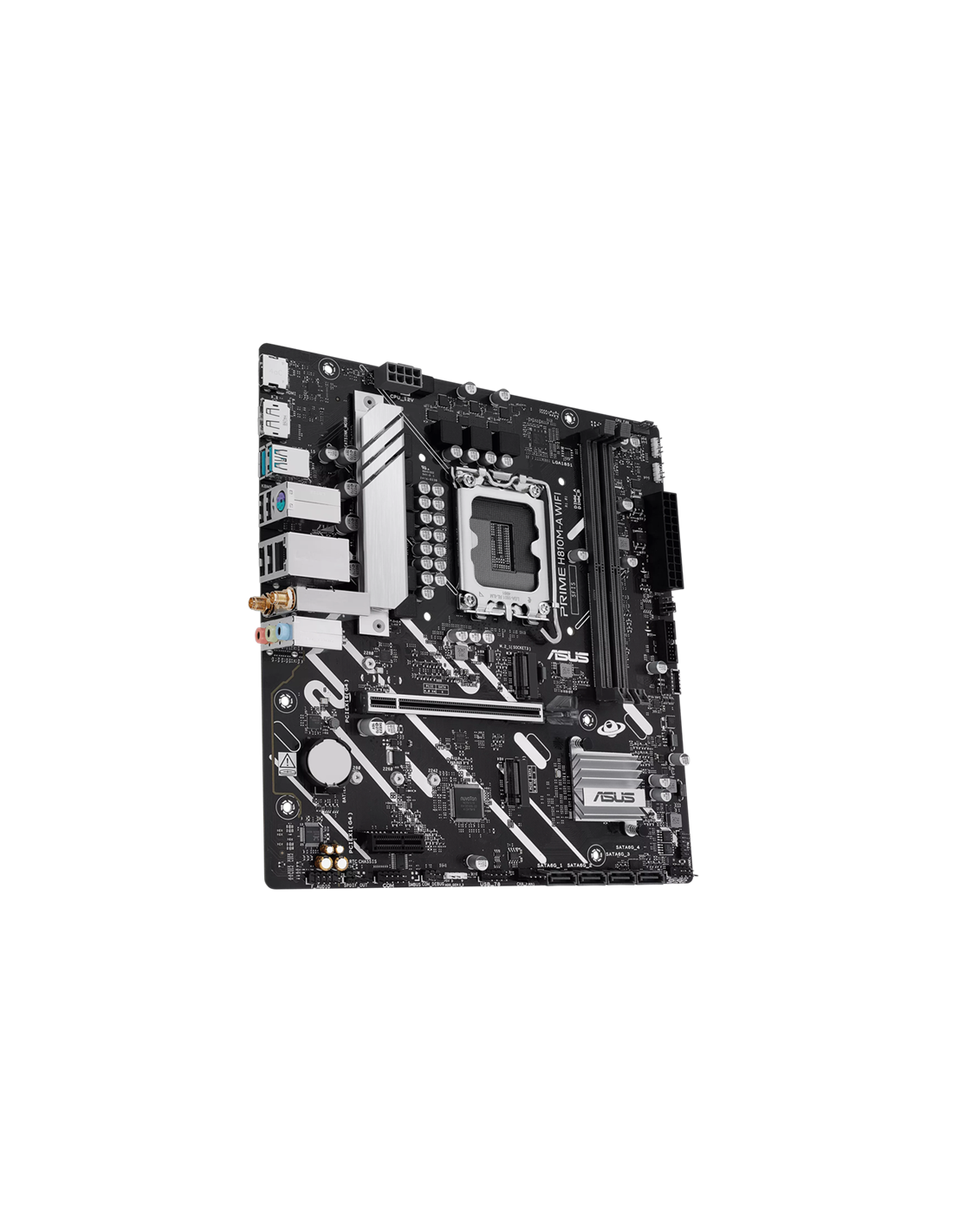

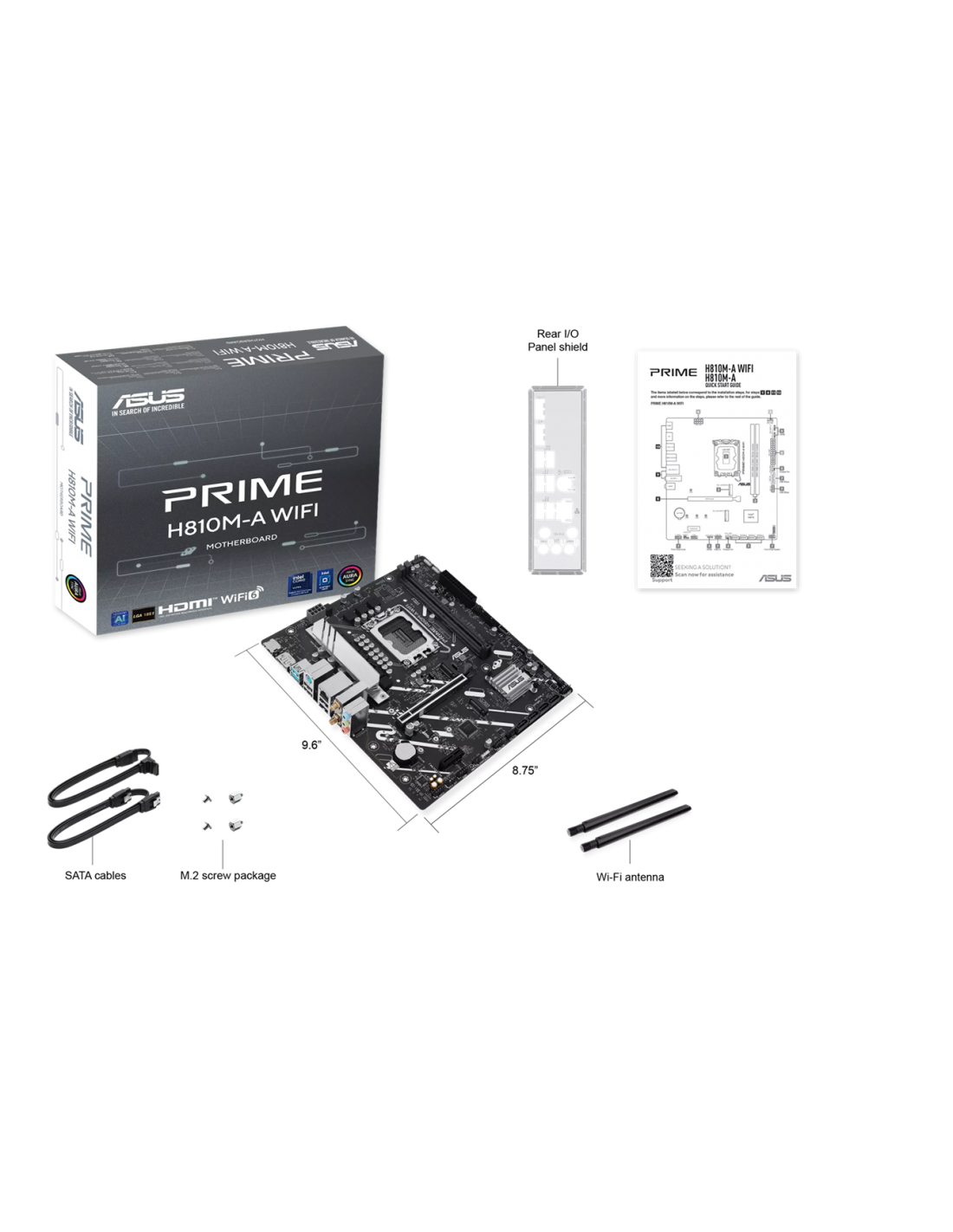

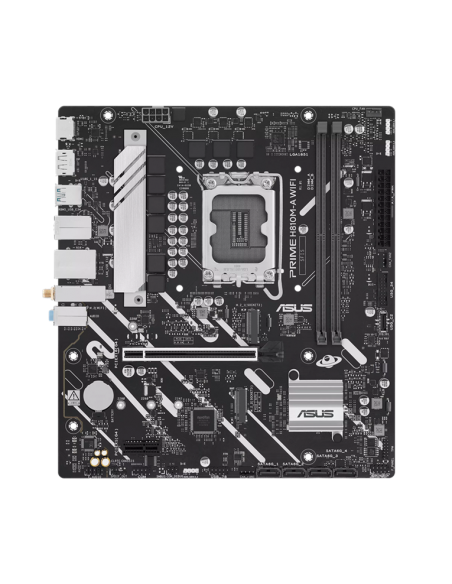

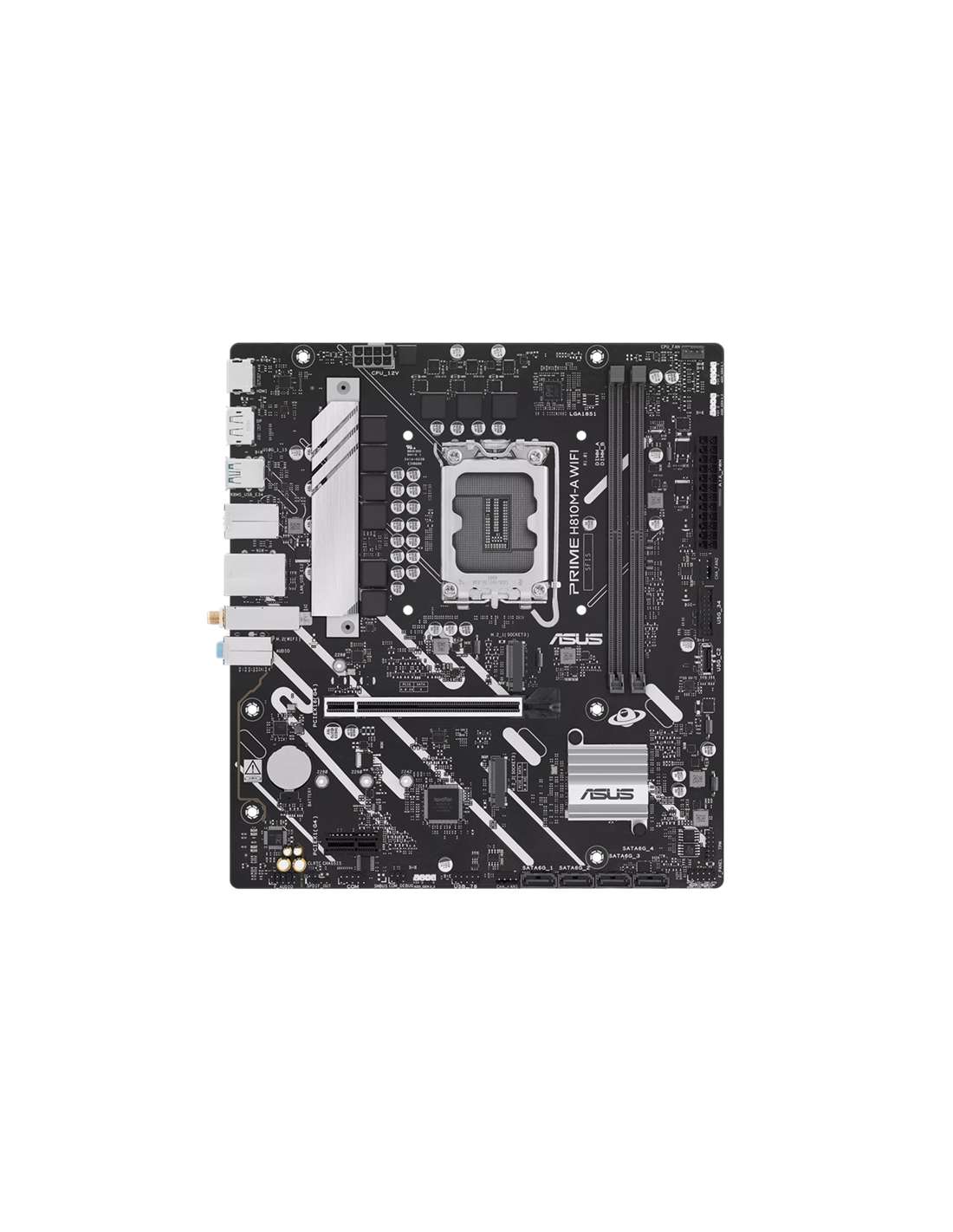

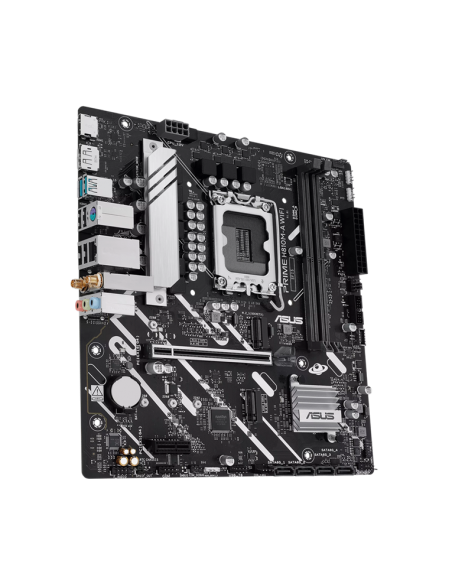

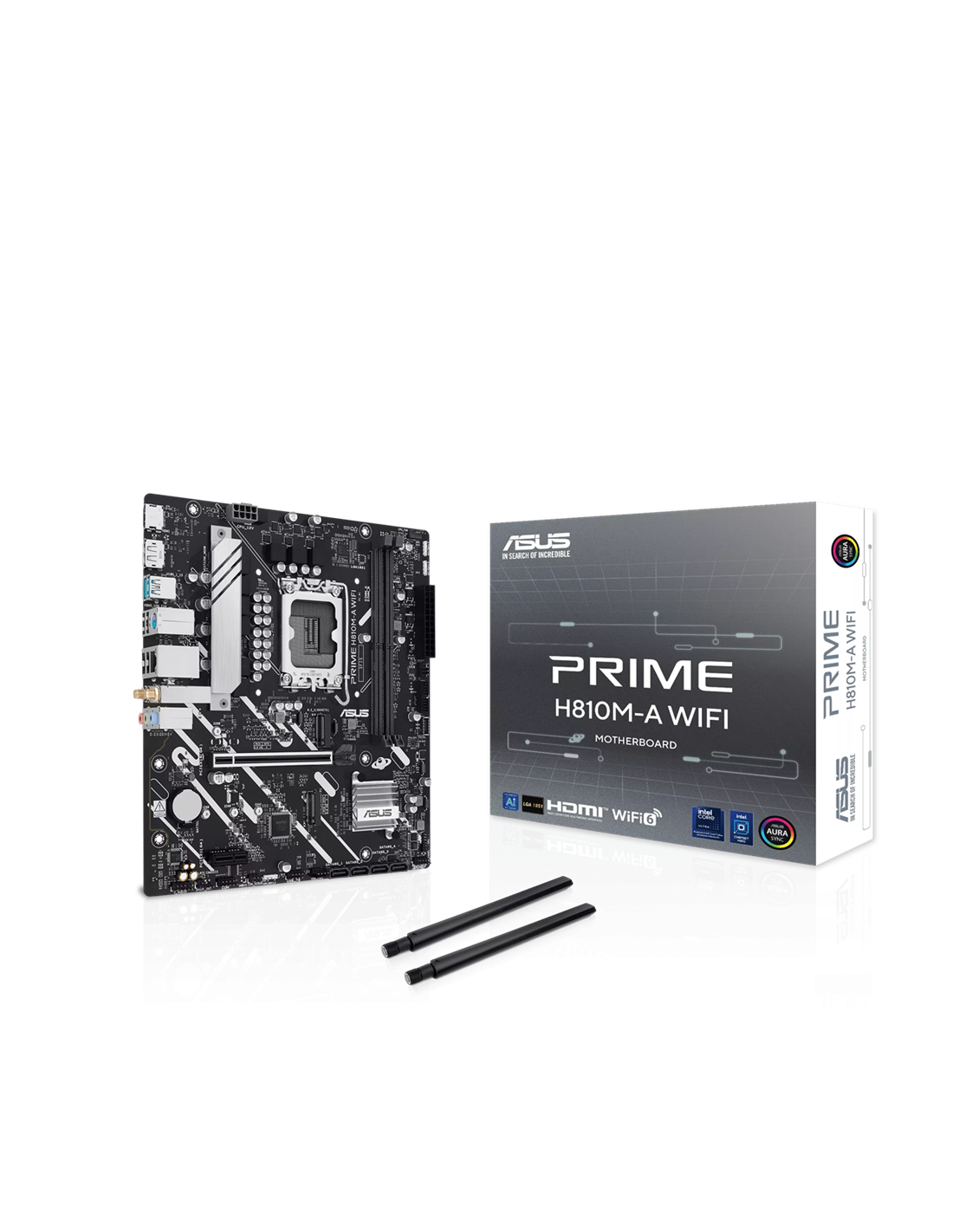

ASUS PRIME H810M-A WIFI
90MB1KJ0-M0EAY0
На склад
128,01 €
С вкл. данък
90MB1KJ0-M0EAY0_MO
ASUS H810 2xDDR5 4xSATA3 RAID HDMI DP 2xM2 GLAN 1xPCIEx16 1xPCIEx1 WiFI_MO
- BIOS
- 256 (128+128) Mb Flash ROM, UEFI AMI BIOS

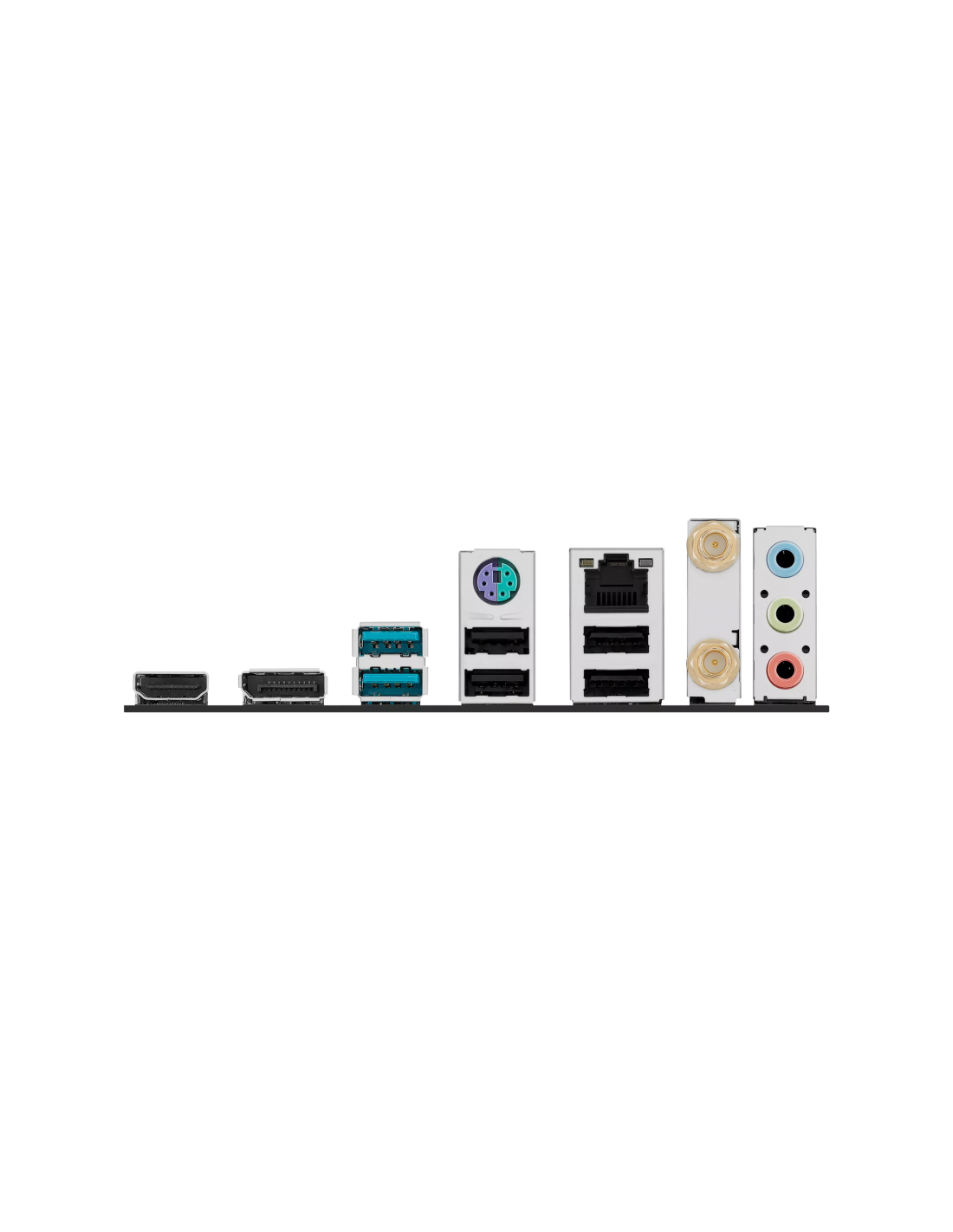

- Rear panel I/O
- 2 x USB 10Gbps ports (2 x Type-A);4 x USB 2.0 ports (4 x Type-A);1 x DisplayPort;1 x HDMI™ port;1 x Wi-Fi module;1 x Intel® 1Gb Ethernet port;3 x Audio jacks;1 x PS/2 keyboard/mouse combo port
- Expansion Slots
- Intel® Core™ Ultra Processors (Series 2);1 x PCIe 4.0 x16 slot;Intel® H810 Chipset;1 x PCIe 4.0 x1 slot
- LAN
- 1 x Intel® 1Gb Ethernet port;ASUS LANGuard
- Connectors
- Fan and Cooling Related;1 x 4-pin CPU Fan header;2 x 4-pin Chassis Fan headers;Power Related;1 x 24-pin Main Power connector;1 x 8-pin +12V CPU Power connector;Storage Related;2 x M.2 slots (Key M);4 x SATA 6Gb/s ports;USB;1 x USB 5Gbps connector (support
- Memory type
- 2 x DIMM slots, max. 128GB, DDR5;Supports up to 6400MT/s, Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM);Dual channel memory architecture;DIMM Fit;Supports Intel® Extreme Memory Profile (XMP) memory module;ASUS Enhanced Memory Profile II (AEMP II)
- OS
- Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)
- Graphics
- 1 x DisplayPort;1 x HDMI™ port
- USB
- Rear USB (Total 6 ports);2 x USB 10Gbps ports (2 x Type-A);4 x USB 2.0 ports (4 x Type-A);Front USB (Total 5 ports);1 x USB 5Gbps connector (supports USB Type-C®)*;1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;1 x USB 2.0 header supports 2 ad
- Vendor_url
- https://www.asus.com/motherboards-components/motherboards/prime/prime-h810m-a-wifi/
- Chipset
- Intel® H810 Chipset
- Manufacturer
- ASUS
- Storage
- Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports;Intel® H810 Chipset;M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode);M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode);4 x SATA 6Gb/s ports
- Form Factor
- micro-ATX Form Factor 24.4 cm x 22.2 cm
- Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB layer
- Warranty
- 36 Months
- Bluetooth
- 5.3

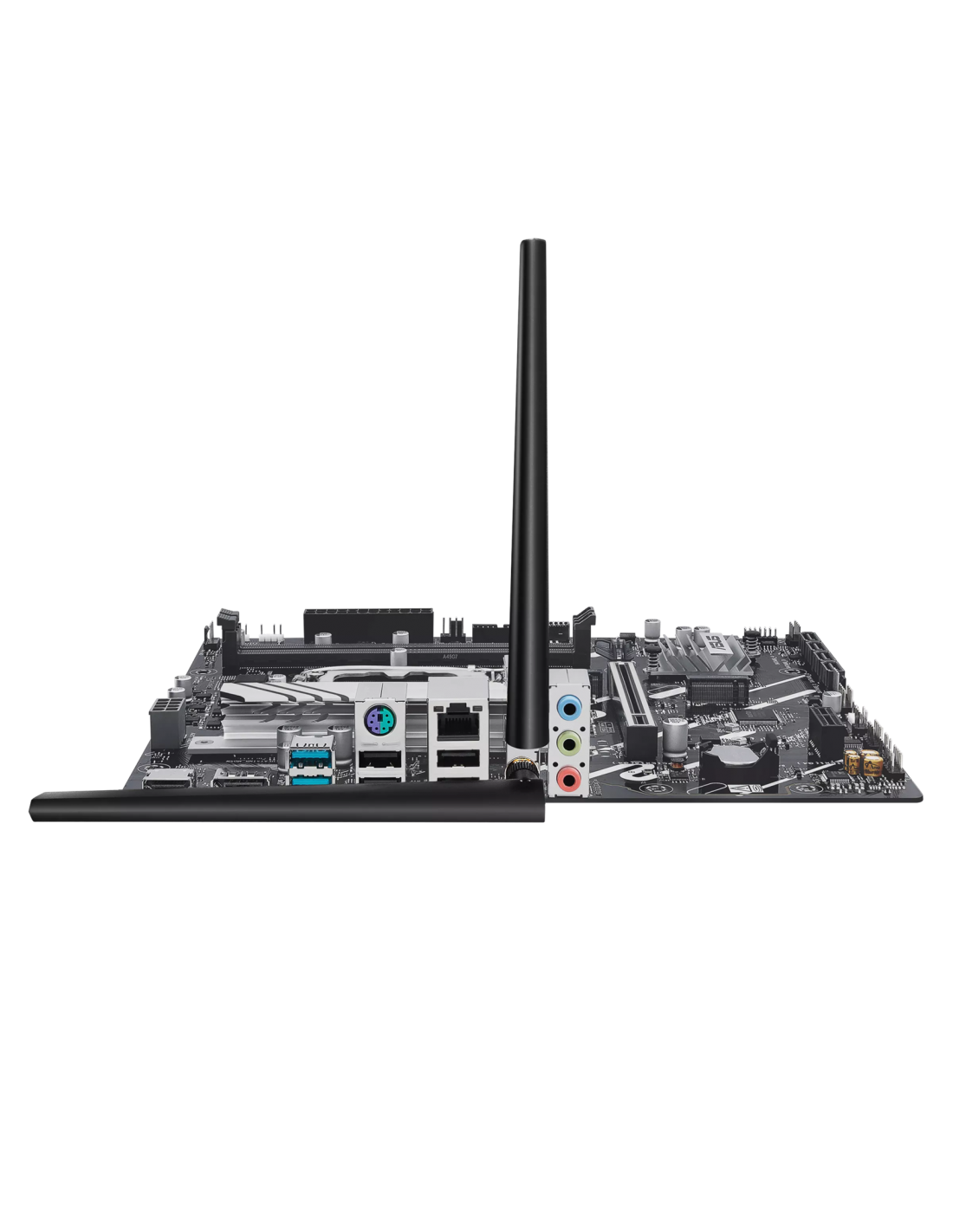

- Wireless
- Wi-Fi 6;1x1 Wi-Fi 6 (802.11ax);Supports 2.4/5GHz frequency band;Bluetooth® v5.3
- CPU's supported
- Support Intel® Core™ Ultra Processors (Series 2) , LGA1851;Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
- Дънна платка - сокет
- LGA1851
- Дънна платка - чипсет
- INTEL H810
- Дънна платка - поддържан тип памет
- DDR5
- Дънна платка - брой слотове за памет
- 2 бр
- Дънна платка - честота на паметта
- 6400 MHz
- Дънна платка - интерфейси
- M.2 (NVMe) конектор
M.2 (SATA) конектор
SATA 3.0 - Дънна платка - портове
- Display Port
HDMI
USB 2.0
USB 3.2 - Дънна платка - форм фактор
- Micro ATX
