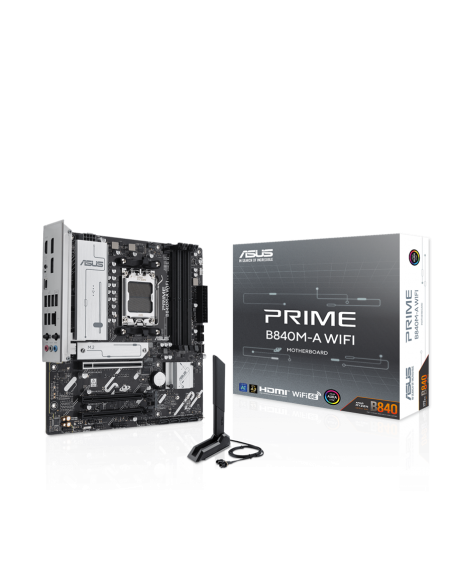

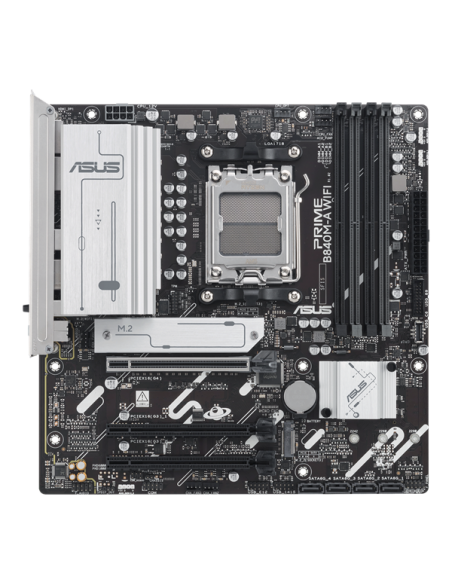

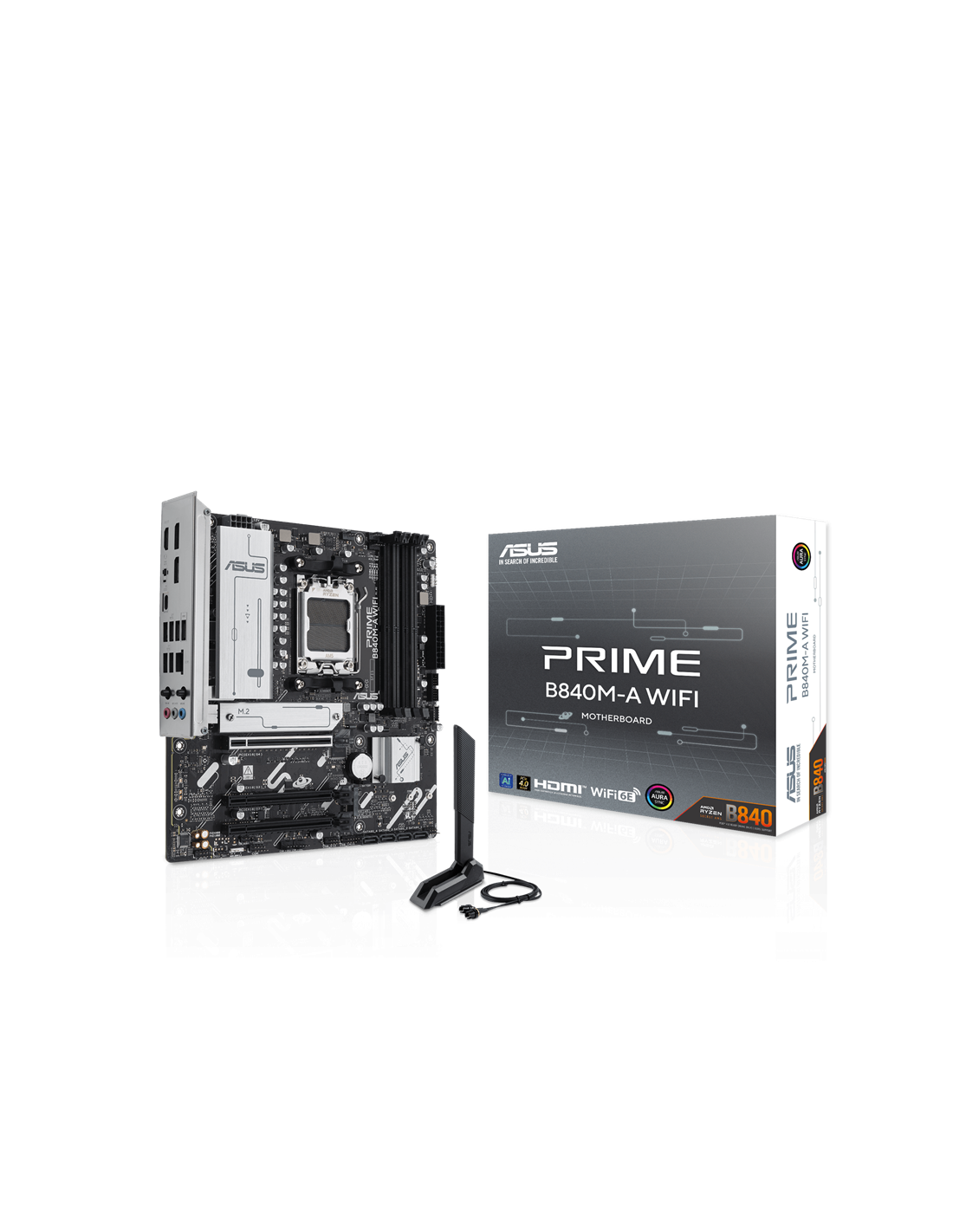

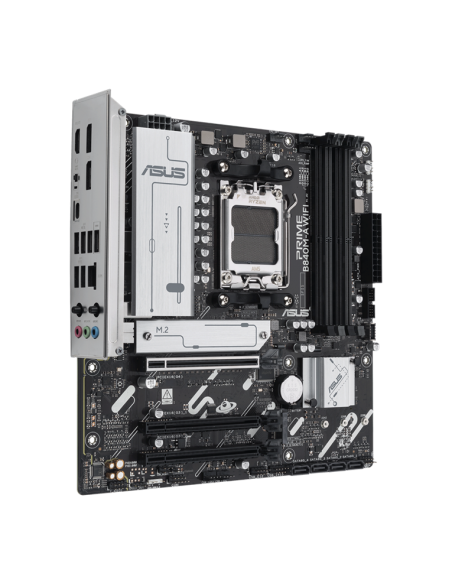

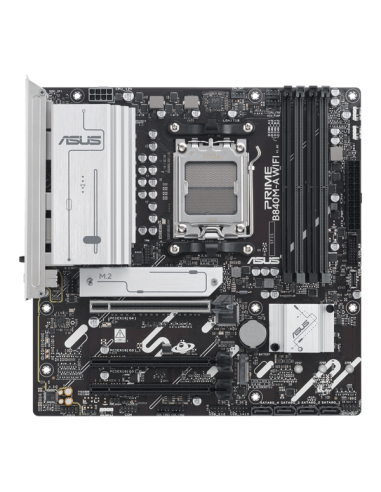

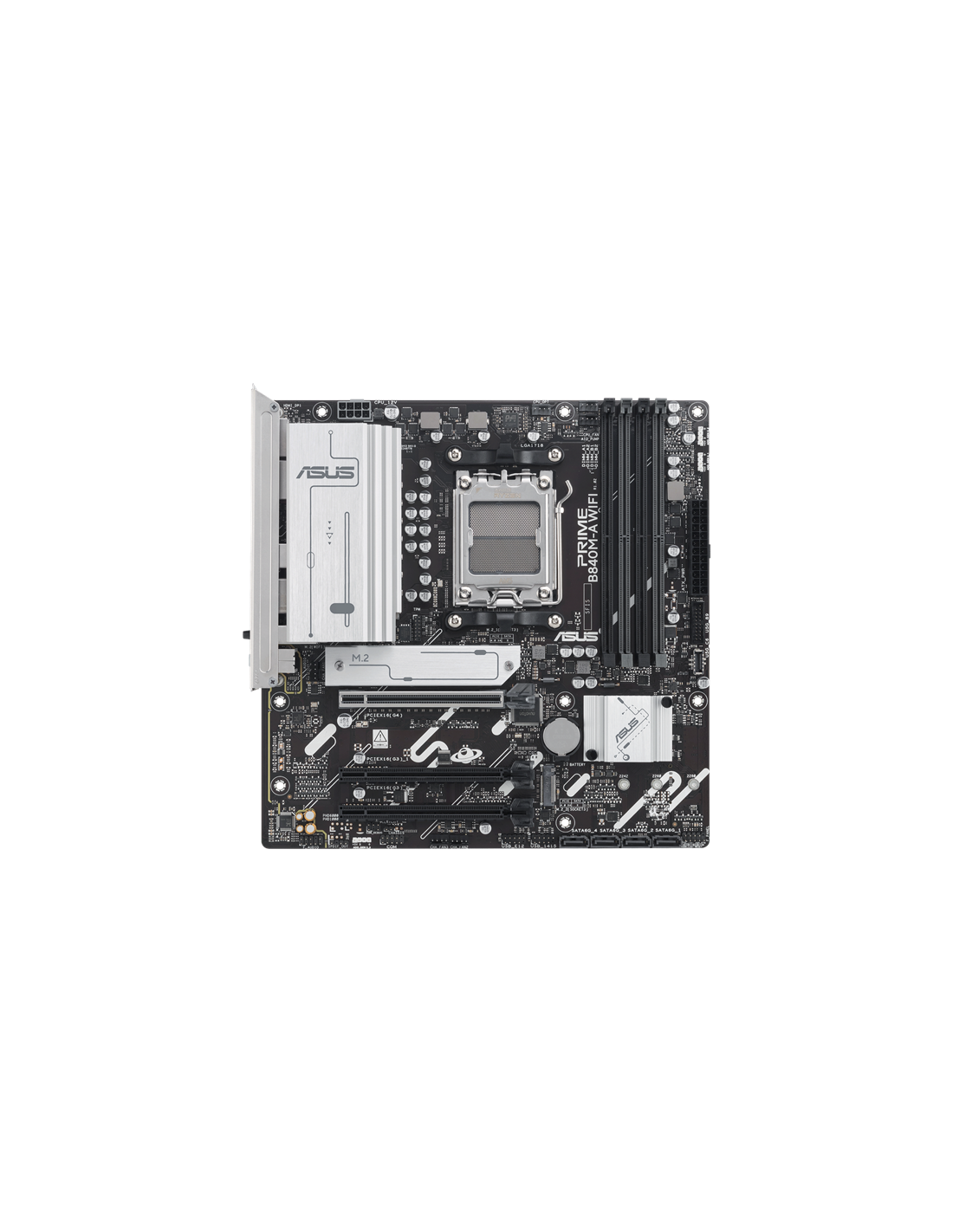

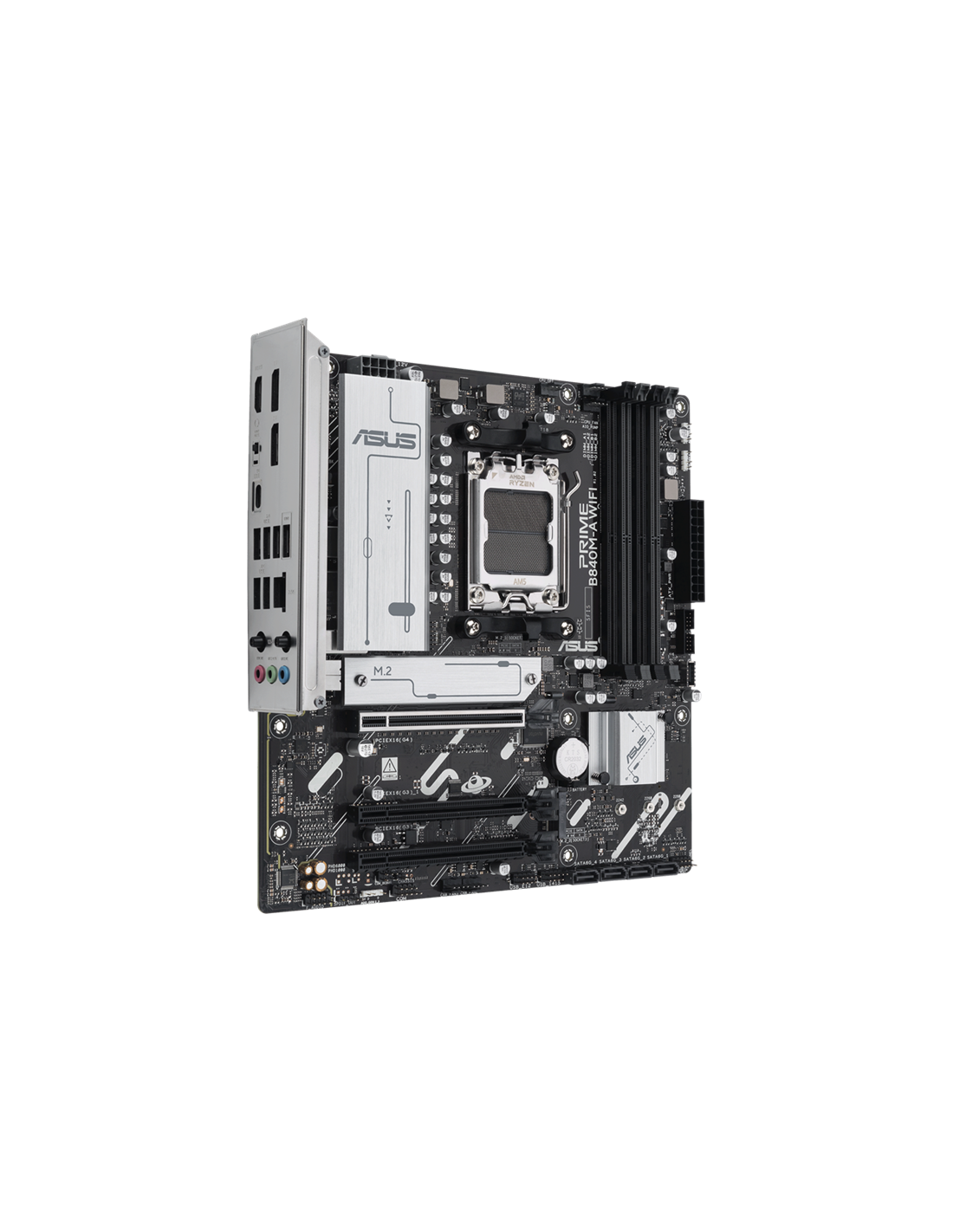

ASUS PRIME B840M-A WIFI

Референция 90MB1J20-M0EAY0

На склад

178,08 €

С вкл. данък

90MB1J20-M0EAY0_MO

ASUS B840 4xDDR5 4xSATA3 RAID HDMI DP 3xM2 GLAN 3xPCIEx16 WiFI_MO

Wireless: Wi-Fi 6E 2x2 Wi-Fi 6E (802.11ax);Supports 2.4/5/6GHz frequency band
Graphics: 2 x DisplayPort;1 x HDMI™ port

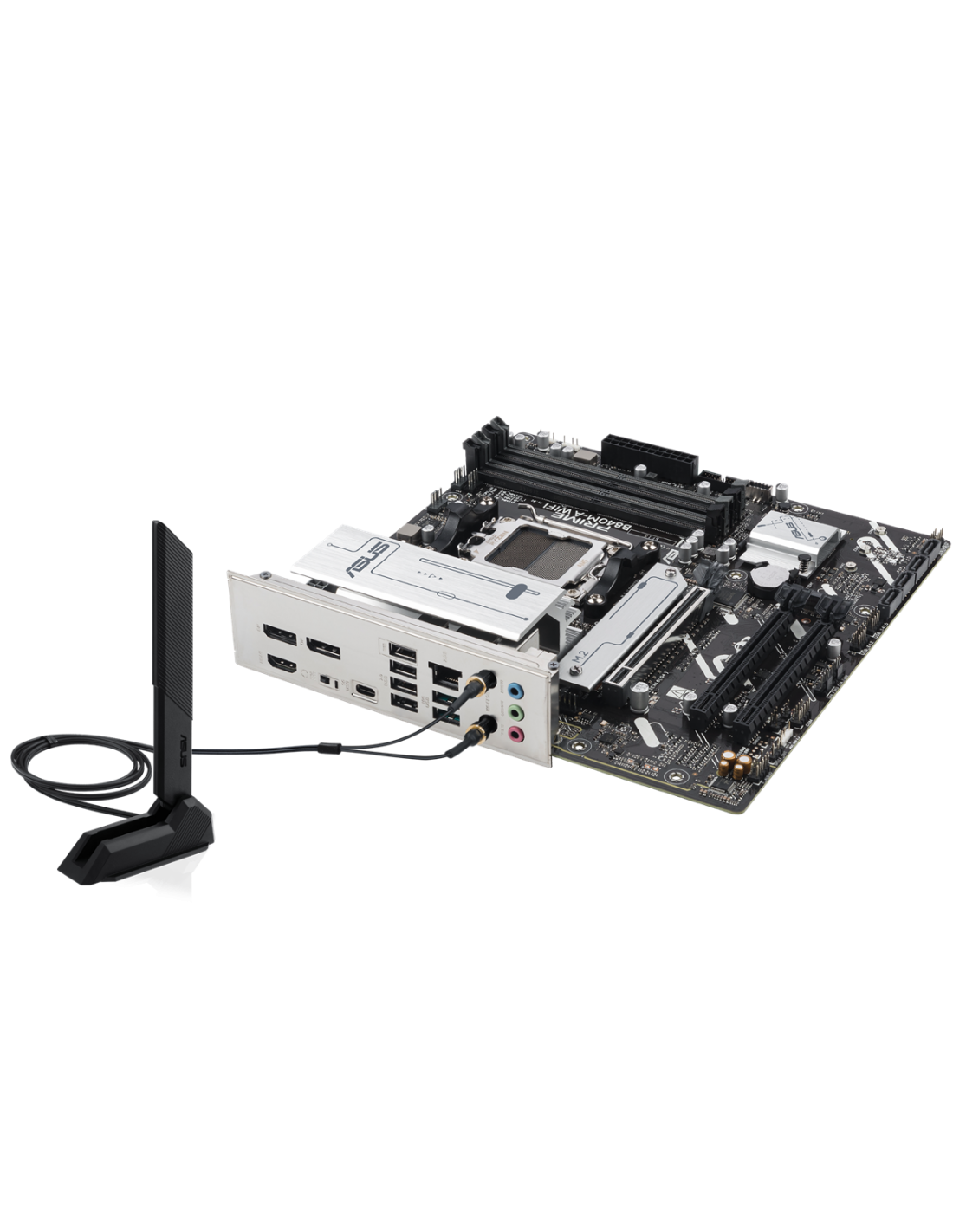

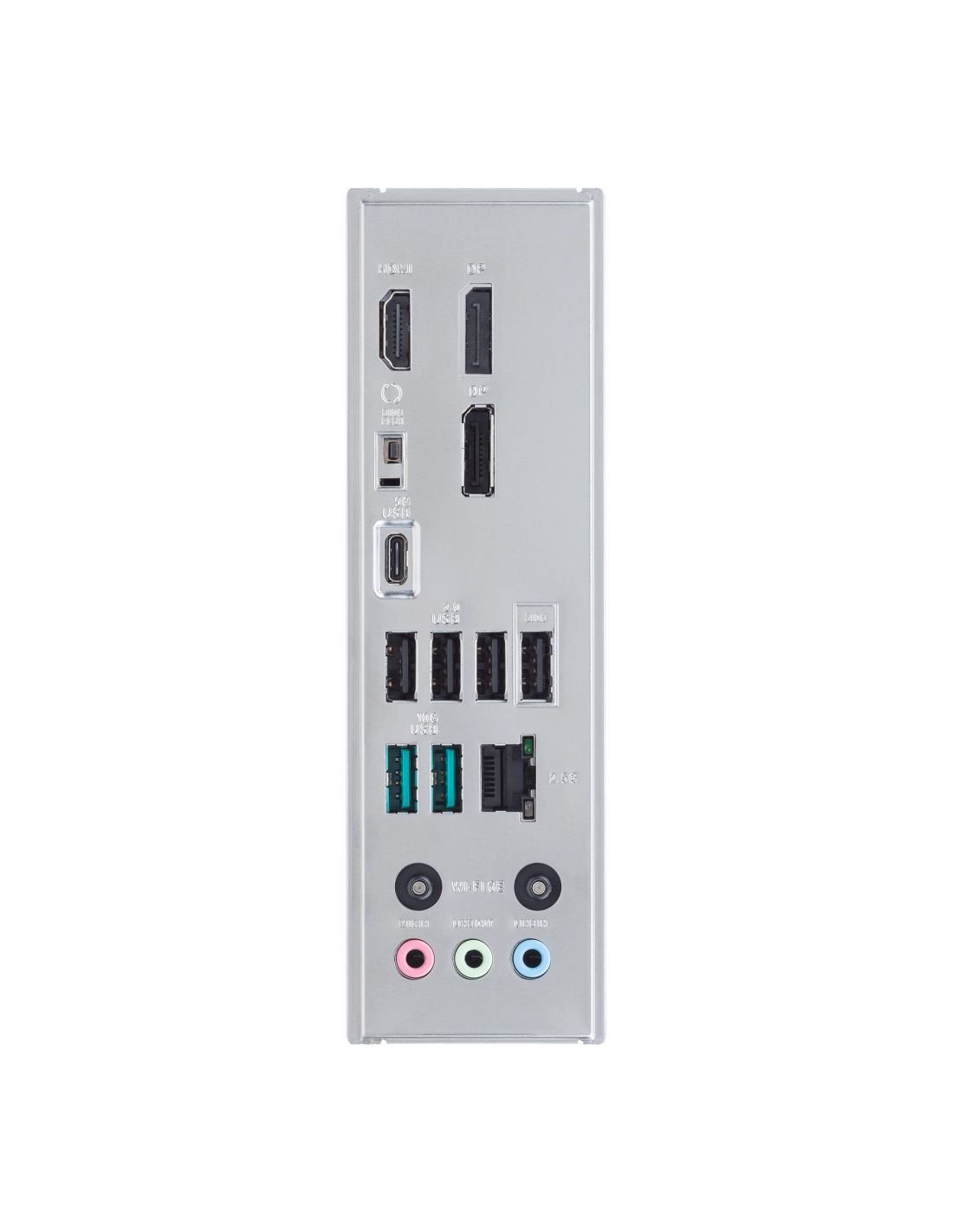

Rear panel I/O: 2 x USB 10Gbps ports (2 x Type-A);1 x USB 5Gbps port (1 x USB Type-C®);4 x USB 2.0 ports (4 x Type-A);2 x DisplayPort;1 x HDMI™ port;1 x Wi-Fi module;1 x Realtek 2.5Gb Ethernet port;3 x Audio jacks;1 x BIOS FlashBack™ button
Expansion Slots: AMD Ryzen™ 9000 & 7000 Series Desktop Processors;1 x PCIe 4.0 x16 slot (supports x16 mode);AMD Ryzen™ 8000 Series Desktop Processors;1 x PCIe 4.0 x16 slot (supports x8/x4 mode);AMD B840 Chipset;2 x PCIe 3.0 x16 slots (support x1 mode)
USB: Rear USB (Total 7 ports);2 x USB 10Gbps ports (2 x Type-A);1 x USB 5Gbps port (1 x USB Type-C®);4 x USB 2.0 ports (4 x Type-A);Front USB (Total 7 ports);1 x USB 5Gbps connector (supports USB Type-C®);1 x USB 5Gbps header supports 2 additional USB 5Gbps po
Connectors: Fan and Cooling Related;1 x 4-pin CPU Fan header;1 x 4-pin CPU OPT Fan header;1 x 4-pin AIO Pump header;3 x 4-pin Chassis Fan headers;Power Related;1 x 24-pin Main Power connector;1 x 8-pin +12V CPU Power connector;Storage Related;3 x M.2 slots (Key M);4
LAN: 1 x Realtek 2.5Gb Ethernet;ASUS LANGuard
OS: Windows 11, Windows 10 64-bit
Memory type: 4 x DIMM slots, max. 256GB, DDR5;Supports up to 7600+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered DIMM;Dual channel memory architecture;Supports AMD Extended Profiles for Overclocking (EXPO™);ASUS Enhanced Memor
Vendor_url: https://www.asus.com/motherboards-components/motherboards/prime/prime-b840m-a-wifi/
Chipset: AMD B840 Chipset
Bluetooth: Bluetooth® v5.3
Storage: Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports;AMD Ryzen™ 9000 & 7000 Series Desktop Processors;M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode);M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode);AMD Ryzen™ 8000 Series De
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB layer
Form Factor: micro-ATX Form Factor 24.4 cm x 24.4 cm
Дънна платка - чипсет: AMD B840
Дънна платка - поддържан тип памет: DDR5
Дънна платка - брой слотове за памет: 4 бр
Дънна платка - честота на паметта: 7000 MHz
7600 MHz
8000 MHz
9000 MHz
Дънна платка - интерфейси: M.2 (NVMe) конектор
M.2 (SATA) конектор
SATA 3.0
Дънна платка - портове: Display Port
HDMI
USB 2.0
USB 3.2
Дънна платка - форм фактор: Micro ATX
