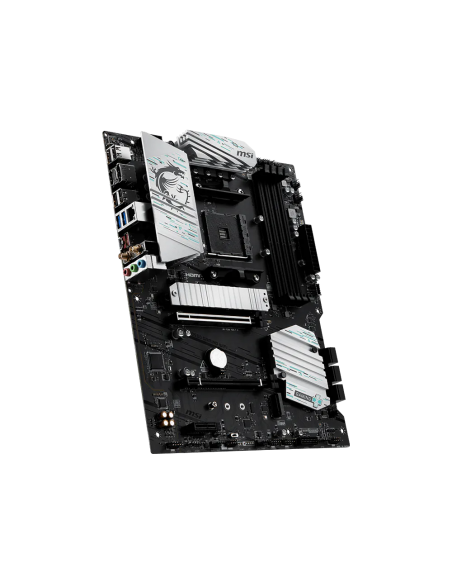

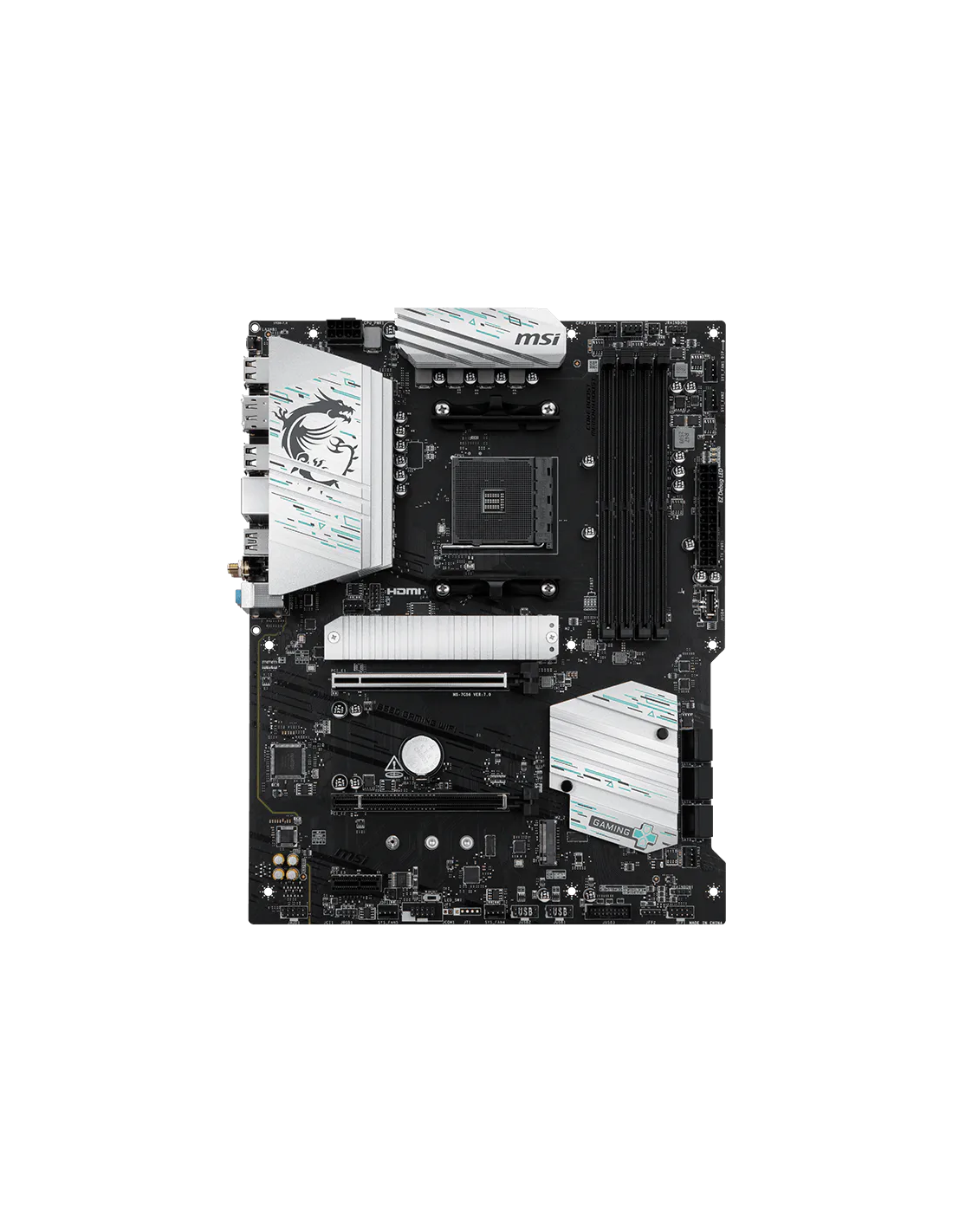

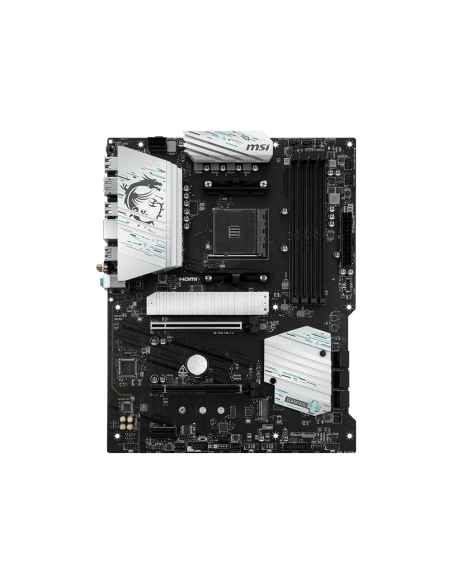

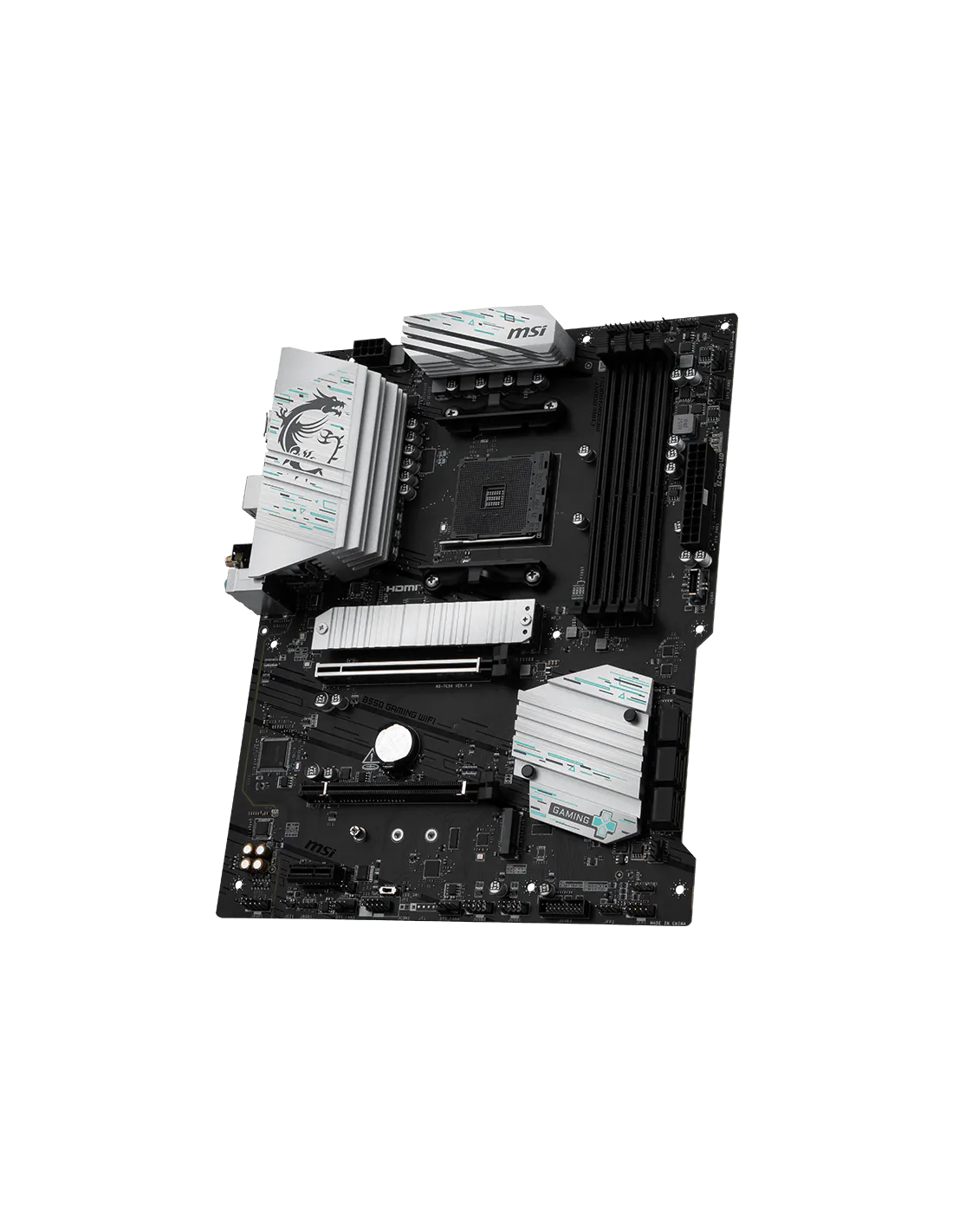

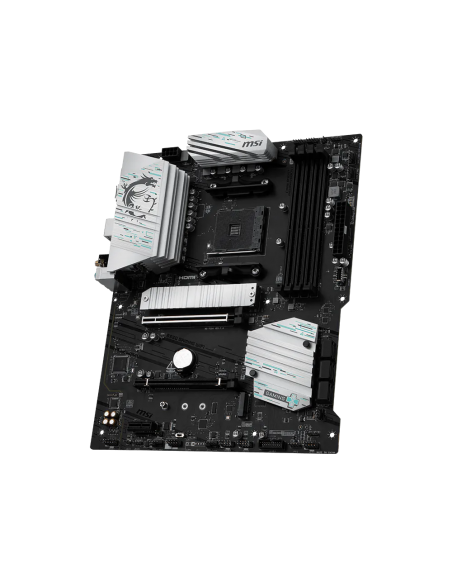

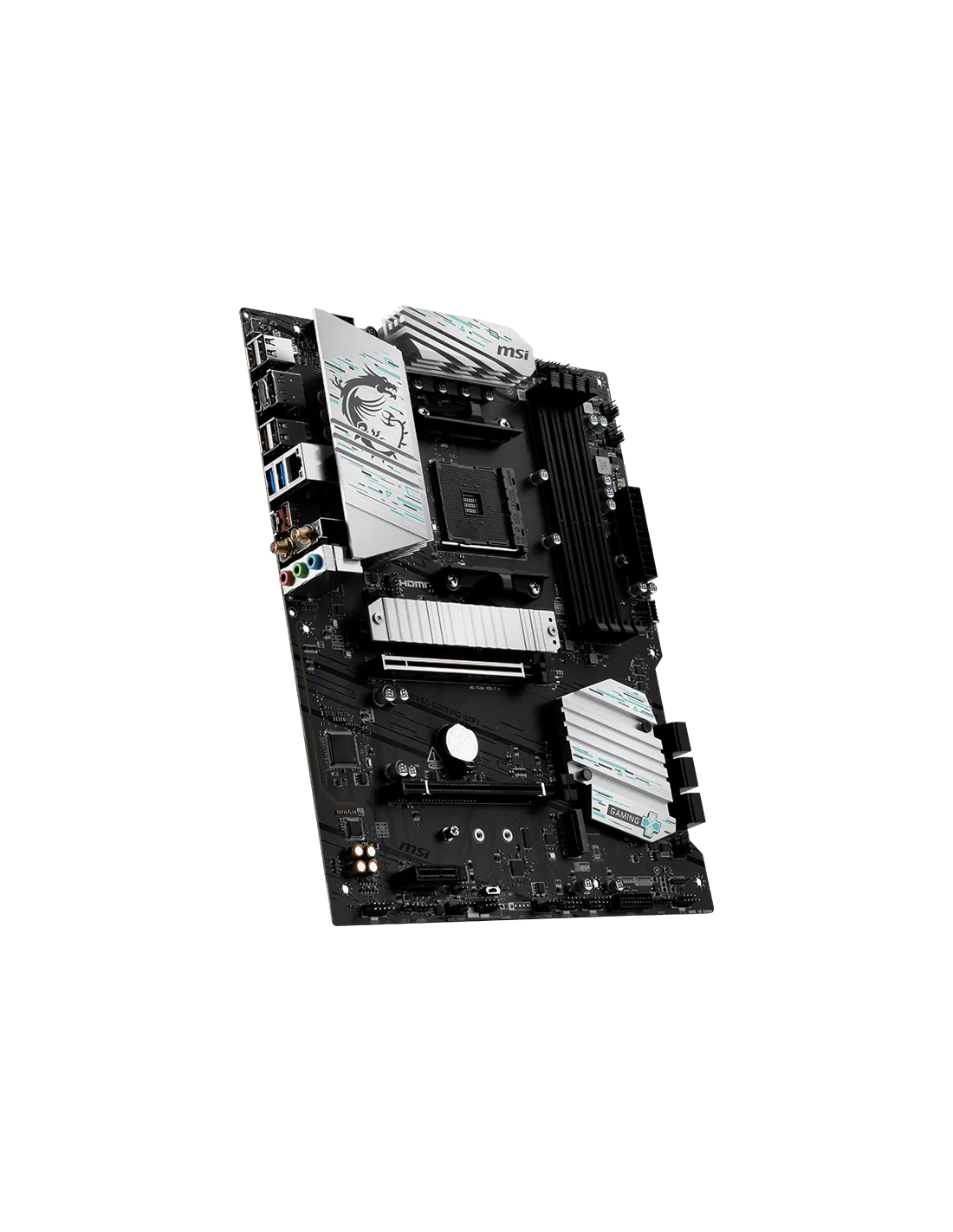

MSI B550 GAMING

Референция 911-7C56-093

На склад

119,09 €

С вкл. данък

911-7C56-093_MO

_MO

Storage: 2x M.2;
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260/2242 devices;
M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280 devices;
6x SATA 6G
Memory type: 4x DDR4, Maximum Memory Capacity 128GB;
Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866+ MHz by A-XMP OC MODE;
• 1DPC 1R Max speed 4800 MHz;
• 1DPC 2R max speed 3866 MHZ;
OS: Support for Windows® 11 64-bit
Socket: Socket AM4
Vendor_url: https://www.msi.com/Motherboard/B550-GAMING-WIFI
CPU's supported: Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
USB: 4x USB 2.0 (Rear);
4x USB 2.0 (Front);
2x USB 5Gbps Type A (Rear);
2x USB 5Gbps Type A (Front);
1x USB 5Gbps Type C (Front);
1x USB 10Gbps Type A (Rear);
1x USB 10Gbps Type C (Rear)
Expansion Slots: 2x PCI-E x16 slot;
1x PCI-E x1 slot;
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU);
PCI_E3 Gen PCIe 3.0 supports up to x4 (From Chipset);
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
LAN: Realtek® 8111H 1G LAN
Audio: Realtek® ALC897;
7.1-Channel High Definition Audio
Dimensions: ATX
243.84mmx304.8mm
Wireless: Wi-Fi 5 Solution
Graphics: 1x HDMI™;
Support HDMI™ 2.1, maximum resolution of 4K 60Hz;
1x DisplayPort;
Support DisplayPort 1.2, maximum resolution of 4K 60Hz
Bluetooth: Supports Bluetooth® 5.0

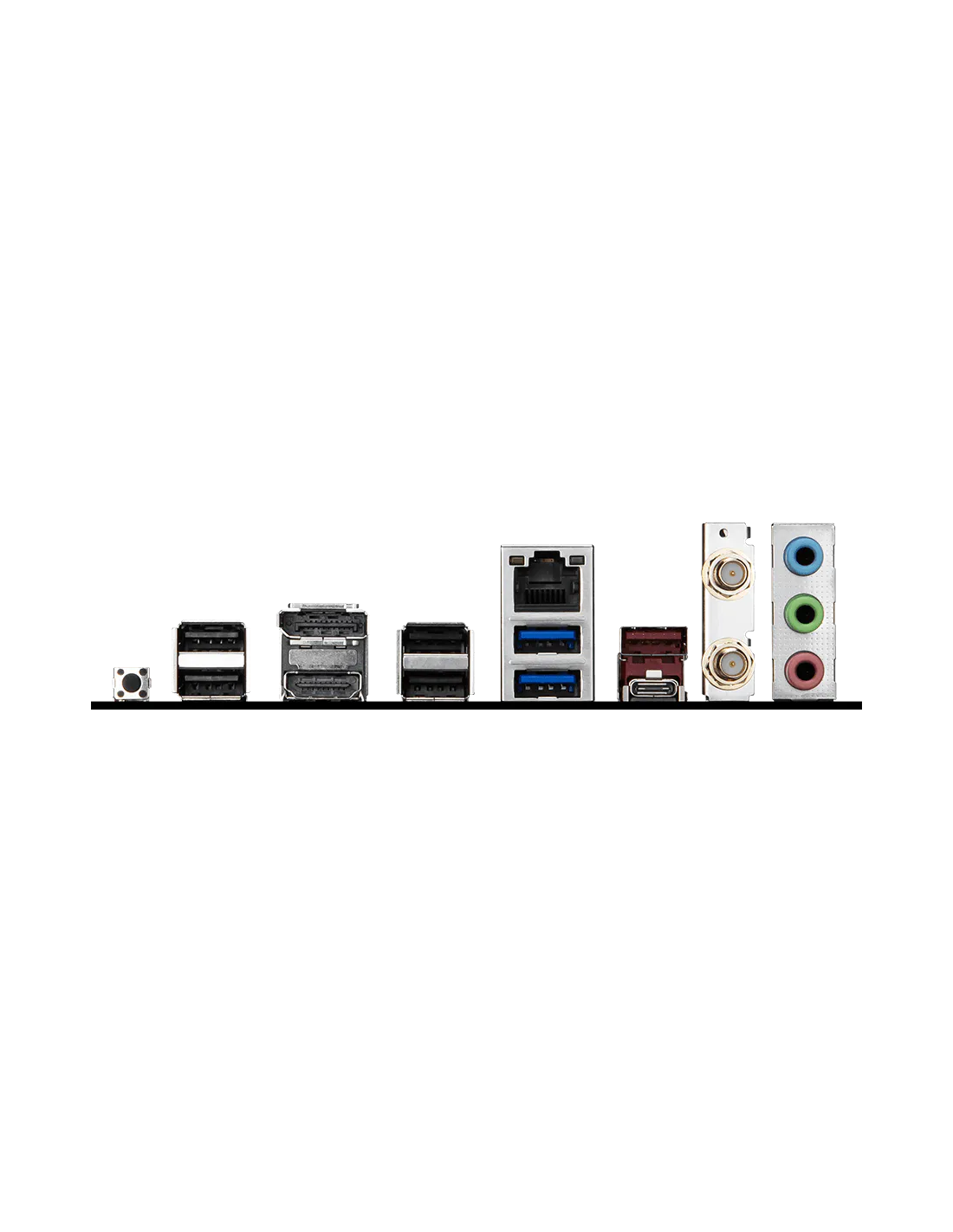

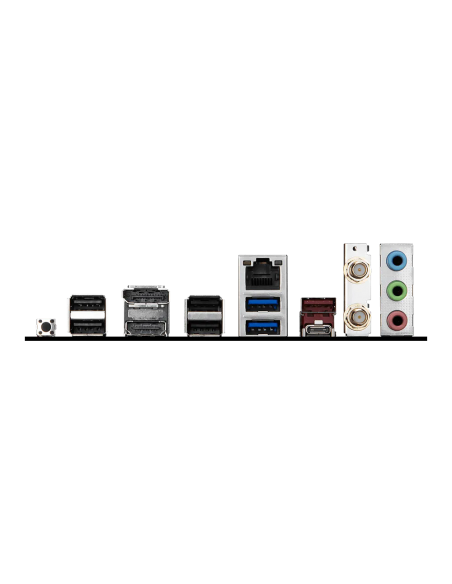

Rear panel I/O: 1x Power Connector(ATX_PWR);
1x Power Connector(CPU_PWR);
1x CPU Fan;
1x Pump Fan;
6x System Fan;
2x Front Panel (JFP);
1x Chassis Intrusion (JCI);
1x Front Audio (JAUD);
1x Com Port (JCOM);
2x Addressable RGB LED connector(JRAINBOW);
1x RGB LED connector
Chipset: AMD B550
Manufacturer: MSI
Дънна платка - чипсет: AMD B550
Дънна платка - поддържан тип памет: DDR4
Дънна платка - честота на паметта: 2667 MHz
2800 MHz
2933 MHz
3000 MHz
3066 MHz
3200 MHz
3466 MHz
3600 MHz
3733 MHz
3866 MHz
4000 MHz
4133 MHz
4266 MHz
4400 MHz
4533 MHz
4600 MHz
4733 MHz
4800 MHz
4866 MHz
Дънна платка - интерфейси: M.2 (NVMe) конектор
SATA 3.0
Дънна платка - портове: USB 2.0
USB 3.2

No reviews

Склад София
