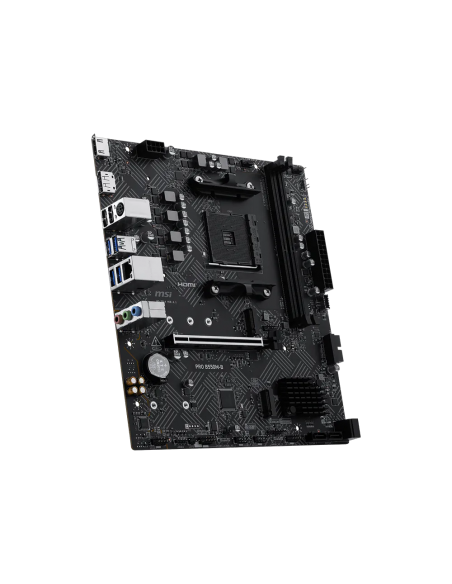

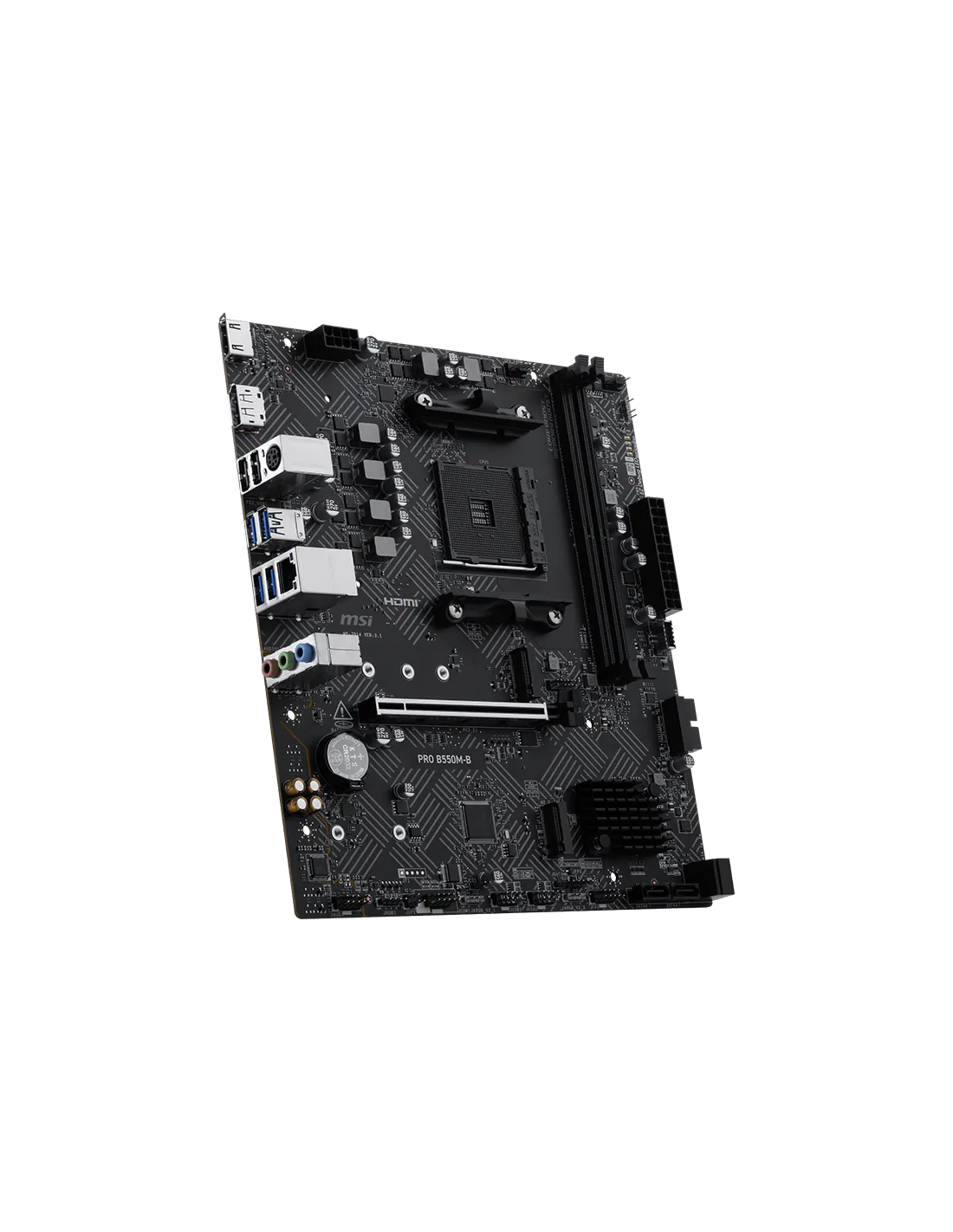

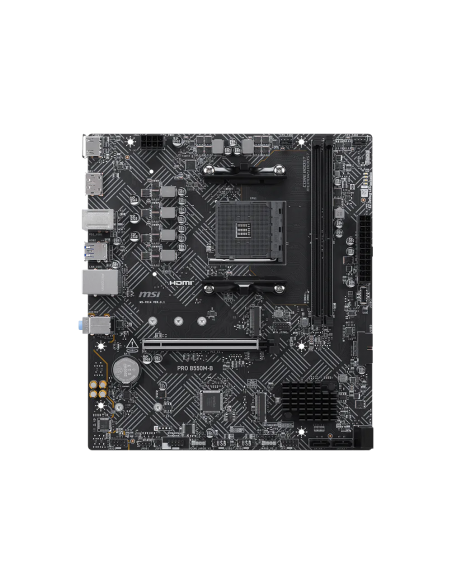

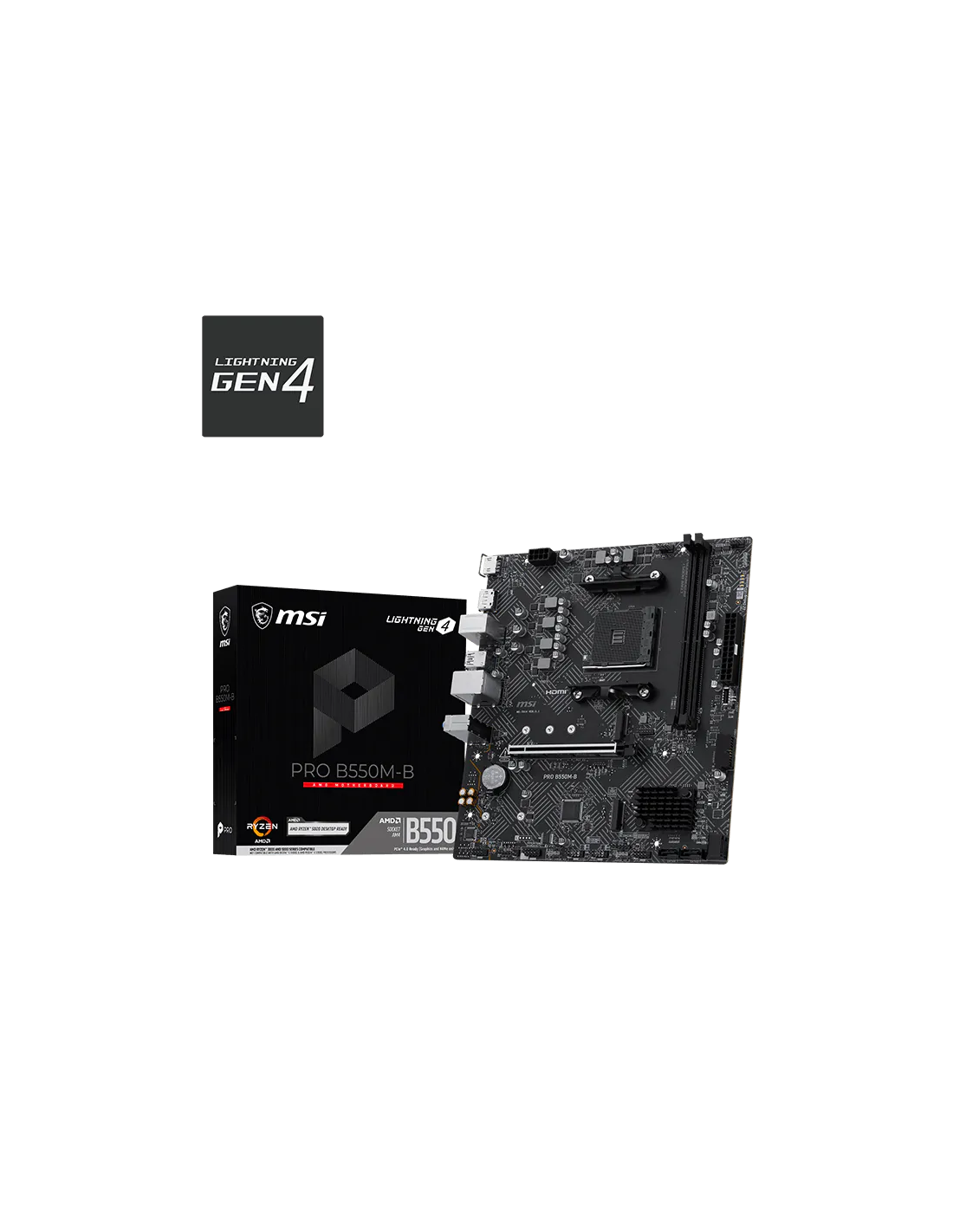

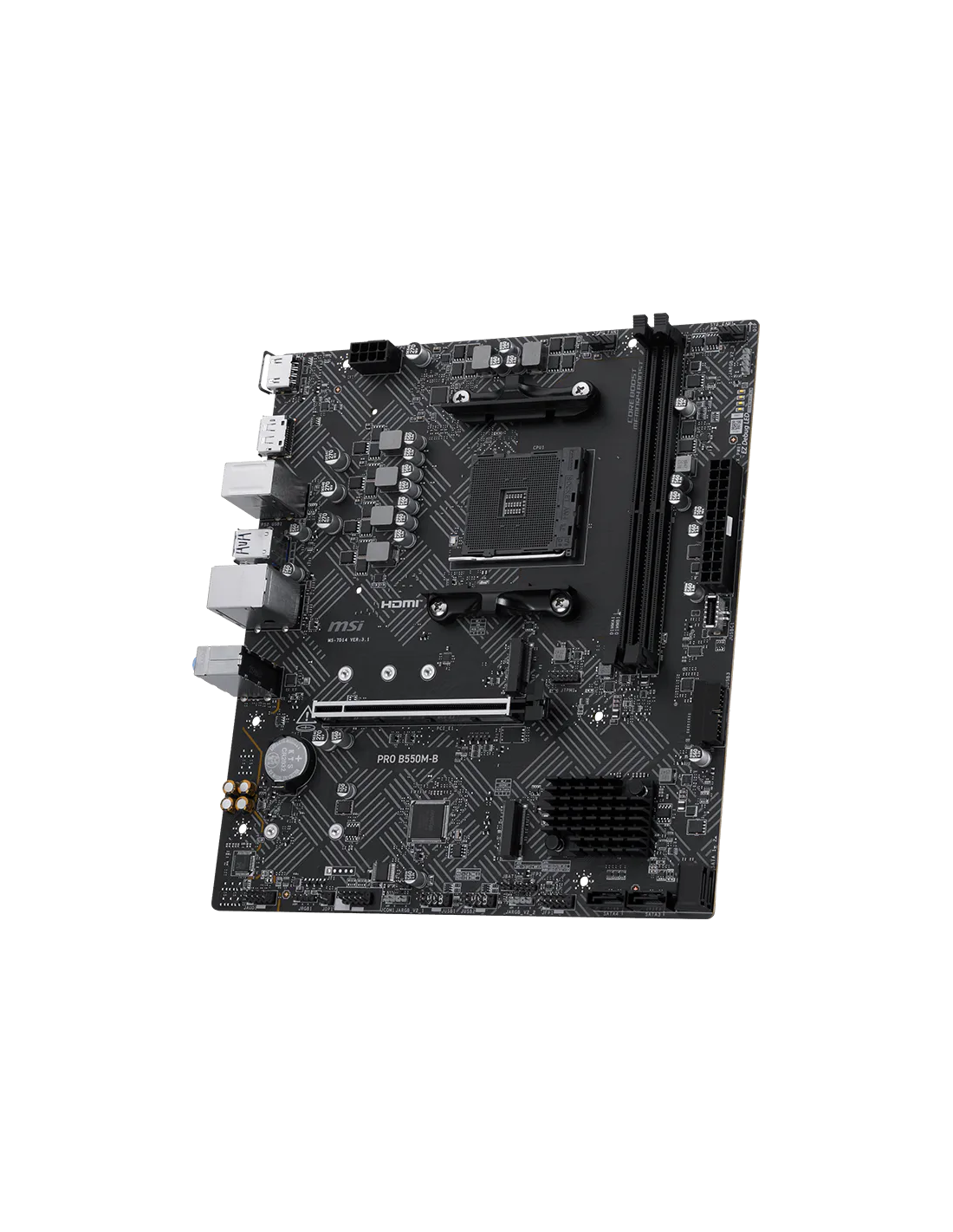

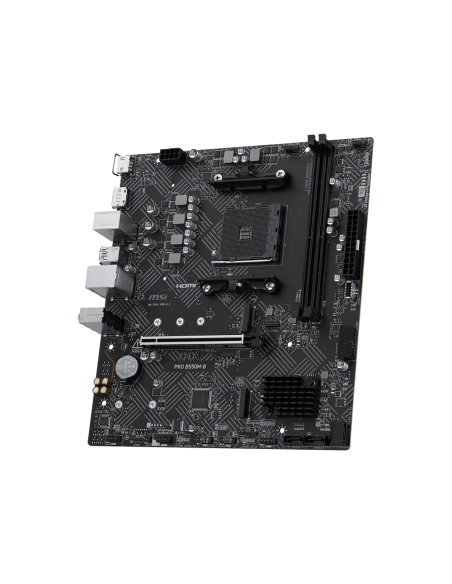

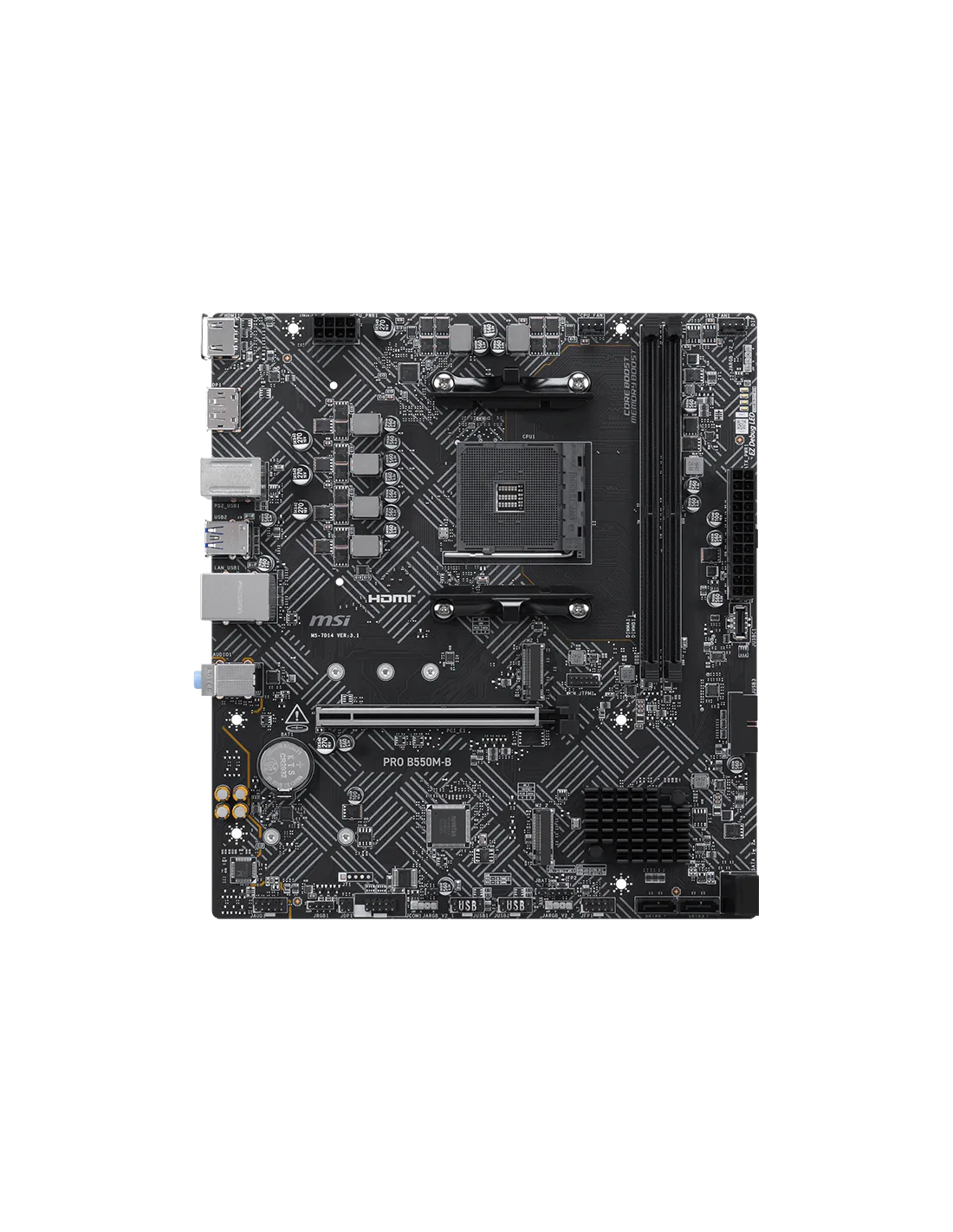

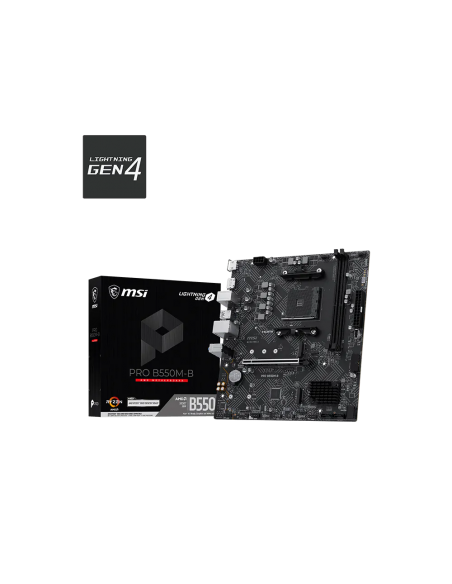

MSI PRO B550M-B

Референция 911-7D14-023

На склад

77,24 €

С вкл. данък 151.07 лв.

911-7D14-023_MO

_MO

Audio: Realtek® ALC897 Codec;
7.1-Channel High Definition Audio
Dimensions: mATX
220mmx243.84mm
Vendor_url: https://www.msi.com/Motherboard/PRO-B550M-B
Graphics: 1x HDMI™;
Support HDMITM 2.1, maximum resolution of 4K 60Hz;
1x DisplayPort;
Supports DP 1.2, maximum resolution of 4K 60Hz
USB: 2x USB 2.0 (Rear);
4x USB 2.0 (Front);
4x USB 5Gbps Type A (Rear);
2x USB 5Gbps Type A (Front);
1x USB 5Gbps Type C (Front)
Chipset: AMD B550
Manufacturer: MSI
Storage: 2x M.2;
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices;
M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 22110/2280 devices;
4x SATA 6G
Memory type: 2x DDR4, Maximum Memory Capacity 64GB;
Memory Support DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE;
Max. overclocking frequency:;
• 1DPC 1R Max speed up to 4600+ MHz;
• 1DPC 2R Max spe
OS: Support for Windows® 11 64-bit, Windows® 10 64-bit
Socket: Socket AM4

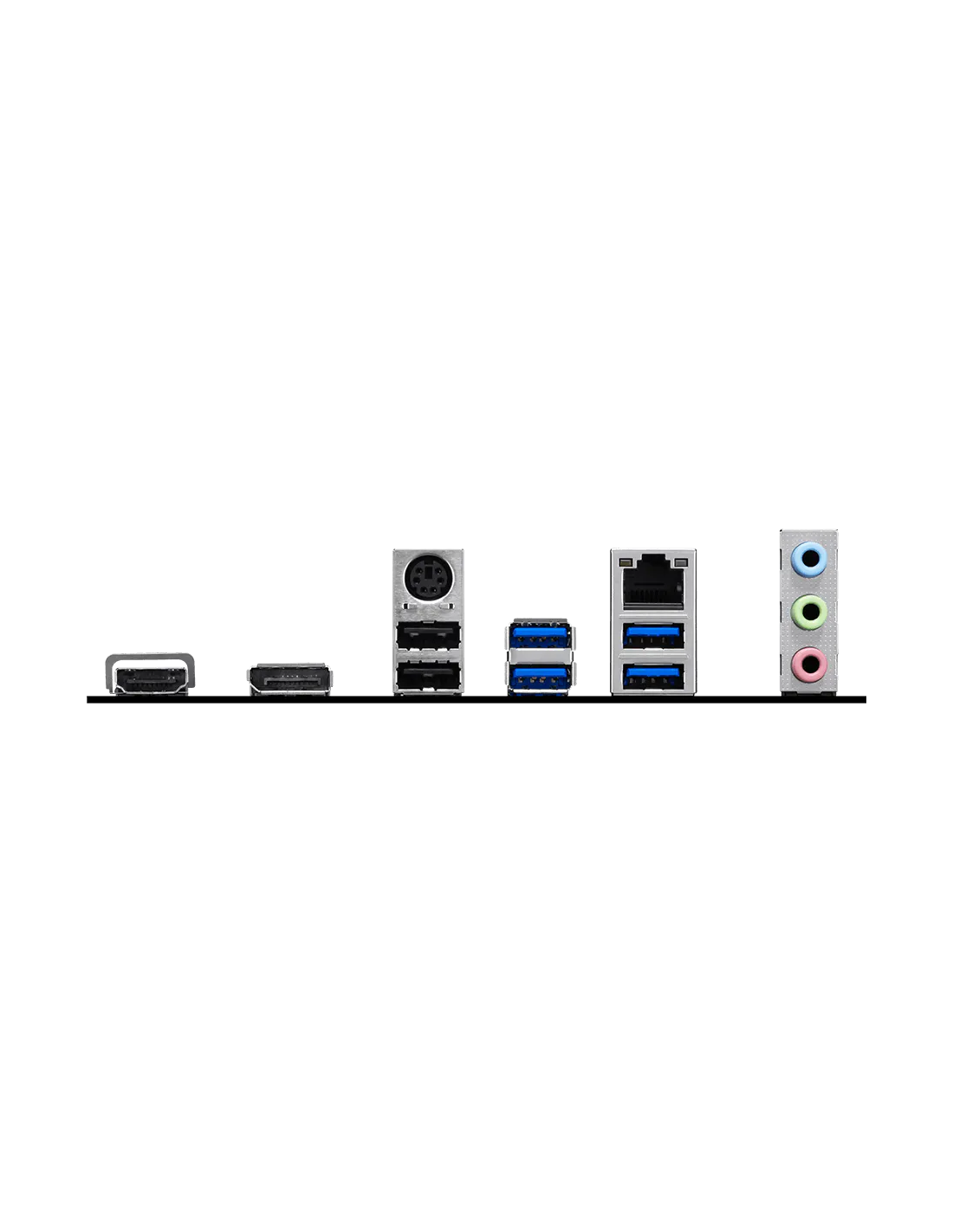

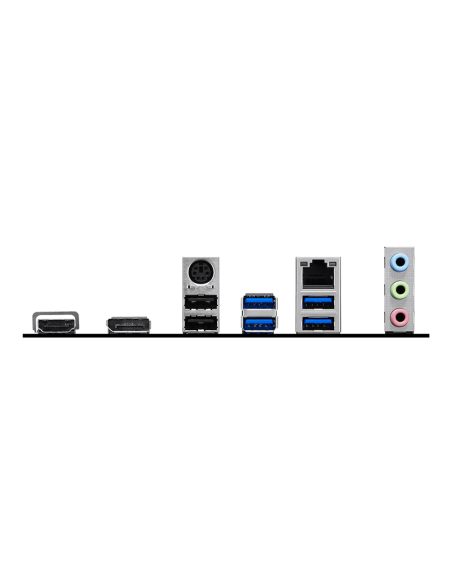

Rear panel I/O: 1x Power Connector(ATX_PWR);
1x Power Connector(CPU_PWR);
1x CPU Fan;
1x System Fan;
2x Front Panel (JFP);
1x Chassis Intrusion (JCI);
1x Front Audio (JAUD);
1x Com Port (JCOM);
3x Addressable V2 RGB LED connector (JARGB_V2);
1x RGB LED connector(JRGB);
1
CPU's supported: Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series desktop processors
RAID: Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices;
Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
Expansion Slots: 1x PCI-E x16 slot;
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
LAN: Realtek® RTL8111H 1Gbps LAN
Дънна платка - чипсет: AMD B550
Дънна платка - поддържан тип памет: DDR4
Дънна платка - честота на паметта: 2667 MHz
2800 MHz
2933 MHz
3000 MHz
3066 MHz
3200 MHz
3466 MHz
3600 MHz
3733 MHz
3866 MHz
4000 MHz
4133 MHz
4266 MHz
4400 MHz
4600 MHz
Дънна платка - интерфейси: M.2 (NVMe) конектор
SATA 3.0
Дънна платка - портове: USB 2.0
USB 3.2
