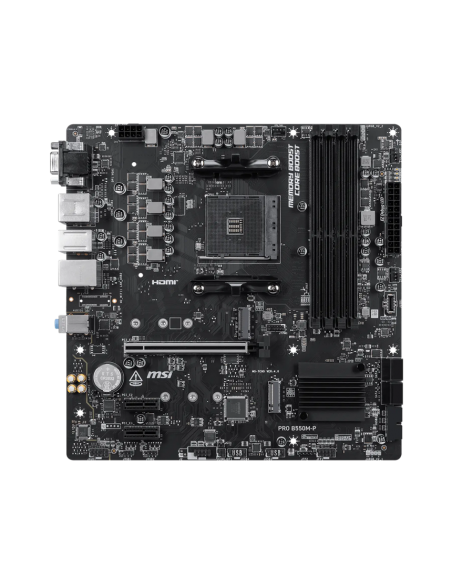

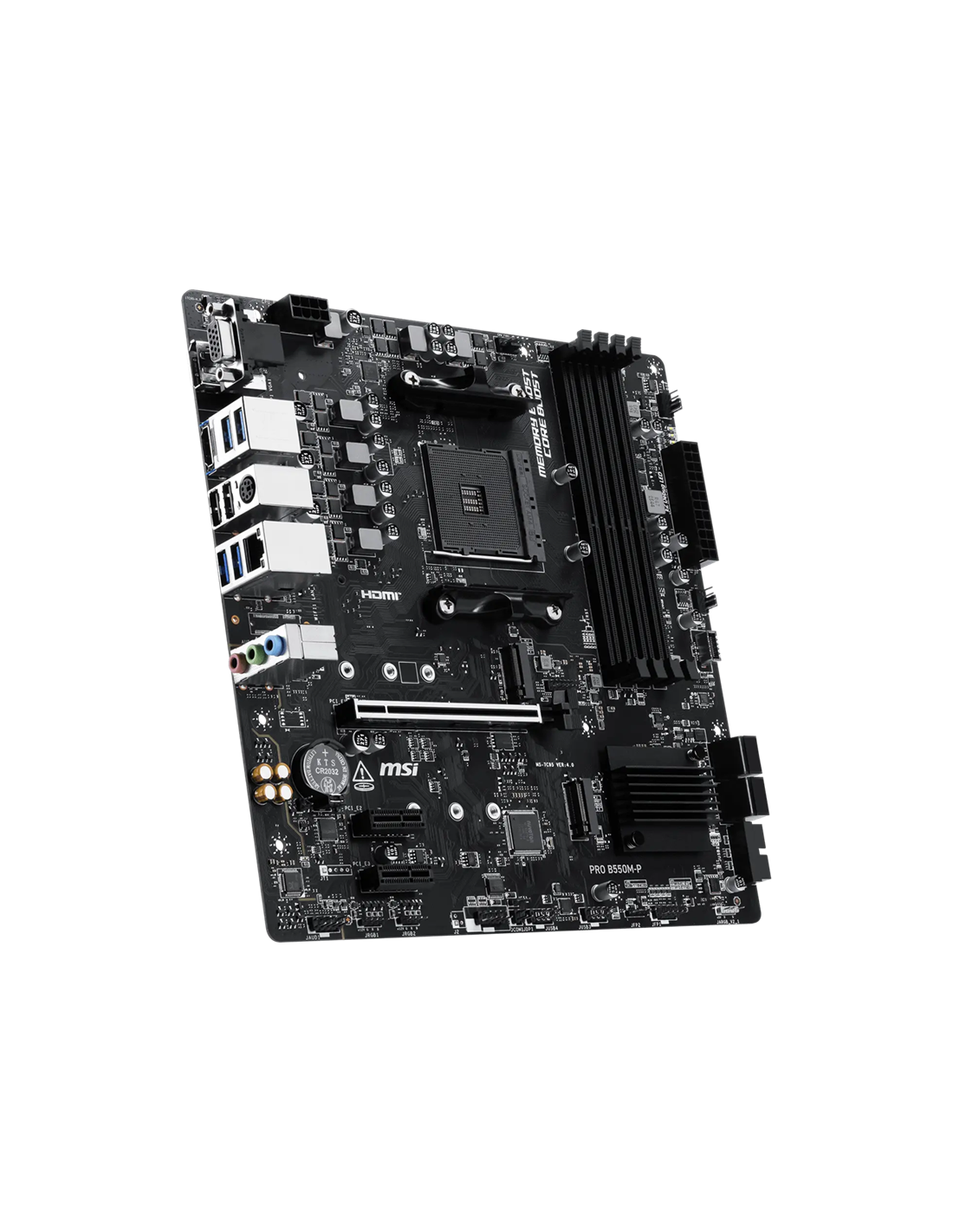

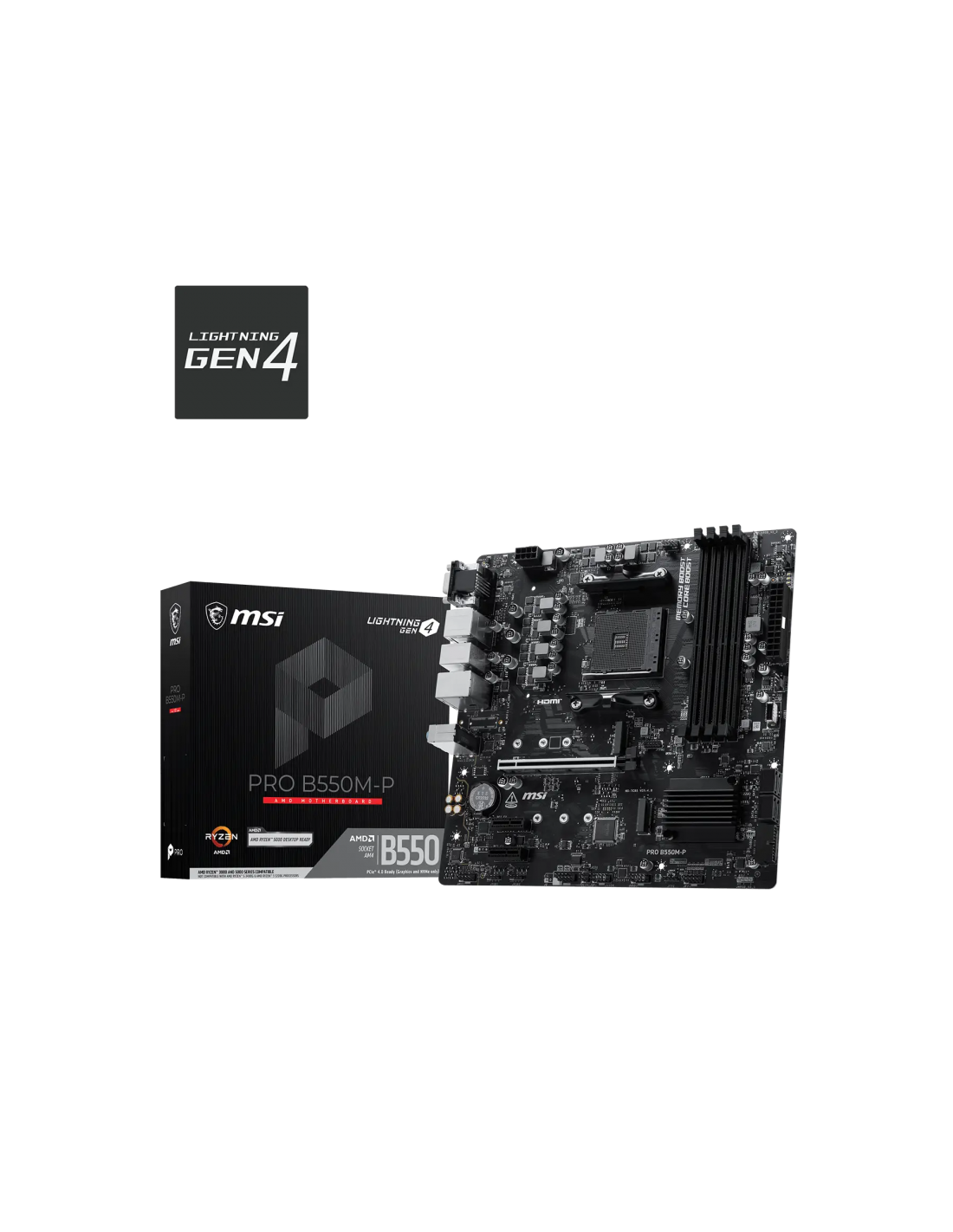

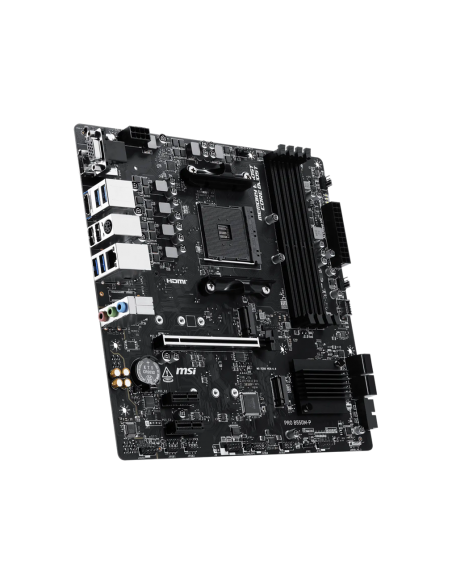

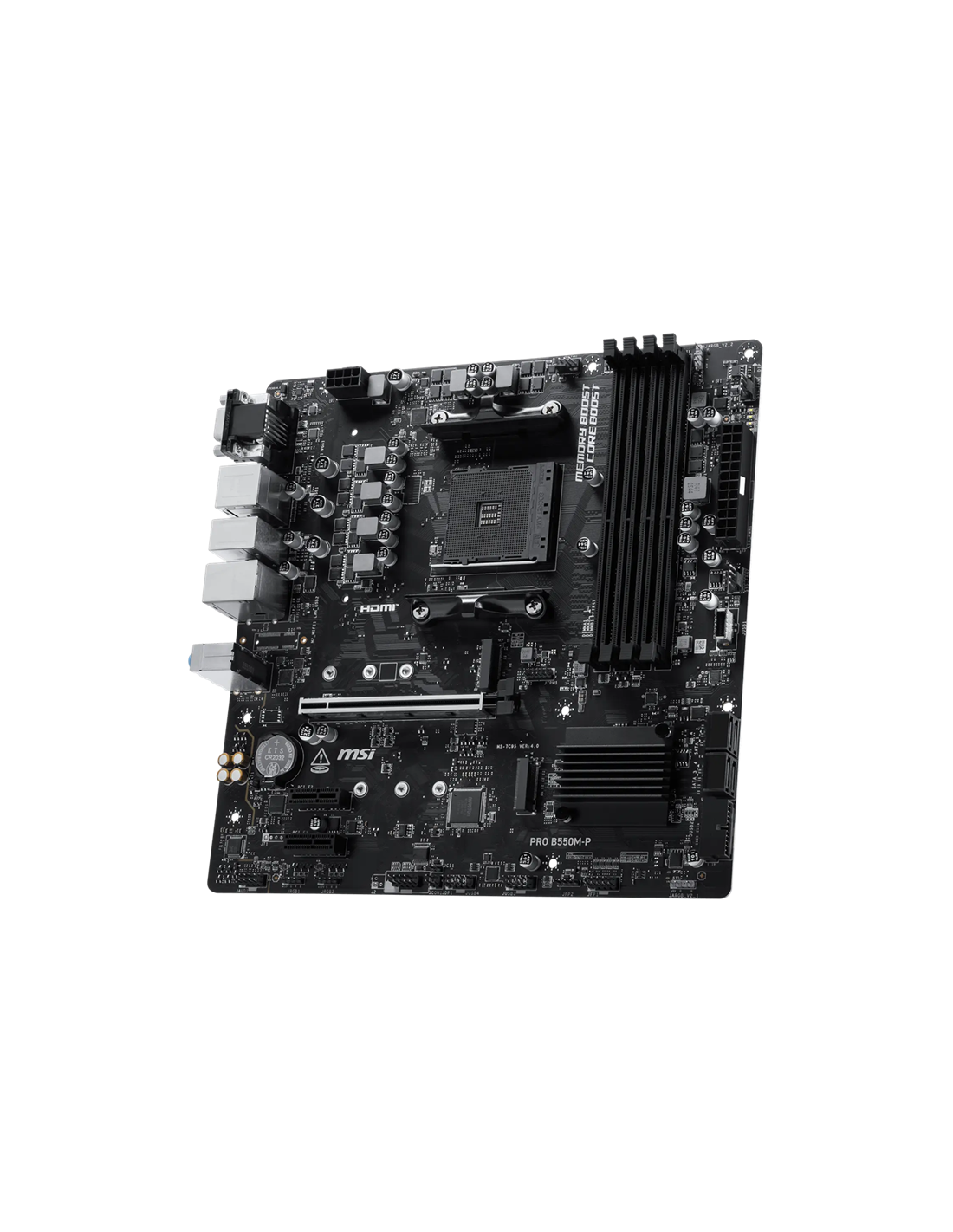

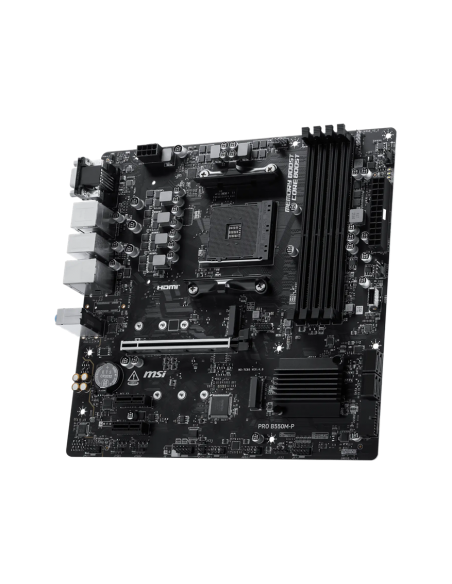

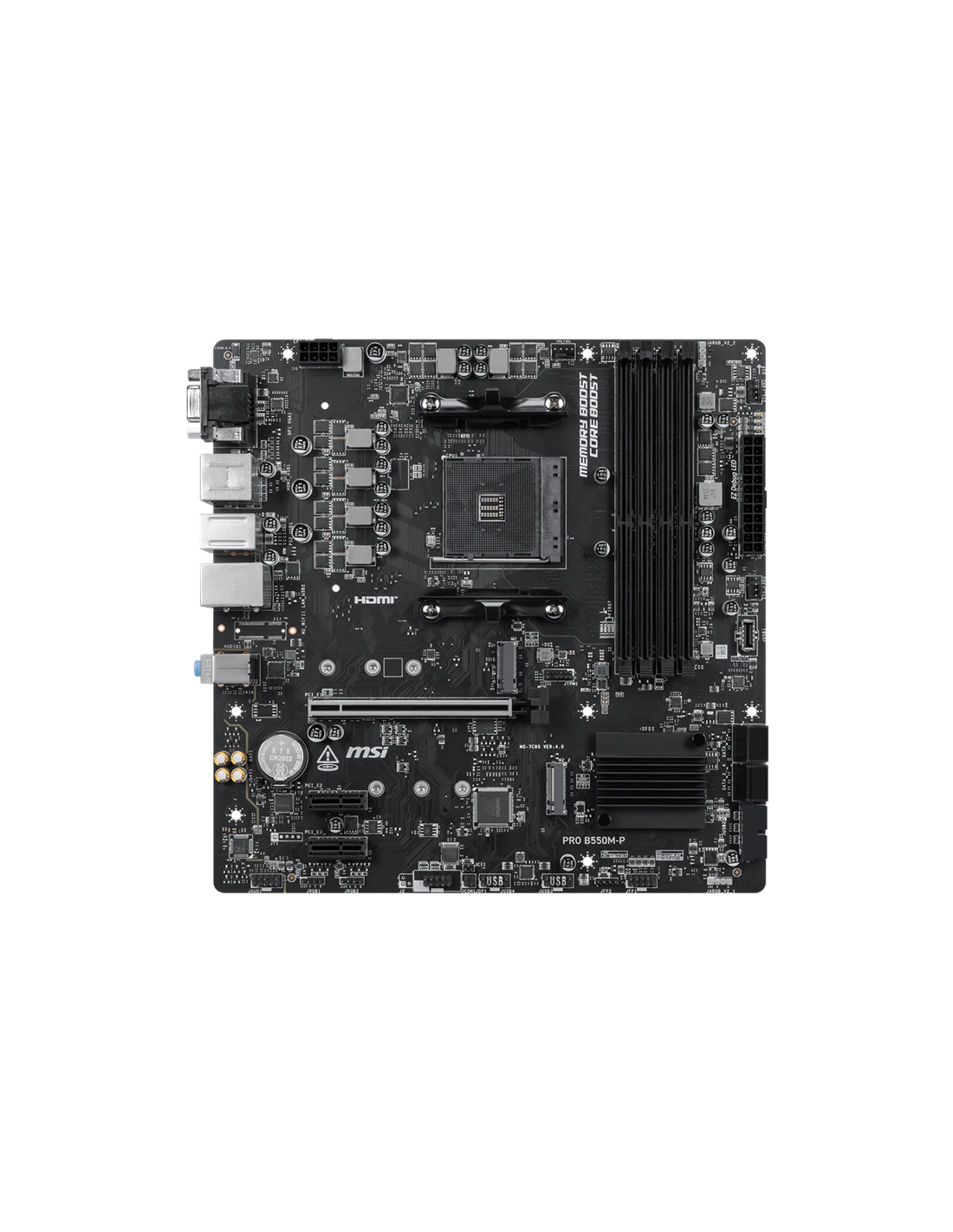

MSI PRO B550M-P

Референция 911-7C95-201

На склад

93,01 €

С вкл. данък

911-7C95-201_MO

_MO

Audio: Realtek® ALC897 Codec;
7.1-Channel High Definition Audio
Dimensions: mATX
243.84mmx243.84mm
Vendor_url: https://www.msi.com/Motherboard/PRO-B550M-P
Graphics: 1x HDMI™;
Support HDMITM 2.1, maximum resolution of 4K 60Hz;
1x DisplayPort;
Supports DP 1.4, maximum resolution of 4K 60Hz;
1x VGA;
Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz
USB: 2x USB 2.0 (Rear);
4x USB 2.0 (Front);
4x USB 5Gbps Type A (Rear);
2x USB 5Gbps Type A (Front);
1x USB 5Gbps Type C (Front)
Chipset: AMD B550
Manufacturer: MSI
Storage: 2x M.2;
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices;
M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices;
4x SATA 6G
Memory type: 4x DDR4, Maximum Memory Capacity 128GB;
Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE;
Max. overclocking frequency:;
• 1DPC 1R Max speed up to 4400+ MT/s;
• 1DPC 2R Max speed u
OS: Support for Windows® 11 64-bit, Windows® 10 64-bit
Socket: Socket AM4
Rear panel I/O: 1x Power Connector(ATX_PWR);
1x Power Connector(CPU_PWR);
1x CPU Fan;
2x System Fan;
2x Front Panel (JFP);
1x Chassis Intrusion (JCI);
1x Front Audio (JAUD);
1x Com Port (JCOM);
2x Addressable V2 RGB LED connector (JARGB_V2);
2x RGB LED connector(JRGB);
1
CPU's supported: Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series desktop processors
RAID: Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices;
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Expansion Slots: 1x PCI-E x16 slot;
2x PCI-E x1 slot;
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU);
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset);
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
LAN: Realtek® RTL8111H 1Gbps LAN
Дънна платка - чипсет: AMD B550
Дънна платка - поддържан тип памет: DDR4
Дънна платка - честота на паметта: 2667 MHz
2800 MHz
2933 MHz
3000 MHz
3066 MHz
3200 MHz
3466 MHz
3600 MHz
3733 MHz
3866 MHz
4000 MHz
4133 MHz
4266 MHz
4400 MHz
Дънна платка - интерфейси: M.2 (NVMe) конектор
SATA 3.0
Дънна платка - портове: USB 2.0
USB 3.2
