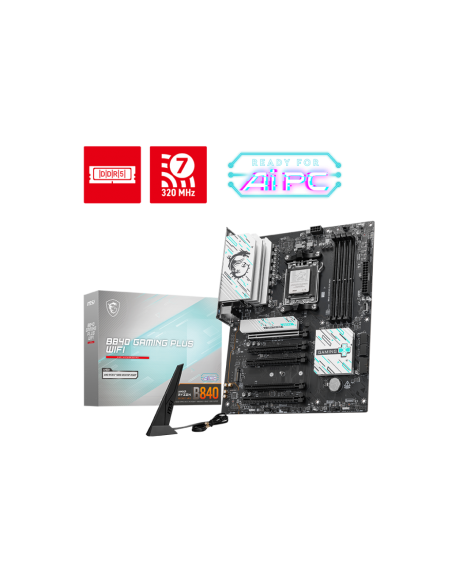

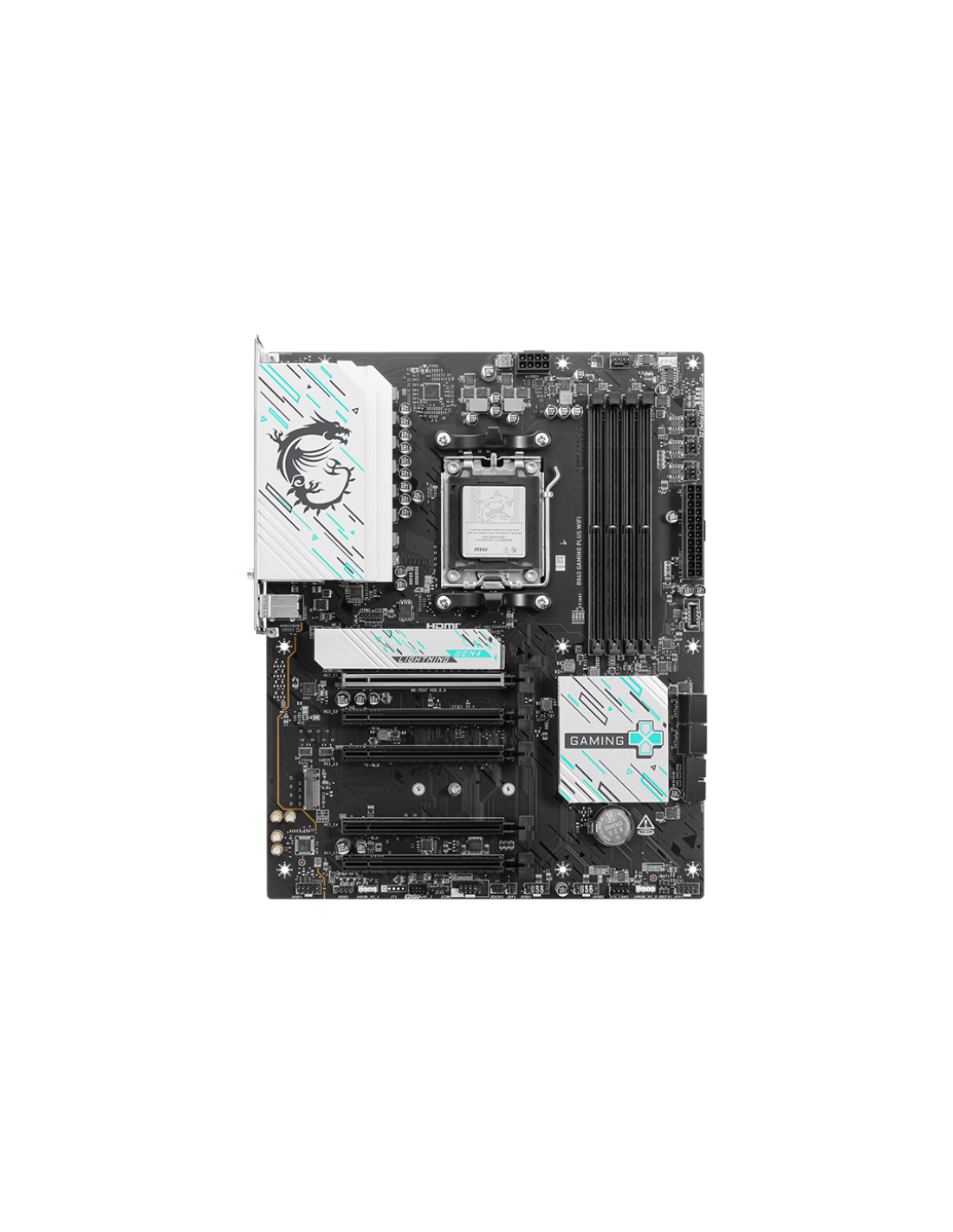

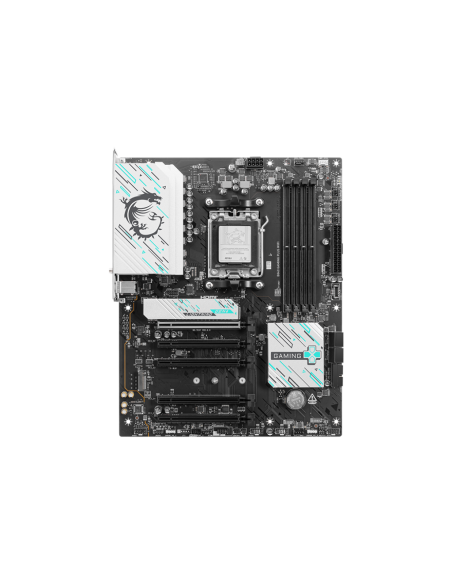

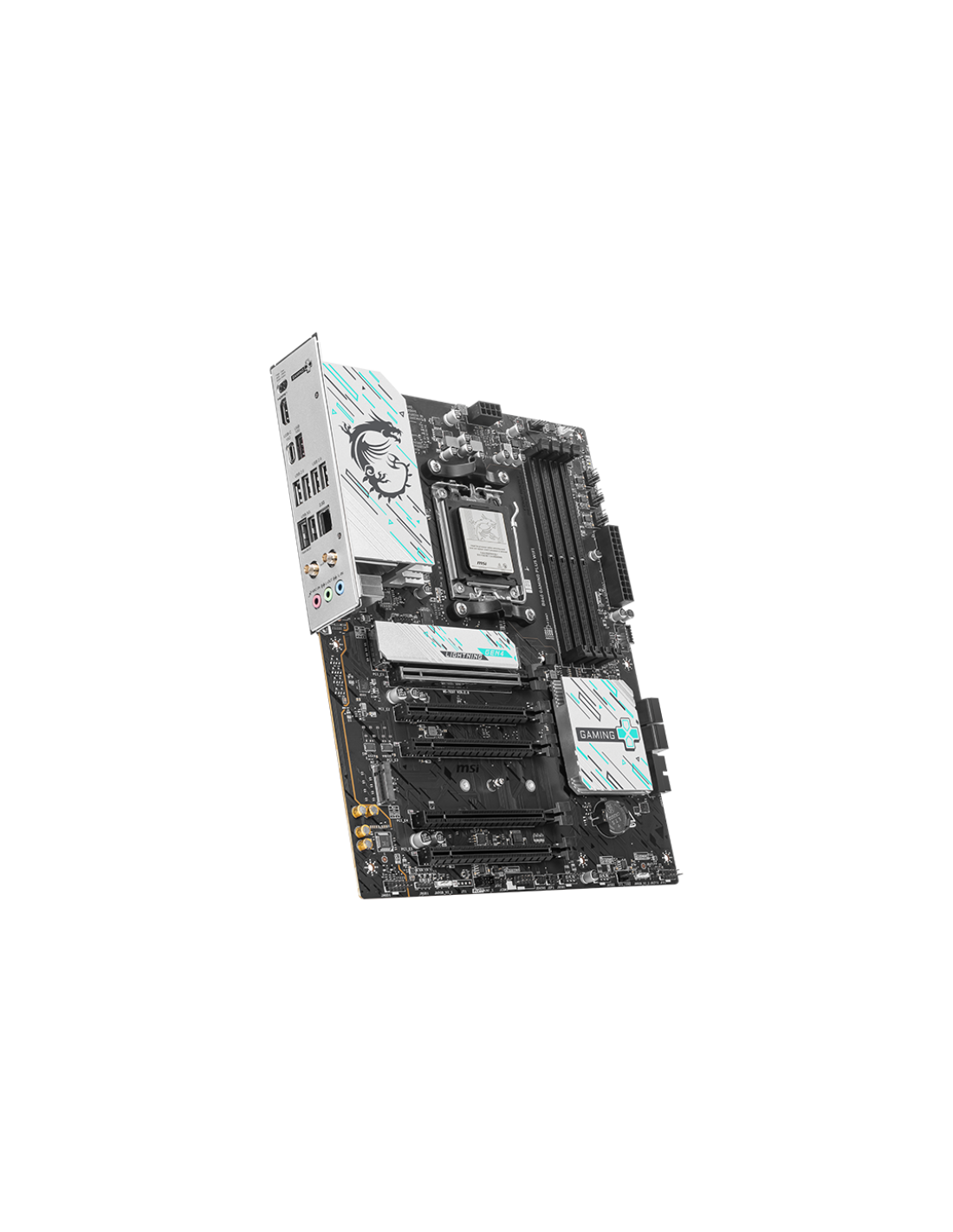

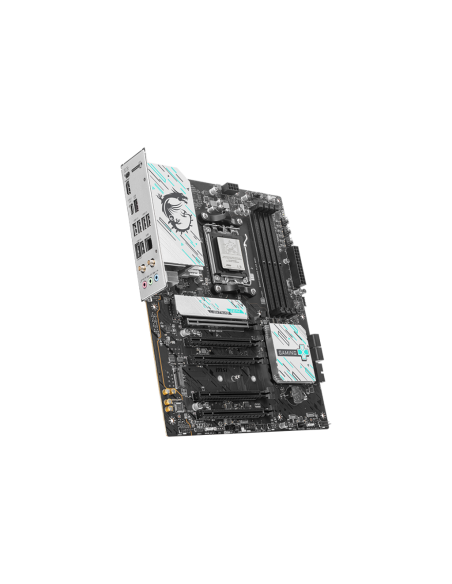

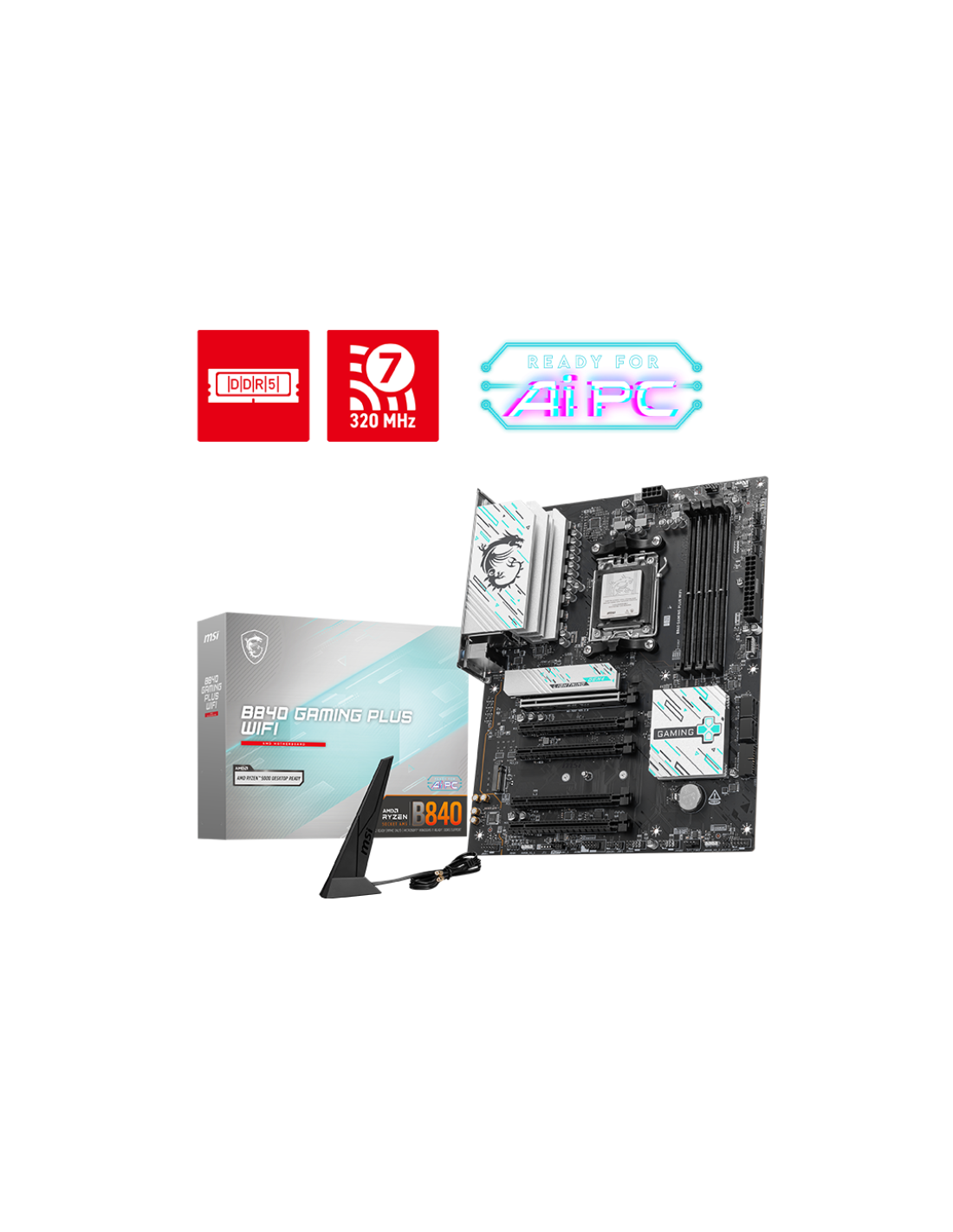

MSI B840 GAMING PLUS WIFI /AM5

Референция 911-7E57-002

На склад

141,76 €

С вкл. данък

911-7E57-002_MO

MSI B840 4xDDR5 4xSATA3 RAID HDMI 4xM2 GLAN 5xPCIEx16 WiFi_MO

Vendor_url: https://www.msi.com/Motherboard/B840-GAMING-PLUS-WIFI/Overview
Chipset: AMD B840
Manufacturer: MSI
Storage: 2x M.2;M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices;M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices;4x SATA 6G;M2_2 slot;• Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 7000 Series pr
Form Factor: ATX;243.84mmx304.8mm
Audio: Realtek® ALC897;7.1-Channel High Definition Audio
Warranty: 36 Months
Wireless: Wi-Fi 7 Solution;The Wireless module is pre-installed in the M.2 (Key-E) slot;Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps;Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
CPU's supported: Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5

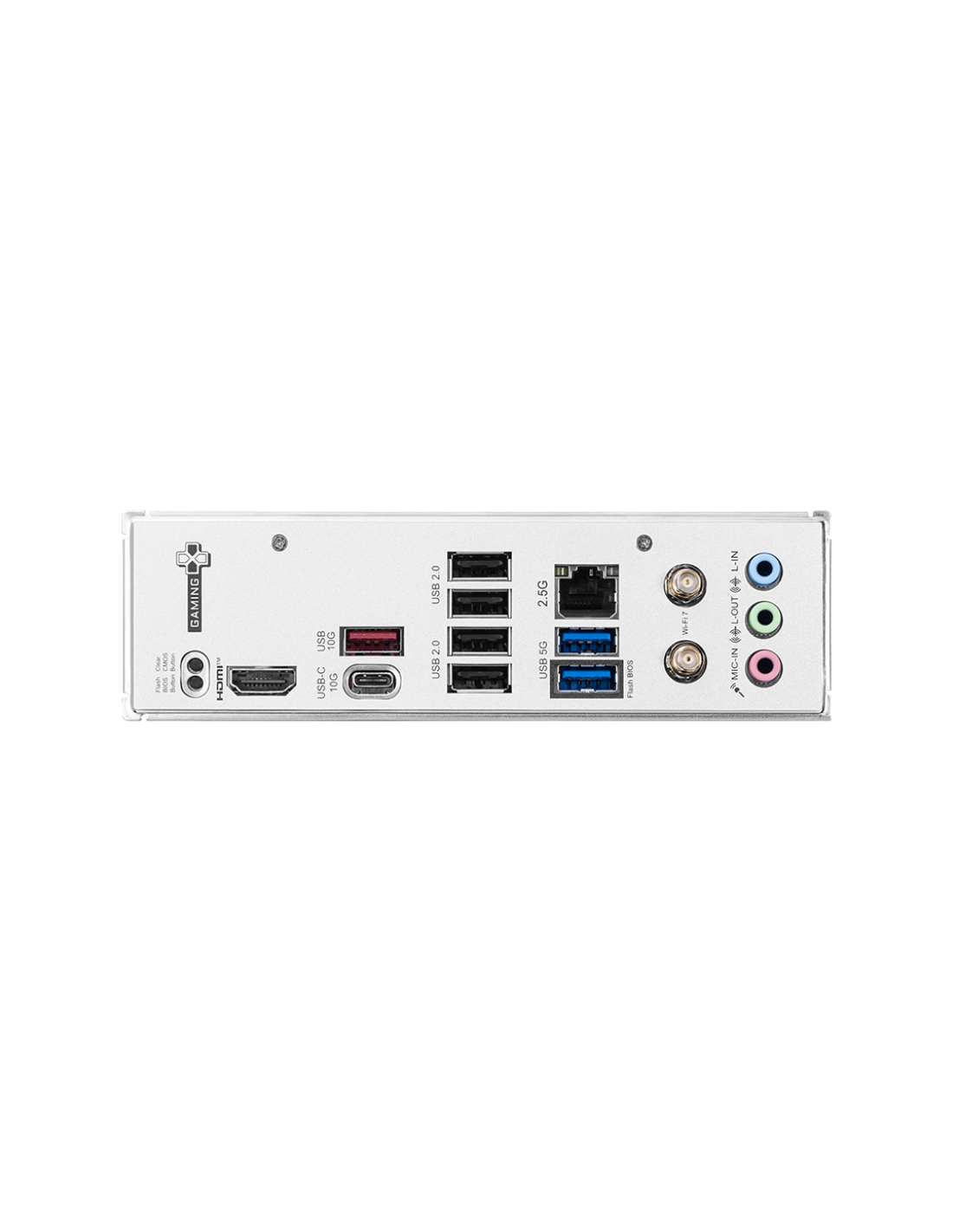

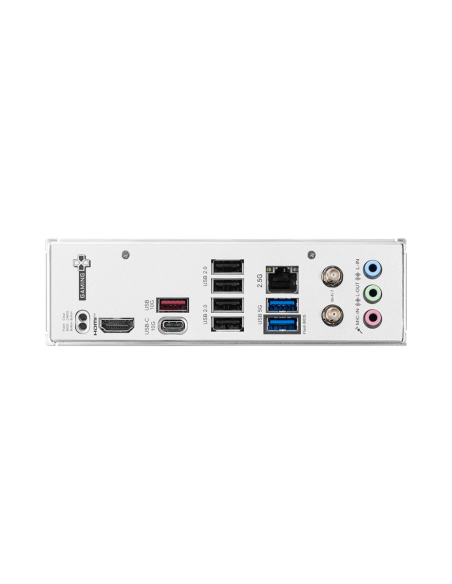

Rear panel I/O: 4x USB 2.0 (Rear);4x USB 2.0 (Front);2x USB 5Gbps Type A (Rear);2x USB 5Gbps Type A (Front);1x USB 5Gbps Type C (Front);1x USB 10Gbps Type A (Rear);1x USB 10Gbps Type C (Rear);*Please refer to the manual for M.2 SSD heatsink restrictions.
Bluetooth: Supports Bluetooth® 5.4**, MLO, 4KQAM
Expansion Slots: 5x PCI-E x16 slot;PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU);PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset);PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset);PCI_E4 Gen PCIe 3.0 supports up to x4 (From Chipset);PCI_E5 Gen PCIe 3.0 supports
LAN: Realtek® 8125BG 2.5G LAN
Connectors: 1x Power Connector(ATX_PWR);1x Power Connector(CPU_PWR);1x CPU Fan;1x Combo Fan (Pump_Sys Fan);4x System Fan;1x EZ Conn-header (JAF_1);2x Front Panel (JFP);1x Chassis Intrusion (JCI);1x Front Audio (JAUD);1x Com Port (JCOM);1x Tuning Controller connector(
Memory type: 4x DDR5 UDIMM, Maximum Memory Capacity 256GB;Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s;Ryzen™ 9000 Series Processors max. overclocking frequency;• 1DPC 1R Max speed up to 8000+ MT/s;• 1DPC 2R Max speed up to 6400+ MT/s;• 2DPC 1R
OS: Support for Windows® 11 64-bit
Graphics: 1x HDMI™;Support HDMI™ 2.1, maximum resolution of 4K 60Hz
Дънна платка - сокет: AM5
Дънна платка - чипсет: AMD B840
Дънна платка - поддържан тип памет: DDR5
Дънна платка - честота на паметта: 4800 MHz
5600 MHz
6400 MHz
8000 MHz
9000 MHz
Дънна платка - интерфейси: M.2 (NVMe) конектор
SATA 3.0
Дънна платка - портове: USB 2.0
USB 3.2
Дънна платка - форм фактор: ATX
