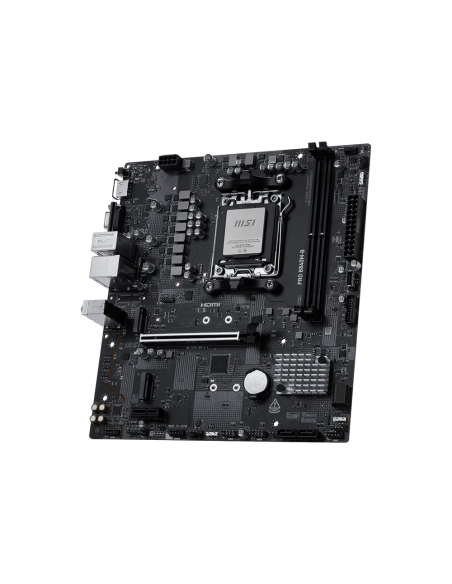

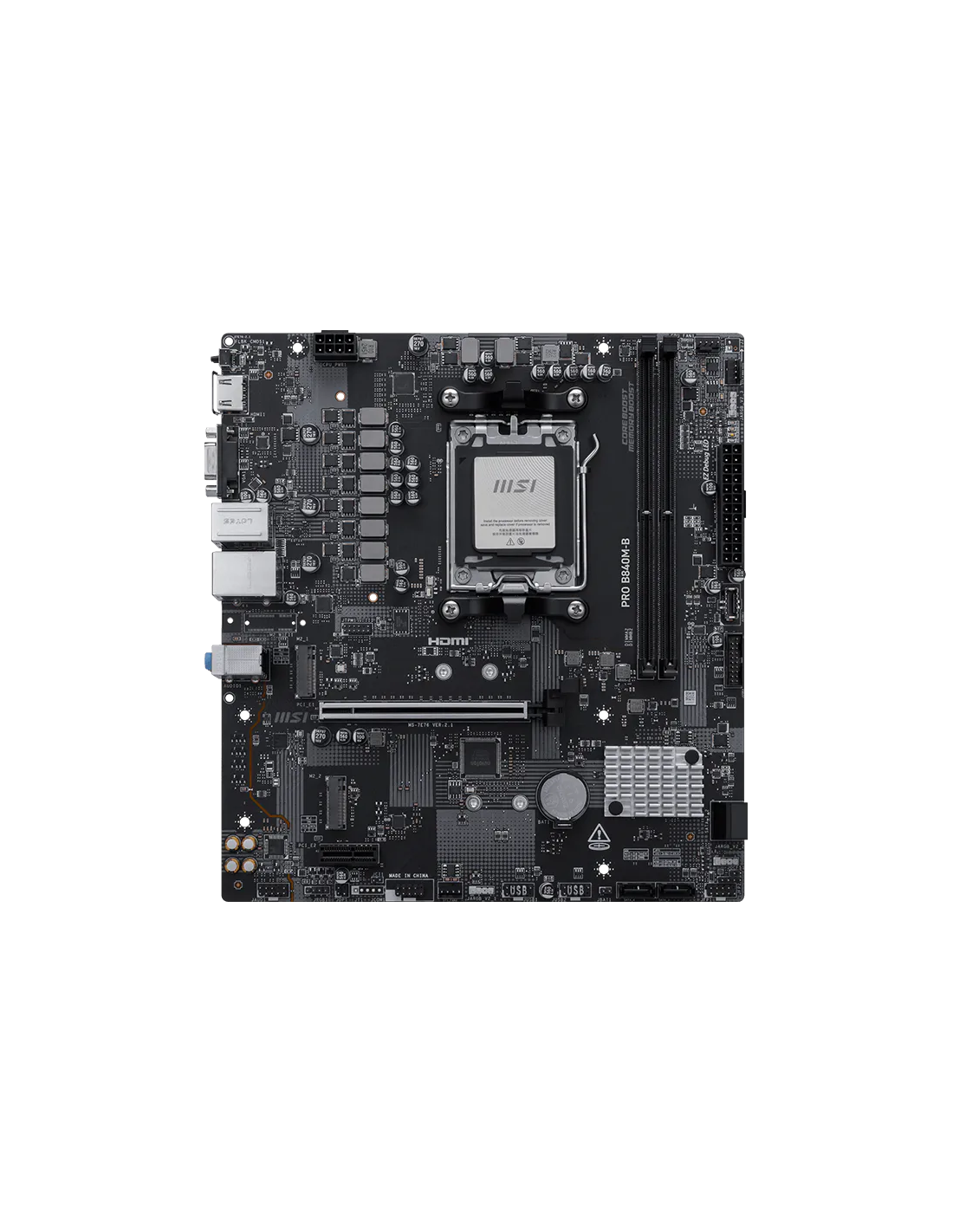

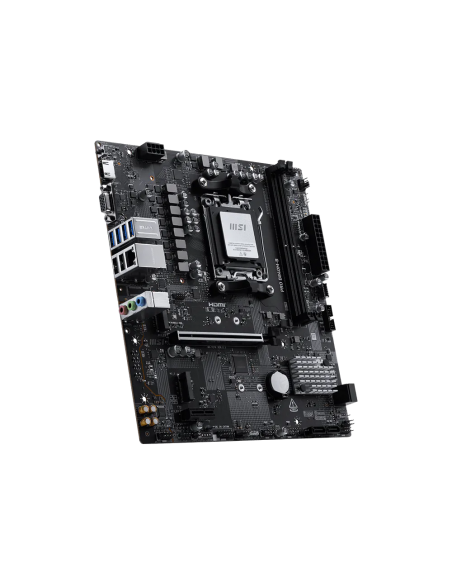

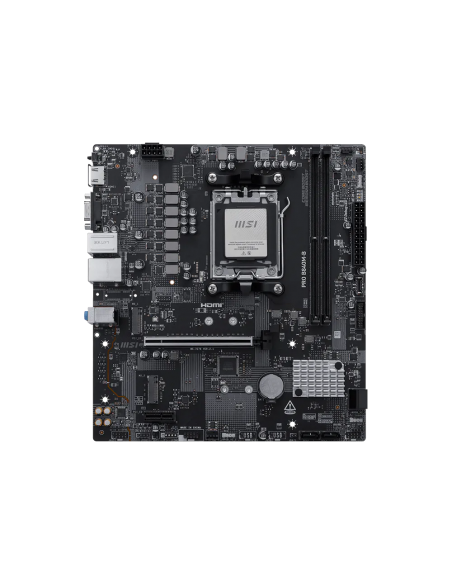

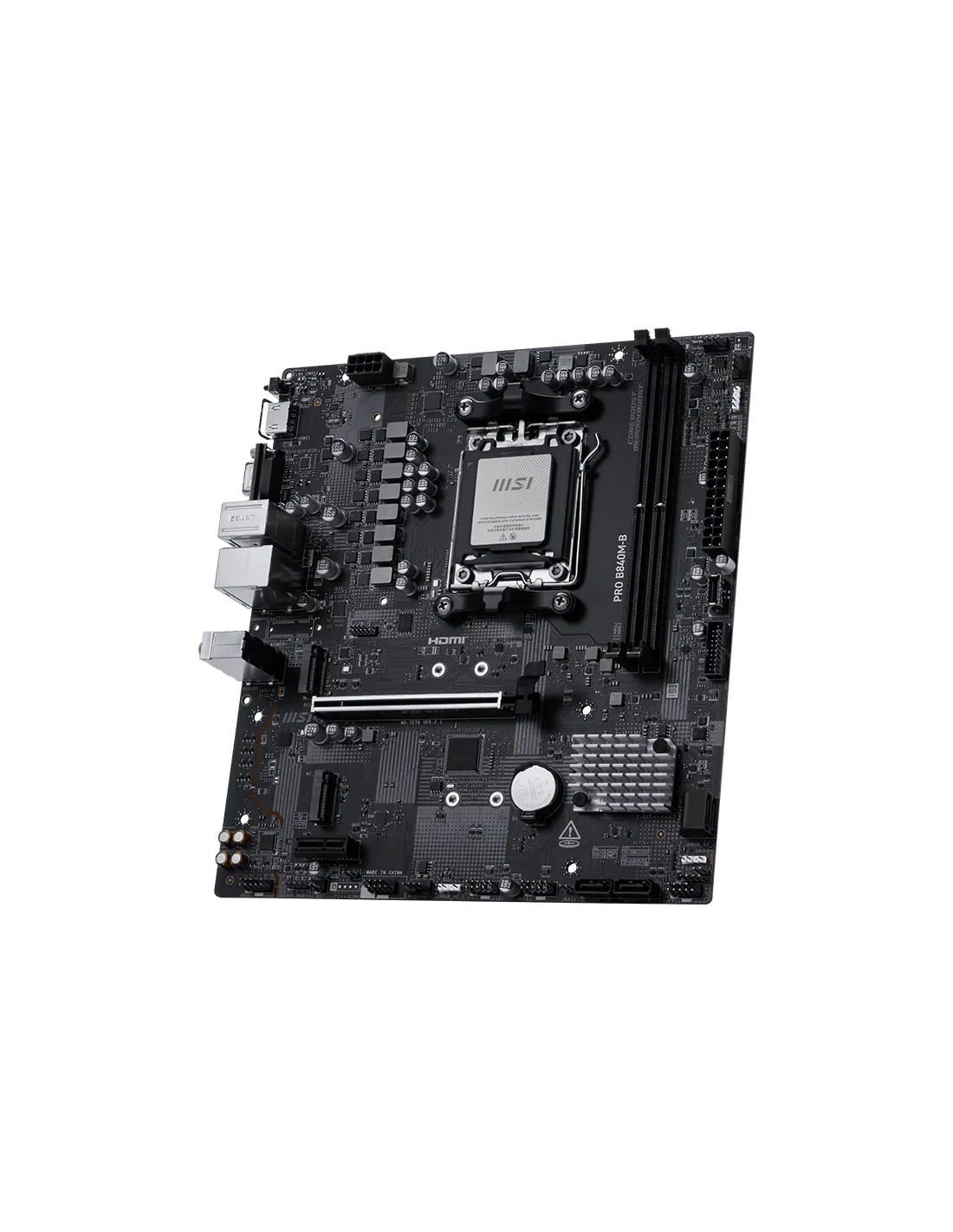

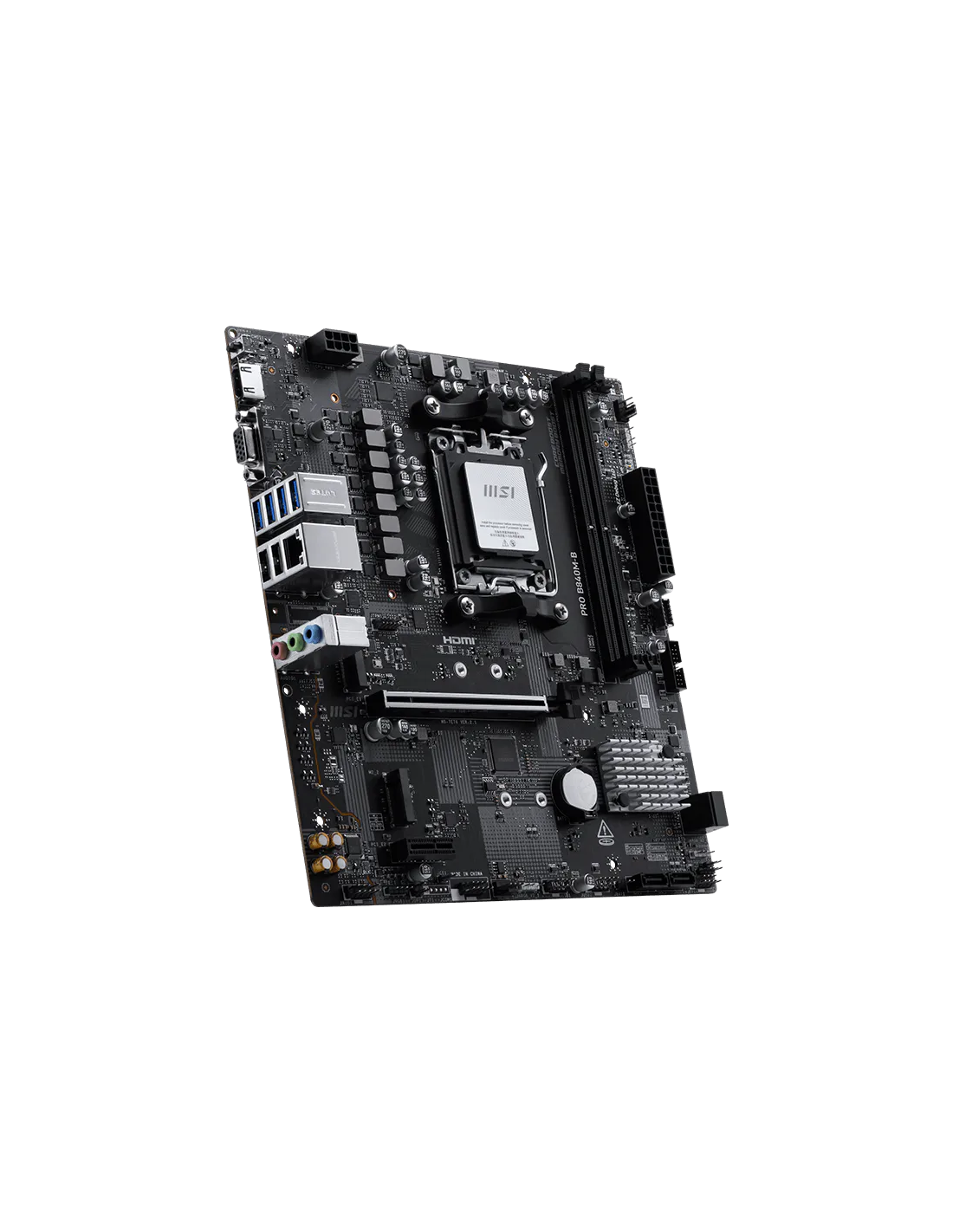

MSI PRO B840M-B

Референция 911-7E76-002

На склад

92,43 €

С вкл. данък

911-7E76-002_MO

_MO

Expansion Slots: 1x PCI-E x16 slot;
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU);
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset);

PCI_E1 slot;
• Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors);
• Supports PCIe 4.0 x8 (For Ryzen
LAN: Realtek® 8125D 2.5G LAN
Audio: Realtek® ALC897;
7.1-Channel High Definition Audio
Dimensions: mATX
226mmx243.84mm
Vendor_url: https://www.msi.com/Motherboard/PRO-B840M-B
Graphics: 1x HDMI™;
Support HDMITM 2.1, maximum resolution of 4K 60Hz;
1x VGA;
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
USB: 2x USB 2.0 (Rear);
4x USB 2.0 (Front);
4x USB 5Gbps Type A (Rear);
2x USB 5Gbps Type A (Front);
1x USB 5Gbps Type C (Front)
Chipset: AMD B840
Manufacturer: MSI
Storage: 2x M.2;
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices;
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices;
4x SATA 6G;

M2_2 slot;
• Supports up to PCIe 4.0 x4;
• Supports up to PCIe 4.0 x2 (F
Memory type: 2x DDR5 UDIMM, Maximum Memory Capacity 128GB;
Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s;
Ryzen™ 9000 Series Processors max. overclocking frequency:;
• 1DPC 1R Max speed up to 8000+ MT/s;
• 1DPC 2R Max speed up to 7200+ MT/s;

Su
OS: Support for Windows® 11 64-bit
Socket: Socket AM5

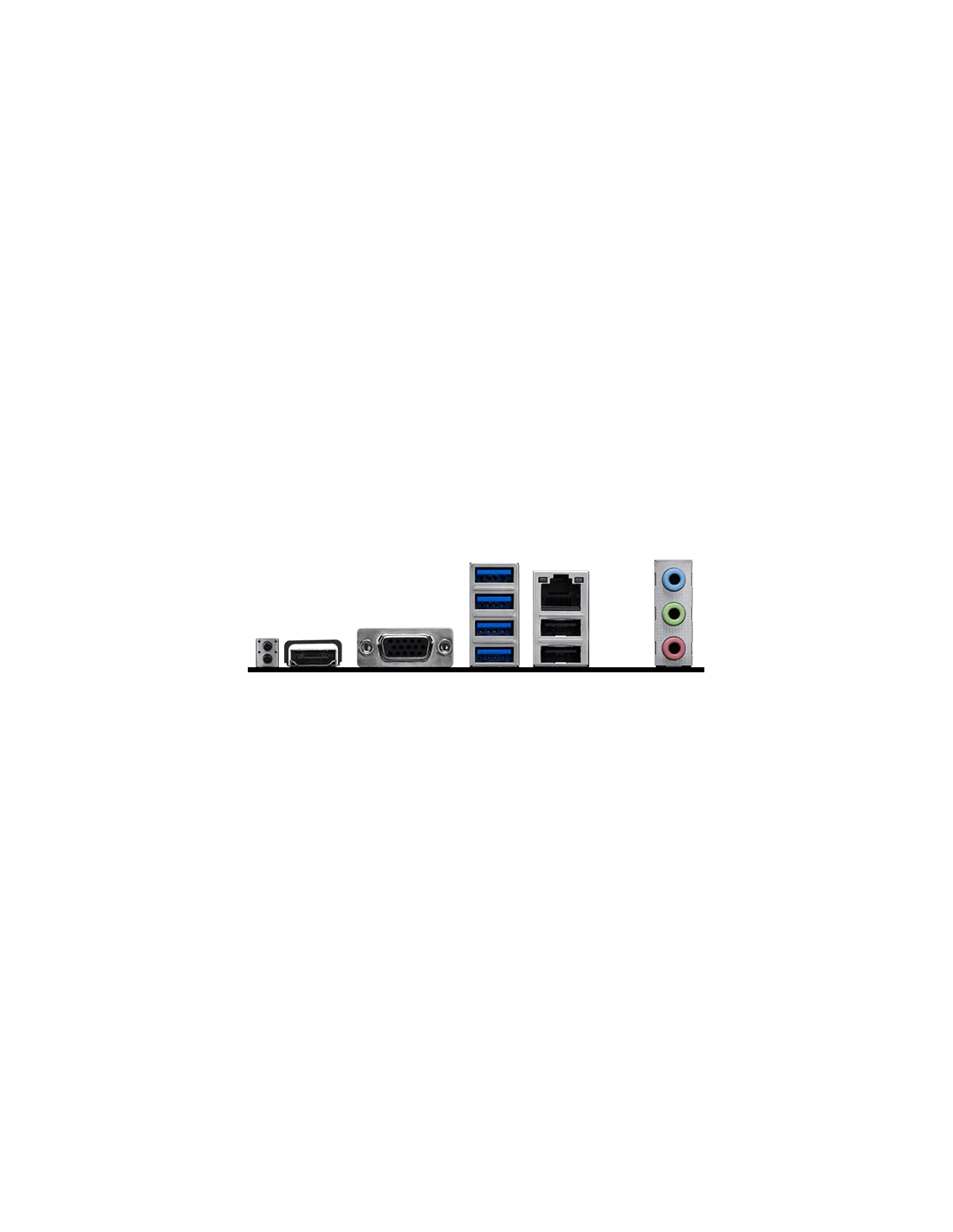

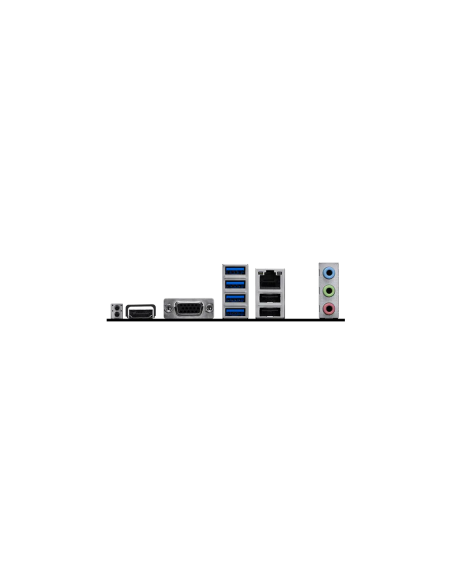

Rear panel I/O: 1x Power Connector(ATX_PWR);
1x Power Connector(CPU_PWR);
1x CPU Fan;
2x System Fan;
2x Front Panel (JFP);
1x Chassis Intrusion (JCI);
1x Front Audio (JAUD);
1x Com Port (JCOM);
3x Addressable V2 RGB LED connector (JARGB_V2);
1x RGB LED connector(JRGB);
1
CPU's supported: Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
RAID: Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices;
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Дънна платка - чипсет: AMD B840
Дънна платка - поддържан тип памет: DDR5
Дънна платка - честота на паметта: 4800 MHz
5600 MHz
7200 MHz
8000 MHz
9000 MHz
Дънна платка - интерфейси: M.2 (NVMe) конектор
SATA 3.0
Дънна платка - портове: USB 2.0
USB 3.2
