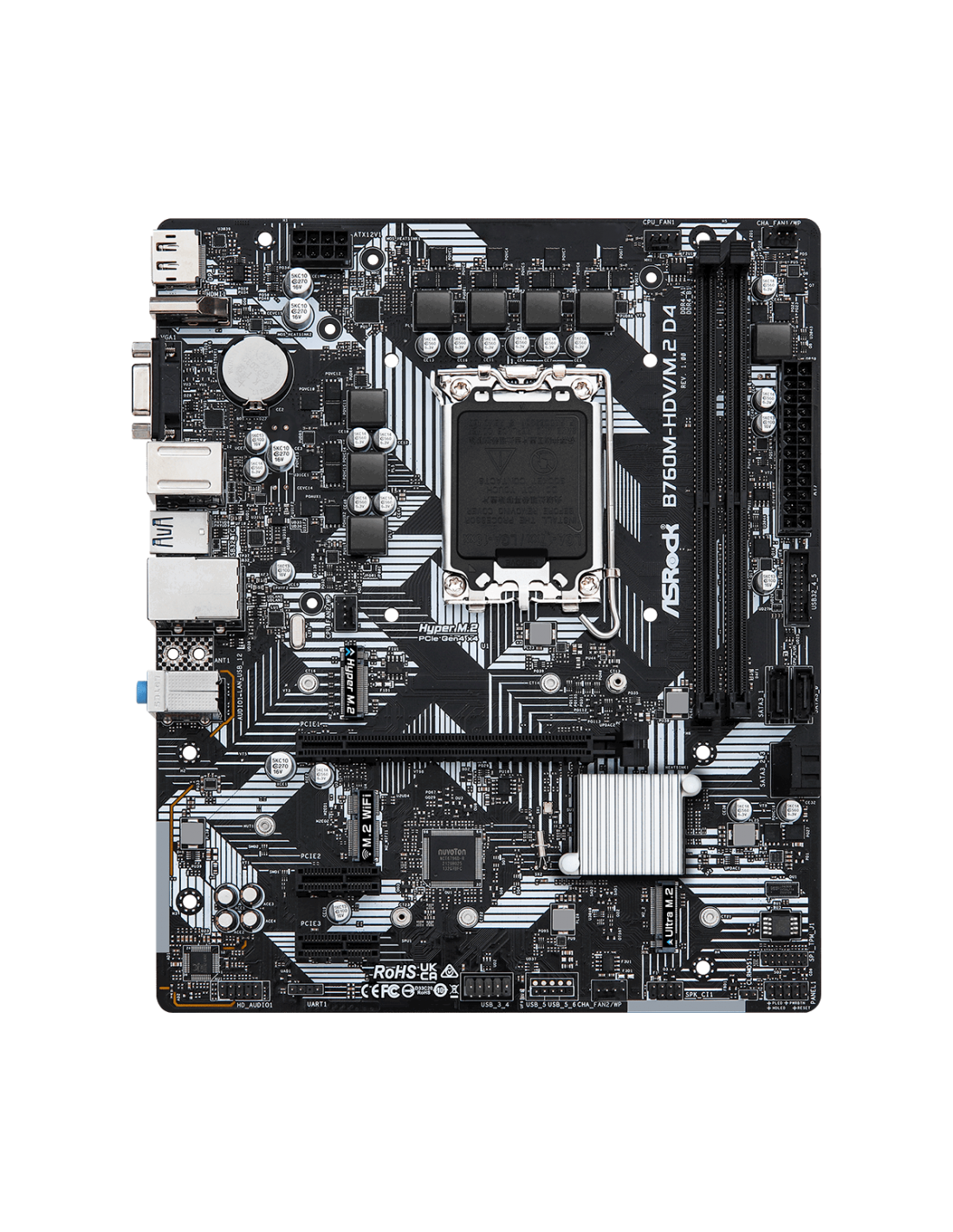

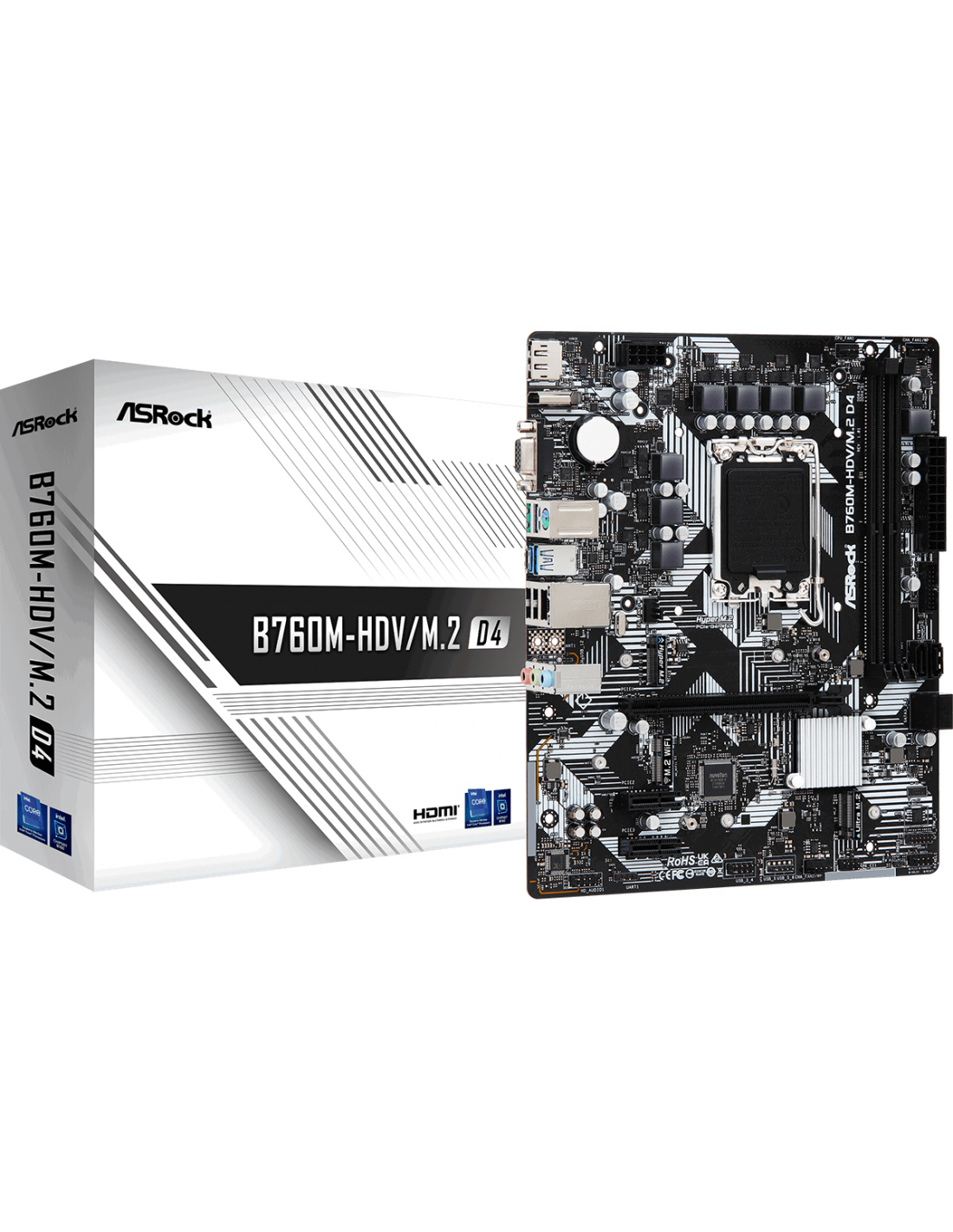

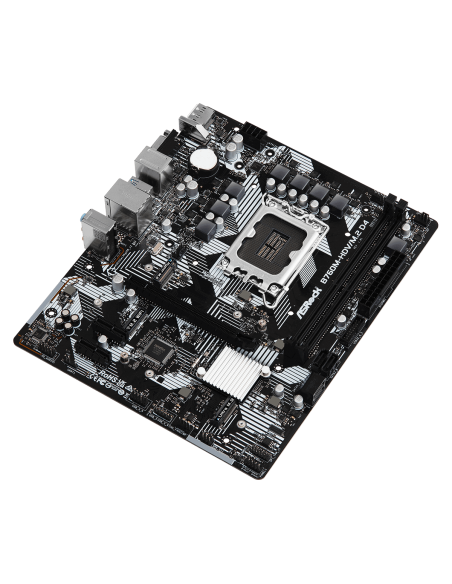

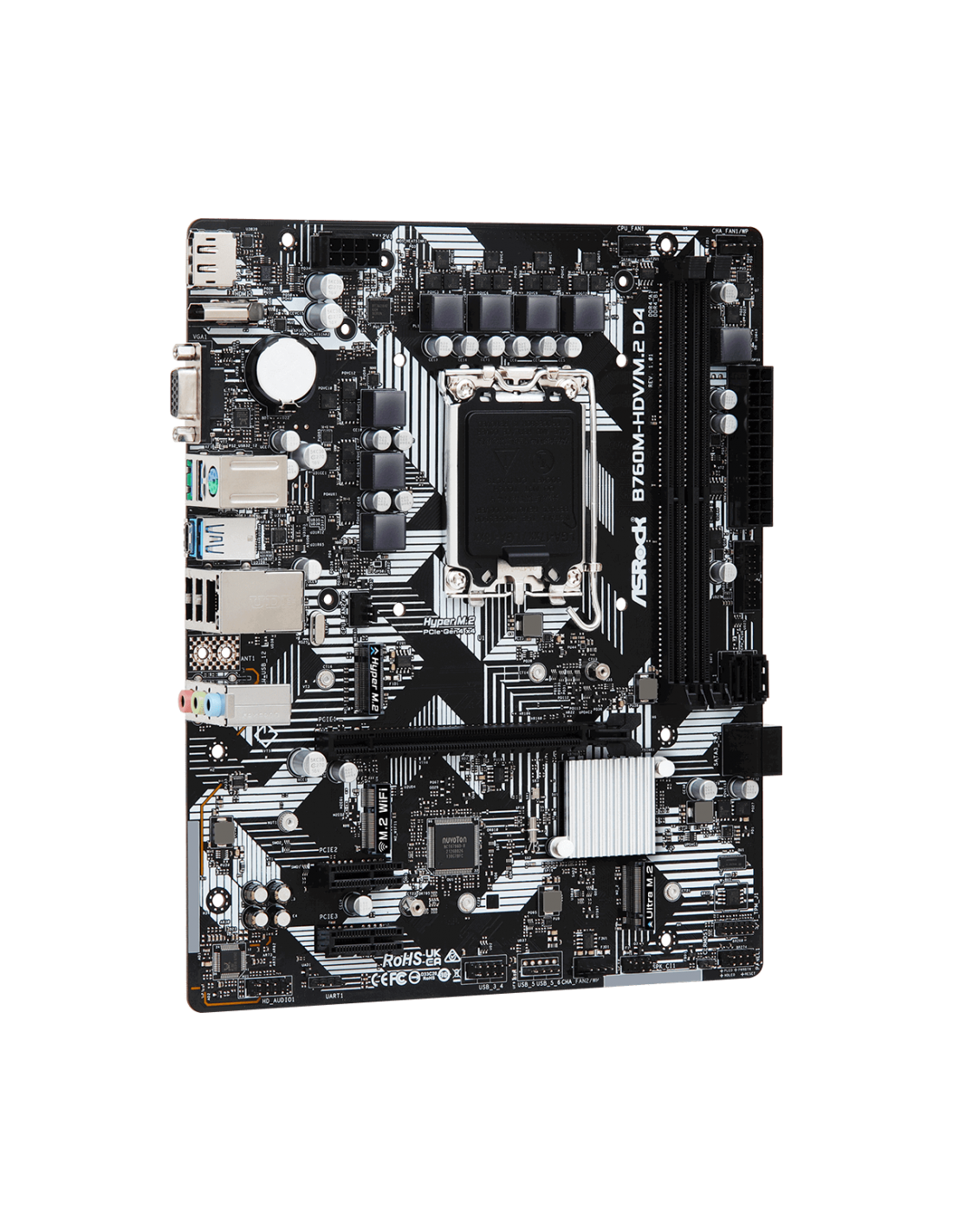

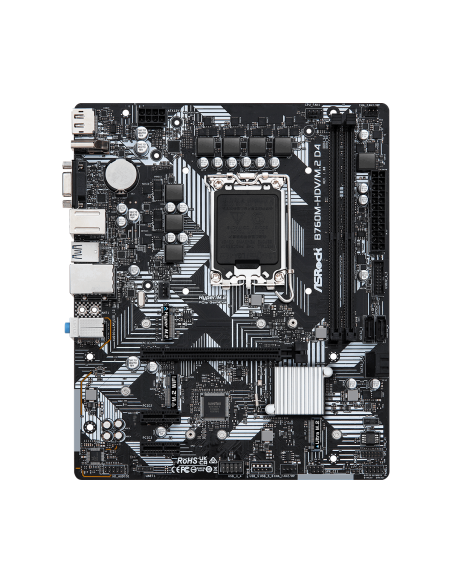

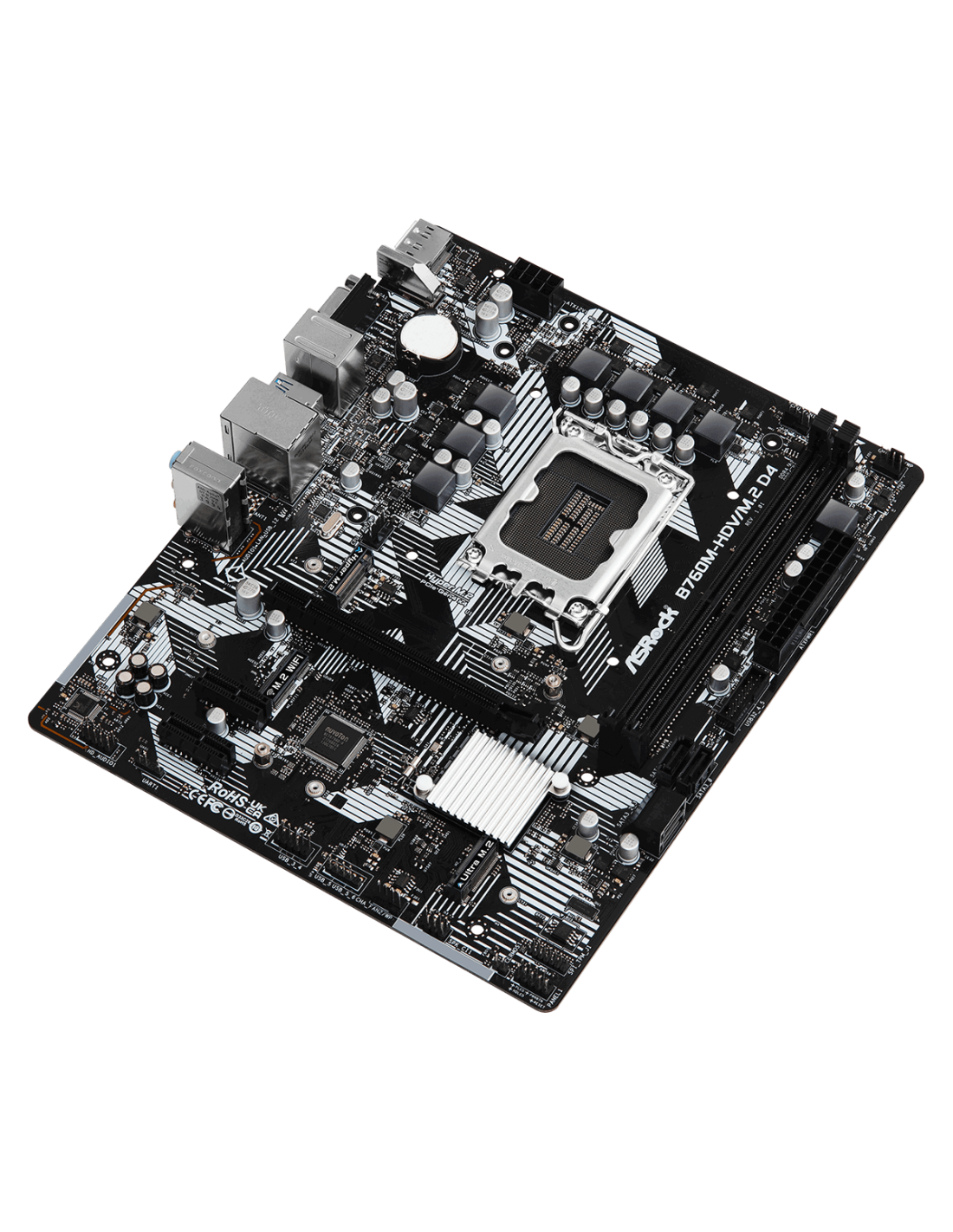

ASROCK B760M-HDV/M.2 D4

Референция B760M-HDV/M.2 D4

На склад

83,49 €

С вкл. данък

B760M-HDV/M.2 D4_MO

ASROCK B760 2xDDR4 4xSATA3 HDMI DP VGA 2xM2 GLAN 1xPCIEx16 2xPCIEx1

LAN: - Gigabit LAN 10/100/1000 Mb/s; - Realtek 8111H
Audio: - 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
Memory type: - Dual Channel DDR4 Memory Technology; - 2 x DDR4 DIMM Slots; - Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*; - Supports ECC UDIMM memory modules (operate in non-ECC mode); - Max. capacity of system memory: 64GB*; - Supports Intel® Extreme M
Vendor_url: https://www.asrock.com/mb/Intel/B760M-HDVM.2%20D4/index.asp#Specification
Graphics: - Intel® Xe Graphics Architecture (Gen 12); - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz; - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz; - 1 x D-Sub, supp
Expansion Slots: CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*; Chipset: - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*; - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
BIOS: - 128Mb AMI UEFI Legal BIOS with GUI support
Connectors: - 1 x SPI TPM Header; - 1 x Chassis Intrusion and Speaker Header; - 1 x CPU Fan Connector (4-pin)*; - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**; - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***; - 1 x
Form Factor: - Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm
OS: - Microsoft® Windows® 10 64-bit / 11 64-bit
Warranty: 36 Months

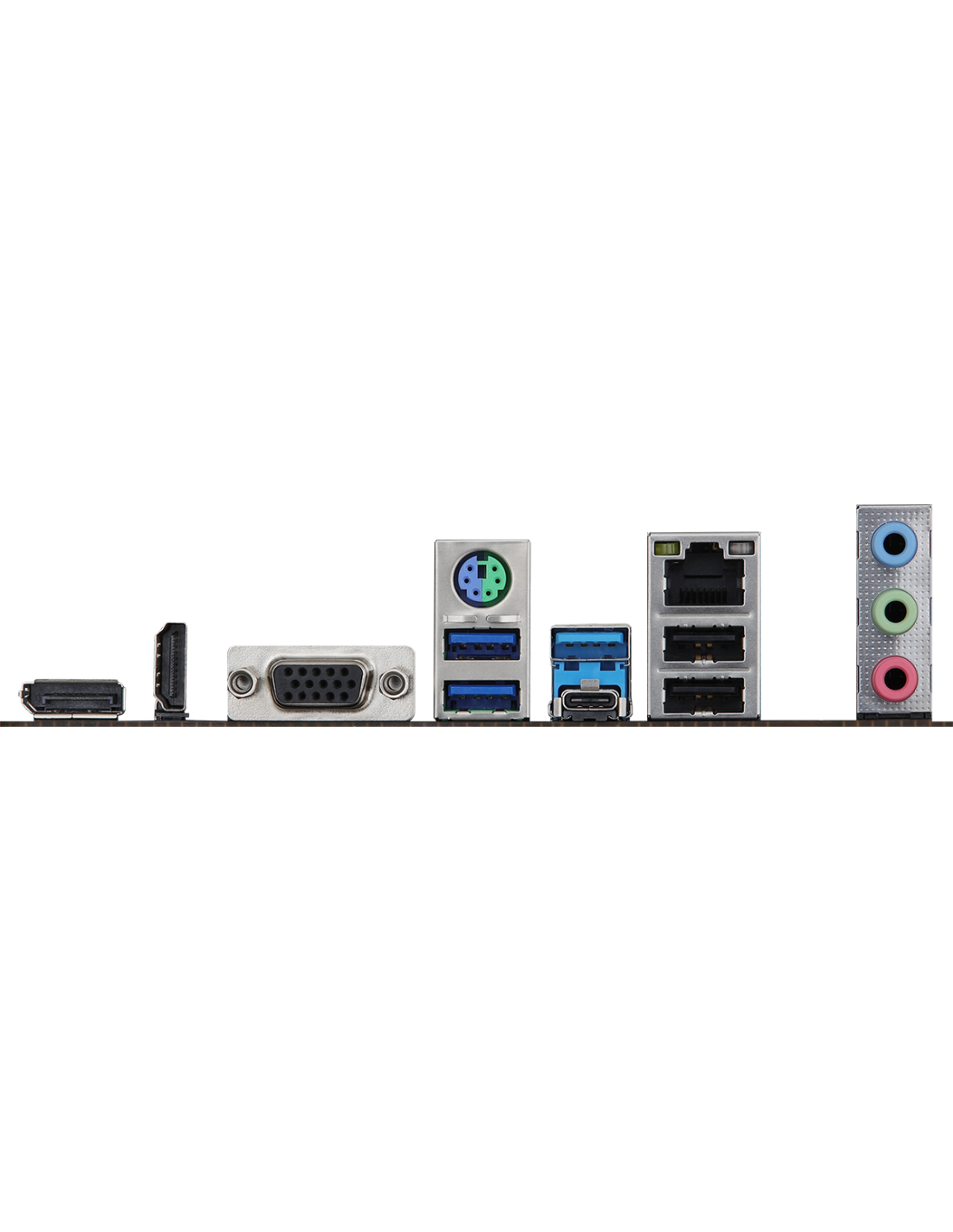

Rear panel I/O: - 2 x Antenna Mounting Points; - 1 x PS/2 Mouse/Keyboard Port; - 1 x D-Sub Port; - 1 x HDMI Port; - 1 x DisplayPort 1.4; - 1 x USB 3.2 Gen1 Type-C Port; - 3 x USB 3.2 Gen1 Type-A Ports; - 2 x USB 2.0 Ports; - 1 x RJ-45 LAN Port; - HD Audio Jacks: Line in
Chipset: - Intel® B760
Storage: CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*; Chipset: - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*; - 4 x SATA3 6.0 Gb/s Connectors**
Дънна платка - чипсет: INTEL B760
Дънна платка - поддържан тип памет: DDR4
Дънна платка - брой слотове за памет: 2 бр
Дънна платка - честота на паметта: 5333 MHz
Дънна платка - интерфейси: M.2 (NVMe) конектор
SATA 3.0
Дънна платка - портове: Display Port
HDMI
USB 2.0
USB 3.2
VGA
Дънна платка - форм фактор: Micro ATX
