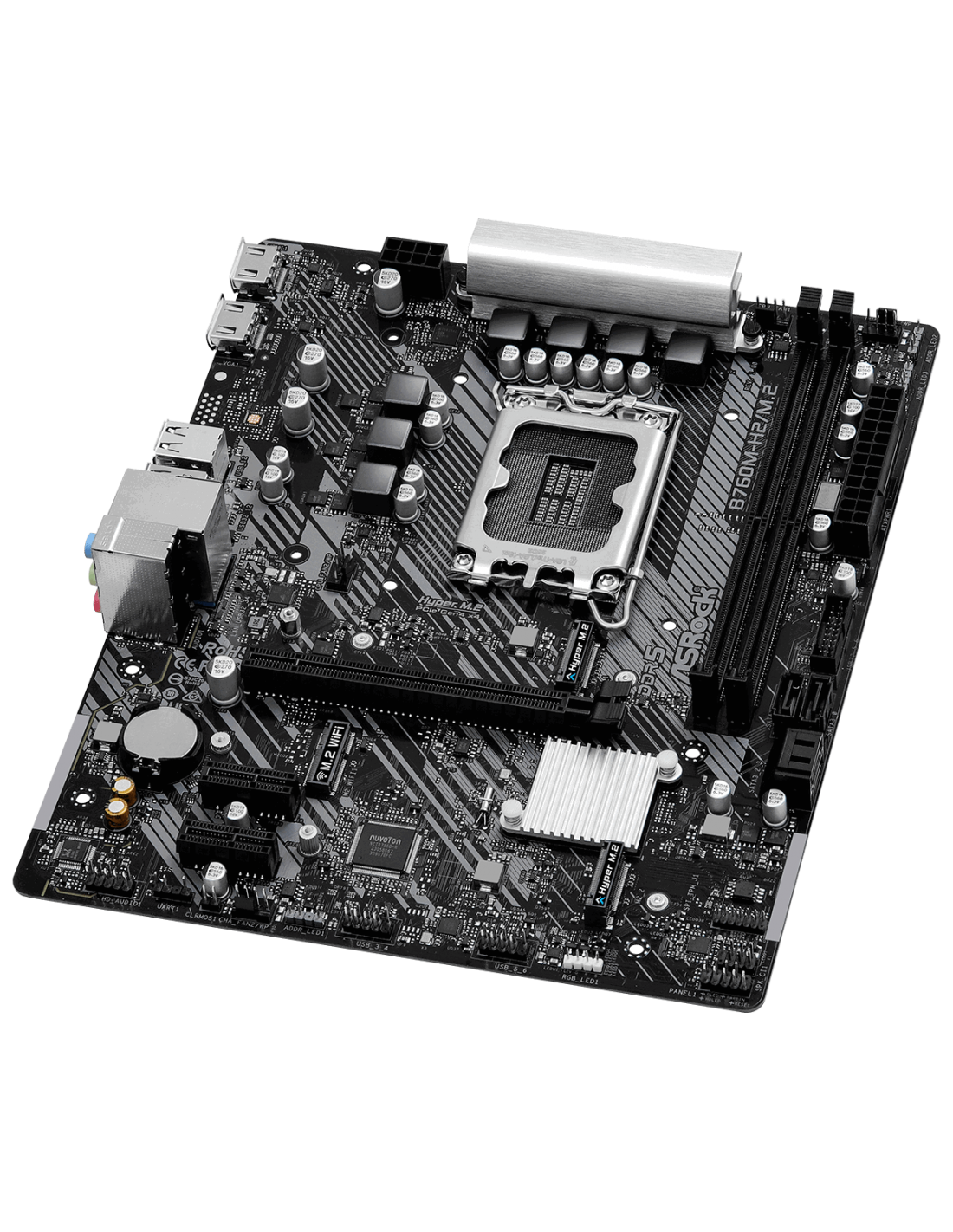

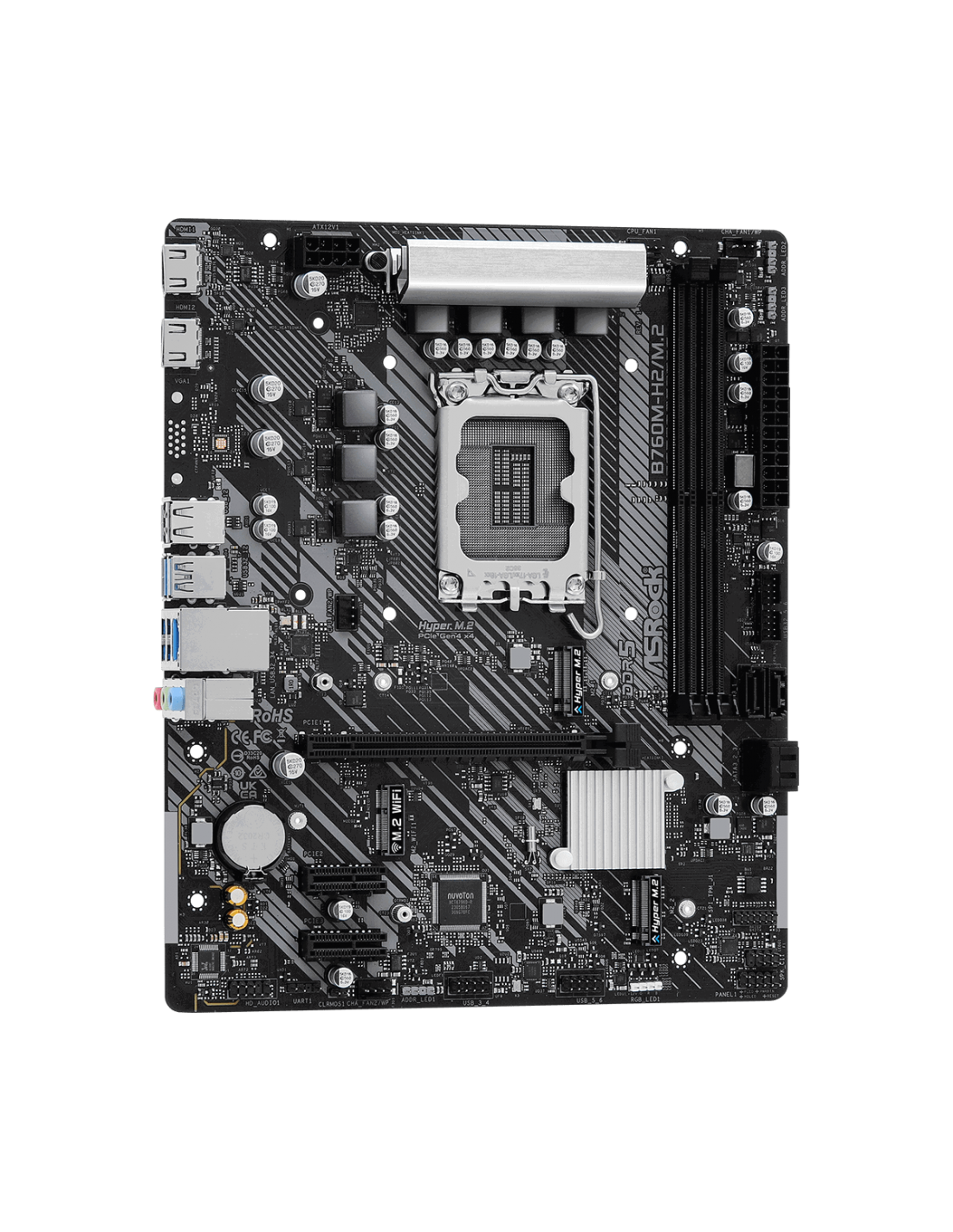

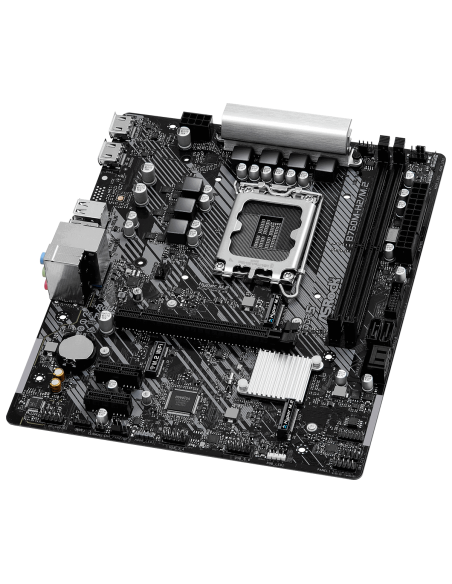

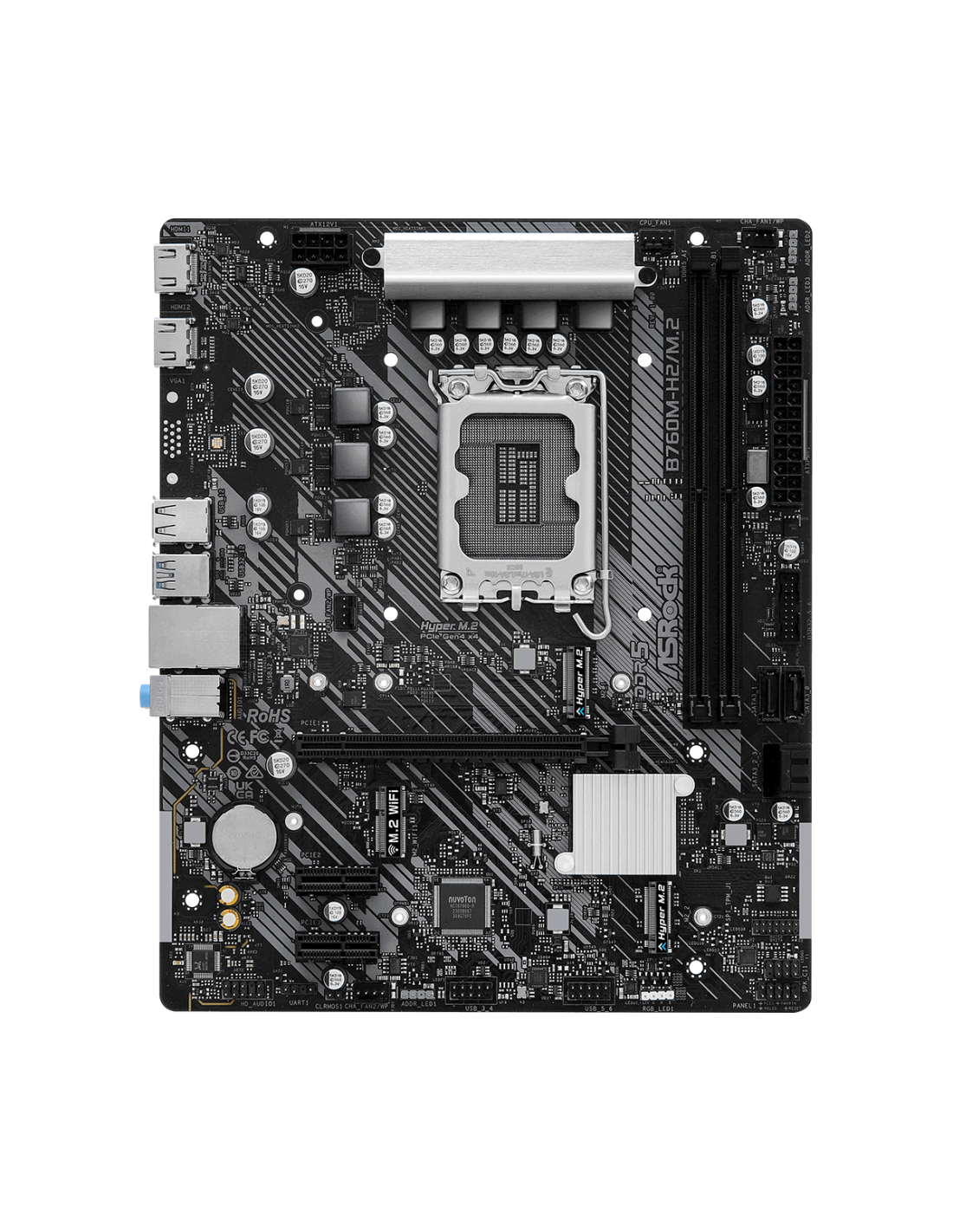

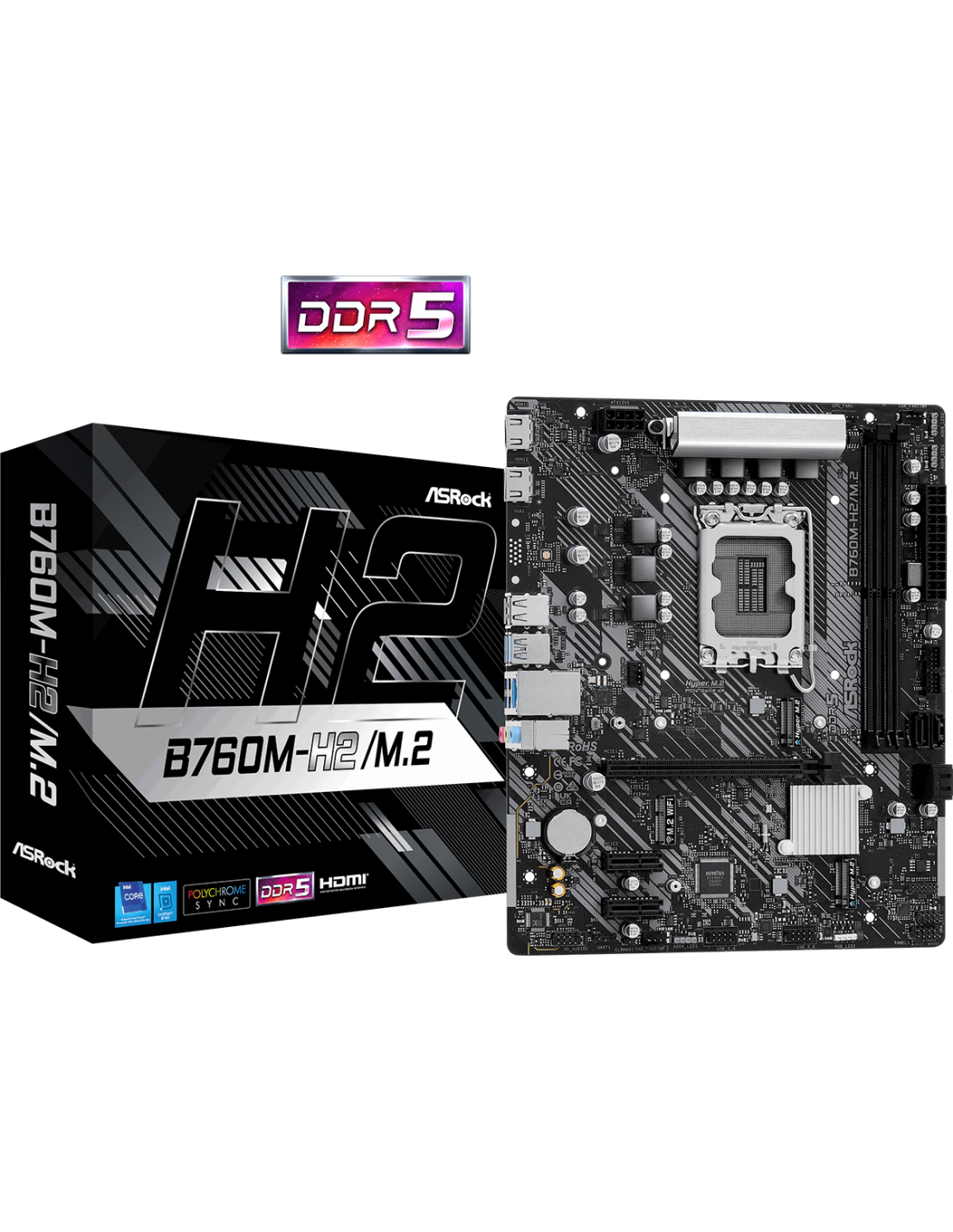

ASROCK B760M-H2/M.2 /D5/1700

Референция B760M-H2/M.2

На склад

88,00 €

С вкл. данък

B760M-H2/M.2_MO

ASROCK B760 2xDDR5 4xSATA3 2xHDMI 2xM2 GLAN 1xPCIEx16 2xPCIEx1

LAN: - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s; - Dragon RTL8125BG; - Supports Dragon 2.5G LAN Software; - Smart Auto Adjust Bandwidth Control; - Visual User Friendly UI; - Visual Network Usage Statistics; - Optimized Default Setting for Game, Browser, and Strea
Audio: - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Memory type: - Dual Channel DDR5 Memory Technology; - 2 x DDR5 DIMM Slots; - Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*; - Max. capacity of system memory: 96GB; - Supports Intel® Extreme Memory Profile (XMP) 3.0
Vendor_url: https://www.asrock.com/MB/Intel/B760M-H2M.2/index.asp#Specification
Graphics: - Intel® Xe Graphics Architecture (Gen 12); - 2 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
Expansion Slots: CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*; Chipset: - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*; - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
BIOS: - 128Mb AMI UEFI Legal BIOS with GUI support
Connectors: - 1 x SPI TPM Header; - 1 x Chassis Intrusion and Speaker Header; - 1 x RGB LED Header*; - 3 x Addressable LED Headers**; - 1 x CPU Fan Connector (4-pin)***; - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****; - 2 x Chassis/Water Pum
Form Factor: - Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm
OS: - Microsoft Windows® 10 64-bit / 11 64-bit
Warranty: 36 Months

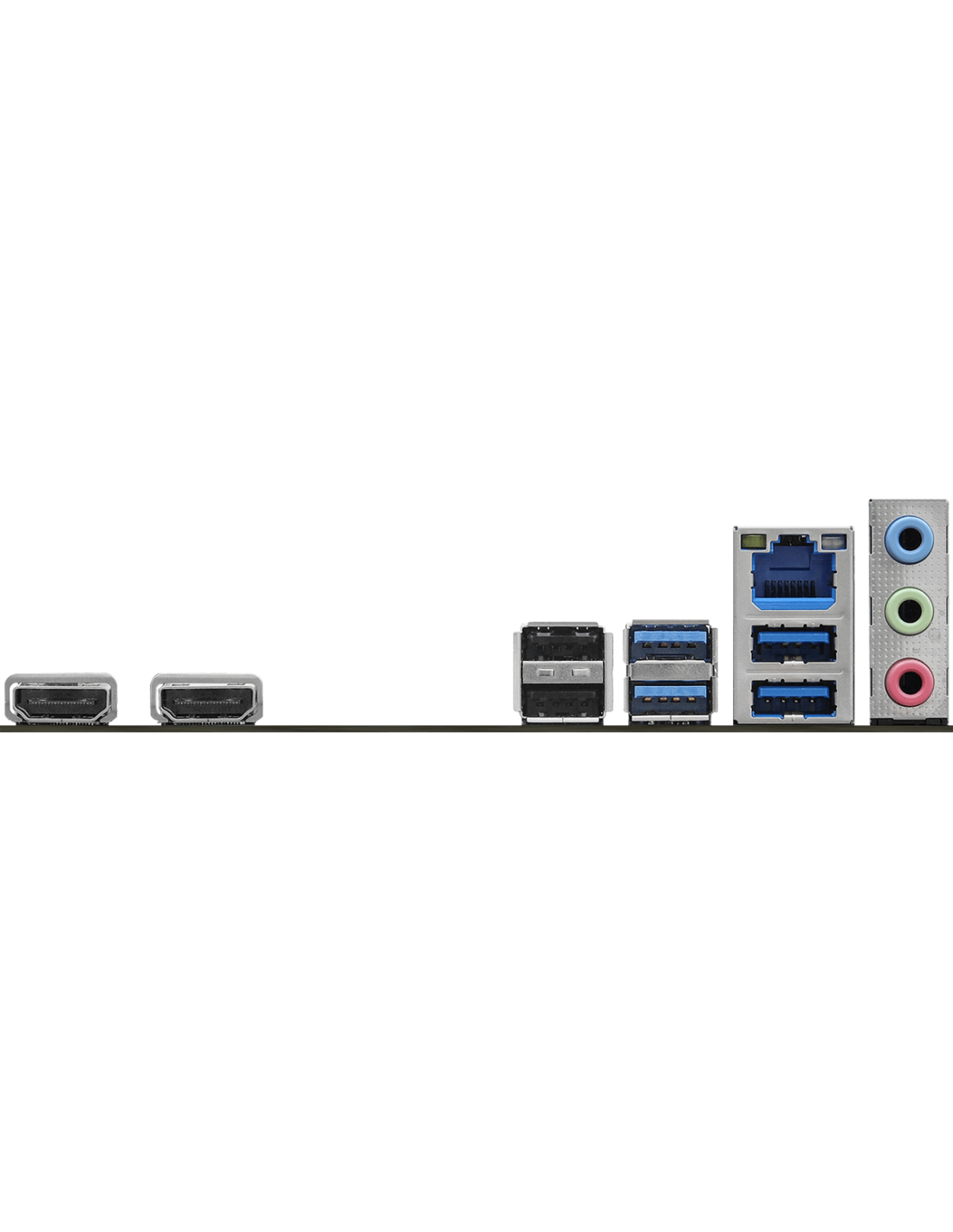

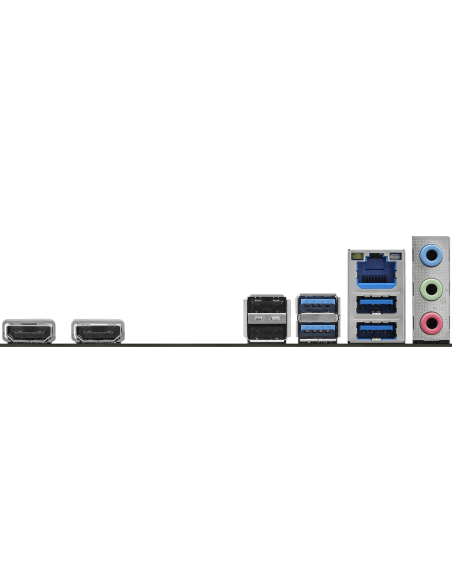

Rear panel I/O: - 2 x Antenna Mounting Points; - 2 x HDMI Ports; - 4 x USB 3.2 Gen1 Type-A Ports; - 2 x USB 2.0 Ports; - 1 x RJ-45 LAN Port; - HD Audio Jacks: Line in / Front Speaker / Microphone
Chipset: - Intel® B760
Storage: Chipset: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*; - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) modes*; - 4 x SATA3 6.0 Gb/s Connectors
Дънна платка - чипсет: INTEL B760
Дънна платка - поддържан тип памет: DDR5
Дънна платка - брой слотове за памет: 2 бр
Дънна платка - честота на паметта: 7200 MHz
Дънна платка - интерфейси: M.2 (NVMe) конектор
SATA 3.0
Дънна платка - портове: HDMI
USB 2.0
USB 3.2
Дънна платка - форм фактор: Micro ATX
